Yamato VC2300 Parts Book (PDF)

Coverstitch · also listed as 2300Download PDF

Text index — Yamato VC2300

Page 5 — MISCELLANEOUS COVER (1)

Yamato VC2300 parts on page 5
Ref	Part number	Part name	Qty
1	3210002	Top Cover	1
2	110045	Screw(M4-0.7 × 12)	15
3	3100027	Top Cover Gasket	1
4	0068011	Oil Sight Window	1
5	0020759	Top Cover Seal Plug	1
7	3204040	Head Cover	1
8	3100019	Head Cover Gasket	1
9	0093864	Head Cover Seal Plug	1
11	3040039	Bed Rear Cover	1
12	0095108	Bed Rear Cover Gasket	1
13	3204043	Side Cover	1
14	170001	Screw(M5-0.8 × 8)	1
15	300100	Conical Spring Washer	2
16	180005	Screw(M5-0.8 × 8)	1
17	160000	Screw(M3-0.5 × 3)	1
18	0032604	Rubber Cushion(Large)	1
19	3200033	Rubber Cushion(Small)	2
20	0094201	Cover Latch Spring	1
21	110012	Screw(M4-0.7 × 5)	1
22	110013	Screw(M4-0.7 × 8)	1
24	190078	Screw(M4-0.7 × 5)	1
25	000015	Nut	1
26	110016	Screw(M4-0.7 × 15)	1
27	330000	Seal Plug	1
29	009970	Screw(M6-1 × 20)	6
30	340016	Machine Frame Supporting Bar	4
31	4109406	Model Plate(See the below)	1
32	000726	Rivet	5
33	3200007	Oil Reservoir Gasket	1
34	3200245	Oil Reservoir	1
35	0020137	Drain Hole Seal	1
36	005075	Screw(3/8-24 × 8)	1
37	2049401	Serial Number Plate	1

Page 7 — MISCELLANEOUS COVER (2)

Yamato VC2300 parts on page 7
Ref	Part number	Part name	Qty
1	3210005	Cloth Plate(Large)	1
2	009749	Screw(M4-0.7 × 16)	3
3	009747	Screw(M4-0.7 × 10)	1
4-1	3200018	Looper Thread Take-up Cover(32,40,48,56)	1
4-2	3200035	Looper Thread Take-up Cover(64)	1
5	006004	Screw(11/64-40 × 9.7)	1
6	000010	Conical Spring Washer	1
7	3200019	Take-up Cover Spring	1
8	110030	Screw(M3-0.5 × 2.6)	2
9	3204041	Cloth Plate(Small)	1
10	130003	Screw(M4-0.7 × 7.3)	1
11	130004	Screw(M4-0.7 × 14)	1
12	3100006	Seal Plug	1
13	110013	Screw(M4-0.7 × 8)	8
14	110079	Screw(M4-0.7 × 8)	2
15	3200024	Bed Top Cover(Right)	1
16	3200025	Bed Top Cover(Right) Gasket	1
17	007610	Screw(M4-0.7 × 10)	8
18	130006	Screw(M4-0.7 × 10)	2
19	3200022	Bed Top Cover(Left)	1
20	3200023	Bed Top Cover(Left) Gasket	1
21	3200209	Feed Regulating Pushbutton	1
22	0063152	Feed Regulating Pushbutton Spring	1
23	0020472	O-ring(P6)	1
24	000425	Washer	1
25	0033024	Retaining Ring	1
26	0065275	Seal Plug	1
27	0093864	Seal Plug	5
28	3100113	Needle Bar Guard	1
29	3200028	Bed Rear Cover(Small)	1
30	3200029	Bed Rear Cover(Small) Gasket	1
31	3200030	Ball Bearing Housing	1
32	3200031	O-ring	1
33	110048	Screw(M4-0.7 × 10)	3
36	3200032	Stitch Plate Support	1
37	110041	Screw(M4-0.7 × 8)	2
38	000745	Knock Pin	2
39	3200026	Bed Front Cover	1
40	3200027	Bed Front Cover Gasket	1

Page 9 — MISCELLANEOUS COVER(2)

Yamato VC2300 parts on page 9
Ref	Part number	Part name	Qty
41	3040040	Front Cover Hinge	1
42	110016	Screw(M4-0.7 × 15)	2
43-1	3204042	Front Cover(32, 40, 48, 56)	1
43-2	3204044	Front Cover(64)	1
44	170020	Screw(M4-0.7 × 8)	1
45	300100	Conical Spring Washer	2
46	160001	Screw(M4-0.7 × 4)	1
47	180017	Screw(M4-0.7 × 6)	1
48	3200033	Rubber Cushion(Small)	2
49	3200016	Front Cover Spring	1
50	110012	Screw(M4-0.7 × 5)	2
51	180018	Screw(M4-0.7 × 7)	1
53	3201454	Supporting Block	1
54	130002	Screw(M3-0.5 × 6)	2
55	3201457	Guide Spacer	1
56	3100630	Fabric Edge Guide(Left)	1
57	0095367	Fabric Edge Guide Chip	1
58	004182	Screw(3/32-56 × 2.5)	1
59	3100631	Fabric Edge Guide(Right)	1
60	000538	Washer	2
61	110031	Screw(M4-0.7 × 12)	2

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VC2300 parts on page 11
Ref	Part number	Part name	Qty
1	0024084	Thread Tension Spring Cap	5
2	0024083	Tension Spring Bushing	5
3	0030255	Tension Spring (Needle Thread)	3
4	0032952	TensionSpring(TopCover&LooperThread)	2
5	0090071	Thread Tension Spring Retainer	5
6	000177	Felt	5
7	0031111	Tension Disc	10
8	290029	Tension Post	5
9	0090812	Tension Post Ferrule	5
10	3100075	Tension Disc Separator	1
11	0090856	Tension Disc Eyelet	5
12	0090807	Thread Lead-in Guide	5
13	3100074	Tension Post Support	1
14	110013	Screw(M4-0.7×8)	6
15	3211010	Looper Thread Eyelet	1
17	3200048	Top Cover Thread Eyelet(Left)	1
18	3200042	Looper Thread Eyelet	1
19	110009	Screw(M4-0.7×8)	6
20	0093556	Looper Thread Eyelet(Long)	1
21	0020119	Thread Eyelet Pipe(Short)	2
22	0093528	Thread Eyelet Pipe Stay	2
23	000532	Washer	2
24	004353	Screw(9/64-40×7)	2
25	0063104	Thread Guide Plate	1
26	3200047	Top Cover Thread Eyelet(Right)	1
27	000538	Washer	2
28	000651	Guide Pin	1
30	3100383	SP Device, Complete Set	1
31	3100384	SP Container	1
33	3100386	Felt	1
34	3100387	Needle Thread Eyelet	1
35	350009	Wood Screw(φ5.5×6)	2
37	0090068	Needle Thread Guide	1
39	3100442	Needle Thread Eyelet	1
40	130003	Screw(M4-0.7×4.5)	1
45	3203001	Top Cover Thread Guide, C. Set	1
46	3200045	Top Cover Thread Guide	1
47	0063074	Supplementary Thread Guide	1
48	001818	Tension Post	1
49	0037108	Supplementary Tension Disc	2
50	0035813	Supplementary Tension Spring	1
51	000360	Nut	1

Page 13 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VC2300 parts on page 13
Ref	Part number	Part name	Qty
1	3500309	Oil Seal	2
2	000195	Oil Wick	1
3	3204021	Oil Seal	1
4	3200059	Presser Bar Bushing	1
5	0030291	Oil Seal	1
6	3100100	Spreader Driving Bar Bushing	1
7	0063055	Oil Seal	1
8	3200063	Spreader Driving Shaft Bushing(Left)	1
9	3200064	Spreader Driving Shaft Bushing(Right)	1
10	3160136	Foot Lifter Lever Bushing	1
11	3200068	Needle Thread Take-up Bushing(Front)	1
12	3100098	Needle Thread Take-up Bushing(Rear)	1
13	3200050	Lower Shaft Bushing(Left)	1
14	3200067	Oil Seal	1
15	3200062	Looper Rocker Shaft Bushing(Left)	1
16	3200052	Looper Rocker Shaft Bushing(Right)	1
17	0077300	Oil Seal	1
18	3200056	Needle Guard Driving Shaft	2
19	3200057	Seal Plug	1
20	3200053	Feed Bar Driving Shaft Bushing(Left)	1
21	3200065	Feed Bar Driving Shaft Bushing(Right)	1
22	2100034	Seal Plug	1
23	0093303	Oil Seal	1
24	3200061	Looper Driving Shaft Bushing(Front)	1
25	3200051	Looper Driving Shaft Bushing(Rear)	1
26	3200055	Differential Lever Shaft Bushing	1
27	0093864	Seal Plug	1
28	0065275	Seal Plug	1
29	0095218	Seal Plug	1
30	3200066	Seal Plug	1
31	3200251	Eye Guard, Complete Set	1
32	3101200	Eye Guard Support	1
33	009784	Screw(M6-1 × 10)	1
34	3200252	Eye Guard	1
35	004236	Screw(3/32-56 × 4.2)	2
36	0060175	Eye Guard Holder	1
37	006004	Screw(11/64-40 × 7.8)	1
38	000010	Conical Spring Washer	1
39	000547	Washer	1
40	000334	Nut	1

Page 15 — MAIN SHAFT DRIVING MECHANISM

Yamato VC2300 parts on page 15
Ref	Part number	Part name	Qty
1	3200070	Pulley	1
2	160005	Screw(M6-1 × 8)	5
3	160007	Screw(M6-1 × 6)	9
6	3200095	Ball Bearing(Right)	1
7	3100128	Main Shaft Sprocket(Lower)	1
8	3100131	Ball Bearing(Middle)	1
9	3200072	Oil Pump Driving Worm	1
10	3100129	Adapter	1
11	3200078	Ball Bearing(Left)	1
12	3200073	Lower Shaft(Right)	1
13	3200074	Lower Shaft Joint	1
14	3200076	Looper Thread Take-up	1
15	008047	Screw(7/32-32 × 3.6)	2
16	0093091	Ball Bearing	1
17	3200080	Needle Guard Connecting Rod,C.Set(2)	1
18	3200079	Needle Guard Connecting Rod,C.Set(1)	1
19	3200082	Needle Guard Connecting Rod	1
20	110005	Screw(M3.5-0.6 × 12)	2
21	3200081	Needle Guard Eccentric	1
22	160003	Screw(M5-0.8 × 5)	2
23	3200087	Connecting Rod Pin	1
24	3200084	Needle Guard Driving Shaft Arm	1
25	005650	Screw(M5-0.8 × 14)	1
26	160000	Screw(M3-0.5 × 3)	2
27	3200077	Counterweight	1
28	110036	Screw(M3-0.5 × 6.5)	2
29	3200075	Lower Crankshaft	1
30	310035	Oil Wick	1
31	160001	Screw(M4-0.7 × 4)	2
32	0020159	Ball Bearing	1
33	0068202	Retaining Ring	1
34	3200085	Spacer	1
35	3200086	Collar(8 × 13 × 6mm)	1
36	3211071	Needle Guard Driving Shaft	1
37-1	0093669	Needle Guard(Rear)(32, 40, 48, 56, 64)	1
37-2	0093659	Needle Guard(Rear)(Extra)	1
38	110083	Screw(M3.5-0.6 × 4.5)	1
39	3200093	Supporting Plate Stay(Lower)	1
40	110048	Screw(M4-0.7 × 10)	2

Page 17 — MAIN SHAFT DRIVING MECHANISM

Yamato VC2300 parts on page 17
Ref	Part number	Part name	Qty
41	3200092	Supporting Plate Stay(Upper)	1
42	110009	Screw(M4-0.7 × 8)	1
43	3200091	Supporting Plate	1
44	130002	Screw(M3-0.5 × 6)	2
46	0093515	Thread Take-up Eyelet	2
47	000014	Washer	2
48	220003	Screw(1/8-44 × 3.8)	2
49	3200042	Looper Thread Eyelet	1
50	001818	Tension Post	1
51	0037108	Supplementary Tension Disc	2
52	0035813	Supplementary Tension Spring	1
53	000360	Adjusting Nut	1
54	0063197	Cast-off Plate Bracket	1
55	001223	Screw(9/64-40 × 7.5)	1
56	3200094	Cast-off Plate	1
57	000532	Washer	1
58	004106	Screw(9/64-40 × 6.5)	1
59	160030	Screw(M3.5-0.6 × 3)	2

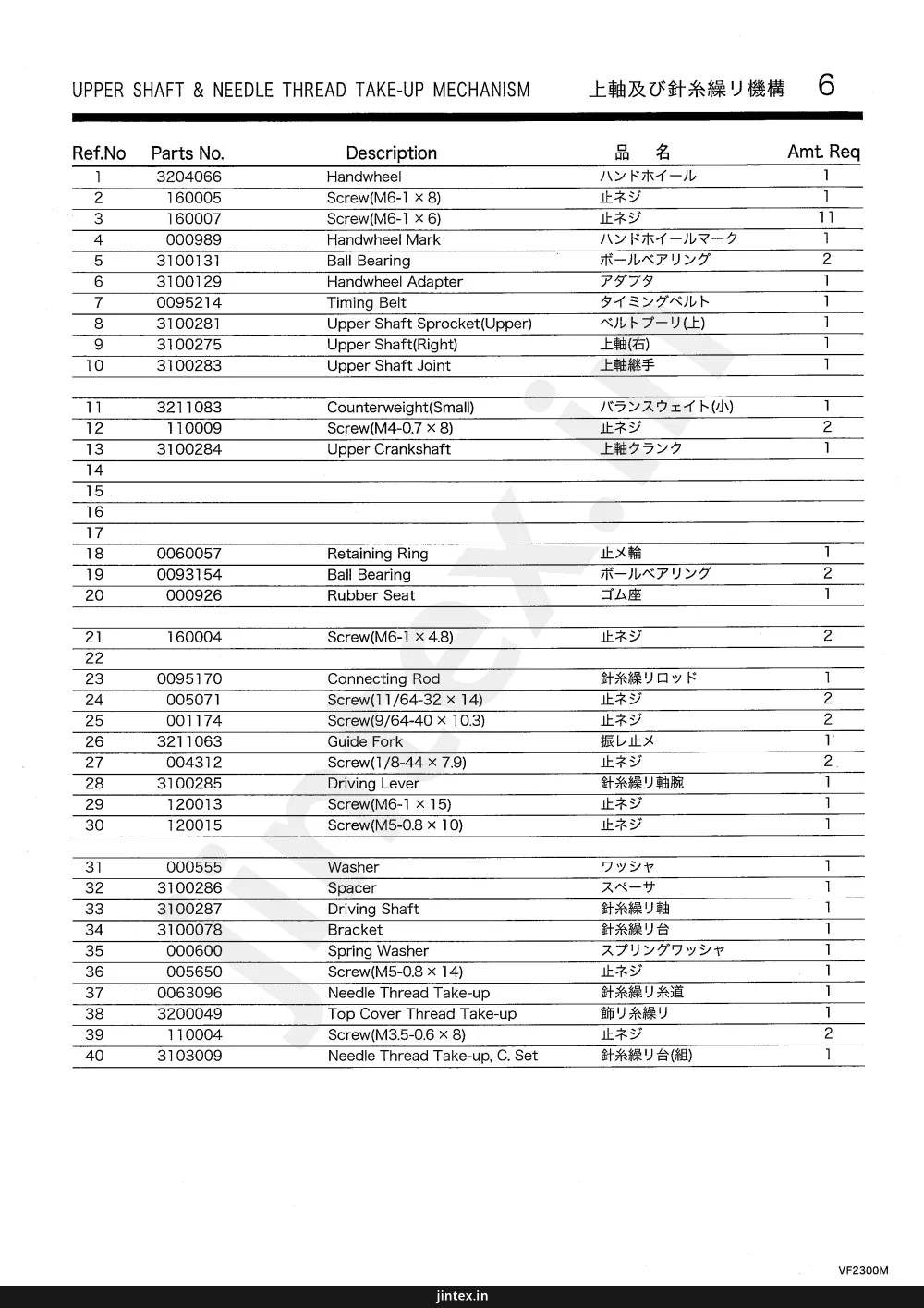

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VC2300 parts on page 19
Ref	Part number	Part name	Qty
1	3204066	Handwheel	1
2	160005	Screw(M6-1 × 8)	1
3	160007	Screw(M6-1 × 6)	11
4	000989	Handwheel Mark	1
5	3100131	Ball Bearing	2
6	3100129	Handwheel Adapter	1
7	0095214	Timing Belt	1
8	3100281	Upper Shaft Sprocket(Upper)	1
9	3100275	Upper Shaft(Right)	1
10	3100283	Upper Shaft Joint	1
11	3211083	Counterweight(Small)	1
12	110009	Screw(M4-0.7 × 8)	2
13	3100284	Upper Crankshaft	1
18	0060057	Retaining Ring	1
19	0093154	Ball Bearing	2
20	000926	Rubber Seat	1
21	160004	Screw(M6-1 × 4.8)	2
23	0095170	Connecting Rod	1
24	005071	Screw(11/64-32 × 14)	2
25	001174	Screw(9/64-40 × 10.3)	2
26	3211063	Guide Fork	1
27	004312	Screw(1/8-44 × 7.9)	2
28	3100285	Driving Lever	1
29	120013	Screw(M6-1 × 15)	1
30	120015	Screw(M5-0.8 × 10)	1
31	000555	Washer	1
32	3100286	Spacer	1
33	3100287	Driving Shaft	1
34	3100078	Bracket	1
35	000600	Spring Washer	1
36	005650	Screw(M5-0.8 × 14)	1
37	0063096	Needle Thread Take-up	1
38	3200049	Top Cover Thread Take-up	1
39	110004	Screw(M3.5-0.6 × 8)	2
40	3103009	Needle Thread Take-up, C. Set	1

Page 21 — NEEDLE BAR MECHANISM

Yamato VC2300 parts on page 21
Ref	Part number	Part name	Qty
1	0063044	Needle Bar Thread Eyelet	1
2	004358	Screw(9/64-40 × 5.6)	1
3	3200170	Needle Bar & Needle Bar Bushing, C. Set	1
5	3211028	Needle Bar Bracket	1
6	110035	Screw(M4-0.7 × 10)	1
7-1	0093356	Needle Clamp(48)	1
7-2	0093357	Needle Clamp(56)	1
7-3	0093358	Needle Clamp(64)	1
8	----	Needle(UY × 128 GAS)	3
9	001900	Screw(1/8-44 × 2.4)	4
10	0093365	Top Cover Thread Eyelet	1
13-1	3108133	Stitch Plate(48M)	1
13-2	3108134	Stitch Plate(56M)	1
13-3	3108135	Stitch Plate(64M)	1
14	009142	Screw(9/64-40 × 4.8)	2
15	3100361	Counterweight, Complete Set	1
16	3200101	Counterweight	1
17	120015	Screw(M5-0.8 × 10)	1
18	0093214	Connecting Rod Ring	1
19	3100362	Connecting Rod, Complete Set	1
20	3100290	Connecting Rod	1
21	0093212	Roller Bearing	1
23	000321	Oil Wick	1
24	3100363	Connecting Rod Pin	1
25	3100296	Needle Bar Guide, C. Set	1
26	0093186	Slide Block	1
27	0093179	Needle Bar Guide	1
28	110010	Screw(M4-0.7 × 16)	2
29	3200120	HR Device, Complete Set	1
30	3200121	HR Cup	1
31	3200122	HR Cup Lid	1
32	0093864	Seal Plug	1
33	310036	HR Felt	1
34	0093663	HR Felt Guard	1
35	006219	Screw(M4-0.7 × 14)	2
36	0036175	Thread Retainer Disc Plate	1
37	0032425	Needle Thread Retainer Disc	1
38	0032426	Needle Thread Retainer Spring	1
39	001093	Screw(1/8-44 × 2.2)	1
40	260000	Screw(5/16-24 × 15.88)	2
41-1	0093351	Needle Clamp(32)(Extra)	1
41-2	0093352	Needle Clamp(40)(Extra)	1
41-3	0093353	Needle Clamp(48)(Extra)	1
42-1	3108130	Stitch Plate(32M)(Extra)	1
42-2	3108131	Stitch Plate(40M)(Extra)	1
42-3	3108132	Stitch Plate(48M)(Extra)	1

Page 23 — PRESSER FOOT MECHANISM

Yamato VC2300 parts on page 23
Ref	Part number	Part name	Qty
1	0093500	Presser Spring Regulator	1
3	000445	Lock Nut	1
4	3200132	Presser Bar Spring(Outer)	1
5	0063087	Presser Bar Connecting Bracket	1
6	004440	Screw(11/64-40 × 8.3)	1
7	3211007	Presser Bar Guide	1
8	004441	Screw(11/64-40 × 16)	2
9	0093485	Presser Bar Spring(Inner)	1
10	3100110	Presser Bar	1
11	0093611	Oil Protector Ring	1
12	3211086	Collar(9 × 15 × 7mm)	1
13	001459	Screw(9/64-40 × 3)	2
14	3100112	Finger Guard	1
15	110002	Screw(M3-0.5 × 5)	1
16-1	3507050	Presser Foot, C. Set(48)	1
16-2	3507052	Presser Foot, C. Set(56)	1
16-3	3507054	Presser Foot, C. Set(64)	1
17	110004	Screw(M3.5-0.6 × 8)	1
18	110084	Screw(M3.5-0.5 × 4.2)	1
19	000327	Lock Nut	1
20	260006	Adjusting Screw(1/8-44 × 9.5)	1
21-1	3507000	Presser Foot, C. Set(32)(Extra)	1
21-2	3507002	Presser Foot, C. Set(40)(Extra)	1
22	0093487	Lifter Link	1
23	006038	Screw(3/16-32 × 2.2)	2
24	0063083	Lifter Link Lever	1
25	000690	Fastener Pin	1
26	0063084	Lifter Spring	1
27	3211008	Collar(8 × 16 × 8mm)	2
28	009604	Screw(11/64-40 × 5.5)	4
29	0093479	Lifter Shaft	1
31	3100294	Intermediate Lever	1
32	120017	Screw(M5-0.8 × 15)	1
33	0077179	Retaining Ring	2
34	0093509	Connecting Pin	2
35	0093507	Connecting Plate	1
36	3211111	Lifter Lever(Small)	1
37	004591	Screw(15/64-28 × 9.5)	1
38	0093496	Lifter Lever	1
39	3101216	Lifter Lever Stop	1
40	004358	Screw(9/64-40 × 5.6)	2

Page 25 — PRESSER FOOT MECHANISM

Yamato VC2300 parts on page 25
Ref	Part number	Part name	Qty
41	0090801	Tension Release Lever	1
42	005542	Screw(11/64-40 × 14.5)	1
43	0093545	Tension Release Shaft	1
44	0090824	Swing-proof Spring	1
45	3107303	Presser Foot Spring(Left)	1
46	3107304	Presser Foot Spring(Right)	1
47	3107306	Presser Foot Hinge Pin	1
48	130016	Screw(M2.5-0.45 × 6)	4
49	3160168	Lifter Spring	1
50	3500305	Cap	1
51	340014	Roll Pin(3 × 12mm)	1

Page 27 — SPREADER MECHANISM

Yamato VC2300 parts on page 27
Ref	Part number	Part name	Qty
1	3100302	Connecting Rod, Complete Set	1
2	3100300	Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	0077322	Roller Bearing	1
5	3100301	Connecting Rod	1
6	0094566	Retaining Ring	1
7	110009	Screw(M4-0.7 × 8)	1
8	300006	Washer	1
9	3211082	Adjusting Lever Pin	1
10	000528	Washer	1
11	100003	Nut(M6-1.0)	1
12	3211057	Collar(12 × 20 × 8mm)	1
13	009604	Screw(11/64-40 × 5.5)	2
14	3100303	Adjusting Lever	1
15	120013	Screw(M6-1 × 15)	1
16	3100304	Driving Shaft	1
17	3100305	Rocking Arm	1
18	160007	Screw(M6-1 × 6)	2
19	0063051	Rocking Pin	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	3211085	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2

Page 29 — LOOPER DRIVING MECHANISM

Yamato VC2300 parts on page 29
Ref	Part number	Part name	Qty
1	3200150	Looper Rocker Connecting Rod, C.Set(2)	1
2	3200149	Looper Rocker Connecting Rod, C.Set(1)	1
3	3200152	Looper Rocker Connecting Rod	1
4	120001	Screw(M4-0.7 × 14)	5
5	3200151	Looper Rocker Eccentric	1
6	160003	Screw(M5-0.8 × 5)	2
7	3200159	Connecting Rod Pin	1
8	300000	Washer	1
9	100002	Nut	1
10	3200154	Looper Rocker Lever	1
11	005650	Screw(M5-0.8 × 14)	2
12	3200155	Looper Rocker Adjusting Guide Plate	1
13	110007	Screw(M2.5-0.45 × 6)	2
14	170021	Adjusting Screw(M2.5-0.45 × 10.5)	1
15	2100267	Collar(10 × 17 × 8mm)	1
16	160001	Screw(M4-0.7 × 4)	2
17	0093314	Looper Rocker Shaft	1
18	3200157	Looper Rocker Arm	1
19	0093319	Looper Slide Block	1
21	3200160	Looper Slide Block Pin	1
22	160009	Screw(M5-0.8 × 5)	1
23	3200161	Looper Connecting Rod, C. Set	1
24	0032784	Link Pin(Short)	1
25	009604	Screw(11/64-40 × 5.5)	1
26	0032785	Looper Driving Lever Link	1
27	001457	Screw(11/64-40 × 3.3)	1
28	0032786	Link Pin(Long)	1
29	3200162	Looper Driving Lever	1
30	160007	Screw(M6-1 × 6)	2
31	3211036	Collar	1
32	0093300	Looper Driving Shaft	1
33	3200164	Looper Holder	1
34	000669	Washer	1
35	0094480	Looper	1
36	110057	Screw(M4-0.7 × 7)	1
37	0095723	Needle Guard(Front)	1
38	004236	Screw(3/32-56 × 4.2)	1
39	009934	Screw(M5-0.8 × 16)	1

Page 31 — FEED DRIVING CONTROL MECHANISM

Yamato VC2300 parts on page 31
Ref	Part number	Part name	Qty
1	3200181	Feed Bar Driving Shaft	1
2	3200183	Main Feed Bar Lever	1
3	120006	Screw(M6-1 × 12)	3
4	3200184	Differential Rocker, Complete Set	1
5	3200185	Differential Rocker	1
6	3200186	Differential Regulating Slider	1
7	3200187	Differential Regulating Slider Cap	1
8	110033	Screw(M3-0.5 × 6)	2
9	2100161	Collar(10 × 19 × 9mm)	1
10	110020	Screw(M3.5-0.6 × 6)	2
11	3200205	Differential Lever(Inner), C. Set	1
12	2100252	Slider Link	1
13	0068202	Retaining Ring	1
14	2100253	Slider Link Pin	1
15	3200206	Differential Lever(Inner)	1
16	3200189	Feed Bar, Complete Set	1
17	3200190	Main Feed Bar	1
18	3200191	Differential Feed Bar	1
19	140018	Screw(M5-0.5 × 6)	1
20	300000	Washer	2
21	3200194	Connection Bushing	1
22	2100243	Differential Feed Bar Connection	1
23	140017	Screw(M5-0.5 × 6)	1
24	2100248	Main Feed Bar Connection	1
25	3200192	Connection Bushing	1
26	3200215	Retaining Ring	1
27	2100267	Collar(10 × 17 × 8mm)	1
28	160001	Screw(M4-0.7 × 4)	2
29	000690	Roll Pin	1
30	3200216	Differential Lever Spring	1
31	0020538	O-ring(P7)	1
32	3200207	Differential Lever Shaft	1
33	0095132	Differential Lever(Left)	1
34	110009	Screw(M4-0.7 × 8)	1
36	3200213	Differential Feed Graduation	1
37	110045	Screw(M4-0.7 × 12)	2
38	310072	Felt	1
39	000210	Adjusting Nut	1
40	005511	Adjusting Screw(1/4-40×11, 11/64-40×4)	1
41	0020350	Differential Lever Stop	2
42	000669	Washer	2
43	000600	Spring Washer	2
44	005049	Screw(M5-0.8 × 8)	2
45	310071	Oil Wick	1

Page 33 — FEED DRIVING MECHANISM

Yamato VC2300 parts on page 33
Ref	Part number	Part name	Qty
1	3200199	Feed Bar Guide(Left)	1
2	110080	Screw(M4-0.7 × 8)	2
3	3211073	Feed Bar Guide(Right)	1
4	160007	Screw(M6-1 × 6)	3
5	0033141	Feed Adjusting Pin	1
6	0093389	Feed Bar Block(Rear)	1
7	3211074	Feed Bar Guide(Rear)	1
8	0060076	Retaining Ring	1
9	0060075	Feed Bar Block(Front)	1
10	2110527	Roller Bearing	1
11	3204065	Feed Dog Regulator, C. Set	1
12	160003	Screw(M5-0.8 × 5)	3
13	3204059	Driving Connecting Rod Mechanism, C.Set	1
14	3200182	Feed Bar Driving Shaft Lever	1
15	120006	Screw(M6-1 × 12)	1
16	2100173	Connecting Rod Pin	1
17	3204060	Feed Dog Regulator, C. Set	1
18	3204061	Driving Connecting Rod, C. Set	1
19	3204064	Feed Dog Eccentric	1
20	2100278	Roller Bearing	1
21	3200196	Feed Dog Driving Connecting Rod	1
22	160016	Screw(M4-0.7 × 4.5)	1
23	3204063	Eccentric Link	1
24	3204062	Feed Dog Regulating Eccentric	1
25	180002	Screw(M3-0.5 × 4)	2
26	2100289	Feed Dog Regulating Plate Spring	1
27	0023473	Feed Dog Regulating Plate	1
28	2100279	Feed Dog Regulating Gear	1
29	180003	Screw(M5-0.8 × 8)	1
30-1	3209001	Differential Feed Dog(32,40,48,56)	1
30-2	3209003	Differential Feed Dog(64)	1
30-3	3206000	Differential Feed Dog(32,40,48,56)(Extra)	1
31-1	3209080	Main Feed Dog(32,40,48,56)	1
31-2	3209081	Main Feed Dog(64)	1
31-3	3206001	Main Feed Dog(32,40,48,56)(Extra)	1
32	110039	Screw(M3.5-0.6 × 10)	1
33	300050	Washer	1
34	110004	Screw(M3.5-0.6 × 8)	1
35	3200203	Feed Bar Shield Holder(Front)	1
36	130003	Screw(M4-0.7 × 7.3)	1
37	130024	Screw(M4-0.7 × 7.3)	1
38	110079	Screw(M4-0.7 × 8)	1
39	3200211	Feed Bar Shield	2
40	3200204	Feed Bar Shield Holder(Rear)	1
41	110070	Screw(M3-0.5 × 6.3)	1

Page 35 — LUBRICATING MECHANISM / 給油機構

Yamato VC2300 parts on page 35
Ref	Part number	Part name	Qty
1	0065453	Oil Receiver	1
2	110012	Screw(M4-0.7×5)	5
3	000234	Nut	1
4	310026	Oil Wick(No.4-150mm)	1
5	3100350	Oil Pipe	1
6	160001	Screw(M4-0.7×4)	1
7	310027	Oil Wick(No.4-530mm)	1
8	0020551	O-ring(P5)	1
9	3100346	Oil Wick Holder	1
11	110036	Screw(M3-0.5×6.5)	1
12	3100060	Oil Filter Cap	1
13	110045	Screw(M4-0.7×12)	3
14	3100061	O-ring(P42)	1
15	3100345	Oil Filter	1
16	3100329	Oil Filter Connector	1
17	3200237	Felt	1
18	3200236	Suction Pipe	1
19	0093617	Suction Pipe Bushing	1
20	3200238	Oil Tube(3×5×500mm)	1
22	3100353	Oil Pipe Unit	1
23	0031831	Oil Tube Clamp	6
24	3200234	Oil Tube(Long), Complete Set	1
25	3100372	Oil Tube(4×6×397mm)	1
26	0063217	Oil Filter Screen Clamp	1
27	0063216	Oil Filter Screen	1
28	0037668	Oil Tube Joint, Two Way	1
29	3200233	Oil Tube(4×6×175mm)	1
30	0037669	Oil Tube Joint, One Way	3
31	004124	Fitting Stud(Short)	4
32	000567	Seal	1
33	3200235	Oil Tube(Short), Complete Set	1
34	3200232	Oil Tube(4×6×45mm)	1
35	3100328	Oil Pump, Complete Set	1
36	0030711	Oil Pump Driving Worm Gear	1
37	160001	Screw(M4-0.7×4)	2
38	120013	Screw(M6-1×15)	2
39	0090918	Suction Pipe	1
40	000419	Nut	1
41	3100349	Oil Nozzle for Worm Gear	1
42	3200231	Dustproof Plate	1
43	0020533	Oil Sight Gauge	1

Page 37 — VF2303M-21 EXCLUSIVE PARTS (1)

Yamato VC2300 parts on page 37
Ref	Part number	Part name	Qty
1-1	0093241	Folder(for Type P)	1
1-2	0093242	Folder(for Type Q)	1
1-3	0093243	Folder(for Type R)	1
2	0091736	Folder Clamp	1
3	009932	Screw(11/64-40 × 4)	2
4	005554	Screw(7/32-32 × 6.5)	1
5	0094245	Folder Support	1
6	0094246	Folder Support Fixing Plate	1
7	140019	Screw(M5-0.8 × 14)	2
8	3210030	Front Cover	1
9	3210031	Front Cover(Small)	1
10	110013	Screw(M4-0.7 × 8)	4
11-1	3201007	Fabric Slide Plate	1
11-2	3204047	Fabric Slide Plate(Extra)	1
12	000426	Washer	1
13	110105	Screw(M5-0.8 × 12)	1
14	3201005	Dustproof Cover	1
15	110104	Screw(M4-0.7 × 8)	2
16	3201001	Looper Thread Take-up Cover	1
17	3210003	Cloth Plate(Small)	1
18	3040038	Side Cover	1
19	0032604	Rubber Cushion(Large)	1
20	3200012	Cover Latch Spring	1
21	180018	Screwed Pin(M4-0.7 × 7)	1
22	3200013	Side Cover Holder	1
23	3100071	Eyelet Cover	1

Page 39 — VF2303M-21 EXCLUSIVE PARTS(2)

Yamato VC2300 parts on page 39
Ref	Part number	Part name	Qty
1-1	3207155	Presser Foot, C. Set(48)	1
1-2	3207156	Presser Foot, C. Set(56)	1
1-3	3207157	Presser Foot, C. Set(64)	1
2	001186	Screw(9/64-40 × 7.8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(1/8-44 × 4.5)	1
5	000220	Lock Nut	1
6	003300	Adjusting Screw(1/8-44 × 15)	1
7	0091696	Presser Foot Hinge Pin	1
8	3207160	Tape Guide	1
9	001230	Screw(3/32-56 × 3.8)	1
10-1	3208105	Stitch Plate(48M-21)	1
10-2	3208108	Stitch Plate(56M-21)	1
10-3	3208109	Stitch Plate(64M-21)	1
11	3209064	Main Feed Dog	1
12	3209065	Differential Feed Dog	1
13-1	0093352	Needle Clamp(40)	1
13-2	0093351	Needle Clamp(32)(Extra)	1
13-3	0093353	Needle Clamp(48)(Extra)	1
14	001900	Screw(1/8-44 × 2.4)	3
15-1	3207151	Presser Foot, C. Set(40)	1
15-2	3207150	Presser Foot, C. Set(32)(Extra)	1
15-3	3207152	Presser Foot, C. Set(48)(Extra)	1
16-1	3208103	Stitch Plate(40M-21)	1
16-2	3208102	Stitch Plate(32M-21)(Extra)	1
16-3	3208104	Stitch Plate(48M-21)(Extra)	1

Page 41 — THREAD STAND

Yamato VC2300 parts on page 41
Ref	Part number	Part name	Qty
1	9620696	Thread Stand, C. Set(6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Pipe(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	8
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut(M16-1.5)	1
16	9620703	Thread Hanger(3 Spools Type)	4
17	9620700	Thread Eyelet	6
18	9620688	Thread Hanger Holder	4
19	911060	Screw(M6-1 × 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620666	Thread Guide(6 Spools Type)	1
23	9620678	Spool Cushion	6
24	9620679	Spool Pin	6
25	9620680	Spool Mat	6
26	9620681	Spool Seat Disc	6
27	930055	Spring Washer	6
28	9620750	Knitted Tape Stand, C. Set	1
29	9620751	Tape Pin	1
30	9620752	Tape Disc	1
31	000433	Washer	1
32	9620753	Tape Disc Block	1
33	911062	Screw(M4-0.7 × 15)	4
34	910001	Nut	4
35	9620756	Tape Stand Bar	1
36	001448	Screw(15/64-28 × 5.5)	1
37	9620757	Tape Stand	1
38	005148	Wood Screw(φ 4.5 × 25)	3
39	9620754	Tape Guide Bar	1
40	9620755	Tape Guide	2

Page 43 — SUPPORTING BOARD

Yamato VC2300 parts on page 43
Ref	Part number	Part name	Qty
1	3211078	Supporting Board, C. Set	1
2	3211068	Supporting Board	2
3	180020	Setting Screw(M6-1 × 15)	4
4	0093035	Oil Resrvoir Rubber Cushion	4
5	000070	Hanging Nut	4
6	009861	Hanging Bolt(M8-1.25 × 95)	4
7	000162	Washer	12
8	000016	Nut	12
9	2101451	Spacer(See the table below)	12
10	0020064	Supporting Board Rubber Cushion	4
11	0063010	SupportingBoardRubberCushion(Lower)	4
12	3200242	Chain Guide	1
13	000541	Washer	2
14	110009	Screw(M4-0.7 × 8)	2
15	3500700	Belt Cover	1
16	110028	Screw(M6-1 × 46)	2
17	3000010	Looper Threading Bar	2
18	3107311	Fabric Guide(Long)	1
19	110027	Screw(M2.5-0.45 × 3.5)	1
20	3201455	Fabric Guide Support	1
21	3400252	Fabric Guide(Left)	1
22	3400253	Fabric Guide(Right)	1
23	110036	Screw(M3-0.5 × 6.5)	2
24	3201456	Supplementary Front Cover	1
25	110105	Screw(M5-0.8 × 12)	2
26	000426	Washer	2
27	110013	Screw(M4-0.7 × 8)	2

Page 44 — WARNING LABEL 警告ラベル

Yamato VC2300 parts on page 44
Ref	Part number	Part name	Qty
	390220	SAFETY INSTRUCTON LABEL
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 46 — VF2300M class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato VC2300 parts on page 46
Ref	Part number	Part name	Qty
	0093351	Needle Clamp
	0093352	Needle Clamp
	0093353	Needle Clamp
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093358	Needle Clamp
	3507000	Presser Foot C Set
	3507002	Presser Foot C Set
	3507050	Presser Foot C Set
	3507052	Presser Foot C Set
	3507054	Presser Foot C Set
	3207150	Presser Foot C Set
	3207151	Presser Foot C Set
	3207152	Presser Foot C Set
	3207155	Presser Foot C Set
	3207156	Presser Foot C Set
	3207157	Presser Foot C Set
	3108130	Stitch Plate
	3108131	Stitch Plate
	3108132	Stitch Plate
	3108133	Stitch Plate
	3108134	Stitch Plate
	3108135	Stitch Plate
	3208102	Stitch Plate
	3208103	Stitch Plate
	3208104	Stitch Plate
	3208105	Stitch Plate
	3208108	Stitch Plate
	3208109	Stitch Plate
	3209001	Differential Feed Dog
	3209003	Differential Feed Dog
	3209065	Differential Feed Dog
	3209080	Main Feed Dog
	3209081	Main Feed Dog
	3209064	Main Feed Dog
	3204042	Front Cover
	3204044	Front Cover
	3210030	Front Cover
	32010005	Cloth Plate (Large)
	3210005	Cloth Plate (Large)
	3204041	Cloth Plate (Small)
	3210003	Cloth Plate (Small)
	3200018	Thread Take-up Cover
	3200035	Thread Take-up Cover
	3201001	Thread Take-up Cover
	3200032	Stitch Plate Support
	3200032	Stitch Plate Support
	0094480	Looper
	0094480	Looper

Page 47 — INDEX

Yamato VC2300 parts on page 47
Ref	Part number	Part name	Qty
6	000010
38	000010
47	000014
25	000015
8	000016
5	000070
7	000162
6	000177
2	000195
39	000210
5	000220
3	000234
23	000321
19	000327
40	000334
51	000360
53	000360
40	000419
24	000425
12	000426
26	000426
31	000433
3	000445
10	000528
23	000532
57	000532
60	000538
27	000538
13	000541
39	000547
31	000555
32	000560
35	000600
43	000600
28	000651
34	000669
42	000669
25	000690
29	000690
32	000726
38	000745
20	000926
4	000989
39	001093
25	001174
2	001186
55	001223
9	001230
36	001448
27	001457
13	001459
48	001818
50	001818
9	001900
14	001900
6	003300
58	004106
31	004124
58	004182
35	004236
38	004236
27	004312
24	004353
2	004358
40	004358
6	004440
8	004441
37	004591
44	005049
24	005071
36	005075
4	005133
38	005148
40	005511
42	005542
4	005554
25	005650
36	005650
11	005650
5	006004
37	006004
23	006038
35	006219
17	007610
15	008047
14	009142
23	009526
28	009604
13	009604
25	009604
3	009747
2	009749
33	009784
6	009861
3	009932
39	009934
29	009970
10	0020064
21	0020119
35	0020137
32	0020159
41	0020350
23	0020472
43	0020533
31	0020538
8	0020551
5	0020759
27	0023473
2	0024083
1	0024084
3	0030255
5	0030291
36	0030711
7	0031111
23	0031831
37	0032425
38	0032426
18	0032604
19	0032604
24	0032784
26	0032785
28	0032786
4	0032952
25	0033024
5	0033141
50	0035813
52	0035813

Page 48

Yamato VC2300 parts on page 48
Ref	Part number	Part name	Qty
36	0036175
49	0037108
51	0037108
28	0037668
30	0037669
18	0060057
9	0060075
8	0060076
36	0060175
11	0063010
1	0063044
19	0063051
20	0063053
7	0063055
21	0063056
47	0063074
24	0063083
26	0063084
5	0063087
37	0063096
25	0063104
22	0063152
54	0063197
27	0063216
26	0063217
26	0065275
28	0065275
1	0065453
4	0068011
33	0068202
13	0068202
33	0077179
17	0077300
4	0077322
37	0090068
5	0090071
41	0090801
12	0090807
9	0090812
44	0090824
11	0090856
39	0090918
7	0091696
3	0091725
2	0091736
4	0093035
16	0093091
19	0093154
27	0093179
26	0093186
21	0093212
18	0093214
1-1	0093241
1-2	0093242
1-3	0093243
32	0093300
23	0093303
17	0093314
19	0093319
41-1	0093351
13-2	0093351
41-2	0093352
13-1	0093352
41-3	0093353
13-3	0093353
7-1	0093356
7-2	0093357
7-3	0093358
10	0093365
6	0093389
29	0093479
9	0093485
22	0093487
38	0093496
1	0093500
35	0093507
34	0093509
46	0093515
22	0093528
43	0093545
20	0093556
11	0093611
19	0093617
37-2	0093659
34	0093663
37-1	0093669
9	0093864
27	0093864
27	0093864
32	0093864
20	0094201
5	0094245
6	0094246
35	0094480
6	0094566
12	0095108
33	0095132
23	0095170
7	0095214
29	0095218
57	0095367
37	0095723
9	100002
11	100003
15	110002
39	110004
17	110004
34	110004
20	110005
13	110007
19	110009
42	110009
12	110009
7	110009
34	110009
14	110009
28	110010
21	110012
50	110012
22	110013
13	110013
14	110013
10	110013
27	110013
26	110016
42	110016
10	110020
19	110027
16	110028
8	110030

Page 49 — INDEX

Yamato VC2300 parts on page 49
Ref	Part number	Part name	Qty
61	110031
26	110031
8	110033
6	110035
28	110036
11	110036
23	110036
32	110039
37	110041
2	110045
37	110045
13	110045
33	110048
40	110048
36	110057
41	110070
14	110079
38	110079
2	110080
38	110083
18	110084
15	110104
13	110105
25	110105
4	120001
3	120006
15	120006
29	120013
15	120013
38	120013
30	120015
17	120015
32	120017
54	130002
44	130002
10	130003
40	130003
36	130003
11	130004
18	130006
48	130016
37	130024
23	140017
19	140018
7	140019
17	160000
26	160000
46	160001
31	160001
16	160001
28	160001
6	160001
37	160001
22	160003
3	160003
6	160003
12	160003
21	160004
2	160005
2	160005
3	160007
3	160007
18	160007
30	160007
4	160007
22	160009
22	160016
59	160030
14	170001
44	170020
14	170021
25	180002
29	180003
16	180005
47	180017
51	180018
21	180018
3	180020
24	190078
48	220003
40	260000
20	260006
8	290029
8	300000
20	300000
8	300006
33	300050
15	300100
45	300100
4	310026
7	310027
30	310035
33	310036
45	310071
38	310072
27	330000
51	340014
30	340016
35	350009
10	910000
7	910001
34	910001
14	910003
6	911001
5	911002
9	911006
19	911060
33	911062
12	930052
13	930053
27	930055
37	2049401
22	2100034
9	2100161
16	2100173
22	2100243
24	2100248
12	2100252
14	2100253
15	2100267
27	2100267
20	2100278
28	2100279
26	2100289

Page 50 — INDEX

Yamato VC2300 parts on page 50
Ref	Part number	Part name	Qty
9	2101451
10	2110527
17	3000010
18	3040038
11	3040039
41	3040040
12	3100006
8	3100019
3	3100027
12	3100060
14	3100061
23	3100071
13	3100074
10	3100075
34	3100078
12	3100098
6	3100100
10	3100110
14	3100112
28	3100113
7	3100128
10	3100129
6	3100129
8	3100131
5	3100131
8	3100275
8	3100281
10	3100283
13	3100284
28	3100285
32	3100286
33	3100287
20	3100290
31	3100294
25	3100296
2	3100300
5	3100301
1	3100302
14	3100303
16	3100304
17	3100305
24	3100307
35	3100328
16	3100329
15	3100345
9	3100346
41	3100349
5	3100350
22	3100353
15	3100361
19	3100362
24	3100363
25	3100372
30	3100383
31	3100384
33	3100386
34	3100387
39	3100442
56	3100630
59	3100631
32	3101200
39	3101216
40	3103009
45	3107303
46	3107304
47	3107306
18	3107311
42-1	3108130
42-2	3108131
42-3	3108132
13-1	3108133
13-2	3108134
13-3	3108135
10	3160136
49	3160168
33	3200007
20	3200012
22	3200013
49	3200016
4-1	3200018
7	3200019
19	3200022
20	3200023
15	3200024
16	3200025
39	3200026
40	3200027
29	3200028
30	3200029
31	3200030
32	3200031
36	3200032
19	3200033
48	3200033
4-2	3200035
18	3200042
49	3200042
46	3200045
26	3200047
17	3200048
38	3200049
13	3200050
25	3200051
16	3200052
20	3200053
26	3200055
18	3200056
19	3200057
4	3200059
24	3200061
15	3200062
8	3200063
9	3200064
21	3200065
30	3200066
14	3200067
11	3200068
1	3200070
9	3200072
12	3200073
13	3200074
29	3200075
14	3200076
27	3200077
11	3200078
18	3200079
17	3200080
21	3200081
19	3200082
24	3200084
34	3200085
35	3200086
23	3200087

Page 51 — INDEX

Yamato VC2300 parts on page 51
Ref	Part number	Qty
43	3200091	5
41	3200092	5
39	3200093	5
56	3200094	5
6	3200095	5
16	3200101	7
29	3200120	7
30	3200121	7
31	3200122	7
4	3200132	8
2	3200149	10
1	3200150	10
5	3200151	10
3	3200152	10
10	3200154	10
12	3200155	10
18	3200157	10
7	3200159	10
21	3200160	10
23	3200161	10
29	3200162	10
33	3200164	10
3	3200170	7
1	3200181	11
14	3200182	12
2	3200183	11
4	3200184	11
5	3200185	11
6	3200186	11
7	3200187	11
16	3200189	11
17	3200190	11
18	3200191	11
25	3200192	11
21	3200194	11
21	3200196	12
1	3200199	12
35	3200203	12
40	3200204	12
11	3200205	11
15	3200206	11
32	3200207	11
21	3200209	2
39	3200211	12
36	3200213	11
26	3200215	11
30	3200216	11
42	3200231	13
34	3200232	13
29	3200233	13
24	3200234	13
33	3200235	13
18	3200236	13
17	3200237	13
20	3200238	13
12	3200242	17
34	3200245	1
31	3200251	4
34	3200252	4
16	3201001	14
14	3201005	14
11-1	3201007	14
53	3201454	2
20	3201455	17
24	3201456	17
55	3201457	2
45	3203001	3
3	3204021	4
7	3204040	1
9	3204041	2
43-1	3204042	2
13	3204043	1
43-2	3204044	2
11-2	3204047	14
13	3204059	12
17	3204060	12
18	3204061	12
24	3204062	12
23	3204063	12
19	3204064	12
11	3204065	12
1	3204066	6
30-3	3206000	12
31-3	3206001	12
15-2	3207150	15
15-1	3207151	15
15-3	3207152	15
1-1	3207155	15
1-2	3207156	15
1-3	3207157	15
8	3207160	15
16-2	3208102	15
16-1	3208103	15
16-3	3208104	15
10-1	3208105	15
10-2	3208108	15
10-3	3208109	15
30-1	3209001	12
30-2	3209003	12
11	3209064	15
12	3209065	15
31-1	3209080	12
31-2	3209081	12
1	3210002	1
17	3210003	14
1	3210005	2
8	3210030	14
9	3210031	14
7	3211007	8
27	3211008	8
15	3211010	3
5	3211028	7
31	3211036	10
12	3211057	9
26	3211063	6
2	3211068	17
36	3211071	5
3	3211073	12
7	3211074	12
1	3211078	17
9	3211082	9
11	3211083	6
22	3211085	9
12	3211086	8
36	3211111	8
21	3400252	17
22	3400253	17
50	3500305	8
1	3500309	4
15	3500700	17
21-1	3507000	8
21-2	3507002	8

Page 52 — INDEX

Yamato VC2300 parts on page 52
Ref	Part number	Qty
16-1	3507050	8
16-2	3507052	8
16-3	3507054	8
25	3509320	9
31	4109406	1
2	9620631	16
22	9620666	16
3	9620670	16
8	9620673	16
11	9620675	16
23	9620678	16
24	9620679	16
25	9620680	16
26	9620681	16
18	9620688	16
4	9620689	16
21	9620690	16
20	9620691	16
1	9620696	16
17	9620700	16
16	9620703	16
28	9620750	16
29	9620751	16
30	9620752	16
32	9620753	16
39	9620754	16
40	9620755	16
35	9620756	16
37	9620757	16

Yamato VC2300 Parts Book (PDF)

Page 5 — MISCELLANEOUS COVER (1)

Page 7 — MISCELLANEOUS COVER (2)

Page 9 — MISCELLANEOUS COVER(2)

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS BUSHINGS & EYE GUARD

Page 15 — MAIN SHAFT DRIVING MECHANISM

Page 17 — MAIN SHAFT DRIVING MECHANISM

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Page 21 — NEEDLE BAR MECHANISM

Page 23 — PRESSER FOOT MECHANISM

Page 25 — PRESSER FOOT MECHANISM

Page 27 — SPREADER MECHANISM

Page 29 — LOOPER DRIVING MECHANISM

Page 31 — FEED DRIVING CONTROL MECHANISM

Page 33 — FEED DRIVING MECHANISM

Page 35 — LUBRICATING MECHANISM / 給油機構

Page 37 — VF2303M-21 EXCLUSIVE PARTS (1)

Page 39 — VF2303M-21 EXCLUSIVE PARTS(2)

Page 41 — THREAD STAND

Page 43 — SUPPORTING BOARD

Page 44 — WARNING LABEL 警告ラベル

Page 46 — VF2300M class LIST of MAIN SPARE PARTS(主要部品リスト)

Page 47 — INDEX

Page 48

Page 49 — INDEX

Page 50 — INDEX

Page 51 — INDEX

Page 52 — INDEX

Part Books

Search

Parts on page 1

Parts on page 1

Page 5 — MISCELLANEOUS COVER (1)

Page 7 — MISCELLANEOUS COVER (2)

Page 9 — MISCELLANEOUS COVER(2)

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS BUSHINGS & EYE GUARD

Page 15 — MAIN SHAFT DRIVING MECHANISM

Page 17 — MAIN SHAFT DRIVING MECHANISM

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Page 21 — NEEDLE BAR MECHANISM

Page 23 — PRESSER FOOT MECHANISM

Page 25 — PRESSER FOOT MECHANISM

Page 27 — SPREADER MECHANISM

Page 29 — LOOPER DRIVING MECHANISM

Page 31 — FEED DRIVING CONTROL MECHANISM

Page 33 — FEED DRIVING MECHANISM

Page 35 — LUBRICATING MECHANISM / 給油機構

Page 37 — VF2303M-21 EXCLUSIVE PARTS (1)

Page 39 — VF2303M-21 EXCLUSIVE PARTS(2)

Page 41 — THREAD STAND

Page 43 — SUPPORTING BOARD

Page 44 — WARNING LABEL 警告ラベル

Page 46 — VF2300M class LIST of MAIN SPARE PARTS(主要部品リスト)

Page 47 — INDEX

Page 48

Page 49 — INDEX

Page 50 — INDEX

Page 51 — INDEX

Page 52 — INDEX

Yamato VC2300 — parts catalog
