Yamato VC2300 Parts Book PDF — View & Download

Parts index — Yamato VC2300tap a row to open its page

Page 3 — Contents

Yamato VC2300 parts on page 3
Ref	Part number	Part name	Qty
	1	MISCELLANEOUS COVER (1) / カバー関係 (1)
	2	MISCELLANEOUS COVER (2) / カバー関係 (2)
	3	MISCELLANEOUS THREAD EYELETS / 糸関連係
	4	MISCELLANEOUS BUSHINGS & EYE GUARD / ブッシュ及びアイガード関係
	5	MAIN SHAFT DRIVING MECHANISM / 下軸機構
	6	UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM / 上軸及び針糸繰り機構

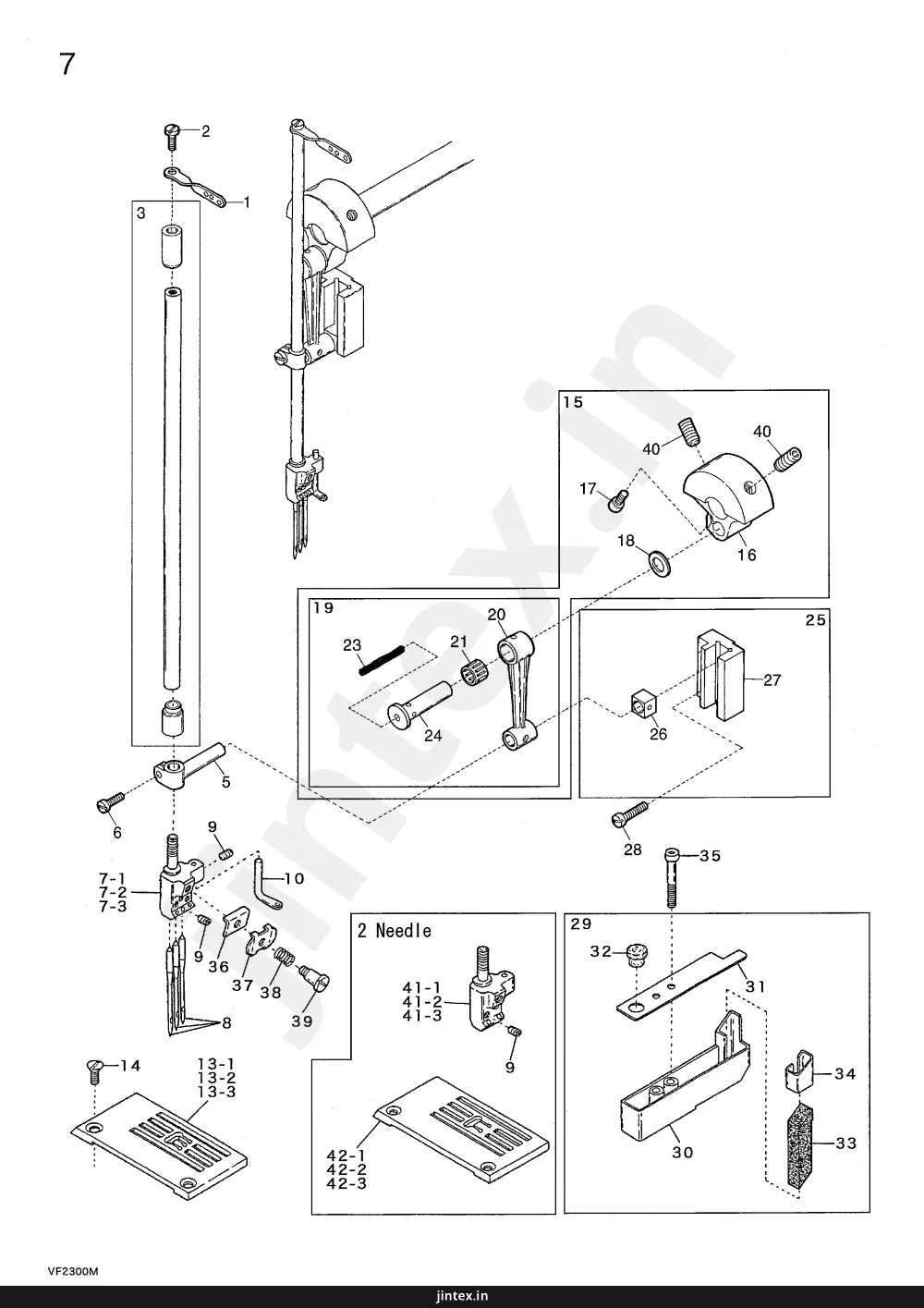

	7	NEEDLE BAR MECHANISM / 針棒機構
	8	PRESSER FOOT MECHANISM / 押工機構
	9	SPREADER MECHANISM / 飾り糸ルーパ機構
	10	LOOPER DRIVING MECHANISM / ルーパ機構
	11	FEED DRIVING CONTROL MECHANISM / 前送り調節機構
	12	FEED DRIVING MECHANISM / 送り機構
	13	LUBRICATING MECHANISM / 給油機構
	14	VF2303M-21 EXCLUSIVE PARTS(1) / サブモデル専用部品(1)
	15	VF2303M-21 EXCLUSIVE PARTS(2) / サブモデル専用部品(2)
	16	THREAD STAND / 糸立台
	17	SUPPORTING BOARD / 受ケ板
	18	WARNING LABEL / 警告ラベル
	19	LIST of MAIN SPARE PARTS / 主要部品リスト
	20	INDEX / 索引

Page 4

Yamato VC2300 parts on page 4
Ref	Part number	Part name
1	1	COVER,CYLINDER HEAD
2	2	SCREW
3	3	GASKET
4	4	PLUG
5	5	CAP
7	7	COVER,SIDE
8	8	PACKING
9	9	WASHER
11	11	COVER,FRONT
12	12	PACKING
13	13	COVER,SIDE
14	14	BOLT
15	15	WASHER
16	16	STUD BOLT
17	17	SPRING
18	18	BRACKET
19	19	SCREW
20	20	CLAMP
21	21	SCREW
22	22	SCREW
24	24	BOLT
25	25	NUT
26	26	SCREW
27	27	WASHER
29	29	SCREW
30	30	PIN
31	31	NAME PLATE
32	32	RIVET
33	33	GASKET
34	34	COVER,OIL PAN
35	35	WASHER
36	36	PLUG
37	37	BRACKET

Page 5 — MISCELLANEOUS COVER (1)

Yamato VC2300 parts on page 5
Ref	Part number	Part name
1	3210002	Top Cover
2	110045	Screw(M4-0.7 × 12)
3	3100027	Top Cover Gasket
4	0068011	Oil Sight Window
5	0020759	Top Cover Seal Plug
7	3204040	Head Cover
8	3100019	Head Cover Gasket
9	0093864	Head Cover Seal Plug
11	3040039	Bed Rear Cover
12	0095108	Bed Rear Cover Gasket
13	3204043	Side Cover
14	170001	Screw(M5-0.8 × 8)
15	300100	Conical Spring Washer
16	180005	Screw(M5-0.8 × 8)
17	160000	Screw(M3-0.5 × 3)
18	0032604	Rubber Cushion(Large)
19	3200033	Rubber Cushion(Small)
20	0094201	Cover Latch Spring
21	110012	Screw(M4-0.7 × 5)
22	110013	Screw(M4-0.7 × 8)
24	190078	Screw(M4-0.7 × 5)
25	000015	Nut
26	110016	Screw(M4-0.7 × 15)
27	330000	Seal Plug
29	009970	Screw(M6-1 × 20)
30	340016	Machine Frame Supporting Bar
31	4109406	Model Plate(See the below)
32	000726	Rivet
33	3200007	Oil Reservoir Gasket
34	3200045	Oil Reservoir
35	0020137	Drain Hole Seal
36	005075	Screw(3/8-24 × 8)
37	2049401	Serial Number Plate

Page 6

Yamato VC2300 parts on page 6
Ref	Part number	Part name	Qty
	4-1	4-2
	1	2
	3	5
	6	7
	8	9
	10	11
	12	13
	14	15
	16	17
	18	19
	20	21
	22	23
	24	25
	26	27
	28	29
	30	31
	32	33
	36	37
	38	39
	40	41
	42	43-1
	43-2	44
	45	46
	47	48
	49	50
	51	53
	54	55
	56	57
	58	59
	60	61

Page 7 — MISCELLANEOUS COVER (2)

Yamato VC2300 parts on page 7
Part number	Part name	Qty
3210005	Cloth Plate(Large)	1
009749	Screw(M4-0.7 × 16)	3
009747	Screw(M4-0.7 × 10)	1
3200018	Looper Thread Take-up Cover(32,40,48,56)	1
3200035	Looper Thread Take-up Cover(64)	1
006004	Screw(11/64-40 × 9.7)	1
000010	Conical Spring Washer	1
3200019	Take-up Cover Spring	1
110030	Screw(M3-0.5 × 2.6)	2
3204041	Cloth Plate(Small)	1
130003	Screw(M4-0.7 × 7.3)	1
130004	Screw(M4-0.7 × 14)	1
3100006	Seal Plug	1
110013	Screw(M4-0.7 × 8)	8
110079	Screw(M4-0.7 × 8)	2
3200024	Bed Top Cover(Right)	1
3200025	Bed Top Cover(Right) Gasket	1
007610	Screw(M4-0.7 × 10)	8
130006	Screw(M4-0.7 × 10)	2
3200022	Bed Top Cover(Left)	1
3200023	Bed Top Cover(Left) Gasket	1
3200209	Feed Regulating Pushbutton	1
0063152	Feed Regulating Pushbutton Spring	1
0020472	O-ring(P6)	1
000425	Washer	1
0033024	Retaining Ring	1
0065275	Seal Plug	1
0093864	Seal Plug	5
3100113	Needle Bar Guard	1
3200028	Bed Rear Cover(Small)	1
3200029	Bed Rear Cover(Small) Gasket	1
3200030	Ball Bearing Housing	1
3200031	O-ring	1
110048	Screw(M4-0.7 × 10)	3
3200032	Stitch Plate Support	1
110041	Screw(M4-0.7 × 8)	2
000745	Knock Pin	2
3200026	Bed Front Cover	1
3200027	Bed Front Cover Gasket	1

Page 8

Yamato VC2300 parts on page 8
Ref	Part number	Part name
4.1	4-1	SCREW
4.2	4-2	WASHER
5	5	SCREW
6	6	WASHER
8	8	BRACKET
7	7	BRACKET
9	9	COVER
10	10	COVER
11	11	COVER
2	2	SCREW
3	3	SCREW
1	1	COVER
12	12	RING
13	13	SCREW
14	14	SCREW
15	15	COVER
16	16	GASKET
17	17	SCREW
18	18	SCREW
19	19	PLATE
20	20	GASKET
21	21	PIN
22	22	SPRING
23	23	WASHER
24	24	WASHER
25	25	WASHER
26	26	RING
27	27	SCREW
28	28	COVER
29	29	PLATE
30	30	GASKET
31	31	BRACKET
32	32	RING
33	33	SCREW
36	36	BRACKET
37	37	SCREW
38	38	BRACKET
39	39	PLATE
40	40	GASKET
41	41	BRACKET
42	42	SCREW
43-1	43-1	BRACKET
43-2	43-2	BRACKET
44	44	WASHER
45	45	SCREW
46	46	BRACKET
47	47	SCREW
48	48	BRACKET
49	49	BRACKET
50	50	SCREW
51	51	SCREW
53	53	BRACKET
54	54	SCREW
55	55	BRACKET
56	56	BRACKET
57	57	BRACKET
58	58	SCREW
59	59	BRACKET
60	60	WASHER
61	61	SCREW

Page 9 — MISCELLANEOUS COVER(2)

Yamato VC2300 parts on page 9
Ref	Part number	Part name
41	3040040	Front Cover Hinge
42	110016	Screw(M4-0.7 × 15)
43-1	3204042	Front Cover(32, 40, 48, 56)
43-2	3204044	Front Cover(64)
44	170020	Screw(M4-0.7 × 8)
45	300100	Conical Spring Washer
46	160001	Screw(M4-0.7 × 4)
47	180017	Screw(M4-0.7 × 6)
48	3200033	Rubber Cushion(Small)
49	3200016	Front Cover Spring
50	110012	Screw(M4-0.7 × 5)
51	180018	Screw(M4-0.7 × 7)
53	3201454	Supporting Block
54	130002	Screw(M3-0.5 × 6)
55	3201457	Guide Spacer
56	3100630	Fabric Edge Guide(Left)
57	0095367	Fabric Edge Guide Chip
58	004182	Screw(3/32-56 × 2.5)
59	3100631	Fabric Edge Guide(Right)
60	000538	Washer
61	110031	Screw(M4-0.7 × 12)

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VC2300 parts on page 11
Ref	Part number	Part name	Qty
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0030255	Tension Spring (Needle Thread)
	0032952	Tension Spring(Top Cover&Looper Thread)
	0090071	Thread Tension Spring Retainer
	000177	Felt
	0031111	Tension Disc
	290029	Tension Post
	0090812	Tension Post Ferrule
	3100075	Tension Disc Separator
	0090856	Tension Disc Eyelet
	0090807	Tension Lead-in Guide
	3100074	Tension Post Support
	110013	Screw(M4-0.7 × 8)
	3211010	Looper Thread Eyelet
	3200048	Top Cover Thread Eyelet(Left)
	3200042	Looper Thread Eyelet
	110009	Screw(M4-0.7 × 8)
	0093556	Looper Thread Eyelet(Long)
	0020119	Thread Eyelet Pipe(Short)
	0093528	Thread Eyelet Pipe Stay
	000532	Washer
	004353	Screw(9/64-40 × 7)
	0063104	Thread Guide Plate
	3200047	Top Cover Thread Eyelet(Right)
	000538	Washer
	000651	Guide Pin
	3100383	SP Device, Complete Set
	3100384	SP Tank
	3100386	Felt
	3100387	Needle Thread Eyelet
	350009	Wood Screw(φ 5.5 × 6)
	0090068	Needle Thread Guide
	3100442	Needle Thread Eyelet
	130003	Screw(M4-0.7 × 4.5)
	3203001	Top Cover Thread Guide, C. Set
	3200045	Top Cover Thread Guide
	0063074	Supplementary Thread Guide
	001818	Tension Post
	0037108	Supplementary Tension Disc
	0035813	Supplementary Tension Spring
	000360	Nut

Page 13 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VC2300 parts on page 13
Ref	Part number	Part name	Qty
1	3500309	Oil Seal	2
2	000195	Oil Wick	1
3	3204021	Oil Seal	1
4	3200059	Presser Bar Bushing	1
5	0030291	Oil Seal	1
6	3100100	Spreader Driving Bar Bushing	1
7	0063055	Oil Seal	1
8	3200063	Spreader Driving Shaft Bushing(Left)	1
9	3200064	Spreader Driving Shaft Bushing(Right)	1
10	3160136	Foot Lifter Lever Bushing	1
11	3200068	Needle Thread Take-up Bushing(Front)	1
12	3100098	Needle Thread Take-up Bushing(Rear)	1
13	3200050	Lower Shaft Bushing(Left)	1
14	3200067	Oil Seal	1
15	3200062	Looper Rocker Shaft Bushing(Left)	1
16	3200052	Looper Rocker Shaft Bushing(Right)	1
17	0077300	Oil Seal	1
18	3200056	Needle Guard Driving Shaft	2
19	3200057	Seal Plug	1
20	3200053	Feed Bar Driving Shaft Bushing(Left)	1
21	3200065	Feed Bar Driving Shaft Bushing(Right)	1
22	2100034	Seal Plug	1
23	0093303	Oil Seal	1
24	3200061	Looper Driving Shaft Bushing(Front)	1
25	3200051	Looper Driving Shaft Bushing(Rear)	1
26	3200055	Differential Lever Shaft Bushing	1
27	0093864	Seal Plug	1
28	0065275	Seal Plug	1
29	0095218	Seal Plug	1
30	3200066	Seal Plug	1
31	3200251	Eye Guard, Complete Set	1
32	3101200	Eye Guard Support	1
33	009784	Screw(M6-1 × 10)	1
34	3200252	Eye Guard	1
35	004236	Screw(3/32-56 × 4.2)	2
36	0060175	Eye Guard Holder	1
37	006004	Screw(11/64-40 × 7.8)	1
38	000010	Conical Spring Washer	1
39	000547	Washer	1
40	000334	Nut	1

Page 14

Yamato VC2300 parts on page 14
Ref	Part number	Part name	Qty
	1	PULLEY
	2	SCREW
	3	SCREW
	6	PULLEY
	7	PULLEY
	8	BEARING
	9	COLLAR
	10	COLLAR
	11	PULLEY
	12	SHAFT
	13	COLLAR
	14	COVER
	15	SCREW
	16	BEARING
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	SCREW
	21	COLLAR
	22	SCREW
	23	PIN
	24	BRACKET
	25	SCREW
	26	SCREW
	27	BRACKET
	28	SCREW
	29	SHAFT
	30	SHAFT
	31	SPRING
	32	PULLEY
	33	WASHER
	34	NUT
	35	COLLAR
	36	SHAFT
	37-1	BRACKET
	37-2	BRACKET
	38	SCREW
	39	BRACKET
	40	BRACKET
	41	BRACKET
	42	SCREW
	43	PLATE
	44	SCREW
	46	BRACKET
	47	WASHER
	48	SCREW
	49	BRACKET
	50	SHAFT
	51	WASHER
	52	NUT
	53	NUT
	54	BRACKET
	55	SCREW
	56	BRACKET
	57	BRACKET
	58	SCREW
	59	SCREW

Page 15 — MAIN SHAFT DRIVING MECHANISM

Yamato VC2300 parts on page 15
Part number	Part name	Qty
3200070	Pulley	1
160005	Screw(M6-1 × 8)	5
160007	Screw(M6-1 × 6)	9
3200095	Ball Bearing(Right)	1
3100128	Main Shaft Sprocket(Lower)	1
3100131	Ball Bearing(Middle)	1
3200072	Oil Pump Driving Worm	1
3100129	Adapter	1
3200078	Ball Bearing(Left)	1
3200073	Lower Shaft(Right)	1
3200074	Lower Shaft Joint	1
3200076	Looper Thread Take-up	1
008047	Screw(7/32-32 × 3.6)	2
0093091	Ball Bearing	1
3200080	Needle Guard Connecting Rod,C.Set(2)	1
3200079	Needle Guard Connecting Rod,C.Set(1)	1
3200082	Needle Guard Connecting Rod	1
110005	Screw(M3.5-0.6 × 12)	2
3200081	Needle Guard Eccentric	1
160003	Screw(M5-0.8 × 5)	2
3200087	Connecting Rod Pin	1
3200084	Needle Guard Driving Shaft Arm	1
005650	Screw(M5-0.8 × 14)	1
160000	Screw(M3-0.5 × 3)	2
3200077	Counterweight	1
110036	Screw(M3.5-0.6 × 6.5)	2
3200075	Lower Crankshaft	1
310035	Oil Wick	1
160001	Screw(M4-0.7 × 4)	2
0020159	Ball Bearing	1
0068202	Retaining Ring	1
3200085	Spacer	1
3200086	Collar(8 × 13 × 6mm)	1
3211071	Needle Guard Driving Shaft	1
0093669	Needle Guard(Rear)(32, 40, 48, 56, 64)	1
0093659	Needle Guard(Rear)(Extra)	1
110083	Screw(M3.5-0.6 × 4.5)	1
3200093	Supporting Plate Stay(Lower)	1
110048	Screw(M4-0.7 × 10)	2

Page 16

Yamato VC2300 parts on page 16
Ref	Part number	Part name	Qty
	1	PULLEY
	2	SCREW
	3	SCREW
	6	PULLEY
	7	PULLEY
	8	PULLEY
	9	COLLAR
	10	COLLAR
	11	PULLEY
	12	SHAFT
	13	COLLAR
	14	PULLEY
	15	SCREW
	16	BEARING
	17	BRACKET
	18	SHAFT
	19	BRACKET
	20	SCREW
	21	COLLAR
	22	SCREW
	23	SHAFT
	24	BRACKET
	25	SCREW
	26	SCREW
	27	COLLAR
	28	SCREW
	29	SHAFT
	30	SPRING
	31	SPRING
	32	PULLEY
	33	SCREW
	34	WASHER
	35	COLLAR
	36	SHAFT
	37-1	BRACKET
	37-2	BRACKET
	38	SCREW
	39	BRACKET
	40	SCREW
	41	BRACKET
	42	SCREW
	43	PLATE
	44	SCREW
	46	WASHER
	47	WASHER
	48	SCREW
	49	BRACKET
	50	SHAFT
	51	WASHER
	52	SCREW
	53	NUT
	54	BRACKET
	55	SCREW
	56	BRACKET
	57	BRACKET
	58	BRACKET
	59	SCREW

Page 17 — MAIN SHAFT DRIVING MECHANISM

Yamato VC2300 parts on page 17
Ref	Part number	Part name
41	3200092	Supporting Plate Stay(Upper)
42	110009	Screw(M4-0.7 × 8)
43	3200091	Supporting Plate
44	130002	Screw(M3-0.5 × 6)
46	0093515	Thread Take-up Eyelet
47	000014	Washer
48	220003	Screw(1/8-44 × 3.6)
49	3200042	Looper Thread Eyelet
50	001818	Tension Post
51	0037108	Supplementary Tension Disc
52	0035813	Supplementary Tension Spring
53	000360	Adjusting Nut
54	0063197	Cast-off Plate Bracket
55	001223	Screw(9/64-40 × 7.5)
56	3200094	Cast-off Plate
57	000532	Washer
58	004106	Screw(9/64-40 × 6.5)
59	160030	Screw(M3.5-0.6 × 3)

Page 18

Yamato VC2300 parts on page 18
Ref	Part number	Part name
1	1	PULLEY
2	2	PULLEY
3	3	SCREW
4	4	WASHER
5	5	PULLEY
6	6	HOLDER
7	7	BELT
8	8	PULLEY
9	9	SHAFT
10	10	HOLDER
11	11	HOLDER
12	12	SCREW
13	13	SHAFT
18	18	RING
19	19	PULLEY
20	20	WASHER
21	21	SCREW
23	23	HOLDER
24	24	HOLDER
25	25	HOLDER
26	26	BRACKET
27	27	SCREW
28	28	HOLDER
29	29	SCREW
30	30	SCREW
31	31	WASHER
32	32	WASHER
33	33	SHAFT
34	34	HOLDER
35	35	WASHER
36	36	SCREW
37	37	BRACKET
38	38	BRACKET
39	39	SCREW
40	40	BRACKET

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VC2300 parts on page 19
Ref	Part number	Part name	Qty
1	3204066	Handwheel	1
2	160005	Screw(M6-1 × 8)	1
3	160007	Screw(M6-1 × 6)	11
4	000989	Handwheel Mark	1
5	3100131	Ball Bearing	2
6	3100129	Handwheel Adapter	1
7	0095214	Timing Belt	1
8	3100281	Upper Shaft Sprocket(Upper)	1
9	3100275	Upper Shaft(Right)	1
10	3100283	Upper Shaft Joint	1
11	3211083	Counterweight(Small)	1
12	110009	Screw(M4-0.7 × 8)	2
13	3100284	Upper Crankshaft	1
18	0060057	Retaining Ring	1
19	0093154	Ball Bearing	2
20	000926	Rubber Seat	1
21	160004	Screw(M6-1 × 4.8)	2
23	0095170	Connecting Rod	1
24	005071	Screw(11/64-32 × 14)	2
25	001174	Screw(9/64-40 × 10.3)	2
26	3211063	Guide Fork	1
27	004312	Screw(1/8-44 × 7.9)	2
28	3100285	Driving Lever	1
29	120013	Screw(M6-1 × 15)	1
30	120015	Screw(M5-0.8 × 10)	1
31	000555	Washer	1
32	3100286	Spacer	1
33	3100287	Driving Shaft	1
34	3100078	Bracket	1
35	000600	Spring Washer	1
36	005650	Screw(M5-0.8 × 14)	1
37	0063096	Needle Thread Take-up	1
38	3200049	Top Cover Thread Take-up	1
39	110004	Screw(M3.5-0.6 × 8)	2
40	3103009	Needle Thread Take-up, C. Set	1

Page 20

Yamato VC2300 parts on page 20
Ref	Part number	Part name	Qty
	1	Lever
	2	Screw
	3	Shaft
	5	Lever
	6	Screw
	7-1	Needle Bar
	7-2	Needle Bar
	7-3	Needle Bar
	8	Base Plate
	9	Screw
	10	Lever
	13-1	Needle Plate
	13-2	Needle Plate
	13-3	Needle Plate
	14	Screw
	15	Bobbin Case Holder
	16	Bobbin Case
	17	Bobbin
	18	Washer
	19	Feed Dog
	20	Feed Dog
	21	Feed Dog
	23	Screw
	24	Feed Dog
	25	Presser Foot Bar
	26	Presser Foot
	27	Presser Foot
	28	Screw
	29	Needle Clamp
	30	Base Plate
	31	Base Plate
	32	Screw
	33	Felt
	34	Holder
	35	Screw
	36	Lever
	37	Screw
	38	Screw
	39	Screw
	40	Screw
	41-1	Needle
	41-2	Needle
	41-3	Needle
	42-1	Needle Plate
	42-2	Needle Plate
	42-3	Needle Plate

Page 21 — NEEDLE BAR MECHANISM

Yamato VC2300 parts on page 21
Ref	Part number	Part name
1	0063044	Needle Bar Thread Eyelet
2	004358	Screw(9/64-40 × 5.6)
3	3200170	Needle Bar & Needle Bar Bushing, C. Set
5	3211028	Needle Bar Bracket
6	110035	Screw(M4-0.7 × 10)
7-1	0093356	Needle Clamp(48)
7-2	0093357	Needle Clamp(56)
7-3	0093358	Needle Clamp(64)
9	001900	Screw(1/8-44 × 2.4)
10	0093365	Top Cover Thread Eyelet
13-1	3108133	Stitch Plate(48M)
13-2	3108134	Stitch Plate(56M)
13-3	3108135	Stitch Plate(64M)
14	009142	Screw(9/64-40 × 4.8)
15	3100361	Counterweight, Complete Set
16	3200101	Counterweight
17	120015	Screw(M5-0.8 × 10)
18	0093214	Connecting Rod Ring
19	3100362	Connecting Rod, Complete Set
20	3100290	Connecting Rod
21	0093212	Roller Bearing
23	000321	Oil Wick
24	3100363	Connecting Rod Pin
25	3100296	Needle Bar Guide, C. Set
26	0093186	Slide Block
27	0093179	Needle Bar Guide
28	110010	Screw(M4-0.7 × 16)
29	3200120	HR Device, Complete Set
30	3200121	HR Cup
31	3200122	HR Cup Lid
32	0093864	Seal Plug
33	310036	HR Felt
34	0093663	HR Felt Guard
35	006219	Screw(M4-0.7 × 14)
36	0036175	Thread Retainer Disc Plate
37	0032425	Needle Thread Retainer Disc
38	0032426	Needle Thread Retainer Spring
39	001093	Screw(1/8-44 × 2.2)
40	260000	Screw(5/16-24 × 15.88)
41-1	0093351	Needle Clamp(32)(Extra)
41-2	0093352	Needle Clamp(40)(Extra)
41-3	0093353	Needle Clamp(48)(Extra)
42-1	3108130	Stitch Plate(32M)(Extra)
42-2	3108131	Stitch Plate(40M)(Extra)
42-3	3108132	Stitch Plate(48M)(Extra)

Page 22

Yamato VC2300 parts on page 22
Ref	Part number	Part name	Qty
	1	NEEDLE BAR CONNECTING ROD
	3	COLLAR
	4	NEEDLE BAR CONNECTING ROD SPRING
	5	NEEDLE BAR CONNECTING ROD HOLDER
	6	SCREW
	7	BRACKET
	8	SCREW
	9	SPRING
	10	NEEDLE BAR CONNECTING ROD
	11	WASHER
	12	COLLAR
	13	SCREW
	14	PRESSER BAR LIFTER
	15	SCREW
	16-1	PRESSER FOOT
	16-2	PRESSER FOOT
	16-3	PRESSER FOOT
	17	SCREW
	18	SCREW
	19	SCREW
	20	SPRING
	21-1	NEEDLE PLATE
	21-2	NEEDLE PLATE
	22	PRESSER BAR
	23	SCREW
	24	NEEDLE BAR CONNECTING ROD HOLDER
	25	SCREW
	26	SPRING
	27	COLLAR
	28	SCREW
	29	SHAFT
	31	BRACKET
	32	SCREW
	33	WASHER
	34	SCREW
	35	BRACKET
	36	BRACKET
	37	SCREW
	38	SHAFT
	39	WASHER
	40	SCREW
	41	SPRING
	42	SCREW
	43	SHAFT
	44	SPRING
	45	SPRING
	46	BRACKET
	47	SCREW
	48	SCREW
	49	SPRING
	50	SPRING
	51	PIN

Page 23 — PRESSER FOOT MECHANISM

Yamato VC2300 parts on page 23
Ref	Part number	Part name	Qty
1	0093500	Presser Spring Regulator	1
3	000445	Lock Nut	1
4	3200132	Presser Bar Spring(Outer)	1
5	0063087	Presser Bar Connecting Bracket	1
6	004440	Screw(11/64-40 × 8.3)	1
7	3211007	Presser Bar Guide	1
8	004441	Screw(11/64-40 × 16)	2
9	0093485	Presser Bar Spring(Inner)	1
10	3100110	Presser Bar	1
11	0093611	Oil Protector Ring	1
12	3211086	Collar(9 × 15 × 7mm)	1
13	001459	Screw(9/64-40 × 3)	2
14	3100112	Finger Guard	1
15	110002	Screw(M3-0.5 × 5)	1
16-1	3507050	Presser Foot, C. Set(48)	1
16-2	3507052	Presser Foot, C. Set(56)	1
16-3	3507054	Presser Foot, C. Set(64)	1
17	110004	Screw(M3.5-0.6 × 8)	1
18	110004	Screw(M3.5-0.6 × 4.2)	1
19	000327	Lock Nut	1
20	260006	Adjusting Screw(1/8-44 × 9.5)	1
21-1	3507000	Presser Foot, C. Set(32)(Extra)	1
21-2	3507002	Presser Foot, C. Set(40)(Extra)	1
22	0093487	Lifter Link	1
23	006038	Screw(3/16-32 × 2.2)	2
24	0063083	Lifter Link Lever	1
25	000690	Fastener Pin	1
26	0063084	Lifter Spring	1
27	3211008	Collar(8 × 16 × 8mm)	2
28	009604	Screw(11/64-40 × 5.5)	4
29	0093479	Lifter Shaft	1
31	3100294	Intermediate Lever	1
32	120017	Screw(M5-0.8 × 15)	1
33	0077179	Retaining Ring	2
34	0093509	Connecting Pin	2
35	0093507	Connecting Plate	1
36	3211111	Lifter Lever(Small)	1
37	004591	Screw(15/64-28 × 9.5)	1
38	0093496	Lifter Lever	1
39	3101216	Lifter Lever Stop	1
40	004358	Screw(9/64-40 × 5.6)	2

Page 24

Yamato VC2300 parts on page 24
Ref	Part number	Part name	Qty
	1	NEEDLE BAR DRIVE SHAFT
	3	LOCK NUT
	4	SPRING
	5	PRESSER BAR GUIDE
	6	SCREW
	7	BRACKET
	8	SCREW
	9	SPRING
	10	UPPER SHAFT
	11	WASHER
	12	COLLAR
	13	SCREW
	14	HANDWHEEL
	15	SCREW
	16-1	BRACKET
	16-2	BRACKET
	16-3	BRACKET
	17	SCREW
	18	SCREW
	19	SCREW
	20	SCREW
	21-1	NEEDLE BAR
	21-2	NEEDLE BAR
	22	LINK
	23	SCREW
	24	ARM
	25	SCREW
	26	SPRING
	27	COLLAR
	28	SCREW
	29	SHAFT
	31	BRACKET
	32	SCREW
	33	WASHER
	34	SCREW
	35	PLATE
	36	BRACKET
	37	SCREW
	38	SHAFT
	39	LINK
	40	SCREW
	41	BRACKET
	42	SCREW
	43	SCREW
	44	SCREW
	45	SPRING
	46	SPRING
	47	SCREW
	48	SCREW
	49	SPRING
	50	SPRING
	51	PIN

Page 25 — PRESSER FOOT MECHANISM

Yamato VC2300 parts on page 25
Ref	Part number	Part name
41	0090801	Tension Release Lever
42	005542	Screw(11/64-40 × 14.5)
43	0093545	Tension Release Shaft
44	0090824	Swing-proof Spring
45	3107303	Presser Foot Spring(Left)
46	3107304	Presser Foot Spring(Right)
47	3107306	Presser Foot Hinge Pin
48	130016	Screw(M2.5-0.45 × 6)
49	3160168	Lifter Spring
50	3500305	Cap
51	340014	Roll Pin(3 × 12mm)

Page 26

Yamato VC2300 parts on page 26
Ref	Part number	Part name	Qty
	1	BEARING CASE
	2	BEARING
	3	SCREW
	4	BEARING
	5	BEARING CASE
	6	CIRCLIP
	7	SCREW
	8	WASHER
	9	SHAFT
	10	SCREW
	11	WASHER
	12	COLLAR
	13	SCREW
	14	BRACKET
	15	SCREW
	16	SHAFT
	17	PIN
	18	SPRING
	19	COLLAR
	20	SHAFT
	21	WASHER
	22	COLLAR
	23	SCREW
	24	ARM
	25	NEEDLE BAR
	26	SCREW

Page 27 — SPREADER MECHANISM

Yamato VC2300 parts on page 27
Ref	Part number	Part name	Qty
1	3100302	Connecting Rod, Complete Set	1
2	3100300	Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	0077322	Roller Bearing	1
5	3100301	Connecting Rod	1
6	0094566	Retaining Ring	1
7	110009	Screw(M4-0.7 × 8)	1
8	300006	Washer	1
9	3211082	Adjusting Lever Pin	1
10	000528	Washer	1
11	100003	Nut(M6-1.0)	1
12	3211057	Collar(12 × 20 × 8mm)	1
13	009604	Screw(11/64-40 × 5.5)	2
14	3100303	Adjusting Lever	1
15	120013	Screw(M6-1 × 15)	1
16	3100304	Driving Shaft	1
17	3100305	Rocking Arm	1
18	160007	Screw(M6-1 × 6)	2
19	0063051	Rocking Pin	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	3211085	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2

Page 28

Yamato VC2300 parts on page 28
Ref	Part number	Part name
4	4	SCREW
5	5	COLLAR
6	6	SCREW
3	3	BRACKET
13	13	SCREW
12	12	WASHER
7	7	SCREW
8	8	NUT
9	9	WASHER
10	10	BRACKET
11	11	SCREW
14	14	BRACKET
15	15	COLLAR
16	16	SCREW
17	17	SHAFT
18	18	BRACKET
19	19	BRACKET
21	21	SLEEVE
22	22	SCREW
23	23	BRACKET
24	24	SLEEVE
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	SLEEVE
29	29	BRACKET
30	30	SCREW
31	31	BRACKET
32	32	SHAFT
33	33	BRACKET
34	34	PIN
35	35	LEVER
36	36	SCREW
37	37	LEVER
38	38	SCREW
39	39	SCREW

Page 29 — LOOPER DRIVING MECHANISM

Yamato VC2300 parts on page 29
Part number	Part name	Qty
3200150	Looper Rocker Connecting Rod, C.Set(2)	1
3200149	Looper Rocker Connecting Rod, C.Set(1)	1
3200152	Looper Rocker Connecting Rod	1
120001	Screw(M4-0.7 × 14)	5
3200151	Looper Rocker Eccentric	1
160003	Screw(M5-0.8 × 5)	2
3200159	Connecting Rod Pin	1
300000	Washer	1
100002	Nut	1
3200154	Looper Rocker Lever	1
005650	Screw(M5-0.8 × 14)	2
3200155	Looper Rocker Adjusting Guide Plate	1
110007	Screw(M2.5-0.45 × 6)	2
170021	Adjusting Screw(M2.5-0.45 × 10.5)	1
2100267	Collar(10 × 17 × 8mm)	1
160001	Screw(M4-0.7 × 4)	2
0093314	Looper Rocker Shaft	1
3200157	Looper Rocker Arm	1
0093319	Looper Slide Block	1
3200160	Looper Slide Block Pin	1
160009	Screw(M5-0.8 × 5)	1
3200161	Looper Connecting Rod, C. Set	1
0032784	Link Pin(Short)	1
009604	Screw(11/64-40 × 5.5)	1
0032785	Looper Driving Lever Link	1
001457	Screw(11/64-40 × 3.3)	1
0032786	Link Pin(Long)	1
3200162	Looper Driving Lever	1
160007	Screw(M6-1 × 6)	2
3211036	Collar	1
0093300	Looper Driving Shaft	1
3200164	Looper Holder	1
000669	Washer	1
0094480	Looper	1
110057	Screw(M4-0.7 × 7)	1
0095723	Needle Guard(Front)	1
004236	Screw(3/32-56 × 4.2)	1
009934	Screw(M5-0.8 × 16)	1

Page 30

Yamato VC2300 parts on page 30
Ref	Part number	Part name	Qty
	1	SHAFT
	2	LINK
	3	SCREW
	4	BRACKET
	5	BRACKET
	6	BRACKET
	7	PLATE
	8	SCREW
	9	COLLAR
	10	SCREW
	11	BRACKET
	12	BRACKET
	13	SPRING
	14	PIN
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	SCREW
	20	WASHER
	21	COLLAR
	22	BRACKET
	23	SCREW
	24	LINK
	25	COLLAR
	26	WASHER
	27	COLLAR
	28	SPRING
	29	PIN
	30	SPRING
	31	RING
	32	SHAFT
	33	BRACKET
	34	SCREW
	36	BRACKET
	37	SCREW
	38	SCREW
	39	GEAR
	40	SCREW
	41	NUT
	42	WASHER
	43	WASHER
	44	SCREW
	45	SPRING

Page 31 — FEED DRIVING CONTROL MECHANISM

Yamato VC2300 parts on page 31
Ref	Part number	Part name	Qty
	3200181	Feed Bar Driving Shaft
	3200183	Main Feed Bar Lever
	120006	Screw(M6-1 × 12)
	3200184	Differential Rocker, Complete Set
	3200185	Differential Rocker
	3200186	Differential Regulating Slider
	3200187	Differential Regulating Slider Cap
	110033	Screw(M3.5-0.6 × 6)
	2100161	Collar(10 × 19 × 9mm)
	110020	Screw(M3.5-0.6 × 6)
	3200205	Differential Lever(Inner), C. Set
	2100252	Slider Link
	0068202	Retaining Ring
	2100253	Slider Link Pin
	3200206	Differential Lever(Inner)
	3200189	Feed Bar, Complete Set
	3200190	Main Feed Bar
	3200191	Differential Feed Bar
	140018	Screw(M5-0.5 × 6)
	300000	Washer
	3200194	Connection Bushing
	2100243	Differential Feed Bar Connection
	140017	Screw(M5-0.5 × 6)
	2100248	Main Feed Bar Connection
	3200192	Connection Bushing
	3200215	Retaining Ring
	2100267	Collar(10 × 17 × 8mm)
	160001	Screw(M4-0.7 × 4)
	000690	Roll Pin
	3200216	Differential Lever Spring
	0020538	O-ring(P7)
	3200207	Differential Lever Shaft
	0095132	Differential Lever(Left)
	110009	Screw(M4-0.7 × 8)
	3200213	Differential Feed Graduation
	110045	Screw(M4-0.7 × 12)
	310072	Felt
	000210	Adjusting Nut
	005511	Adjusting Screw(1/4-40×11, 1/4-40×4)
	0020350	Differential Lever Stop
	000669	Washer
	000600	Spring Washer
	005049	Screw(M5-0.8 × 6)
	310071	Oil Wick

Page 32

Yamato VC2300 parts on page 32
Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	BRACKET
	4	SPRING
	5	SHAFT
	6	BLOCK
	7	COLLAR
	8	RING
	9	BLOCK
	10	GEAR
	11	PLATE
	12	SPRING
	13	BRACKET
	14	BRACKET
	15	SCREW
	16	PIN
	17	BRACKET
	18	BRACKET
	19	HOUSING
	20	BEARING
	21	CRANK
	22	SCREW
	23	COLLAR
	24	HOUSING
	25	SCREW
	26	SPRING
	27	BRACKET
	28	GEAR
	29	SPRING
	30-1	BRACKET
	30-2	BRACKET
	30-3	BRACKET
	31-1	BRACKET
	31-2	BRACKET
	31-3	BRACKET
	32	SCREW
	33	WASHER
	34	SCREW
	35	BRACKET
	36	SCREW
	37	SCREW
	38	SCREW
	39	PLATE
	40	BRACKET
	41	SCREW

Page 33 — FEED DRIVING MECHANISM

Yamato VC2300 parts on page 33
Ref	Part number	Part name
1	3200199	Feed Bar Guide(Left)
2	110080	Screw(M4-0.7 × 8)
3	3211073	Feed Bar Guide(Right)
4	160007	Screw(M6-1 × 6)
5	0033141	Feed Adjusting Pin
6	0093389	Feed Bar Block(Rear)
7	3211074	Feed Bar Guide(Rear)
8	0060076	Retaining Ring
9	0060075	Feed Bar Block(Front)
10	2110527	Roller Bearing
11	3204065	Feed Dog Regulator, C. Set
12	160003	Screw(M5-0.8 × 5)
13	3204059	Driving Connecting Rod Mechanism,C.Set
14	3200182	Feed Bar Driving Shaft Lever
15	120006	Screw(M6-1 × 12)
16	2100173	Connecting Rod Pin
17	3204060	Feed Dog Regulator, C. Set
18	3204061	Driving Connecting Rod, C. Set
19	3204064	Feed Dog Eccentric
20	2100278	Roller Bearing
21	3200196	Feed Dog Driving Connecting Rod
22	160016	Screw(M4-0.7 × 4.5)
23	3204063	Eccentric Link
24	3204062	Feed Dog Regulating Eccentric
25	180002	Screw(M3-0.5 × 4)
26	2100289	Feed Dog Regulating Plate Spring
27	0023473	Feed Dog Regulating Plate
28	2100279	Feed Dog Regulating Gear
29	180003	Screw(M5-0.8 × 8)
30-1	3209001	Differential Feed Dog(32,40,48,56)
30-2	3209003	Differential Feed Dog(64)
30-3	3206000	Differential Feed Dog(32,40,48,56)(Extra)
31-1	3209080	Main Feed Dog(32,40,48,56)
31-2	3209081	Main Feed Dog(64)
31-3	3206001	Main Feed Dog(32,40,48,56)(Extra)
32	110039	Screw(M3.5-0.6 × 10)
33	300050	Washer
34	110004	Screw(M3.5-0.6 × 8)
35	3200203	Feed Bar Shield Holder(Front)
36	130023	Screw(M4-0.7 × 7.3)
37	130024	Screw(M4-0.7 × 7.3)
38	110079	Screw(M4-0.7 × 8)
39	3200211	Feed Bar Shield
40	3200204	Feed Bar Shield Holder(Rear)
41	110070	Screw(M3-0.5 × 6.3)

Page 34

Yamato VC2300 parts on page 34
Ref	Part number	Part name	Qty
	1	CYLINDER BLOCK
	2	BOLT
	3	NUT
	4	HOSE CLAMP
	5	PIPE
	6	BOLT
	7	CLAMP
	8	WASHER
	9	BRACKET
	11	BOLT
	12	COVER
	13	BOLT
	14	O-RING
	15	OIL FILTER
	16	PLUG
	17	GASKET
	18	PIPE
	19	FUEL FILTER
	20	CYLINDER HEAD
	22	BOLT
	23	CLAMP
	24	BRACKET
	25	PIPE
	26	CIR-CLIP
	27	GASKET
	28	UNION
	29	PIPE
	30	UNION
	31	BOLT
	32	WASHER
	33	PIPE
	34	PIPE
	35	OIL PUMP
	36	GEAR
	37	BOLT
	38	BOLT
	39	PIPE
	40	NUT
	41	PIPE
	42	COVER
	43	BRACKET

Page 35

Yamato VC2300 parts on page 35
Part number	Part name	Qty
0065453	Oil Receiver	1
110012	Screw(M4-0.7 × 5)	5
000234	Nut	1
310026	Oil Wick(No.4-150mm)	1
3100350	Oil Pipe	1
160001	Screw(M4-0.7 × 4)	1
310027	Oil Wick(No.4-530mm)	1
0020551	O-ring(P5)	1
3100346	Oil Wick Holder	1
110036	Screw(M3-0.5 × 6.5)	1
3100060	Oil Filter Cap	1
110045	Screw(M4-0.7 × 12)	3
3100061	O-ring(P42)	1
3100345	Oil Filter	1
3100329	Oil Filter Connector	1
3200237	Felt	1
3200236	Suction Pipe	1
0093617	Suction Pipe Bushing	1
3200238	Oil Tube(3 × 5 × 500mm)	1
3100353	Oil Pipe Unit	1
0031831	Oil Tube Clamp	6
3200234	Oil Tube(Long), Complete Set	1
3100372	Oil Tube(4 × 6 × 397mm)	1
0063217	Oil Filter Screen Clamp	1
0063216	Oil Filter Screen	1
0037668	Oil Tube Joint, Two Way	1
3200233	Oil Tube(4 × 6 × 175mm)	1
0037669	Oil Tube Joint, One Way	3
004124	Fitting Stud(Short)	4
000567	Seal	1
3200235	Oil Tube(Short), Complete Set	1
3200232	Oil Tube(4 × 6 × 45mm)	1
3100328	Oil Pump, Complete Set	1
0030711	Oil Pump Driving Worm Gear	1
160001	Screw(M4-0.7 × 4)	2
120013	Screw(M6-1 × 15)	2
0090918	Suction Pipe	1
000419	Nut	1
3100349	Oil Nozzle for Worm Gear	1
3200231	Dustproof Plate	1
0020533	Oil Sight Gauge	1

Page 36

Yamato VC2300 parts on page 36
Ref	Part number	Part name	Qty
	1-1	Type P
	1-2	Type Q
	1-3	Type R
	2	BRACKET
	3	SCREW
	4	SCREW
	5	BRACKET
	6	PLATE
	7	SCREW
	8	COVER
	9	BRACKET
	10	SCREW
	11-1	BRACKET
	11-2	BRACKET
	12	WASHER
	13	SCREW
	14	BRACKET
	15	SCREW
	16	COVER
	17	COVER
	18	COVER
	19	SCREW
	20	BRACKET
	21	PIN
	22	BRACKET
	23	BRACKET

Page 37 — VF2303M-21 EXCLUSIVE PARTS (1)

Yamato VC2300 parts on page 37
Ref	Part number	Part name
1-1	0093241	Folder (for Type P)
1-2	0093242	Folder (for Type Q)
1-3	0093243	Folder (for Type R)
2	0091736	Folder Clamp
3	009932	Screw(11/64-40 × 4)
4	005554	Screw(7/32-32 × 6.5)
5	0094245	Folder Support
6	0094246	Folder Support Fixing Plate
7	140019	Screw(M5-0.8 × 14)
8	3210030	Front Cover
9	3210031	Front Cover (Small)
10	110013	Screw(M4-0.7 × 8)
11-1	3201007	Fabric Slide Plate
11-2	3204047	Fabric Slide Plate(Extra)
12	000426	Washer
13	110105	Screw(M5-0.8 × 12)
14	3201005	Dustproof Cover
15	110104	Screw(M4-0.7 × 8)
16	3201001	Looper Thread Take-up Cover
17	3210003	Cloth Plate(Small)
18	3040038	Side Cover
19	0032604	Rubber Cushion(Large)
20	3200012	Cover Latch Spring
21	180018	Screwed Pin(M4-0.7 × 7)
22	3200013	Side Cover Holder
23	3100071	Eyelet Cover

Page 38 — 15 VF2303M-21 (2)

Yamato VC2300 parts on page 38
Ref	Part number	Part name
1	1-1	1-1
2	1-2	1-2
3	1-3	1-3
4	4	4
3	3	3
2	2	2
9	9	9
8	8	8
5	5	5
6	6	6
7	7	7
10-1	10-1	10-1
10-2	10-2	10-2
10-3	10-3	10-3
11	11	11
12	12	12
15-1	15-1	15-1
15-2	15-2	15-2
15-3	15-3	Needle
2	2	2
4	4	4
3	3	3
9	9	9
8	8	8
5	5	5
6	6	6
7	7	7
13-1	13-1	13-1
13-2	13-2	13-2
13-3	13-3	13-3
14	14	14
16-1	16-1	16-1
16-2	16-2	16-2
16-3	16-3	16-3
11	11	11
12	12	12

Page 39 — VF2303M-21 EXCLUSIVE PARTS(2)

Yamato VC2300 parts on page 39
Ref	Part number	Part name
1-1	3207155	Presser Foot, C. Set(48)
1-2	3207156	Presser Foot, C. Set(56)
1-3	3207157	Presser Foot, C. Set(64)
2	001186	Screw(9/64-40 × 7.8)
3	0091725	Presser Foot Spring
4	005133	Screw(1/8-44 × 4.5)
5	000220	Lock Nut
6	003300	Adjusting Screw(1/8-44 × 15)
7	0091696	Presser Foot Hinge Pin
8	3207160	Tape Guide
9	001230	Screw(3/32-56 × 3.8)
10-1	3208105	Stitch Plate(48M-21)
10-2	3208108	Stitch Plate(56M-21)
10-3	3208109	Stitch Plate(64M-21)
11	3209064	Main Feed Dog
12	3209065	Differential Feed Dog
13-1	0093352	Needle Clamp(40)
13-2	0093351	Needle Clamp(32)(Extra)
13-3	0093353	Needle Clamp(48)(Extra)
14	001900	Screw(1/8-44 × 2.4)
15-1	3207151	Presser Foot, C. Set(40)
15-2	3207150	Presser Foot, C. Set(32)(Extra)
15-3	3207152	Presser Foot, C. Set(48)(Extra)
16-1	3208103	Stitch Plate(40M-21)
16-2	3208102	Stitch Plate(32M-21)(Extra)
16-3	3208104	Stitch Plate(48M-21)(Extra)

Page 41 — THREAD STAND

Yamato VC2300 parts on page 41
Ref	Part number	Part name	Qty
1	9620696	Thread Stand, C. Set(6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Pipe(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	8
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut(M16-1.5)	1
16	9620703	Thread Hanger(3 Spools Type)	4
17	9620700	Thread Eyelet	6
18	9620688	Thread Hanger Holder	4
19	911060	Screw(M6-1 × 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620666	Thread Guide(6 Spools Type)	1
23	9620678	Spool Cushion	6
24	9620679	Spool Pin	6
25	9620680	Spool Mat	6
26	9620681	Spool Seat Disc	6
27	930055	Spring Washer	6
28	9620750	Knitted Tape Stand, C. Set	1
29	9620751	Tape Pin	1
30	9620752	Tape Disc	1
31	000433	Washer	1
32	9620753	Tape Disc Block	1
33	911062	Screw(M4-0.7 × 15)	4
34	910001	Nut	4
35	9620756	Tape Stand Bar	1
36	001448	Screw(15/64-28 × 5.5)	1
37	9620757	Tape Stand	1
38	005148	Wood Screw(φ 4.5 × 25)	3
39	9620754	Tape Guide Bar	1
40	9620755	Tape Guide	2

Page 42

Yamato VC2300 parts on page 42
Ref	Part number	Part name
5	5	CAP
6	6	BOLT
7	7	WASHER
8	8	NUT
9	9	WASHER
10	10	WASHER
11	11	WASHER
2	2	BRACKET
3	3	BOLT
4	4	COVER
14	14	BOLT
13	13	WASHER
12	12	BRACKET
17	17	CORD
15	15	COVER
16	16	BOLT
19	19	BOLT
18	18	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BOLT
25	25	BRACKET
26	26	WASHER
24	24	BRACKET
27	27	BOLT

Page 43 — SUPPORTING BOARD

Yamato VC2300 parts on page 43
Ref	Part number	Part name	Qty
1	3211078	Supporting Board, C. Set	1
2	3211068	Supporting Board	2
3	180020	Setting Screw(M6-1 × 15)	4
4	0093035	Oil Resrvoir Rubber Cushion	4
5	000070	Hanging Nut	4
6	009861	Hanging Bolt(M8-1.25 × 95)	4
7	000162	Washer	12
8	000016	Nut	12
9	2101451	Spacer(See the table below)	12
10	0020064	Supporting Board Rubber Cushion	4
11	0063010	SupportingBoardRubberCushion(Lower)	4
12	3200242	Chain Guide	1
13	000541	Washer	2
14	110009	Screw(M4-0.7 × 8)	2
15	3500700	Belt Cover	1
16	110028	Screw(M6-1 × 46)	2
17	3000010	Looper Threading Bar	2
18	3107311	Fabric Guide(Long)	1
19	110027	Screw(M2.5-0.45 × 3.5)	1
20	3201455	Fabric Guide Support	1
21	3400252	Fabric Guide(Left)	1
22	3400253	Fabric Guide(Right)	1
23	110036	Screw(M3-0.5 × 6.5)	2
24	3201456	Supplementary Front Cover	1
25	110105	Screw(M5-0.8 × 12)	2
26	000426	Washer	2
27	110013	Screw(M4-0.7 × 8)	2

Page 44 — WARNING LABEL 警告ラベル

Yamato VC2300 parts on page 44
Ref	Part number	Part name	Qty
	390220	SAFETY INSTRUCTON LABEL
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Page 46 — VF2300M class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato VC2300 parts on page 46
Ref	Part number	Part name
★	0093351	押工(組)
★	0093352	押工(組)
★	0093353	押工(組)
	0093356	押工(組)
	0093357	押工(組)
	0093358	押工(組)
★	3108130	針板
★	3108131	針板
★	3108132	針板
	3108133	針板
	3108134	針板
	3108135	針板
★	3207150	Differential Feed Dog
★	3207151	Differential Feed Dog
★	3207152	Differential Feed Dog
	3207155	Differential Feed Dog
	3207156	Differential Feed Dog
	3207157	Differential Feed Dog
	3209001	Main Feed Dog
	3209003	Main Feed Dog
	3209064	Main Feed Dog
	3209065	Main Feed Dog
	3209080	Main Feed Dog
	3209081	Main Feed Dog
	3204041	Front Cover
	3204042	Front Cover
	3204044	Front Cover
	32010005	Cloth Plate (Large)
	3210003	Cloth Plate (Large)
	3204041	Cloth Plate (Small)
	3209003	Cloth Plate (Small)
	3204041	Cloth Plate (Small)
	3200018	Thread Take-up Cover
	3200032	Thread Take-up Cover
	0094480	Stitch Plate Support
	0094480	Looper

Page 47 — INDEX

Yamato VC2300 parts on page 47
Ref	Part number	Part name	Qty
6	000010
38	000010
47	000014
25	000015
8	000016
5	000070
7	000162
6	000177
2	000195
39	000210
5	000220
3	000234
23	000321
19	000327
40	000334
51	000360
53	000360
40	000419
24	000425
12	000426
26	000426
31	000433
3	000445
10	000528
23	000532
57	000532
60	000538
27	000538
13	000541
39	000547
31	000555
32	000560
35	000600
43	000600
28	000651
34	000669
42	000669
25	000690
29	000690
32	000726
38	000745
20	000926
4	000989
39	001093
25	001174
2	001186
55	001223
9	001230
36	001448
27	001457
13	001459
48	001818
50	001818
9	001900
14	001900
6	003300
58	004106
31	004124
58	004182
35	004236
38	004236
27	004312
24	004353
2	004358
40	004358
6	004440
8	004441
37	004591
44	005049
24	005071
36	005075
4	005133
38	005148
40	005511
42	005542
4	005554
25	005650
36	005650
11	005650
5	006004
37	006004
23	006038
35	006219
17	007610
15	008047
14	009142
23	009526
28	009604
13	009604
25	009604
3	009747
2	009749
33	009784
6	009861
3	009932
39	009934
29	009970
10	0020064
21	0020119
35	0020137
32	0020159
41	0020350
23	0020472
43	0020533
31	0020538
8	0020551
5	0020759
27	0023473
2	0024083
1	0024084
3	0030255
5	0030291
36	0030711
7	0031111
23	0031831
37	0032425
38	0032426
18	0032604
19	0032604
24	0032784
26	0032785
28	0032786
4	0032952
25	0033024
5	0033141
50	0035813
52	0035813

Page 48

Yamato VC2300 parts on page 48
Ref	Part number	Part name	Qty
36	0036175
49	0037108
51	0037108
28	0037668
30	0037669
18	0060057
9	0060075
8	0060076
36	0060175
11	0063010
1	0063044
19	0063051
20	0063053
7	0063055
21	0063056
47	0063074
24	0063083
26	0063084
5	0063087
37	0063096
25	0063104
22	0063152
54	0063197
27	0063216
26	0063217
26	0065275
28	0065275
1	0065453
4	0068011
33	0068202
13	0068202
33	0077179
17	0077300
4	0077322
37	0090068
5	0090071
41	0090801
12	0090807
9	0090812
44	0090824
11	0090856
39	0090918
7	0091696
3	0091725
2	0091736
4	0093035
16	0093091
19	0093154
27	0093179
26	0093186
21	0093212
18	0093214
1-1	0093241
1-2	0093242
1-3	0093243
32	0093300
23	0093303
17	0093314
19	0093319
41-1	0093351
13-2	0093351
41-2	0093352
13-1	0093352
41-3	0093353
13-3	0093353
7-1	0093356
7-2	0093357
7-3	0093358
10	0093365
6	0093389
29	0093479
9	0093485
22	0093487
38	0093496
1	0093500
35	0093507
34	0093509
46	0093515
22	0093528
43	0093545
20	0093556
11	0093611
19	0093617
37-2	0093659
34	0093663
37-1	0093669
9	0093864
27	0093864
27	0093864
32	0093864
20	0094201
5	0094245
6	0094246
35	0094480
6	0094566
12	0095108
33	0095132
23	0095170
7	0095214
29	0095218
57	0095367
37	0095723
9	100002
11	100003
15	110002
39	110004
17	110004
34	110004
20	110005
13	110007
19	110009
42	110009
12	110009
7	110009
34	110009
14	110009
28	110010
21	110012
50	110012
22	110013
13	110013
14	110013
10	110013
27	110013
26	110016
42	110016
10	110020
19	110027
16	110028
8	110030

Page 49 — INDEX

Yamato VC2300 parts on page 49
Ref	Part number	Part name	Qty
61	110031
26	110031
8	110033
6	110035
28	110036
11	110036
23	110036
32	110039
37	110041
2	110045
37	110045
13	110045
33	110048
40	110048
36	110057
41	110070
14	110079
38	110079
2	110080
38	110083
18	110084
15	110104
13	110105
25	110105
4	120001
3	120006
15	120006
29	120013
15	120013
38	120013
30	120015
17	120015
32	120017
54	130002
44	130002
10	130003
40	130003
36	130003
11	130004
18	130006
48	130016
37	130024
23	140017
19	140018
7	140019
17	160000
26	160000
46	160001
31	160001
16	160001
28	160001
6	160001
37	160001
22	160003
3	160003
6	160003
12	160003
21	160004
2	160005
2	160005
3	160007
3	160007
18	160007
30	160007
4	160007
22	160009
22	160016
59	160030
14	170001
44	170020
14	170021
25	180002
29	180003
16	180005
47	180017
51	180018
21	180018
3	180020
24	190078
48	220003
40	260000
20	260006
8	290029
8	300000
20	300000
8	300006
33	300050
15	300100
45	300100
4	310026
7	310027
30	310035
33	310036
45	310071
38	310072
27	330000
51	340014
30	340016
35	350009
10	910000
7	910001
34	910001
14	910003
6	911001
5	911002
9	911006
19	911060
33	911062
12	930052
13	930053
27	930055
37	2049401
22	2100034
9	2100161
16	2100173
22	2100243
24	2100248
12	2100252
14	2100253
15	2100267
27	2100267
20	2100278
28	2100279
26	2100289

Page 50 — INDEX

Yamato VC2300 parts on page 50
Ref	Part number	Part name	Qty
9	2101451
10	2110527
17	3000010
18	3040038
11	3040039
41	3040040
12	3100006
8	3100019
3	3100027
12	3100060
14	3100061
23	3100071
13	3100074
10	3100075
34	3100078
12	3100098
6	3100100
10	3100110
14	3100112
28	3100113
7	3100128
10	3100129
6	3100129
8	3100131
5	3100131
8	3100275
8	3100281
10	3100283
13	3100284
28	3100285
32	3100286
33	3100287
20	3100290
31	3100294
25	3100296
2	3100300
5	3100301
1	3100302
14	3100303
16	3100304
17	3100305
24	3100307
35	3100328
16	3100329
15	3100345
9	3100346
41	3100349
5	3100350
22	3100353
15	3100361
19	3100362
24	3100363
25	3100372
30	3100383
31	3100384
33	3100386
34	3100387
39	3100442
56	3100630
59	3100631
32	3101200
39	3101216
40	3103009
45	3107303
46	3107304
47	3107306
18	3107311
42-1	3108130
42-2	3108131
42-3	3108132
13-1	3108133
13-2	3108134
13-3	3108135
10	3160136
49	3160168
33	3200007
20	3200012
22	3200013
49	3200016
4-1	3200018
7	3200019
19	3200022
20	3200023
15	3200024
16	3200025
39	3200026
40	3200027
29	3200028
30	3200029
31	3200030
32	3200031
36	3200032
19	3200033
48	3200033
4-2	3200035
18	3200042
49	3200042
46	3200045
26	3200047
17	3200048
38	3200049
13	3200050
25	3200051
16	3200052
20	3200053
26	3200055
18	3200056
19	3200057
4	3200059
24	3200061
15	3200062
8	3200063
9	3200064
21	3200065
30	3200066
14	3200067
11	3200068
1	3200070
9	3200072
12	3200073
13	3200074
29	3200075
14	3200076
27	3200077
11	3200078
18	3200079
17	3200080
21	3200081
19	3200082
24	3200084
34	3200085
35	3200086
23	3200087

Page 51 — INDEX

Yamato VC2300 parts on page 51
Ref	Part number	Qty
43	3200091	5
41	3200092	5
39	3200093	5
56	3200094	5
6	3200095	5
16	3200101	7
29	3200120	7
30	3200121	7
31	3200122	7
4	3200132	8
2	3200149	10
1	3200150	10
5	3200151	10
3	3200152	10
10	3200154	10
12	3200155	10
18	3200157	10
7	3200159	10
21	3200160	10
23	3200161	10
29	3200162	10
33	3200164	10
3	3200170	7
1	3200181	11
14	3200182	12
2	3200183	11
4	3200184	11
5	3200185	11
6	3200186	11
7	3200187	11
16	3200189	11
17	3200190	11
18	3200191	11
25	3200192	11
21	3200194	11
21	3200196	12
1	3200199	12
35	3200203	12
40	3200204	12
11	3200205	11
15	3200206	11
32	3200207	11
21	3200209	2
39	3200211	12
36	3200213	11
26	3200215	11
30	3200216	11
42	3200231	13
34	3200232	13
29	3200233	13
24	3200234	13
33	3200235	13
18	3200236	13
17	3200237	13
20	3200238	13
12	3200242	17
34	3200245	1
31	3200251	4
34	3200252	4
16	3201001	14
14	3201005	14
11-1	3201007	14
53	3201454	2
20	3201455	17
24	3201456	17
55	3201457	2
45	3203001	3
3	3204021	4
7	3204040	1
9	3204041	2
43-1	3204042	2
13	3204043	1
43-2	3204044	2
11-2	3204047	14
13	3204059	12
17	3204060	12
18	3204061	12
24	3204062	12
23	3204063	12
19	3204064	12
11	3204065	12
1	3204066	6
30-3	3206000	12
31-3	3206001	12
15-2	3207150	15
15-1	3207151	15
15-3	3207152	15
1-1	3207155	15
1-2	3207156	15
1-3	3207157	15
8	3207160	15
16-2	3208102	15
16-1	3208103	15
16-3	3208104	15
10-1	3208105	15
10-2	3208108	15
10-3	3208109	15
30-1	3209001	12
30-2	3209003	12
11	3209064	15
12	3209065	15
31-1	3209080	12
31-2	3209081	12
1	3210002	1
17	3210003	14
1	3210005	2
8	3210030	14
9	3210031	14
7	3211007	8
27	3211008	8
15	3211010	3
5	3211028	7
31	3211036	10
12	3211057	9
26	3211063	6
2	3211068	17
36	3211071	5
3	3211073	12
7	3211074	12
1	3211078	17
9	3211082	9
11	3211083	6
22	3211085	9
12	3211086	8
36	3211111	8
21	3400252	17
22	3400253	17
50	3500305	8
1	3500309	4
15	3500700	17
21-1	3507000	8
21-2	3507002	8

Page 52 — INDEX

Yamato VC2300 parts on page 52
Ref	Part number	Part name	Qty
16-1	3507050	16-1	8
16-2	3507052	16-2	8
16-3	3507054	16-3	8
25	3509320	25	9
31	4109406	31	1
2	9620631	2	16
22	9620666	22	16
3	9620670	3	16
8	9620673	8	16
11	9620675	11	16
23	9620678	23	16
24	9620679	24	16
25	9620680	25	16
26	9620681	26	16
18	9620688	18	16
4	9620689	4	16
21	9620690	21	16
20	9620691	20	16
1	9620696	1	16
17	9620700	17	16
16	9620703	16	16
28	9620750	28	16
29	9620751	29	16
30	9620752	30	16
32	9620753	32	16
39	9620754	39	16
40	9620755	40	16
35	9620756	35	16
37	9620757	37	16

Yamato VC2300 — parts catalog

Page 1 — Parts List

Yamato Parts List HIGH SPEED FLAT BED CHAINSTITCH MACHINE VF2300M MODELS VF2300M VF2303M-21 YAMATO SEWING MACHINE MFG. CO.,LTD. jintex.in

Page 2

パーツリストの見方このパーツリストは、VF2300Mを基本モデルにしてイラストを作成しています。項目1~13には基本モデルを記載しています。項目14~サブモデル等を記載しています。パーツリストに記載されているカラーの寸法は内径×外径×幅を表わしています。コネクタに表記してある数字は、接続部のサイズです。記号の説明 (Parts No. の隣に記載されています。) [ ] 前回のパーツリストに対して、今回変更された部品を表わしています。 [ ] 内は旧 Parts No. 及びネジ類の形状 ◆ 前回のパーツリストに対して、今回追加された部品及びモデルを表わしています。部品注文のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、3150023)でお願いします。 ☆ 0063538の場合は、0063538又は63538でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さをお知らせ下さい。なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of VF2300M. The items from No.1 to No.13 contain the standard model. The following items included No.14 contain the submodel. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Numbers on a connector show sizes of joints. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. ◆ means this part and model is added to the previous Parts List. How to place an order for the parts ☆ When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.3150023) which you require so that we can deliver the correct Parts to you. ☆ When the Part No. is "0063538", please place an order for the part by showing "0063538" or "63538". ☆ When ordering Air Tube, please inform us of the Part No. and the length. This Parts List is subject to change without notice. jintex.in

Page 3 — Contents

Contents 目次 MISCELLANEOUS COVER (1) MISCELLANEOUS COVER (2) MISCELLANEOUS THREAD EYELETS MISCELLANEOUS BUSHINGS & EYE GUARD MAIN SHAFT DRIVING MECHANISM UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM NEEDLE BAR MECHANISM PRESSER FOOT MECHANISM SPREADER MECHANISM LOOPER DRIVING MECHANISM FEED DRIVING CONTROL MECHANISM FEED DRIVING MECHANISM LUBRICATING MECHANISM VF2303M-21 EXCLUSIVE PARTS(1) VF2303M-21 EXCLUSIVE PARTS(2) THREAD STAND SUPPORTING BOARD WARNING LABEL LIST of MAIN SPARE PARTS INDEX カバー関係 (1) カバー関係 (2) 糸関連係ブッシュ及びアイガード関係下軸機構上軸及び針糸繰り機構針棒機構押工機構飾り糸ルーパ機構ルーパ機構前送り調節機構送り機構給油機構サブモデル専用部品(1) サブモデル専用部品(2) 糸立台受ケ板警告ラベル主要部品リスト索引 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 jintex.in

Page 4

1 VF2300M jintex.in

Page 5 — MISCELLANEOUS COVER (1)

MISCELLANEOUS COVER (1) カバー関係(1) 1 Ref.No Parts No. Description 品名 Amt. Req 1 3210002 Top Cover 上カバー 1 2 110045 Screw(M4-0.7 × 12) 止ネジ 15 3 3100027 Top Cover Gasket 上カバーパッキン 1 4 0068011 Oil Sight Window オイル確認窓 1 5 0020759 Top Cover Seal Plug 上カバー詰栓 1 6 7 3204040 Head Cover ヘッドカバー 1 8 3100019 Head Cover Gasket ヘッドカバーパッキン 1 9 0093864 Head Cover Seal Plug 詰栓 1 10 11 3040039 Bed Rear Cover ベッド後カバー 1 12 0095108 Bed Rear Cover Gasket ベッド後カバーパッキン 1 13 3204043 Side Cover 横開キカバー 1 14 170001 Screw(M5-0.8 × 8) 止ネジ 1 15 300100 Conical Spring Washer 皿バネワッシャ 2 16 180005 Screw(M5-0.8 × 8) 止ネジ 1 17 160000 Screw(M3-0.5 × 3) 止ネジ 1 18 0032604 Rubber Cushion(Large) クッションゴム(大) 1 19 3200033 Rubber Cushion(Small) クッションゴム(小) 2 20 0094201 Cover Latch Spring カバーラッチバネ 1 21 110012 Screw(M4-0.7 × 5) 止ネジ 1 22 110013 Screw(M4-0.7 × 8) 止ネジ 1 23 24 190078 Screw(M4-0.7 × 5) バネ掛ケネジ 1 25 000015 Nut ナット 1 26 110016 Screw(M4-0.7 × 15) 止ネジ 1 27 330000 Seal Plug 詰栓 1 28 29 009970 Screw(M6-1 × 20) 止ネジ 6 30 340016 Machine Frame Supporting Bar ベッド支工棒 4 31 4109406 Model Plate(See the below) 型式板(下記参照) 1 32 000726 Rivet 止メ鋲 5 33 3200007 Oil Reservoir Gasket 油受パッキン 1 34 3200045 Oil Reservoir 油受ケ 1 35 0020137 Drain Hole Seal 油抜キネジパッキン 1 36 005075 Screw(3/8-24 × 8) 油抜キネジ 1 37 2049401 Serial Number Plate 機番プレート 1 (注) 型式板を御注文の際は機種名(ゲージ記号含む)をお知らせ下さい。 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge).

Page 6

2 VF2300M jintex.in

Page 7 — MISCELLANEOUS COVER (2)

MISCELLANEOUS COVER (2) カバー関係(2) 2 Ref.No Parts No. Description 品名 Amt. Req 1 3210005 Cloth Plate(Large) 大カバー 1 2 009749 Screw(M4-0.7 × 16) 止ネジ 3 3 009747 Screw(M4-0.7 × 10) 止ネジ 1 4-1 3200018 Looper Thread Take-up Cover(32,40,48,56) カムカバー 1 4-2 3200035 Looper Thread Take-up Cover(64) カムカバー 1 5 006004 Screw(11/64-40 × 9.7) 止ネジ 1 6 000010 Conical Spring Washer 皿バネワッシャ 1 7 3200019 Take-up Cover Spring カムカバーバネ 1 8 110030 Screw(M3-0.5 × 2.6) 止ネジ 2 9 3204041 Cloth Plate(Small) 小カバー 1 10 130003 Screw(M4-0.7 × 7.3) 止ネジ 1 11 130004 Screw(M4-0.7 × 14) 止ネジ 1 12 3100006 Seal Plug 詰栓 1 13 110013 Screw(M4-0.7 × 8) 止ネジ 8 14 110079 Screw(M4-0.7 × 8) 止ネジ 2 15 3200024 Bed Top Cover(Right) ベッド上カバー(右) 1 16 3200025 Bed Top Cover(Right) Gasket ベッド上カバー(右)パッキン 1 17 007610 Screw(M4-0.7 × 10) 止ネジ 8 18 130006 Screw(M4-0.7 × 10) 止ネジ 2 19 3200022 Bed Top Cover(Left) ベッド上カバー(左) 1 20 3200023 Bed Top Cover(Left) Gasket ベッド上カバー(左)パッキン 1 21 3200209 Feed Regulating Pushbutton プッシュボタン 1 22 0063152 Feed Regulating Pushbutton Spring プッシュボタンバネ 1 23 0020472 O-ring(P6) Oリング 1 24 000425 Washer ワッシャ 1 25 0033024 Retaining Ring ストップリング 1 26 0065275 Seal Plug 詰栓 1 27 0093864 Seal Plug 詰栓 5 28 3100113 Needle Bar Guard 針棒ガード 1 29 3200028 Bed Rear Cover(Small) ベッド後カバー(小) 1 30 3200029 Bed Rear Cover(Small) Gasket ベッド後カバー(小)パッキン 1 31 3200030 Ball Bearing Housing ハウジング 1 32 3200031 O-ring Oリング 1 33 110048 Screw(M4-0.7 × 10) 止ネジ 3 34 35 36 3200032 Stitch Plate Support 針板台 1 37 110041 Screw(M4-0.7 × 8) 止ネジ 2 38 000745 Knock Pin ノックピン 2 39 3200026 Bed Front Cover ベッド前カバー 1 40 3200027 Bed Front Cover Gasket ベッド前カバーパッキン 1 Ref. No. 41 to 61 See the following page. jintex.in VF2300M

Page 8

2 VF2300M jintex.in

Page 9 — MISCELLANEOUS COVER(2)

MISCELLANEOUS COVER(2) カバー関係(2) 2 Ref.No Parts No. Description 品名 Amt. Req 41 3040040 Front Cover Hinge 前開キカバーヒンジ 1 42 110016 Screw(M4-0.7 × 15) 止ネジ 2 43-1 3204042 Front Cover(32, 40, 48, 56) 前開キカバー 1 43-2 3204044 Front Cover(64) 前開キカバー 1 44 170020 Screw(M4-0.7 × 8) 止ネジ 1 45 300100 Conical Spring Washer 皿バネワッシャ 2 46 160001 Screw(M4-0.7 × 4) 止ネジ 1 47 180017 Screw(M4-0.7 × 6) 止ネジ 1 48 3200033 Rubber Cushion(Small) クッションゴム(小) 2 49 3200016 Front Cover Spring 前開キカバーバネ 1 50 110012 Screw(M4-0.7 × 5) 止ネジ 2 51 180018 Screw(M4-0.7 × 7) バネ掛ケネジ 1 52 53 3201454 Supporting Block 補助ブロック 1 54 130002 Screw(M3-0.5 × 6) 止ネジ 2 55 3201457 Guide Spacer ガイドスペーサ 1 56 3100630 Fabric Edge Guide(Left) 定規(左) 1 57 0095367 Fabric Edge Guide Chip 定規チップ 1 58 004182 Screw(3/32-56 × 2.5) 止ネジ 1 59 3100631 Fabric Edge Guide(Right) 定規(右) 1 60 000538 Washer ワッシャ 2 61 110031 Screw(M4-0.7 × 12) 止ネジ 2 VF2300M

Page 11 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 糸調関係 3 Ref.No Parts No. Description 品名 Amt. Req 1 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 5 2 0024083 Tension Spring Bushing 糸調子ナット回り止メ 5 3 0030255 Tension Spring (Needle Thread) 糸調子バネ(針糸) 3 4 0032952 Tension Spring(Top Cover&Looper Thread) 糸調子バネ(飾り・ルーパ糸) 2 5 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 5 6 000177 Felt フェルト 5 7 0031111 Tension Disc 糸調子皿 10 8 290029 Tension Post 糸調子棒 5 9 0090812 Tension Post Ferrule 糸調子棒擦レ板 5 10 3100075 Tension Disc Separator 糸緩メ板 1 11 0090856 Tension Disc Eyelet 糸調子皿糸道 5 12 0090807 Tension Lead-in Guide 糸調子台糸道 5 13 3100074 Tension Post Support 糸調子台 1 14 110013 Screw(M4-0.7 × 8) 止ネジ 6 15 3211010 Looper Thread Eyelet ルーパ糸道 1 16 17 3200048 Top Cover Thread Eyelet(Left) 飾り糸道(左) 1 18 3200042 Looper Thread Eyelet ルーパ糸道 1 19 110009 Screw(M4-0.7 × 8) 止ネジ 6 20 0093556 Looper Thread Eyelet(Long) ルーパ糸道(長) 1 21 0020119 Thread Eyelet Pipe(Short) 糸道パイプ(短) 2 22 0093528 Thread Eyelet Pipe Stay 糸道パイプ支工 2 23 000532 Washer ワッシャ 2 24 004353 Screw(9/64-40 × 7) 止ネジ 2 25 0063104 Thread Guide Plate 糸案内板 1 26 3200047 Top Cover Thread Eyelet(Right) 飾り糸道(右) 1 27 000538 Washer ワッシャ 2 28 000651 Guide Pin ガイドピン 1 29 30 3100383 SP Device, Complete Set SP装置(組) 1 31 3100384 SP Tank SPタンク 1 32 33 3100386 Felt SPフェルト 1 34 3100387 Needle Thread Eyelet 針糸道 1 35 350009 Wood Screw(φ 5.5 × 6) 木ネジ 2 36 37 0090068 Needle Thread Guide 針糸受ケ 1 38 39 3100442 Needle Thread Eyelet 針糸道 1 40 130003 Screw(M4-0.7 × 4.5) 止ネジ 1 41 42 43 44 45 3203001 Top Cover Thread Guide, C. Set 飾り糸案内(組) 1 46 3200045 Top Cover Thread Guide 飾り糸案内 1 47 0063074 Supplementary Thread Guide 小調子台糸道 1 48 001818 Tension Post 糸調子棒 1 49 0037108 Supplementary Tension Disc 小調子皿 2 50 0035813 Supplementary Tension Spring 飾り調子バネ 1 51 000360 Nut ナット 1 jintex.in VF2300M

Page 13 — MISCELLANEOUS BUSHINGS & EYE GUARD

MISCELLANEOUS BUSHINGS & EYE GUARD Ref.No Parts No. Description 品名 Amt. Req 1 3500309 Oil Seal オイルシール 2 2 000195 Oil Wick 油芯 1 3 3204021 Oil Seal オイルシール 1 4 3200059 Presser Bar Bushing 押工棒ブッシュ 1 5 0030291 Oil Seal オイルシール 1 6 3100100 Spreader Driving Bar Bushing 飾り糸ルーパ棒ブッシュ 1 7 0063055 Oil Seal オイルシール 1 8 3200063 Spreader Driving Shaft Bushing(Left) 飾り糸ルーパ軸ブッシュ(左) 1 9 3200064 Spreader Driving Shaft Bushing(Right) 飾り糸ルーパ軸ブッシュ(右) 1 10 3160136 Foot Lifter Lever Bushing 押工揚ゲ軸ブッシュ 1 11 3200068 Needle Thread Take-up Bushing(Front) 針糸繰り軸ブッシュ(前) 1 12 3100098 Needle Thread Take-up Bushing(Rear) 針糸繰り軸ブッシュ(後) 1 13 3200050 Lower Shaft Bushing(Left) 下軸ブッシュ 1 14 3200067 Oil Seal オイルシール 1 15 3200062 Looper Rocker Shaft Bushing(Left) ルーパ前後軸ブッシュ(左) 1 16 3200052 Looper Rocker Shaft Bushing(Right) ルーパ前後軸ブッシュ(右) 1 17 0077300 Oil Seal オイルシール 1 18 3200056 Needle Guard Driving Shaft 針受ケ軸ブッシュ 2 19 3200057 Seal Plug 詰栓 1 20 3200053 Feed Bar Driving Shaft Bushing(Left) 送り軸ブッシュ(左) 1 21 3200065 Feed Bar Driving Shaft Bushing(Right) 送り軸ブッシュ(右) 1 22 2100034 Seal Plug 詰栓 1 23 0093303 Oil Seal オイルシール 1 24 3200061 Looper Driving Shaft Bushing(Front) ルーパ軸ブッシュ(前) 1 25 3200051 Looper Driving Shaft Bushing(Rear) ルーパ軸ブッシュ(後) 1 26 3200055 Differential Lever Shaft Bushing 差動レバー軸ブッシュ 1 27 0093864 Seal Plug 詰栓 1 28 0065275 Seal Plug 詰栓 1 29 0095218 Seal Plug 詰栓 1 30 3200066 Seal Plug 詰栓 1 31 3200251 Eye Guard, Complete Set アイガード(組) 1 32 3101200 Eye Guard Support アイガード取付板 1 33 009784 Screw(M6-1 × 10) 止ネジ 1 34 3200252 Eye Guard アイガード 1 35 004236 Screw(3/32-56 × 4.2) 止ネジ 2 36 0060175 Eye Guard Holder アイガードホルダ 1 37 006004 Screw(11/64-40 × 7.8) 止ネジ 1 38 000010 Conical Spring Washer 皿バネワッシャ 1 39 000547 Washer ワッシャ 1 40 000334 Nut ナット 1 VF2300M

Page 14

5 VF2300M jintex.in

Page 15 — MAIN SHAFT DRIVING MECHANISM

MAIN SHAFT DRIVING MECHANISM 下軸機構 5 Ref.No Parts No. Description 品名 Amt. Req 1 3200070 Pulley プーリー 1 2 160005 Screw(M6-1 × 8) 止ネジ 5 3 160007 Screw(M6-1 × 6) 止ネジ 9 6 3200095 Ball Bearing(Right) ボールベアリング(右) 1 7 3100128 Main Shaft Sprocket(Lower) ベルトプーリー(下) 1 8 3100131 Ball Bearing(Middle) ボールベアリング(中) 1 9 3200072 Oil Pump Driving Worm ウォーム 1 10 3100129 Adapter アダプタ 1 11 3200078 Ball Bearing(Left) ボールベアリング(左) 1 12 3200073 Lower Shaft(Right) 下軸(右) 1 13 3200074 Lower Shaft Joint 継手 1 14 3200076 Looper Thread Take-up 下糸調子カム 1 15 008047 Screw(7/32-32 × 3.6) 止ネジ 2 16 0093091 Ball Bearing ボールベアリング 1 17 3200080 Needle Guard Connecting Rod,C.Set(2) 針受ケロッド(組2) 1 18 3200079 Needle Guard Connecting Rod,C.Set(1) 針受ケロッド(組1) 1 19 3200082 Needle Guard Connecting Rod 針受ケロッド 1 20 110005 Screw(M3.5-0.6 × 12) 止ネジ 2 21 3200081 Needle Guard Eccentric 針受ケエキセン 1 22 160003 Screw(M5-0.8 × 5) 止ネジ 2 23 3200087 Connecting Rod Pin ロッドピン 1 24 3200084 Needle Guard Driving Shaft Arm 針受ケ軸腕 1 25 005650 Screw(M5-0.8 × 14) 止ネジ 1 26 160000 Screw(M3-0.5 × 3) 止ネジ 2 27 3200077 Counterweight バランスウェイト 1 28 110036 Screw(M3.5-0.6 × 6.5) 止ネジ 2 29 3200075 Lower Crankshaft 下軸クランク 1 30 310035 Oil Wick 油芯 1 31 160001 Screw(M4-0.7 × 4) 詰ネジ 2 32 0020159 Ball Bearing ボールベアリング 1 33 0068202 Retaining Ring ストップリング 1 34 3200085 Spacer スペーサ 1 35 3200086 Collar(8 × 13 × 6mm) カラー 1 36 3211071 Needle Guard Driving Shaft 針受ケ軸 1 37-1 0093669 Needle Guard(Rear)(32, 40, 48, 56, 64) 針受ケ後 1 37-2 0093659 Needle Guard(Rear)(Extra) 針受ケ後(特注品) 1 38 110083 Screw(M3.5-0.6 × 4.5) 止ネジ 1 39 3200093 Supporting Plate Stay(Lower) カム糸道取付板支工(下) 1 40 110048 Screw(M4-0.7 × 10) 止ネジ 2 Ref. No. 41 to 59 See the following Page. VF2300M

Page 16

5 VF2300M jintex.in

Page 17 — MAIN SHAFT DRIVING MECHANISM

MAIN SHAFT DRIVING MECHANISM 下軸機構 5 Ref.No Parts No. Description 品名 Amt. Req 41 3200092 Supporting Plate Stay(Upper) カム糸道取付板支工(上) 1 42 110009 Screw(M4-0.7 × 8) 止ネジ 1 43 3200091 Supporting Plate カム糸道取付板 1 44 130002 Screw(M3-0.5 × 6) 止ネジ 2 45 46 0093515 Thread Take-up Eyelet カム糸道 2 47 000014 Washer ワッシャ 2 48 220003 Screw(1/8-44 × 3.6) 止ネジ 2 49 3200042 Looper Thread Eyelet ルーパ糸道 1 50 001818 Tension Post 糸調子棒 1 51 0037108 Supplementary Tension Disc 小調子皿 2 52 0035813 Supplementary Tension Spring 小調子バネ 1 53 000360 Adjusting Nut 調節ナット 1 54 0063197 Cast-off Plate Bracket 糸案内台 1 55 001223 Screw(9/64-40 × 7.5) 止ネジ 1 56 3200094 Cast-off Plate 糸案内 1 57 000532 Washer ワッシャ 1 58 004106 Screw(9/64-40 × 6.5) 止ネジ 1 59 160030 Screw(M3.5-0.6 × 3) 止ネジ 2 VF2300M jintex.in

Page 18

6 VF2300M jintex.in

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 上軸及び針糸繰り機構 6 Ref.No Parts No. Description Amt. Req 1 3204066 Handwheel ハンドホイール 1 2 160005 Screw(M6-1 × 8) 止ネジ 1 3 160007 Screw(M6-1 × 6) 止ネジ 11 4 000989 Handwheel Mark ハンドホイールマーク 1 5 3100131 Ball Bearing ボールベアリング 2 6 3100129 Handwheel Adapter アダプタ 1 7 0095214 Timing Belt タイミングベルト 1 8 3100281 Upper Shaft Sprocket(Upper) ベルトプーリ(上) 1 9 3100275 Upper Shaft(Right) 上軸(右) 1 10 3100283 Upper Shaft Joint 上軸継手 1 11 3211083 Counterweight(Small) バランスウェイト(小) 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 2 13 3100284 Upper Crankshaft 上軸クランク 1 14 15 16 17 18 0060057 Retaining Ring 止メ輪 1 19 0093154 Ball Bearing ボールベアリング 2 20 000926 Rubber Seat ゴム座 1 21 160004 Screw(M6-1 × 4.8) 止ネジ 2 22 23 0095170 Connecting Rod 針糸繰りロッド 1 24 005071 Screw(11/64-32 × 14) 止ネジ 2 25 001174 Screw(9/64-40 × 10.3) 止ネジ 2 26 3211063 Guide Fork 振レ止メ 1 27 004312 Screw(1/8-44 × 7.9) 止ネジ 2 28 3100285 Driving Lever 針糸繰り軸腕 1 29 120013 Screw(M6-1 × 15) 止ネジ 1 30 120015 Screw(M5-0.8 × 10) 止ネジ 1 31 000555 Washer ワッシャ 1 32 3100286 Spacer スペーサ 1 33 3100287 Driving Shaft 針糸繰り軸 1 34 3100078 Bracket 針糸繰り台 1 35 000600 Spring Washer スプリングワッシャ 1 36 005650 Screw(M5-0.8 × 14) 止ネジ 1 37 0063096 Needle Thread Take-up 針糸繰り糸道 1 38 3200049 Top Cover Thread Take-up 飾り糸繰り 1 39 110004 Screw(M3.5-0.6 × 8) 止ネジ 2 40 3103009 Needle Thread Take-up, C. Set 針糸繰り台(組) 1 jintex.in VF2300M

Page 20

7 2 3 1 5 6 7-1 7-2 7-3 9 10 36 37 38 8 14 13-1 13-2 13-3 19 23 21 24 20 25 27 26 28 35 2 Needle 41-1 41-2 41-3 9 42-1 42-2 42-3 31 32 30 33 34 15 17 18 40 40 16 VF2300M jintex.in

Page 21 — NEEDLE BAR MECHANISM

NEEDLE BAR MECHANISM Ref.No Parts No. Description 針棒機構 7 品名 Amt. Req 1 0063044 Needle Bar Thread Eyelet 針棒糸道 1 2 004358 Screw(9/64-40 × 5.6) 止ネジ 1 3 3200170 Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 5 3211028 Needle Bar Bracket 針棒抱キ 1 6 110035 Screw(M4-0.7 × 10) 止ネジ 1 7-1 0093356 Needle Clamp(48) 針止メ 1 7-2 0093357 Needle Clamp(56) 針止メ 1 7-3 0093358 Needle Clamp(64) 針止メ 1 8 - Needle (UY × 128 GAS) 針 3 9 001900 Screw(1/8-44 × 2.4) 止ネジ 4 10 0093365 Top Cover Thread Eyelet 飾り糸道 1 11 12 13-1 3108133 Stitch Plate(48M) 針板 1 13-2 3108134 Stitch Plate(56M) 針板 1 13-3 3108135 Stitch Plate(64M) 針板 1 14 009142 Screw(9/64-40 × 4.8) 止ネジ 2 15 3100361 Counterweight, Complete Set バランスウェイト(組) 1 16 3200101 Counterweight バランスウェイト 1 17 120015 Screw(M5-0.8 × 10) 止ネジ 1 18 0093214 Connecting Rod Ring 針棒ロッドリング 1 19 3100362 Connecting Rod, Complete Set 針棒ロッド(組) 1 20 3100290 Connecting Rod 針棒ロッド 1 21 0093212 Roller Bearing ニードルベアリング 1 22 23 000321 Oil Wick 油芯 1 24 3100363 Connecting Rod Pin 針棒ロッドピン 1 25 3100296 Needle Bar Guide, C. Set 針棒案内(組) 1 26 0093186 Slide Block 針棒案内駒 1 27 0093179 Needle Bar Guide 針棒案内 1 28 110010 Screw(M4-0.7 × 16) 止ネジ 2 29 3200120 HR Device, Complete Set HR装置(組) 1 30 3200121 HR Cup HRカップ 1 31 3200122 HR Cup Lid HRカップ蓋 1 32 0093864 Seal Plug 詰栓 1 33 310036 HR Felt HR フェルト 1 34 0093663 HR Felt Guard フェルトガード 1 35 006219 Screw(M4-0.7 × 14) 止ネジ 2 36 0036175 Thread Retainer Disc Plate 小調子板 1 37 0032425 Needle Thread Retainer Disc 小調子皿 1 38 0032426 Needle Thread Retainer Spring 小調子バネ 1 39 001093 Screw(1/8-44 × 2.2) 止ネジ 1 40 260000 Screw(5/16-24 × 15.88) 止ネジ 2 41-1 0093351 Needle Clamp(32)(Extra) 針止メ(特注部品) 1 41-2 0093352 Needle Clamp(40)(Extra) 針止メ(特注部品) 1 41-3 0093353 Needle Clamp(48)(Extra) 針止メ(特注部品) 1 42-1 3108130 Stitch Plate(32M)(Extra) 針板(特注部品) 1 42-2 3108131 Stitch Plate(40M)(Extra) 針板(特注部品) 1 42-3 3108132 Stitch Plate(48M)(Extra) 針板(特注部品) 1 jintex.in VF2300M

Page 22

8 VF2300M jintex.in

Page 23 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品名 Amt. Req 1 0093500 Presser Spring Regulator 押工調節ネジ 1 2 3 000445 Lock Nut ロックナット 1 4 3200132 Presser Bar Spring(Outer) 押工棒バネ(太) 1 5 0063087 Presser Bar Connecting Bracket 押工棒抱キ 1 6 004440 Screw(11/64-40 × 8.3) 止ネジ 1 7 3211007 Presser Bar Guide 押工棒案内 1 8 004441 Screw(11/64-40 × 16) 止ネジ 2 9 0093485 Presser Bar Spring(Inner) 押工棒バネ(細) 1 10 3100110 Presser Bar 押工棒 1 11 0093611 Oil Protector Ring 油切りリング 1 12 3211086 Collar(9 × 15 × 7mm) カラー 1 13 001459 Screw(9/64-40 × 3) 止ネジ 2 14 3100112 Finger Guard フィンガード 1 15 110002 Screw(M3-0.5 × 5) 止ネジ 1 16-1 3507050 Presser Foot, C. Set(48) 押工(組) 1 16-2 3507052 Presser Foot, C. Set(56) 押工(組) 1 16-3 3507054 Presser Foot, C. Set(64) 押工(組) 1 17 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 18 110004 Screw(M3.5-0.6 × 4.2) 止ネジ 1 19 000327 Lock Nut ロックナット 1 20 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 21-1 3507000 Presser Foot, C. Set(32)(Extra) 押工(組)(特注部品) 1 21-2 3507002 Presser Foot, C. Set(40)(Extra) 押工(組)(特注部品) 1 22 0093487 Lifter Link 吊りリンク 1 23 006038 Screw(3/16-32 × 2.2) 止ネジ 2 24 0063083 Lifter Link Lever 吊りリンクレバー 1 25 000690 Fastener Pin 止メピン 1 26 0063084 Lifter Spring 押工揚ゲバネ 1 27 3211008 Collar(8 × 16 × 8mm) カラー 2 28 009604 Screw(11/64-40 × 5.5) 止ネジ 4 29 0093479 Lifter Shaft 押工揚ゲ軸 1 30 31 3100294 Intermediate Lever 押工揚ゲ中レバー 1 32 120017 Screw(M5-0.8 × 15) 止ネジ 1 33 0077179 Retaining Ring 止メ輪 2 34 0093509 Connecting Pin 連結ピン 2 35 0093507 Connecting Plate 連結桿 1 36 3211111 Lifter Lever(Small) 押工揚ゲレバー(小) 1 37 004591 Screw(15/64-28 × 9.5) 止ネジ 1 38 0093496 Lifter Lever 押工揚ゲレバー 1 39 3101216 Lifter Lever Stop 押工揚ゲレバーストップ 1 40 004358 Screw(9/64-40 × 5.6) 止ネジ 2 Ref. No. 41 to 51 See the following Page. VF2300M jintex.in

Page 24

8 VF2300M jintex.in 1 3 4 25 24 23 6 22 23 5 9 10 14 15 11 12 13 16-1 16-2 16-3 45 48 47 17 18 19 20 46 26 27 28 29 39 40 38 50 51 49 42 41 37 36 2 Needle 21-1 21-2 17 45 48 47 35 34 33 32 31 34 43 44 18 19 20 46

Page 25 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品名 Amt. Req 41 0090801 Tension Release Lever 糸緩メ腕 1 42 005542 Screw(11/64-40 × 14.5) 止ネジ 1 43 0093545 Tension Release Shaft 糸緩メ軸 1 44 0090824 Swing-proof Spring 防振バネ 1 45 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 46 3107304 Presser Foot Spring(Right) 小押エバネ(右) 1 47 3107306 Presser Foot Hinge Pin 押エヒンジピン 1 48 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 49 3160168 Lifter Spring 押工揚ゲバネ 1 50 3500305 Cap キャップ 1 51 340014 Roll Pin(3 × 12mm) ロールピン 1 VF2300M

Page 26

9 VF2300M jintex.in

Page 27 — SPREADER MECHANISM

SPREADER MECHANISM 飾リ糸ルーパ機構 9 Ref.No Parts No. Description 品名 Amt. Req 1 3100302 Connecting Rod, Complete Set ルーパロッド(組) 1 2 3100300 Eccentric ルーパエキセン 1 3 160003 Screw(M5-0.8 × 5) 止ネジ 2 4 0077322 Roller Bearing ニードルベアリング 1 5 3100301 Connecting Rod ルーパロッド 1 6 0094566 Retaining Ring 止メ輪 1 7 110009 Screw(M4-0.7 × 8) 止ネジ 1 8 300006 Washer ワッシャ 1 9 3211082 Adjusting Lever Pin 調節レバーピン 1 10 000528 Washer ワッシャ 1 11 100003 Nut(M6-1.0) ナット 1 12 3211057 Collar(12 × 20 × 8mm) カラー 1 13 009604 Screw(11/64-40 × 5.5) 止ネジ 2 14 3100303 Adjusting Lever 調節レバー 1 15 120013 Screw(M6-1 × 15) 止ネジ 1 16 3100304 Driving Shaft ルーパ軸 1 17 3100305 Rocking Arm ルーパ振り腕 1 18 160007 Screw(M6-1 × 6) 止ネジ 2 19 0063051 Rocking Pin ルーパ振リピン 1 20 0063053 Spreader Bar ルーパ棒 1 21 0063056 Bushing Ring ブッシュリング 1 22 3211085 Collar(10 × 18 × 7mm) カラー 1 23 009526 Screw(9/64-40 × 4.4) 止ネジ 2 24 3100307 Spreader Holder 飾リ糸ルーパ台 1 25 3509320 Spreader 飾リ糸ルーパ 1 26 110031 Screw(M4-0.7 × 12) 止ネジ 2 VF2300M

Page 28

10 1 2 4 5 6 3 14 13 12 7 8 9 11 10 22 19 18 11 21 17 32 28 29 30 31 4 23 24 26 25 27 38 37 35 36 39 34 33 VF2300M jintex.in

Page 29 — LOOPER DRIVING MECHANISM

LOOPER DRIVING MECHANISM ルーパ機構 10 Ref.No Parts No. Description 品名 Amt. Req 1 3200150 Looper Rocker Connecting Rod, C.Set(2) ルーパ前後ロッド(組2) 1 2 3200149 Looper Rocker Connecting Rod, C.Set(1) ルーパ前後ロッド(組1) 1 3 3200152 Looper Rocker Connecting Rod ルーパ前後ロッド 1 4 120001 Screw(M4-0.7 × 14) 止ネジ 5 5 3200151 Looper Rocker Eccentric ルーパ前後エキセン 1 6 160003 Screw(M5-0.8 × 5) 止ネジ 2 7 3200159 Connecting Rod Pin ルーパ前後ロッドピン 1 8 300000 Washer ワッシャ 1 9 100002 Nut ナット 1 10 3200154 Looper Rocker Lever ルーパ後腕 1 11 005650 Screw(M5-0.8 × 14) 止ネジ 2 12 3200155 Looper Rocker Adjusting Guide Plate ルーパ前後調節ガイド板 1 13 110007 Screw(M2.5-0.45 × 6) 止ネジ 2 14 170021 Adjusting Screw(M2.5-0.45 × 10.5) 調節ネジ 1 15 2100267 Collar(10 × 17 × 8mm) カラー 1 16 160001 Screw(M4-0.7 × 4) 止ネジ 2 17 0093314 Looper Rocker Shaft ルーパ後軸 1 18 3200157 Looper Rocker Arm ルーパ振り腕 1 19 0093319 Looper Slide Block ルーパ後駒 1 20 21 3200160 Looper Slide Block Pin ルーパ後駒ピン 1 22 160009 Screw(M5-0.8 × 5) 止ネジ 1 23 3200161 Looper Connecting Rod, C. Set ルーパロッド(組) 1 24 0032784 Link Pin(Short) ルーパリンクピン(短) 1 25 009604 Screw(11/64-40 × 5.5) 止ネジ 1 26 0032785 Looper Driving Lever Link ルーパリンク 1 27 001457 Screw(11/64-40 × 3.3) 止ネジ 1 28 0032786 Link Pin(Long) ルーパリンクピン(長) 1 29 3200162 Looper Driving Lever ルーパ軸腕 1 30 160007 Screw(M6-1 × 6) 止ネジ 2 31 3211036 Collar カラー 1 32 0093300 Looper Driving Shaft ルーパ軸 1 33 3200164 Looper Holder ルーパ台 1 34 000669 Washer ワッシャ 1 35 0094480 Looper ルーパ 1 36 110057 Screw(M4-0.7 × 7) 止ネジ 1 37 0095723 Needle Guard(Front) 針受ケ(前) 1 38 004236 Screw(3/32-56 × 4.2) 止ネジ 1 39 009934 Screw(M5-0.8 × 16) 止ネジ 1 jintex.in VF2300M

Page 30

11 VF2300M jintex.in

Page 31 — FEED DRIVING CONTROL MECHANISM

FEED DRIVING CONTROL MECHANISM 前送り調節機構 11 Ref.No Parts No. Description 品名 Amt. Req 1 3200181 Feed Bar Driving Shaft 送り軸 1 2 3200183 Main Feed Bar Lever 後送りレバー 1 3 120006 Screw(M6-1 × 12) 止ネジ 3 4 3200184 Differential Rocker, Complete Set 前送り腕(組) 1 5 3200185 Differential Rocker 前送り腕 1 6 3200186 Differential Regulating Slider スライダ 1 7 3200187 Differential Regulating Slider Cap スライダ蓋 1 8 110033 Screw(M3.5-0.6 × 6) 止ネジ 2 9 2100161 Collar(10 × 19 × 9mm) カラー 1 10 110020 Screw(M3.5-0.6 × 6) 止ネジ 2 11 3200205 Differential Lever(Inner), C. Set 差動レバー(中)(組) 1 12 2100252 Slider Link スライダリンク 1 13 0068202 Retaining Ring ストツプリング 1 14 2100253 Slider Link Pin スライダリンクピン 1 15 3200206 Differential Lever(Inner) 差動レバー(中) 1 16 3200189 Feed Bar, Complete Set 前後送り台(組) 1 17 3200190 Main Feed Bar 後送り台 1 18 3200191 Differential Feed Bar 前送り台 1 19 140018 Screw(M5-0.5 × 6) 止ネジ 1 20 300000 Washer ワツシヤ 2 21 3200194 Connection Bushing 前送りリンクブツシュ 1 22 2100243 Differential Feed Bar Connection 前送りリンク 1 23 140017 Screw(M5-0.5 × 6) 止ネジ 1 24 2100248 Main Feed Bar Connection 後送りリンク 1 25 3200192 Connection Bushing 後送りリンクブツシュ 1 26 3200215 Retaining Ring ストツプリング 1 27 2100267 Collar(10 × 17 × 8mm) カラー 1 28 160001 Screw(M4-0.7 × 4) 止ネジ 2 29 000690 Roll Pin ロールピン 1 30 3200216 Differential Lever Spring 差動レバーバネ 1 31 0020538 O-ring(P7) Oリング 1 32 3200207 Differential Lever Shaft 差動レバー軸 1 33 0095132 Differential Lever(Left) 差動レバー(左) 1 34 110009 Screw(M4-0.7 × 8) 止ネジ 1 35 3200213 Differential Feed Graduation 送り目盛板 1 36 110045 Screw(M4-0.7 × 12) 止ネジ 2 37 310072 Felt フェルト 1 38 000210 Adjusting Nut 調節ナット 1 39 005511 Adjusting Screw(1/4-40×11, 1/4-40×4) 調節ネジ 1 40 0020350 Differential Lever Stop 差動レバーストツパ 2 41 000669 Washer ワツシヤ 2 42 000600 Spring Washer スプリングワツシヤ 2 43 005049 Screw(M5-0.8 × 6) 止ネジ 2 44 310071 Oil Wick 油芯 1 VF2300M

Page 32

12 VF2300M Jinte.in

Page 33 — FEED DRIVING MECHANISM

FEED DRIVING MECHANISM 送り機構 12 Ref.No Parts No. Description 品名 Amt. Req 1 3200199 Feed Bar Guide(Left) 送り台ガイド(左) 1 2 110080 Screw(M4-0.7 × 8) 止ネジ 2 3 3211073 Feed Bar Guide(Right) 送り台ガイド(右) 1 4 160007 Screw(M6-1 × 6) 止ネジ 3 5 0033141 Feed Adjusting Pin エキセンピン 1 6 0093389 Feed Bar Block(Rear) 角駒(後) 1 7 3211074 Feed Bar Guide(Rear) 送り台ガイド(後) 1 8 0060076 Retaining Ring ストツプリング 1 9 0060075 Feed Bar Block(Front) 角駒(前) 1 10 2110527 Roller Bearing ニードルベアリング 1 11 3204065 Feed Dog Regulator, C. Set 送り調節器 1 12 160003 Screw(M5-0.8 × 5) 止ネジ 3 13 3204059 Driving Connecting Rod Mechanism,C.Set 送りロツド機構(組) 1 14 3200182 Feed Bar Driving Shaft Lever 送り軸腕 1 15 120006 Screw(M6-1 × 12) 止ネジ 1 16 2100173 Connecting Rod Pin 送りロツドピン 1 17 3204060 Feed Dog Regulator, C. Set 送り調節器(組) 1 18 3204061 Driving Connecting Rod, C. Set 送りロツド(組) 1 19 3204064 Feed Dog Eccentric 送りエキセン 1 20 2100278 Roller Bearing ニードルベアリング 1 21 3200196 Feed Dog Driving Connecting Rod 送りロツド 1 22 160016 Screw(M4-0.7 × 4.5) 止ネジ 1 23 3204063 Eccentric Link エキセンリンク 1 24 3204062 Feed Dog Regulating Eccentric 送り調節エキセン 1 25 180002 Screw(M3-0.5 × 4) 止ネジ 2 26 2100289 Feed Dog Regulating Plate Spring 送り調節プレートバネ 1 27 0023473 Feed Dog Regulating Plate 送り調節プレート 1 28 2100279 Feed Dog Regulating Gear 送り調節ギア 1 29 180003 Screw(M5-0.8 × 8) 止ネジ 1 30-1 3209001 Differential Feed Dog(32,40,48,56) 前送り 1 30-2 3209003 Differential Feed Dog(64) 前送り 1 30-3 3206000 Differential Feed Dog(32,40,48,56)(Extra) 前送り(特注部品) 1 31-1 3209080 Main Feed Dog(32,40,48,56) 後送り 1 31-2 3209081 Main Feed Dog(64) 後送り 1 31-3 3206001 Main Feed Dog(32,40,48,56)(Extra) 後送り(特注部品) 1 32 110039 Screw(M3.5-0.6 × 10) 止ネジ 1 33 300050 Washer ワツシヤ 1 34 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 35 3200203 Feed Bar Shield Holder(Front) 送り台シール支工(前) 1 36 130023 Screw(M4-0.7 × 7.3) 止ネジ 1 37 130024 Screw(M4-0.7 × 7.3) 止ネジ 1 38 110079 Screw(M4-0.7 × 8) 止ネジ 1 39 3200211 Feed Bar Shield 送り台シール 2 40 3200204 Feed Bar Shield Holder(Rear) 送り台シール支工(後) 1 41 110070 Screw(M3-0.5 × 6.3) 止ネジ 1 VF2300M

Page 34

13 VF2300M jintex.in

Page 35

LUBRICATING MECHANISM 給油機構 13 Ref.No Parts No. Description 品名 Amt. Req 1 0065453 Oil Receiver 油受皿 1 2 110012 Screw(M4-0.7 × 5) 止ネジ 5 3 000234 Nut ナット 1 4 310026 Oil Wick(No.4-150mm) 油芯 1 5 3100350 Oil Pipe 給油パイプ 1 6 160001 Screw(M4-0.7 × 4) 止ネジ 1 7 310027 Oil Wick(No.4-530mm) 油芯 1 8 0020551 O-ring(P5) Oリング 1 9 3100346 Oil Wick Holder 油芯支エ 1 10 11 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 12 3100060 Oil Filter Cap オイルフィルタキャップ 1 13 110045 Screw(M4-0.7 × 12) 止ネジ 3 14 3100061 O-ring(P42) Oリング 1 15 3100345 Oil Filter オイルフィルタ 1 16 3100329 Oil Filter Connector オイルフィルタ継手 1 17 3200237 Felt フェルト 1 18 3200236 Suction Pipe 吸入パイプ 1 19 0093617 Suction Pipe Bushing 吸入パイプブッシュ 1 20 3200238 Oil Tube(3 × 5 × 500mm) オイルパイプ 1 21 22 3100353 Oil Pipe Unit 給油パイプ(組) 1 23 0031831 Oil Tube Clamp 緊束環 6 24 3200234 Oil Tube(Long), Complete Set 給油パイプ(長)(組) 1 25 3100372 Oil Tube(4 × 6 × 397mm) オイルパイプ 1 26 0063217 Oil Filter Screen Clamp 濾過網押工 1 27 0063216 Oil Filter Screen 濾過網 1 28 0037668 Oil Tube Joint, Two Way 両口管継手 1 29 3200233 Oil Tube(4 × 6 × 175mm) オイルパイプ 1 30 0037669 Oil Tube Joint, One Way 片口管継手 3 31 004124 Fitting Stud(Short) 管継手ボルト(短) 4 32 000567 Seal パッキン 1 33 3200235 Oil Tube(Short), Complete Set 給油パイプ(短)(組) 1 34 3200232 Oil Tube(4 × 6 × 45mm) オイルパイプ 1 35 3100328 Oil Pump, Complete Set ポンプ(組) 1 36 0030711 Oil Pump Driving Worm Gear ウォームギア 1 37 160001 Screw(M4-0.7 × 4) 止ネジ 2 38 120013 Screw(M6-1 × 15) 止ネジ 2 39 0090918 Suction Pipe 吸入パイプ 1 40 000419 Nut ノズル止メナット 1 41 3100349 Oil Nozzle for Worm Gear 給油パイプ 1 42 3200231 Dustproof Plate 防塵板 1 43 0020533 Oil Sight Gauge オイルゲージ 1 jintex.in VF2300M

Page 36

14 VF2303M-21 (1) 1-1 1-2 1-3 Type P Type Q Type R 16 17 18 19 20 10 21 22 VF2300M 4 3 2 1-1 1-2 1-3 5 7 6 15 14 9 8 11-1 11-2 12 13 23 10 jintex.in

Page 37 — VF2303M-21 EXCLUSIVE PARTS (1)

VF2303M-21 EXCLUSIVE PARTS (1) サブモデル専用部品(1) 14 Ref.No Parts No. Description 品名 Amt. Req 1-1 0093241 Folder (for Type P) 定規(P) 1 1-2 0093242 Folder (for Type Q) 定規(Q) 1 1-3 0093243 Folder (for Type R) 定規(R) 1 2 0091736 Folder Clamp 定規取付片 1 3 009932 Screw(11/64-40 × 4) 止ネジ 2 4 005554 Screw(7/32-32 × 6.5) 止ネジ 1 5 0094245 Folder Support 定規取付台 1 6 0094246 Folder Support Fixing Plate 定規取付台固定片 1 7 140019 Screw(M5-0.8 × 14) 止ネジ 2 8 3210030 Front Cover 前開キカバー 1 9 3210031 Front Cover (Small) 前開キカバー(小) 1 10 110013 Screw(M4-0.7 × 8) 止ネジ 4 11-1 3201007 Fabric Slide Plate 布滑リ板 1 11-2 3204047 Fabric Slide Plate(Extra) 布滑リ板(特注部品) 1 12 000426 Washer ワッシャ 1 13 110105 Screw(M5-0.8 × 12) 止ネジ 1 14 3201005 Dustproof Cover 防塵カバー 1 15 110104 Screw(M4-0.7 × 8) 止ネジ 2 16 3201001 Looper Thread Take-up Cover カムカバー 1 17 3210003 Cloth Plate (Small) 小力バー 1 18 3040038 Side Cover 横開キカバー 1 19 0032604 Rubber Cushion (Large) クッションゴム(大) 1 20 3200012 Cover Latch Spring カパーラツチバネ 1 21 180018 Screwed Pin(M4-0.7 × 7) ピンネジ 1 22 3200013 Side Cover Holder 横開キカバー受ケ 1 23 3100071 Eyelet Cover 糸道カバー 1 VF2300M

Page 38 — 15 VF2303M-21 (2)

15 VF2303M-21 (2) 1-1 1-2 1-3 2 4 3 9 8 5 6 7 10-1 10-2 10-3 11 12 15-1 15-2 15-3 2 Needle 4 3 9 8 5 6 7 14 13-1 13-2 13-3 16-1 16-2 16-3 11 12 VF2300M jintex.in

Page 39 — VF2303M-21 EXCLUSIVE PARTS(2)

VF2303M-21 EXCLUSIVE PARTS(2) サブモデル専用部品(2) 15 Ref.No Parts No. Description 品名 Amt. Req 1-1 3207155 Presser Foot, C. Set(48) 押工(組) 1 1-2 3207156 Presser Foot, C. Set(56) 押工(組) 1 1-3 3207157 Presser Foot, C. Set(64) 押工(組) 1 2 001186 Screw(9/64-40 × 7.8) 止ネジ 1 3 0091725 Presser Foot Spring 小押工バネ 1 4 005133 Screw(1/8-44 × 4.5) 止ネジ 1 5 000220 Lock Nut ロックナット 1 6 003300 Adjusting Screw(1/8-44 × 15) 調節ネジ 1 7 0091696 Presser Foot Hinge Pin 押工ヒンジピン 1 8 3207160 Tape Guide テープガイド 1 9 001230 Screw(3/32-56 × 3.8) 止ネジ 1 10-1 3208105 Stitch Plate(48M-21) 針板 1 10-2 3208108 Stitch Plate(56M-21) 針板 1 10-3 3208109 Stitch Plate(64M-21) 針板 1 11 3209064 Main Feed Dog 後送り 1 12 3209065 Differential Feed Dog 前送り 1 13-1 0093352 Needle Clamp(40) 針止メ 1 13-2 0093351 Needle Clamp(32)(Extra) 針止メ(特注部品) 1 13-3 0093353 Needle Clamp(48)(Extra) 針止メ(特注部品) 1 14 001900 Screw(1/8-44 × 2.4) 止ネジ 3 15-1 3207151 Presser Foot, C. Set(40) 押工(組) 1 15-2 3207150 Presser Foot, C. Set(32)(Extra) 押工(組)(特注部品) 1 15-3 3207152 Presser Foot, C. Set(48)(Extra) 押工(組)(特注部品) 1 16-1 3208103 Stitch Plate(40M-21) 針板 1 16-2 3208102 Stitch Plate(32M-21)(Extra) 針板(特注部品) 1 16-3 3208104 Stitch Plate(48M-21)(Extra) 針板(特注部品) 1 VF2300M

Page 41 — THREAD STAND

THREAD STAND 糸立台 16 Ref.No Parts No. Description 品名 Amt. Req 1 9620696 Thread Stand, C. Set(6 Spools Type) 糸立台(組)(6本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Pipe(Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder(Large) ガイドホルダ(大) 1 5 911002 Screw(M4-0.7 × 20) 止ネジ 1 6 911001 Screw(M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw(M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 8 11 9620675 Column Pipe(Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut(M16-1.5) ナット 1 15 16 9620703 Thread Hanger(3 Spools Type) スレッドハンガ(3本糸用) 4 17 9620700 Thread Eyelet アイレット 6 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 4 19 911060 Screw(M6-1 × 15) 止ネジ 4 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder(Small) ガイドホルダ(小) 1 22 9620666 Thread Guide(6 Spools Type) スレッドガイド(6本糸用) 1 23 9620678 Spool Cushion スプールクッション 6 24 9620679 Spool Pin スプール軸 6 25 9620680 Spool Mat スプールマット 6 26 9620681 Spool Seat Disc 受皿 6 27 930055 Spring Washer スプリングワッシャ 6 28 9620750 Knitted Tape Stand, C. Set メリヤステープスタンド 1 29 9620751 Tape Pin テープ支柱 1 30 9620752 Tape Disc テープ受ケ板 1 31 000433 Washer ワッシャ 1 32 9620753 Tape Disc Block テープ受ケ板ブロック 1 33 911062 Screw(M4-0.7 × 15) 止ネジ 4 34 910001 Nut ナット 4 35 9620756 Tape Stand Bar テープスタンド棒 1 36 001448 Screw(15/64-28 × 5.5) 止ネジ 1 37 9620757 Tape Stand テープスタンド 1 38 005148 Wood Screw(φ 4.5 × 25) 木ネジ 3 39 9620754 Tape Guide Bar テープガイド棒 1 40 9620755 Tape Guide テープガイド 2 jintex.in VF2300M

Page 42

17 1 4 3 2 EXTRA PARTS VF2300M Including in accessary 14 13 12 17 15 16 19 18 20 21 22 23 25 26 24 27 VF2300M jintex.in

Page 43 — SUPPORTING BOARD

SUPPORTING BOARD 受ケ板 17 Ref.No Parts No. Description 品名 Amt. Req 1 3211078 Supporting Board, C. Set 受ケ板(組) 1 2 3211068 Supporting Board 受ケ板 2 3 180020 Setting Screw(M6-1 × 15) 取付ケネジ 4 4 0093035 Oil Resrvoir Rubber Cushion ゴム座 4 5 000070 Hanging Nut 吊りナット 4 6 009861 Hanging Bolt(M8-1.25 × 95) 吊りボルト 4 7 000162 Washer ワッシャ 12 8 000016 Nut ナット 12 9 2101451 Spacer(See the table below) スペーサ(下表参照) 12 10 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 4 11 0063010 SupportingBoardRubberCushion(Lower) 受ケ板ゴム座(下) 4 12 3200242 Chain Guide 鎖ガイド 1 13 000541 Washer ワッシャ 2 14 110009 Screw(M4-0.7 × 8) 止ネジ 2 15 3500700 Belt Cover ベルトカバー 1 16 110028 Screw(M6-1 × 46) 止ネジ 2 17 3000010 Looper Threading Bar ルーパ糸通シ 2 18 3107311 Fabric Guide(Long) 布ガイド(長) 1 19 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 1 20 3201455 Fabric Guide Support 布ガイド取付板 1 21 3400252 Fabric Guide(Left) 布ガイド(左) 1 22 3400253 Fabric Guide(Right) 布ガイド(右) 1 23 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 24 3201456 Supplementary Front Cover 補助カバー 1 25 110105 Screw(M5-0.8 × 12) 止ネジ 2 26 000426 Washer ワッシャ 2 27 110013 Screw(M4-0.7 × 8) 止ネジ 2 Note : Number of Spacer(2101451) to be used. (注) スペーサ(2101451)の使用個数 Thickness of Table Number of Spacer テーブルの厚さスペーサの個数 for 40 mm 3pcs. × 4=12pcs. for 45 mm 2pcs. × 4= 8pcs. for 50 mm 1pc. × 4=4pcs. VF2300M Jintex.in

Page 44 — WARNING LABEL 警告ラベル

18 WARNING LABEL 警告ラベル LABEL ラベル Parts No. 品番 Description 品名 390220 SAFETY INSTRUCTON LABEL ▲高電圧警告このカバーを開けるときは、電源スイッチを切った後、 5分たってから開けること。 DANGER To open this cover, turn off power supply and wait more than 5 minutes before opening. 390144 DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル 390147 EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS ケガ注意ラベル 390148 CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル CAUTION CAUTION jintex.in

Page 45 — LIST of MAIN SPARE PARTS

LIST of MAIN SPARE PARTS (主要部品リスト) jintex.in

Page 46 — VF2300M class LIST of MAIN SPARE PARTS(主要部品リスト)

19 VF2300M class LIST of MAIN SPARE PARTS(主要部品リスト) Main Parts Models Presser Foot C. Set VF2300M-132M VF2300M-140M VF2300M-148M VF2300M-156M VF2300M-164M VF2303M-132M-21 VF2303M-140M-21 VF2303M-148M-21 (2 Needle) VF2303M-156M-21 Needle Clamp 押工(組) 針止メ (E) (E) (E) (E) (E) (E) (E) (E) 0093351 0093352 0093353 0093356 0093357 0093358 0093351 0093352 0093353 0093356 Stitch Plate 針板 3108130 3108131 3108132 3108133 3108134 3108135 3207150 3207151 3207152 3207155 3207156 3207157 Differential Feed Dog 前送り 3209001 3209003 3209064 3209081 3209065 3209081 3209003 3209064 3209081 3209065 Main Feed Dog 後送り 3209080 3209001 3209065 3209081 3209065 3209081 3209001 3209065 3209081 3209065 3209081 Front Cover 前開キカバー 3204042 3204044 3204041 3204042 3204044 3204041 3204042 3204044 3204041 3204042 3204044 Cloth Plate (Large) 大カバー 32010005 3210003 32010005 3210003 32010005 3210003 32010005 3210003 Cloth Plate (Small) 小カバー 3204041 3209003 3204041 3209003 3204041 3209003 Thread Take-up Cover カムカバー 3200018 3200032 3200018 3200032 3200018 3200032 Stitch Plate Support 針板台 0094480 0094480 0094480 Looper ルーパ 0094480 0094480 0094480 Note: The models with (E) are not mass produced. The Parts with ★ are extra. (注) (E)の付いている機種は量産機ではありません。★の部品は特注部品です。 VF2300M jintex.in

Page 47 — INDEX

20 VF2300M INDEX Page = 1 Parts No. Page No. Ref. No. Weight(g) 000010 2 6 000010 4 38 000014 5 47 000015 1 25 000016 17 8 000070 17 5 000162 17 7 000177 3 6 000195 4 2 000210 11 39 000220 15 5 000234 13 3 000321 7 23 000327 8 19 000334 4 40 000360 3 51 000360 5 53 000419 13 40 000425 2 24 000426 14 12 000426 17 26 000433 16 31 000445 8 3 000528 9 10 000532 3 23 000532 5 57 000538 2 60 000538 3 27 000541 17 13 000547 4 39 000555 6 31 000560 13 32 000600 6 35 000600 11 43 000651 3 28 000669 10 34 000669 11 42 000690 8 25 000690 11 29 000726 1 32 000745 2 38 000926 6 20 000989 6 4 001093 7 39 001174 6 25 001186 15 2 001223 5 55 Parts No. Page No. Ref. No. Weight(g) 001230 15 9 001448 16 36 001457 10 27 001459 8 13 001818 3 48 001818 5 50 001900 7 9 001900 15 14 003300 15 6 004106 5 58 004124 13 31 004182 2 58 004236 4 35 004236 10 38 004312 6 27 004353 3 24 004358 7 2 004358 8 40 004440 8 6 004441 8 8 004591 8 37 005049 11 44 005071 6 24 005075 1 36 005133 15 4 005148 16 38 005511 11 40 005542 8 42 005554 14 4 005650 5 25 005650 6 36 005650 10 11 006004 2 5 006004 4 37 006038 8 23 006219 7 35 007610 2 17 008047 5 15 009142 7 14 009526 9 23 009604 8 28 Parts No. Page No. Ref. No. Weight(g) 009604 9 13 009604 10 25 009747 2 3 009749 2 2 009784 4 33 009861 17 6 009932 14 3 009934 10 39 009970 1 29 0020064 17 10 0020119 3 21 0020137 1 35 0020159 5 32 0020350 11 41 0020472 2 23 0020533 13 43 0020538 11 31 0020551 13 8 0020759 1 5 0023473 12 27 0024083 3 2 0024084 3 1 0030255 3 3 0030291 4 5 0030711 13 36 0031111 3 7 0031831 13 23 0032425 7 37 0032426 7 38 0032604 1 18 0032604 14 19 0032784 10 24 0032785 10 26 0032786 10 28 0032952 3 4 0033024 2 25 0033141 12 5 0035813 3 50 0035813 5 52 jintex.in

Page 48

VF2300M INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 0036175 7 36 0037108 3 49 0037108 5 51 0037668 13 28 0037669 13 30 0060057 6 18 0060075 12 9 0060076 12 8 0060175 4 36 0063010 17 11 0063044 7 1 0063051 9 19 0063053 9 20 0063055 4 7 0063056 9 21 0063074 3 47 0063083 8 24 0063084 8 26 0063087 8 5 0063096 6 37 0063104 3 25 0063152 2 22 0063197 5 54 0063216 13 27 0063217 13 26 0065275 2 26 0065275 4 28 0065453 13 1 0068011 1 4 0068202 5 33 0068202 11 13 0077179 8 33 0077300 4 17 0077322 9 4 0090068 3 37 0090071 3 5 0090801 8 41 0090807 3 12 0090812 3 9 0090824 8 44 0090856 3 11 Parts No. Page No. Ref. No. Weight(g) 0090918 13 39 0091696 15 7 0091725 15 3 0091736 14 2 0093035 17 4 0093091 5 16 0093154 6 19 0093179 7 27 0093186 7 26 0093212 7 21 0093214 7 18 0093241 14 1-1 0093242 14 1-2 0093243 14 1-3 0093300 10 32 0093303 4 23 0093314 10 17 0093319 10 19 0093351 7 41-1 0093351 15 13-2 0093352 7 41-2 0093352 15 13-1 0093353 7 41-3 0093353 15 13-3 0093356 7 7-1 0093357 7 7-2 0093358 7 7-3 0093365 7 10 0093389 12 6 0093479 8 29 0093485 8 9 0093487 8 22 0093496 8 38 0093500 8 1 0093507 8 35 0093509 8 34 0093515 5 46 0093528 3 22 0093545 8 43 0093556 3 20 0093611 8 11 0093617 13 19 0093659 5 37-2 0093663 7 34 0093669 5 37-1 0093864 1 9 Parts No. Page No. Ref. No. Weight(g) 0093864 2 27 0093864 4 27 0093864 7 32 0094201 1 20 0094245 14 5 0094246 14 6 0094480 10 35 0094566 9 6 0095108 1 12 0095132 11 33 0095170 6 23 0095214 6 7 0095218 4 29 0095367 2 57 0095723 10 37 100002 10 9 100003 9 11 110002 8 15 110004 6 39 110004 8 17 110004 12 34 110005 5 20 110007 10 13 110009 3 19 110009 5 42 110009 6 12 110009 9 7 110009 11 34 110009 17 14 110010 7 28 110012 1 21 110012 2 50 110013 1 22 110013 2 13 110013 3 14 110013 14 10 110013 17 27 110016 1 26 110016 2 42 110020 11 10 110027 17 19 110028 17 16 110030 2 8 jintex.in

Page 49 — INDEX

VF2300M INDEX Page = 3 Parts No. Page No. Ref. No. Weight(g) 110031 2 61 110031 9 26 110033 11 8 110035 7 6 110036 5 28 110036 13 11 110036 17 23 110039 12 32 110041 2 37 110045 1 2 110045 11 37 110045 13 13 110048 2 33 110048 5 40 110057 10 36 110070 12 41 110079 2 14 110079 12 38 110080 12 2 110083 5 38 110084 8 18 110104 14 15 110105 14 13 110105 17 25 120001 10 4 120006 11 3 120006 12 15 120013 6 29 120013 9 15 120013 13 38 120015 6 30 120015 7 17 120017 8 32 130002 2 54 130002 5 44 130003 2 10 130003 3 40 130003 12 36 130004 2 11 130006 2 18 130016 8 48 130024 12 37 140017 11 23 140018 11 19 140019 14 7 Parts No. Page No. Ref. No. Weight(g) 160000 1 17 160000 5 26 160001 2 46 160001 5 31 160001 10 16 160001 11 28 160001 13 6 160001 13 37 160003 5 22 160003 9 3 160003 10 6 160003 12 12 160004 6 21 160005 5 2 160005 6 2 160007 5 3 160007 6 3 160007 9 18 160007 10 30 160007 12 4 160009 10 22 160016 12 22 160030 5 59 170001 1 14 170020 2 44 170021 10 14 180002 12 25 180003 12 29 180005 1 16 180017 2 47 180018 2 51 180018 14 21 180020 17 3 190078 1 24 220003 5 48 260000 7 40 260006 8 20 290029 3 8 300000 10 8 300000 11 20 Parts No. Page No. Ref. No. Weight(g) 300006 9 8 300050 12 33 300100 1 15 300100 2 45 310026 13 4 310027 13 7 310035 5 30 310036 7 33 310071 11 45 310072 11 38 330000 1 27 340014 8 51 340016 1 30 350009 3 35 910000 16 10 910001 16 7 910001 16 34 910003 16 14 911001 16 6 911002 16 5 911006 16 9 911060 16 19 911062 16 33 930052 16 12 930053 16 13 930055 16 27 2049401 1 37 2100034 4 22 2100161 11 9 2100173 12 16 2100243 11 22 2100248 11 24 2100252 11 12 2100253 11 14 2100267 10 15 2100267 11 27 2100278 12 20 2100279 12 28 2100289 12 26 jintex.in

Page 50 — INDEX

VF2300M INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 2101451 17 9 2110527 12 10 3000010 17 17 3040038 14 18 3040039 1 11 3040040 2 41 3100006 2 12 3100019 1 8 3100027 1 3 3100060 13 12 3100061 13 14 3100071 14 23 3100074 3 13 3100075 3 10 3100078 6 34 3100098 4 12 3100100 4 6 3100110 8 10 3100112 8 14 3100113 2 28 3100128 5 7 3100129 5 10 3100129 6 6 3100131 5 8 3100131 6 5 3100275 6 8 3100281 6 8 3100283 6 10 3100284 6 13 3100285 6 28 3100286 6 32 3100287 6 33 3100290 7 20 3100294 8 31 3100296 7 25 3100300 9 2 3100301 9 5 3100302 9 1 3100303 9 14 3100304 9 16 3100305 9 17 3100307 9 24 3100328 13 35 Parts No. Page No. Ref. No. Weight(g) 3100329 13 16 3100345 13 15 3100346 13 9 3100349 13 41 3100350 13 5 3100353 13 22 3100361 7 15 3100362 7 19 3100363 7 24 3100372 13 25 3100383 3 30 3100384 3 31 3100386 3 33 3100387 3 34 3100442 3 39 3100630 2 56 3100631 2 59 3101200 4 32 3101216 8 39 3103009 6 40 3107303 8 45 3107304 8 46 3107306 8 47 3107311 17 18 3108130 7 42-1 3108131 7 42-2 3108132 7 42-3 3108133 7 13-1 3108134 7 13-2 3108135 7 13-3 3160136 4 10 3160168 8 49 3200007 1 33 3200012 14 20 3200013 14 22 3200016 2 49 3200018 2 4-1 3200019 2 7 3200022 2 19 3200023 2 20 3200024 2 15 3200025 2 16 Parts No. Page No. Ref. No. Weight(g) 3200026 2 39 3200027 2 40 3200028 2 29 3200029 2 30 3200030 2 31 3200031 2 32 3200032 2 36 3200033 1 19 3200033 2 48 3200035 2 4-2 3200042 3 18 3200042 5 49 3200045 3 46 3200047 3 26 3200048 3 17 3200049 6 38 3200050 4 13 3200051 4 25 3200052 4 16 3200053 4 20 3200055 4 26 3200056 4 18 3200057 4 19 3200059 4 4 3200061 4 24 3200062 4 15 3200063 4 8 3200064 4 9 3200065 4 21 3200066 4 30 3200067 4 14 3200068 4 11 3200070 5 1 3200072 5 9 3200073 5 12 3200074 5 13 3200075 5 29 3200076 5 14 3200077 5 27 3200078 5 11 3200079 5 18 3200080 5 17 3200081 5 21 3200082 5 19 3200084 5 24 3200085 5 34 3200086 5 35 3200087 5 23 jintex.in

Page 51 — INDEX

VF2300M INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) 3200091 5 43 3200092 5 41 3200093 5 39 3200094 5 56 3200095 5 6 3200101 7 16 3200120 7 29 3200121 7 30 3200122 7 31 3200132 8 4 3200149 10 2 3200150 10 1 3200151 10 5 3200152 10 3 3200154 10 10 3200155 10 12 3200157 10 18 3200159 10 7 3200160 10 21 3200161 10 23 3200162 10 29 3200164 10 33 3200170 7 3 3200181 11 1 3200182 12 14 3200183 11 2 3200184 11 4 3200185 11 5 3200186 11 6 3200187 11 7 3200189 11 16 3200190 11 17 3200191 11 18 3200192 11 25 3200194 11 21 3200196 12 21 3200199 12 1 3200203 12 35 3200204 12 40 3200205 11 11 3200206 11 15 3200207 11 32 3200209 2 21 3200211 12 39 3200213 11 36 3200215 11 26 3200216 11 30 3200231 13 42 Parts No. Page No. Ref. No. Weight(g) 3200232 13 34 3200233 13 29 3200234 13 24 3200235 13 33 3200236 13 18 3200237 13 17 3200238 13 20 3200242 17 12 3200245 1 34 3200251 4 31 3200252 4 34 3201001 14 16 3201005 14 14 3201007 14 11-1 3201454 2 53 3201455 17 20 3201456 17 24 3201457 2 55 3203001 3 45 3204021 4 3 3204040 1 7 3204041 2 9 3204042 2 43-1 3204043 1 13 3204044 2 43-2 3204047 14 11-2 3204059 12 13 3204060 12 17 3204061 12 18 3204062 12 24 3204063 12 23 3204064 12 19 3204065 12 11 3204066 6 1 3206000 12 30-3 3206001 12 31-3 3207150 15 15-2 3207151 15 15-1 3207152 15 15-3 3207155 15 1-1 3207156 15 1-2 3207157 15 1-3 3207160 15 8 Parts No. Page No. Ref. No. Weight(g) 3208102 15 16-2 3208103 15 16-1 3208104 15 16-3 3208105 15 10-1 3208108 15 10-2 3208109 15 10-3 3209001 12 30-1 3209003 12 30-2 3209064 15 11 3209065 15 12 3209080 12 31-1 3209081 12 31-2 3210002 1 1 3210003 14 17 3210005 2 1 3210030 14 8 3210031 14 9 3211007 8 7 3211008 8 27 3211010 3 15 3211028 7 5 3211036 10 31 3211057 9 12 3211063 6 26 3211068 17 2 3211071 5 36 3211073 12 3 3211074 12 7 3211078 17 1 3211082 9 9 3211083 6 11 3211085 9 22 3211086 8 12 3211111 8 36 3400252 17 21 3400253 17 22 3500305 8 50 3500309 4 1 3500700 17 15 3507000 8 21-1 3507002 8 21-2 jintex.in

Page 52 — INDEX

VF2300M INDEX Page = 6 Parts No. Page No. Ref. No. Weight(g) 3507050 8 16-1 3507052 8 16-2 3507054 8 16-3 3509320 9 25 4109406 1 31 Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) 9620631 16 2 9620666 16 22 9620670 16 3 9620673 16 8 9620675 16 11 9620678 16 23 9620679 16 24 9620680 16 25 9620681 16 26 9620688 16 18 9620689 16 4 9620690 16 21 9620691 16 20 9620696 16 1 9620700 16 17 9620703 16 16 9620750 16 28 9620751 16 29 9620752 16 30 9620753 16 32 9620754 16 39 9620755 16 40 9620756 16 35 9620757 16 37

Page 53

Yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO.,LTD. P/N 9710100(P) No. 3 Edited in 2007.3 (VF2300M) Printed in Japan 2007.3.1H jintex.in
