Yamato VF2400 Parts Book (PDF)

Coverstitch · also listed as 2400Download PDF

Text index — Yamato VF2400

Page 1 — Parts List

Yamato VF2400 parts on page 1
Ref	Part number	Part name	Qty
	VF2400	VF2400
	VF2403	VF2403
	VF2400-PA	VF2400-PA
	VF2403-11	VF2403-11
	VF2403-11H	VF2403-11H
	VF2403-21	VF2403-21
	VF2403-50	VF2403-50
	VF2404	VF2404
	VF2411	VF2411
	VF2490	VF2490
	VF2500	VF2500
	VF2500-20	VF2500-20
	VF2500-35	VF2500-35
	VF2500-PA	VF2500-PA
	VF2500-PA3	VF2500-PA3
	VF2503	VF2503
	VF2503-11	VF2503-11
	VF2503-11S	VF2503-11S
	VF2503-21	VF2503-21
	VF2504-11	VF2504-11
	VF2530	VF2530
	VF2560	VF2560
	VF2560-PA	VF2560-PA
	VF2590	VF2590

Page 7 — MISCELLANEOUS COVER(1)

Yamato VF2400 parts on page 7
Ref	Part number	Part name	Qty
1	3100026	Top Cover	1
2	110045	Screw(M4-0.7 × 12)	15
3	3500430	Top Cover Gasket	1
4	0068011	Oil Sight Window	1
5	0020759	Top Cover Seal Plug	1
6	390069	Brand Name Plate(76.5)	1
7	3500207	Head Cover	1
8	3500431	Head Cover Gasket	1
9	0093864	Head Cover Seal Plug	1
10	390073	"VF" Emblem	1
11	3200010	Bed Rear Cover	1
12	0095108	Bed Rear Cover Gasket	1
13	3200011	Side Cover	1
14	170001	Screw(M5-0.8 × 8)	1
15	300100	Conical Spring Washer	2
16	180005	Screw(M5-0.8 × 8)	1
18	0032604	Rubber Cushion(Large)	2
19	3200033	Rubber Cushion(Small)	3
20	3200012	Cover Latch Spring	1
21	110012	Screw(M4-0.7 × 5)	2
22	180018	Screw(M4-0.7 × 7)	1
23	3200013	Side Cover Holder	1
24	110013	Screw(M4-0.7 × 8)	4
25	000015	Nut	1
26	110016	Screw(M4-0.7 × 15)	1
27	330000	Seal Plug	1
29	009970	Screw(M6-1 × 20)	6
30	340016	Machine Frame Supporting Bar	4
31	4109403	Model Plate(See the below)	1
32	000726	Rivet	5
33	3200007	Oil Reservoir Gasket	1
34	3200006	Oil Reservoir	1
35	0020137	Drain Hole Seal	1
36	005075	Screw(3/8-24 × 8)	1
37	3200021	Wind Guide Plate	1
38	390067	Brand Name Plate(106)	1
39	390068	Brand Name Plate(92)	1
40	2049401	Serial Number Plate	1

Page 9 — MISCELLANEOUS COVERS(2)

Yamato VF2400 parts on page 9
Ref	Part number	Part name	Qty
1	3200017	Cloth Plate(Large)	1
2	009749	Screw(M4-0.7 × 16)	3
3	009747	Screw(M4-0.7 × 10)	1
4-1	3200018	Looper Thread Take-up Cover(32,40,48,56)	1
4-2	3200035	Looper Thread Take-up Cover(64)	1
5	006004	Screw(11/64-40 × 9.7)	1
6	000010	Conical Spring Washer	1
7	3200019	Take-up Cover Spring	1
8	110030	Screw(M3-0.5 × 2.6)	2
9	3200014	Cloth Plate(Small)	1
10	130003	Screw(M4-0.7 × 7.3)	1
11	130004	Screw(M4-0.7 × 14)	1
13	009736	Screw(M4-0.7 × 6)	1
14	110013	Screw(M4-0.7 × 8)	10
15	3200024	Bed Top Cover(Right)	1
16	3200025	Bed Top Cover(Right) Gasket	1
17	007610	Screw(M4-0.7 × 10)	8
18	130006	Screw(M4-0.7 × 10)	2
19	3200022	Bed Top Cover(Left)	1
20	3200023	Bed Top Cover(Left) Gasket	1
21	3200209	Feed Regulating Pushbutton	1
22	0063152	Feed Regulating Pushbutton Spring	1
23	0020472	O-ring(P6)	1
24	000425	Washer	1
25	0033024	Retaining Ring	1
26	0065275	Seal Plug	1
27	0093864	Seal Plug	5
28	3100113	Needle Bar Cover	1
29	3200028	Bed Rear Cover(Small)	1
30	3200029	Bed Rear Cover(Small) Gasket	1
31	3200030	Ball Bearing Housing	1
32	3200031	O-ring	1
33	110048	Screw(M4-0.7 × 10)	3
34	3200210	Pushbutton Stop	1
35	110012	Screw(M4-0.7 × 5)	2
36	3200032	Stitch Plate Support	1
37	110041	Screw(M4-0.7 × 8)	2
38	000745	Knock Pin	2
39	3200026	Bed Front Cover	1
40	3200027	Bed Front Cover Gasket	1

Page 11 — MISCELLANEOUS COVER(S) (2)

Yamato VF2400 parts on page 11
Ref	Part number	Part name	Qty
41	3100030	Front Cover Hinge	1
42	110016	Screw(M4-0.7 × 15)	2
43-1	3200015	Front Cover (32, 40, 48, 56)	1
43-2	3200034	Front Cover (64)	1
44	170020	Screw(M4-0.7 × 8)	1
45	300100	Conical Spring Washer	2
46	160001	Screw(M4-0.7 × 4)	1
47	180017	Screw(M4-0.7 × 6)	1
48	3200033	Rubber Cushion(Small)	2
49	3200016	Front Cover Spring	1
50	110012	Screw(M4-0.7 × 5)	4
51	180018	Screw(M4-0.7 × 7)	1
52	3100071	Eyelet Cover	1
53	3200020	Oil Cooling Fan Cover	1
54	110105	Screw(M5-0.8 × 12)	2
55	000426	Washer	2
56	3100006	Seal Plug	1
57	110079	Screw(M4-0.7 × 8)[M4-0.7 × 8]	2

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato VF2400 parts on page 13
Ref	Part number	Part name	Qty
1	0024084	Thread Tension Spring Cap	4
2	0030255	Needle Thread Tension Spring	2
3	0032952	Top Cover Thread Tension Spring	1
4	0032952	Looper Thread Tension Spring	1
5	0090071	Thread Tension Spring Retainer	4
6	000177	Felt	4
7	0031111	Tension Disc	8
8	290029	Tension Post	4
9	0090812	Tension Post Ferrule	4
10	3100075	Tension Disc Separator	1
11	0090856	Tension Disc Eyelet	4
12	0090807	Thread Lead-in Guide	4
13	3100074	Tension Post Support	1
14	110013	Screw(M4-0.7×8)	5
15	2100065	Looper Thread Eyelet	1
16	0024083	Tension Spring Bushing	4
17	3200048	Top Cover Thread Eyelet(Left)	1
18	3200042	Looper Thread Eyelet	1
19	110013	Screw(M4-0.7×8)	3
20	0093556	Looper Thread Eyelet(Long)	1
21	0020119	Thread Eyelet Pipe(Short)	2
22	0093528	Thread Eyelet Pipe Stay	2
23	000532	Washer	2
24	004353	Screw(9/64-40×7)	2
25	0063104	Thread Guide Plate	1
26	3200047	Top Cover Thread Eyelet(Right)	1
27	000538	Washer	2
28	000651	Guide Pin	1
29	3100383	SP Device, C. Set	1
30	3100384	SP Container	1
33	3100386	Felt	1
34	3100387	Needle Thread Eyelet	1
35	350009	Screw(1/8-44×8)	2
37	0090068	Needle Thread Guide	1
39	3100442	Needle Thread Take-up Guard	1
40	130003	Screw(M4-0.7×4.5)	1
41	3100087	Needle Thread Retainer Support	1
42	0036175	Thread Retainer Disc Support	1
43	0032425	Needle Thread Retainer Dice	1
44	0032426	Needle Thread Retainer Spring	1
45	001093	Screw(1/8-44×2.2)	1
46	3200045	Top Cover Thread Guide	1
47	0063074	Supplementary Thread Guide	1
48	001818	Tension Post	1
49	0037108	Supplementary Tension Disc	2
50	0035813	Supplementary Tension Spring	1
51	000360	Nut	1
52	110009	Screw(M4-0.7×8)	5

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VF2400 parts on page 15
Ref	Part number	Part name	Qty
1	3500309	Oil Seal	2
2	310009	Oil Wick	1
4	3200059	Presser Bar Bushing	1
5	3204021	Oil Seal	2
6	3100100	Spreader Driving Bar Bushing	1
7	0063055	Oil Seal	1
8	3200063	Spreader Driving Shaft Bushing(Left)	1
9	3200064	Spreader Driving Shaft Bushing(Right)	1
10	3160136	Foot Lifter Lever Bushing	1
11	3200068	Needle Thread Take-up Bushing(Front)	1
12	3100098	Needle Thread Take-up Bushing(Rear)	1
13	3200050	Lower Shaft Bushing	1
14	3200067	Oil Seal	1
15	3200062	Looper Rocker Shaft Bushing(Left)	1
16	3200052	Looper Rocker Shaft Bushing(Right)	1
17	0077300	Oil Seal	1
18	3200056	Needle Guard Driving Shaft	2
19	3200057	Seal Plug	1
20	3200053	Feed Bar Driving Shaft Bushing(Left)	1
21	3200065	Feed Bar Driving Shaft Bushing(Right)	1
22	2100034	Seal Plug	1
23	0093303	Oil Seal	1
24	3200061	Looper Driving Shaft Bushing(Front)	1
25	3200051	Looper Driving Shaft Bushing(Rear)	1
26	3200055	Differential Lever Shaft Bushing	1
27	0093864	Seal Plug	1
28	0065275	Seal Plug	1
29	0095218	Seal Plug	1
30	3200066	Seal Plug	1
31	3200251	Eye Guard, Complete Set	1
32	3101200	Eye Guard Support	1
33	009784	Screw(M6-1 × 10)	1
34	3200252	Eye Guard	1
35	004236	Screw(3/32-56 × 4.2)	2
36	0060175	Eye Guard Holder	1
37	006004	Screw(11/64-40 × 7.8)	1
38	000010	Conical Spring Washer	1
39	000547	Washer	1
40	000334	Nut	1
41	000195	Oil Wick	1

Page 17 — MAIN SHAFT DRIVING MECHANISM

Yamato VF2400 parts on page 17
Ref	Part number	Part name	Qty
1	3200070	Pulley	1
2	160005	Screw(M6-1 × 8)	5
3	160007	Screw(M6-1 × 6)	9
4	000037	Roll Pin	1
5	3200071	Oil Cooling Fan	1
6	3200095	Ball Bearing(Right)	1
7	3100128	Timing Pulley(Lower)	1
8	3100131	Ball Bearing(Middle)	1
9	3200072	Oil Pump Driving Worm	1
10	3100129	Adapter	1
11	3200078	Ball Bearing(Left)	1
12	3200073	Lower Shaft(Right)	1
13	3200074	Lower Shaft Joint	1
14	3200143	Looper Thread Take-up	1
15	150000	Screw(M5-0.8 × 4)[7/32-32 × 3.6]	2
16	0093091	Ball Bearing	1
17	3200097	Needle Guard Connecting Rod, C. Set(2)	1
18	3200096	Needle Guard Connecting Rod, C. Set(1)	1
19	3200082	Needle Guard Connecting Rod	1
20	110005	Screw(M3.5-0.6 × 12)	2
21	3200098	Needle Guard Eccentric	1
22	160003	Screw(M5-0.8 × 5)	2
23	3200087	Connecting Rod Pin	1
24	3200084	Needle Guard Driving Shaft Arm	1
25	120030	Screw(M5-0.8 × 12)	1
26	160000	Screw(M3-0.5 × 3)	4
27	3200077	Counterweight	1
28	110036	Screw(M3-0.5 × 6.5)	2
29	3200075	Lower Crankshaft	1
30	310035	Oil Wick	1
31	160001	Screw(M4-0.7 × 4)	2
32	0020159	Ball Bearing	1
33	0068202	Retaining Ring	1
34	3200085	Spacer	1
35	3200086	Collar(8 × 13 × 6 mm)	1
36	3200083	Needle Guard Driving Shaft	1
37-1	0093659	Needle Guard(Rear) (32, 40, 48, 56, 64)	1
37-2	0093669	Needle Guard(Rear) (Extra)	1
38	110083	Screw(M3.5-0.6 × 4.5)	1
39	3200093	Supporting Plate Stay(Lower)	1
40	110048	Screw(M4-0.7 × 10)	2

Page 19 — MAIN SHAFT DRIVING MECHANISM

Yamato VF2400 parts on page 19
Ref	Part number	Part name	Qty
41	3200092	Supporting Plate Stay(Upper)	1
42	110009	Screw(M4-0.7 × 8)	1
43	3200091	Supporting Plate	1
44	130002	Screw(M3-0.5 × 6)	2
45	000463	Laced Wire	2
46	0093515	Thread Take-up Eyelet	2
47	000014	Washer	2
48	001227	Screw(1/8-44 × 3.8)	2
49	3200042	Looper Thread Eyelet	1
50	001818	Tension Post	1
51	0037108	Supplementary Tension Disc	2
52	0035813	Supplementary Tension Spring	1
53	000360	Adjusting Nut	1
54	0063197	Cast-off Plate Bracket	1
55	001223	Screw(9/64-40 × 7.5)	1
56	3200094	Cast-off Plate	1
57	000532	Washer	1
58	004106	Screw(9/64-40 × 6.5)	1

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VF2400 parts on page 21
Ref	Part number	Part name	Qty
1	3204066	Handwheel	1
2	160005	Screw(M6-1 × 8)	1
3	160007	Screw(M6-1 × 6)	10
4	000989	Handwheel Mark	1
5	3100131	Ball Bearing	2
6	3100129	Handwheel Adapter	1
7	0095214	Timing Belt	1
8	3100281	Timing Pulley(Upper)	1
9	3100275	Upper Shaft(Right)	1
10	3100283	Upper Shaft Joint	1
11	3100127	Counterweight(Small)	1
12	110009	Screw(M4-0.7 × 8)	2
13	3200100	Upper Crankshaft	1
14	310040	Oil Wick	1
15	110012	Screw(M4-0.7 × 4)	1
16	3200226	Oil Sleeve	1
18	0060057	Retaining Ring	1
19	0093154	Ball Bearing	2
20	000926	Rubber Seat	1
21	160004	Screw(M6-1 × 4.8)	2
23	0095170	Connecting Rod	1
24	005071	Screw(11/64-32 × 14)	2
25	001174	Screw(9/64-40 × 10.3)	2
26	0095168	Guide Fork	1
27	004312	Screw(1/8-44 × 7.9)	2
28	3100285	Driving Lever	1
29	120013	Screw(M6-1 × 15)	1
30	120015	Screw(M5-0.8 × 10)	1
31	000555	Washer	1
32	3100286	Spacer	1
33	3100287	Driving Shaft	1
34	3100078	Bracket	1
35	000600	Spring Washer	1
36	005650	Screw(M5-0.8 × 14)	1
37	0063096	Needle Thread Take-up	1
38	3200049	Top Cover Thread Take-up	1
39	110004	Screw(M3.5-0.6 × 8)	2
40	160007	Screw(M6-1 × 6)	1

Page 23 — NEEDLE BAR MECHANISM

Yamato VF2400 parts on page 23
Ref	Part number	Part name	Qty
1	0063044	Needle Bar Thread Eyelet	1
2	004358	Screw(9/64-40 × 5.6)	1
3	3200170	Needle Bar & Needle Bar Bushing, C. Set	1
5	3200111	Needle Bar Bracket	1
6	110035	Screw(M4-0.7 × 10)	1
7-1	3209100	Needle Clamp(32)	1
7-2	3209101	Needle Clamp(40)	1
7-3	3209102	Needle Clamp(48)	1
7-4	3209104	Needle Clamp(64)	1
8	------	Needle(UY128 GAS)	2
9	001892	Screw(1/8-44 × 2.9)	3
10	3200046	Top Cover Thread Eyelet	1
11	3200117	Needle Clamp Eyelet	1
12	001230	Screw(3/32-56 × 3.8)	1
13-1	3108130	Stitch Plate(32M)	1
13-2	3108131	Stitch Plate(40M)	1
13-3	3108132	Stitch Plate(48M)	1
13-4	0093174	Stitch Plate(64M)	1
14	009142	Screw(9/64-40 × 4.8)	2
15	3200115	Counterweight, C. Set	1
16	3200101	Counterweight	1
17	120015	Screw(M5-0.8 × 10)	1
18	0093214	Connecting Rod Ring	1
19	3200114	Connecting Rod, C. Set	1
20	3200112	Connecting Rod	1
21	0093212	Roller Bearing	1
22	330000	Seal Plug	1
23	000309	Oil Wick	1
24	3200113	Connecting Rod Pin	1
25	3200118	Needle Bar Guide, C. Set	1
26	0093186	Slide Block	1
27	3200116	Needle Bar Guide	1
28	009749	Screw(M4-0.7 × 16)	2
29	3200120	HR Device, C. Set	1
30	3200121	HR Cup	1
31	3200122	HR Cup Lid	1
32	0093864	Seal Plug	1
33	310036	HR Felt	1
34	0093663	HR Felt Guard	1
35	006219	Screw(M4-0.7 × 30)	2
36	3200090	Connecting Rod Cover Shaft	1
37	160023	Screw(M4-0.7 × 4)	1
38	3200089	Connecting Rod Cover(Rear)	1
39	110002	Screw(M3-0.5 × 5)	2
40	3200088	Connecting Rod Cover(Front)	1
41	110012	Screw(M4-0.7 × 5)	1
42	260000	Screw(5/16-24 × 15.88)	2

Page 25 — PRESSER FOOT MECHANISM

Yamato VF2400 parts on page 25
Ref	Part number	Part name	Qty
1	0093500	Presser Spring Regulator	1
3	000445	Lock Nut	1
4	3200132	Presser Bar Spring(Outer)	1
5	3200131	Presser Bar Connecting Bracket Unit	1
6	110031	Screw(M4-0.7 × 12)	1
7	0093483	Presser Bar Guide	1
8	004441	Screw(11/64-40 × 16)	2
9	3200137	Presser Bar Spring(Inner)	1
10	3100110	Presser Bar	1
11	0093611	Oil Protector Ring	1
12-1	3100310*	Collar(9 × 17 × 7 mm)	1
12-2	3500360	Collar(9 × 15 × 7.5 mm)	1
13	160001*	Screw(M4-0.7 × 4)	1
14	0020271*	Thread Chain Cutting Knife	1
15	110054*	Screw(M3-0.52 × 3.5)	1
16-1	3507000	Presser Foot, C. Set(32)	1
16-2	3507002	Presser Foot, C. Set(40)	1
16-3	3507050	Presser Foot, C. Set(48)	1
16-4	3507054	Presser Foot, C. Set(64)	1
17	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]	1
18	3107303	Presser Foot Spring(Left)	1
19	3107304	Presser Foot Spring(Right)	1
20	130016	Screw(M2.5-0.45 × 6)	4
21	3107306	Presser Foot Hinge Pin	1
22	110084	Screw(M3-0.5 × 4.2)	1
23	000327	Lock Nut	1
24	260006	Adjusting Screw(1/8-44 × 9.5)	1
25	0093487	Lifter Link	1
26	006038	Screw(3/16-32 × 2.2)	2
27	0063083	Lifter Link Lever	1
28	000690	Fastener Pin	1
29	0093479	Lifter Shaft	1

Page 27 — PRESSER FOOT MECHANISM

Yamato VF2400 parts on page 27
Ref	Part number	Part name	Qty
31	3100294	Intermediate Lever	1
32	120017	Screw(M5-0.8 × 15)	1
33	0077179	Retaining Ring	2
34	0093509	Connecting Pin	2
35	0093507	Connecting Plate	1
36	3160168	Lifter Spring	1
37	3500305	Cap	1
38	0093496	Lifter Lever	1
39	3101216	Lifter Lever Stop	1
40	004358	Screw(9/64-40 × 5.6)	2
41	0090801	Tension Release Lever	1
42	005542	Screw(11/64-40 × 14.5)	1
43	0093545	Tension Release Shaft	1
44	0090824	Swing-proof Spring	1
45	0093508	Lifter Lever(Small)	1
46	004591	Screw(15/64-28 × 9.5)	1
48	340014	Roll Pin(3 × 12mm)	1
49	0063084	Lifter Spring	1
50	0093491	Collar(8 × 16 × 8mm)	2
51	009604	Screw(11/64-40 × 5.5)	4
52	3100112	Finger Guard	1
53	110002	Screw(M3-0.5 × 5)	1

Page 29 — SPREADER MECHANISM

Yamato VF2400 parts on page 29
Ref	Part number	Part name	Qty
1	3100302	Connecting Rod, C. Set	1
2	3100300	Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	0077322	Roller Bearing	1
5	3100301	Connecting Rod	1
6	0094566	Retaining Ring	1
7	110009	Screw(M4-0.7 × 8)	1
8	300006	Washer	1
9	3100309	Adjusting Lever Pin	1
10	000528	Washer	1
11	100003	Nut(M6-1.0)	1
12	0032646	Collar(12 × 20 × 8mm)	1
13	009604	Screw(11/64-40 × 5.5)	2
14	3100303	Adjusting Lever	1
15	120013	Screw(M6-1 × 15)	1
16	3100304	Driving Shaft	1
17	3100305	Rocking Arm	1
18	160007	Screw(M6-1 × 6)	2
19	0063051	Rocking Pin	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	0063057	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2

Page 31 — LOOPER DRIVING MECHANISM / ルーパ機構

Yamato VF2400 parts on page 31
Ref	Part number	Part name	Qty
1	3200150	Looper Rocker Connecting Rod, C. Set(2)	1
2	3200149	Looper Rocker Connecting Rod, C. Set(1)	1
3	3200152	Looper Rocker Connecting Rod	1
4	120001	Screw(M4-0.7 X 14)	5
5	3200151	Looper Rocker Eccentric	1
6	160003	Screw(M5-0.8 X 5)	2
7	3200159	Connecting Rod Pin	1
8	300000	Washer	1
9	100002	Nut	1
10	3200154	Looper Rocker Lever	1
11	005650	Screw(M5-0.8 X 14)	2
12	3200155	Looper Rocker Adjusting Guide Plate	1
13	110007	Screw(M2.5-0.45 X 6)	2
14	170021	Adjusting Screw(M2.5-0.45 X 10.5)	1
15	2100267	Collar(10 X 17 X 8mm)	1
16	160001	Screw(M4-0.7 X 4)	2
17	0093314	Looper Rocker Shaft	1
18	3200157	Looper Rocker Arm	1
19	0093319	Looper Slide Block	1
21	3200160	Looper Slide Block Pin	1
22	160009	Screw(M5-0.8 X 5)	1
23	3200161	Looper Connecting Rod	1
24	0032784	Link Pin(Short)	1
25	009604	Screw(11/64-40 X 5.5)	1
26	0032785	Looper Driving Lever Link	1
27	001457	Screw(11/64-40 X 3.3)	1
28	0032786	Link Pin(Long)	1
29	3200162	Looper Driving Lever	1
30	160007	Screw(M6-1 X 6)	2
31	3200163	Collar	1
32	0093300	Looper Driving Shaft	1
33	3200164	Looper Holder	1
34	000669	Washer	1
35	3209311	Looper	1
36	110057	Screw(M4-0.7 X 7)	1
37	0095723	Needle Guard(Front)	1
38	004236	Screw(3/32-56 X 4.2)	1
39	009934	Screw(M5-0.8 X 16)	1

Page 33 — FEED DRIVING CONTROL MECHANISM

Yamato VF2400 parts on page 33
Ref	Part number	Part name	Qty
1	3200181	Feed Bar Driving Shaft	1
2	3200183	Main Feed Bar Lever	1
3	120006	Screw(M6-1 × 12)	3
4	3200184	Differential Rocker, Complete Set	1
5	3200185	Differential Rocker	1
6	3200186	Differential Regulating Slider	1
7	3200187	Differential Regulating Slider Cap	1
8	110033	Screw(M3-0.5 × 6)	2
9	2100161	Collar(10 × 19 × 9mm)	1
10	160003	Screw(M5-0.8 × 5)	2
11	3200205	Differential Lever(Inner), C. Set	1
12	2100252	Slider Link	1
13	0068202	Retaining Ring	1
14	2100253	Slider Link Pin	1
15	3200206	Differential Lever(Inner)	1
16	3200189	Feed Bar, Complete Set	1
17	3200190	Main Feed Bar	1
18	3200191	Differential Feed Bar	1
19	140018	Screw(M5-0.5 × 6)	1
20	300000	Washer	2
21	3200194	Connection Bushing	1
22	2100243	Differential Feed Bar Connection	1
23	140017	Screw(M5-0.5 × 6)	1
24	2100248	Main Feed Bar Connection	1
25	3200192	Connection Bushing	1
26	3200215	Retaining Ring	1
27	2100267	Collar(10 × 17 × 8mm)	1
28	160001	Screw(M4-0.7 × 4)	2
29	000690	Roll Pin	1
30	3200216	Differential Lever Spring	1
31	0020538	O-ring(P7)	1
32	3200207	Differential Lever Shaft	1
33	0095132	Differential Lever(Left)	1
34	110009	Screw(M4-0.7 × 8)	1
35	004143	Screw(11/64-40 × 3.2)	1
36	3200213	Differential Feed Graduation	1
37	110045	Screw(M4-0.7 × 12)	2
38	310072	Felt	1
39	000210	Adjusting Nut	1
40	005511	Adjusting Screw(1/4-40×11,11/64-40×4)	1
41	0020350	Differential Lever Stop	2
42	000669	Washer	2
43	000600	Spring Washer	2
44	005049	Screw(M5-0.8 × 8)	2
45	310071	Oil Wick	1

Page 35 — FEED DRIVING MECHANISM

Yamato VF2400 parts on page 35
Ref	Part number	Part name	Qty
1	3200199	Feed Bar Guide(Left)	1
2	110080	Screw(M4-0.7×8)	2
3	3200200	Feed Bar Guide(Right)	1
4	160007	Screw(M6-1×6)	3
5	0033141	Feed Adjusting Pin	1
6	0093389	Feed Bar Block(Rear)	1
7	3200201	Feed Bar Guide(Rear)	1
8	0060076	Retaining Ring	1
9	0060075	Feed Bar Block(Front)	1
10	2110527	Roller Bearing	1
11	3204065	Feed Dog Regulator	1
12	160003	Screw(M5-0.8×5)	3
13	3204059	Driving Connecting Rod Mechanism, C. Set	1
14	3200182	Feed Bar Driving Shaft Lever	1
15	120006	Screw(M6-1×12)	1
16	2100173	Connecting Rod Pin	1
17	3204060	Feed Dog Regulator, C. Set	1
18	3204061	Driving Connecting Rod, C. Set	1
19	3204064	Feed Dog Eccentric	1
20	2100278	Roller Bearing	1
21	3200196	Feed Dog Driving Connecting Rod	1
22	160016	Screw(M4-0.7×4.5)	1
23	3204063	Eccentric Link	1
24	3204062	Feed Dog Regulating Eccentric	1
25	180002	Screw(M3-0.5×4)	2
26	2100289	Feed Dog Regulating Plate Spring	1
27	0023473	Feed Dog Regulating Plate	1
28	2100279	Feed Dog Regulating Gear	1
29	180003	Screw(M5-0.8×8)	1
30-1	3209001	Differential Feed Dog(32, 40, 48, 56)	1
30-2	3209003	Differential Feed Dog(64)	1
31-1	3209080	Main Feed Dog(32, 40, 48, 56)	1
31-2	3209002	Main Feed Dog(64)	1
32	110004	Screw(M3.5-0.6×8)	2
33	3200203	Feed Bar Shield Holder(Front)	1
34	130003	Screw(M4-0.7×7.3)	1
35	130024	Screw(M4-0.7×7.3)	1
36	110079	Screw(M4-0.7×8)	1
37	3200211	Feed Bar Shield	2
38	3200204	Feed Bar Shield Holder(Rear)	1
39	110070	Screw(M3-0.5×6.3)	1

Page 37 — LUBRICATING MECHANISM

Yamato VF2400 parts on page 37
Ref	Part number	Part name	Qty
1	0065453	Oil Receiver	1
2	110012	Screw(M4-0.7 × 5)	5
3	3200243	Lubricant Guiding Block	1
4	320006	Top Nozzle Cap	1
5	3200230	Oil Adjusting Screw	1
6	000636	Seal Plug	1
7	300000	Washer	1
8	000600	Spring Washer	1
9	100002	Nut	1
10	3100060	Oil Filter Cap	1
11	110045	Screw(M4-0.7 × 12)	3
12	3100061	O-ring(P42)	1
13	3100345	Oil Filter	1
14	3100329	Oil Filter Connector	1
15	0063217	Oil Filter Screen Clamp	1
16	0063216	Oil Filter Screen	1
17	3200237	Felt	1
18	3200236	Suction Pipe	1
19	0093617	Suction Pipe Bushing	1
20	3200238	Oil Tube(3 × 5 × 440mm)	1
21	0065452	Drining Pipe	1
22	3200227	Oil Pipe Unit	1
23	0031831	Oil Tube Clamp	6
24	3200234	Oil Tube(Long), Complete Set	1
25	3100372	Oil Tube(4 × 6 × 290mm)	1
28	0037668	Oil Tube Joint, Two Way	1
29	3200233	Oil Tube(4 × 6 × 175mm)	1
30	0037669	Oil Tube Joint, One Way	3
31	004124	Fitting Stud(Short)	4
32	000567	Seal	9
33	3200235	Oil Tube(Short), Complete Set	1
34	3200232	Oil Tube(4 × 6 × 45mm)	1
35	3100328	Oil Pump, Complete Set	1
36	0030711	Oil Pump Driving Worm Gear	1
37	160001	Screw(M4-0.7 × 4)	2
38	120013	Screw(M6-1 × 15)	2
39	0090918	Suction Pipe	1
40	000419	Nut	1
41	3100349	Oil Nozzle for Worm Gear	1
42	3200231	Dustproof Plate	1
43	0020533	Oil Sight Gauge	1

Page 39 — VF2500, 2500-35 EXCLUSIVE PARTS

Yamato VF2400 parts on page 39
Ref	Part number	Part name	Qty
1-1	3209106	Needle Clamp(48)	1
1-2	3209107	Needle Clamp(56)	1
1-3	0093357	Needle Clamp(56-20)	1
1-4	3209108	Needle Clamp(64)	1
2	001892	Screw(1/8-44 × 2.9)	3
3-1	3507050	Presser Foot, Complete Set(48)	1
3-2	3507052	Presser Foot, Complete Set(56)	1
3-3	3507054	Presser Foot, Complete Set(64)	1
4	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]	1
5	3107303	Presser Foot Spring(Left)	1
6	3107304	Presser Foot Spring(Rihgt)	1
7	130016	Screw(M2.5-0.45 × 6)	4
8	3107306	Presser Foot Hinge Pin(48, 56, 64)	1
9	110084	Screw(M3.5-0.5 × 4.2)	1
10	000327	Lock Nut	1
11	260006	Adjusting Screw(1/8-44 × 9.5)	1
12-1	3108133	Stitch Plate(48M)	1
12-2	3108134	Stitch Plate(56M)	1
12-3	3108135	Stitch Plate(64M)	1
13	0024084	Thread Tension Spring Cap	1
14	0024083	Tension Spring Bushing	1
15	0030255	Needle Thread Tension Spring	1
16	0090071	Thread Tension Spring Retainer	1
17	000177	Felt	1
18	0031111	Tension Disc	2
19	290029	Tension Post	1
20	0090812	Tension Post Ferrule	1
21	0090856	Tension Disc Eyelet	1
22	0090807	Thread Lead-in Guide	1
23	3209081	Main Feed Dog(64)	1
24	310126	Oil Wick	1
25	000290	Oil Wick	1

Page 41 — VF2400-PA, 2500-PA EXCLUSIVE PARTS / サブモデル専用部品

Yamato VF2400 parts on page 41
Ref	Part number	Part name	Qty
1	3201014	Stitch Plate Support	1
2	3201016	Corner Sewing Sleeve	2
3	009142	Screw(9/64-40 × 7.1)	2
4	3201015	Cylinder Support	1
5	110036	Screw(M3-0.5 × 6.5)	1
6	1091051	Air Cylinder(MS4 NFS)	1
7	0010260	Vinyl Tube(4 × 2.5mm)	-
8	3209018	Main Feed Dog(40, 48, 56)	1
9	3201011	Cloth Plate(Large)(40, 48, 56)	1
10	3201012	Cloth Plate(Small)	1
11	3201013	Front Cover(40, 48, 56)	1
12	4017013	Return Spring	1
13-1	3208006	Stitch Plate(40S)	1
13-2	3208007	Stitch Plate(48S)	1
14	3209107	Needle Clamp(56)	1
15	001892	Screw(1/8-44 × 2.9)	3
16	3507052	Presser Foot, Complete Set(56)	1
17	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]	1
18	3107303	Presser Foor Spring(Left)	1
19	3107304	Presser Foor Spring(Right)	1
20	130016	Screw(M2.5-0.45 × 6)	4
21	3107306	Presser Foot Hinge Pin(56)	1
22	110084	Screw(M3.5-0.5 × 4.2)	1
23	000327	Lock Nut	1
24	260006	Adjusting Screw(1/8-44 × 9.5)	1
25-1	3208000	Stitch Plate(56S)	1
25-2	3208002	Stitch Plate(56L)(Extra)	1
26	0024084	Thread Tension Spring Cap	1
27	0024083	Tension Spring Bushing	1
28	0030255	Needle Thread Tension Spring	1
29	0090071	Thread Tension Spring Retainer	1
30	000177	Felt	1
31	0031111	Tension Disc	2
32	290029	Tension Post	1
33	0090812	Tension Post Ferrule	1
34	0090856	Tension Disc Eyelet	1
35	0090807	Thread Lead-in Guide	1

Page 43 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 43
Ref	Part number	Part name	Qty
1	0010248	Air Cylinder	1
2	009812	Screw(M3-0.5 × 20)	2
3	1094000	Connector(EC4-M5)	1
4	1096029	Air Tube(4 × 2.5mm)(Black)	-
5	1094057	Y-Connector(φ4)	3
6	000488	Nut	3
7	190079	Stude(M3-0.5 × 20.5)	1
8	3201413	Cylinder Holder	1
9	110013	Screw (M4-0.7 × 8)	2
10	3201411	Tension Post Support	1
11	3201414	Connecting Plate	1
12	009779	Screw(M3-0.5 × 6)	2
13	3201412	Tension Disc Separator	1
14	3201432	Stitch Plate Support	1
15	3201016	Corner Sewing Sleeve	2
16	3201436	Stitch Plate Driving Shaft	1
17	170005	Screw(M4-0.7 × 6)	2
18	3201434	Cylinder Bracket	1
19	110001	Screw(M4-0.7 × 5.4)	2
20	1091016	Air Cylinder	1
21	3201435	Driving Shaft Bracket	1
22	1094059	Elbow Connector(φ 4-M5)	2
23	3201430	Cloth Plate(Large)	1
24	3201431	Cloth Plate(Small)	1
25	3201433	Front Cover	1

Page 45 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(2)

Yamato VF2400 parts on page 45
Ref	Part number	Part name	Qty
1	3207199	Presser Foot, C. Set(40S)	1
2	110004	Screw(M3.5-0.6 × 8)	1
3	3107303	Presser Foot Spring(Left)	1
4	130016	Screw(M2.5-0.45 × 6)	4
5	3107306	Locking Pin	1
6	110084	Screw(M3-0.5 × 4.2)	1
7	000327	Nut	1
8	260006	Adjusting Screw(1/8-44 × 9.5)	1
9	3107304	Presser Foot Spring(Right)	1
10	3208003	Stitch Plate(40S)	1
11	3209050	Main Feed Dog(56S, 40S)	1
12	3209051	Differential Feed Dog(56S, 40S)	1
13	3207200	Presser Foot, C. Set(56S)	1
14	3208004	Stitch Plate(56S)	1
15	0024084	Thread Tension Spring Cap	1
16	0024083	Tension Spring Bushing	1
17	0030255	Needle Thread Tension Spring	1
18	0090071	Thread Tension Spring Retainer	1
19	000177	Felt	1
20	0031111	Tension Disc	2
21	290029	Tension Post	1
22	0090812	Tension Post Ferrule	1
23	0090856	Tension Disc Eyelet	1
24	0090807	Thread Lead-in Guide	1
25	3209107	Needle Clamp(56)	1
26	001892	Screw(1/8-44 × 2.9)	3

Page 47 — EXCLUSIVE PARTS(I)

Yamato VF2400 parts on page 47
Ref	Part number	Part name	Qty
1-1	0093241	Folder(for Type P)	1
1-2	0093242	Folder(for Type Q)	1
1-3	0093243	Folder(for Type R)	1
2	0091736	Folder Clamp	1
3	009932	Screw(11/64-40 × 4)	2
4	005554	Screw(7/32-32 × 6.5)	1
5	0094245	Folder Support	1
6	0094246	Folder Support Fixing Plate	1
7	140019	Screw(M5-0.8 × 14)	2
8	3201000	Front Cover	1
9	3201002	Front Cover(Small)	1
10	110013	Screw(M4-0.7 × 8)	2
11	3201007	Fabric Slide Plate	1
12	000426	Washer	1
13	110105	Screw(M5-0.8 × 12)	1
14-1	3201003	Dustproof Cover	1
14-2	3201005	DustproofCover(VF2403-21,2503-21)	1
15	110104	Screw(M4-0.7 × 8)	2
16	3201006	Front Cover Spring	1
17	3201001	Looper Thread Take-up Cover	1
18	3201004	Front Cover(Small)(Extra)(Note 1)	1
19	3201098	Main Feed Bar Lever	1
20	3201099	Differential Feed Graduation	1
21	3201111	Cloth Plate(Large)	1

Page 49 — EXCLUSIVE PARTS(2)

Yamato VF2400 parts on page 49
Ref	Part number	Part name	Qty
1-1	3207150	Presser Foot, Complete Set(32)	1
1-2	3207151	Presser Foot, Complete Set(40)	1
1-3	0094216	Presser Foot, Complete Set(40-11H)	1
1-4	3207152	Presser Foot, Complete Set(48)	1
1-5	3207157	Presser Foot, Complete Set(64)	1
2	001186	Screw(9/64-40 × 7.8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(1/8-44 × 4.5)	1
5	000220	Lock Nut	1
6	003300	Adjusting Screw(1/8-44 × 15)	1
7	0091696	Presser Foot Hinge Pin	1
8	3207160	Tape Guide	1
9	001230	Screw(3/32-56 × 3.8)	1
10-1	0094210	Stitch Plate(32M)	1
10-2	0094211	Stitch Plate(40M)	1
10-3	0094212	Stitch Plate(48M)	1
10-4	0094214	Stitch Plate(64M)	1
11-1	3209014	Main Feed Dog(32, 40, 48, 56)	1
11-2	3209016	Main Feed Dog(64)	1
12-1	3209005	Differential Feed Dog(32, 40, 48, 56)	1
12-2	3209007	Differential Feed Dog(64)	1
13	0095234	Stitch Plate(40M-11)	1
14	3209008	Main Feed Dog	1
15	3209009	Differential Feed Dog	1
16-1	3208102	Stitch Plate(32M-21, 32M-50)	1
16-2	3208103	Stitch Plate(40M-21)	1
16-3	3208104	Stitch Plate(48M-21)	1
17	3209064	Main Feed Dog	1
18	3209065	Differential Feed Dog	1
19-1	3209106	Needle Clamp(48)	1
19-2	3209107	Needle Clamp(56)	1
19-3	3209108	Needle Clamp(64)	1
20	001892	Screw(1/8-44 × 2.9)	3
21	0024084	Thread Tension Spring Cap	1
22	0030255	Needle Thread Tension Spring	1
23	0090071	Thread Tension Spring Retainer	1
24	000177	Felt	1
25	0031111	Tension Disc	2
26	290029	Tension Post	1
27	0090812	Tension Post Ferrule	1
28	0090856	Tension Disc Eyelet	1
29	0090807	Thread Lead-in Guide	1
30-1	3207155	Presser Foot, Complete Set(48)	1
30-2	3207156	Presser Foot, Complete Set(56)	1
30-3	3207157	Presser Foot, Complete Set(64)	1

Page 51 — EXCLUSIVE PARTS(2)

Yamato VF2400 parts on page 51
Ref	Part number	Part name	Qty
31-1	3208026	Stitch Plate(48M)	1
31-2	0094901	Stitch Plate(56M)	1
31-3	0094902	Stitch Plate(64M)	1
32-1	3208052	Stitch Plate(48M-11)	1
32-2	0095085	Stitch Plate(56M-11)	1
32-3	3008025	Stitch Plate(64M-11)	1
33-1	3208108	Stitch Plate(56M-21)	1
33-2	3208109	Stitch Plate(64M-21)	1
33-3	3208105	Stitch Plate(48M-21)(Extra)	1
34	110039	Screw(M3.5-0.6 × 10)	1
35	300050	Spring Washer	1
36	0024083	Tension Spring Bushing	1

Page 53 — VF2404, 2504-11 EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 53
Ref	Part number	Part name	Qty
1-1	0093241	Folder(for Type P)	1
1-2	0093242	Folder(for Type Q)	1
1-3	0093243	Folder(for Type R)	1
2	0091736	Folder Clamp	1
3	009932	Screw(11/64-40 × 4)	2
4	005554	Screw(7/32-32 × 6.5)	1
5	0094245	Folder Support	1
6	0094246	Folder Support Fixing Plate	1
7	140019	Screw(M5-0.8 × 14)	2
8	3201000	Front Cover	1
9	3201002	Front Cover(Small)	1
10	110013	Screw(M4-0.7 × 8)	2
11	3201007	Fabric Slide Plate	1
12	000426	Washer	1
13	110105	Screw(M5-0.8 × 12)	1
14	3201003	Dustproof Cover	1
15	110104	Screw(M4-0.7 × 8)	2
16	3201006	Front Cover Spring	1
17	3201001	Looper Thread Take-up Cover	1

Page 55 — VF2404, 2504-11 EXCLUSIVE PARTS(2)

Yamato VF2400 parts on page 55
Ref	Part number	Part name	Qty
1-1	3207150	Presser Foot, Complete Set(32)	1
1-2	3207151	Presser Foot, Complete Set(40)	1
1-3	3207152	Presser Foot, Complete Set(48)	1
1-4	3207157	Presser Foot, Complete Set(64)	1
2	001186	Screw(9/64-40 × 7.8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(1/8-44 × 4.5)	1
5	000220	Lock Nut	1
6	003300	Adjusting Screw(1/8-44 × 15)	1
7	0091696	Presser Foot Hinge Pin	1
8	3207160	Tape Guide	1
9	001230	Screw(3/32-56 × 3.8)	1
10-1	0094210	Stitch Plate(32M)	1
10-2	0094211	Stitch Plate(40M)	1
10-3	0094212	Stitch Plate(48M)	1
10-4	0094214	Stitch Plate(64M)	1
11-1	3209014	Main Feed Dog(32, 40, 48, 56)	1
11-2	3209016	Main Feed Dog(64)	1
12-1	3209005	Differential Feed Dog(32, 40, 48, 56)	1
12-2	3209007	Differential Feed Dog(64)	1
13	3209107	Needle Clamp(56)	1
14	001892	Screw(1/8-44 × 2.9)	3
15	3207156	Presser Foot, Complete Set(56)	1
16	0024084	Thread Tension Spring Cap	1
17	0024083	Tension Spring Bushing	1
18	0030255	Needle Thread Tension Spring	1
19	0090071	Thread Tension Spring Retainer	1
20	000177	Felt	1
21	0031111	Tension Disc	2
22	290029	Tension Post	1
23	0090812	Tension Post Ferrule	1
24	0090856	Tension Disc Eyelet	1
25	0090807	Thread Lead-in Guide	1
26	0095085	Stitch Plate(56M)	1
27	3209008	Main Feed Dog	1
28	110039	Screw(M3.5-0.6 × 10)	1
29	300050	Spring Washer	1
30	3209009	Differential Feed Dog	1

Page 57 — VF2404, 2504-11 EXCLUSIVE PARTS (3)

Yamato VF2400 parts on page 57
Ref	Part number	Part name	Qty
1	190044	Screw(M4-0.7 × 12)	1
2	3201329	Tape Holder	1
3	110048	Screw(M4-0.7 × 10)	2
4	000538	Washer	4
5	190021	Screw(M4-0.7 × 12)	1
6	3201369	Tension Roller Holder, C. Set	1
7	2101368	Tension Roller Holder	1
8	3201184	Roller Shaft Bushing	2
9	3201185	Tension Roller(Large)	1
10	160001	Screw(M4-0.7 × 4)	5
11	190075	Adjusting Screw(M5-0.8 × 28)	1
12	100053	Lock Nut	1
13	3201372	Roller Lever	1
14	110036	Screw(M3-0.5 × 6.5)	2
15	000669	Washer	2
16	2100043	Tension Spring	1
17	000665	Washer	1
18	0077179	Retaining Ring	1
19	3201190	Tension Link Shaft	1
20	000425	Washer	1
21	3201375	Tension Link	2
22	150001	Screw(M4-0.7 × 4)	4
23	3201191	Roller Shaft(Small)	1
24	3201186	Tension Roller(Small) Unit	1
25	3201192	Tape Guide Wire	2
26	160000	Screw(M3-0.5 × 3)	3
27	3201370	Tape Guide	2
28	190064	Knob Screw(M3-0.5 × 5)	1
29	3201371	Tape Guide Stop	1
30	110009	Screw(M4-0.7 × 8)	1
31	170001	Screw(M4-0.7 × 8)	1
32	300100	Conical Spring Washer	2
33	0095269	Tape Guide Bar Holder	1
34	009604	Screw(11/64-40 × 5.5)	1
35	3201377	Tape Guide Bar(Long)	1
36	3201197	Tape Guide Unit	1
37	0095272	Tape Guide	1
38	001892	Screw(1/8-44 × 2.9)	2
39	3201331	Eye Guard Support	1
40	3200252	Eye Guard	1
41	110038	Screw(M2.5-0.45 × 4.5)	2

Page 59 — VF2404, 2504-11 EXCLUSIVE PARTS(4)

Yamato VF2400 parts on page 59
Ref	Part number	Part name	Qty
1	3201366	Roller Shaft	1
2	3201398	Thrust Washer	1
3	0095027	Retaining Ring	1
4	3201381	Clutch, Complete Set	1
5	3201358	Clutch Lever	1
6	007621	Screw(9/64-40 × 7.5)	3
7	0095061	Clutch	2
8	3201277	Clutch Spring	12
9	0095066	Clutch Spring Seat	6
10	0095067	Clutch Roller	6
11	0095063	Clutch Sleeve Collar	1
12	0095062	Clutch Sleeve	1
13	003635	Screw(1/4-40 × 6)	2
14	007645	Screw(1/4-40 × 3)	1
15	3201385	Clutch Plate	1
16	3201184	Roller Shaft Bushing	1
17	180001	Screw(M4-0.7 × 4.5)[M4-0.7 × 8]	1
18	3201089	Clutch Lever Pin Adjusting Plate	1
19	110002	Screw(M3-0.5 × 5)	2
20	190034	Adjusting Screw(M4-0.7 × 69)	1
21	3201367	Tension Roller Holder Bracket	1
22	120006	Screw(M6-1 × 12)	4
23	3201380	Clutch Rod Cover, C. Set	1
24	3201364	Clutch Rod Cover	1
25	3201365	Clutch Rod Cover(Right)	1
26	110047	Screw(M4-0.7 × 10)	2
27	160003	Screw(M5-0.8 × 5)	2
28	110030	Screw(M3-0.5 × 2.6)	1
29	007625	Screw(9/64-40 × 8.5)[9/64-40 × 7.5]	6
30	110035	Screw(M4-0.7 × 10)	1
31	000665	Washer	1

Page 61 — VF2404, 2504-11 EXCLUSIVE PARTS(5) / サブモデル専用部品(5)

Yamato VF2400 parts on page 61
Ref	Part number	Part name	Qty
1	3201362	Upper Shaft(Right)	1
2	3201383	Clutch Driving Rod & Eccentric, C. Set	1
3	3201379	Clutch Eccentric, C. Set	1
4	3201351	Clutch Regulator	1
5	160003	Screw(M5-0.8×5)	2
6	190007	Adjusting Screw(M5-0.8×6)	1
7	300045	Spacer	1
8	120008	Screw(M4-0.7×8)	1
9	3201350	Clutch Eccentric, C. Set	1
10	3201378	Clutch Driving Rod , C. Set	1
11	3201353	Ball Bearing	1
12	3201352	Clutch Driving Rod	1
13	3201356	Ball	1
14	120001	Screw(M4-0.7×14)	2
15	3204057	Handwheel	1
16	160007	Screw(M6-1×6)	2
17	3201384	Clutch Lever Pin	1
18	3201357	Pointer	1
19	3201355	Roller Bearing	1
20	3201354	Bushing	1
21	000605	Washer	1
22	100077	Wing Nut	1

Page 63 — VF2411 EXCLUSIVE PARTS

Yamato VF2400 parts on page 63
Ref	Part number	Part name	Qty
1	0094604	Seal Plug	1
2	0063548	Seal Plug	1
3	3201021	Cloth Plate(Large)	1
4-1	3201025	Looper Thread Take-up Cover(40, 48)	1
4-2	3201034	Looper Thread Take-up Cover(64)	1
5	3201026	Looper Holder	1
6	0094616	Edge Guide(on the Front Cover)	1
7	000426	Washer	2
8	110105	Screw(M5-0.8 × 12)	2
9-1	0094872	Presser Foot, Complete Set(40)	1
9-2	0094873	Presser Foot, Complete Set(48)	1
9-3	0063674	Presser Foot, Complete Set(64)	1
9-4	0094871	Presser Foot, Complete Set(32)(Extra)	1
10	001186	Screw(9/64-40 × 7.8)	1
11	0094890	Presser Foot Spring	1
12	005133	Screw(1/8-44 × 4.5)	1
13-1	0094962	Stitch Plate(40L)	1
13-2	0094963	Stitch Plate(48L)	1
13-3	0094961	Stitch Plate(32L)(Extra)	1
14	0094615	Fabric Guide	1
15	001228	Screw(3/32-56 × 3.2)	1
16	3209010	Main Feed Dog	1
17	3209011	Differential Feed Dog	1
18-1	3208125	Stitch Plate(48S)	1
18-2	3208020	Stitch Plate(64S)	1
18-3	3208011	Stitch Plate(32S)(Extra)	1
18-4	3208012	Stitch Plate(40S)(Extra)	1
19-1	3209002	Main Feed Dog(60S, 64S)	1
19-2	3209000	Main Feed Dog(32S, 40S)	1
20	3209035	Differential Feed Dog(64S)	1

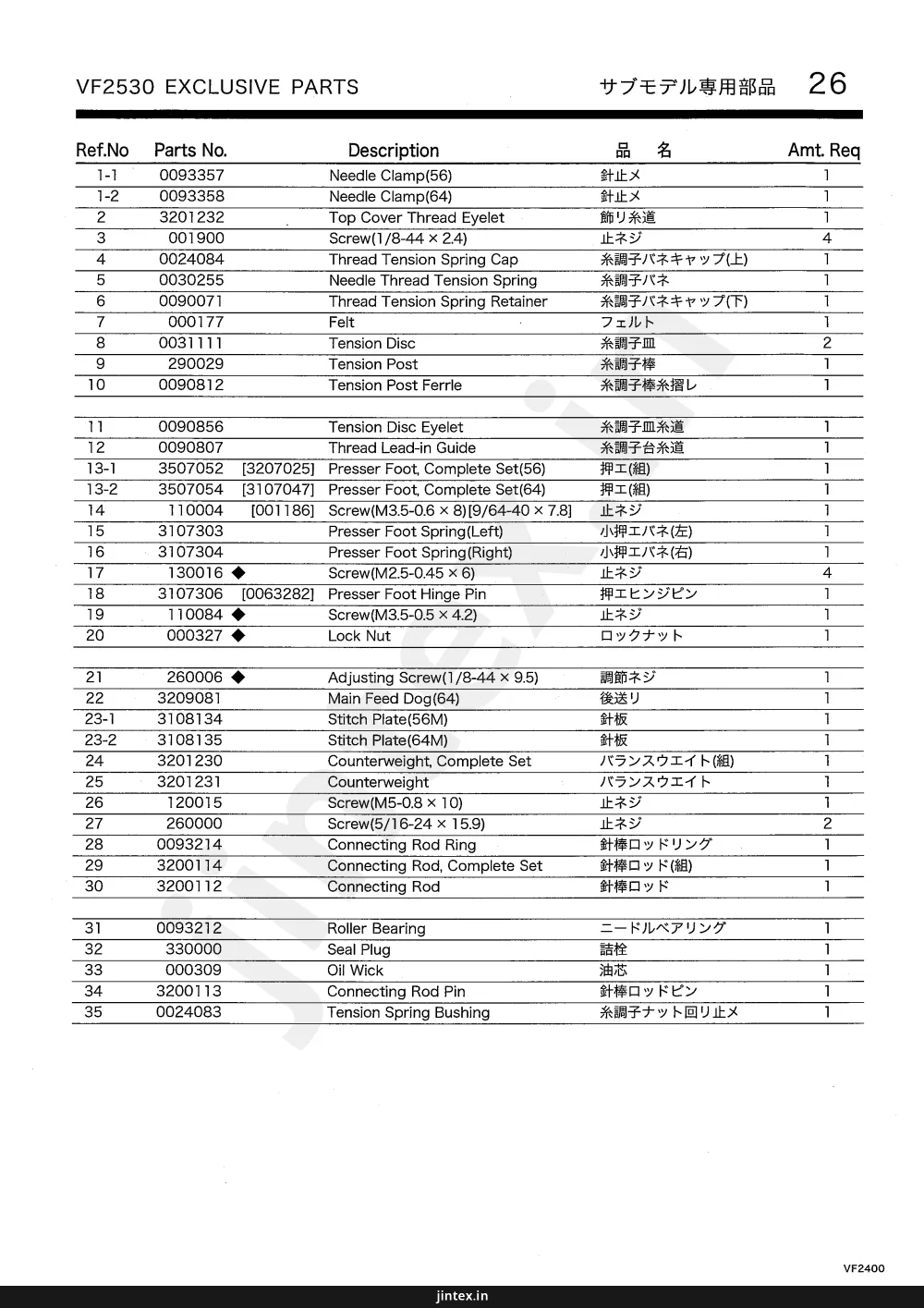

Page 65 — VF2530 EXCLUSIVE PARTS

Yamato VF2400 parts on page 65
Ref	Part number	Part name	Qty
1-1	0093357	Needle Clamp(56)	1
1-2	0093358	Needle Clamp(64)	1
2	3201232	Top Cover Thread Eyelet	1
3	001900	Screw(1/8-44 × 2.4)	4
4	0024084	Thread Tension Spring Cap	1
5	0030255	Needle Thread Tension Spring	1
6	0090071	Thread Tension Spring Retainer	1
7	000177	Felt	1
8	0031111	Tension Disc	2
9	290029	Tension Post	1
10	0090812	Tension Post Ferrle	1
11	0090856	Tension Disc Eyelet	1
12	0090807	Thread Lead-in Guide	1
13-1	3507052	Presser Foot, Complete Set(56)	1
13-2	3507054	Presser Foot, Complete Set(64)	1
14	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]	1
15	3107303	Presser Foot Spring(Left)	1
16	3107304	Presser Foot Spring(Right)	1
17	130016	Screw(M2.5-0.45 × 6)	4
18	3107306	Presser Foot Hinge Pin	1
19	110084	Screw(M3.5-0.5 × 4.2)	1
20	000327	Lock Nut	1
21	260006	Adjusting Screw(1/8-44 × 9.5)	1
22	3209081	Main Feed Dog(64)	1
23-1	3108134	Stitch Plate(56M)	1
23-2	3108135	Stitch Plate(64M)	1
24	3201230	Counterweight, Complete Set	1
25	3201231	Counterweight	1
26	120015	Screw(M5-0.8 × 10)	1
27	260000	Screw(5/16-24 × 15.9)	2
28	0093214	Connecting Rod Ring	1
29	3200114	Connecting Rod, Complete Set	1
30	3200112	Connecting Rod	1
31	0093212	Roller Bearing	1
32	330000	Seal Plug	1
33	000309	Oil Wick	1
34	3200113	Connecting Rod Pin	1
35	0024083	Tension Spring Bushing	1

Page 67 — VF2490, 2590 EXCLUSIVE PARTS

Yamato VF2400 parts on page 67
Ref	Part number	Part name	Qty
1	0093863	Thread Tension Spring Cap	1
2	0090814	Needle Thread Tension Spring	1
3	0090071	Thread Tension Spring Retainer	1
4	000177	Felt	1
5	0031111	Tension Disc	2
6	009835	Tension Post	1
7	0090812	Tension Post Ferrule	1
8	0090856	Tension Disc Eyelet	1
9	0090807	Thread Lead-in Guide	1
10	3201481	Needle Bar Guard	1
11	3202021	Top Cover Thread Eyelet(Upper)	1
12	000531	Washer	1
13	110033	Screw(M3-0.5 x 6)	1
14	3120128	Thread Guide Eyelet	1
15	3201483	Needle Bar Thread Eyelet	1
16	000548	Washer	1
17	000515	Spacer	1
18	001923	Screw(9/64-40 x 14)	1
19	3201488	Needle Thread Take-up Guard	1
20	3200042	Looper Thread Eyelet	1
21	110013	Screw(M4-0.7 x 8)	1
22	3201484	Thread Eyelet Support	1
23	110009	Screw(M4-0.7 x 8)	1
24	0093535	Top Cover Thread Eyelet(Upper)	1
25	0037108	Supplementary Tension Disc	2
26	0032426	Tension Spring	1
27	270014	Screw(1/8-44 x 2.6)	1
28	0093365	Top Cover Thread Eyelet(Lower)	1
29	3209037	Main Feed Dog	1
30	3209036	Differential Feed Dog	1
31	0093352	Needle Clamp(40)	1
32	001900	Screw(1/8-44 x 2.4)	2
33	0093292	Presser Foot, Complete Set(40)	1
34	001186	Screw(9/64-40 x 7.8)	1
35	0091725	Presser Foot Spring	2
36	005133	Screw(1/8-44 x 4.5)	1
37	000220	Lock Nut	1
38	003300	Adjusting Screw(1/8-44 x 15)	1
39	0093287	Stitch Plate(40M)	1
40	0093357	Needle Clamp(56)	1

Page 69 — VF2490, 2590 EXCLUSIVE PARTS

Yamato VF2400 parts on page 69
Ref	Part number	Part name	Qty
41	001900	Screw(1/8-44 × 2.4)	3
42	0095035	Presser Foot, Complete Set(56)	1
43	0093289	Stitch Plate(56M)	1
44	0024084	Thread Tension Spring Cap	1
45	0024083	Tension Spring Bushing	1
46	0030255	Needle Thread Tension Spring	1
47	0090071	Thread Tension Spring Retainer	1
48	000177	Felt	1
49	0031111	Tension Disc	2
50	290029	Tension Post	1
51	0090812	Tension Post Ferrule	1
52	0090856	Tension Disc Eyelet	1
53	0090807	Thread Lead-in Guide	1

Page 71 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 71
Ref	Part number	Part name	Qty
1	3201481	Needle Bar Guard	1
2	3202021	Top Cover Thread Eyelet(Upper)	1
3	000531	Washer	1
4	110033	Screw(M3-0.5 × 6)	1
5	3120128	Thread Guide Eyelet	1
6	3201483	Needle Bar Thread Eyelet	1
7	000548	Washer	1
8	000515	Spacer	1
9	001923	Screw(9/64-40 × 14)	1
10	0066646	Needle Thread Guide	1
11	0066644	Needle Thread Take-up	1
12	3202020	Top Cover Thread Guide	1
13	3201488	Needle Thread Take-up Guard	1
14	3200042	Looper Thread Eyelet	1
15	110013	Screw(M4-0.7 × 8)	1
16	3201484	Thread Eyelet Support	1
17	110009	Screw(M4-0.7 × 8)	2
18	0093535	Top Cover Thread Eyelet(Upper)	1
19	0037108	Supplementary Tension Disc	2
20	0032426	Tension Spring	1
21	270014	Screw(1/8-44 × 2.6)	1
22-1	3209121	Needle Clamp(56)	1
22-2	3209123	Needle Clamp(60)	1
22-3	3209122	Needle Clamp(64)	1
25	160033	Screw(M2.5-0.45 × 3)	5
29	3202024	Counterweight, Complete Set	1
30	3202025	Counterweight	1
31	120015	Screw(M5-0.8 × 10)	1
32	0093214	Connecting Rod Ring	1
33	3200114	Connecting Rod, Complete Set	1
34	3200112	Connecting Rod	1
35	0093212	Roller Bearing	1
36	330000	Seal Plug	1
37	000309	Oil Wick	1
38	3200113	Connecting Rod Pin	1
39	260000	Screw(5/16-24 × 15.88)	2
40	3209312	Looper	1

Page 73 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 73
Ref	Part number	Part name	Qty
41	3209202	Needle Guard(Rear)	1
42-1	3207039	Presser Foot, C. Set(56)	1
42-2	3207052	Presser Foot, C. Set(60)	1
42-3	3207040	Presser Foot, C. Set(64)	1
43	001186	Screw(9/64-40 × 7.8)	1
44	3107303	Presser Foot Spring(Left)	1
45	3107304	Presser Foot Spring(Right)	1
46	0063284	Locking Pin	1
47	0063282	Presser Foot Hinge Pin	1
48	005122	Screw(3/32-56 × 5.5)	2
49-1	3207044	Presser Foot Stitch Tongue(56)	1
49-2	3207053	Presser Foot Stitch Tongue(60)	1
49-3	3207045	Presser Foot Stitch Tongue(64)	1
50	004182	Screw(3/32-56 × 2.5)	1
51	3207046	Fabric Guide	1
52	110027	Screw(M2.5-0.45 × 3.5)	1
53	3200035	Looper Thread Take-up Cover	1
54	3200262	Timing Gauge	1

Page 75 — VF2560 EXCLUSIVE PARTS (2)

Yamato VF2400 parts on page 75
Ref	Part number	Part name	Qty
1	190021	Screw(M4-0.7 × 12)	1
2	000538	Washer	2
3	0093528	Thread Pipe Stay	1
4	110013	Screw(M4-0.7 × 8)	1
5	0093538	Thread Pipe	1
6	0093556	Looper Thread Eyelet(Long)	1
7	004267	Screw(11/64-40 × 7.5)	1
8	0024084	Thread Tension Spring Cap	2
9	0030255	Needle Thread Tension Spring	2
10	0090071	Thread Tension Spring Retainer	2
11	000177	Felt	2
12	0031111	Tension Dise	4
13	290029	Tension Post	2
14	0090812	Tension Post Ferrule	2
15	0090856	Tension Dise Eyelet	2
16	0090807	Thread Lead-in Guide	2
17	000186	Washer	1
18-1	3208071	Stitch Plate(56S)	1
18-2	3208160	Stitch Plate(60S)	1
18-3	3208072	Stitch Plate(64S)	1
19	3209046	Main Feed Dog	1
20	3209047	Differential Feed Dog	1
21	3201162	Tension Disc Separator	1
22	3201163	Tension Post Support	1
23	0024083	Tension Spring Bushing	1
24	3200034	Front Cover	1

Page 77 — VF2560-PA EXCLUSIVE PARTS (2)

Yamato VF2400 parts on page 77
Ref	Part number	Part name	Qty
1	3202029	Cloth Plate(Large)	1
2	3201018	Front Cover	1
3	4017013	Return Spring	1
4	3201012	Cloth Plate(Small)	1
5	3208073	Stitch Plate(56S)	1
6	3201016	Corner Sewing Sleeve	2
7	009142	Screw(9/64-40 × 7.1)	2
8	3201014	Stitch Plate Support	1
9	3201015	Cylinder Support	1
10	110036	Screw(M3-0.5 × 6.5)	1
11	1091051	Air Cylinder	1
12	0010260	Vinyl Tube(4 × 2.5mm)	-
13	3209048	Main Feed Dog	1
14	3209049	Differential Feed Dog	1
15	0024084	Thread Tension Spring Cap	2
16	0030255	Needle Thread Tension Spring	2
17	0090071	Thread Tension Spring Retainer	2
18	000177	Felt	2
19	0031111	Tension Disc	4
20	290029	Tension Post	2
21	0090812	Tension Post Ferrule	2
22	0090856	Tension Disc Eyelet	2
23	0090807	Thread Lead-in Guide	2
24	0024083	Tension Spring Bushing	1

Page 79 — VF2560-PA EXCLUSIVE PARTS (3)

Yamato VF2400 parts on page 79
Ref	Part number	Part name	Qty
1	3209943	Presser Foot Lifter Mechanism, C. Set	1
2	3101244	Presser Foot Lifter Cylinder, C. Set	1
3	1091146	Air Cylinder	1
4	3201037	Cylinder Rod Chip	1
5	3101243	Cylinder Bracket	1
6	000425	Washer	2
7	120013	Screw(M6-1 × 15)	2
8	0010055	Connector(φ 4-PT1/8)	2
9	3201038	Lifter Lever Supplementary Plate	1
10	005650	Screw(M5-0.8 × 14)	1
11	000426	Washer	1
12	000009	Nut	3
13	1097009	Regulator	1
14	110017	Screw(M5-0.8 × 8)	2
15	000600	Spring Washer	2
16	000426	Washer	2
17	1253240	Regulator Support	1
18	006905	Wood Screw(φ 5.1 × 20)	2
19	1098015	Hose Band	1
20	0010108	Hose Union	1
21	0010264	Connector(φ 6-PT1/4)	1
22	1096030	Air Tube(6 × 4mm)(Black)	-
23	1090141	Solenoid Valve, C. Set	1
24	0010263	Connector(φ 6-PT1/8)	1
25	1097007	Silencer(φ 6-PT1/8)	2
26	0010120	Solenoid	1
27	009937	Wood Screw(φ 3.8 × 20)	2
28	1200071	Cord(J)	1
29	1094030	Y-Connector(φ 4-PT1/8)	1
30	0010057	Elbow Connector(φ 4-PT1/8)	3
31	1096029	Air Tube(4 × 2.5mm)(Black)	-

Page 81 — EC DEVICE / EC装置

Yamato VF2400 parts on page 81
Ref	Part number	Part name	Qty
1	3209924	EC Device, Complete Set	1
2	3201122	Cutting Device, Complete Set	1
3	3201104	Cutting Device Basement	1
4	120011	Screw(M6-1 × 18)	2
5	000528	Washer	2
6	000011	Nut	4
7	0060248	Cord Clamp(3N-φ 5.3)	1
8	001175	Screw(9/64-40 × 8)	1
9	0092288	Cutting Knife Connecting Lever	1
10	005115	Screw(1/4-28 × 19)	1
11	0092286	Sliding Block	1
12	0092287	Sliding Block Pin	1
13	003638	Screw(11/64-40 × 4)	3
14	3201106	Upper Cutting Knife Holder	1
15	003670	Screw(7/32-32 × 6.3)	2
16	3201105	Upper Cutting Knife	1
17	000538	Washer	2
18	002308	Screw(11/64-40 × 10.4)	2
19	006245	Adjusting Screw(11/64-40 × 11.5)	1
20	0092283	Upper Cutting Knife Holder Shaft	1
21	0092289	Cutting Knife Cover	1
22	004440	Screw(11/64-40 × 8.3)	2
23	0092285	Lower Cutting Knife	1
24	005550	Screw(11/64-40 × 13.5)	2
26	0092294	Collar(10 × 18 × 7.5mm)	1
27	0092292	Press Spring	1
28	000498	Washer	1
29	0092291	Return Spring	1
30	005512	Screw(11/64-40 × 3)	1
31	0092293	Return Spring Latch	1
32	003635	Screw(1/4-40 × 6)	1
33	0011789	Solenoid	1
34	0092298	Fabric Guide	1
35	004314	Screw(1/8-44 × 5.6)	1
36	0011709	Control Box Stay	2
37	006905	Wood Screw(φ 5.1 × 20)	4
38	0011957	Control Box, Complete Set	1
39	0011952	Control Board	1
40	0010565	Knee Switch, Complete Set	1
41	0010564	Knee Switch	1
42	300031	Washer	4
43	300033	Spring Washer	2
44	100038	Wing Nut	2
45	0092232	Knee Switch Holder	1
46	006910	Wood Screw(φ 6.8 × 26)	2
47	3201121	Stitch Plate Support	1
48	3201100	Cloth Plate(Large)	1

Page 83 — EU5 DEVICE(1) / EU5装置(1)

Yamato VF2400 parts on page 83
Ref	Part number	Part name	Qty
1	3204052	Handwheel	1
2	0092305	Magnet	2
3	1200038	Rotation Detector Unit	1
4	110013	Screw(M4-0.7 × 8)	6
5	3201103	Light Emitter Support	1
6	000538	Washer	2
7	0011228	Light Emitter Unit	1
8	004314	Screw(1/8-44 × 5.6)	2
9	3201102	Stitch Plate Support	1
10	1200068	Emission Catcher Unit	1
11	0092335	Insulating Plate	1
12	110007	Screw(M2.5-0.45 × 6)	2
13	0024302	Cord Stay	2
14	110008	Screw(M4-0.7 × 5)	1
15	110013	Screw(M4-0.7 × 8)	1
16	0094491	Cord Clamp(2N-φ 3.3)	1
17	0023381	Cord Clamp(6N-φ 10.6)	1
18	0011709	Control Box Stay	4
19	006905	Wood Screw(φ 5.1 × 20)	8
20	1249020	Control Box, Complete Set	1
21	1057087	Control Board	1
22	0011192	Knee Switch, Complete Set	1
23	0011189	Knee Switch	1
24	300031	Washer	4
25	300033	Spring Washer	2
26	100038	Wing Nut(M4-0.7)	2
27	0092232	Knee Switch Holder	1
28	006910	Wood Screw(φ 6.8 × 26)	2
29	1200040	Stop Cord	1
30-1	0011943	Power Cord(for 100 Voltage)	1
30-2	0011944	Power Cord(for 200 Voltage)	1
30-3	0011945	Power Cord(for 220 Voltage)	1
30-4	0011946	Power Cord(for 380 Voltage)	1
31	3201373	Magnet Holder, C. Set	1
32	3201374	Magnet Holder	1
33	110036	Screw(M3-0.5 × 6.5)	2

Page 85 — EU5 DEVICE(2) / EU5装置(2)

Yamato VF2400 parts on page 85
Ref	Part number	Part name	Qty
1	3201107	Cutting Device, Complete Set	1
2	3201104	Cutting Device Basement	1
3	120011	Screw(M6-1 × 18)	2
4	1200069	Solenoid	1
5	000528	Washer	2
6	000011	Nut	4
7	0060248	Cord Clamp(3N- φ 5.3)	1
8	001175	Screw(9/64-40 × 8)	1
9	0092288	Cutting Knife Connecting Lever	1
10	005115	Screw(1/4-28 × 19)	1
11	0092286	Sliding Block	1
12	0092287	Sliding Block Pin	1
13	003638	Screw(11/64-40 × 4)	3
14	3201106	Upper Cutting Knife Holder	1
15	003670	Screw(7/32-32 × 6.3)	2
16	3201105	Upper Cutting Knife	1
17	000538	Washer	2
18	002308	Screw(11/64-40 × 10.4)	2
19	006245	Adjusting Screw(11/64-40 × 11.5)	1
20	0092283	Upper Cutting Knife Holder Shaft	1
21	0092289	Cutting Knife Cover	1
22	004440	Screw(11/64-40 × 8.3)	2
23	0092285	Lower Cutting Knife	1
24	005550	Screw(11/64-40 × 13.5)	2
26	0092294	Collar(10 × 18 × 7.5mm)	1
27	0092292	Press Spring	1
28	000498	Washer	1
29	0092291	Return Spring	1
30	005512	Screw(11/64-40 × 3)	1
31	0092293	Return Spring Latch	1
32	003635	Screw(1/4-40 × 6)	1
33	3201100	Cloth Plate(Large)	1
34	3201101	Cloth Plate(Small)	1
35	0092298	Fabric Guide	1
36	004314	Screw(1/8-44 × 5.6)	1
37	3208017	Stitch Plate(40M)	1
38	3208015	Stitch Plate(56M)	1
39-1	3208075	Stitch Plate(32M)	1
39-2	3208076	Stitch Plate(40M)	1
39-3	3208077	Stitch Plate(48M)	1
40	3208023	Stitch Plate(40M)	1
41-1	3208076	Stitch Plate(40M)	1
41-2	0094212	Stitch Plate(48M)	1
42-1	3208078	Stitch Plate(56M)	1
42-2	3208079	Stitch Plate(64M)	1
43-1	3208053	Stitch Plate(48M)	1
43-2	3208016	Stitch Plate(56M)	1
43-3	3208018	Stitch Plate(64M)	1
44	3208143	Stitch Plate(56M)	1

Page 87 — EU5/PS2 DEVICE(1) / EU5/PS2装置(1)

Yamato VF2400 parts on page 87
Ref	Part number	Part name	Qty
1	3204052	Handwheel	1
2	0092305	Magnet	1
3	1200038	Rotation Detector Unit	1
4	110013	Screw(M4-0.7 × 8)	6
5	3201103	Light Emitter Support	1
6	110048	Screw(M4-0.7 × 10)	2
7	000538	Washer	3
8	1200137	Light Emitter Unit(for PS2)	1
9	0011228	Light Emitter Unit(for EU5)	1
10	004314	Screw(1/8-44 × 5.6)	2
11	3201102	Stitch Plate Support	1
12	1200068	Emission Catcher Unit(for EU5)	1
13	0092335	Insulating Plate	1
14	110007	Screw(M2.5-0.45 × 6)	2
15	0024302	Cord Stay	2
16	110008	Screw(M4-0.7 × 5)	1
17	110013	Screw(M4-0.7 × 8)	2
18	3201132	Front Cover(Small)	1
19	110035	Screw(M4-0.7 × 10)	1
20	1200138	Emission Catcher Unit(for PS2)	1
21	110038	Screw(M2.5-0.45 × 4.5)	1
22	3201131	Front Cover	1
23	0094491	Cord Clamp(2N-φ 3.3)	3
24	0023381	Cord Clamp(6N-φ 10.6)	1
25	0011709	Control Box Stay	4
26	006905	Wood Screw(φ 5.1 × 20)	8
27	1249046	Control Box, Complete Set	1
28	1057028	Photoelectric Board	1
29	1057087	Control Board	1
30	0011192	Knee Switch, Complete Set	1
31	0011189	Knee Switch	1
32	300031	Washer	4
33	300033	Spring Washer	2
34	100038	Wing Nut(M4-0.7)	2
35	0092232	Knee Switch Holder	1
36	006910	Wood Screw(φ 6.8 × 26)	2
37-1	0011943	Power Cord(for 100 Voltage)	1
37-2	0011944	Power Cord(for 200 Voltage)	1
37-3	0011945	Power Cord(for 220 Voltage)	1
37-4	0011946	Power Cord(for 380 Voltage)	1
38	1200132	Power Signal Cord	1
39	1200040	Motor Cord	1

Page 89 — EU5/PS2 DEVICE(2) / EU5/PS2装置(2)

Yamato VF2400 parts on page 89
Ref	Part number	Part name	Qty
1	3201107	Cutting Device, Complete Set	1
2	3201104	Cutting Device Basement	1
3	120011	Screw(M6-1 × 18)	2
4	1200069	Solenoid	1
5	000528	Washer	2
6	000011	Nut	4
7	0060248	Cord Clamp(3N- ϕ 5.3)	1
8	001175	Screw(9/64-40 × 8)	1
9	0092288	Cutting Knife Connecting Lever	1
10	005115	Screw(1/4-28 × 19)	1
11	0092286	Sliding Block	1
12	0092287	Sliding Block Pin	1
13	003638	Screw(11/64-40 × 4)	3
14	3201106	Upper Cutting Knife Holder	1
15	003670	Screw(7/32-32 × 6.3)	2
16	3201105	Upper Cutting Knife	1
17	000538	Washer	2
18	002308	Screw(11/64-40 × 10.4)	2
19	006245	Adjusting Screw(11/64-40 × 11.5)	1
20	0092283	Upper Cutting Knife Holder Shaft	1
21	0092289	Cutting Knife Cover	1
22	004440	Screw(11/64-40 × 8.3)	2
23	0092285	Lower Cutting Knife	1
24	005550	Screw(11/64-40 × 13.5)	2
26	0092294	Collar(10 × 18 × 7.5mm)	1
27	0092292	Press Spring	1
28	000498	Washer	1
29	0092291	Return Spring	1
30	005512	Screw(11/64-40 × 3)	1
31	0092293	Return Spring Latch	1
32	003635	Screw(1/4-40 × 6)	1
33	3201100	Cloth Plate(Large)	1
34	3201101	Cloth Plate(Small)	1
35	0092298	Fabric Guide	1
36	004314	Screw(1/8-44 × 5.6)	1
37	3208076	Stitch Plate(40M)	1

Page 91 — FC DEVICE / FC装置

Yamato VF2400 parts on page 91
Ref	Part number	Part name	Qty
1	3209920	FC Device, Complete Set	1
2	0090711	Cutting Knife Lever Spring Hanger	1
3	110009	Screw(M4-0.7 × 8)	1
4	0091842	Cutting Knife Lever Spring	1
5	3201114	Cutting Knife Lever	1
6	003393	Screw(5/32-40 × 3.2)	1
7	006638	Screw(5/32-40 × 9.5)	1
8	007650	Screw(11/64-40 × 5)	3
9	0091841	Cutting Knife Lever Pin	1
10	3201112	Cutting Device Holder	1
11	120026	Screw(M5-0.8 × 18)	2
12	002308	Screw(11/64-40 × 10.4)	1
13	000340	Nut	1
14	1091835	Cutting Knife Holder Pin	1
15	3201113	Cutting Knife Holder	1
16	009150	Screw(11/64-40 × 11)	2
17	0091833	Cutting Knife(Upper)	1
18	004440	Screw(11/64-40 × 8.3)	4
19	0091838	Cutting Knife Spring	1
20	0091839	Cutting Knife(Lower)	1
21	001156	Screw(11/64-40 × 13.3)	2
22	0091837	Cutting Knife Cover	1
23	006245	Adjusting Screw(11/64-40 × 11.5)	1
24	0092298	Fabric Guide	1
25	009740	Screw(M6-1 × 10)	1
26	160003	Screw(M5-0.8 × 5)	1
27	330000	Seal Plug	1
28	3201111	Cloth Plate(Large)	1

Page 93 — AU2-1 DEVICE(1) / AU2-1装置(1)

Yamato VF2400 parts on page 93
Ref	Part number	Part name	Qty
1	3204052	Handwheel	1
2	0092305	Magnet	1
3	1200038	Rotation Detector Unit	1
4	110013	Screw(M4-0.7 × 8)	6
5	0063612	Cord Clamp(4N- φ 6.8)	1
7-1	3101476	Light Emitter Support	1
7-2	3201138	Light Emitter Support(-21/AU2-1)	1
8	000538	Washer	2
9	0011228	Light Emitter Unit	1
10	004314	Screw(1/8-44 × 5.6)	2
11	0094491	Cord Clamp(2N- φ 3.3)	1
12-1	3201128	Stitch Plate Support	1
12-2	3201136	Stitch Plate Support(-21/AU2-1)	1
13	1200234	Emission Catcher Unit	1
14	1055084	Insulating Plate	1
15	007630	Screw(M2.5-0.45 × 1.8)	2
16	0024302	Cord Stay	2
17	110008	Screw(M4-0.7 × 5)	1
18	3201125	Cloth Plate(Large)	1
19-1	3201126	Cloth Plate(Small)	1
19-2	3201137	Cloth Plate(Small)(-21/AU2-1)	1
20	3201127	Looper Thread Take-up Cover	1
21	0095961	Presser Bar	1
22	110009	Screw(M4-0.7 × 8)	1

Page 95 — AU2-1 DEVICE(2) / AU2-1装置(2)

Yamato VF2400 parts on page 95
Ref	Part number	Part name	Qty
1	3101497	Cutting Device, Complete Set	1
2	3002009	Bracket(Right)	1
3	120021	Screw(M5-0.8 × 60)	4
4	3002026	O-ring	2
5	3002010	Cylinder	1
6	009935	Screw(M5-0.8 × 20)	1
7	3002029	Wear Ring	1
8	300038	Washer	1
9	3002027	Rubber Cushion	2
10	3002028	Piston	1
11	3002030	Piston Seal	1
12	3002031	O-ring	2
13	3002011	Piston Shaft	1
14	3002032	Piston Shaft Seal	1
15	3002008	Bracket(Left)	1
16	3002012	Piston Shaft Bushing	1
17	3002013	Piston Rod Holder	1
18	120008	Screw(M4-0.7 × 8)	3
19	3002014	Piston Rod	1
20	3002016	Link Pin	2
21	160000	Screw(M3-0.5 × 3)	2
22	0095980	Piston Rod Bearing	1
23	3002015	Piston Link	1
24	3002017	Upper Cutting Knife Holder	1
25	160001	Screw(M4-0.7 × 4)	4
26	3002018	Upper Cutting Knife	1
27	130002	Screw(M3-0.5 × 6)	2
28	3002019	Cutting Knife Press Shaft	1
29	3002020	Shaft Bushing(Long)	1
30	3002021	Shaft Bushing(Short)	1
31	0095940	Upper Cutting Knife Spring	1
32	3002022	Cutting Knife Press Screw	1
33	3002023	Lock Nut	1
34	3002007	Cutting Device Basement	1
35-1	120026	Screw(M5-0.8 × 18)	1
35-2	120026	Screw(M5-0.8 × 18)(for VF)	1
36	000669	Washer	3
37-1	120017	Screw(M5-0.8 × 15)	1
37-2	120017	Screw(M5-0.8 × 15)(for VC)	1
38	120015	Screw(M5-0.8 × 10)	3
39	3101492	Lower Cutting Knife	1
40	3002025	Cutting Knife Cover	1
41	000665	Washer	1
42	0010263	Connector(φ 6-PT1/8)	2
43	3101498	Spacer	1

Page 97 — AU2-1 DEVICE(3) / AU2-1装置(3)

Yamato VF2400 parts on page 97
Ref	Part number	Part name	Qty
1	1098015	Hose Band	1
2	0010108	Hose Union	1
3	1097009	Regulator	1
4	110017	Screw(M5-0.8 × 8)	2
5	000600	Spring Washer	2
6	000426	Washer	2
8	1253240	Regulator Support	1
9	006905	Wood Screw(φ 5.1 × 20)	10
10	0010264	Connecting(φ 6-PT1/4)	1
11	1096030	Air Tube(6 × 4mm)(Black)	-
12	0010123	Solenoid Valve, C. Set	1
13	0010120	Solenoid Valve, C. Set	1
14	1200037	Cord(F)	1
15	0010263	Connector(φ 6-PT1/8)	3
16	1097007	Silencer(φ 6-PT1/8)	2
17	009937	Wood Screw(φ 3.8 × 20)	2
18	1249224	Control Box, Complete Set	1
19	1057155	Control Board	1
20	0011709	Control Box Stay	4
21	0011192	Knee Switch, Complete Set	1
22	0011189	Knee Switch, Complete Set	1
23	300031	Washer	4
24	300033	Spring Washer	2
25	100038	Wing Nut(M4-0.7)	2
26	0092232	Knee Switch Holder	1
27	006910	Wood Screw(φ 6.8 × 26)	2
28	1200040	Stop Cord	1
29-1	0011943	Power Cord(for 100 Voltage)	1
29-2	0011944	Power Cord(for 200 Voltage)	1
29-3	0011945	Power Cord(for 220 Voltage)	1
29-4	0011946	Power Cord(for 380 Voltage)	1

Page 99 — AU2-1 DEVICE(4) / AU2-1 装置(4)

Yamato VF2400 parts on page 99
Ref	Part number	Part name	Qty
1-1	0096271	Presser Foot, C. Set(40)	1
1-2	0096272	Presser Foot, C. Set(48)	1
1-3	3207026	Presser Foot, C. Set(56)	1
1-4	3207030	Presser Foot, C. Set(64)	1
1-5	0096270	Presser Foot, C. Set(32)(Extra)	1
2	001186	Screw(9/64-40 × 7.8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(1/8-44 × 4.5)	1
5	000220	Lock Nut	1
6	003300	Adjusting Screw(1/8-44 × 15)	1
7-1	0096341	Stitch Plate(32M)(Extra)	1
7-2	0096342	Stitch Plate(40M)	1
7-3	0096343	Stitch Plate(48M)	1
7-4	3208050	Stitch Plate(56M)	1
7-5	3208051	Stitch Plate(64M)	1
8-1	3209022	Main Feed Dog(32, 40, 48, 56)	1
8-2	3209042	Main Feed Dog(64)	1
9-1	3207204	Presser Foot, C. Set(32)	1
9-2	3207177	Presser Foot, C. Set(56)	1
9-3	3207180	Presser Foot, C. Set(64)	1
9-4	3207175	Presser Foot, C. Set(48)(Extra)	1
10	0091696	Presser Foot Hinge Pin	1
11	3207160	Top Guide	1
12	001230	Screw(3/32-56 × 3.8)	1
13-1	3208056	Stitch Plate(32M)	1
13-2	3208049	Stitch Plate(56M)	1
13-3	3208054	Stitch Plate(64M)	1
13-4	3208048	Stitch Plate(48M)(Extra)	1
14	3209066	Main Feed Dog	1

Page 101 — K1 DEVICE for VF2400, 2500, 2560

Yamato VF2400 parts on page 101
Ref	Part number	Part name	Qty
1	3209923	K1 Device, Complete Set	1
2	3201141	Feed Bar Driving Shaft	1
3	0093303	Oil Seal	1
4	3201140	Cutting Knife Main Lever	1
5	120006	Screw(M6-1 × 12)	1
6	000567	Packing Piece	1
7	3201142	Ball Stud	1
8	0095466	Cutting Knife Driving Link	1
9	170029	Screw(M4-0.7 × 8)	1
10	300017	Washer	1
11	005572	Screw(9/64-40 × 3.57)	1
12	0095463	Cutting Knife(Lower)	1
13	0095465	Cutting Knife Holder Pin	1
14	0095464	Cutting Knife(Lower) Spring	1
15	000014	Washer	1
16	005571	Screw(3/32-56 × 4)	1
17	0095462	Cutting Plate	1
18	005328	Screw(29/256-48 × 6.5)	4
19-1	0095471	Cahin-off Guide(Small Mouth)	1
19-2	0095472	Cahin-off Guide(Large Mouth)	1
20	0095458	Suction Pipe Unit	1
21	110009	Screw(M4-0.7 × 8)	2
22	3201143	Stitch Plate Support	1
23-1	3201144	Looper Thread Take-up Cover(40,48,56)	1
23-2	3201145	Looper Thread Take-up Cover(64)(VF2560)	1
24	3201147	Cloth Plate(Large)	1
25	300006	Spacer	1
26	3201146	Cloth Plate(Small)	1
27	0095541	Stitch Plate(40M)	1
28-1	3209000	Main Feed Dog(40, 56)	1
28-2	3209002	Main Feed Dog(64)	1
29-1	0095456	Stitch Plate(56M)	1
29-2	0095457	Stitch Plate(64M)	1
30-1	3208074	Stitch Plate(56S)	1
30-2	3208161	Stitch Plate(60S)	1
30-3	3208086	Stitch Plate(64S)	1

Page 103 — C DEVICE / C装置

Yamato VF2400 parts on page 103
Ref	Part number	Part name	Qty
1	2109932	C Device, Complete Set	1
2	1098015	Hose Band	1
3	1094011	Hose Nipple(PT1/8 × 8)	1
4	1097000	Regulator	1
5	009960	Screw(M5-0.8 × 16)	2
6	000669	Washer	4
7	000600	Spring Washer	2
8	000009	Nut	2
9	1097001	Regulator Support	1
10	006905	Wood Screw(φ 5.1 × 20)	2
11	0010263	Connector(φ 6-PT1/8)	1
12	1096000	Air Hose(4 × 6 × 2000mm)	1
13	1298000	Air Valve, Complete Set	1
14	0033938	Collar(6.4 × 13 × 9mm)	1
15	005040	Screw(11/64-40 × 8.5)	5
16	0033937	Return Spring	1
17	0033936	Air Valve Holder	1
18	0033935	Air Valve Stop	1
19	000334	Nut	1
20	005505	Adjusting Screw(11/64-40 × 16)	1
21	1090133	TAC Valve, Complete Set	1
22	0010052	TAC Valve	1
23	000623	Gasket	2
24	0010112	Joint	2
25	0010290	Connector(φ 6-PT1/8)	1
26	0010310	Venturi Tube	1
27	1098015	Hose Band	2
28	1096004	Air Hose(12 × 18 × 1500mm)	1
29	1096005	Air Hose(12 × 18 × 500mm)	1
30	0011987	UL Clamp	3
31	009814	Wood Screw(φ 3.1 × 20)	3

Page 105 — S1 DEVICE

Yamato VF2400 parts on page 105
Ref	Part number	Part name	Qty
1	3209926	S1 Device, Complete Set	1
2	3201329	Tape Holder	1
3	190021	Screw(M4-0.7 × 12)	1
4	000538	Washer	6
5	110048	Screw(M4-0.7 × 10)	2
6	190044	Screw(M4-0.7 × 12)	1
7	3201134	Tension Guide Support	1
8	009784	Screw(M6-1 × 10)	2
9	0096066	Tension Guide	1
10	007627	Screw(M4-0.7 × 6)	2
11	000665	Washer	2
12	190022	Screw(M4-0.7 × 12, M5-0.8 × 21)	1
13	000669	Washer	1
14	0095269	Tape Guide Bar Holder	1
15	000600	Spring Washer	1
16	100028	Wing Nut	1
17	0095270	Tape Guide Bar	1
18	009604	Screw(11/64-40 × 5.5)	1
19	0095296	Tape Guide Unit	1
20	0095272	Tape Guide	1
21	001892	Screw(1/8-44 × 2.9)	2
22	3101270	Knee Press, Complete Set	1
23	0064179	Knee Press Support	1
24	006910	Wood Screw(φ 6.8 × 26)	2
25	000428	Washer	2
26	000731	Pin	1
27	0064187	Knee Press Pin	1
28	0068202	Retaining Ring	2
29	0064180	Knee Press Return Spring	1
30	0064181	Knee Press Connecting Block	1
31	004474	Screw(3/16-32 × 6.4)	2
32	0064186	Knee Press Connecting Shaft	1
33	0067082	Knee Press Shaft	1
34	0064182	Knee Press	1
35	004635	Screw(1/4-40 × 14)	1
36	0037912	Chain	1
37	3209927	Driving Guide, Complete Set	1
38	3201133	Guide Holder	1
39	0096177	Guide Holder Fixing Plate	1
40	110011	Screw(M5-0.8 × 10)	2

Page 107 — S1 DEVICE / S1装置

Yamato VF2400 parts on page 107
Ref	Part number	Part name	Qty
41	0096163	Slider	1
42	0096164	Slider Ling	1
43	007620	Screw(9/64-40 × 6.3)	1
44	0094403	Slider Ling Stop	2
45	001225	Screw(1/8-44 × 2.8)	2
46	0096166	Elastic Tape Guide	1
47	004236	Screw(3/32-56 × 4.2)	2
48	000014	Washer	2
49	0096167	Elastic Tape Guide Tube	1
50	0096161	Guide Link	1
51	006120	Screw(11/64-40 × 5)	1
52	000511	Washer	1
53	000451	Nut	1
54	000613	Washer	1
55	006046	Screw(3/16-32 × 4.5)	1
56	0063428	Guide Lever Link	1
57	006075	Screw(11/64-40 × 6)	2
58	0034979	Guide Lever Link Bushing	2
59	000334	Nut	2
60	0096178	Guide Lever	1
61	170033	Screw(M6-1 × 8)	1
62	0095027	Retaining Ring	1
63	0096159	Guide Lever Spring	1

Page 109 — EXTRA PARTS(1)

Yamato VF2400 parts on page 109
Ref	Part number	Part name	Qty
1-1	0095490	Stitch Plate(32L)	1
1-2	0095491	Stitch Plate(40L)	1
1-3	0095492	Stitch Plate(48L)	1
2-1	0095493	Stitch Plate(56L)	1
2-2	0095454	Stitch Plate(64L)	1
3	3208045	Stitch Plate(56)	1
4	0094615	Fabric Guide	1
5	001228	Screw(3/32-56 × 3.2)	1
6	3108199	Stitch Plate(04S2)	1
7	3108201	Stitch Plate(56S2)	1
8-1	0095580	Presser Foot, C. Set(32)(2 Needle)	1
8-2	0095581	Presser Foot, C. Set(40)(2 Needle)	1
8-3	0095582	Presser Foot, C. Set(48)(2 Needle)	1
8-4	0095584	Presser Foot, C. Set(64)(2 Needle)	1
8-5	0095586	Presser Foot, C. Set(48)(3 Needle)	1
8-6	0095587	Presser Foot, C. Set(56)(3 Needle)	1
8-7	0095588	Presser Foot, C. Set(64)(3 Needle)	1
9	001186	Screw(9/64-40 × 7.8)	1
10	0095641	Presser Foot Spring	1
11	005133	Screw(1/8-44 × 4.5)	1
12	0095642	Retaining Ring	2
13-1	3007029	Presser Foot, C. Set(40)(VF2400)	1
13-2	3007030	Presser Foot, C. Set(56)(VF2500)	1
14	3000009	Tape Guide	1
15-1	0095730	Presser Foot, C. Set(40)(VF2400)	1
15-2	0095731	Presser Foot, C. Set(56)(VF2500)	1
16	0095728	Tape Guide	1
17	0095174	Looper(Hard plating)	1
18	3097038	Presser Foot, Complete Set(60)	1
19	001186	Screw(9/64-40 × 7.8)	1
20	3107303	Presser Foot Spring(Left)	1
21	3107304	Presser Foot Spring(Right)	1
22	0063284	Locking Pin(60)	1
23	0063282	Presser Foot Hinge Pin(60)	1
24	005122	Screw(3/32-56 × 5.5)	2
25	3098038	Stitch Plate(60M)	1
26	3099132	Needle Clamp(60)	1
27	001900	Screw(1/8-44 × 2.4)	3
28	3209002	Main Feed Dog(60)	1

Page 111 — EXTRA PARTS(2)

Yamato VF2400 parts on page 111
Ref	Part number	Part name	Qty
1-1	3209004	Main Feed Dog(32, 40, 48, 56)	1
1-2	3209006	Main Feed Dog(64)	1
2-1	0094281	Stitch Plate(32M)	1
2-2	0094282	Stitch Plate(40M)	1
2-3	0094283	Stitch Plate(48M)	1
2-4	0094285	Stitch Plate(64M)	1
3-1	3208025	Stitch Plate(48M)	1
3-2	0094921	Stitch Plate(56M)	1
3-3	0094922	Stitch Plate(64M)	1
4-1	0092324	Stitch Plate(32M)	1
4-2	0092325	Stitch Plate(40M)	1
4-3	0092326	Stitch Plate(48M)	1
5-1	0092330	Stitch Plate(56M)	1
5-2	0092331	Stitch Plate(64M)	1
6-1	3207183	Presser Foot, Complete Set(40)	1
6-2	3207187	Presser Foot, Complete Set(48)	1
6-3	3207188	Presser Foot, Complete Set(56)	1
7	110004	Screw(M3.5-0.6 x 8)	1
8	0091725	Presser Foot Spring	1
9	005133	Screw(1/8-44 x 4.5)	1
10	000327	Lock Nut	1
11	003302	Adjusting Screw(1/8-44 x 11)	1
12	3207107	Presser Foot Hinge Pin	1
13	160000	Screw(M3-0.5 x 3)	1
14	3267037	Tape Guide	1
15	001228	Screw(3/32-56 x 3.2)	1
16-1	3207185	Tape Guide(Right)	1
16-2	3207189	Tape Guide(Right)(10mm or less)(Extra)	1
17	110091	Screw(M3-0.5 x 3)	1

Page 113 — EXTRA PARTS(3)

Yamato VF2400 parts on page 113
Ref	Part number	Part name	Qty
1	0095365	Folder(Left), C. Set	1
2	0095366	Folder(Left)	1
3	0095367	Folder Chip	1
4	004182	Screw(3/32-56 × 2.5)	1
7	3201118	Fabric Guide, C. Set(Covering Seam)	1
8	3201117	Fabric Guide Support	1
9	3201120	Fabric Guide Fixing Plate	1
10	3101224	Fabric Guide(Left)	1
11	3101223	Fabric Guide(Right)	1
12	110054	Screw(M3-0.5 × 3.5)	2
13	3201119	Fabric Guide, C. Set(Covering Seam)	1
14	3101229	Fabric Guide(Left)	1
15	3101228	Fabric Guide(Right)	1
16	3209024	Differential Feed Dog	1
17	3209023	Main Feed Dog	1
18-1	0093351	Needle Clamp(32)(2 Needle)	1
18-2	0093352	Needle Clamp(40)(2 Needle)	1
18-3	0093353	Needle Clamp(48)(2 Needle)	1
18-4	3009101	Needle Clamp(56)(2 Needle)	1
18-5	0093355	Needle Clamp(64)(2 Needle)	1
18-6	0093357	Needle Clamp(56)(3 Needle)	1
18-7	0093358	Needle Clamp(64)(3 Needle)	1
19	0093690	Timing Gauge	1
20	0095220	Looper Timing Gauge	1
21	3209040	Main Feed Dog(P=2.5mm)	1
22	3209041	Differential Feed Dog(P=2.5mm)	1

Page 115 — SUPPORTING BOARD

Yamato VF2400 parts on page 115
Ref	Part number	Part name	Qty
1	3200240	Supporting Board, C. Set	1
2	3200241	Supporting Board	2
3	180020	Setting Screw(M6-1 × 15)	4
4	0093035	Oil Resrvoir Rubber Cushion	4
5	000070	Hanging Nut	4
6	009861	Hanging Bolt(M8-1.25 × 95)	4
7	000162	Washer	12
8	000016	Nut	12
9	2101451	Spacer(See the table below)	12
10	0020064	Supporting Board Rubber Cushion	4
11	0063010	SupportingBoardRubberCushion(Lower)	4
12	3200242	Chain Guide	1
13	000541	Washer	2
14	110009	Screw(M4-0.7 × 8)	2
15	9603903	Supporting Board	1
16	000676	Spring Washer	8
17	000016	Nut	16
18	009865	Hanging Bolt(M8-1.25 × 220)	4
19	180024	Screw(M6-1 × 45)	4
20	000528	Washer	4
21	000667	Spring Washer	4
22	000011	Nut	4

Page 117 — THREAD STAND

Yamato VF2400 parts on page 117
Ref	Part number	Part name	Qty
1	9620696	Thread Stand, Complete Set (6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Pipe (Upper)	1
4	9620689	Thread Guide Holder (Large)	1
5	911002	Screw (M4-0.7 × 20)	1
6	911001	Screw (M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw (M5-0.8 × 13)	2
10	910000	Nut	8
11	9620675	Column Pipe (Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut (M16-1.5)	1
16	9620703	Thread Hanger (3 Spools Type)	4
17	9620700	Thread Eyelet	6
18	9620688	Thread Hanger Holder	4
19	911060	Screw (M6-1 × 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder (Small)	1
22	9620666	Thread Guide (6 Spools Type)	1
23	9620678	Spool Cushion	6
24	9620679	Spool Pin	6
25	9620680	Spool Mat	6
26	9620681	Spool Seat Disc	6
27	930055	Spring Washer	6
28	3500700	Belt Cover	1
29	110028	Screw (M6-1 × 46)	2
30	3000010	Looper Thread Bar	2
31	9620750	Knitted Tape Stand, C. Set	1
32	9620751	Tape Pin	1
33	9620752	Tape Disc	1
34	000433	Washer	1
35	9620753	Tape Disc Block	1
36	911062	Screw (M4-0.7 × 15)	4
37	910001	Nut	4
38	9620756	Tape Stand Bar	1
39	001448	Screw (15/64-28 × 5.5)	1
40	9620757	Tape Stand	1
41	005148	Wood Screw (φ 4.5 × 25)	3
42	9620754	Tape Guide Bar	1
43	9620755	Tape Guide	2

Page 118 — WARNING LABEL 警告ラベル

Yamato VF2400 parts on page 118
Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 120 — VF2400 class PARTS LIST of Main Spare Parts(主要部品リスト)(1)

Yamato VF2400 parts on page 120
Ref	Part number	Part name	Qty
	3209100	Needle Clamp (model VF2400-132M)
	3209101	Needle Clamp (model VF2400-140M)
	3209101	Needle Clamp (model VF2400-140M/EU5)
	3209101	Needle Clamp (model VF2400-140M/K1)
	3209101	Needle Clamp (model VF2400-140S-PA)
	3209101	Needle Clamp (model VF2400-140S-PA3)
	3209102	Needle Clamp (model VF2400-148M)
	3209102	Needle Clamp (model VF2400-148S-PA)
	3209104	Needle Clamp (model VF2400-164M)
	3209100	Needle Clamp (model VF2403-132M)
	3209101	Needle Clamp (model VF2403-132M-21)
	3209101	Needle Clamp (model VF2403-132M-50)
	3209101	Needle Clamp (model VF2403-132M/EC)
	3209101	Needle Clamp (model VF2403-132M/EU5)
	3209101	Needle Clamp (model VF2403-132M/FC)
	3209101	Needle Clamp (model VF2403-140M)
	3209101	Needle Clamp (model VF2403-140M-11)
	3209101	Needle Clamp (model VF2403-140M-11/EC)
	3209101	Needle Clamp (model VF2403-140M-11/EU5)
	3209101	Needle Clamp (model VF2403-140M-11/S1)
	3507000
	3108130
	3209001
	3200015
	3200017
	3201100
	3201101
	3507002
	3108131
	3208017
	3200014
	3201102
	0095541
	3208006
	3209006
	3201013
	3201011
	3201147
	3201144
	3207199
	3208003
	3209051
	3200030
	3201430
	3201012
	3507050
	3108132
	3208007
	3201017
	3207104
	0093174
	3209003
	3201014
	3507054
	0094210
	3209005
	3201000
	3207150
	0094010
	3209055
	3209064
	3201111
	3201121
	3208075
	3200032
	0094211
	3207151
	0095234
	3209009
	3208023

Page 121 — VF2400 Class LIST of MAIN SPARE PARTS(主要部品リスト)(2)

Yamato VF2400 parts on page 121
Ref	Part number	Part name	Qty
	3209101	Needle Clamp
	00942216	Presser Foot C Set
	0095234	Stitch Plate
	3209009	Differential Feed Dog
	3209008	Main Feed Dog
	3201000	Front Cover
	3200017	Cloth Plte (Large)
	3200014	Cloth Plate (Small)
	3201001	Thread Take-up Cover
	3200032	Stitch Plate Support
	3209311	Looper

Page 122 — VF2400 class SPARE PARTS LIST of MAIN SPARE PARTS(主要部品リスト)(3)

Yamato VF2400 parts on page 122
Ref	Part number	Part name
1	3207151
1	3207152
1	3207157
1	3209101
1	3209102
1	3208125
1	0063674
1	0093292
2	0094211
2	0094212
2	0094214
2	0094662
2	0094673
2	3208020
2	0093287
3	3209007
3	3209011
3	3209080
3	3209035
3	3209036
4	3209015
5	3201100
5	3201102
5	3200035
5	3200034
5	3200037
6	3201101
6	3200015
7	3201021
8	3201121
8	3200018
	3209100	Needle Clamp
	3207150	Presser Foot C. Set
	0094210	Stitch Plate
	3209005	Differential Feed Dog
	3209014	Main Feed Dog
	3201000	Front Cover
	3200017	Cloth Plte (Large)
	3200014	Cloth Plate (Small)
	3201001	Thread Take-up Cover
	3200032	Stitch Plate Support
	3209311	Looper

Page 123 — VF2400 Class LIST of MAIN SPARE PARTS(主要部品リスト)(4)

Yamato VF2400 parts on page 123
Ref	Part number	Part name	Qty
	3209106	Needle Clamp
	3209107	Needle Clamp
	0093357	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209108	Needle Clamp
	3209108	Needle Clamp
	3209106	Needle Clamp
	3209106	Needle Clamp
	3209106	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp
	3209107	Needle Clamp

Page 124 — VF2400 Class LIST of MAIN SPARE PARTS(主要部品リスト)(5)

Yamato VF2400 parts on page 124
Ref	Part number	Part name	Qty
	3209107	Needle Clamp
	3207156	Presser Foot C Set
	3208108	Stitch Plate
	3209065	Differential Feed Dog
	3209064	Main Feed Dog
	3201000	Front Cover
	3201100	Cloth Plte (Large)
	3200014	Cloth Plate (Small)
	3201001	Thread Take-up Cover
	3201121	Stitch Plate Support
	3209311	Looper

Page 125 — VF2400 class LIST of MAIN SPARE PARTS(主要部品リスト)(6)

Yamato VF2400 parts on page 125
Ref	Part number	Part name	Qty
	3209121	Needle Clamp
	3207039	Presser Foot C. Set
	3208071	Stitch Plate
	3209047	Differential Feed Dog
	3209046	Main Feed Dog
	3200034	Front Cover
	3200017	Cloth Plate (Large)
	3200014	Cloth Plate (Small)
	3200035	Thread Take-up Cover
	3200032	Stitch Plate Support
	3209312	Looper
	3209121	Needle Clamp
	3207039	Presser Foot C. Set
	3208073	Stitch Plate
	3209049	Differential Feed Dog
	3209048	Main Feed Dog
	3201018	Front Cover
	3202029	Cloth Plate (Large)
	3201012	Cloth Plate (Small)
	3200035	Thread Take-up Cover
	3201014	Stitch Plate Support
	3209312	Looper
	3209121	Needle Clamp
	3207039	Presser Foot C. Set
	3208074	Stitch Plate
	3209047	Differential Feed Dog
	3209046	Main Feed Dog
	3200034	Front Cover
	3201147	Cloth Plate (Large)
	3201146	Cloth Plate (Small)
	3201145	Thread Take-up Cover
	3201143	Stitch Plate Support
	3209312	Looper
	3209123	Needle Clamp
	3207052	Presser Foot C. Set
	3208161	Stitch Plate
	3209047	Differential Feed Dog
	3209046	Main Feed Dog
	3200034	Front Cover
	3201147	Cloth Plate (Large)
	3201146	Cloth Plate (Small)
	3201145	Thread Take-up Cover
	3201143	Stitch Plate Support
	3209312	Looper
	3209122	Needle Clamp
	3207040	Presser Foot C. Set
	3208072	Stitch Plate
	3209047	Differential Feed Dog
	3209046	Main Feed Dog
	3200034	Front Cover
	3200017	Cloth Plate (Large)
	3200014	Cloth Plate (Small)
	3200035	Thread Take-up Cover
	3200032	Stitch Plate Support
	3209312	Looper
	3209122	Needle Clamp
	3207040	Presser Foot C. Set
	3208086	Stitch Plate
	3209047	Differential Feed Dog
	3209046	Main Feed Dog
	3200034	Front Cover
	3201147	Cloth Plate (Large)
	3201146	Cloth Plate (Small)
	3201145	Thread Take-up Cover
	3201143	Stitch Plate Support
	3209312	Looper
	0093357	Needle Clamp
	0095035	Presser Foot C. Set
	0093289	Stitch Plate
	3209036	Differential Feed Dog
	3209037	Main Feed Dog
	3200015	Front Cover
	3200017	Cloth Plate (Large)
	3200014	Cloth Plate (Small)
	3200018	Thread Take-up Cover
	3200032	Stitch Plate Support
	3209311	Looper

Page 126 — INDEX

Yamato VF2400 parts on page 126
Ref	Part number	Part name	Qty
12	000009
8	000009
6	000010
38	000010
6	000011
6	000011
6	000011
22	000011
47	000014
15	000014
48	000014
25	000015
8	000016
17	000016
4	000037
5	000070
7	000162
6	000177
17	000177
30	000177
19	000177
24	000177
20	000177
7	000177
4	000177
48	000177
11	000177
18	000177
17	000186
41	000195
39	000210
5	000220
5	000220
37	000220
5	000220
25	000290
23	000309
33	000309
37	000309
23	000327
10	000327
23	000327
7	000327
20	000327
10	000327
40	000334
19	000334
59	000334
13	000340
51	000360
53	000360
40	000419
24	000425
20	000425
6	000425
55	000426
12	000426
12	000426
7	000426
11	000426
16	000426
6	000426
25	000428
34	000433
3	000445
53	000451
45	000463
6	000488
28	000498
28	000498
28	000498
52	000511
17	000515
8	000515
10	000528
5	000528
5	000528
5	000528
20	000528
12	000531
3	000531
23	000532
57	000532
27	000538
4	000538
2	000538
17	000538
6	000538
17	000538
7	000538
17	000538
8	000538
4	000538
13	000541
39	000547
16	000548
7	000548
31	000555
32	000567
6	000567
35	000600
43	000600
8	000600
15	000600
5	000600
7	000600
15	000600
21	000605
54	000613
23	000623
6	000636
28	000651
17	000665
31	000665
41	000665
11	000665
21	000667
34	000669
42	000669
15	000669
36	000669
6	000669
13	000669
16	000676
28	000690
29	000690
32	000726
26	000731
38	000745
20	000926
4	000989
45	001093
21	001156
25	001174
8	001175
8	001175
8	001175
2	001186
2	001186
10	001186
34	001186
43	001186
2	001186

Page 127

Yamato VF2400 parts on page 127
Ref	Part number	Part name	Qty
9	001186
19	001186
55	001223
45	001225
48	001227
15	001228
5	001228
15	001228
12	001230
9	001230
9	001230
12	001230
39	001448
27	001457
48	001818
50	001818
9	001892
2	001892
15	001892
26	001892
20	001892
14	001892
38	001892
21	001892
3	001900
32	001900
41	001900
27	001900
18	001923
9	001923
18	002308
18	002308
18	002308
12	002308
6	003300
6	003300
38	003300
6	003300
11	003302
6	003393
13	003635
32	003635
32	003635
32	003635
13	003638
13	003638
13	003638
15	003670
15	003670
15	003670
58	004106
31	004124
35	004143
50	004182
4	004182
35	004236
38	004236
47	004236
7	004267
27	004312
35	004314
8	004314
36	004314
10	004314
36	004314
10	004314
24	004353
2	004358
40	004358
22	004440
22	004440
22	004440
18	004440
8	004441
31	004474
46	004591
35	004635
15	005040
44	005049
24	005071
36	005075
10	005115
10	005115
10	005115
48	005122
24	005122
4	005133
4	005133
12	005133
36	005133
4	005133
11	005133
9	005133
41	005148
18	005328
20	005505
40	005511
30	005512
30	005512
30	005512
42	005542
24	005550
24	005550
24	005550
4	005554
4	005554
16	005571
11	005572
36	005650
11	005650
10	005650
5	006004
37	006004
26	006038
55	006046
57	006075
51	006120
35	006219
19	006245
19	006245
19	006245
23	006245
7	006638
18	006905
37	006905
19	006905
26	006905
9	006905
10	006905
46	006910
28	006910
36	006910
27	006910
24	006910
17	007610
43	007620
6	007621
29	007625

Page 128

Yamato VF2400 parts on page 128
Ref	Part number	Part name	Qty
10	007627
15	007630
14	007645
8	007650
14	009142
3	009142
7	009142
16	009150
23	009526
51	009604
13	009604
25	009604
34	009604
18	009604
13	009736
25	009740
3	009747
2	009749
28	009749
12	009779
33	009784
8	009784
2	009812
31	009814
6	009835
6	009861
18	009865
3	009932
3	009932
39	009934
6	009935
27	009937
17	009937
5	009960
29	009970
12	0010260
24	0010263
42	0010263
15	0010263
11	0010263
21	0010264
10	0010264
25	0010290
26	0010310
41	0010564
40	0010565
23	0011189
31	0011189
22	0011189
22	0011192
30	0011192
21	0011192
7	0011228
9	0011228
9	0011228
36	0011709
18	0011709
25	0011709
20	0011709
33	0011789
30-1	0011943
37-1	0011943
29-1	0011943
30-2	0011944
37-2	0011944
29-2	0011944
30-3	0011945
37-3	0011945
29-3	0011945
30-4	0011946
37-4	0011946
29-4	0011946
39	0011952
38	0011957
30	0011987
22	0010052
8	0010055
30	0010057
20	0010108
2	0010108
24	0010112
26	0010120
13	0010120
12	0010123
1	0010248
7	0010260
10	0020064
21	0020119
35	0020137
32	0020159
14	0020271
41	0020350
23	0020472
43	0020533
31	0020538
5	0020759
17	0023381
24	0023381
27	0023473
16	0024083
14	0024083
27	0024083
16	0024083
36	0024083
17	0024083
35	0024083
45	0024083
23	0024083
24	0024083
1	0024084
13	0024084
26	0024084
15	0024084
21	0024084
16	0024084
4	0024084
44	0024084
8	0024084
15	0024084
13	0024302
15	0024302
16	0024302
2	0030255
15	0030255
28	0030255
17	0030255
22	0030255
18	0030255
5	0030255
46	0030255
9	0030255
16	0030255
36	0030711
7	0031111
18	0031111
31	0031111

Page 129 — INDEX

Yamato VF2400 parts on page 129
Ref	Part number	Part name	Qty
20	0031111
25	0031111
21	0031111
8	0031111
5	0031111
49	0031111
12	0031111
19	0031111
23	0031831
43	0032425
44	0032426
26	0032426
20	0032426
18	0032604
12	0032646
24	0032784
26	0032785
28	0032786
3	0032952
4	0032952
25	0033024
5	0033141
18	0033935
17	0033936
16	0033937
14	0033938
58	0034979
50	0035813
52	0035813
42	0036175
49	0037108
51	0037108
25	0037108
19	0037108
28	0037668
30	0037669
36	0037912
18	0060057
9	0060075
8	0060076
36	0060175
7	0060248
7	0060248
7	0060248
11	0063010
1	0063044
19	0063051
20	0063053
7	0063055
21	0063056
22	0063057
47	0063074
27	0063083
49	0063084
37	0063096
25	0063104
22	0063152
54	0063197
16	0063216
15	0063217
47	0063282
23	0063282
46	0063284
22	0063284
56	0063428
2	0063548
5	0063612
9-3	0063674
23	0064179
29	0064180
30	0064181
34	0064182
32	0064186
27	0064187
26	0065275
28	0065275
21	0065452
1	0065453
11	0066644
10	0066646
33	0067082
4	0068011
33	0068202
13	0068202
28	0068202
33	0077179
18	0077179
17	0077300
4	0077322
37	0090068
5	0090071
16	0090071
29	0090071
18	0090071
23	0090071
19	0090071
6	0090071
3	0090071
47	0090071
10	0090071
17	0090071
2	0090711
41	0090801
12	0090807
22	0090807
35	0090807
24	0090807
29	0090807
25	0090807
12	0090807
9	0090807
53	0090807
16	0090807
23	0090807
9	0090812
20	0090812
33	0090812
22	0090812
27	0090812
23	0090812
10	0090812
7	0090812
51	0090812
14	0090812
21	0090812
2	0090814
44	0090824
11	0090856
21	0090856

Page 130 — INDEX

Yamato VF2400 parts on page 130
Ref	Part number	Part name	Qty
34	0090856
23	0090856
28	0090856
24	0090856
11	0090856
8	0090856
52	0090856
15	0090856
22	0090856
39	0090918
7	0091696
7	0091696
10	0091696
3	0091725
3	0091725
35	0091725
3	0091725
8	0091725
2	0091736
2	0091736
17	0091833
22	0091837
19	0091838
20	0091839
9	0091841
4	0091842
45	0092232
27	0092232
35	0092232
26	0092232
20	0092283
20	0092283
20	0092283
23	0092285
23	0092285
23	0092285
11	0092286
11	0092286
11	0092286
12	0092287
12	0092287
12	0092287
9	0092288
9	0092288
9	0092288
21	0092289
21	0092289
21	0092289
29	0092291
29	0092291
29	0092291
27	0092292
27	0092292
27	0092292
31	0092293
31	0092293
31	0092293
26	0092294
26	0092294
26	0092294
34	0092298
35	0092298
35	0092298
24	0092298
2	0092305
2	0092305
2	0092305
4-1	0092324
4-2	0092325
4-3	0092326
5-1	0092330
5-2	0092331
11	0092335
13	0092335
4	0093035
16	0093091
19	0093154
13-4	0093174
26	0093186
21	0093212
31	0093212
35	0093212
18	0093214
28	0093214
32	0093214
1-1	0093241
1-1	0093241
1-2	0093242
1-2	0093242
1-3	0093243
1-3	0093243
39	0093287
43	0093289
33	0093292
32	0093300
23	0093303
3	0093303
17	0093314
19	0093319
18-1	0093351
31	0093352
18-2	0093352
18-3	0093353
18-5	0093355
1-3	0093357
1-1	0093357
40	0093357
18-6	0093357
1-2	0093358
18-7	0093358
28	0093365
6	0093389
29	0093479
7	0093483
25	0093487
50	0093491
38	0093496
1	0093500
35	0093507
45	0093508
34	0093509
46	0093515
22	0093528
3	0093528
24	0093535
18	0093535
5	0093538
43	0093545
20	0093556
6	0093556
11	0093611
19	0093617
37-1	0093659
34	0093663
37-2	0093669
19	0093690
1	0093863
9	0093864
27	0093864
27	0093864
32	0093864

Page 131 — INDEX

Yamato VF2400 parts on page 131
Ref	Part number	Part name	Qty
10-1	0094210
10-1	0094210
10-2	0094211
10-2	0094211
10-3	0094212
10-3	0094212
41-2	0094212
10-4	0094214
10-4	0094214
1-3	0094216
5	0094245
5	0094245
6	0094246
6	0094246
2-1	0094281
2-2	0094282
2-3	0094283
2-4	0094285
44	0094403
16	0094491
23	0094491
11	0094491
6	0094566
1	0094604
14	0094615
4	0094615
6	0094616
9-4	0094871
9-1	0094872
9-2	0094873
11	0094890
31-2	0094901
31-3	0094902
3-2	0094921
3-3	0094922
13-3	0094961
13-1	0094962
13-2	0094963
3	0095027
62	0095027
42	0095035
7	0095061
12	0095062
11	0095063
9	0095066
10	0095067
32-2	0095085
26	0095085
12	0095108
33	0095132
26	0095168
23	0095170
17	0095174
7	0095214
29	0095218
20	0095220
13	0095234
33	0095269
14	0095269
17	0095270
37	0095272
20	0095272
19	0095296
1	0095365
2	0095366
3	0095367
2-2	0095454
29-1	0095456
29-2	0095457
20	0095458
17	0095462
12	0095463
14	0095464
13	0095465
8	0095466
19-1	0095471
19-2	0095472
1-1	0095490
1-2	0095491
1-3	0095492
2-1	0095493
27	0095541
8-1	0095580
8-2	0095581
8-3	0095582
8-4	0095584
8-5	0095586
8-6	0095587
8-7	0095588
10	0095641
12	0095642
37	0095723
16	0095728
15-1	0095730
15-2	0095731
31	0095940
21	0095961
22	0095980
9	0096066
63	0096159
50	0096161
41	0096163
42	0096164
46	0096166
49	0096167
39	0096177
60	0096178
1-5	0096270
1-1	0096271
1-2	0096272
7-1	0096341
7-2	0096342
7-3	0096343
9	100002
9	100002
11	100003
16	100028
44	100038
26	100038
34	100038
25	100038
12	100053
22	100077
19	110001
39	110002
53	110002
19	110002
39	110004
17	110004
32	110004
4	110004
17	110004
2	110004
14	110004
7	110004
20	110005
13	110007
12	110007
14	110007

Page 132 — INDEX

Yamato VF2400 parts on page 132
Ref	Part number	Part name	Qty
14	110008
16	110008
17	110008
52	110009
42	110009
12	110009
7	110009
34	110009
30	110009
23	110009
17	110009
3	110009
22	110009
21	110009
14	110009
40	110011
21	110012
35	110012
50	110012
15	110012
41	110012
2	110013
24	110013
14	110013
14	110013
19	110013
9	110013
10	110013
10	110013
21	110013
15	110013
4	110013
4	110013
15	110013
4	110013
17	110013
4	110013
26	110016
42	110016
14	110017
4	110017
52	110027
29	110028
8	110030
28	110030
6	110031
26	110031
8	110033
13	110033
4	110033
6	110035
30	110035
19	110035
28	110036
5	110036
14	110036
10	110036
33	110036
41	110038
21	110038
34	110039
28	110039
37	110041
2	110045
37	110045
11	110045
26	110047
33	110048
40	110048
3	110048
6	110048
5	110048
15	110054
12	110054
36	110057
39	110070
57	110079
36	110079
2	110080
38	110083
22	110084
9	110084
22	110084
6	110084
19	110084
17	110091
15	110104
15	110104
54	110105
13	110105
13	110105
8	110105
4	120001
14	120001
3	120006
15	120006
22	120006
5	120006
8	120008
18	120008
4	120011
3	120011
3	120011
29	120013
15	120013
38	120013
7	120013
30	120015
17	120015
26	120015
31	120015
38	120015
32	120017
37-1	120017
37-2	120017
3	120021
11	120026
35-1	120026
35-2	120026
25	120030
44	130002
27	130002
10	130003
40	130003
34	130003
11	130004
18	130006
20	130016
7	130016
20	130016
4	130016
17	130016
35	130024
23	140017
19	140018
7	140019
7	140019
15	150000
22	150001

Page 133 — INDEX

Yamato VF2400 parts on page 133
Ref	Part number	Qty
26	160000	5
26	160000	22
21	160000	39
13	160000	46
46	160001	2
31	160001	5
13	160001	8
16	160001	10
28	160001	11
37	160001	13
10	160001	22
25	160001	39
22	160003	5
3	160003	9
6	160003	10
10	160003	11
12	160003	12
27	160003	23
5	160003	24
26	160003	37
21	160004	6
2	160005	5
2	160005	6
3	160007	5
3	160007	6
40	160007	6
18	160007	9
30	160007	10
4	160007	12
16	160007	24
22	160009	10
22	160016	12
37	160023	7
25	160033	28
14	170001	1
31	170001	22
17	170005	16
44	170020	2
14	170021	10
9	170029	42
61	170033	44
17	180001	23
25	180002	12
29	180003	12
16	180005	1
47	180017	2
22	180018	1
51	180018	2
3	180020	48
19	180024	48
6	190007	24
5	190021	22
1	190021	29
3	190022	44
12	190022	44
20	190034	23
1	190044	22
6	190044	44
28	190064	22
11	190075	22
7	190079	16
42	260000	7
27	260000	26
39	260000	28
24	260006	8
11	260006	14
24	260006	15
8	260006	17
21	260006	26
27	270014	27
21	270014	28
8	290029	3
19	290029	14
32	290029	15
21	290029	17
26	290029	19
22	290029	21
9	290029	26
50	290029	27
13	290029	29
20	290029	30
8	300000	10
20	300000	11
7	300000	13
8	300006	9
25	300006	42
10	300017	42
42	300031	32
24	300031	33
32	300031	35
23	300031	40
43	300033	32
25	300033	33
33	300033	35
24	300033	40
8	300038	39
7	300045	24
35	300050	19
29	300050	21
15	300100	1
45	300100	2
32	300100	22
2	310009	4
30	310035	5
33	310036	7
14	310040	6
45	310071	11
38	310072	11
24	310126	14
4	320006	13
27	330000	1
22	330000	7
32	330000	26
36	330000	28
27	330000	37
48	340014	8
30	340016	1
35	350009	3
38	390067	1
39	390068	1
6	390069	1
10	390073	1
10	910000	49
7	910001	49
37	910001	49
14	910003	49
6	911001	49
5	911002	49
9	911006	49

Page 134

Yamato VF2400 parts on page 134
Ref	Part number	Part name	Qty
19	911060
36	911062
12	930052
13	930053
27	930055
14	1055084
28	1057028
21	1057087
29	1057087
19	1057155
21	1090133
23	1090141
20	1091016
6	1091051
11	1091051
3	1091146
14	1091835
3	1094000
3	1094011
29	1094030
5	1094057
22	1094059
12	1096000
28	1096004
29	1096005
4	1096029
31	1096029
22	1096030
11	1096030
4	1097000
9	1097001
25	1097007
16	1097007
13	1097009
3	1097009
19	1098015
1	1098015
2	1098015
27	1098015
14	1200037
3	1200038
3	1200038
3	1200038
29	1200040
39	1200040
28	1200040
10	1200068
12	1200068
4	1200069
4	1200069
28	1200071
38	1200132
8	1200137
20	1200138
13	1200234
20	1249020
27	1249046
18	1249224
17	1253240
8	1253240
13	1298000
40	2049401
22	2100034
16	2100043
15	2100065
9	2100161
16	2100173
22	2100243
24	2100248
12	2100252
14	2100253
15	2100267
27	2100267
20	2100278
28	2100279
26	2100289
7	2101368
9	2101451
1	2109932
10	2110527
14	3000009
30	3000010
34	3002007
15	3002008
2	3002009
5	3002010
13	3002011
16	3002012
17	3002013
19	3002014
23	3002015
20	3002016
24	3002017
26	3002018
28	3002019
29	3002020
30	3002021
32	3002022
33	3002023
40	3002025
4	3002026
9	3002027
10	3002028
7	3002029
11	3002030
12	3002031
14	3002032
13-1	3007029
13-2	3007030
32-3	3008025
18-4	3009101
18	3097038
25	3098038
26	3099132
56	3100006
1	3100026
41	3100030

Page 135

Yamato VF2400 parts on page 135
Ref	Part number	Qty
10	3100060	13
12	3100061	13
52	3100071	2
13	3100074	3
10	3100075	3
34	3100078	6
41	3100087	3
12	3100098	4
6	3100100	4
10	3100110	8
52	3100112	8
28	3100113	2
11	3100127	6
7	3100128	5
10	3100129	5
6	3100129	6
8	3100131	5
5	3100131	6
9	3100275	6
8	3100281	6
10	3100283	6
28	3100285	6
32	3100286	6
33	3100287	6
31	3100294	8
2	3100300	9
5	3100301	9
1	3100302	9
14	3100303	9
16	3100304	9
17	3100305	9
24	3100307	9
9	3100309	9
12-1	3100310	8
35	3100328	13
14	3100329	13
13	3100345	13
41	3100349	13
25	3100372	13
29	3100383	3
30	3100384	3
33	3100386	3
34	3100387	3
39	3100442	3
32	3101200	4
39	3101216	8
11	3101223	47
10	3101224	47
15	3101228	47
14	3101229	47
5	3101243	31
2	3101244	31
22	3101270	44
7-1	3101476	38
39	3101492	39
1	3101497	39
43	3101498	39
18	3107303	8
5	3107303	14
18	3107303	15
3	3107303	17
15	3107303	26
44	3107303	28
20	3107303	45
19	3107304	8
6	3107304	14
19	3107304	15
9	3107304	17
16	3107304	26
45	3107304	28
21	3107304	45
21	3107306	8
8	3107306	14
21	3107306	15
5	3107306	17
18	3107306	26
13-1	3108130	7
13-2	3108131	7
13-3	3108132	7
12-1	3108133	14
12-2	3108134	14
23-1	3108134	26
12-3	3108135	14
23-2	3108135	26
6	3108199	45
7	3108201	45
14	3120128	27
5	3120128	28
10	3160136	4
36	3160168	8
34	3200006	1
33	3200007	1
11	3200010	1
13	3200011	1
20	3200012	1
23	3200013	1
9	3200014	2
43-1	3200015	2
49	3200016	2
1	3200017	2
4-1	3200018	2
7	3200019	2
53	3200020	2
37	3200021	1
19	3200022	2
20	3200023	2
15	3200024	2
16	3200025	2
39	3200026	2
40	3200027	2
29	3200028	2
30	3200029	2
31	3200030	2
32	3200031	2
36	3200032	2
19	3200033	1
48	3200033	2
43-2	3200034	2
24	3200034	29
4-2	3200035	2
53	3200035	28
18	3200042	3
49	3200042	5
20	3200042	27
14	3200042	28
46	3200045	3
10	3200046	7
26	3200047	3
17	3200048	3
38	3200049	6
13	3200050	4
25	3200051	4
16	3200052	4
20	3200053	4
26	3200055	4
18	3200056	4
19	3200057	4
4	3200059	4

Page 136 — INDEX

Yamato VF2400 parts on page 136
Ref	Part number	Qty
24	3200061	4
15	3200062	4
8	3200063	4
9	3200064	4
21	3200065	4
30	3200066	4
14	3200067	4
11	3200068	4
1	3200070	5
5	3200071	5
9	3200072	5
12	3200073	5
13	3200074	5
29	3200075	5
27	3200077	5
11	3200078	5
19	3200082	5
36	3200083	5
24	3200084	5
34	3200085	5
35	3200086	5
23	3200087	5
40	3200088	7
38	3200089	7
36	3200090	7
43	3200091	5
41	3200092	5
39	3200093	5
56	3200094	5
6	3200095	5
18	3200096	5
17	3200097	5
21	3200098	5
13	3200100	6
16	3200101	7
5	3200111	7
20	3200112	7
30	3200112	26
34	3200112	28
24	3200113	7
34	3200113	26
38	3200113	28
19	3200114	7
29	3200114	26
33	3200114	28
15	3200115	7
27	3200116	7
11	3200117	7
25	3200118	7
29	3200120	7
30	3200121	7
31	3200122	7
5	3200131	8
4	3200132	8
9	3200137	8
14	3200143	5
2	3200149	10
1	3200150	10
5	3200151	10
3	3200152	10
10	3200154	10
12	3200155	10
18	3200157	10
7	3200159	10
21	3200160	10
23	3200161	10
29	3200162	10
31	3200163	10
33	3200164	10
3	3200170	7
1	3200181	11
14	3200182	12
2	3200183	11
4	3200184	11
5	3200185	11
6	3200186	11
7	3200187	11
16	3200189	11
17	3200190	11
18	3200191	11
25	3200192	11
21	3200194	11
21	3200196	12
1	3200199	12
3	3200200	12
7	3200201	12
33	3200203	12
38	3200204	12
11	3200205	11
15	3200206	11
32	3200207	11
21	3200209	2
34	3200210	2
37	3200211	12
36	3200213	11
26	3200215	11
30	3200216	11
16	3200226	6
22	3200227	13
5	3200230	13
42	3200231	13
34	3200232	13
29	3200233	13
24	3200234	13
33	3200235	13
18	3200236	13
17	3200237	13
20	3200238	13
1	3200240	48
2	3200241	48
12	3200242	48
3	3200243	13
31	3200251	4
34	3200252	4
40	3200252	22
54	3200262	28
8	3201000	18
8	3201000	20
17	3201001	18
17	3201001	20
9	3201002	18
9	3201002	20
14-1	3201003	18
14	3201003	20
18	3201004	18
14-2	3201005	18
16	3201006	18
16	3201006	20
11	3201007	18
11	3201007	20
9	3201011	15
10	3201012	15
4	3201012	30
11	3201013	15
1	3201014	15
8	3201014	30
4	3201015	15
9	3201015	30
2	3201016	15
15	3201016	16
6	3201016	30
2	3201018	30
3	3201021	25

Page 137 — INDEX

Yamato VF2400 parts on page 137
Ref	Part number	Part name	Qty
4-1	3201025
5	3201026
4-2	3201034
4	3201037
9	3201038
18	3201089
19	3201098
20	3201099
48	3201100
33	3201100
33	3201100
34	3201101
34	3201101
9	3201102
11	3201102
5	3201103
5	3201103
3	3201104
2	3201104
2	3201104
16	3201105
16	3201105
16	3201105
14	3201106
14	3201106
14	3201106
1	3201107
1	3201107
1	3201108
21	3201111
28	3201111
10	3201112
15	3201113
5	3201114
8	3201117
7	3201118
13	3201119
9	3201120
47	3201121
2	3201122
18	3201125
19-1	3201126
20	3201127
12-1	3201128
22	3201131
18	3201132
38	3201133
7	3201134
12-2	3201136
19-2	3201137
7-2	3201138
4	3201140
2	3201141
7	3201142
22	3201143
23-1	3201144
23-2	3201145
26	3201146
24	3201147
21	3201162
22	3201163
8	3201184
16	3201184
9	3201185
24	3201186
19	3201190
23	3201191
25	3201192
36	3201197
24	3201230
25	3201231
2	3201232
8	3201277
2	3201329
2	3201329
39	3201331
9	3201350
4	3201351
12	3201352
11	3201353
20	3201354
19	3201355
13	3201356
18	3201357
5	3201358
1	3201362
24	3201364
25	3201365
1	3201366
21	3201367
6	3201369
27	3201370
29	3201371
13	3201372
31	3201373
32	3201374
21	3201375
35	3201377
10	3201378
3	3201379
23	3201380
4	3201381
2	3201383
17	3201384
15	3201385
2	3201398
10	3201411
13	3201412
8	3201413
11	3201414
23	3201430
24	3201431
14	3201432
25	3201433
18	3201434
21	3201435
16	3201436
10	3201481
1	3201481
15	3201483
6	3201483
22	3201484
16	3201484
19	3201488
13	3201488
12	3202020
11	3202021
2	3202021
29	3202024
30	3202025
1	3202029
5	3204021
1	3204052
1	3204052
15	3204057
13	3204059
17	3204060
18	3204061
24	3204062

Page 138 — INDEX

Yamato VF2400 parts on page 138
Ref	Part number	Part name	Qty
23	3204063	VF2400	12
19	3204064	VF2400	12
11	3204065	VF2400	12
1	3204066	VF2400	6
1-3	3207026	VF2400	41
1-4	3207030	VF2400	41
42-1	3207039	VF2400	28
42-3	3207040	VF2400	28
49-1	3207044	VF2400	28
49-3	3207045	VF2400	28
51	3207046	VF2400	28
42-2	3207052	VF2400	28
49-2	3207053	VF2400	28
12	3207107	VF2400	46
1-1	3207150	VF2400	19
1-1	3207150	VF2400	21
1-2	3207151	VF2400	19
1-2	3207151	VF2400	21
1-4	3207152	VF2400	19
1-3	3207152	VF2400	21
30-1	3207155	VF2400	19
30-2	3207156	VF2400	19
15	3207156	VF2400	21
1-5	3207157	VF2400	19
3	3207157	VF2400	1930
1-4	3207157	VF2400	21
8	3207160	VF2400	19
8	3207160	VF2400	21
11	3207160	VF2400	41
9-4	3207175	VF2400	41
9-2	3207177	VF2400	41
9-3	3207180	VF2400	41
6-1	3207183	VF2400	46
16-1	3207185	VF2400	46
6-2	3207187	VF2400	46
6-3	3207188	VF2400	46
16-2	3207189	VF2400	46
1	3207199	VF2400	17
13	3207200	VF2400	17
9-1	3207204	VF2400	41
25-1	3208000	VF2400	15
25-2	3208002	VF2400	15
10	3208003	VF2400	17
14	3208004	VF2400	17
13-1	3208006	VF2400	15
13-2	3208007	VF2400	15
18-3	3208011	VF2400	25
18-4	3208012	VF2400	25
38	3208015	VF2400	34
43-2	3208016	VF2400	34
37	3208017	VF2400	34
43-3	3208018	VF2400	34
18-2	3208020	VF2400	25
40	3208023	VF2400	34
3-1	3208025	VF2400	46
31-1	3208026	VF2400	19
3	3208045	VF2400	45
13-4	3208048	VF2400	41
13-2	3208049	VF2400	41
7-4	3208050	VF2400	41
7-5	3208051	VF2400	41
32-1	3208052	VF2400	19
43-1	3208053	VF2400	34
13-3	3208054	VF2400	41
13-1	3208056	VF2400	41
18-1	3208071	VF2400	29
18-3	3208072	VF2400	29
5	3208073	VF2400	30
30-1	3208074	VF2400	42
39-1	3208075	VF2400	34
39-2	3208076	VF2400	34
41-1	3208076	VF2400	34
37	3208076	VF2400	36
39-3	3208077	VF2400	34
42-1	3208078	VF2400	34
42-2	3208079	VF2400	34
30-3	3208086	VF2400	42
16-1	3208102	VF2400	19
16-2	3208103	VF2400	19
16-3	3208104	VF2400	19
33-1	3208105	VF2400	19
33-1	3208108	VF2400	19
33-2	3208109	VF2400	19
18-1	3208125	VF2400	25
44	3208143	VF2400	34
18-2	3208160	VF2400	29
30-2	3208161	VF2400	42
19-2	3209000	VF2400	25
28-1	3209000	VF2400	42
30-1	3209001	VF2400	12
31-2	3209002	VF2400	12
19-1	3209002	VF2400	25
28-2	3209002	VF2400	42
28	3209002	VF2400	45
30-2	3209003	VF2400	12
1-1	3209004	VF2400	46
12-1	3209005	VF2400	19
12-1	3209005	VF2400	21
1-2	3209006	VF2400	46
12-2	3209007	VF2400	19
12-2	3209007	VF2400	21
14	3209008	VF2400	19
27	3209008	VF2400	21
15	3209009	VF2400	19
30	3209009	VF2400	21
16	3209010	VF2400	25
17	3209011	VF2400	25
11-1	3209014	VF2400	19
11-1	3209014	VF2400	21
11-2	3209016	VF2400	19
11-2	3209016	VF2400	21
8	3209018	VF2400	15
8-1	3209022	VF2400	41
17	3209023	VF2400	47
16	3209024	VF2400	47
20	3209035	VF2400	25
30	3209036	VF2400	27
29	3209037	VF2400	27
21	3209040	VF2400	47
22	3209041	VF2400	47
8-2	3209042	VF2400	41
19	3209046	VF2400	29
20	3209047	VF2400	29
13	3209048	VF2400	30
14	3209049	VF2400	30
11	3209050	VF2400	17
12	3209051	VF2400	17
17	3209064	VF2400	19
18	3209065	VF2400	19
14	3209066	VF2400	41
31-1	3209080	VF2400	12
23	3209081	VF2400	14
22	3209081	VF2400	26
7-1	3209100	VF2400	7
7-2	3209101	VF2400	7
7-3	3209102	VF2400	7
7-4	3209104	VF2400	7
1-1	3209106	VF2400	14
19-1	3209106	VF2400	19
1-2	3209107	VF2400	14
14	3209107	VF2400	15

Page 139 — INDEX

Yamato VF2400 parts on page 139
Ref	Part number	Part name	Qty
25	3209107
19-2	3209107
13	3209107
1-4	3209108
19-3	3209108
22-1	3209121
22-3	3209122
22-2	3209123
41	3209202
35	3209311
40	3209312
1	3209920
1	3209923
1	3209924
1	3209926
37	3209927
1	3209943
14	3267037
7	3500207
37	3500305
1	3500309
12-2	3500360
3	3500430
8	3500431
28	3500700
16-1	35007000
16-2	3507002
16-3	3507050
3-1	3507050
3-2	3507052
16	3507052
13-1	3507052
16-4	3507054
3-3	3507054
13-2	3507054
25	3509320
12	4017013
3	4017013
31	4109403
15	9603903
2	9620631
22	9620666
3	9620670
8	9620673
11	9620675
23	9620678
24	9620679
25	9620680
26	9620681
18	9620688
4	9620689
21	9620690
20	9620691
1	9620696
17	9620700
16	9620703
31	9620750
32	9620751
33	9620752
35	9620753
42	9620754
43	9620755
38	9620756
40	9620757

Page 1 — Parts List

Page 7 — MISCELLANEOUS COVER(1)

Page 9 — MISCELLANEOUS COVERS(2)

Page 11 — MISCELLANEOUS COVER(S) (2)

Page 13 — MISCELLANEOUS THREAD EYELETS

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

Page 17 — MAIN SHAFT DRIVING MECHANISM

Page 19 — MAIN SHAFT DRIVING MECHANISM

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Page 23 — NEEDLE BAR MECHANISM

Page 25 — PRESSER FOOT MECHANISM

Page 27 — PRESSER FOOT MECHANISM

Page 29 — SPREADER MECHANISM

Page 31 — LOOPER DRIVING MECHANISM / ルーパ機構

Page 33 — FEED DRIVING CONTROL MECHANISM

Page 35 — FEED DRIVING MECHANISM

Page 37 — LUBRICATING MECHANISM

Page 39 — VF2500, 2500-35 EXCLUSIVE PARTS

Page 41 — VF2400-PA, 2500-PA EXCLUSIVE PARTS / サブモデル専用部品

Page 43 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(1)

Page 45 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(2)

Page 47 — EXCLUSIVE PARTS(I)

Page 49 — EXCLUSIVE PARTS(2)

Page 51 — EXCLUSIVE PARTS(2)

Page 53 — VF2404, 2504-11 EXCLUSIVE PARTS(1)

Page 55 — VF2404, 2504-11 EXCLUSIVE PARTS(2)

Page 57 — VF2404, 2504-11 EXCLUSIVE PARTS (3)

Page 59 — VF2404, 2504-11 EXCLUSIVE PARTS(4)

Page 61 — VF2404, 2504-11 EXCLUSIVE PARTS(5) / サブモデル専用部品(5)

Page 63 — VF2411 EXCLUSIVE PARTS

Page 65 — VF2530 EXCLUSIVE PARTS

Page 67 — VF2490, 2590 EXCLUSIVE PARTS

Page 69 — VF2490, 2590 EXCLUSIVE PARTS

Page 71 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

Page 73 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

Page 75 — VF2560 EXCLUSIVE PARTS (2)

Page 77 — VF2560-PA EXCLUSIVE PARTS (2)

Page 79 — VF2560-PA EXCLUSIVE PARTS (3)

Page 81 — EC DEVICE / EC装置

Page 83 — EU5 DEVICE(1) / EU5装置(1)

Page 85 — EU5 DEVICE(2) / EU5装置(2)

Page 87 — EU5/PS2 DEVICE(1) / EU5/PS2装置(1)

Page 89 — EU5/PS2 DEVICE(2) / EU5/PS2装置(2)

Page 91 — FC DEVICE / FC装置

Page 93 — AU2-1 DEVICE(1) / AU2-1装置(1)

Page 95 — AU2-1 DEVICE(2) / AU2-1装置(2)

Page 97 — AU2-1 DEVICE(3) / AU2-1装置(3)

Page 99 — AU2-1 DEVICE(4) / AU2-1 装置(4)

Page 101 — K1 DEVICE for VF2400, 2500, 2560

Page 103 — C DEVICE / C装置

Page 105 — S1 DEVICE

Page 107 — S1 DEVICE / S1装置

Page 109 — EXTRA PARTS(1)

Page 111 — EXTRA PARTS(2)

Page 113 — EXTRA PARTS(3)

Page 115 — SUPPORTING BOARD

Page 117 — THREAD STAND

Page 118 — WARNING LABEL 警告ラベル

Page 120 — VF2400 class PARTS LIST of Main Spare Parts(主要部品リスト)(1)

Page 121 — VF2400 Class LIST of MAIN SPARE PARTS(主要部品リスト)(2)

Page 122 — VF2400 class SPARE PARTS LIST of MAIN SPARE PARTS(主要部品リスト)(3)

Page 123 — VF2400 Class LIST of MAIN SPARE PARTS(主要部品リスト)(4)

Page 124 — VF2400 Class LIST of MAIN SPARE PARTS(主要部品リスト)(5)

Page 125 — VF2400 class LIST of MAIN SPARE PARTS(主要部品リスト)(6)

Page 126 — INDEX

Page 127

Page 128

Page 129 — INDEX

Page 130 — INDEX

Page 131 — INDEX

Page 132 — INDEX

Page 133 — INDEX

Page 134

Page 135

Page 136 — INDEX

Page 137 — INDEX

Page 138 — INDEX

Page 139 — INDEX

Yamato VF2400 — parts catalog
