Parts index — Yamato VF2400tap a row to open its page

Page 1 — Parts List

Yamato VF2400 parts on page 1

Ref	Part number	Part name	Qty
	VF2400	VF2400
	VF2403	VF2403
	VF2400-PA	VF2400-PA
	VF2403-11	VF2403-11
	VF2403-11H	VF2403-11H
	VF2403-21	VF2403-21
	VF2403-50	VF2403-50
	VF2404	VF2404
	VF2411	VF2411
	VF2490	VF2490
	VF2500	VF2500
	VF2500-20	VF2500-20
	VF2500-35	VF2500-35
	VF2500-PA	VF2500-PA
	VF2500-PA3	VF2500-PA3
	VF2503	VF2503
	VF2503-11	VF2503-11
	VF2503-11S	VF2503-11S
	VF2503-21	VF2503-21
	VF2504-11	VF2504-11
	VF2530	VF2530
	VF2560	VF2560
	VF2560-PA	VF2560-PA
	VF2590	VF2590

Page 4 — Contents

Yamato VF2400 parts on page 4

Ref	Part number	Part name	Qty
	1	MISCELLANEOUS COVERS(1)
	2	MISCELLANEOUS COVERS(2)
	3	MISCELLANEOUS THREAD EYELETS
	4	MISCELLANEOUS BUSHINGS & EYE GUARD
	5	MAIN SHAFT DRIVING MECHANISM
	6	UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM
	7	NEEDLE BAR MECHANISM
	8	PRESSER FOOT MECHANISM
	9	SPREADER MECHANISM
	10	LOOPER DRIVING MECHANISM
	11	FEED DRIVING CONTROL MECHANISM
	12	FEED DRIVING MECHANISM
	13	LUBRICATING MECHANISM
	14	VF2500, 2500-35 EXCLUSIVE PARTS
	15	VF2400-PA, 2500-PA EXCLUSIVE PARTS
	16	VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(1)
	17	VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-11, 2503-21 EXCLUSIVE PARTS(1)
	18	VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-11, 2503-21 EXCLUSIVE PARTS(2)
	19	VF2404, 2504-11 EXCLUSIVE PARTS(1)
	20	VF2404, 2504-11 EXCLUSIVE PARTS(2)
	21	VF2404, 2504-11 EXCLUSIVE PARTS(3)
	22	VF2404, 2504-11 EXCLUSIVE PARTS(4)
	23	VF2404, 2504-11 EXCLUSIVE PARTS(5)
	24	VF2411 EXCLUSIVE PARTS
	25	VF2530 EXCLUSIVE PARTS
	26	VF2490, 2590 EXCLUSIVE PARTS
	27	VF2560, 2560-PA EXCLUSIVE PARTS(1)
	28	VF2560 EXCLUSIVE PARTS(2)
	29	VF2560-PA EXCLUSIVE PARTS(2)
	30	VF2560-PA EXCLUSIVE PARTS(3)
	31	VF2560-PA EXCLUSIVE PARTS(3)

Page 5

Yamato VF2400 parts on page 5

Ref	Part number	Part name	Qty
	EC DEVICE	EC 装置
	EU5 DEVICE(1)	EU5 装置(1)
	EU5 DEVICE(2)	EU5 装置(2)
	EU5/PS2 DEVICE(1)	EU5/PS2 装置(1)
	EU5/PS2 DEVICE(2)	EU5/PS2 装置(2)
	FC DEVICE	FC 装置
	AU2-1 DEVICE(1)	AU2-1 装置(1)
	AU2-1 DEVICE(2)	AU2-1 装置(2)
	AU2-1 DEVICE(3)	AU2-1 装置(3)
	AU2-1 DEVICE(4)	AU2-1 装置(4)
	K1 DEVICE for VF2400, 2500, 2560	K1 装置

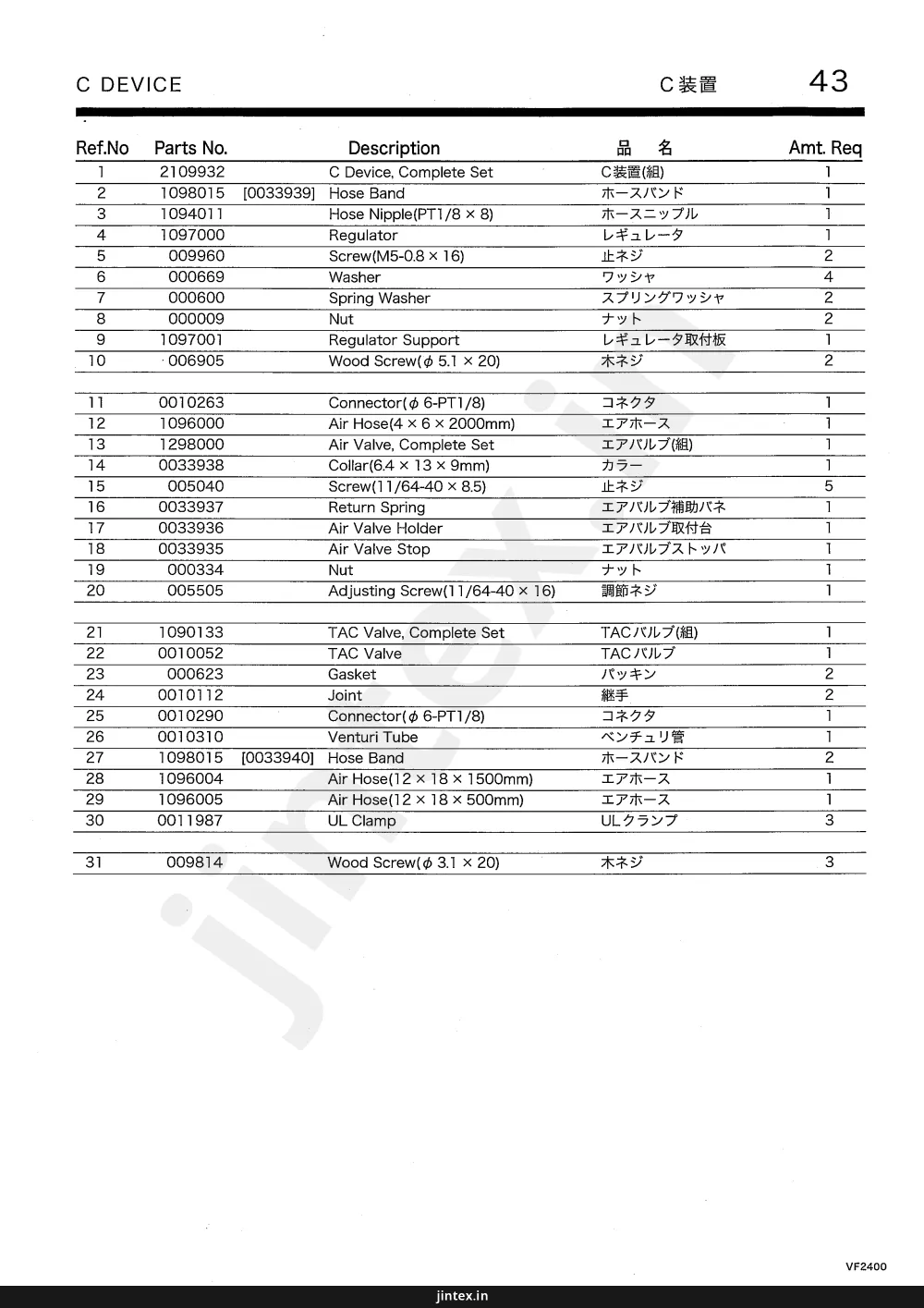

	C DEVICE	C 装置
	S1 DEVICE	S1 装置
	EXTRA PARTS(1)	特注部品(1)
	EXTRA PARTS(2)	特注部品(2)
	SUPPORTING BOARD	受ケ板
	THREAD STAND	糸立台
	WARNING LABEL	警告ラベル
	LIST of MAIN SPARE PARTS	主要部品リスト
	INDEX	索引

Page 6

Yamato VF2400 parts on page 6

Ref	Part number	Part name	Qty
	1	CYLINDER HEAD COVER
	2	BOLT
	3	GASKET
	4	BREATHER CAP
	5	FILLER CAP
	6	EMBLEM
	7	COVER
	8	GASKET
	9	BOLT
	10	BRACKET
	11	COVER
	12	FILTER
	13	BRACKET
	14	BOLT
	15	WASHER
	16	STUD BOLT
	18	NUT
	19	BOLT
	20	BRACKET
	21	BOLT
	22	PIN
	23	BRACKET
	24	BOLT
	25	WASHER
	26	BOLT
	27	BOLT
	29	BOLT
	30	PIN
	31	PLATE
	32	PIN
	33	GASKET
	34	CYLINDER BLOCK
	35	WASHER
	36	PLUG
	37	CYLINDER BLOCK
	38	EMBLEM
	39	PLATE
	40	BRACKET

Page 7 — MISCELLANEOUS COVER(1)

Yamato VF2400 parts on page 7

Ref	Part number	Part name	Qty
	3100026	Top Cover	1
	110045	Screw(M4-0.7 × 12)	15
	3500430	Top Cover Gasket	1
	0068011	Oil Sight Window	1
	0020759	Top Cover Seal Plug	1
	390069	Brand Name Plate(76.5)	1
	3500207	Head Cover	1
	3500431	Head Cover Gasket	1
	0093864	Head Cover Seal Plug	1
	390073	"VF" Emblem	1
	3200010	Bed Rear Cover	1
	0095108	Bed Rear Cover Gasket	1
	3200011	Side Cover	1
	170001	Screw(M5-0.8 × 8)	1
	300100	Conical Spring Washer	2
	180005	Screw(M5-0.8 × 8)	1
	0032604	Rubber Cushion(Large)	2
	3200033	Rubber Cushion(Small)	3
	3200012	Cover Latch Spring	1
	110012	Screw(M4-0.7 × 5)	2
	180018	Screw(M4-0.7 × 7)	1
	3200013	Side Cover Holder	1
	110013	Screw(M4-0.7 × 8)	4
	000015	Nut	1
	110016	Screw(M4-0.7 × 15)	1
	330000	Seal Plug	1
	009970	Screw(M6-1 × 20)	6
	340016	Machine Frame Supporting Bar	4
	4109403	Model Plate(See the below)	1
	000726	Rivet	5
	3200007	Oil Reservoir Gasket	1
	3200006	Oil Reservoir	1
	0020137	Drain Hole Seal	1
	005075	Screw(3/8-24 × 8)	1
	3200021	Wind Guide Plate	1
	390067	Brand Name Plate(106)	1
	390068	Brand Name Plate(92)	1
	2049401	Serial Number Plate	1

Page 8

Yamato VF2400 parts on page 8

Ref	Part number	Part name	Qty
	4-1	4-2
	1	COVER
	2	SCREW
	3	SCREW
	5	SCREW
	6	WASHER
	7	BRACKET
	8	SCREW
	9	PLATE
	10	SCREW
	11	SCREW
	13	PIN
	14	SCREW
	15	COVER
	16	GASKET
	17	SCREW
	18	SCREW
	19	PLATE
	20	GASKET
	21	PLUNGER
	22	SPRING
	23	WASHER
	24	WASHER
	25	WASHER
	26	RING
	27	NUT
	28	COVER
	29	PLATE
	30	GASKET
	31	PLATE
	32	SEAL
	33	SCREW
	34	BRACKET
	35	SCREW
	36	PLATE
	37	SCREW
	38	PIN
	39	PLATE
	40	GASKET
	41	BLOCK
	42	SCREW
	43-1	43-2
	44	BOLT
	45	WASHER
	46	SCREW
	47	SHAFT
	49	SPRING
	50	SCREW
	51	PIN
	52	BRACKET
	53	COVER
	54	SCREW
	55	WASHER
	56	RING
	57	SCREW

Page 9 — MISCELLANEOUS COVERS(2)

Yamato VF2400 parts on page 9

Ref	Part number	Part name	Qty
	3200017	Cloth Plate(Large)
	009749	Screw(M4-0.7 × 16)
	009747	Screw(M4-0.7 × 10)
	3200018	Looper Thread Take-up Cover(32,40,48,56)
	3200035	Looper Thread Take-up Cover(64)
	006004	Screw(11/64-40 × 9.7)
	000010	Conical Spring Washer
	3200019	Take-up Cover Spring
	110030	Screw(M3-0.5 × 2.6)
	3200014	Cloth Plate(Small)
	130003	Screw(M4-0.7 × 7.3)
	130004	Screw(M4-0.7 × 14)
	009736	Screw(M4-0.7 × 6)
	110013	Screw(M4-0.7 × 8)
	3200024	Bed Top Cover(Right)
	3200025	Bed Top Cover(Right) Gasket
	007610	Screw(M4-0.7 × 10)
	130006	Screw(M4-0.7 × 10)
	3200022	Bed Top Cover(Left)
	3200023	Bed Top Cover(Left) Gasket
	3200209	Feed Regulating Pushbutton
	0063152	Feed Regulating Pushbutton Spring
	0020472	O-ring(P6)
	000425	Washer
	0033024	Retaining Ring
	0065275	Seal Plug
	0093864	Seal Plug
	3100113	Needle Bar Cover
	3200028	Bed Rear Cover(Small)
	3200029	Bed Rear Cover(Small) Gasket
	3200030	Ball Bearing Housing
	3200031	O-ring
	110048	Screw(M4-0.7 × 10)
	3200210	Pushbutton Stop
	110012	Screw(M4-0.7 × 5)
	3200032	Stitch Plate Support
	110041	Screw(M4-0.7 × 8)
	000745	Knock Pin
	3200026	Bed Front Cover
	3200027	Bed Front Cover Gasket

Page 10

Yamato VF2400 parts on page 10

Ref	Part number	Part name	Qty
	4-1	4-2
	2	SCREW
	3	SCREW
	5	SCREW
	6	WASHER
	7	BRACKET
	8	SCREW
	9	SCREW
	10	SCREW
	11	SCREW
	13	SCREW
	14	SCREW
	15	PLATE
	16	GASKET
	17	SCREW
	18	SCREW
	19	PLATE
	20	GASKET
	21	PLUNGER
	22	SPRING
	23	WASHER
	24	WASHER
	25	WASHER
	26	CAP
	27	SCREW
	28	COVER
	29	PLATE
	30	GASKET
	31	PLATE
	32	COVER
	33	SCREW
	34	BRACKET
	35	SCREW
	36	PLATE
	37	SCREW
	38	PIN
	39	PLATE
	40	GASKET
	41	BLOCK
	42	SCREW
	43-1	43-2
	44	SCREW
	45	WASHER
	46	SCREW
	47	SHAFT
	48	SCREW
	49	BRACKET
	50	SCREW
	51	SCREW
	52	BRACKET
	53	COVER
	54	WASHER
	55	SCREW
	56	CAP
	57	SCREW

Page 11 — MISCELLANEOUS COVER(S) (2)

Yamato VF2400 parts on page 11

Ref	Part number	Part name	Qty
41	3100030	Front Cover Hinge
42	110016	Screw(M4-0.7 × 15)
43-1	3200015	Front Cover (32, 40, 48, 56)
43-2	3200034	Front Cover (64)
44	170020	Screw(M4-0.7 × 8)
45	300100	Conical Spring Washer
46	160001	Screw(M4-0.7 × 4)
47	180017	Screw(M4-0.7 × 6)
48	3200033	Rubber Cushion(Small)
49	3200016	Front Cover Spring
50	110012	Screw(M4-0.7 × 5)
51	180018	Screw(M4-0.7 × 7)
52	3100071	Eyelet Cover
53	3200020	Oil Cooling Fan Cover
54	110105	Screw(M5-0.8 × 12)
55	000426	Washer
56	3100006	Seal Plug
57	110079	Screw(M4-0.7 × 8)[M4-0.7 × 8]

Page 12

Yamato VF2400 parts on page 12

Ref	Part number	Part name	Qty
	1	Knob
	2	Spring
	3	Spring
	4	Spring
	5	Collar
	6	Washer
	7	Washer
	8	Screw
	9	Screw
	10	Lever
	11	Bracket
	12	Bracket
	13	Plate
	14	Screw
	15	Bracket
	16	Washer
	17	Bracket
	18	Bracket
	19	Screw
	20	Bracket
	21	Rod
	22	Bracket
	23	Washer
	24	Screw
	25	Bracket
	26	Lever
	27	Screw
	28	Pin
	29	Housing
	30	Housing
	33	Cover
	34	Bracket
	35	Screw
	37	Lever
	39	Cover
	40	Screw
	41	Bracket
	42	Screw
	43	Washer
	44	Spring
	45	Screw
	46	Lever
	47	Bracket
	48	Shaft
	49	Washer
	50	Washer
	51	Screw
	52	Screw

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato VF2400 parts on page 13

Ref	Part number	Part name	Qty
	0024084	Thread Tension Spring Cap	4
	0030255	Needle Thread Tension Spring	2
	0032952	Top Cover Thread Tension Spring	1
	0032952	Looper Thread Tension Spring	1
	0090071	Thread Tension Spring Retainer	4
	000177	Felt	4
	0031111	Tension Disc	8
	290029	Tension Post	4
	0090812	Tension Post Ferrule	4
	3100075	Tension Disc Separator	1
	0090856	Tension Disc Eyelet	4
	0090807	Thread Lead-in Guide	4
	3100074	Tension Post Support	1
	110013	Screw(M4-0.7 × 8)	5
	2100065	Looper Thread Eyelet	1
	0024083	Tension Spring Bushing	4
	3200048	Top Cover Thread Eyelet(Left)	1
	3200042	Looper Thread Eyelet	1
	110013	Screw(M4-0.7 × 8)	3
	0093556	Looper Thread Eyelet(Long)	1
	0020119	Thread Eyelet Pipe(Short)	2
	0093528	Thread Eyelet Pipe Stay	2
	000532	Washer	2
	004353	Screw(9/64-40 × 7)	2
	0063104	Thread Guide Plate	1
	3200047	Top Cover Thread Eyelet(Right)	1
	000538	Washer	2
	000651	Guide Pin	1
	3100383	SP Device, C. Set	1
	3100384	SP Container	1
	3100386	Felt	1
	3100387	Needle Thread Eyelet	1
	350009	Screw(1/8-44 × 8)	2
	0090068	Needle Thread Guide	1
	3100442	Needle Thread Take-up Guard	1
	130003	Screw(M4-0.7 × 4.5)	1
	3100087	Needle Thread Retainer Support	1
	0036175	Thread Retainer Disc Support	1
	0032425	Needle Thread Retainer Dice	1
	0032426	Needle Thread Retainer Spring	1
	001093	Screw(1/8-44 × 2.2)	1
	3200045	Top Cover Thread Guide	1
	0063074	Supplementary Thread Guide	1
	001818	Tension Post	1
	0037108	Supplementary Tension Disc	2
	0035813	Supplementary Tension Spring	1
	000360	Nut	1
	110009	Screw(M4-0.7 × 8)	5

Page 14

Yamato VF2400 parts on page 14

Ref	Part number	Part name	Qty
1	1	1
2	2	2
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VF2400 parts on page 15

Ref	Part number	Part name	Qty
	3500309	Oil Seal
	310009	Oil Wick
	3200059	Presser Bar Bushing
	3204021	Oil Seal
	3100100	Spreader Driving Bar Bushing
	0063055	Oil Seal
	3200063	Spreader Driving Shaft Bushing(Left)
	3200064	Spreader Driving Shaft Bushing(Right)
	3160136	Foot Lifter Lever Bushing
	3200068	Needle Thread Take-up Bushing(Front)
	3100098	Needle Thread Take-up Bushing(Rear)
	3200050	Lower Shaft Bushing
	3200067	Oil Seal
	3200062	Looper Rocker Shaft Bushing(Left)
	3200052	Looper Rocker Shaft Bushing(Right)
	0077300	Oil Seal
	3200056	Needle Guard Driving Shaft
	3200057	Seal Plug
	3200053	Feed Bar Driving Shaft Bushing(Left)
	3200065	Feed Bar Driving Shaft Bushing(Right)
	2100034	Seal Plug
	0093303	Oil Seal
	3200061	Looper Driving Shaft Bushing(Front)
	3200051	Looper Driving Shaft Bushing(Rear)
	3200055	Differential Lever Shaft Bushing
	0093864	Seal Plug
	0065275	Seal Plug
	0095218	Seal Plug
	3200066	Seal Plug
	3200251	Eye Guard, Complete Set
	3101200	Eye Guard Support
	009784	Screw(M6-1 × 10)
	3200252	Eye Guard
	004236	Screw(3/32-56 × 4.2)
	0060175	Eye Guard Holder
	006004	Screw(11/64-40 × 7.8)
	000010	Conical Spring Washer
	000547	Washer
	000334	Nut
	000195	Oil Wick

Page 16

Yamato VF2400 parts on page 16

Ref	Part number	Part name	Qty
	1	PULLEY
	2	SCREW
	3	SCREW
	4	PIN
	5	PULLEY
	6	PULLEY
	7	PULLEY
	8	PULLEY
	9	COLLAR
	10	COLLAR
	11	PULLEY
	12	SHAFT
	13	COLLAR
	14	COVER
	15	SCREW
	16	BEARING
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	SCREW
	21	COLLAR
	22	SCREW
	23	PIN
	24	BRACKET
	25	SCREW
	26	SCREW
	27	BRACKET
	28	SCREW
	29	SHAFT
	30	BELT
	31	SPRING
	32	PULLEY
	33	WASHER
	34	RING
	35	COLLAR
	36	SHAFT
	37-1	WRENCH
	37-2	WRENCH
	38	SCREW
	39	BRACKET
	40	BRACKET
	41	BRACKET
	42	SCREW
	43	PLATE
	44	SCREW
	45	BELT
	46	SLOT
	47	WASHER
	48	SCREW
	49	PIN
	50	SHAFT
	51	WASHER
	52	SPRING
	53	NUT
	54	BRACKET
	55	SCREW
	56	BRACKET
	57	BRACKET
	58	BRACKET

Page 17 — MAIN SHAFT DRIVING MECHANISM

Yamato VF2400 parts on page 17

Ref	Part number	Part name	Qty
	3200070	Pulley	1
	160005	Screw(M6-1 × 8)	5
	160007	Screw(M6-1 × 6)	9
	000037	Roll Pin	1
	3200071	Oil Cooling Fan	1
	3200095	Ball Bearing(Right)	1
	3100128	Timing Pulley(Lower)	1
	3100131	Ball Bearing(Middle)	1
	3200072	Oil Pump Driving Worm	1
	3100129	Adapter	1
	3200078	Ball Bearing(Left)	1
	3200073	Lower Shaft(Right)	1
	3200074	Lower Shaft Joint	1
	3200143	Looper Thread Take-up
	150000	Screw(M5-0.8 × 4)[7/32-32 × 3.6]
	0093091	Ball Bearing	1
	3200097	Needle Guard Connecting Rod, C. Set(2)	1
	3200096	Needle Guard Connecting Rod, C. Set(1)	1
	3200082	Needle Guard Connecting Rod	1
	110005	Screw(M3.5-0.6 × 12)	2
	3200098	Needle Guard Eccentric	1
	160003	Screw(M5-0.8 × 5)	2
	3200087	Connecting Rod Pin	1
	3200084	Needle Guard Driving Shaft Arm	1
	120030	Screw(M5-0.8 × 12)	1
	160000	Screw(M3-0.5 × 3)	4
	3200077	Counterweight	1
	110036	Screw(M3-0.5 × 6.5)	2
	3200075	Lower Crankshaft	1
	310035	Oil Wick	1
	160001	Screw(M4-0.7 × 4)	2
	0020159	Ball Bearing	1
	0068202	Retaining Ring	1
	3200085	Spacer	1
	3200086	Collar(8 × 13 × 6mm)	1
	3200083	Needle Guard Driving Shaft	1
	0093659	Needle Guard(Rear) (32, 40, 48, 56, 64)	1
	0093669	Needle Guard(Rear) (Extra)	1
	110033	Screw(M3.5-0.6 × 4.5)	1
	3200093	Supporting Plate Stay(Lower)	1
	110048	Screw(M4-0.7 × 10)	2

Page 18

Yamato VF2400 parts on page 18

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	SCREW
3	3	SCREW
4	4	PIN
5	5	PULLEY
6	6	PULLEY
7	7	PULLEY
8	8	PULLEY
9	9	COLLAR
10	10	COLLAR
11	11	PULLEY
12	12	SHAFT
13	13	COLLAR
14	14	PULLEY
15	15	SCREW
16	16	BEARING
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	COLLAR
22	22	SCREW
23	23	PIN
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	BRACKET
28	28	SCREW
29	29	SHAFT
30	30	BELT
31	31	SPRING
32	32	PULLEY
33	33	WASHER
34	34	WASHER
35	35	COLLAR
36	36	SHAFT
37-1	37-1	TOOL
37-2	37-2	TOOL
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	PLATE
44	44	SCREW
45	45	BELT
46	46	LINK
47	47	WASHER
48	48	SCREW
49	49	BRACKET
50	50	SHAFT
51	51	WASHER
52	52	SPRING
53	53	NUT
54	54	BRACKET
55	55	SCREW
56	56	BRACKET
57	57	SPRING
58	58	SCREW

Page 19 — MAIN SHAFT DRIVING MECHANISM

Yamato VF2400 parts on page 19

Ref	Part number	Part name	Qty
41	3200092	Supporting Plate Stay(Upper)
42	110009	Screw(M4-0.7 × 8)
43	3200091	Supporting Plate
44	130002	Screw(M3-0.5 × 6)
45	000463	Laced Wire
46	0093515	Thread Take-up Eyelet
47	000014	Washer
48	001227	Screw(1/8-44 × 3.8)
49	3200042	Looper Thread Eyelet
50	001818	Tension Post
51	0037108	Supplementary Tension Disc
52	0035813	Supplementary Tension Spring
53	000360	Adjusting Nut
54	0063197	Cast-off Plate Bracket
55	001223	Screw(9/64-40 × 7.5)
56	3200094	Cast-off Plate
57	000532	Washer
58	004106	Screw(9/64-40 × 6.5)

Page 20

Yamato VF2400 parts on page 20

Ref	Part number	Part name	Qty
40	40	SCREW
4	4	WASHER
1	1	CLUTCH
3	3	SCREW
2	2	SCREW
5	5	BEARING
8	8	PULLEY
7	7	BELT
9	9	SHAFT
10	10	COUPLING
21	21	SPRING
20	20	SPRING
19	19	BEARING
18	18	BEARING
16	16	BEARING
15	15	SCREW
14	14	SPRING
13	13	SHAFT
11	11	BRACKET
12	12	SCREW
24	24	SCREW
23	23	BRACKET
27	27	SCREW
26	26	BRACKET
29	29	SCREW
28	28	BRACKET
25	25	SCREW
30	30	SCREW
31	31	WASHER
32	32	WASHER
33	33	SHAFT
34	34	BRACKET
35	35	WASHER
36	36	SCREW
37	37	BRACKET
38	38	BRACKET
39	39	SCREW

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VF2400 parts on page 21

Ref	Part number	Part name	Qty
	3204066	Handwheel
	160005	Screw(M6-1 × 8)
	160007	Screw(M6-1 × 6)
	000989	Handwheel Mark
	3100131	Ball Bearing
	3100129	Handwheel Adapter
	0095214	Timing Belt
	3100281	Timing Pulley(Upper)
	3100275	Upper Shaft(Right)
	3100283	Upper Shaft Joint
	3100127	Counterweight(Small)
	110009	Screw(M4-0.7 × 8)
	3200100	Upper Crankshaft
	310040	Oil Wick
	110012	Screw(M4-0.7 × 4)
	3200226	Oil Sleeve
	0060057	Retaining Ring
	0093154	Ball Bearing
	000926	Rubber Seat
	160004	Screw(M6-1 × 4.8)
	0095170	Connecting Rod
	005071	Screw(11/64-32 × 14)
	001174	Screw(9/64-40 × 10.3)
	0095168	Guide Fork
	004312	Screw(1/8-44 × 7.9)
	3100285	Driving Lever
	120013	Screw(M6-1 × 15)
	120015	Screw(M5-0.8 × 10)
	000555	Washer
	3100286	Spacer
	3100287	Driving Shaft
	3100078	Bracket
	000600	Spring Washer
	005650	Screw(M5-0.8 × 14)
	0063096	Needle Thread Take-up
	3200049	Top Cover Thread Take-up
	110004	Screw(M3.5-0.6 × 8)
	160007	Screw(M6-1 × 6)

Page 22

Yamato VF2400 parts on page 22

Ref	Part number	Part name	Qty
	1	Lever
	2	Screw
	3	Shaft
	5	Lever
	6	Screw
	7-1	Needle bar connecting rod
	7-2	Needle bar connecting rod
	7-3	Needle bar connecting rod
	7-4	Needle bar connecting rod
	8	Needle bar
	9	Screw
	10	Lever
	11	Screw
	12	Screw
	13-1	Needle plate
	13-2	Needle plate
	13-3	Needle plate
	13-4	Needle plate
	14	Screw
	15	Cover
	16	Shaft
	17	Screw
	18	Washer
	19	Arm
	20	Connecting rod
	21	Bearing
	22	Ball
	23	Shaft
	24	Shaft
	25	Bracket
	26	Block
	27	Bracket
	28	Screw
	29	Base
	30	Base
	31	Lever
	32	Screw
	33	Pad
	34	Holder
	35	Screw
	36	Cover
	37	Screw
	38	Cover
	39	Screw
	40	Cover
	41	Screw
	42	Screw

Page 23 — NEEDLE BAR MECHANISM

Yamato VF2400 parts on page 23

Ref	Part number	Part name	Qty
	0063044	Needle Bar Thread Eyelet
	3200041	Needle Bar Thread Eyelet
	004358	Screw(9/64-40 × 5.6)
	3200170	Needle Bar & Needle Bar Bushing, C. Set
	3200105	Needle Bar & Needle Bar Bushing, C. Set
	3200111	Needle Bar Bracket
	110035	Screw(M4-0.7 × 10)
	3209100	Needle Clamp(32)
	3209101	Needle Clamp(40)
	3209102	Needle Clamp(48)
	3209104	Needle Clamp(64)
	001892	Screw(1/8-44 × 2.9)
	3200046	Top Cover Thread Eyelet
	3200117	Needle Clamp Eyelet
	001230	Screw(3/32-56 × 3.8)
	3108130	Stitch Plate(32M)
	0093170	Stitch Plate(32M)
	3108131	Stitch Plate(40M)
	0093171	Stitch Plate(40M)
	3108132	Stitch Plate(48M)
	0093172	Stitch Plate(48M)
	0093174	Stitch Plate(64M)
	009142	Screw(9/64-40 × 4.8)
	3200115	Counterweight, C. Set
	3200101	Counterweight
	120015	Screw(M5-0.8 × 10)
	0093214	Connecting Rod Ring
	3200114	Connecting Rod, C. Set
	3200112	Connecting Rod
	0093212	Roller Bearing
	330000	Seal Plug
	000309	Oil Wick
	3200113	Connecting Rod Pin
	3200118	Needle Bar Guide, C. Set
	0093186	Slide Block
	3200116	Needle Bar Guide
	009749	Screw(M4-0.7 × 16)
	3200120	HR Device, C. Set
	3200121	HR Cup
	3200122	HR Cup Lid
	0093864	Seal Plug
	310036	HR Felt
	0093663	HR Felt Guard
	006219	Screw(M4-0.7 × 30)
	3200090	Connecting Rod Cover Shaft
	160023	Screw(M4-0.7 × 4)
	3200089	Connecting Rod Cover(Rear)
	110002	Screw(M3-0.5 × 5)
	3200088	Connecting Rod Cover(Front)
	110012	Screw(M4-0.7 × 5)
	260000	Screw(5/16-24 × 15.88)

Page 24

Yamato VF2400 parts on page 24

Ref	Part number	Part name	Qty
1	1	Screw
3	3	Nut
4	4	Spring
5	5	Lever
6	6	Screw
7	7	Bracket
8	8	Screw
9	9	Spring
10	10	Shaft
11	11	Washer
12-1	12-1	Collar
12-2	12-2	Collar
13	13	Screw
14	14	Lever
15	15	Screw
16-1	16-1	Parts
16-2	16-2	Parts
16-3	16-3	Parts
16-4	16-4	Parts
17	17	Screw
18	18	Spring
19	19	Lever
20	20	Screw
21	21	Pin
22	22	Screw
23	23	Nut
24	24	Spring
25	25	Lever
26	26	Screw
27	27	Lever
28	28	Pin
29	29	Shaft
31	31	Clamp
32	32	Screw
33	33	Washer
34	34	Screw
35	35	Strap
36	36	Spring
37	37	Lever
38	38	Shaft
39	39	Washer
40	40	Screw
41	41	Lever
42	42	Shaft
43	43	Shaft
44	44	Screw
45	45	Collar
46	46	Screw
48	48	Pin
49	49	Spring
50	50	Collar
51	51	Screw
52	52	Bracket
53	53	Screw

Page 25 — PRESSER FOOT MECHANISM

Yamato VF2400 parts on page 25

Ref	Part number	Part name	Qty
1	0093500	Presser Spring Regulator
3	000445	Lock Nut
4	3200132	Presser Bar Spring(Outer)
5	3200131	Presser Bar Connecting Bracket Unit
6	110031	Screw(M4-0.7 × 12)
7	0093483	Presser Bar Guide
8	004441	Screw(11/64-40 × 16)
9	3200137	Presser Bar Spring(Inner)
10	3100110	Presser Bar
11	0093611	Oil Protector Ring
12-1	3100310*	Collar(9 × 17 × 7 mm)
12-2	3500360	Collar(9 × 15 × 7.5 mm)
13	160001*	Screw(M3-0.7 × 4)
14	0020271*	Thread Chain Cutting Knife
15	110054*	Screw(M3-0.52 × 3.5)
16-1	3507000	Presser Foot, C. Set(32)
16-2	3507002	Presser Foot, C. Set(40)
16-3	3507050	Presser Foot, C. Set(48)
16-4	3507054	Presser Foot, C. Set(64)
17	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]
18	3107303	Presser Foot Spring(Left)
19	3107304	Presser Foot Spring(Right)
20	130016	Screw(M2.5-0.45 × 6)
21	3107306	Presser Foot Hinge Pin
22	110084	Screw(M3-0.5 × 4.2)
23	000327	Lock Nut
24	260006	Adjusting Screw(1/8-44 × 9.5)
25	0093487	Lifter Link
26	006038	Screw(3/16-32 × 2.2)
27	0063083	Lifter Link Lever
28	000690	Fastener Pin
29	0093479	Lifter Shaft

Page 26

Yamato VF2400 parts on page 26

Ref	Part number	Part name	Qty
	1	NEEDLE BAR CONNECTING ROD
	3	COLLAR
	4	NEEDLE BAR CONNECTING ROD SPRING
	5	BRACKET
	6	SCREW
	7	BRACKET
	8	SCREW
	9	SPRING
	10	NEEDLE BAR
	11	WASHER
	12-1	COLLAR
	12-2	COLLAR
	13	SCREW
	14	BRACKET
	15	SCREW
	16-1	BRACKET
	16-2	BRACKET
	16-3	BRACKET
	16-4	BRACKET
	17	SCREW
	18	SPRING
	19	SCREW
	20	SCREW
	21	BRACKET
	22	SCREW
	23	WASHER
	24	SPRING
	25	BRACKET
	26	SCREW
	27	BRACKET
	28	PIN
	29	SHAFT
	31	BRACKET
	32	SCREW
	33	WASHER
	34	PIN
	35	BRACKET
	36	SPRING
	37	BRACKET
	38	BRACKET
	39	SPRING
	40	SCREW
	41	BRACKET
	42	SHAFT
	43	SHAFT
	44	SPRING
	45	BRACKET
	46	SCREW
	48	PIN
	49	SPRING
	50	COLLAR
	51	SCREW
	52	BRACKET
	53	SCREW

Page 27 — PRESSER FOOT MECHANISM

Yamato VF2400 parts on page 27

Ref	Part number	Part name	Qty
	3100294	Intermediate Lever
	120017	Screw(M5-0.8 × 15)
	0077179	Retaining Ring
	0093509	Connecting Pin
	0093507	Connecting Plate
	3160168	Lifter Spring
	3500305	Cap
	0093496	Lifter Lever
	3101216	Lifter Lever Stop
	004358	Screw(9/64-40 × 5.6)
	0090801	Tension Release Lever
	005542	Screw(11/64-40 × 14.5)
	0093545	Tension Release Shaft
	0090824	Swing-proof Spring
	0093508	Lifter Lever(Small)
	004591	Screw(15/64-28 × 9.5)
	340014	Roll Pin(3 × 12mm)
	0063084	Lifter Spring
	0093491	Collar(8 × 16 × 8mm)
	009604	Screw(11/64-40 × 5.5)
	3100112	Finger Guard
	110002	Screw(M3-0.5 × 5)

Page 28

Yamato VF2400 parts on page 28

Ref	Part number	Part name	Qty
	1	BOBBIN CASE ASSEMBLY
	2	BOBBIN CASE HOLDER
	3	SPRING
	4	BOBBIN CASE
	5	BOBBIN CASE HOLDER
	6	CIRCLIP
	7	SCREW
	8	WASHER
	9	NEEDLE BAR BUSH
	10	SCREW
	11	WASHER
	12	COLLAR
	13	SCREW
	14	NEEDLE BAR CONNECTING PIECE
	15	SCREW
	16	NEEDLE BAR CONNECTING ROD
	17	NEEDLE BAR CONNECTING PIECE
	18	NEEDLE BAR CONNECTING PIECE
	19	NEEDLE BAR CONNECTING PIECE
	20	NEEDLE BAR CONNECTING ROD
	21	WASHER
	22	NEEDLE BAR CONNECTING PIECE
	23	PIN
	24	PRESSER BAR CONNECTING PIECE
	25	PRESSER BAR CONNECTING ROD
	26	SCREW

Page 29 — SPREADER MECHANISM

Yamato VF2400 parts on page 29

Ref	Part number	Part name	Qty
	3100302	Connecting Rod, C. Set	1
	3100300	Eccentric	1
	160003	Screw(M5-0.8 × 5)	2
	0077322	Roller Bearing	1
	3100301	Connecting Rod	1
	0094566	Retaining Ring	1
	110009	Screw(M4-0.7 × 8)	1
	300006	Washer	1
	3100309	Adjusting Lever Pin	1
	000528	Washer	1
	100003	Nut(M6-1.0)	1
	0032646	Collar(12 × 20 × 8 mm)	1
	009604	Screw(11/64-40 × 5.5)	2
	3100303	Adjusting Lever	1
	120013	Screw(M6-1 × 15)	1
	3100304	Driving Shaft	1
	3100305	Rocking Arm	1
	160007	Screw(M6-1 × 6)	2
	0063051	Rocking Pin	1
	0063053	Spreader Bar	1
	0063056	Bushing Ring	1
	0063057	Collar(10 × 18 × 7 mm)	1
	009526	Screw(9/64-40 × 4.4)	2
	3100307	Spreader Holder	1
	3509320	Spreader	1
	110031	Screw(M4-0.7 × 12)	2

Page 30

Yamato VF2400 parts on page 30

Ref	Part number	Part name	Qty
4	4	SCREW
5	5	BEARING HOLDER
6	6	SCREW
7	7	SHAFT
8	8	WASHER
9	9	NUT
10	10	BRACKET
11	11	SCREW
12	12	WASHER
13	13	SCREW
14	14	SCREW
15	15	BEARING HOLDER
16	16	SCREW
17	17	SHAFT
18	18	BRACKET
19	19	BLOCK
21	21	PIN
22	22	SCREW
23	23	BRACKET
24	24	SLEEVE
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	SHAFT
29	29	BRACKET
30	30	SCREW
31	31	BRACKET
32	32	SHAFT
33	33	LEVER
34	34	WASHER
35	35	BRACKET
36	36	SCREW
37	37	BRACKET
38	38	SCREW
39	39	SCREW

Page 31

Yamato VF2400 parts on page 31

Ref	Part number	Part name	Qty
1	3200150	Looper Rocker Connecting Rod, C. Set(2)	1
2	3200149	Looper Rocker Connecting Rod, C. Set(1)	1
3	3200152	Looper Rocker Connecting Rod	1
4	120001	Screw(M4-0.7 x 14)	5
5	3200151	Looper Rocker Eccentric	1
6	160003	Screw(M5-0.8 x 5)	2
7	3200159	Connecting Rod Pin	1
8	300000	Washer	1
9	100002	Nut	1
10	3200154	Looper Rocker Lever	1
11	005650	Screw(M5-0.8 x 14)	2
12	3200155	Looper Rocker Adjusting Guide Plate	1
13	110007	Screw(M2.5-0.45 x 6)	2
14	170021	Adjusting Screw(M2.5-0.45 x 10.5)	1
15	2100267	Collar(10 x 17 x 8mm)	1
16	160001	Screw(M4-0.7 x 4)	2
17	0093314	Looper Rocker Shaft	1
18	3200157	Looper Rocker Arm	1
19	0093319	Looper Slide Block	1
21	3200160	Looper Slide Block Pin	1
22	160009	Screw(M5-0.8 x 5)	1
23	3200161	Looper Connecting Rod	1
24	0032784	Link Pin(Short)	1
25	009604	Screw(11/64-40 x 5.5)	1
26	0032785	Looper Driving Lever Link	1
27	001457	Screw(11/64-40 x 3.3)	1
28	0032786	Link Pin(Long)	1
29	3200162	Looper Driving Lever	1
30	160007	Screw(M6-1 x 6)	2
31	3200163	Collar	1
32	0093300	Looper Driving Shaft	1
33	3200164	Looper Holder	1
34	000669	Washer	1
35	3209311	Looper	1
36	110057	Screw(M4-0.7 x 7)	1
37	0095723	Needle Guard(Front)	1
38	004236	Screw(3/32-56 x 4.2)	1
39	009934	Screw(M5-0.8 x 16)	1

Page 32

Yamato VF2400 parts on page 32

Ref	Part number	Part name	Qty
1	1	ROD
2	2	BRACKET
3	3	SCREW
4	4	BELT
5	5	BRACKET
6	6	BRACKET
7	7	PLATE
8	8	SCREW
9	9	COLLAR
10	10	SCREW
11	11	BRACKET
12	12	BRACKET
13	13	WASHER
14	14	SCREW
15	15	ARM
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	SCREW
20	20	WASHER
21	21	COLLAR
22	22	BRACKET
23	23	SCREW
24	24	SCREW
25	25	COLLAR
26	26	WASHER
27	27	SPRING
28	28	SPRING
29	29	PIN
30	30	SPRING
31	31	RING
32	32	COLLAR
33	33	BRACKET
34	34	SCREW
35	35	SCREW
36	36	BRACKET
37	37	SCREW
38	38	SPRING
39	39	COLLAR
40	40	SCREW
41	41	NUT
42	42	WASHER
43	43	SPRING
44	44	SCREW
45	45	BELT

Page 33 — FEED DRIVING CONTROL MECHANISM

Yamato VF2400 parts on page 33

Ref	Part number	Part name	Qty
	3200181	Feed Bar Driving Shaft
	3200183	Main Feed Bar Lever
	120006	Screw(M6-1 × 12)
	3200184	Differential Rocker, Complete Set
	3200185	Differential Rocker
	3200186	Differential Regulating Slider
	3200187	Differential Regulating Slider Cap
	110033	Screw(M3-0.5 × 6)
	2100161	Collar(10 × 19 × 9mm)
	160003	Screw(M5-0.8 × 5)
	3200205	Differential Lever(Inner), C. Set
	2100252	Slider Link
	0068202	Retaining Ring
	2100253	Slider Link Pin
	3200206	Differential Lever(Inner)
	3200189	Feed Bar, Complete Set
	3200190	Main Feed Bar
	3200191	Differential Feed Bar
	140018	Screw(M5-0.5 × 6)
	300000	Washer
	3200194	Connection Bushing
	2100243	Differential Feed Bar Connection
	140017	Screw(M4-0.7 × 6)
	2100248	Main Feed Bar Connection
	3200192	Connection Bushing
	2100215	Retaining Ring
	2100267	Collar(10 × 17 × 8mm)
	160001	Screw(M4-0.7 × 4)
	000690	Roll Pin
	3200216	Differential Lever Spring
	0020538	O-ring(P7)
	3200207	Differential Lever Shaft
	0095132	Differential Lever(Left)
	110009	Screw(M4-0.7 × 8)
	004143	Screw(11/64-40 × 3.2)
	3200213	Differential Feed Graduation
	110045	Screw(M4-0.7 × 12)
	310072	Felt
	000210	Adjusting Nut
	005511	Adjusting Screw(1/4-40×11,11/64-40×4)
	0020350	Differential Lever Stop
	000669	Washer
	000600	Spring Washer
	005049	Screw(M5-0.8 × 8)
	310071	Oil Wick

Page 34

Yamato VF2400 parts on page 34

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	BRACKET
4	4	SCREW
5	5	SHAFT
6	6	BRACKET
7	7	SHAFT
8	8	RING
9	9	BRACKET
10	10	GEAR
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	PIN
17	17	BRACKET
18	18	BRACKET
19	19	RING
20	20	GEAR
21	21	SHAFT
22	22	SCREW
23	23	BRACKET
24	24	BRACKET
25	25	SCREW
26	26	WIRE
27	27	BRACKET
28	28	GEAR
29	29	SCREW
30-1	30-1	BRACKET
30-2	30-2	BRACKET
31-1	31-1	BRACKET
31-2	31-2	BRACKET
32	32	SCREW
33	33	BRACKET
34	34	SCREW
35	35	SCREW
36	36	SCREW
37	37	BRACKET
38	38	BRACKET
39	39	SCREW

Page 35 — FEED DRIVING MECHANISM

Yamato VF2400 parts on page 35

Ref	Part number	Part name	Qty
	3200199	Feed Bar Guide(Left)
	110080	Screw(M4-0.7 × 8)
	3200200	Feed Bar Guide(Right)
	160007	Screw(M6-1 × 6)
	0033141	Feed Adjusting Pin
	0093389	Feed Bar Block(Rear)
	3200201	Feed Bar Guide(Rear)
	0060076	Retaining Ring
	0060075	Feed Bar Block(Front)
	2110527	Roller Bearing
	3204065	Feed Dog Regulator
	160003	Screw(M5-0.8 × 5)
	3204059	Driving Connecting Rod Mechanism, C. Set
	3200182	Feed Bar Driving Shaft Lever
	120006	Screw(M6-1 × 12)
	2100173	Connecting Rod Pin
	3204060	Feed Dog Regulator, C. Set
	3204061	Driving Connecting Rod, C. Set
	3204064	Feed Dog Eccentric
	2100278	Roller Bearing
	3200196	Feed Dog Driving Connecting Rod
	160016	Screw(M4-0.7 × 4.5)
	3204063	Eccentric Link
	3204062	Feed Dog Regulating Eccentric
	180002	Screw(M3-0.5 × 4)
	2100289	Feed Dog Regulating Plate Spring
	0023473	Feed Dog Regulating Plate
	2100279	Feed Dog Regulating Gear
	180003	Screw(M5-0.8 × 8)
	3209001	Differential Feed Dog(32, 40, 48, 56)
	3209003	Differential Feed Dog(64)
	3209080	Main Feed Dog(32, 40, 48, 56)
	3209002	Main Feed Dog(64)
	110004	Screw(M3.5-0.6 × 8)
	3200203	Feed Bar Shield Holder(Front)
	130003	Screw(M4-0.7 × 7.3)
	130024	Screw(M4-0.7 × 7.3)
	110079	Screw(M4-0.7 × 8)
	3200211	Feed Bar Shield
	3200204	Feed Bar Shield Holder(Rear)
	110070	Screw(M3-0.5 × 6.3)

Page 36

Yamato VF2400 parts on page 36

Ref	Part number	Part name	Qty
	1	BASE
	2	SCREW
	3	BRACKET
	4	NUT
	5	SCREW
	6	WASHER
	7	WASHER
	8	WASHER
	9	NUT
	10	COVER
	11	SCREW
	12	O-RING
	13	FILTER ELEMENT
	14	NIPPLE
	15	CIRCLIP
	16	SEAL
	17	GASKET
	18	PIPE
	19	UNION
	20	HOUSING
	21	SLEEVE
	22	PIPE
	23	CLAMP
	24	CLAMP
	25	HOSE
	28	UNION
	29	PIPE
	30	EYE BOLT
	31	BOLT
	32	WASHER
	33	BRACKET
	34	PIPE
	35	PUMP HOUSING
	36	GEAR
	37	SCREW
	38	BOLT
	39	SHAFT
	40	WASHER
	41	PIPE
	42	COVER
	43	BRACKET

Page 37 — LUBRICATING MECHANISM

Yamato VF2400 parts on page 37

Ref	Part number	Part name	Qty
	0065453	Oil Receiver	1
	110012	Screw(M4-0.7 × 5)	5
	3200243	Lubricant Guiding Block
	320006	Top Nozzle Cap	1
	3200230	Oil Adjusting Screw	1
	000636	Seal Plug	1
	300000	Washer	1
	000600	Spring Washer	1
	100002	Nut	1
	3100060	Oil Filter Cap	1
	110045	Screw(M4-0.7 × 12)	3
	3100061	O-ring(P42)	1
	3100345	Oil Filter	1
	3100329	Oil Filter Connector	1
	0063217	Oil Filter Screen Clamp	1
	0063216	Oil Filter Screen	1
	3200237	Felt	1
	3200236	Suction Pipe	1
	0093617	Suction Pipe Bushing	1
	3200238	Oil Tube(3 × 5 × 440mm)	1
	0065452	Drining Pipe	1
	3200227	Oil Pipe Unit	1
	0031831	Oil Tube Clamp	6
	3200234	Oil Tube(Long), Complete Set	1
	3100372	Oil Tube(4 × 6 × 290mm)	1
	0037668	Oil Tube Joint, Two Way	1
	0037669	Oil Tube(4 × 6 × 175mm)	1
	0037669	Oil Tube Joint, One Way	3
	004124	Fitting Stud(Short)	4
	000567	Seal	9
	3200235	Oil Tube(Short), Complete Set	1
	3200232	Oil Tube(4 × 6 × 45mm)	1
	3100328	Oil Pump, Complete Set	1
	0030711	Oil Pump Driving Worm Gear	1
	160001	Screw(M4-0.7 × 4)	2
	120013	Screw(M6-1 × 15)	2
	0090918	Suction Pipe	1
	000419	Nut	1
	3100349	Oil Nozzle for Worm Gear	1
	3200231	Dustproof Plate	1
	0020533	Oil Sight Gauge	1

Page 38 — 14 VF2500, 2500-35

Yamato VF2400 parts on page 38

Ref	Part number	Part name	Qty
1	1-1	1-1
1	1-2	1-2
1	1-3	1-3
1	1-4	1-4
2	2	2
3	3-1	3-1
3	3-2	3-2
3	3-3	3-3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12-1	12-1
12	12-2	12-2
12	12-3	12-3
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25

Page 39 — VF2500, 2500-35 EXCLUSIVE PARTS

Yamato VF2400 parts on page 39

Ref	Part number	Part name	Qty
	3209106	Needle Clamp(48)	1
	3209107	Needle Clamp(56)	1
	0093357	Needle Clamp(56-20)	1
	3209108	Needle Clamp(64)	1
	001892	Screw(1/8-44 × 2.9)	3
	3507050	Presser Foot, Complete Set(48)	1
	3507052	Presser Foot, Complete Set(56)	1
	3507054	Presser Foot, Complete Set(64)	1
	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]	1
	3107303	Presser Foot Spring(Left)	1
	3107304	Presser Foot Spring(Riht)	1
	130016	Screw(M2.5-0.45 × 6)	4
	3107306	Presser Foot Hinge Pin(48, 56, 64)	1
	110084	Screw(M3.5-0.5 × 4.2)	1
	000327	Lock Nut	1
	260006	Adjusting Screw(1/8-44 × 9.5)	1
	3108133	Stitch Plate(48M)	1
	3108134	Stitch Plate(56M)	1
	3108135	Stitch Plate(64M)	1
	0024084	Thread Tension Spring Cap	1
	0024083	Tension Spring Bushing	1
	0030255	Needle Thread Tension Spring	1
	0000071	Thread Tension Spring Retainer	1
	000177	Felt	1
	0031111	Tension Disc	2
	290029	Tension Post	1
	0090812	Tension Post Ferrule	1
	0090856	Tension Disc Eyelet	1
	0090807	Thread Lead-in Guide	1
	3209081	Main Feed Dog(64)	1
	310126	Oil Wick	1
	000290	Oil Wick	1

Page 40

Yamato VF2400 parts on page 40

Ref	Part number	Part name	Qty
	1	BASE PLATE
	2	WASHER
	3	SPRING
	4	BRACKET
	5	SCREW
	6	SHAFT
	7	SHAFT
	8	NEEDLE PLATE
	9	COVER
	10	COVER
	11	COVER
	12	SPRING
	13-1	NEEDLE PLATE
	13-2	NEEDLE PLATE
	14	BASE PLATE
	15	SPRING
	16	BASE PLATE
	17	SCREW
	18	SPRING
	19	SPRING
	20	SCREW
	21	PIN
	22	SCREW
	23	NUT
	24	SPRING
	25-1	NEEDLE PLATE
	25-2	NEEDLE PLATE
	26	KNOB
	27	WASHER
	28	SPRING
	29	COLLAR
	30	WASHER
	31	WASHER
	32	SPRING
	33	BRACKET
	34	BRACKET
	35	BRACKET

Page 41

Yamato VF2400 parts on page 41

Ref	Part number	Part name	Qty
	3201014	Stitch Plate Support	1
	3201016	Corner Sewing Sleeve	2
	009142	Screw(9/64-40 × 7.1)	2
	3201015	Cylinder Support	1
	110036	Screw(M3-0.5 × 6.5)	1
	1091051	Air Cylinder(MS4 NFS)	1
	0010260	Vinyl Tube(4 × 2.5mm)
	3209018	Main Feed Dog(40, 48, 56)	1
	3201011	Cloth Plate(Large)(40, 48, 56)	1
	3201012	Cloth Plate(Small)	1
	3201013	Front Cover(40, 48, 56)	1
	4017013	Return Spring	1
	3208006	Stitch Plate(40S)	1
	3208007	Stitch Plate(48S)	1
	3209107	Needle Clamp(56)	1
	001892	Screw(1/8-44 × 2.9)	3
	3507052	Presser Foot, Complete Set(56)
	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]
	3107303	Presser Foot Spring(Left)	1
	3107304	Presser Foot Spring(Right)	1
	130016	Screw(M2.5-0.45 × 6)	4
	3107306	Presser Foot Hinge Pin(56)
	110084	Screw(M3.5-0.5 × 4.2)	1
	000327	Lock Nut	1
	260006	Adjusting Screw(1/8-44 × 9.5)	1
	3208000	Stitch Plate(56S)	1
	3208002	Stitch Plate(56L)(Extra)	1
	0024084	Thread Tension Spring Cap	1
	0024083	Tension Spring Bushing	1
	0030255	Needle Thread Tension Spring	1
	0090071	Thread Tension Spring Retainer	1
	000177	Felt	1
	0031111	Tension Disc	2
	290029	Tension Post	1
	0090812	Tension Post Ferrule	1
	0090856	Tension Disc Eyelet	1
	0090807	Thread Lead-in Guide	1

Page 42

Yamato VF2400 parts on page 42

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	CONNECTOR
	4	TUBE
	5	CONNECTOR
	6	NUT
	7	SPRING
	8	BRACKET
	9	SCREW
	10	BASE PLATE
	11	BRACKET
	12	SCREW
	13	BASE PLATE
	14	BRACKET
	15	NEEDLE PLATE
	16	BRACKET
	17	SCREW
	18	BRACKET
	19	SCREW
	20	CYLINDER
	21	BRACKET
	22	CONNECTOR
	23	BASE PLATE
	24	BASE PLATE
	25	BASE PLATE

Page 43 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 43

Ref	Part number	Part name	Qty
	0010248	Air Cylinder	1
	009812	Screw(M3-0.5 × 20)	2
	1094000	Connector(EC4-M5)	1
	1096029	Air Tube(4 × 2.5mm)(Black)
	1094057	Y-Connector(φ 4)	3
	000488	Nut	3
	190079	Stude(M3-0.5 × 20.5)	1
	3201413	Cylinder Holder	1
	110013	Screw (M4-0.7 × 8)	2
	3201411	Tension Post Support	1
	3201414	Connecting Plate	1
	009779	Screw(M3-0.5 × 6)	2
	3201412	Tension Disc Separator	1
	3201432	Stitch Plate Support	1
	3201016	Corner Sewing Sleeve	2
	3201436	Stitch Plate Driving Shaft	1
	170005	Screw(M4-0.7 × 6)	2
	3201434	Cylinder Bracket	1
	110001	Screw(M4-0.7 × 5.4)	2
	1091016	Air Cylinder	1
	3201435	Driving Shaft Bracket	1
	1094059	Elbow Connector(φ 4-M5)	2
	3201430	Cloth Plate(Large)	1
	3201431	Cloth Plate(Small)	1
	3201433	Front Cover	1

Page 44 — 17

Yamato VF2400 parts on page 44

Ref	Part number	Part name	Qty
1	1	VF2400-PA3
2	2	SCREW
6	6	SCREW
7	7	NUT
8	8	SPRING
9	9	SPRING
3	3	BRACKET
4	4	SCREW
5	5	PIN
10	10	BASE PLATE
11	11	NEEDLE PLATE
12	12	NEEDLE PLATE
13	13	VF2500-PA3
14	14	BASE PLATE
15	15	KNOB
16	16	WASHER
17	17	SPRING
18	18	COLLAR
19	19	WASHER
20	20	WASHER
21	21	SCREW
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	SCREW

Page 45 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(2)

Yamato VF2400 parts on page 45

Ref	Part number	Part name	Qty
1	3207199	Presser Foot, C. Set(40S)	1
2	110004	Screw(M3.5-0.6 × 8)	1
3	3107303	Presser Foot Spring(Left)	1
4	130016	Screw(M2.5-0.45 × 6)	4
5	3107306	Locking Pin	1
6	110084	Screw(M3-0.5 × 4.2)	1
7	000327	Nut	1
8	260006	Adjusting Screw(1/8-44 × 9.5)	1
9	3107304	Presser Foot Spring(Right)	1
10	3208003	Stitch Plate(40S)	1
11	3209050	Main Feed Dog(56S, 40S)	1
12	3209051	Differential Feed Dog(56S, 40S)	1
13	3207200	Presser Foot, C. Set(56S)	1
14	3208004	Stitch Plate(56S)	1
15	0024084	Thread Tension Spring Cap	1
16	0024083	Tension Spring Bushing	1
17	0030255	Needle Thread Tension Spring	1
18	0090071	Thread Tension Spring Retainer	1
19	000177	Felt	1
20	0031111	Tension Disc	2
21	290029	Tension Post	1
22	0090812	Tension Post Ferrule	1
23	0090856	Tension Disc Eyelet	1
24	0090807	Thread Lead-in Guide	1
25	3209107	Needle Clamp(56)	1
26	001892	Screw(1/8-44 × 2.9)	3

Page 46

Yamato VF2400 parts on page 46

Ref	Part number	Part name	Qty
	17	17
	18	18
	19	19
	20	20
	21	21
	1-1	1-1
	1-2	1-2
	1-3	1-3
	P	P
	Q	Q
	R	R
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14-1	14-1
	14-2	14-2
	15	15
	16	16

Page 47 — EXCLUSIVE PARTS(I)

Yamato VF2400 parts on page 47

Ref	Part number	Part name	Qty
1-1	0093241	Folder(for Type P)	1
1-2	0093242	Folder(for Type Q)	1
1-3	0093243	Folder(for Type R)	1
2	0091736	Folder Clamp	1
3	009932	Screw(11/64-40 × 4)	2
4	005554	Screw(7/32-32 × 6.5)	1
5	0094245	Folder Support	1
6	0094246	Folder Support Fixing Plate	1
7	140019	Screw(M5-0.8 × 14)	2
8	3201000	Front Cover	1
9	3201002	Front Cover(Small)	1
10	110013	Screw(M4-0.7 × 8)	2
11	3201007	Fabric Slide Plate	1
12	000426	Washer	1
13	110105	Screw(M5-0.8 × 12)	1
14-1	3201003	Dustproof Cover	1
14-2	3201005	Dustproof Cover(VF2403-21,2503-21)	1
15	110104	Screw(M4-0.7 × 8)	2
16	3201006	Front Cover Spring	1
17	3201001	Looper Thread Take-up Cover	1
18	3201004	Front Cover(Small)(Extra)(Note 1)	1
19	3201098	Main Feed Bar Lever	1
20	3201099	Differential Feed Graduation	1
21	3201111	Cloth Plate(Large)	1

Page 48

Yamato VF2400 parts on page 48

Ref	Part number	Part name	Qty
	1-1	1-1
	1-2	1-2
	1-3	1-3
	1-4	1-4
	1-5	1-5
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10-1	10-1
	10-2	10-2
	10-3	10-3
	10-4	10-4
	11-1	11-1
	11-2	11-2
	12-1	12-1
	12-2	12-2
	13	13
	14	14
	15	15
	16-1	16-1
	16-2	16-2
	16-3	16-3
	17	17
	18	18
	19-1	19-1
	19-2	19-2
	19-3	19-3
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30-1	30-1
	30-2	30-2
	30-3	30-3
	31-1	31-1
	31-2	31-2
	31-3	31-3
	32-1	32-1
	32-2	32-2
	32-3	32-3
	33-1	33-1
	33-2	33-2
	33-3	33-3
	34	34
	35	35
	36	36

Page 49

Yamato VF2400 parts on page 49

Ref	Part number	Part name	Qty
1-1	3207150	Presser Foot, Complete Set(32)	1
1-2	3207151	Presser Foot, Complete Set(40)	1
1-3	0094216	Presser Foot, Complete Set(40-11H)	1
1-4	3207152	Presser Foot, Complete Set(48)	1
1-5	3207157	Presser Foot, Complete Set(64)	1
2	001186	Screw(9/64-40 × 7.8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(1/8-44 × 4.5)	1
5	000220	Lock Nut	1
6	003300	Adjusting Screw(1/8-44 × 15)	1
7	0091696	Presser Foot Hinge Pin	1
8	3207160	Tape Guide	1
9	001230	Screw(3/32-56 × 3.8)	1
10-1	0094210	Stitch Plate(32M)	1
10-2	0094211	Stitch Plate(40M)	1
10-3	0094212	Stitch Plate(48M)	1
10-4	0094214	Stitch Plate(64M)	1
11-1	3209014	Main Feed Dog(32, 40, 48, 56)	1
11-2	3209016	Main Feed Dog(64)	1
12-1	3209005	Differential Feed Dog(32, 40, 48, 56)	1
12-2	3209007	Differential Feed Dog(64)	1
13	0095234	Stitch Plate(40M-11)	1
14	3209008	Main Feed Dog	1
15	3209009	Differential Feed Dog	1
16-1	3208102	Stitch Plate(32M-21, 32M-50)	1
16-2	3208103	Stitch Plate(40M-21)	1
16-3	3208104	Stitch Plate(48M-21)	1
17	3209064	Main Feed Dog	1
18	3209065	Differential Feed Dog	1
19-1	3209106	Needle Clamp(48)	1
19-2	3209107	Needle Clamp(56)	1
19-3	3209108	Needle Clamp(64)	1
20	001892	Screw(1/8-44 × 2.9)	3
21	0024084	Thread Tension Spring Cap	1
22	0030255	Needle Thread Tension Spring	1
23	0090071	Thread Tension Spring Retainer	1
24	000177	Felt	1
25	0031111	Tension Disc	2
26	290029	Tension Post	1
27	0090812	Tension Post Ferrule	1
28	0090856	Tension Disc Eyelet	1
29	0090807	Thread Lead-in Guide	1
30-1	3207155	Presser Foot, Complete Set(48)	1
30-2	3207156	Presser Foot, Complete Set(56)	1
30-3	3207157	Presser Foot, Complete Set(64)	1

Page 50

Yamato VF2400 parts on page 50

Ref	Part number	Part name	Qty
1-1	1-1	1-1
1-2	1-2	1-2
1-3	1-3	1-3
1-4	1-4	1-4
1-5	1-5	1-5
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10-1	10-1	10-1
10-2	10-2	10-2
10-3	10-3	10-3
10-4	10-4	10-4
11-1	11-1	11-1
11-2	11-2	11-2
12-1	12-1	12-1
12-2	12-2	12-2
13	13	13
14	14	14
15	15	15
16-1	16-1	16-1
16-2	16-2	16-2
16-3	16-3	16-3
17	17	17
18	18	18
19-1	19-1	19-1
19-2	19-2	19-2
19-3	19-3	19-3
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30-1	30-1	30-1
30-2	30-2	30-2
30-3	30-3	30-3
31-1	31-1	31-1
31-2	31-2	31-2
31-3	31-3	31-3
32-1	32-1	32-1
32-2	32-2	32-2
32-3	32-3	32-3
33-1	33-1	33-1
33-2	33-2	33-2
33-3	33-3	33-3
34	34	34
35	35	35
36	36	36

Page 51 — EXCLUSIVE PARTS(2)

Yamato VF2400 parts on page 51

Ref	Part number	Part name	Qty
31-1	3208026	Stitch Plate(48M)
31-2	0094901	Stitch Plate(56M)
31-3	0094902	Stitch Plate(64M)
32-1	3208052	Stitch Plate(48M-11)
32-2	0095085	Stitch Plate(56M-11)
32-3	3008025	Stitch Plate(64M-11)
33-1	3208108	Stitch Plate(56M-21)
33-2	3208109	Stitch Plate(64M-21)
33-3	3208105	Stitch Plate(48M-21)(Extra)
34	110039	Screw(M3.5-0.6 × 10)
35	300050	Spring Washer
36	0024083	Tension Spring Bushing

Page 52

Yamato VF2400 parts on page 52

Ref	Part number	Part name	Qty
17	17	Cover
2	2	Bracket
3	3	Screw
4	4	Screw
5	5	Support
6	6	Plate
7	7	Screw
8	8	Frame
9	9	Bracket
10	10	Screw
11	11	Bracket
12	12	Washer
13	13	Screw
14	14	Bracket
15	15	Screw
16	16	Spring

Page 53 — VF2404, 2504-11 EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 53

Ref	Part number	Part name	Qty
1-1	0093241	Folder(for Type P)
1-2	0093242	Folder(for Type Q)
1-3	0093243	Folder(for Type R)
2	0091736	Folder Clamp
3	009932	Screw(11/64-40 × 4)
4	005554	Screw(7/32-32 × 6.5)
5	0094245	Folder Support
6	0094246	Folder Support Fixing Plate
7	140019	Screw(M5-0.8 × 14)
8	3201000	Front Cover
9	3201002	Front Cover(Small)
10	110013	Screw(M4-0.7 × 8)
11	3201007	Fabric Slide Plate
12	000426	Washer
13	110105	Screw(M5-0.8 × 12)
14	3201003	Dustproof Cover
15	110104	Screw(M4-0.7 × 8)
16	3201006	Front Cover Spring
17	3201001	Looper Thread Take-up Cover

Page 54 — VF2404, 2504-11 (2)

Yamato VF2400 parts on page 54

Ref	Part number	Part name	Qty
1-1	1-1	1-1
1-2	1-2	1-2
1-3	1-3	1-3
1-4	1-4	1-4
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10-1	10-1	10-1
10-2	10-2	10-2
10-3	10-3	10-3
10-4	10-4	10-4
11-1	11-1	11-1
11-2	11-2	11-2
12-1	12-1	12-1
12-2	12-2	12-2
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30

Page 55 — VF2404, 2504-11 EXCLUSIVE PARTS(2)

Yamato VF2400 parts on page 55

Ref	Part number	Part name	Qty
	3207150	Presser Foot, Complete Set(32)
	3207151	Presser Foot, Complete Set(40)
	3207152	Presser Foot, Complete Set(48)
	3207157	Presser Foot, Complete Set(64)
	001186	Screw(9/64-40 × 7.8)
	0091725	Presser Foot Spring
	005133	Screw(1/8-44 × 4.5)
	000220	Lock Nut
	003300	Adjusting Screw(1/8-44 × 15)
	0091696	Presser Foot Hinge Pin
	3207160	Tape Guide
	001230	Screw(3/32-56 × 3.8)
	0094210	Stitch Plate(32M)
	0094211	Stitch Plate(40M)
	0094212	Stitch Plate(48M)
	0094214	Stitch Plate(64M)
	3209014	Main Feed Dog(32, 40, 48, 56)
	3209016	Main Feed Dog(64)
	3209005	Differential Feed Dog(32, 40, 48, 56)
	3209007	Differential Feed Dog(64)
	3209107	Needle Clamp(56)
	001892	Screw(1/8-44 × 2.9)
	3207156	Presser Foot, Complete Set(56)
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0030255	Needle Thread Tension Spring
	0090071	Thread Tension Spring Retainer
	000177	Felt
	0031111	Tension Disc	2
	290029	Tension Post
	0090812	Tension Post Ferrule
	0090856	Tension Disc Eyelet
	0090807	Thread Lead-in Guide
	0095085	Stitch Plate(56M)
	3209008	Main Feed Dog
	110039	Screw(M3.5-0.6 × 10)
	300050	Spring Washer
	3209009	Differential Feed Dog

Page 56

Yamato VF2400 parts on page 56

Ref	Part number	Part name	Qty
1	1	SHAFT
2	2	BRACKET
3	3	SCREW
4	4	WASHER
5	5	SPRING
6	6	COLLAR
7	7	BRACKET
8	8	COLLAR
9	9	SPRING
10	10	PIN
11	11	BOLT
12	12	NUT
13	13	BRACKET
14	14	SCREW
15	15	WASHER
16	16	WASHER
17	17	WASHER
18	18	NUT
19	19	SHAFT
20	20	WASHER
21	21	BRACKET
22	22	SCREW
23	23	SHAFT
24	24	SPRING
25	25	SHAFT
26	26	PIN
27	27	BRACKET
28	28	KNOB
29	29	BRACKET
30	30	SCREW
31	31	BOLT
32	32	WASHER
33	33	BRACKET
34	34	BRACKET
35	35	ROD
36	36	BRACKET
37	37	BRACKET
38	38	SCREW
39	39	BRACKET
40	40	MIRROR
41	41	SCREW

Page 57 — VF2404, 2504-11 EXCLUSIVE PARTS (3)

Yamato VF2400 parts on page 57

Ref	Part number	Part name	Qty
	190044	Screw (M4-0.7 × 12)
	3201329	Tape Holder
	110048	Screw (M4-0.7 × 10)
	000538	Washer
	190021	Screw (M4-0.7 × 12)
	3201369	Tension Roller Holder, C. Set
	2101368	Tension Roller Holder
	3201184	Roller Shaft Bushing
	3201185	Tension Roller (Large)
	160001	Screw (M4-0.7 × 4)
	190075	Adjusting Screw (M5-0.8 × 28)
	100053	Lock Nut
	3201372	Roller Lever
	110036	Screw (M3-0.5 × 6.5)
	000669	Washer
	2100043	Tension Spring
	000665	Washer
	0077179	Retaining Ring
	3201190	Tension Link Shaft
	000425	Washer
	3201375	Tension Link
	150001	Screw (M4-0.7 × 4)
	3201191	Roller Shaft(Small)
	3201186	Tension Roller (Small) Unit
	3201192	Tape Guide Wire
	160000	Screw (M3-0.5 × 3)
	3201370	Tape Guide
	190064	Knob Screw (M3-0.5 × 5)
	3201371	Tape Guide Stop
	110009	Screw (M4-0.7 × 8)
	170001	Screw (M4-0.7 × 8)
	300100	Conical Spring Washer
	0095269	Tape Guide Bar Holder
	009604	Screw (11/64-40 × 5.5)
	3201377	Tape Guide Bar (Long)
	3201197	Tape Guide Unit
	0095272	Tape Guide
	001892	Screw (1/8-44 × 2.9)
	3201331	Eye Guard Support
	3200252	Eye Guard
	110038	Screw (M2.5-0.45 × 4.5)

Page 58

Yamato VF2400 parts on page 58

Ref	Part number	Part name	Qty
	1	SHAFT
	2	WASHER
	3	SPRING
	4	BRACKET
	5	BRACKET
	6	SCREW
	7	HOLDER
	8	SPRING
	9	SPRING
	10	BRACKET
	11	COLLAR
	12	COLLAR
	13	COLLAR
	14	SCREW
	15	PLATE
	16	COLLAR
	17	COLLAR
	18	SCREW
	19	SCREW
	20	SCREW
	21	BRACKET
	22	SCREW
	23	COVER
	24	COVER
	25	COVER
	26	SCREW
	27	SCREW
	28	SCREW
	29	SCREW
	30	SCREW
	31	WASHER

Page 59 — VF2404, 2504-11 EXCLUSIVE PARTS(4)

Yamato VF2400 parts on page 59

Ref	Part number	Part name	Qty
	3201366	Roller Shaft
	3201398	Thrust Washer
	3201382	Thrust Washer
	0095027	Retaining Ring
	3201381	Clutch, Complete Set
	3201358	Clutch Lever
	007621	Screw(9/64-40 × 7.5)
	0095061	Clutch
	3201277	Clutch Spring
	0095066	Clutch Spring Seat
	0095067	Clutch Roller
	0095063	Clutch Sleeve Collar
	0095062	Clutch Sleeve
	003635	Screw(1/4-40 × 6)
	007645	Screw(1/4-40 × 3)
	3201385	Clutch Plate
	3201184	Roller Shaft Bushing
	180001	Screw(M4-0.7 × 4.5)
	110009	Screw(M4-0.7 × 8)
	3201089	Clutch Lever Pin Adjusting Plate
	110002	Screw(M3-0.5 × 5)
	190034	Adjusting Screw(M4-0.7 × 69)
	3201367	Tension Roller Holder Bracket
	120006	Screw(M6-1 × 12)
	3201380	Clutch Rod Cover, C. Set
	3201364	Clutch Rod Cover
	3201365	Clutch Rod Cover(Right)
	110047	Screw(M4-0.7 × 10)
	160003	Screw(M5-0.8 × 5)
	110030	Screw(M3-0.5 × 2.6)
	007625	Screw(9/64-40 × 8.5)
	007621	Screw(9/64-40 × 7.5)
	110035	Screw(M4-0.7 × 10)
	000665	Washer

Page 60 — 24

Yamato VF2400 parts on page 60

Ref	Part number	Part name	Qty
	1	Shaft
	2	Housing
	3	Housing
	4	Housing
	5	Screw
	6	Screw
	7	Washer
	8	Screw
	9	Washer
	10	Connecting Rod Assembly
	11	Bearing
	12	Bearing
	13	Bearing
	14	Screw
	15	Pulley
	16	Screw
	17	Screw
	18	Bracket
	19	Bearing
	20	Collar
	21	Washer
	22	Screw

Page 62

Yamato VF2400 parts on page 62

Ref	Part number	Part name	Qty
	1	CYLINDER
	2	COVER
	4-1	BRACKET
	4-2	BRACKET
	5	CONNECTING ROD
	6	COVER
	7	WASHER
	8	SCREW
	9-1	NEEDLE BAR
	9-2	NEEDLE BAR
	9-3	NEEDLE BAR
	9-4	NEEDLE BAR
	10	SCREW
	11	SPRING
	12	SCREW
	13-1	NEEDLE PLATE
	13-2	NEEDLE PLATE
	13-3	NEEDLE PLATE
	14	BRACKET
	15	SCREW
	16	FEED DOG
	17	FEED DOG
	18-1	NEEDLE PLATE
	18-2	NEEDLE PLATE
	18-3	NEEDLE PLATE
	18-4	NEEDLE PLATE
	19-1	FEED DOG
	19-2	FEED DOG
	20	FEED DOG

Page 63 — VF2411 EXCLUSIVE PARTS

Yamato VF2400 parts on page 63

Ref	Part number	Part name	Qty
1	0094604	Seal Plug
2	0063548	Seal Plug
3	3201021	Cloth Plate(Large)
4-1	3201025	Looper Thread Take-up Cover(40, 48)
4-2	3201034	Looper Thread Take-up Cover(64)
5	3201026	Looper Holder
6	0094616	Edge Guide(on the Front Cover)
7	000426	Washer
8	110105	Screw(M5-0.8 × 12)
9-1	0094872	Presser Foot, Complete Set(40)
9-2	0094873	Presser Foot, Complete Set(48)
9-3	0063674	Presser Foot, Complete Set(64)
9-4	0094871	Presser Foot, Complete Set(32)(Extra)
10	001186	Screw(9/64-40 × 7.8)
11	0094890	Presser Foot Spring
12	005133	Screw(1/8-44 × 4.5)
13-1	0094962	Stitch Plate(40L)
13-2	0094963	Stitch Plate(48L)
13-3	0094961	Stitch Plate(32L)(Extra)
14	0094615	Fabric Guide
15	001228	Screw(3/32-56 × 3.2)
16	3209010	Main Feed Dog
17	3209011	Differential Feed Dog
18-1	3208125	Stitch Plate(48S)
18-2	3208020	Stitch Plate(64S)
18-3	3208011	Stitch Plate(32S)(Extra)
18-4	3208012	Stitch Plate(40S)(Extra)
19-1	3209002	Main Feed Dog(60S, 64S)
19-2	3209000	Main Feed Dog(32S, 40S)
20	3209035	Differential Feed Dog(64S)

Page 64

Yamato VF2400 parts on page 64

Ref	Part number	Part name	Qty
1-1	1-1	Lever
1-2	1-2	Lever
2	2	Lever
3	3	Screw
4	4	Knob
5	5	Spring
6	6	Collar
7	7	Washer
8	8	Washer
9	9	Shaft
10	10	Bracket
11	11	Bracket
12	12	Bracket
13-1	13-1	Lever
13-2	13-2	Lever
14	14	Lever
15	15	Lever
16	16	Lever
17	17	Screw
18	18	Screw
19	19	Screw
20	20	Screw
21	21	Screw
22	22	Lever
23-1	23-1	Cover
23-2	23-2	Cover
24	24	Cover
25	25	Housing
26	26	Screw
27	27	Screw
28	28	Washer
29	29	Shaft
30	30	Lever
31	31	Gear
32	32	Collar
33	33	Shaft
34	34	Pin
35	35	Screw

Page 65 — VF2530 EXCLUSIVE PARTS

Yamato VF2400 parts on page 65

Ref	Part number	Part name	Qty
	0093357	Needle Clamp(56)	1
	0093358	Needle Clamp(64)	1
	3201232	Top Cover Thread Eyelet	1
	001900	Screw(1/8-44 × 2.4)	4
	0024084	Thread Tension Spring Cap	1
	0030255	Needle Thread Tension Spring	1
	0090071	Thread Tension Spring Retainer	1
	000177	Felt	1
	0031111	Tension Disc	2
	290029	Tension Post	1
	0090812	Tension Post Ferrie	1
	0090856	Tension Disc Eyelet	1
	0090807	Thread Lead-in Guide	1
	3507052	Presser Foot, Complete Set(56)	1
	3507054	Presser Foot, Complete Set(64)	1
	110004	Screw(M3.5-0.6 × 9)[9/64-40 × 7.8]	1
	3107303	Presser Foot Spring(Left)	1
	3107304	Presser Foot Spring(Right)	1
	130016	Screw(M2.5-0.45 × 6)	4
	3107306	Presser Foot Hinge Pin	1
	110084	Screw(M3.5-0.5 × 4.2)	1
	000327	Lock Nut	1
	260006	Adjusting Screw(1/8-44 × 9.5)	1
	3209081	Main Feed Dog(64)	1
	3108134	Stitch Plate(56M)	1
	3108135	Stitch Plate(64M)	1
	3201230	Counterweight, Complete Set	1
	3201231	Counterweight	1
	120015	Screw(M5-0.8 × 10)	1
	260000	Screw(5/16-24 × 15.9)	2
	0093214	Connecting Rod Ring	1
	3200114	Connecting Rod, Complete Set	1
	3200112	Connecting Rod	1
	0093212	Roller Bearing	1
	330000	Seal Plug	1
	000309	Oil Wick	1
	3200113	Connecting Rod Pin	1
	0024083	Tension Spring Bushing	1

Page 66

Yamato VF2400 parts on page 66

Ref	Part number	Part name	Qty
	1	knob
	2	spring
	3	washer
	4	washer
	5	washer
	6	screw
	7	nut
	8	bracket
	9	lever
	10	bracket
	11	lever
	12	screw
	13	screw
	14	screw
	15	lever
	16	washer
	17	washer
	18	screw
	19	plate
	20	bracket
	21	screw
	22	bracket
	23	screw
	24	bracket
	25	washer
	26	spring
	27	screw
	28	lever
	29	bracket
	30	bracket
	31	presser foot bar holder
	32	screw
	33	presser foot assembly
	34	screw
	35	spring
	36	screw
	37	screw
	38	screw
	39	needle plate
	40	presser foot bar holder
	41	screw
	42	presser foot assembly
	43	needle plate
	44	knob
	45	washer
	46	spring
	47	washer
	48	washer
	49	washer
	50	screw
	51	screw
	52	bracket
	53	lever

Page 67 — VF2490, 2590 EXCLUSIVE PARTS

Yamato VF2400 parts on page 67

Ref	Part number	Part name	Qty
1	0093863	Thread Tension Spring Cap
2	0090814	Needle Thread Tension Spring
3	0090071	Thread Tension Spring Retainer
4	000177	Felt
5	0031111	Tension Disc
6	009835	Tension Post
7	0090812	Tension Post Ferrule
8	0090856	Tension Disc Eyelet
9	0090807	Thread Lead-in Guide
10	3201481	Needle Bar Guard
11	3202021	Top Cover Thread Eyelet(Upper)
12	000531	Washer
13	110033	Screw(M3-0.5 × 6)
14	3120128	Thread Guide Eyelet
15	3201483	Needle Bar Thread Eyelet
16	000548	Washer
17	000515	Spacer
18	001923	Screw(9/64-40 × 14)
19	3201488	Needle Thread Take-up Guard
20	3200042	Looper Thread Eyelet
21	110013	Screw(M4-0.7 × 8)
22	3201484	Thread Eyelet Support
23	110009	Screw(M4-0.7 × 8)
24	0093535	Top Cover Thread Eyelet(Upper)
25	0037108	Supplementary Tension Disc
26	0032426	Tension Spring
27	270014	Screw(1/8-44 × 2.6)
28	0093365	Top Cover Thread Eyelet(Lower)
29	3209037	Main Feed Dog
30	3209036	Differential Feed Dog
31	0093352	Needle Clamp(40)
32	001900	Screw(1/8-44 × 2.4)
33	0093292	Presser Foot, Complete Set(40)
34	001186	Screw(9/64-40 × 7.8)
35	0091725	Presser Foot Spring
36	005133	Screw(1/8-44 × 4.5)
37	000220	Lock Nut
38	003300	Adjusting Screw(1/8-44 × 15)
39	0093287	Stitch Plate(40M)
40	0093357	Needle Clamp(56)

Page 68

Yamato VF2400 parts on page 68

Ref	Part number	Part name	Qty
	1	Knob
	2	Spring
	3	Washer
	4	Washer
	5	Washer
	6	Shaft
	7	Screw
	8	Bracket
	9	Lever
	10	Bracket
	11	Lever
	12	Screw
	13	Screw
	14	Screw
	15	Lever
	16	Washer
	17	Washer
	18	Screw
	19	Plate
	20	Bracket
	21	Screw
	22	Lever
	23	Screw
	24	Lever
	25	Washer
	26	Spring
	27	Screw
	28	Lever
	29	Lever
	30	Lever
	31	Presser Foot Holder
	32	Screw
	33	Presser Foot
	34	Screw
	35	Spring
	36	Screw
	37	Screw
	38	Spring
	39	Needle Plate
	40	Presser Foot Holder
	41	Screw
	42	Presser Foot
	43	Needle Plate
	44	Knob
	45	Screw
	46	Spring
	47	Washer
	48	Washer
	49	Washer
	50	Shaft
	51	Screw
	52	Lever
	53	Lever

Page 69 — VF2490, 2590 EXCLUSIVE PARTS

Yamato VF2400 parts on page 69

Ref	Part number	Part name	Qty
	001900	Screw(1/8-44 × 2.4)
	0095035	Presser Foot, Complete Set(56)
	0093289	Stitch Plate(56M)
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0030255	Needle Thread Tension Spring
	0090071	Thread Tension Spring Retainer
	000177	Felt
	0031111	Tension Disc
	290029	Tension Post
	0090812	Tension Post Ferrule
	0090856	Tension Disc Eyelet
	0090807	Thread Lead-in Guide

Page 70 — 28 VF2560, 2560-PA(1)

Yamato VF2400 parts on page 70

Ref	Part number	Part name	Qty
9	9	SCREW
6	6	BRACKET
7	7	WASHER
8	8	NUT
1	1	BRACKET
2	2	BRACKET
3	3	SCREW
4	4	WASHER
53	53	COVER
54	54	EXTRA PARTS
10	10	HANDLE
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	WASHER
20	20	SPRING
21	21	SCREW
22-1	22-1	NEEDLE BAR
22-2	22-2	NEEDLE BAR
22-3	22-3	NEEDLE BAR
23	23	NEEDLE
24	24	NEEDLE
25	25	SCREW
29	29	BRACKET
30	30	BRACKET
31	31	SCREW
32	32	WASHER
33	33	BRACKET
34	34	CONNECTING ROD
35	35	WASHER
36	36	WASHER
37	37	SCREW
38	38	CAP
39	39	SCREW
40	40	BRACKET
41	41	SHAFT
42-1	42-1	PRESSER FOOT
42-2	42-2	PRESSER FOOT
42-3	42-3	PRESSER FOOT
43	43	SCREW
44	44	PIN
45	45	SPRING
46	46	PIN
47	47	PIN
48	48	PIN
49-1	49-1	NEEDLE PLATE
49-2	49-2	NEEDLE PLATE
49-3	49-3	NEEDLE PLATE
50	50	SCREW
51	51	BRACKET
52	52	SCREW

Page 71 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 71

Ref	Part number	Part name	Qty
	3201481	Needle Bar Guard
	3202021	Top Cover Thread Eyelet(Upper)
	000531	Washer
	110033	Screw(M3-0.5 × 6)
	3120128	Thread Guide Eyelet
	3201483	Needle Bar Thread Eyelet
	000548	Washer
	000515	Spacer
	001923	Screw(9/64-40 × 14)
	0066646	Needle Thread Guide
	0066644	Needle Thread Take-up
	3202020	Top Cover Thread Guide
	3201488	Needle Thread Take-up Guard
	3200042	Looper Thread Eyelet
	110013	Screw(M4-0.7 × 8)
	3201484	Thread Eyelet Support
	110009	Screw(M4-0.7 × 8)
	0093535	Top Cover Thread Eyelet(Upper)
	0037108	Supplementary Tension Disc
	0032426	Tension Spring
	270014	Screw(1/8-44 × 2.6)
	3209121	Needle Clamp(56)
	3209123	Needle Clamp(60)
	3209122	Needle Clamp(64)
	--	Retainer(FLG-8)
	--	Needle(FL × 118GCS)
	160033	Screw(M2.5-0.45 × 3)
	3202024	Counterweight, Complete Set
	3202025	Counterweight
	120015	Screw(M5-0.8 × 10)
	0093214	Connecting Rod Ring
	3200114	Connecting Rod, Complete Set
	3200112	Connecting Rod
	0093212	Roller Bearing
	330000	Seal Plug
	000309	Oil Wick
	3200113	Connecting Rod Pin
	260000	Screw(5/16-24 × 15.88)
	3209312	Looper

Page 72

Yamato VF2400 parts on page 72

Ref	Part number	Part name	Qty
9	9	SCREW
1	1	BRACKET
2	2	BRACKET
3	3	WASHER
4	4	SCREW
5	5	NUT
6	6	BRACKET
7	7	WASHER
8	8	WASHER
10	10	HANDLE
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	WASHER
20	20	SPRING
21	21	SCREW
22-1	22-1	NEEDLE BAR
22-2	22-2	NEEDLE BAR
22-3	22-3	NEEDLE BAR
23	23	NEEDLE
24	24	NEEDLE
25	25	SCREW
29	29	BRACKET
30	30	BRACKET
31	31	SCREW
32	32	WASHER
33	33	BRACKET
34	34	CONNECTING ROD
35	35	GEAR
36	36	WASHER
37	37	SCREW
38	38	COVER
39	39	SCREW
40	40	BRACKET
41	41	SHAFT
42-1	42-1	BRACKET
42-2	42-2	BRACKET
42-3	42-3	BRACKET
43	43	SCREW
44	44	PIN
45	45	SPRING
46	46	PIN
47	47	PIN
48	48	PIN
49-1	49-1	BRACKET
49-2	49-2	BRACKET
49-3	49-3	BRACKET
50	50	SCREW
51	51	BRACKET
52	52	SCREW
53	53	COVER
54	54	EXTRA PARTS

Page 73 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

Yamato VF2400 parts on page 73

Ref	Part number	Part name	Qty
41	3209202	Needle Guard(Rear)
42-1	3207039	Presser Foot, C. Set(56)
42-2	3207052	Presser Foot, C. Set(60)
42-3	3207040	Presser Foot, C. Set(64)
43	001186	Screw(9/64-40 × 7.8)
44	3107303	Presser Foot Spring(Left)
45	3107304	Presser Foot Spring(Right)
46	0063284	Locking Pin
47	0063282	Presser Foot Hinge Pin
48	005122	Screw(3/32-56 × 5.5)
49-1	3207044	Presser Foot Stitch Tongue(56)
49-2	3207053	Presser Foot Stitch Tongue(60)
49-3	3207045	Presser Foot Stitch Tongue(64)
50	004182	Screw(3/32-56 × 2.5)
51	3207046	Fabric Guide
52	110027	Screw(M2.5-0.45 × 3.5)
53	3200035	Looper Thread Take-up Cover
54	3200262	Timing Gauge

Page 74 — 29 VF2560(2)

Yamato VF2400 parts on page 74

Ref	Part number	Part name	Qty
1	1	PIN
2	2	WASHER
3	3	CLAMP
4	4	SCREW
5	5	PIN
6	6	BRACKET
7	7	SCREW
8	8	KNOB
9	9	SPRING
10	10	COLLAR
11	11	WASHER
12	12	WASHER
13	13	SCREW
14	14	COLLAR
15	15	BRACKET
16	16	BRACKET
17	17	BEARING
18-1	18-1	NEEDLE PLATE
18-2	18-2	NEEDLE PLATE
18-3	18-3	NEEDLE PLATE
19	19	FEED DOG
20	20	FEED DOG
21	21	BASE PLATE
22	22	PLATE
23	23	COLLAR
24	24	COVER

Page 75 — VF2560 EXCLUSIVE PARTS (2)

Yamato VF2400 parts on page 75

Ref	Part number	Part name	Qty
1	190021	Screw(M4-0.7 × 12)	1
2	000538	Washer	2
3	0093538	Thread Pipe Stay	1
4	110013	Screw(M4-0.7 × 8)	1
5	0093538	Thread Pipe	1
6	0093556	Looper Thread Eyelet(Long)	1
7	004267	Screw(11/64-40 × 7.5)	1
8	0024084	Thread Tension Spring Cap	2
9	0030255	Needle Thread Tension Spring	2
10	0090071	Thread Tension Spring Retainer	2
11	000177	Felt	2
12	0031111	Tension Dise	4
13	290029	Tension Post	2
14	0090812	Tension Post Ferrule	2
15	0090856	Tension Dise Eyelet	2
16	0090807	Thread Lead-in Guide	2
17	000186	Washer	1
18-1	3208071	Stitch Plate(56S)	1
18-2	3208160	Stitch Plate(60S)	1
18-3	3208072	Stitch Plate(64S)	1
19	3209046	Main Feed Dog	1
20	3209047	Differential Feed Dog	1
21	3201162	Tension Disc Separator	1
22	3201163	Tension Post Support	1
23	0024083	Tension Spring Bushing	1
24	3200034	Front Cover	1

Page 76

Yamato VF2400 parts on page 76

Ref	Part number	Part name	Qty
1	1	BASE PLATE
2	2	COVER
3	3	SCREW
4	4	BASE PLATE
5	5	NEEDLE PLATE
6	6	SCREW
7	7	SCREW
8	8	BASE PLATE
9	9	SCREW
10	10	BRACKET
11	11	SCREW
12	12	PIN
13	13	FEED DOG
14	14	FEED DOG
15	15	KNOB
16	16	SPRING
17	17	COLLAR
18	18	WASHER
19	19	WASHER
20	20	SCREW
21	21	SCREW
22	22	BRACKET
23	23	BRACKET
24	24	SCREW

Page 77 — VF2560-PA EXCLUSIVE PARTS (2)

Yamato VF2400 parts on page 77

Ref	Part number	Part name	Qty
1	3202029	Cloth Plate(Large)	1
2	3201018	Front Cover	1
3	4017013	Return Spring	1
4	3201012	Cloth Plate(Small)	1
5	3208073	Stitch Plate(56S)	1
6	3201016	Corner Sewing Sleeve	2
7	009142	Screw(9/64-40 × 7.1)	2
8	3201014	Stitch Plate Support	1
9	3201015	Cylinder Support	1
10	110036	Screw(M3-0.5 × 6.5)	1
11	1091051	Air Cylinder	1
12	0010260	Vinyl Tube(4 × 2.5mm)
13	3209048	Main Feed Dog	1
14	3209049	Differential Feed Dog	1
15	0024084	Thread Tension Spring Cap	2
16	0030255	Needle Thread Tension Spring	2
17	0090071	Thread Tension Spring Retainer	2
18	000177	Felt	2
19	0031111	Tension Disc	4
20	290029	Tension Post	2
21	0090812	Tension Post Ferrule	2
22	0090856	Tension Disc Eyelet	2
23	0090807	Thread Lead-in Guide	2
24	0024083	Tension Spring Bushing	1

Page 78 — 31

Yamato VF2400 parts on page 78

Ref	Part number	Part name	Qty
1	1	CYLINDER
2	2	BRACKET
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	WASHER
7	7	SCREW
8	8	SCREW
9	9	BRACKET
10	10	SHAFT
11	11	WASHER
12	12	WASHER
13	13	AIR FILTER
14	14	SCREW
15	15	WASHER
16	16	WASHER
17	17	BRACKET
18	18	SCREW
19	19	BRACKET
20	20	NIPPLE
21	21	NIPPLE
22	22	TUBE
23	23	VALVE
24	24	VALVE
25	25	VALVE
26	26	VALVE
27	27	SCREW
28	28	VALVE
29	29	VALVE
30	30	VALVE
31	31	TUBE

Page 79 — VF2560-PA EXCLUSIVE PARTS (3)

Yamato VF2400 parts on page 79

Ref	Part number	Part name	Qty
	3209943	Presser Foot Lifter Mechanism, C. Set
	3101244	Presser Foot Lifter Cylinder, C. Set
	1091146	Air Cylinder
	3201037	Cylinder Rod Chip
	3101243	Cylinder Bracket
	000426	Washer
	120013	Screw(M6-1 × 15)
	0010055	Connector(φ 4-PT1/8)
	3201038	Lifter Lever Supplementary Plate
	005650	Screw(M5-0.8 × 14)
	000426	Washer
	000009	Nut
	1097009	Regulator
	110017	Screw(M5-0.8 × 8)
	000600	Spring Washer
	000426	Washer
	1253240	Regulator Support
	006905	Wood Screw(φ 5.1 × 20)
	1098015	Hose Band
	0010108	Hose Union
	0010264	Connector(φ 6-PT1/4)
	1096030	Air Tube(6 × 4mm)(Black)
	1090141	Solenoid Valve, C. Set
	0010263	Connector(φ 6-PT1/8)
	1097007	Silencer(φ 6-PT1/8)
	0010120	Solenoid
	009937	Wood Screw(φ 3.8 × 20)
	1200071	Cord(J)
	1094030	Y-Connector(φ 4-PT1/8)
	0010057	Elbow Connector(φ 4-PT1/8)
	1096029	Air Tube(4 × 2.5mm)(Black)

Page 80 — EC DEVICE

Yamato VF2400 parts on page 80

Ref	Part number	Part name	Qty
	1	EC DEVICE
	2	EC DEVICE
	3	BRACKET
	4	SCREW
	5	WASHER
	6	NUT
	7	BRACKET
	8	SCREW
	9	BRACKET
	10	SCREW
	11	BRACKET
	12	SCREW
	13	SCREW
	14	BRACKET
	15	SPRING
	16	BRACKET
	17	WASHER
	18	SCREW
	19	PIN
	20	SHAFT
	21	BRACKET
	22	SCREW
	23	BRACKET
	24	SCREW
	26	COLLAR
	27	SPRING
	28	WASHER
	29	BRACKET
	30	SCREW
	31	BRACKET
	32	SCREW
	33	MOTOR
	34	PRESSER FOOT
	35	SPRING
	36	CONTROL BOX
	37	SCREW
	38	COVER
	39	CIRCUIT BOARD
	40	BRACKET
	41	MOTOR
	42	WASHER
	43	NUT
	44	BRACKET
	45	BRACKET
	46	SCREW
	47	BASE PLATE
	48	BASE PLATE

Page 81

Yamato VF2400 parts on page 81

Ref	Part number	Part name	Qty
1	3209924	EC Device, Complete Set	1
2	3201122	Cutting Device, Complete Set	1
3	3201104	Cutting Device Basement	1
4	120011	Screw(M6-1 × 18)	2
5	000528	Washer	2
6	000011	Nut	4
7	0060248	Cord Clamp(3N- φ 5.3)	1
8	001175	Screw(9/64-40 × 8)	1
9	0092288	Cutting Knife Connecting Lever	1
10	005115	Screw(1/4-28 × 19)	1
11	0092286	Sliding Block	1
12	0092287	Sliding Block Pin	1
13	003638	Screw(11/64-40 × 4)	3
14	3201106	Upper Cutting Knife Holder	1
15	003670	Screw(7/32-32 × 6.3)	2
16	3201105	Upper Cutting Knife	1
17	000538	Washer	2
18	002308	Screw(11/64-40 × 10.4)	2
19	006245	Adjusting Screw(11/64-40 × 11.5)	1
20	0092283	Upper Cutting Knife Holder Shaft	1
21	0092289	Cutting Knife Cover	1
22	004440	Screw(11/64-40 × 8.3)	2
23	0092285	Lower Cutting Knife	1
24	005550	Screw(11/64-40 × 13.5)	2
26	0092294	Collar(10 × 18 × 7.5mm)	1
27	0092292	Press Spring	1
28	000498	Washer	1
29	0092291	Return Spring	1
30	005512	Screw(11/64-40 × 3)	1
31	0092293	Return Spring Latch	1
32	003635	Screw(1/4-40 × 6)	1
33	0011789	Solenoid	1
34	0092298	Fabric Guide	1
35	004314	Screw(1/8-44 × 5.6)	1
36	0011709	Control Box Stay	2
37	006905	Wood Screw(φ 5.1 × 20)	4
38	0011957	Control Box, Complete Set	1
39	0011952	Control Board	1
40	0010565	Knee Switch, Complete Set	1
41	0010564	Knee Switch	1
42	300031	Washer	4
43	300033	Spring Washer	2
44	100038	Wing Nut	2
45	0092232	Knee Switch Holder	1
46	006910	Wood Screw(φ 6.8 × 26)	2
47	3201121	Stitch Plate Support	1
48	3201100	Cloth Plate(Large)	1

Page 82

Yamato VF2400 parts on page 82

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	WASHER
3	3	BRACKET
4	4	SCREW
5	5	BRACKET
6	6	WASHER
7	7	SENSOR
8	8	SCREW
9	9	BRACKET
10	10	HARNESS
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	WASHER
15	15	SCREW
16	16	BRACKET
17	17	BRACKET
18	18	TERMINAL BLOCK
19	19	SCREW
20	20	COVER
21	21	PRINTED CIRCUIT BOARD
22	22	BRACKET
23	23	PULLEY
24	24	WASHER
25	25	SCREW
26	26	BRACKET
27	27	BRACKET
28	28	SCREW
29	29	HARNESS
30-1	30-1	HARNESS
30-2	30-2	HARNESS
30-3	30-3	HARNESS
30-4	30-4	HARNESS
31	31	BRACKET
32	32	SCREW
33	33	WASHER

Page 83

Yamato VF2400 parts on page 83

Ref	Part number	Part name	Qty
	3204052	Handwheel
	0092305	Magnet
	1200038	Rotation Detector Unit
	110013	Screw(M4-0.7 × 8)
	3201103	Light Emitter Support
	000538	Washer
	0011228	Light Emitter Unit
	004314	Screw(1/8-44 × 5.6)
	3201102	Stitch Plate Support
	1200068	Emission Catcher Unit
	0092335	Insulating Plate
	110007	Screw(M2.5-0.45 × 6)
	0024302	Cord Stay
	110008	Screw(M4-0.7 × 5)
	110013	Screw(M4-0.7 × 8)
	0094491	Cord Clamp(2N- φ 3.3)
	0023381	Cord Clamp(6N- φ 10.6)
	0011709	Control Box Stay
	006905	Wood Screw(φ 5.1 × 20)
	1249020	Control Box, Complete Set
	1057087	Control Board
	0011192	Knee Switch, Complete Set
	0011189	Knee Switch
	300031	Washer
	300033	Spring Washer
	100038	Wing Nut(M4-0.7)
	0092232	Knee Switch Holder
	006910	Wood Screw(φ 6.8 × 26)
	1200040	Stop Cord
	0011943	Power Cord(for 100 Voltage)
	0011944	Power Cord(for 200 Voltage)
	0011945	Power Cord(for 220 Voltage)
	0011946	Power Cord(for 380 Voltage)
	3201373	Magnet Holder, C. Set
	3201374	Magnet Holder
	110036	Screw(M3-0.5 × 6.5)

Page 84

Yamato VF2400 parts on page 84

Ref	Part number	Part name	Qty
	1	EU5 DEVICE (2)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37	VF2400
	38	VF2500
	39-1	VF2403
	39-2	VF2403
	39-3	VF2403
	40	VF2403-11
	41-1	VF2404
	41-2	VF2404
	42-1	VF2503
	42-2	VF2503
	43-1	VF2503-11
	43-2	VF2503-11
	43-3	VF2503-11
	44	VF2503-21

Page 85

Yamato VF2400 parts on page 85

Ref	Part number	Part name	Qty
	3201107	Cutting Device, Complete Set	1
	3201104	Cutting Device Basement	1
	120011	Screw(M6-1 × 18)	2
	1200069	Solenoid	1
	000528	Washer	2
	000011	Nut	4
	0060248	Cord Clamp(3N- φ 5.3)	1
	001175	Screw(9/64-40 × 8)	1
	0092288	Cutting Knife Connecting Lever	1
	005115	Screw(1/4-28 × 19)	1
	0092286	Sliding Block	1
	0092287	Sliding Block Pin	1
	003638	Screw(11/64-40 × 4)	3
	3201106	Upper Cutting Knife Holder	1
	003670	Screw(7/32-32 × 6.3)	2
	3201105	Upper Cutting Knife	1
	000538	Washer	2
	002308	Screw(11/64-40 × 10.4)	2
	006245	Adjusting Screw(11/64-40 × 11.5)	1
	0092283	Upper Cutting Knife Holder Shaft	1
	0092289	Cutting Knife Cover	1
	004440	Screw(11/64-40 × 8.3)	2
	0092285	Lower Cutting Knife	1
	005550	Screw(11/64-40 × 13.5)	2
	0092294	Collar(10 × 18 × 7.5mm)	1
	0092292	Press Spring	1
	000498	Washer	1
	0092291	Return Spring	1
	005512	Screw(11/64-40 × 3)	1
	0092293	Return Spring Latch	1
	003635	Screw(1/4-40 × 6)	1
	3201100	Cloth Plate(Large)	1
	3201101	Cloth Plate(Small)	1
	0092298	Fabric Guide	1
	004314	Screw(1/8-44 × 5.6)	1
	3208017	Stitch Plate(40M)	1
	3208015	Stitch Plate(56M)	1
	3208075	Stitch Plate(32M)	1
	3208076	Stitch Plate(40M)	1
	3208077	Stitch Plate(48M)	1
	3208023	Stitch Plate(40M)	1
	3208076	Stitch Plate(40M)	1
	0094212	Stitch Plate(48M)	1
	3208078	Stitch Plate(56M)	1
	3208079	Stitch Plate(64M)	1
	3208053	Stitch Plate(48M)	1
	3208016	Stitch Plate(56M)	1
	3208018	Stitch Plate(64M)	1
	3208143	Stitch Plate(56M)	1

Page 86

Yamato VF2400 parts on page 86

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	PIN
3	3	BRACKET
4	4	SCREW
5	5	BRACKET
6	6	SCREW
7	7	SCREW
8	8	BRACKET
9	9	BOX
10	10	BRACKET
11	11	BOX
12	12	CABLE
13	13	BRACKET
14	14	SCREW
15	15	BRACKET
16	16	SCREW
17	17	SCREW
18	18	BRACKET
19	19	SCREW
20	20	BRACKET
21	21	SCREW
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	CONNECTOR
26	26	SCREW
27	27	BOX
28	28	CIRCUIT BOARD
29	29	CIRCUIT BOARD
30	30	BRACKET
31	31	BRACKET
32	32	WASHER
33	33	NUT
34	34	WING NUT
35	35	BRACKET
36	36	SCREW
37-1	37-1	CABLE
37-2	37-2	CABLE
37-3	37-3	CABLE
37-4	37-4	CABLE
38	38	CABLE
39	39	CABLE

Page 87

Yamato VF2400 parts on page 87

Ref	Part number	Part name	Qty
1	3204052	Handwheel
2	0092305	Magnet
3	1200038	Rotation Detector Unit
4	110013	Screw(M4-0.7 × 8)
5	3201103	Light Emitter Support
6	110048	Screw(M4-0.7 × 10)
7	000538	Washer
8	1200137	Light Emitter Unit(for PS2)
9	0011228	Light Emitter Unit(for EU5)
10	004314	Screw(1/8-44 × 5.6)
11	3201102	Stitch Plate Support
12	1200068	Emission Catcher Unit(for EU5)
13	0092335	Insulating Plate
14	110007	Screw(M2.5-0.45 × 6)
15	0024302	Cord Stay
16	110008	Screw(M4-0.7 × 5)
17	110013	Screw(M4-0.7 × 8)
18	3201132	Front Cover(Small)
19	110035	Screw(M4-0.7 × 10)
20	1200138	Emission Catcher Unit(for PS2)
21	110038	Screw(M2.5-0.45 × 4.5)
22	3201131	Front Cover
23	0094491	Cord Clamp(2N- Φ 3.3)
24	0023381	Cord Clamp(6N- Φ 10.6)
25	0011709	Control Box Stay
26	006905	Wood Screw(Φ 5.1 × 20)
27	1249046	Control Box, Complete Set
28	1057028	Photoelectric Board
29	1057087	Control Board
30	0011192	Knee Switch, Complete Set
31	0011189	Knee Switch
32	300031	Washer
33	300033	Spring Washer
34	100038	Wing Nut(M4-0.7)
35	0092232	Knee Switch Holder
36	006910	Wood Screw(Φ 6.8 × 26)
37-1	0011943	Power Cord(for 100 Voltage)
37-2	0011944	Power Cord(for 200 Voltage)
37-3	0011945	Power Cord(for 220 Voltage)
37-4	0011946	Power Cord(for 380 Voltage)
38	1200132	Power Signal Cord
39	1200040	Motor Cord

Page 88

Yamato VF2400 parts on page 88

Ref	Part number	Part name	Qty
	1	EU5/PS2 DEVICE(2)
	2	BASE
	3	BRACKET
	4	MOTOR
	5	WASHER
	6	SCREW
	7	CLAMP
	8	SCREW
	9	SHAFT
	10	SCREW
	11	BRACKET
	12	SCREW
	13	SCREW
	14	ARM
	15	SCREW
	16	BRACKET
	17	WASHER
	18	SCREW
	19	SHAFT
	20	SHAFT
	21	BRACKET
	22	SCREW
	23	BRACKET
	24	SCREW
	26	COLLAR
	27	SPRING
	28	WASHER
	29	SPRING
	30	SCREW
	31	BRACKET
	32	SCREW
	33	BASE PLATE
	34	BASE PLATE
	35	PRESSER FOOT HOLDER
	36	SCREW
	37	NEEDLE PLATE

Page 89

Yamato VF2400 parts on page 89

Ref	Part number	Part name	Qty
	3201107	Cutting Device, Complete Set	1
	3201104	Cutting Device Basement	1
	120011	Screw(M6-1 × 18)	2
	1200069	Solenoid	1
	000528	Washer	2
	000011	Nut	4
	0060248	Cord Clamp(3N- φ 5.3)	1
	001175	Screw(9/64-40 × 8)	1
	0092288	Cutting Knife Connecting Lever	1
	005115	Screw(1/4-28 × 19)	1
	0092286	Sliding Block	1
	0092287	Sliding Block Pin	1
	003638	Screw(11/64-40 × 4)	3
	3201106	Upper Cutting Knife Holder	1
	008670	Screw(7/32-32 × 6.3)	2
	3201105	Upper Cutting Knife	1
	000538	Washer	2
	002308	Screw(11/64-40 × 10.4)	2
	006245	Adjusting Screw(11/64-40 × 11.5)	1
	0092283	Upper Cutting Knife Holder Shaft	1
	0092289	Cutting Knife Cover	1
	004440	Screw(11/64-40 × 8.3)	2
	0092285	Lower Cutting Knife	1
	005550	Screw(11/64-40 × 13.5)	2
	0092294	Collar(10 × 18 × 7.5mm)	1
	0092292	Press Spring	1
	000498	Washer	1
	0092291	Return Spring	1
	005512	Screw(11/64-40 × 3)	1
	0092293	Return Spring Latch	1
	003635	Screw(1/4-40 × 6)	1
	3201100	Cloth Plate(Large)	1
	3201101	Cloth Plate(Small)	1
	0092298	Fabric Guide	1
	004314	Screw(1/8-44 × 5.6)	1
	3208076	Stitch Plate(40M)	1

Page 90 — FC DEVICE

Yamato VF2400 parts on page 90

Ref	Part number	Part name	Qty
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28

Page 91

Yamato VF2400 parts on page 91

Ref	Part number	Part name	Qty
1	3209920	FC Device, Complete Set	1
2	0090711	Cutting Knife Lever Spring Hanger	1
3	110009	Screw(M4-0.7 × 8)	1
4	0091842	Cutting Knife Lever Spring	1
5	3201114	Cutting Knife Lever	1
6	003393	Screw(5/32-40 × 3.2)	1
7	006638	Screw(5/32-40 × 9.5)	1
8	007650	Screw(11/64-40 × 5)	3
9	0091841	Cutting Knife Lever Pin	1
10	3201112	Cutting Device Holder	1
11	120026	Screw(M5-0.8 × 18)	2
12	002308	Screw(11/64-40 × 10.4)	1
13	000340	Nut	1
14	1091835	Cutting Knife Holder Pin	1
15	3201113	Cutting Knife Holder	1
16	009150	Screw(11/64-40 × 11)	2
17	0091833	Cutting Knife(Upper)	1
18	004440	Screw(11/64-40 × 8.3)	4
19	0091838	Cutting Knife Spring	1
20	0091839	Cutting Knife(Lower)	1
21	001156	Screw(11/64-40 × 13.3)	2
22	0091837	Cutting Knife Cover	1
23	006245	Adjusting Screw(11/64-40 × 11.5)	1
24	0092298	Fabric Guide	1
25	009740	Screw(M6-1 × 10)	1
26	160003	Screw(M5-0.8 × 5)	1
27	330000	Seal Plug	1
28	3201111	Cloth Plate(Large)	1

Page 92 — 38 AU2-1 DEVICE(1)

Yamato VF2400 parts on page 92

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
7-1	7-1	7-1
7-2	7-2	7-2
8	8	8
9	9	9
10	10	10
11	11	11
12-1	12-1	12-1
12-2	12-2	12-2
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
19-1	19-1	19-1
19-2	19-2	19-2
20	20	20
21	21	21
22	22	22

Page 93

Yamato VF2400 parts on page 93

Ref	Part number	Part name	Qty
1	3204052	Handwheel
2	0092305	Magnet
3	1200038	Rotation Detector Unit
4	110013	Screw(M4-0.7 × 8)
5	0063612	Cord Clamp(4N- φ 6.8)
7-1	3101476	Light Emitter Support
7-2	3201138	Light Emitter Support(-21/AU2-1)
8	000538	Washer
9	0011228	Light Emitter Unit
10	004314	Screw(1/8-44 × 5.6)
11	0094491	Cord Clamp(2N- φ 3.3)
12-1	3201128	Stitch Plate Support
12-2	3201136	Stitch Plate Support(-21/AU2-1)
13	1200234	Emission Catcher Unit
14	1055084	Insulating Plate
15	007630	Screw(M2.5-0.45 × 1.8)
16	0024302	Cord Stay
17	110008	Screw(M4-0.7 × 5)
18	3201125	Cloth Plate(Large)
19-1	3201126	Cloth Plate(Small)
19-2	3201137	Cloth Plate(Small)(-21/AU2-1)
20	3201127	Looper Thread Take-up Cover
21	0095961	Presser Bar
22	110009	Screw(M4-0.7 × 8)

Page 94

Yamato VF2400 parts on page 94

Ref	Part number	Part name	Qty
	1	AU2-1 DEVICE (2)
	2	BRACKET
	3	SCREW
	4	O-RING
	5	CYLINDER
	6	SPRING SEAT
	7	SPRING
	8	WASHER
	9	WASHER
	10	PLUNGER
	11	WASHER
	12	O-RING
	13	SHAFT
	14	BEARING
	15	BASE
	16	COLLAR
	17	LINK
	18	SCREW
	19	BRACKET
	20	PIN
	21	WASHER
	22	ROLLER
	23	LEVER
	24	SPRING
	25	SCREW
	26	PLATE
	27	SCREW
	28	PIN
	29	SCREW
	30	COLLAR
	31	SPRING
	32	SCREW
	33	NUT
	34	BASE
	35-1	SCREW
	35-2	SCREW
	36	WASHER
	37-1	SCREW
	37-2	SCREW
	38	SCREW
	39	BRACKET
	40	BRACKET
	41	WASHER
	42	NIPPLE
	43	WASHER

Page 95

Yamato VF2400 parts on page 95

Ref	Part number	Part name	Qty
	3101497	Cutting Device, Complete Set
	3002009	Bracket(Right)
	120021	Screw(M5-0.8 × 60)
	3002026	O-ring
	3002010	Cylinder
	009935	Screw(M5-0.8 × 20)
	3002029	Wear Ring
	300038	Washer
	3002027	Rubber Cushion
	3002028	Piston
	3002030	Piston Seal
	3002031	O-ring
	3002011	Piston Shaft
	3002032	Piston Shaft Seal
	3002008	Bracket(Left)
	3002012	Piston Shaft Bushing
	3002013	Piston Rod Holder
	120008	Screw(M4-0.7 × 8)
	3002014	Piston Rod
	3002016	Link Pin
	160000	Screw(M3-0.5 × 3)
	0095980	Piston Rod Bearing
	3002015	Piston Link
	3002017	Upper Cutting Knife Holder
	160001	Screw(M4-0.7 × 4)
	3002018	Upper Cutting Knife
	130002	Screw(M3-0.5 × 6)
	3002019	Cutting Knife Press Shaft
	3002020	Shaft Bushing(Long)
	3002021	Shaft Bushing(Short)
	0095940	Upper Cutting Knife Spring
	3002022	Cutting Knife Press Screw
	3002023	Lock Nut
	3002007	Cutting Device Basement
	120026	Screw(M5-0.8 × 18)
	120026	Screw(M5-0.8 × 18) (for VF)
	000669	Washer
	120017	Screw(M5-0.8 × 15)
	120017	Screw(M5-0.8 × 15) (for VC)
	120015	Screw(M5-0.8 × 10)
	3101492	Lower Cutting Knife
	3002025	Cutting Knife Cover
	000665	Washer
	0010263	Connector(Φ 6-PT1/8)
	3101498	Spacer

Page 96 — 40 AU2-1 DEVICE(3)

Yamato VF2400 parts on page 96

Ref	Part number	Part name	Qty
	1	CLAMP
	2	UNION
	3	REGULATOR
	4	SCREW
	5	WASHER
	6	NUT
	8	BRACKET
	9	SCREW
	10	UNION
	11	TUBE
	12	CONNECTOR
	13	BODY
	14	LEVER
	15	UNION
	16	UNION
	17	UNION
	19	PRINTED CIRCUIT BOARD
	20	BRACKET
	21	BRACKET
	22	WHEEL
	23	SCREW
	24	WASHER
	25	FAN
	26	BRACKET
	27	SCREW
	28	CABLE
	29-1	CONNECTOR
	29-2	CONNECTOR
	29-3	CONNECTOR
	29-4	CONNECTOR

Page 97

Yamato VF2400 parts on page 97

Ref	Part number	Part name	Qty
	1098015	Hose Band
	0010108	Hose Union
	1097009	Regulator
	110017	Screw(M5-0.8 × 8)
	000600	Spring Washer
	000426	Washer
	1253240	Regulator Support
	006905	Wood Screw(φ 5.1 × 20)
	0010264	Connecting(φ 6-PT1/4)
	1096030	Air Tube(6 × 4mm)(Black)
	0010123	Solenoid Valve, C. Set
	0010120	Solenoid Valve, C. Set
	1200037	Cord(F)
	0010263	Connector(φ 6-PT1/8)
	1097007	Silencer(φ 6-PT1/8)
	009937	Wood Screw(φ 3.8 × 20)
	1249224	Control Box, Complete Set
	1057155	Control Board
	0011709	Control Box Stay
	0011192	Knee Switch, Complete Set
	0011189	Knee Switch, Complete Set
	300031	Washer
	300033	Spring Washer
	100038	Wing Nut(M4-0.7)
	0092232	Knee Switch Holder
	006910	Wood Screw(φ 6.8 × 26)
	1200040	Stop Cord
	0011943	Power Cord(for 100 Voltage)
	0011944	Power Cord(for 200 Voltage)
	0011945	Power Cord(for 220 Voltage)
	0011946	Power Cord(for 380 Voltage)

Page 98 — AU2-1 DEVICE(4)

Yamato VF2400 parts on page 98

Ref	Part number	Part name	Qty
	1-1	1-1
	1-2	1-2
	1-3	1-3
	1-4	1-4
	1-5	1-5
	2	2
	3	3
	4	4
	5	5
	6	6
	7-1	7-1
	7-2	7-2
	7-3	7-3
	7-4	7-4
	7-5	7-5
	8-1	8-1
	8-2	8-2
	9-1	9-1
	9-2	9-2
	9-3	9-3
	9-4	9-4
	10	10
	11	11
	12	12
	13-1	13-1
	13-2	13-2
	13-3	13-3
	13-4	13-4
	14	14

Page 99

Yamato VF2400 parts on page 99

Ref	Part number	Part name	Qty
1-1	0096271	Presser Foot, C. Set(40)
1-2	0096272	Presser Foot, C. Set(48)
1-3	3207026	Presser Foot, C. Set(56)
1-4	3207030	Presser Foot, C. Set(64)
1-5	0096270	Presser Foot, C. Set(32)(Extra)
2	001186	Screw(9/64-40 × 7.8)
3	0091725	Presser Foot Spring
4	005133	Screw(1/8-44 × 4.5)
5	000220	Lock Nut
6	003300	Adjusting Screw(1/8-44 × 15)
7-1	0096341	Stitch Plate(32M)(Extra)
7-2	0096342	Stitch Plate(40M)
7-3	0096343	Stitch Plate(48M)
7-4	3208050	Stitch Plate(56M)
7-5	3208051	Stitch Plate(64M)
8-1	3209022	Main Feed Dog(32, 40, 48, 56)
8-2	3209042	Main Feed Dog(64)
9-1	3207204	Presser Foot, C. Set(32)
9-2	3207177	Presser Foot, C. Set(56)
9-3	3207180	Presser Foot, C. Set(64)
9-4	3207175	Presser Foot, C. Set(48)(Extra)
10	0091696	Presser Foot Hinge Pin
11	3207160	Top Guide
12	001230	Screw(3/32-56 × 3.8)
13-1	3208056	Stitch Plate(32M)
13-2	3208049	Stitch Plate(56M)
13-3	3208054	Stitch Plate(64M)
13-4	3208048	Stitch Plate(48M)(Extra)
14	3209066	Main Feed Dog

Page 100 — K1 DEVICE for VF2400, 2500, 2560

Yamato VF2400 parts on page 100

Ref	Part number	Part name	Qty
	1	K1 DEVICE
	2	SHAFT
	3	COLLAR
	4	SHAFT
	5	SCREW
	6	WASHER
	7	COLLAR
	8	LEVER
	9	SCREW
	10	WASHER
	11	SCREW
	12	BRACKET
	13	PIN
	14	WASHER
	15	WASHER
	16	SCREW
	17	PLATE
	18	SCREW
	19-1	BRACKET
	19-2	BRACKET
	20	ARM
	21	SCREW
	22	BASE
	23-1	COVER
	23-2	COVER
	24	COVER
	25	WASHER
	26	BASE
	27	NEEDLE PLATE
	28-1	NEEDLE BAR BUSHING
	29-1	NEEDLE PLATE
	29-2	NEEDLE PLATE
	28-1	NEEDLE BAR BUSHING
	28-2	NEEDLE BAR BUSHING
	30-1	NEEDLE PLATE
	30-2	NEEDLE PLATE
	30-3	NEEDLE PLATE

Page 101 — K1 DEVICE for VF2400, 2500, 2560

Yamato VF2400 parts on page 101

Ref	Part number	Part name	Qty
	3209923	K1 Device, Complete Set
	3201141	Feed Bar Driving Shaft
	0093303	Oil Seal
	3201140	Cutting Knife Main Lever
	120006	Screw(M6-1 × 12)
	000567	Packing Piece
	3201142	Ball Stud
	0095466	Cutting Knife Driving Link
	170029	Screw(M4-0.7 × 8)
	300017	Washer
	005572	Screw(9/64-40 × 3.57)
	0095463	Cutting Knife(Lower)
	0095465	Cutting Knife Holder Pin
	0095464	Cutting Knife(Lower) Spring
	000014	Washer
	005571	Screw(3/32-56 × 4)
	0095462	Cutting Plate
	005328	Screw(29/256-48 × 6.5)
	0095471	Cahin-off Guide(Small Mouth)
	0095472	Cahin-off Guide(Large Mouth)
	0095458	Suction Pipe Unit
	110009	Screw(M4-0.7 × 8)	2
	3201143	Stitch Plate Support
	3201144	Looper Thread Take-up Cover(40, 48, 56)
	3201145	Looper Thread Take-up Cover(64)(VF2560)
	3201147	Cloth Plate(Large)
	300006	Spacer
	3201146	Cloth Plate(Small)
	0095541	Stitch Plate(40M)
	3209000	Main Feed Dog(40, 56)
	3209002	Main Feed Dog(64)
	0095456	Stitch Plate(56M)
	0095457	Stitch Plate(64M)
	3208074	Stitch Plate(56S)
	3208161	Stitch Plate(60S)
	3208086	Stitch Plate(64S)

Page 102

Yamato VF2400 parts on page 102

Ref	Part number	Part name	Qty
	1	C DEVICE
	2	REGULATOR
	3	NIPPLE
	4	REGULATOR
	5	SCREW
	6	WASHER
	7	WASHER
	8	NUT
	9	BRACKET
	10	SCREW
	11	NIPPLE
	12	TUBE
	13	BRACKET ASSEMBLY
	14	SPRING
	15	SCREW
	16	SPRING
	17	BRACKET
	18	BRACKET
	19	NUT
	20	SCREW
	21	VALVE ASSEMBLY
	22	VALVE
	23	WASHER
	24	SCREW
	25	NIPPLE
	26	TUBE CONNECTOR
	27	CLAMP
	28	TUBE
	29	TUBE
	30	BRACKET
	31	SCREW

Page 103

Yamato VF2400 parts on page 103

Ref	Part number	Part name	Qty
	2109932	C Device, Complete Set	1
	1098015	Hose Band
	1094011	Hose Nipple(PT1/8 × 8)
	1097000	Regulator
	009960	Screw(M5-0.8 × 16)
	000669	Washer
	000600	Spring Washer
	000009	Nut
	1097001	Regulator Support
	006905	Wood Screw(φ 5.1 × 20)
	0010263	Connector(φ 6-PT1/8)
	1096000	Air Hose(4 × 6 × 2000mm)
	1298000	Air Valve, Complete Set
	0033938	Collar(6.4 × 13 × 9mm)
	005040	Screw(11/64-40 × 8.5)
	0033937	Return Spring
	0033936	Air Valve Holder
	0033935	Air Valve Stop
	000334	Nut
	005505	Adjusting Screw(11/64-40 × 16)
	1090133	TAC Valve, Complete Set
	0010052	TAC Valve
	000623	Gasket
	0010112	Joint
	0010290	Connector(φ 6-PT1/8)
	0010310	Venturi Tube
	1098015	Hose Band
	1096004	Air Hose(12 × 18 × 1500mm)
	1096005	Air Hose(12 × 18 × 500mm)
	0011987	UL Clamp
	009814	Wood Screw(φ 3.1 × 20)

Page 104

Yamato VF2400 parts on page 104

Ref	Part number	Part name	Qty
	1	S1 DEVICE
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63

Page 105 — S1 DEVICE

Yamato VF2400 parts on page 105

Ref	Part number	Part name	Qty
1	3209926	S1 Device, Complete Set
2	3201329	Tape Holder
3	190021	Screw(M4-0.7 × 12)
4	000538	Washer
5	110048	Screw(M4-0.7 × 10)
6	190044	Screw(M4-0.7 × 12)
7	3201134	Tension Guide Support
8	009784	Screw(M6-1 × 10)
9	0096066	Tension Guide
10	007627	Screw(M4-0.7 × 6)
11	000665	Washer
12	190022	Screw(M4-0.7 × 12, M5-0.8 × 21)
13	000669	Washer
14	0095269	Tape Guide Bar Holder
15	000600	Spring Washer
16	100028	Wing Nut
17	0095270	Tape Guide Bar
18	009604	Screw(11/64-40 × 5.5)
19	0095296	Tape Guide Unit
20	0095272	Tape Guide
21	001892	Screw(1/8-44 × 2.9)
22	3101270	Knee Press Complete Set
23	0064179	Knee Press Support
24	006910	Wood Screw(φ 6.8 × 26)
25	000428	Washer
26	000731	Pin
27	0064187	Knee Press Pin
28	0068202	Retaining Ring
29	0064180	Knee Press Return Spring
30	0064181	Knee Press Connecting Block
31	004474	Screw(3/16-32 × 6.4)
32	0064186	Knee Press Connecting Shaft
33	0067082	Knee Press Shaft
34	0064182	Knee Press
35	004635	Screw(1/4-40 × 14)
36	0037912	Chain
37	3209927	Driving Guide, Complete Set
38	3201133	Guide Holder
39	0096177	Guide Holder Fixing Plate
40	110011	Screw(M5-0.8 × 10)

Page 106 — 44 S1 DEVICE

Yamato VF2400 parts on page 106

Ref	Part number	Part name	Qty
	1	S1 DEVICE
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63

Page 107

Yamato VF2400 parts on page 107

Ref	Part number	Part name	Qty
41	0096163	Slider
42	0096164	Slider Ling
43	007620	Screw(9/64-40 × 6.3)
44	0094403	Slider Ling Stop
45	001225	Screw(1/8-44 × 2.8)
46	0096166	Elastic Tape Guide
47	004236	Screw(3/32-56 × 4.2)
48	000014	Washer
49	0096167	Elastic Tape Guide Tube
50	0096161	Guide Link
51	006120	Screw(11/64-40 × 5)
52	000511	Washer
53	000451	Nut
54	000613	Washer
55	006046	Screw(3/16-32 × 4.5)
56	0063428	Guide Lever Link
57	006075	Screw(11/64-40 × 6)
58	0034979	Guide Lever Link Bushing
59	000334	Nut
60	0096178	Guide Lever
61	170033	Screw(M6-1 × 8)
62	0095027	Retaining Ring
63	0096159	Guide Lever Spring

Page 108

Yamato VF2400 parts on page 108

Ref	Part number	Part name	Qty
1	1-1	VF2400 "L" type
1	1-2	VF2400 "L" type
1	1-3	VF2400 "L" type
2	2-1	VF2500 "L" type
2	2-2	VF2500 "L" type
3	3	VF2500 with Fabric Guide
4	4	VF2500 with Fabric Guide
5	5	VF2500 with Fabric Guide
6	6	VF2400 "S2" type
7	7	VF2500 "S2" type
17	17	Hard plating
8-1	8-1	Solid type
8-2	8-2	Solid type
8-3	8-3	Solid type
8-4	8-4	Solid type
8-5	8-5	Solid type
8-6	8-6	Solid type
8-7	8-7	Solid type
9	9	Solid type
10	10	Solid type
11	11	Solid type
12	12	Solid type
13-1	13-1	with Tape Guide
13-2	13-2	with Tape Guide
5	5	with Tape Guide
9	9	with Tape Guide
10	10	with Tape Guide
11	11	with Tape Guide
12	12	with Tape Guide
14	14	with Tape Guide
15-1	15-1	with Tape Guide
15-2	15-2	with Tape Guide
5	5	with Tape Guide
9	9	with Tape Guide
10	10	with Tape Guide
11	11	with Tape Guide
12	12	with Tape Guide
16	16	with Tape Guide
18	18	VF2500-160M
19	19	VF2500-160M
20	20	VF2500-160M
21	21	VF2500-160M
22	22	VF2500-160M
23	23	VF2500-160M
24	24	VF2500-160M
25	25	VF2500-160M
26	26	VF2500-160M
27	27	VF2500-160M
28	28	VF2500-160M

Page 109 — EXTRA PARTS(1)

Yamato VF2400 parts on page 109

Ref	Part number	Part name	Qty
1-1	0095490	Stitch Plate(32L)
1-2	0095491	Stitch Plate(40L)
1-3	0095492	Stitch Plate(48L)
2-1	0095493	Stitch Plate(56L)
2-2	0095454	Stitch Plate(64L)
3	3208045	Stitch Plate(56)
4	0094615	Fabric Guide
5	001228	Screw(3/32-56 × 3.2)
6	3108199	Stitch Plate(04S2)
7	3108201	Stitch Plate(56S2)
8-1	0095580	Presser Foot, C. Set(32)(2 Needle)
8-2	0095581	Presser Foot, C. Set(40)(2 Needle)
8-3	0095582	Presser Foot, C. Set(48)(2 Needle)
8-4	0095584	Presser Foot, C. Set(64)(2 Needle)
8-5	0095586	Presser Foot, C. Set(48)(3 Needle)
8-6	0095587	Presser Foot, C. Set(56)(3 Needle)
8-7	0095588	Presser Foot, C. Set(64)(3 Needle)
9	001186	Screw(9/64-40 × 7.8)
10	0095641	Presser Foot Spring
11	005133	Screw(1/8-44 × 4.5)
12	0095642	Retaining Ring
13-1	3007029	Presser Foot, C. Set(40)(VF2400)
13-2	3007030	Presser Foot, C. Set(56)(VF2500)
14	3000009	Tape Guide
15-1	0095730	Presser Foot, C. Set(40)(VF2400)
15-2	0095731	Presser Foot, C. Set(56)(VF2500)
16	0095728	Tape Guide
17	0095174	Looper(Hard plating)
18	3097038	Presser Foot, Complete Set(60)
19	001186	Screw(9/64-40 × 7.8)
20	3107303	Presser Foot Spring(Left)
21	3107304	Presser Foot Spring(Right)
22	0063284	Locking Pin(60)
23	0063282	Presser Foot Hinge Pin(60)
24	005122	Screw(3/32-56 × 5.5)
25	3098038	Stitch Plate(60M)
26	3099132	Needle Clamp(60)
27	001900	Screw(1/8-44 × 2.4)
28	3209002	Main Feed Dog(60)

Page 110 — EXTRA PARTS (2)

Yamato VF2400 parts on page 110

Ref	Part number	Part name	Qty
	1-1	1-1
	2-1	2-1
	3-1	3-1
	4-1	4-1
	6-1	VF2403
	6-3	VF2503
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16-1	16-1
	17	17

Page 111 — EXTRA PARTS(2)

Yamato VF2400 parts on page 111

Ref	Part number	Part name	Qty
1-1	3209004	Main Feed Dog(32, 40, 48, 56)	1
1-2	3209006	Main Feed Dog(64)	1
2-1	0094281	Stitch Plate(32M)	1
2-2	0094282	Stitch Plate(40M)	1
2-3	0094283	Stitch Plate(48M)	1
2-4	0094285	Stitch Plate(64M)	1
3-1	3208025	Stitch Plate(48M)	1
3-2	0094921	Stitch Plate(56M)	1
3-3	0094922	Stitch Plate(64M)	1
4-1	0092324	Stitch Plate(32M)	1
4-2	0092325	Stitch Plate(40M)	1
4-3	0092326	Stitch Plate(48M)	1
5-1	0092330	Stitch Plate(56M)	1
5-2	0092331	Stitch Plate(64M)	1
6-1	3207183	Presser Foot, Complete Set(40)	1
6-2	3207187	Presser Foot, Complete Set(48)	1
6-3	3207188	Presser Foot, Complete Set(56)	1
7	110004	Screw(M3.5-0.6 × 8)	1
8	0091725	Presser Foot Spring	1
9	005133	Screw(1/8-44 × 4.5)	1
10	000327	Lock Nut	1
11	003302	Adjusting Screw(1/8-44 × 11)	1
12	3207107	Presser Foot Hinge Pin	1
13	160000	Screw(M3-0.5 × 3)	1
14	3267037	Tape Guide	1
15	001228	Screw(3/32-56 × 3.2)	1
16-1	3207185	Tape Guide(Right)	1
16-2	3207189	Tape Guide(Right)(10mm or less)(Extra)	1
17	110091	Screw(M3-0.5 × 3)	1

Page 112 — EXTRA PARTS (3)

Yamato VF2400 parts on page 112

Ref	Part number	Part name	Qty
4	4	Screw
3	3	Plate
2	2	Base
1	1	Base
12	12	Screw
11	11	Plate
10	10	Base
8	8	Base
9	9	Plate
15	15	Plate
14	14	Base
16	16	Presser Foot
17	17	Presser Foot
21	21	Presser Foot
22	22	Presser Foot
18-1	18-1	Part
18-2	18-2	Part
18-3	18-3	Part
18-4	18-4	Part
18-5	18-5	Part
18-6	18-6	Part
18-7	18-7	Part
19	19	Part
20	20	Part

Page 113 — EXTRA PARTS(3)

Yamato VF2400 parts on page 113

Ref	Part number	Part name	Qty
1	0095365	Folder(Left), C. Set
2	0095366	Folder(Left)
3	0095367	Folder Chip
4	004182	Screw(3/32-56 × 2.5)
7	3201118	Fabric Guide, C. Set(Covering Seam)
8	3201117	Fabric Guide Support
9	3201120	Fabric Guide Fixing Plate
10	3101224	Fabric Guide(Left)
11	3101223	Fabric Guide(Right)
12	110054	Screw(M3-0.5 × 3.5)
13	3201119	Fabric Guide, C. Set(Covering Seam)
14	3101229	Fabric Guide(Left)
15	3101228	Fabric Guide(Right)
16	3209024	Differential Feed Dog
17	3209023	Main Feed Dog
18-1	0093351	Needle Clamp(32)(2 Needle)
18-2	0093352	Needle Clamp(40)(2 Needle)
18-3	0093353	Needle Clamp(48)(2 Needle)
18-4	3009101	Needle Clamp(56)(2 Needle)
18-5	0093355	Needle Clamp(64)(2 Needle)
18-6	0093357	Needle Clamp(56)(3 Needle)
18-7	0093358	Needle Clamp(64)(3 Needle)
19	0093690	Timing Gauge
20	0095220	Looper Timing Gauge
21	3209040	Main Feed Dog(P=2.5mm)
22	3209041	Differential Feed Dog(P=2.5mm)

Page 114 — SUPPORTING BOARD EXTRA PARTS

Yamato VF2400 parts on page 114

Ref	Part number	Part name	Qty
14	14	Screw
13	13	Washer
12	12	Bracket
2	2	Supporting Board
4	4	Rubber Foot
3	3	Screw
5	5	Knob
6	6	Bolt
7	7	Washer
8	8	Nut
9	9	Washer
10	10	Rubber Foot
11	11	Rubber Foot
16	16	Washer
17	17	Nut
18	18	Bolt
19	19	Screw
20	20	Washer
21	21	Washer
22	22	Nut
15	15	Supporting Board

Page 115 — SUPPORTING BOARD

Yamato VF2400 parts on page 115

Ref	Part number	Part name	Qty
1	3200240	Supporting Board, C. Set
2	3200241	Supporting Board
3	180020	Setting Screw(M6-1 × 15)
4	0093035	Oil Resrvoir Rubber Cushion
5	000070	Hanging Nut
6	009861	Hanging Bolt(M8-1.25 × 95)
7	000162	Washer
8	000016	Nut
9	2101451	Spacer(See the table below)
10	0020064	Supporting Board Rubber Cushion
11	0063010	SupportingBoardRubberCushion(Lower)
12	3200242	Chain Guide
13	000541	Washer
14	110009	Screw(M4-0.7 × 8)
15	9603903	Supporting Board
16	000676	Spring Washer
17	000016	Nut
18	009865	Hanging Bolt(M8-1.25 × 220)
19	180024	Screw(M6-1 × 45)
20	000528	Washer
21	000667	Spring Washer
22	000011	Nut

Page 116

Yamato VF2400 parts on page 116

Ref	Part number	Part name	Qty
	VF2403-11, 2403-21	VF2403, 2503,

Page 117 — THREAD STAND

Yamato VF2400 parts on page 117

Ref	Part number	Part name	Qty
	9620696	Thread Stand, Complete Set (6 Spools Type)	1
	9620631	Column Cap	1
	9620670	Column Pipe (Upper)	1
	9620689	Thread Guide Holder (Large)	1
	911002	Screw (M4-0.7 × 20)	1
	911001	Screw (M4-0.7 × 12)	3
	910001	Nut	4
	9620673	Column Pipe Connector	1
	911006	Screw (M5-0.8 × 13)	2
	910000	Nut	8
	9620675	Column Pipe (Lower)	1
	930052	Washer	1
	930053	Spring Washer	1
	910003	Nut (M16-1.5)	1
	9620703	Thread Hanger (3 Spools Type)	4
	9620700	Thread Eyelet	6
	9620688	Thread Hanger Holder	4
	911060	Screw (M6-1 × 15)	4
	9620691	Thread Guide Arm	1
	9620690	Thread Guide Holder (Small)	1
	9620666	Thread Guide (6 Spools Type)	1
	9620678	Spool Cushion	6
	9620679	Spool Pin	6
	9620680	Spool Mat	6
	9620681	Spool Seat Disc	6
	930055	Spring Washer	6
	3500700	Belt Cover
	110028	Screw (M6-1 × 46)	2
	3000010	Looper Thread Bar	2
	9620750	Knitted Tape Stand, C. Set	1
	9620751	Tape Pin	1
	9620752	Tape Disc	1
	000433	Washer	1
	9620753	Tape Disc Block	1
	911062	Screw (M4-0.7 × 15)	4
	910001	Nut	4
	9620756	Tape Stand Bar	1
	001448	Screw (15/64-28 × 5.5)	1
	9620757	Tape Stand	1
	005148	Wood Screw (φ 4.5 × 25)	3
	9620754	Tape Guide Bar	1
	9620755	Tape Guide	2

Page 118 — WARNING LABEL 警告ラベル

Yamato VF2400 parts on page 118

Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143	操作注意ラベル
	390144	DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Page 120 — VF2400 class PARTS LIST of Main Spare Parts(主要部品リスト)(1)

Yamato VF2400 parts on page 120

Ref	Part number	Part name	Qty
	3507000	押工(組)
	3108130	針板
	3209001	前送り
	3200015	ムカバー
	3200017	大カバー
	3201100	小カバー
	3201101	ルーパ
	3507002	押工(組)
	3108131	針板
	3208017	前送り
	3200014	ムカバー
	3201100	大カバー
	3201102	小カバー
	0095541	針板
	3208006	前送り
	3209006	ムカバー
	3201013	大カバー
	3201011	小カバー
	3201147	ルーパ
	3201144	ルーパ
	3207199	押工(組)
	3208003	針板
	3209051	前送り
	3200030	ムカバー
	3201430	大カバー
	3201013	小カバー
	3201012	ルーパ
	3507050	押工(組)
	3108132	針板
	3208007	前送り
	3209006	ムカバー
	3200015	大カバー
	3201017	小カバー
	3200014	ルーパ
	3207104	押工(組)
	0093174	針板
	3208003	前送り
	3209003	ムカバー
	3200014	大カバー
	3201014	小カバー
	3507054	押工(組)
	0094210	針板
	3209005	前送り
	3201000	ムカバー
	3201100	大カバー
	3201101	小カバー
	3207150	押工(組)
	0094010	針板
	3209055	前送り
	3209064	ムカバー
	3201111	大カバー
	3201121	小カバー
	3208075	針板
	3209006	前送り
	3201014	ムカバー
	3200032	大カバー
	0094211	針板
	3201101	ムカバー
	3201102	大カバー
	3207151	押工(組)
	0095234	針板
	3209009	前送り
	3209006	ムカバー
	3201100	大カバー
	3201121	小カバー
	3208023	針板
	3201101	ムカバー
	3201100	大カバー
	0095234	針板
	3201102	ムカバー
	3200014	大カバー

Page 122 — VF2400 class SPARE PARTS LIST of MAIN SPARE PARTS(主要部品リスト)(3)

Yamato VF2400 parts on page 122

Ref	Part number	Part name	Qty
1	3207150	押工(組)
2	0094210	針板
3	3209005	後送り
4	3209005	前送り
5	3200017	大カバー
6	3200014	小カバー
7	3201001	カムカバー
8	3200032	針板台
9	3209311	ルーパ
1	3207151	押工(組)
2	0094211	針板
5	3201100	大カバー
8	3201121	針板台
1	3207152	押工(組)
2	0094212	針板
5	3201102	大カバー
6	3201101	小カバー
8	3200032	針板台
1	3207157	押工(組)
2	0094214	針板
5	3201100	大カバー
6	3200017	小カバー
8	3201102	針板台
1	3209101	押工(組)
2	0094662	針板
3	3209007	後送り
4	3209015	前送り
6	3201101	小カバー
6	3200014	小カバー
1	3209102	押工(組)
2	0094673	針板
3	3209011	後送り
4	3209015	前送り
7	3201021	カムカバー
6	3201101	小カバー
1	3208125	押工(組)
3	3209080	後送り
5	3200035	大カバー
6	3200014	小カバー
1	0063674	押工(組)
2	3208020	針板
3	3209035	後送り
5	3200034	大カバー
6	3200014	小カバー
1	0093292	押工(組)
2	0093287	針板
3	3209036	後送り
5	3200037	大カバー
6	3200015	小カバー
8	3200018	針板台

Page 125 — VF2400 class LIST of MAIN SPARE PARTS(主要部品リスト)(6)

Yamato VF2400 parts on page 125

Ref	Part number	Part name	Qty
	3207039	押工(組)	0095035
	3208071	針板	3209047
	3200017	大カバー	3200034
	3200014	小カバー	3200032
	3200035	針板台	3209312
	3208073	針板
	3201018	小カバー
	3200032	ルーパ
	3208161	針板
	3200017	大カバー
	3201147	小カバー
	3200032	ルーパ
	3208072	針板
	3201147	小カバー
	3200014	小カバー
	3200032	ルーパ
	3208086	針板
	3200018	小カバー
	3200032	ルーパ
	3209036	押工(組)	0093357

Page 126 — INDEX

Yamato VF2400 parts on page 126

Ref	Part number	Part name	Qty
12	000009	000009
8	000009	000009
6	000010	000010
38	000010	000010
6	000011	000011
6	000011	000011
6	000011	000011
22	000011	000011
47	000014	000014
15	000014	000014
48	000014	000014
25	000015	000015
8	000016	000016
17	000016	000016
4	000037	000037
5	000070	000070
7	000162	000162
6	000177	000177
17	000177	000177
30	000177	000177
19	000177	000177
24	000177	000177
20	000177	000177
7	000177	000177
4	000177	000177
48	000177	000177
11	000177	000177
18	000177	000177
17	000186	000186
41	000195	000195
39	000210	000210
5	000220	000220
5	000220	000220
37	000220	000220
5	000220	000220
25	000290	000290
23	000309	000309
33	000309	000309
37	000309	000309
23	000327	000327
10	000327	000327
23	000327	000327
7	000327	000327
20	000327	000327
10	000327	000327
40	000334	000334
19	000334	000334
59	000334	000334
13	000340	000340
51	000360	000360
53	000360	000360
40	000419	000419
24	000425	000425
20	000425	000425
6	000425	000425
55	000426	000426
12	000426	000426
12	000426	000426
7	000426	000426
11	000426	000426
16	000426	000426
6	000426	000426
25	000428	000428
34	000433	000433
3	000445	000445
53	000451	000451
45	000463	000463
6	000488	000488
28	000498	000498
28	000498	000498
28	000498	000498
52	000511	000511
17	000515	000515
8	000515	000515
10	000528	000528
5	000528	000528
5	000528	000528
5	000528	000528
20	000528	000528
12	000531	000531
3	000531	000531
23	000532	000532
57	000532	000532
27	000538	000538
4	000538	000538
2	000538	000538
17	000538	000538
6	000538	000538
17	000538	000538
7	000538	000538
17	000538	000538
8	000538	000538
4	000538	000538
13	000541	000541
39	000547	000547
16	000548	000548
7	000548	000548
31	000555	000555
32	000567	000567
6	000567	000567
35	000600	000600
43	000600	000600
8	000600	000600
15	000600	000600
5	000600	000600
7	000600	000600
15	000600	000600
21	000605	000605
54	000613	000613
23	000623	000623
6	000636	000636
28	000651	000651
17	000665	000665
31	000665	000665
41	000665	000665
11	000665	000665
21	000667	000667
34	000669	000669
42	000669	000669
15	000669	000669
36	000669	000669
6	000669	000669
13	000669	000669
16	000676	000676
28	000690	000690
29	000690	000690
32	000726	000726
26	000731	000731
38	000745	000745
20	000926	000926
4	000989	000989
45	001093	001093
21	001156	001156
25	001174	001174
8	001175	001175
8	001175	001175
8	001175	001175
2	001186	001186
2	001186	001186
10	001186	001186
34	001186	001186
43	001186	001186
2	001186	001186

Page 127

Yamato VF2400 parts on page 127

Ref	Part number	Part name	Qty
9	001186
19	001186
55	001223
45	001225
48	001227
15	001228
5	001228
15	001228
12	001230
9	001230
9	001230
12	001230
39	001448
27	001457
48	001818
50	001818
9	001892
2	001892
15	001892
26	001892
20	001892
14	001892
38	001892
21	001892
3	001900
32	001900
41	001900
27	001900
18	001923
9	001923
18	002308
18	002308
18	002308
12	002308
6	003300
6	003300
38	003300
6	003300
11	003302
6	003393
13	003635
32	003635
32	003635
32	003635
13	003638
13	003638
13	003638
15	003670
15	003670
15	003670
58	004106
31	004124
35	004143
50	004182
4	004182
35	004236
38	004236
47	004236
7	004267
27	004312
35	004314
8	004314
36	004314
10	004314
36	004314
10	004314
24	004353
2	004358
40	004358
22	004440
22	004440
22	004440
18	004440
8	004441
31	004474
46	004591
35	004635
15	005040
44	005049
24	005071
36	005075
10	005115
10	005115
10	005115
48	005122
24	005122
4	005133
4	005133
12	005133
36	005133
4	005133
11	005133
9	005133
41	005148
18	005328
20	005505
40	005511
30	005512
30	005512
30	005512
42	005542
24	005550
24	005550
24	005550
4	005554
4	005554
16	005571
11	005572
36	005650
11	005650
10	005650
5	006004
37	006004
26	006038
55	006046
57	006075
51	006120
35	006219
19	006245
19	006245
19	006245
23	006245
7	006638
18	006905
37	006905
19	006905
26	006905
9	006905
10	006905
46	006910
28	006910
36	006910
27	006910
24	006910
17	007610
43	007620
6	007621
29	007625

Page 128

Yamato VF2400 parts on page 128

Ref	Part number	Part name	Qty
10	007627
15	007630
14	007645
8	007650
14	009142
3	009142
7	009142
16	009150
23	009526
51	009604
13	009604
25	009604
34	009604
18	009604
13	009736
25	009740
3	009747
2	009749
28	009749
12	009779
33	009784
8	009784
2	009812
31	009814
6	009835
6	009861
18	009865
3	009932
3	009932
39	009934
6	009935
27	009937
17	009937
5	009960
29	009970
12	0010260
24	0010263
42	0010263
15	0010263
11	0010263
21	0010264
10	0010264
25	0010290
26	0010310
41	0010564
40	0010565
23	0011189
31	0011189
22	0011189
22	0011192
30	0011192
21	0011192
7	0011228
9	0011228
9	0011228
36	0011709
18	0011709
25	0011709
20	0011709
33	0011789
30-1	0011943
37-1	0011943
29-1	0011943
30-2	0011944
37-2	0011944
29-2	0011944
30-3	0011945
37-3	0011945
29-3	0011945
30-4	0011946
37-4	0011946
29-4	0011946
39	0011952
38	0011957
30	0011987
22	0010052
8	0010055
30	0010057
20	0010108
2	0010108
24	0010112
26	0010120
13	0010120
12	0010123
1	0010248
7	0010260
10	0020064
21	0020119
35	0020137
32	0020159
14	0020271
41	0020350
23	0020472
43	0020533
31	0020538
5	0020759
17	0023381
24	0023381
27	0023473
16	0024083
14	0024083
27	0024083
16	0024083
36	0024083
17	0024083
35	0024083
45	0024083
23	0024083
24	0024083
1	0024084
13	0024084
26	0024084
15	0024084
21	0024084
16	0024084
4	0024084
44	0024084
8	0024084
15	0024084
13	0024302
15	0024302
16	0024302
2	0030255
15	0030255
28	0030255
17	0030255
22	0030255
18	0030255
5	0030255
46	0030255
9	0030255
16	0030255
36	0030711
7	0031111
18	0031111
31	0031111

Page 129 — INDEX

Yamato VF2400 parts on page 129

Ref	Part number	Part name	Qty
20	0031111	0031111
25	0031111	0031111
21	0031111	0031111
8	0031111	0031111
5	0031111	0031111
49	0031111	0031111
12	0031111	0031111
19	0031111	0031111
23	0031831	0031831
43	0032425	0032425
44	0032426	0032426
26	0032426	0032426
20	0032426	0032426
18	0032604	0032604
12	0032646	0032646
24	0032784	0032784
26	0032785	0032785
28	0032786	0032786
3	0032952	0032952
4	0032952	0032952
25	0033024	0033024
5	0033141	0033141
18	0033935	0033935
17	0033936	0033936
16	0033937	0033937
14	0033938	0033938
58	0034979	0034979
50	0035813	0035813
52	0035813	0035813
42	0036175	0036175
49	0037108	0037108
51	0037108	0037108
25	0037108	0037108
19	0037108	0037108
28	0037668	0037668
30	0037669	0037669
36	0037912	0037912
18	0060057	0060057
9	0060075	0060075
8	0060076	0060076
36	0060175	0060175
7	0060248	0060248
7	0060248	0060248
7	0060248	0060248
11	0063010	0063010
1	0063044	0063044
19	0063051	0063051
20	0063053	0063053
7	0063055	0063055
21	0063056	0063056
22	0063057	0063057
47	0063074	0063074
27	0063083	0063083
49	0063084	0063084
37	0063096	0063096
25	0063104	0063104
22	0063152	0063152
54	0063197	0063197
16	0063216	0063216
15	0063217	0063217
47	0063282	0063282
23	0063282	0063282
46	0063284	0063284
22	0063284	0063284
56	0063428	0063428
2	0063548	0063548
5	0063612	0063612
9-3	0063674	0063674
23	0064179	0064179
29	0064180	0064180
30	0064181	0064181
34	0064182	0064182
32	0064186	0064186
27	0064187	0064187
26	0065275	0065275
28	0065275	0065275
21	0065452	0065452
1	0065453	0065453
11	0066644	0066644
10	0066646	0066646
33	0067082	0067082
4	0068011	0068011
33	0068202	0068202
13	0068202	0068202
28	0068202	0068202
33	0077179	0077179
18	0077179	0077179
17	0077300	0077300
4	0077322	0077322
37	0090068	0090068
5	0090071	0090071
16	0090071	0090071
29	0090071	0090071
18	0090071	0090071
23	0090071	0090071
19	0090071	0090071
6	0090071	0090071
3	0090071	0090071
47	0090071	0090071
10	0090071	0090071
17	0090071	0090071
2	0090711	0090711
41	0090801	0090801
12	0090807	0090807
22	0090807	0090807
35	0090807	0090807
24	0090807	0090807
29	0090807	0090807
25	0090807	0090807
12	0090807	0090807
9	0090807	0090807
53	0090807	0090807
16	0090807	0090807
23	0090807	0090807
9	0090812	0090812
20	0090812	0090812
33	0090812	0090812
22	0090812	0090812
27	0090812	0090812
23	0090812	0090812
10	0090812	0090812
7	0090812	0090812
51	0090812	0090812
14	0090812	0090812
21	0090812	0090812
2	0090814	0090814
44	0090824	0090824
11	0090856	0090856
21	0090856	0090856

Page 130 — INDEX

Yamato VF2400 parts on page 130

Ref	Part number	Part name	Qty
34	0090856	0090856
23	0090856	0090856
28	0090856	0090856
24	0090856	0090856
11	0090856	0090856
8	0090856	0090856
52	0090856	0090856
15	0090856	0090856
22	0090856	0090856
39	0090918	0090918
7	0091696	0091696
7	0091696	0091696
10	0091696	0091696
3	0091725	0091725
3	0091725	0091725
35	0091725	0091725
3	0091725	0091725
8	0091725	0091725
2	0091736	0091736
2	0091736	0091736
17	0091833	0091833
22	0091837	0091837
19	0091838	0091838
20	0091839	0091839
9	0091841	0091841
4	0091842	0091842
45	0092232	0092232
27	0092232	0092232
35	0092232	0092232
26	0092232	0092232
20	0092283	0092283
20	0092283	0092283
20	0092283	0092283
23	0092285	0092285
23	0092285	0092285
23	0092285	0092285
11	0092286	0092286
11	0092286	0092286
11	0092286	0092286
12	0092287	0092287
12	0092287	0092287
12	0092287	0092287
9	0092288	0092288
9	0092288	0092288
9	0092288	0092288
21	0092289	0092289
21	0092289	0092289
21	0092289	0092289
29	0092291	0092291
29	0092291	0092291
29	0092291	0092291
27	0092292	0092292
27	0092292	0092292
27	0092292	0092292
31	0092293	0092293
31	0092293	0092293
31	0092293	0092293
26	0092294	0092294
26	0092294	0092294
26	0092294	0092294
34	0092298	0092298
35	0092298	0092298
35	0092298	0092298
24	0092298	0092298
2	0092305	0092305
2	0092305	0092305
2	0092305	0092305
4-1	0092324	0092324
4-2	0092325	0092325
4-3	0092326	0092326
5-1	0092330	0092330
5-2	0092331	0092331
11	0092335	0092335
13	0092335	0092335
4	0093035	0093035
16	0093091	0093091
19	0093154	0093154
13-4	0093174	0093174
26	0093186	0093186
21	0093212	0093212
31	0093212	0093212
35	0093212	0093212
18	0093214	0093214
28	0093214	0093214
32	0093214	0093214
1-1	0093241	0093241
1-1	0093241	0093241
1-2	0093242	0093242
1-2	0093242	0093242
1-3	0093243	0093243
1-3	0093243	0093243
39	0093287	0093287
43	0093289	0093289
33	0093292	0093292
32	0093300	0093300
23	0093303	0093303
3	0093303	0093303
17	0093314	0093314
19	0093319	0093319
18-1	0093351	0093351
31	0093352	0093352
18-2	0093352	0093352
18-3	0093353	0093353
18-5	0093355	0093355
1-3	0093357	0093357
1-1	0093357	0093357
40	0093357	0093357
18-6	0093357	0093357
1-2	0093358	0093358
18-7	0093358	0093358
28	0093365	0093365
6	0093389	0093389
29	0093479	0093479
7	0093483	0093483
25	0093487	0093487
50	0093491	0093491
38	0093496	0093496
1	0093500	0093500
35	0093507	0093507
45	0093508	0093508
34	0093509	0093509
46	0093515	0093515
22	0093528	0093528
3	0093528	0093528
24	0093535	0093535
18	0093535	0093535
5	0093538	0093538
43	0093545	0093545
20	0093556	0093556
6	0093556	0093556
11	0093611	0093611
19	0093617	0093617
37-1	0093659	0093659
34	0093663	0093663
37-2	0093669	0093669
19	0093690	0093690
1	0093863	0093863
9	0093864	0093864
27	0093864	0093864
27	0093864	0093864
32	0093864	0093864

Page 131 — INDEX

Yamato VF2400 parts on page 131

Ref	Part number	Part name	Qty
10-1	0094210	10-1
10-1	0094210	10-1
10-2	0094211	10-2
10-2	0094211	10-2
10-3	0094212	10-3
10-3	0094212	10-3
41-2	0094212	41-2
10-4	0094214	10-4
10-4	0094214	10-4
1-3	0094216	1-3
5	0094245	5
5	0094245	5
6	0094246	6
6	0094246	6
2-1	0094281	2-1
2-2	0094282	2-2
2-3	0094283	2-3
2-4	0094285	2-4
44	0094403	44
16	0094491	16
23	0094491	23
11	0094491	11
6	0094566	6
1	0094604	1
14	0094615	14
4	0094615	4
6	0094616	6
9-4	0094871	9-4
9-1	0094872	9-1
9-2	0094873	9-2
11	0094890	11
31-2	0094901	31-2
31-3	0094902	31-3
3-2	0094921	3-2
3-3	0094922	3-3
13-3	0094961	13-3
13-1	0094962	13-1
13-2	0094963	13-2
3	0095027	3
62	0095027	62
42	0095035	42
7	0095061	7
12	0095062	12
11	0095063	11
9	0095066	9
10	0095067	10
32-2	0095085	32-2
26	0095085	26
12	0095108	12
33	0095132	33
26	0095168	26
23	0095170	23
17	0095174	17
7	0095214	7
29	0095218	29
20	0095220	20
13	0095234	13
33	0095269	33
14	0095269	14
17	0095270	17
37	0095272	37
20	0095272	20
19	0095296	19
1	0095365	1
2	0095366	2
3	0095367	3
2-2	0095454	2-2
29-1	0095456	29-1
29-2	0095457	29-2
20	0095458	20
17	0095462	17
12	0095463	12
14	0095464	14
13	0095465	13
8	0095466	8
19-1	0095471	19-1
19-2	0095472	19-2
1-1	0095490	1-1
1-2	0095491	1-2
1-3	0095492	1-3
2-1	0095493	2-1
27	0095541	27
8-1	0095580	8-1
8-2	0095581	8-2
8-3	0095582	8-3
8-4	0095584	8-4
8-5	0095586	8-5
8-6	0095587	8-6
8-7	0095588	8-7
10	0095641	10
12	0095642	12
37	0095723	37
16	0095728	16
15-1	0095730	15-1
15-2	0095731	15-2
31	0095940	31
21	0095961	21
22	0095980	22
9	0096066	9
63	0096159	63
50	0096161	50
41	0096163	41
42	0096164	42
46	0096166	46
49	0096167	49
39	0096177	39
60	0096178	60
1-5	0096270	1-5
1-1	0096271	1-1
1-2	0096272	1-2
7-1	0096341	7-1
7-2	0096342	7-2
7-3	0096343	7-3
9	100002	9
9	100002	9
11	100003	11
16	100028	16
44	100038	44
26	100038	26
34	100038	34
25	100038	25
12	100053	12
22	100077	22
19	110001	19
39	110002	39
53	110002	53
19	110002	19
39	110004	39
17	110004	17
32	110004	32
4	110004	4
17	110004	17
2	110004	2
14	110004	14
7	110004	7
20	110005	20
13	110007	13
12	110007	12
14	110007	14

Page 132 — INDEX

Yamato VF2400 parts on page 132

Ref	Part number	Part name	Qty
14	110008	33 14
16	110008	35 16
17	110008	38 17
52	110009	3 52
42	110009	5 42
12	110009	6 12
7	110009	9 7
34	110009	11 34
30	110009	22 30
23	110009	27 23
17	110009	28 17
3	110009	37 3
22	110009	38 22
21	110009	42 21
14	110009	48 14
40	110011	44 40
21	110012	1 21
35	110012	2 35
50	110012	2 50
15	110012	6 15
41	110012	7 41
2	110013	13 2
24	110013	1 24
14	110013	2 14
14	110013	3 14
19	110013	3 19
9	110013	16 9
10	110013	18 10
10	110013	20 10
21	110013	27 21
15	110013	28 15
4	110013	29 4
4	110013	33 4
15	110013	33 15
4	110013	35 4
17	110013	35 17
4	110013	38 4
26	110016	1 26
42	110016	2 42
14	110017	31 14
4	110017	40 4
52	110027	28 52
29	110028	49 29
8	110030	2 8
28	110030	23 28
6	110031	8 6
26	110031	9 26
8	110033	11 8
13	110033	27 13
4	110033	28 4
6	110035	7 6
30	110035	23 30
19	110035	35 19
28	110036	5 28
5	110036	15 5
14	110036	22 14
10	110036	30 10
33	110036	33 33
41	110038	22 41
21	110038	35 21
34	110039	19 34
28	110039	21 28
37	110041	2 37
2	110045	1 2
37	110045	11 37
11	110045	13 11
26	110047	23 26
33	110048	2 33
40	110048	5 40
3	110048	22 3
6	110048	35 6
5	110048	44 5
15	110054	8 15
12	110054	47 12
36	110057	10 36
39	110070	12 39
57	110079	2 57
36	110079	12 36
2	110080	12 2
38	110083	5 38
22	110084	8 22
9	110084	14 9
22	110084	15 22
6	110084	17 6
19	110084	26 19
17	110091	46 17
15	110104	18 15
15	110104	20 15
54	110105	2 54
13	110105	18 13
13	110105	20 13
8	110105	25 8
4	120001	10 4
14	120001	24 14
3	120006	11 3
15	120006	12 15
22	120006	23 22
5	120006	42 5
8	120008	24 8
18	120008	39 18
4	120011	32 4
3	120011	34 3
3	120011	36 3
29	120013	6 29
15	120013	9 15
38	120013	13 38
7	120013	31 7
30	120015	6 30
17	120015	7 17
26	120015	26 26
31	120015	28 31
38	120015	39 38
32	120017	8 32
37-1	120017	39 37-1
37-2	120017	39 37-2
3	120021	39 3
11	120026	37 11
35-1	120026	39 35-1
35-2	120026	39 35-2
25	120030	5 25
44	130002	5 44
27	130002	39 27
10	130003	2 10
40	130003	3 40
34	130003	12 34
11	130004	2 11
18	130006	2 18
20	130016	8 20
7	130016	14 7
20	130016	15 20
4	130016	17 4
17	130016	26 17
35	130024	12 35
23	140017	11 23
19	140018	11 19
7	140019	18 7
7	140019	20 7
15	150000	5 15
22	150001	22 22

Page 133 — INDEX

Yamato VF2400 parts on page 133

Ref	Part number	Part name	Qty
26	160000		5
26	160000		22
21	160000		39
13	160000		46
46	160001		2
31	160001		5
13	160001		8
16	160001		10
28	160001		11
37	160001		13
10	160001		22
25	160001		39
22	160003		5
3	160003		9
6	160003		10
10	160003		11
12	160003		12
27	160003		23
5	160003		24
26	160003		37
21	160004		6
2	160005		5
2	160005		6
3	160007		5
3	160007		6
40	160007		6
18	160007		9
30	160007		10
4	160007		12
16	160007		24
22	160009		10
22	160016		12
37	160023		7
25	160033		28
14	170001		1
31	170001		22
17	170005		16
44	170020		2
14	170021		10
9	170029		42
61	170033		44
17	180001		23
25	180002		12
29	180003		12
16	180005		1
47	180017		2
22	180018		1
51	180018		2
3	180020		48
19	180024		48
6	190007		24
5	190021		22
1	190021		29
3	190022		44
12	190022		44
20	190034		23
1	190044		22
6	190044		44
28	190064		22
11	190075		22
7	190079		16
42	260000		7
27	260000		26
39	260000		28
24	260006		8
11	260006		14
24	260006		15
8	260006		17
21	260006		26
27	270014		27
21	270014		28
8	290029		3
19	290029		14
32	290029		15
21	290029		17
26	290029		19
22	290029		21
9	290029		26
50	290029		27
13	290029		29
20	290029		30
8	300000		10
20	300000		11
7	300000		13
8	300006		9
25	300006		42
10	300017		42
42	300031		32
24	300031		33
32	300031		35
23	300031		40
43	300033		32
25	300033		33
33	300033		35
24	300033		40
8	300038		39
7	300045		24
35	300050		19
29	300050		21
15	300100		1
45	300100		2
32	300100		22
2	310009		4
30	310035		5
33	310036		7
14	310040		6
45	310071		11
38	310072		11
24	310126		14
4	320006		13
27	330000		1
22	330000		7
32	330000		26
36	330000		28
27	330000		37
48	340014		8
30	340016		1
35	350009		3
38	390067		1
39	390068		1
6	390069		1
10	390073		1
10	910000		49
7	910001		49
37	910001		49
14	910003		49
6	911001		49
5	911002		49
9	911006		49

Page 134

Yamato VF2400 parts on page 134

Ref	Part number	Part name	Qty
19	911060
36	911062
12	930052
13	930053
27	930055
14	1055084
28	1057028
21	1057087
29	1057087
19	1057155
21	1090133
23	1090141
20	1091016
6	1091051
11	1091051
3	1091146
14	1091835
3	1094000
3	1094011
29	1094030
5	1094057
22	1094059
12	1096000
28	1096004
29	1096005
4	1096029
31	1096029
22	1096030
11	1096030
4	1097000
9	1097001
25	1097007
16	1097007
13	1097009
3	1097009
19	1098015
1	1098015
2	1098015
27	1098015
14	1200037
3	1200038
3	1200038
3	1200038
29	1200040
39	1200040
28	1200040
10	1200068
12	1200068
4	1200069
4	1200069
28	1200071
38	1200132
8	1200137
20	1200138
13	1200234
20	1249020
27	1249046
18	1249224
17	1253240
8	1253240
13	1298000
40	2049401
22	2100034
16	2100043
15	2100065
9	2100161
16	2100173
22	2100243
24	2100248
12	2100252
14	2100253
15	2100267
27	2100267
20	2100278
28	2100279
26	2100289
7	2101368
9	2101451
1	2109932
10	2110527
14	3000009
30	3000010
34	3002007
15	3002008
2	3002009
5	3002010
13	3002011
16	3002012
17	3002013
19	3002014
23	3002015
20	3002016
24	3002017
26	3002018
28	3002019
29	3002020
30	3002021
32	3002022
33	3002023
40	3002025
4	3002026
9	3002027
10	3002028
7	3002029
11	3002030
12	3002031
14	3002032
13-1	3007029
13-2	3007030
32-3	3008025
18-4	3009101
18	3097038
25	3098038
26	3099132
56	3100006
1	3100026
41	3100030

Page 135

Yamato VF2400 parts on page 135

Ref	Part number	Part name	Qty
10	3100060		13
12	3100061		13
52	3100071		2
13	3100074		3
10	3100075		3
34	3100078		6
41	3100087		3
12	3100098		4
6	3100100		4
10	3100110		8
52	3100112		8
28	3100113		2
11	3100127		6
7	3100128		5
10	3100129		5
6	3100129		6
8	3100131		5
5	3100131		6
9	3100275		6
8	3100281		6
10	3100283		6
28	3100285		6
32	3100286		6
33	3100287		6
31	3100294		8
2	3100300		9
5	3100301		9
1	3100302		9
14	3100303		9
16	3100304		9
17	3100305		9
24	3100307		9
9	3100309		9
12-1	3100310		8
35	3100328		13
14	3100329		13
13	3100345		13
41	3100349		13
25	3100372		13
29	3100383		3
30	3100384		3
33	3100386		3
34	3100387		3
39	3100442		3
32	3101200		4
39	3101216		8
11	3101223		47
10	3101224		47
15	3101228		47
14	3101229		47
5	3101243		31
2	3101244		31
22	3101270		44
7-1	3101476		38
39	3101492		39
1	3101497		39
43	3101498		39
18	3107303		8
5	3107303		14
18	3107303		15
3	3107303		17
15	3107303		26
44	3107303		28
20	3107303		45
19	3107304		8
6	3107304		14
19	3107304		15
9	3107304		17
16	3107304		26
45	3107304		28
21	3107304		45
21	3107306		8
8	3107306		14
21	3107306		15
5	3107306		17
18	3107306		26
13-1	3108130		7
13-2	3108131		7
13-3	3108132		7
12-1	3108133		14
12-2	3108134		14
23-1	3108134		26
12-3	3108135		14
23-2	3108135		26
6	3108199		45
7	3108201		45
14	3120128		27
5	3120128		28
10	3160136		4
36	3160168		8
34	3200006		1
33	3200007		1
11	3200010		1
13	3200011		1
20	3200012		1
23	3200013		1
9	3200014		2
43-1	3200015		2
49	3200016		2
1	3200017		2
4-1	3200018		2
7	3200019		2
53	3200020		2
37	3200021		1
19	3200022		2
20	3200023		2
15	3200024		2
16	3200025		2
39	3200026		2
40	3200027		2
29	3200028		2
30	3200029		2
31	3200030		2
32	3200031		2
36	3200032		2
19	3200033		1
48	3200033		2
43-2	3200034		2
24	3200034		29
4-2	3200035		2
53	3200035		28
18	3200042		3
49	3200042		5
20	3200042		27
14	3200042		28
46	3200045		3
10	3200046		7
26	3200047		3
17	3200048		3
38	3200049		6
13	3200050		4
25	3200051		4
16	3200052		4
20	3200053		4
26	3200055		4
18	3200056		4
19	3200057		4
4	3200059		4

Page 136 — INDEX

Yamato VF2400 parts on page 136

Ref	Part number	Part name	Qty
24	3200061		4
15	3200062		4
8	3200063		4
9	3200064		4
21	3200065		4
30	3200066		4
14	3200067		4
11	3200068		4
1	3200070		5
5	3200071		5
9	3200072		5
12	3200073		5
13	3200074		5
29	3200075		5
27	3200077		5
11	3200078		5
19	3200082		5
36	3200083		5
24	3200084		5
34	3200085		5
35	3200086		5
23	3200087		5
40	3200088		7
38	3200089		7
36	3200090		7
43	3200091		5
41	3200092		5
39	3200093		5
56	3200094		5
6	3200095		5
18	3200096		5
17	3200097		5
21	3200098		5
13	3200100		6
16	3200101		7
5	3200111		7
20	3200112		7
30	3200112		26
34	3200112		28
24	3200113		7
34	3200113		26
38	3200113		28
19	3200114		7
29	3200114		26
33	3200114		28
15	3200115		7
27	3200116		7
11	3200117		7
25	3200118		7
29	3200120		7
30	3200121		7
31	3200122		7
5	3200131		8
4	3200132		8
9	3200137		8
14	3200143		5
2	3200149		10
1	3200150		10
5	3200151		10
3	3200152		10
10	3200154		10
12	3200155		10
18	3200157		10
7	3200159		10
21	3200160		10
23	3200161		10
29	3200162		10
31	3200163		10
33	3200164		10
3	3200170		7
1	3200181		11
14	3200182		12
2	3200183		11
4	3200184		11
5	3200185		11
6	3200186		11
7	3200187		11
16	3200189		11
17	3200190		11
18	3200191		11
25	3200192		11
21	3200194		11
21	3200196		12
1	3200199		12
3	3200200		12
7	3200201		12
33	3200203		12
38	3200204		12
11	3200205		11
15	3200206		11
32	3200207		11
21	3200209		2
34	3200210		2
37	3200211		12
36	3200213		11
26	3200215		11
30	3200216		11
16	3200226		6
22	3200227		13
5	3200230		13
42	3200231		13
34	3200232		13
29	3200233		13
24	3200234		13
33	3200235		13
18	3200236		13
17	3200237		13
20	3200238		13
1	3200240		48
2	3200241		48
12	3200242		48
3	3200243		13
31	3200251		4
34	3200252		4
40	3200252		22
54	3200262		28
8	3201000		18
8	3201000		20
17	3201001		18
17	3201001		20
9	3201002		18
9	3201002		20
14-1	3201003		18
14	3201003		20
18	3201004		18
14-2	3201005		18
16	3201006		18
16	3201006		20
11	3201007		18
11	3201007		20
9	3201011		15
10	3201012		15
4	3201012		30
11	3201013		15
1	3201014		15
8	3201014		30
4	3201015		15
9	3201015		30
2	3201016		15
15	3201016		16
6	3201016		30
2	3201018		30
3	3201021		25

Page 137 — INDEX

Yamato VF2400 parts on page 137

Ref	Part number	Part name	Qty
4-1	3201025
5	3201026
4-2	3201034
4	3201037
9	3201038
18	3201089
19	3201098
20	3201099
48	3201100
33	3201100
33	3201100
34	3201101
34	3201101
9	3201102
11	3201102
5	3201103
5	3201103
3	3201104
2	3201104
2	3201104
16	3201105
16	3201105
16	3201105
14	3201106
14	3201106
14	3201106
1	3201107
1	3201107
1	3201108
21	3201111
28	3201111
10	3201112
15	3201113
5	3201114
8	3201117
7	3201118
13	3201119
9	3201120
47	3201121
2	3201122
18	3201125
19-1	3201126
20	3201127
12-1	3201128
22	3201131
18	3201132
38	3201133
7	3201134
12-2	3201136
19-2	3201137
7-2	3201138
4	3201140
2	3201141
7	3201142
22	3201143
23-1	3201144
23-2	3201145
26	3201146
24	3201147
21	3201162
22	3201163
8	3201184
16	3201184
9	3201185
24	3201186
19	3201190
23	3201191
25	3201192
36	3201197
24	3201230
25	3201231
2	3201232
8	3201277
2	3201329
2	3201329
39	3201331
9	3201350
4	3201351
12	3201352
11	3201353
20	3201354
19	3201355
13	3201356
18	3201357
5	3201358
1	3201362
24	3201364
25	3201365
1	3201366
21	3201367
6	3201369
27	3201370
29	3201371
13	3201372
31	3201373
32	3201374
21	3201375
35	3201377
10	3201378
3	3201379
23	3201380
4	3201381
2	3201383
17	3201384
15	3201385
2	3201398
10	3201411
13	3201412
8	3201413
11	3201414
23	3201430
24	3201431
14	3201432
25	3201433
18	3201434
21	3201435
16	3201436
10	3201481
1	3201481
15	3201483
6	3201483
22	3201484
16	3201484
19	3201488
13	3201488
12	3202020
11	3202021
2	3202021
29	3202024
30	3202025
1	3202029
5	3204021
1	3204052
1	3204052
15	3204057
13	3204059
17	3204060
18	3204061
24	3204062

Page 138 — INDEX

Yamato VF2400 parts on page 138

Ref	Part number	Part name	Qty
23	3204063	VF2400	12
19	3204064	VF2400	12
11	3204065	VF2400	12
1	3204066	VF2400	6
1-3	3207026	VF2400	41
1-4	3207030	VF2400	41
42-1	3207039	VF2400	28
42-3	3207040	VF2400	28
49-1	3207044	VF2400	28
49-3	3207045	VF2400	28
51	3207046	VF2400	28
42-2	3207052	VF2400	28
49-2	3207053	VF2400	28
12	3207107	VF2400	46
1-1	3207150	VF2400	19
1-1	3207150	VF2400	21
1-2	3207151	VF2400	19
1-2	3207151	VF2400	21
1-4	3207152	VF2400	19
1-3	3207152	VF2400	21
30-1	3207155	VF2400	19
30-2	3207156	VF2400	19
15	3207156	VF2400	21
1-5	3207157	VF2400	19
3	3207157	VF2400	1930
1-4	3207157	VF2400	21
8	3207160	VF2400	19
8	3207160	VF2400	21
11	3207160	VF2400	41
9-4	3207175	VF2400	41
9-2	3207177	VF2400	41
9-3	3207180	VF2400	41
6-1	3207183	VF2400	46
16-1	3207185	VF2400	46
6-2	3207187	VF2400	46
6-3	3207188	VF2400	46
16-2	3207189	VF2400	46
1	3207199	VF2400	17
13	3207200	VF2400	17
9-1	3207204	VF2400	41
25-1	3208000	VF2400	15
25-2	3208002	VF2400	15
10	3208003	VF2400	17
14	3208004	VF2400	17
13-1	3208006	VF2400	15
13-2	3208007	VF2400	15
18-3	3208011	VF2400	25
18-4	3208012	VF2400	25
38	3208015	VF2400	34
43-2	3208016	VF2400	34
37	3208017	VF2400	34
43-3	3208018	VF2400	34
18-2	3208020	VF2400	25
40	3208023	VF2400	34
3-1	3208025	VF2400	46
31-1	3208026	VF2400	19
3	3208045	VF2400	45
13-4	3208048	VF2400	41
13-2	3208049	VF2400	41
7-4	3208050	VF2400	41
7-5	3208051	VF2400	41
32-1	3208052	VF2400	19
43-1	3208053	VF2400	34
13-3	3208054	VF2400	41
13-1	3208056	VF2400	41
18-1	3208071	VF2400	29
18-3	3208072	VF2400	29
5	3208073	VF2400	30
30-1	3208074	VF2400	42
39-1	3208075	VF2400	34
39-2	3208076	VF2400	34
41-1	3208076	VF2400	34
37	3208076	VF2400	36
39-3	3208077	VF2400	34
42-1	3208078	VF2400	34
42-2	3208079	VF2400	34
30-3	3208086	VF2400	42
16-1	3208102	VF2400	19
16-2	3208103	VF2400	19
16-3	3208104	VF2400	19
33-1	3208105	VF2400	19
33-1	3208108	VF2400	19
33-2	3208109	VF2400	19
18-1	3208125	VF2400	25
44	3208143	VF2400	34
18-2	3208160	VF2400	29
30-2	3208161	VF2400	42
19-2	3209000	VF2400	25
28-1	3209000	VF2400	42
30-1	3209001	VF2400	12
31-2	3209002	VF2400	12
19-1	3209002	VF2400	25
28-2	3209002	VF2400	42
28	3209002	VF2400	45
30-2	3209003	VF2400	12
1-1	3209004	VF2400	46
12-1	3209005	VF2400	19
12-1	3209005	VF2400	21
1-2	3209006	VF2400	46
12-2	3209007	VF2400	19
12-2	3209007	VF2400	21
14	3209008	VF2400	19
27	3209008	VF2400	21
15	3209009	VF2400	19
30	3209009	VF2400	21
16	3209010	VF2400	25
17	3209011	VF2400	25
11-1	3209014	VF2400	19
11-1	3209014	VF2400	21
11-2	3209016	VF2400	19
11-2	3209016	VF2400	21
8	3209018	VF2400	15
8-1	3209022	VF2400	41
17	3209023	VF2400	47
16	3209024	VF2400	47
20	3209035	VF2400	25
30	3209036	VF2400	27
29	3209037	VF2400	27
21	3209040	VF2400	47
22	3209041	VF2400	47
8-2	3209042	VF2400	41
19	3209046	VF2400	29
20	3209047	VF2400	29
13	3209048	VF2400	30
14	3209049	VF2400	30
11	3209050	VF2400	17
12	3209051	VF2400	17
17	3209064	VF2400	19
18	3209065	VF2400	19
14	3209066	VF2400	41
31-1	3209080	VF2400	12
23	3209081	VF2400	14
22	3209081	VF2400	26
7-1	3209100	VF2400	7
7-2	3209101	VF2400	7
7-3	3209102	VF2400	7
7-4	3209104	VF2400	7
1-1	3209106	VF2400	14
19-1	3209106	VF2400	19
1-2	3209107	VF2400	14
14	3209107	VF2400	15

Page 139 — INDEX

Yamato VF2400 parts on page 139

Ref	Part number	Part name	Qty
25	3209107	17 25
19-2	3209107	19 19-2
13	3209107	21 13
1-4	3209108	14 1-4
19-3	3209108	19 19-3
22-1	3209121	28 22-1
22-3	3209122	28 22-3
22-2	3209123	28 22-2
41	3209202	28 41
35	3209311	10 35
40	3209312	28 40
1	3209920	37 1
1	3209923	42 1
1	3209924	32 1
1	3209926	44 1
37	3209927	44 37
1	3209943	31 1
14	3267037	46 14
7	3500207	1 7
37	3500305	8 37
1	3500309	4 1
12-2	3500360	8 12-2
3	3500430	1 3
8	3500431	1 8
28	3500700	49 28
16-1	35007000	8 16-1
16-2	3507002	8 16-2
16-3	3507050	8 16-3
3-1	3507050	14 3-1
3-2	3507052	14 3-2
16	3507052	15 16
13-1	3507052	26 13-1
16-4	3507054	8 16-4
3-3	3507054	14 3-3
13-2	3507054	26 13-2
25	3509320	9 25
12	4017013	15 12
3	4017013	30 3
31	4109403	1 31
15	9603903	48 15
2	9620631	49 2
22	9620666	49 22
3	9620670	49 3
8	9620673	49 8
11	9620675	49 11
23	9620678	49 23
24	9620679	49 24
25	9620680	49 25
26	9620681	49 26
18	9620688	49 18
4	9620689	49 4
21	9620690	49 21
20	9620691	49 20
1	9620696	49 1
17	9620700	49 17
16	9620703	49 16
31	9620750	49 31
32	9620751	49 32
33	9620752	49 33
35	9620753	49 35
42	9620754	49 42
43	9620755	49 43
38	9620756	49 38
40	9620757	49 40

Part BooksPartsSearchNotes

Part Books

×

Search

×

Yamato VF2400 — parts catalog

• Page 1 (parts_list): This page lists the models and devices for the Yamato VF2400 High Speed Flat Bed Chainstitch Machine.
• Page 2 (unknown): This page contains a watermark and a website address at the bottom.
• Page 3 (text): This page provides instructions on how to read the parts list, explains symbols used, and gives guidance on how to place an order for parts. It also mentions that the parts list is subject to change without notice.
• Page 4 (toc): This page contains the table of contents for the parts catalog, listing various mechanisms and exclusive parts with corresponding page numbers.
• Page 5 (toc): This page is a table of contents for a parts catalog, listing various devices and components with their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of engine components, including the cylinder block, cylinder head, and various fasteners and covers, with reference numbers for each part.
• Page 7 (parts_list): This page lists miscellaneous cover parts for an industrial sewing machine, including part numbers, descriptions, and quantities required.
• Page 8 (diagram): This page displays a diagram of various machine components and hardware, including screws, plates, and brackets, with reference numbers for identification.
• Page 9 (parts_list): This page lists miscellaneous covers and related parts, including screws, plates, springs, and covers, with their part numbers, descriptions, and quantities required.
• Page 10 (diagram): This page displays a diagram of various machine components and hardware, including screws, plates, and brackets, with reference numbers for identification.
• Page 11 (parts_list): This page lists miscellaneous covers and related parts for the VF2400 machine, including screws, hinges, springs, washers, and plugs, with their corresponding part numbers and quantities.
• Page 12 (diagram): This page displays a diagram of various sewing machine components, including screws, springs, brackets, and housing parts, with reference numbers for identification.
• Page 13 (parts_list): This page lists miscellaneous thread eyelets with their part numbers, descriptions, and quantities required.
• Page 14 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicated by reference numbers and a separate inset diagram for parts 31 through 40.
• Page 15 (parts_list): This page lists miscellaneous bushings and eye guards, including their part numbers, descriptions, and quantities required.
• Page 16 (diagram): This page displays a diagram of various components of the VF2400 sewing machine, including pulleys, shafts, brackets, and fasteners, with reference numbers for each part.
• Page 17 (parts_list): This page lists parts for the Main Shaft Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 18 (diagram): This page displays a diagram of various components and sub-assemblies for the VF2400 model, including pulleys, shafts, brackets, and fasteners, with reference numbers for each part.
• Page 19 (parts_list): This page lists parts for the MAIN SHAFT DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
• Page 20 (diagram): This page displays a diagram of various machine components, including gears, shafts, belts, and mounting hardware, with reference numbers for each part.
• Page 21 (parts_list): This page lists parts for the Upper Shaft & Needle Thread Take-up Mechanism, including part numbers, descriptions, and quantities.
• Page 22 (diagram): This page displays a diagram of various sewing machine components, including screws, levers, shafts, and covers, with reference numbers for each part.
• Page 23 (parts_list): This page lists parts for the Needle Bar Mechanism, including part numbers, descriptions, and quantities required.
• Page 24 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and shafts, with corresponding reference numbers for identification.
• Page 25 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 26 (diagram): This page displays a diagram of various sewing machine components, including screws, springs, levers, and shafts, with corresponding reference numbers for identification.
• Page 27 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 28 (diagram): This page displays a diagram of various sewing machine parts, including a needle bar linkage, presser foot assembly, and a bobbin case assembly, with reference numbers for each component.
• Page 29 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities required.
• Page 30 (diagram): This page displays a diagram of various machine components, including screws, brackets, shafts, and levers, with reference numbers for each part.
• Page 31 (parts_list): This page lists parts for the Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 32 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
• Page 33 (parts_list): This page lists parts for the FEED DRIVING CONTROL MECHANISM, including part numbers, descriptions, and quantities required.
• Page 34 (diagram): This page displays a diagram of various sewing machine components, including a main assembly with shafts and gears, smaller bracket and screw assemblies, and a set of parts labeled 1 through 39.
• Page 35 (parts_list): This page lists parts for the Feed Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 36 (diagram): This page displays a diagram of various engine components, including filters, brackets, hoses, and a pump, with numbered references for each part.
• Page 37 (parts_list): This page lists parts for the Lubricating Mechanism, including part numbers, descriptions, and quantities required.
• Page 38 (diagram): This page displays a diagram of various sewing machine parts for models VF2500 and 2500-35, with numbered components and some parts specifically noted for model VF2500-164M.
• Page 39 (parts_list): This page lists parts for the VF2500, 2500-35 EXCLUSIVE PARTS, including part numbers, descriptions, and quantities required.
• Page 40 (diagram): This page displays a diagram of various sewing machine parts for models VF2400-PA and VF2500-PA, with numbered components and their corresponding part numbers and descriptions.
• Page 41 (parts_list): This page lists exclusive parts for the VF2400-PA and 2500-PA sewing machines, including part numbers, descriptions, and quantities required.
• Page 42 (diagram): This page displays a diagram of machine parts for models VF2400-PA3 and 2500-PA3(1), with numbered components indicated.
• Page 43 (parts_list): This page lists parts for the VF2400-PA3, 2500-PA3 models, including part numbers, descriptions, and quantities required.
• Page 44 (diagram): This page contains diagrams of parts for the VF2400-PA3 and VF2500-PA3 sewing machines, with numbered parts and their corresponding references.
• Page 45 (parts_list): This page lists parts for the VF2400-PA3 and 2500-PA3 sewing machines, including part numbers, descriptions, and quantities required.
• Page 46 (diagram): This page displays a diagram of various parts for VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-11, and 2503-21(1) sewing machines, including extra parts and specific components for VF2503-11S and VF2403-50 models.
• Page 47 (parts_list): This page lists exclusive parts for VF2403, 2403-11, 2403-50, 2503, 2503-11, and 2503-21 models, including folders, screws, covers, and plates with their respective part numbers and quantities.
• Page 48 (diagram): This page displays diagrams of various sewing machine parts for models VF2403, 2403-11, 2403-11H, 2403-21, 2403-50, 2503, 2503-11, 2503-21, and VF2503-11, VF2503-21. It includes detailed illustrations of feed dogs, needle plates, and other components, with reference numbers for each part.
• Page 49 (parts_list): This page lists parts for VF2403, 2403-11, 2403-50, 2503, 2503-11, 2503-21 models, including presser feet, screws, stitch plates, feed dogs, needle clamps, and tension components.
• Page 50 (diagram): This page displays diagrams of various sewing machine parts for models VF2403, VF2403-11, VF2403-21, VF2403-50, VF2503, VF2503-11, and VF2503-21, with associated reference numbers.
• Page 51 (parts_list): This page lists parts for models VF2403, 2403-11, 2403-50, 2503, 2503-11, 2503-21, with part numbers, descriptions, and quantities required.
• Page 52 (diagram): This page displays a diagram of machine components for models VF2404 and 2504-11(1), with numbered parts and detailed views of items 1-1, 1-2, and 1-3.
• Page 53 (parts_list): This page lists exclusive parts for VF2404 and 2504-11 models, including folders, screws, covers, and other components with their respective part numbers and quantities.
• Page 54 (diagram): This page displays diagrams of sewing machine parts for models VF2404 and VF2504-11, with numbered components for identification.
• Page 55 (parts_list): This page lists parts for VF2404 and 2504-11 sewing machines, including presser foot components, screws, springs, stitch plates, feed dogs, and tension components, with their respective part numbers, descriptions, and quantities.
• Page 56 (diagram): This page displays a diagram of various parts for the VF2404 and 2504-11(3) models, with numbered components indicated.
• Page 57 (parts_list): This page lists parts for the VF2404 and 2504-11 models, including screws, washers, rollers, and tape guides, with their corresponding part numbers and quantities.
• Page 58 (diagram): This page displays a diagram of various parts for the VF2404 and 2504-11(4) models, with numbered components indicated.
• Page 59 (parts_list): This page lists parts for VF2404, 2504-11 EXCLUSIVE PARTS(4) with part numbers, descriptions, and quantities required.
• Page 60 (diagram): This page displays a diagram of various machine parts, including a shaft, bearings, a connecting rod assembly, and fasteners, with reference numbers for each component.
• Page 62 (diagram): This page displays a diagram of various sewing machine parts, including components labeled with reference numbers 1 through 20, and specific types designated as "L" Type and "S" Type.
• Page 63 (parts_list): This page lists exclusive parts for the VF2411 model, including part numbers, descriptions, and quantities required.
• Page 64 (diagram): This page displays a diagram of various parts for the VF2530 sewing machine, including components labeled with reference numbers and some specific to the VF2530-164M model.
• Page 65 (parts_list): This page lists parts for the VF2530 sewing machine, including needle clamps, thread tension components, presser foot parts, screws, and connecting rod components, with their respective part numbers and quantities.
• Page 66 (diagram): This page displays a diagram of various sewing machine parts for models VF2490 and VF2590, with numbered components and sub-assemblies for each model.
• Page 67 (parts_list): This page lists parts for VF2490 and VF2590 sewing machines, including part numbers, descriptions, and quantities required.
• Page 68 (diagram): This page displays a diagram of various sewing machine parts for models VF2490 and VF2590, with numbered components and their corresponding part numbers and descriptions.
• Page 69 (parts_list): This page lists exclusive parts for VF2490 and 2590 models, including screws, presser feet, stitch plates, and various tension components with their respective part numbers, descriptions, and quantities required.
• Page 70 (diagram): This page displays a diagram of various sewing machine parts for models VF2560 and 2560-PA(1), with numbered components and a section for extra parts.
• Page 71 (parts_list): This page lists parts for the VF2560, 2560-PA EXCLUSIVE PARTS(1) with part numbers, descriptions, and quantities required.
• Page 72 (diagram): This page displays a diagram of various sewing machine parts for models VF2560 and 2560-PA(1), with numbered components and their corresponding part numbers and descriptions.
• Page 73 (parts_list): This page lists parts for the VF2560 and 2560-PA models, including needle guards, presser feet, screws, and timing gauges, with their corresponding part numbers and quantities.
• Page 74 (diagram): This page displays a diagram of sewing machine parts for the VF2560(2) model, with numbered components and their corresponding part numbers and descriptions.
• Page 75 (parts_list): This page lists parts for the VF2560 sewing machine, including screws, washers, tension components, and covers, with their corresponding part numbers, descriptions, and quantities.
• Page 76 (diagram): This page displays a diagram of sewing machine parts, including a needle plate, feed dogs, and various screws and components, with reference numbers and labels like VF2560-PA(2).
• Page 77 (parts_list): This page lists parts for the VF2560-PA sewing machine, including part numbers, descriptions, and quantities required.
• Page 78 (diagram): This page displays a diagram of various pneumatic components for the VF2560-PA(3) machine, including cylinders, valves, fittings, and related hardware, with reference numbers for each part.
• Page 79 (parts_list): This page lists parts for the VF2560-PA Exclusive Parts (3) with part numbers, descriptions, and quantities required.
• Page 80 (diagram): This page displays a diagram of the EC device and its components, with numbered parts for identification.
• Page 81 (parts_list): This page lists parts for the EC Device, including part numbers, descriptions, and quantities required. It covers items from reference number 1 to 48.
• Page 82 (diagram): This page displays a diagram of the EU5 DEVICE(1) with various components labeled with reference numbers.
• Page 83 (parts_list): This page lists parts for the EU5 DEVICE (1) with part numbers, descriptions, and quantities required.
• Page 84 (diagram): This page displays a diagram of the EU5 device (2) with numbered parts, and also shows diagrams for various models including VF2400, VF2500, VF2403, VF2403-11, VF2404, VF2503, and VF2503-11.
• Page 85 (parts_list): This page lists parts for the EU5 Device (2) with part numbers, descriptions, and quantities required. It includes items like cutting devices, screws, washers, solenoids, and various plates.
• Page 86 (diagram): This page displays a diagram of the EU5/PS2 device, including various components like a pulley, screws, brackets, cables, and circuit boards, with reference numbers for each part.
• Page 87 (parts_list): This page lists parts for the EU5/PS2 DEVICE (1) with part numbers, descriptions, and quantities required.
• Page 88 (diagram): This page displays a diagram of the EU5/PS2 device (2), showing various components labeled with reference numbers from 1 to 37.
• Page 89 (parts_list): This page lists parts for the EU5/PS2 DEVICE(2) with part numbers, descriptions, and quantities required.
• Page 90 (diagram): This page displays a diagram of the FC device components, with numbered parts and their corresponding references.
• Page 91 (parts_list): This page lists parts for the FC DEVICE, including part numbers, descriptions, and quantities required.
• Page 92 (diagram): This page displays a diagram of the AU2-1 device, showing various components labeled with reference numbers and some part numbers.
• Page 93 (parts_list): This page lists parts for the AU2-1 DEVICE(1) with part numbers, descriptions, and quantities required.
• Page 94 (diagram): This page displays a diagram of the AU2-1 Device (2) with numbered parts, including screws, washers, and various mechanical components.
• Page 95 (parts_list): This page lists parts for the AU2-1 Device (2) with part numbers, descriptions, and quantities required.
• Page 96 (diagram): This page displays diagrams of various components for the AU2-1 DEVICE(3), including a pressure regulator assembly, a control unit, a mounting bracket, and electrical connectors and cables.
• Page 97 (parts_list): This page lists parts for the AU2-1 DEVICE(3) with part numbers, descriptions, and quantities required.
• Page 98 (diagram): This page displays diagrams of device components for models VF2403, 2503, VF2403-21, and 2503-21, with associated part numbers and reference indicators.
• Page 99 (parts_list): This page lists parts for the AU2-1 DEVICE(4) with part numbers, descriptions, and quantities required.
• Page 100 (diagram): This page displays a diagram of the K1 device for VF2400, 2500, and 2560 sewing machines, along with detailed part breakdowns for VF2400, VF2500, and VF2560 models.
• Page 101 (parts_list): This page lists parts for the K1 Device for VF2400, 2500, 2560, including part numbers, descriptions, and quantities.
• Page 102 (diagram): This page displays a diagram of various components for a C DEVICE, including screws, brackets, regulators, and tubing, with reference numbers for each part.
• Page 103 (parts_list): This page lists parts for the C DEVICE, including part numbers, descriptions, and quantities required. It details components like hose bands, regulators, air hoses, and various screws and nuts.
• Page 104 (diagram): This page displays a diagram of the S1 Device, with numbered parts and their corresponding references.
• Page 105 (parts_list): This page lists parts for the S1 DEVICE, including part numbers, descriptions, and quantities required.
• Page 106 (diagram): This page displays a diagram of the S1 device, showing various components labeled with reference numbers and corresponding part numbers.
• Page 107 (parts_list): This page lists parts for the S1 DEVICE, including sliders, screws, washers, nuts, and guide levers, with their corresponding part numbers, descriptions, and quantities.
• Page 108 (diagram): This page displays diagrams of extra parts for VF2400 and VF2500 sewing machines, including different types like "L" type, "S2" type, and models with fabric guides, as well as parts for the VF2500-160M model.
• Page 109 (parts_list): This page lists extra parts for the VF2400 sewing machine, including stitch plates, presser feet, screws, and tape guides, with their corresponding part numbers and quantities.
• Page 110 (parts_list): This page lists extra parts for the VF2403 and VF2503 sewing machine models, including diagrams and part numbers for various components.
• Page 111 (parts_list): This page lists extra parts for an industrial sewing machine, including feed dogs, stitch plates, presser feet, screws, tape guides, and lock nuts, with their corresponding part numbers, descriptions, and quantities required.
• Page 112 (diagram): This page displays extra parts for the VF2411 model, including components for covering seams, with reference numbers and illustrations.
• Page 113 (parts_list): This page lists extra parts for an industrial sewing machine, including folders, screws, fabric guides, feed dogs, needle clamps, and timing gauges, with their corresponding part numbers, descriptions, and quantities.
• Page 114 (diagram): This page displays extra parts for the supporting board, including various screws, nuts, washers, and specialized components labeled with reference numbers from 1 to 22.
• Page 115 (parts_list): This page lists parts for the Supporting Board, including part numbers, descriptions, and quantities required.
• Page 116 (diagram): This page contains a diagram of various machine components, including spools, guides, and mounting hardware, with corresponding reference numbers.
• Page 117 (parts_list): This page lists parts for a Thread Stand, including part numbers, descriptions, and quantities required. It contains 43 items.
• Page 118 (parts_list): This page lists various warning labels for the machine, including their part numbers and descriptions in both English and Japanese.
• Page 119 (cover): This is the cover page for a list of main spare parts, with the title also provided in Japanese.
• Page 120 (parts_list): This page contains a parts list for the VF2400 class of sewing machines, detailing various main parts and their corresponding part numbers and descriptions across different models.
• Page 122 (parts_list): This page lists parts for the VF2400 class of sewing machines, including models like VF2404-132M, VF2404-140M, and VF2411-040L, with details on Presser Foot C. Set, Stitch Plate, Differential Feed Dog, Front Cover, Cloth Plate (Large), Cloth Plate (Small), Thread Take-up Cover, Stitch Plate Support, and Looper.
• Page 125 (parts_list): This page lists spare parts for the VF2400 class of sewing machines, detailing components such as presser foot, stitch plate, thread take-up cover, cloth plate, and looper for various models.
• Page 126 (index): This page contains an index of parts for the VF2400 model, listing part numbers, page numbers, reference numbers, and weights.
• Page 127 (index): This page is an index for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 128 (index): This page is an index for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 129 (index): This page is an index for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 130 (parts_list): This page contains a parts list for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 131 (index): This page is an index of parts for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 132 (index): This page is an index of parts for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 133 (index): This page is an index of parts for the VF2400 machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 134 (index): This page is an index for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 135 (index): This page is an index for the VF2400 machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 136 (parts_list): This page contains a parts list for the VF2400 model, listing part numbers, page numbers, reference numbers, and weights.
• Page 137 (index): This page is an index for the VF2400, listing part numbers, page numbers, reference numbers, and weights.
• Page 138 (parts_list): This page contains a parts list for the VF2400 model, listing part numbers, page numbers, reference numbers, and weights.
• Page 139 (index): This page is an index of parts for the VF2400 machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 140 (unknown): This page contains a watermark and a website address at the bottom.
• Page 141 (unknown): This page contains a watermark with the text "jintex.in". There is no other discernible content on the page.
• Page 142 (cover): This is the cover page of the Yamato Sewing Machine Mfg. Co., Ltd. parts catalog, identified by P/N 9710022(P), No. 8, edited in November 2006.

Page 1 — Parts List

Yamato Parts List HIGH SPEED FLAT BED CHAINSTITCH MACHINE VF2400 MODELS & DEVICES VF2400 VF2403 VF2400-PA VF2403-11 VF2403-11H VF2403-21 VF2403-50 VF2404 VF2411 VF2490 VF2500 VF2500-20 VF2500-35 VF2500-PA VF2500-PA3 VF2503 VF2503-11 VF2503-11S VF2503-21 VF2504-11 VF2530 VF2560 VF2560-PA VF2590 EC EU5 EU5/PS2 FC AU2 K1 C S1 YAMATO SEWING MACHINE MFG. CO.,LTD. jintex.in

Page 2

jinttex.in jintex.in

Page 3

パーツリストの見方 このパーツリストはVF2400-132M, 140M, 148M, 156M, 164Mを基本モデルにしてイラストを作成しています。 項目1~13には基本モデルを記載しています。 項目14~サブモデル、付帯装置等を記載しています。 パーツリストに記載されているカラーの寸法は内径×外径×幅を表しています。 記号の説明 (Parts No. の隣に記載されています。) [ ] 前回 のパーツリストに対して、今回変更された部品を表わしています。 [ ]内は旧Parts No. 及びネジ類の形状 ◆ 前回 のパーツリストに対して、今回追加された部品及びモデルを表わしています。 部品注文のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、3500201)でお願いしま す。 ☆ 0068011の場合は、0068011又は68011でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さを お知らせ下さい。 なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of VF2400-132M, 140M, 148M, 156M, 164M. The items from No.1 to No.13 contain the standerd model. The following items included No.14 contain the submodel and Devices. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. means this part and model is added to the previous Parts List. How to place an order for the parts When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.3500201) which you require so that we can deliver the correct Parts to you. When the Part No. is "0068011", please place an order for the part by showing "0068011" or "68011". When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. jintex.in

Page 4 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) MISCELLANEOUS COVERS(2) MISCELLANEOUS THREAD EYELETS MISCELLANEOUS BUSHINGS & EYE GUARD MAIN SHAFT DRIVING MECHANISM UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM NEEDLE BAR MECHANISM PRESSER FOOT MECHANISM SPREADER MECHANISM LOOPER DRIVING MECHANISM FEED DRIVING CONTROL MECHANISM FEED DRIVING MECHANISM LUBRICATING MECHANISM VF2500, 2500-35 EXCLUSIVE PARTS VF2400-PA, 2500-PA EXCLUSIVE PARTS VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(1) VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-11, 2503-21 EXCLUSIVE PARTS(1) VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-11, 2503-21 EXCLUSIVE PARTS(2) VF2404, 2504-11 EXCLUSIVE PARTS(1) VF2404, 2504-11 EXCLUSIVE PARTS(2) VF2404, 2504-11 EXCLUSIVE PARTS(3) VF2404, 2504-11 EXCLUSIVE PARTS(4) VF2404, 2504-11 EXCLUSIVE PARTS(5) VF2411 EXCLUSIVE PARTS VF2530 EXCLUSIVE PARTS VF2490, 2590 EXCLUSIVE PARTS VF2560, 2560-PA EXCLUSIVE PARTS(1) VF2560 EXCLUSIVE PARTS(2) VF2560-PA EXCLUSIVE PARTS(2) VF2560-PA EXCLUSIVE PARTS(3) カバー関係(1) カバー関係(2) 糸道関係 ブッシュ及びアイガード関係 下軸機構 上軸及び針糸繰り機構 針棒機構 押工機構 飾り糸ルーパ機構 ルーパ機構 前送り調節機構 送り機構 給油機構 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品(1) サブモデル専用部品(2) サブモデル専用部品(1) サブモデル専用部品(2) サブモデル専用部品 サブモデル専用部品 サブモデル専用部品(3) サブモデル専用部品(4) サブモデル専用部品(5) サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品(1) サブモデル専用部品(2) サブモデル専用部品(2) サブモデル専用部品(3) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 jintex.in

Page 5

Contents 目次 EC DEVICE EU5 DEVICE(1) EU5 DEVICE(2) EU5/PS2 DEVICE(1) EU5/PS2 DEVICE(2) FC DEVICE AU2-1 DEVICE(1) AU2-1 DEVICE(2) AU2-1 DEVICE(3) AU2-1 DEVICE(4) K1 DEVICE for VF2400, 2500, 2560 C DEVICE S1 DEVICE EXTRA PARTS(1) EXTRA PARTS(2) SUPPORTING BOARD THREAD STAND WARNING LABEL LIST of MAIN SPARE PARTS INDEX EC 装置 EU5 装置(1) EU5 装置(2) EU5/PS2 装置(1) EU5/PS2 装置(2) FC 装置 AU2-1 装置(1) AU2-1 装置(2) AU2-1 装置(3) AU2-1 装置(4) K1 装置 C 装置 S1 装置 特注部品(1) 特注部品(2) 受ケ板 糸立台 警告ラベル 主要部品リスト 索引 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 53 jintex.in

Page 6

1 VF2400 jintex.in

Page 7 — MISCELLANEOUS COVER(1)

MISCELLANEOUS COVER(1) カバー関係(1) Ref.No Parts No. Description 品 名 Amt. Req 1 3100026 Top Cover 上カバー 1 2 110045 Screw(M4-0.7 × 12) 止ネジ 15 3 3500430 Top Cover Gasket 上カバーパッキン 1 4 0068011 Oil Sight Window オイル確認窓 1 5 0020759 Top Cover Seal Plug 上カバー詰栓 1 6 390069 Brand Name Plate(76.5) 銘板 1 7 3500207 Head Cover ヘッドカバー 1 8 3500431 Head Cover Gasket ヘッドカバーパッキン 1 9 0093864 Head Cover Seal Plug 詰栓 1 10 390073 "VF" Emblem VFエンブレム 1 11 3200010 Bed Rear Cover ベッド後カバー 1 12 0095108 Bed Rear Cover Gasket ベッド後カバーパッキン 1 13 3200011 Side Cover 横開キカバー 1 14 170001 Screw(M5-0.8 × 8) 止ネジ 1 15 300100 Conical Spring Washer 皿バネワッシャ 2 16 180005 Screw(M5-0.8 × 8) 止ネジ 1 17 18 0032604 Rubber Cushion(Large) クッションゴム(大) 2 19 3200033 Rubber Cushion(Small) クッションゴム(小) 3 20 3200012 Cover Latch Spring カバーラッチバネ 1 21 110012 Screw(M4-0.7 × 5) 止ネジ 2 22 180018 Screw(M4-0.7 × 7) バネ掛ケネジ 1 23 3200013 Side Cover Holder 横開キカバー受ケ 1 24 110013 Screw(M4-0.7 × 8) 止ネジ 4 25 000015 Nut ナット 1 26 110016 Screw(M4-0.7 × 15) 止ネジ 1 27 330000 Seal Plug 詰栓 1 28 29 009970 Screw(M6-1 × 20) 止ネジ 6 30 340016 Machine Frame Supporting Bar ベッド支工棒 4 31 4109403 Model Plate(See the below) 型式板(下記参照) 1 32 000726 Rivet 止メ鋲 5 33 3200007 Oil Reservoir Gasket 油受ケパッキン 1 34 3200006 Oil Reservoir 油受ケ 1 35 0020137 Drain Hole Seal 油抜キネジパッキン 1 36 005075 Screw(3/8-24 × 8) 油抜キネジ 1 37 3200021 Wind Guide Plate 風案内板 1 38 390067 Brand Name Plate(106) 銘板 1 39 390068 Brand Name Plate(92) 銘板 1 40 2049401 Serial Number Plate 機番プレート 1 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge and devices). (注)型式板を御注文の際は機種名(ゲージ記号,付帯装置含む)をお知らせ下さい。 jintex.in VF2400

Page 8

2 VF2400 jintex.in

Page 9 — MISCELLANEOUS COVERS(2)

MISCELLANEOUS COVERS(2) カバー関係(2) 2 Ref.No Parts No. Description Amt. Req 1 3200017 Cloth Plate(Large) 大カバー 1 2 009749 Screw(M4-0.7 × 16) 止ネジ 3 3 009747 Screw(M4-0.7 × 10) 止ネジ 1 4-1 3200018 Looper Thread Take-up Cover(32,40,48,56) カムカバー 1 4-2 3200035 Looper Thread Take-up Cover(64) カムカバー 1 5 006004 Screw(11/64-40 × 9.7) 止ネジ 1 6 000010 Conical Spring Washer 皿バネワッシャ 1 7 3200019 Take-up Cover Spring カムカバーバネ 1 8 110030 Screw(M3-0.5 × 2.6) 止ネジ 2 9 3200014 Cloth Plate(Small) 小カバー 1 10 130003 Screw(M4-0.7 × 7.3) 止ネジ 1 11 130004 Screw(M4-0.7 × 14) 止ネジ 1 12 13 009736 Screw(M4-0.7 × 6) 止ネジ 1 14 110013 Screw(M4-0.7 × 8) 止ネジ 10 15 3200024 Bed Top Cover(Right) ベッド上カバー(右) 1 16 3200025 Bed Top Cover(Right) Gasket ベッド上カバー(右)パッキン 1 17 007610 Screw(M4-0.7 × 10) 止ネジ 8 18 130006 Screw(M4-0.7 × 10) 止ネジ 2 19 3200022 Bed Top Cover(Left) ベッド上カバー(左) 1 20 3200023 Bed Top Cover(Left) Gasket ベッド上カバー(左)パッキン 1 21 3200209 Feed Regulating Pushbutton プッシュボタン 1 22 0063152 Feed Regulating Pushbutton Spring プッシュボタンバネ 1 23 0020472 O-ring(P6) Oリング 1 24 000425 Washer ワッシャ 1 25 0033024 Retaining Ring ストップリング 1 26 0065275 Seal Plug 詰栓 1 27 0093864 Seal Plug 詰栓 5 28 3100113 Needle Bar Cover 針棒カバー 1 29 3200028 Bed Rear Cover(Small) ベッド後カバー(小) 1 30 3200029 Bed Rear Cover(Small) Gasket ベッド後カバー(小)パッキン 1 31 3200030 Ball Bearing Housing ハウジング 1 32 3200031 O-ring Oリング 1 33 110048 Screw(M4-0.7 × 10) 止ネジ 3 34 3200210 Pushbutton Stop プッシュボタンストッパ 1 35 110012 Screw(M4-0.7 × 5) 止ネジ 2 36 3200032 Stitch Plate Support 針板台 1 37 110041 Screw(M4-0.7 × 8) 止ネジ 2 38 000745 Knock Pin ノックピン 2 39 3200026 Bed Front Cover ベッド前カバー 1 40 3200027 Bed Front Cover Gasket ベッド前カバーパッキン 1 Ref. No. 41 to 57 See the following page. jintex.in VF2400

Page 10

2 VF2400 jintex.in

Page 11 — MISCELLANEOUS COVER(S) (2)

MISCELLANEOUS COVER(S) (2) カバー関係(2) 2 Ref.No Parts No. Description 品 名 Amt. Req 41 3100030 Front Cover Hinge 前開キャパーヒンジ 1 42 110016 Screw(M4-0.7 × 15) 止ネジ 2 43-1 3200015 Front Cover (32, 40, 48, 56) 前開キャパー 1 43-2 3200034 Front Cover (64) 前開キャパー 1 44 170020 Screw(M4-0.7 × 8) 止ネジ 1 45 300100 Conical Spring Washer 皿バネワッシャ 2 46 160001 Screw(M4-0.7 × 4) 止ネジ 1 47 180017 Screw(M4-0.7 × 6) 止ネジ 1 48 3200033 Rubber Cushion(Small) クッションゴム(小) 2 49 3200016 Front Cover Spring 前開キャパーバネ 1 50 110012 Screw(M4-0.7 × 5) 止ネジ 4 51 180018 Screw(M4-0.7 × 7) バネ掛ケネジ 1 52 3100071 Eyelet Cover 糸道カバー 1 53 3200020 Oil Cooling Fan Cover 冷却ファンカバー 1 54 110105 Screw(M5-0.8 × 12) 止ネジ 2 55 000426 Washer ワッシャ 2 56 3100006 Seal Plug 詰栓 1 57 110079 [110013] Screw(M4-0.7 × 8)[M4-0.7 × 8] 止ネジ 2 jinttex.in VF2400

Page 12

3 29 35 34 33 30 27 52 37 39 41 19 42 43 44 45 46 47 48 49 50 51 26 27 52 25 23 24 14 22 21 28 20 17 19 18 13 12 11 12 11 12 11 12 11 10 9 8 9 8 9 8 9 8 16 15 16 16 16 1 2 3 4 5 6 7 1 5 6 7 2 16 1 5 6 7 3 16 1 5 6 7 4 16 1 VF2400 jintex.in

Page 13 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS Ref.No Parts No. Description Amt. Req 1 0024084 Thread Tension Spring Cap 4 2 0030255 Needle Thread Tension Spring 2 3 0032952 Top Cover Thread Tension Spring 1 4 0032952 Looper Thread Tension Spring 1 5 0090071 Thread Tension Spring Retainer 4 6 000177 Felt 4 7 0031111 Tension Disc 8 8 290029 Tension Post 4 9 0090812 Tension Post Ferrule 4 10 3100075 Tension Disc Separator 1 11 0090856 Tension Disc Eyelet 4 12 0090807 Thread Lead-in Guide 4 13 3100074 Tension Post Support 1 14 110013 Screw(M4-0.7 × 8) 5 15 2100065 Looper Thread Eyelet 1 16 0024083 Tension Spring Bushing 4 17 3200048 Top Cover Thread Eyelet(Left) 1 18 3200042 Looper Thread Eyelet 1 19 110013 Screw(M4-0.7 × 8) 3 20 0093556 Looper Thread Eyelet(Long) 1 21 0020119 Thread Eyelet Pipe(Short) 2 22 0093528 Thread Eyelet Pipe Stay 2 23 000532 Washer 2 24 004353 Screw(9/64-40 × 7) 2 25 0063104 Thread Guide Plate 1 26 3200047 Top Cover Thread Eyelet(Right) 1 27 000538 Washer 2 28 000651 Guide Pin 1 29 3100383 SP Device, C. Set 1 30 3100384 SP Container 1 31 32 33 3100386 Felt 1 34 3100387 Needle Thread Eyelet 1 35 350009 Screw(1/8-44 × 8) 2 36 37 0090068 Needle Thread Guide 1 38 39 3100442 Needle Thread Take-up Guard 1 40 130003 Screw(M4-0.7 × 4.5) 1 41 3100087 Needle Thread Retainer Support 1 42 0036175 Thread Retainer Disc Support 1 43 0032425 Needle Thread Retainer Dice 1 44 0032426 Needle Thread Retainer Spring 1 45 001093 Screw(1/8-44 × 2.2) 1 46 3200045 Top Cover Thread Guide 1 47 0063074 Supplementary Thread Guide 1 48 001818 Tension Post 1 49 0037108 Supplementary Tension Disc 2 50 0035813 Supplementary Tension Spring 1 51 000360 Nut 1 52 110009 Screw(M4-0.7 × 8) 5 VF2400 jintex.in 糸関連関係 3

Page 14

4 41 30 27 28 25 20 29 22 26 23 24 1 2 6 7 14 13 17 18 19 16 15 12 11 5 8 9 10 31 32 33 40 39 36 35 34 37 38 VF2400 jintex.in

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

MISCELLANEOUS BUSHINGS & EYE GUARD ブッシュ及びアイガード関係 4 Ref.No Parts No. Description 品 名 Amt. Req 1 3500309 [3204020] Oil Seal オイルシール 2 2 310009 Oil Wick 油芯 1 3 4 3200059 Presser Bar Bushing 押工棒ブッシュ 1 5 3204021 Oil Seal オイルシール 2 6 3100100 Spreader Driving Bar Bushing 飾り糸ルーパ棒ブッシュ 1 7 0063055 Oil Seal オイルシール 1 8 3200063 Spreader Driving Shaft Bushing(Left) 飾り糸ルーパ軸ブッシュ(左) 1 9 3200064 Spreader Driving Shaft Bushing(Right) 飾り糸ルーパ軸ブッシュ(右) 1 10 3160136 Foot Lifter Lever Bushing 押工揚ゲブッシュ 1 11 3200068 Needle Thread Take-up Bushing(Front) 針糸繰り軸ブッシュ(前) 1 12 3100098 Needle Thread Take-up Bushing(Rear) 針糸繰り軸ブッシュ(後) 1 13 3200050 Lower Shaft Bushing 下軸ブッシュ 1 14 3200067 Oil Seal オイルシール 1 15 3200062 Looper Rocker Shaft Bushing(Left) ルーパ前後軸ブッシュ(左) 1 16 3200052 Looper Rocker Shaft Bushing(Right) ルーパ前後軸ブッシュ(右) 1 17 0077300 Oil Seal オイルシール 1 18 3200056 Needle Guard Driving Shaft 針受ケ軸ブッシュ 2 19 3200057 Seal Plug 詰栓 1 20 3200053 Feed Bar Driving Shaft Bushing(Left) 送り軸ブッシュ(左) 1 21 3200065 Feed Bar Driving Shaft Bushing(Right) 送り軸ブッシュ(右) 1 22 2100034 Seal Plug 詰栓 1 23 0093303 Oil Seal オイルシール 1 24 3200061 Looper Driving Shaft Bushing(Front) ルーパ軸ブッシュ(前) 1 25 3200051 Looper Driving Shaft Bushing(Rear) ルーパ軸ブッシュ(後) 1 26 3200055 Differential Lever Shaft Bushing 差動レバー軸ブッシュ 1 27 0093864 Seal Plug 詰栓 1 28 0065275 Seal Plug 詰栓 1 29 0095218 Seal Plug 詰栓 1 30 3200066 Seal Plug 詰栓 1 31 3200251 Eye Guard, Complete Set アイガード(組) 1 32 3101200 Eye Guard Support アイガード取付板 1 33 009784 Screw(M6-1 × 10) 止ネジ 1 34 3200252 Eye Guard アイガード 1 35 004236 Screw(3/32-56 × 4.2) 止ネジ 2 36 0060175 Eye Guard Holder アイガードホルダ 1 37 006004 Screw(11/64-40 × 7.8) 止ネジ 1 38 000010 Conical Spring Washer 皿バネワッシャ 1 39 000547 Washer ワッシャ 1 40 000334 Nut ナット 1 41 000195 Oil Wick 油芯 1 jintex.in VF2400

Page 16

5 VF2400 jintex.in 37-1 37-2

Page 17 — MAIN SHAFT DRIVING MECHANISM

MAIN SHAFT DRIVING MECHANISM 下軸機構 5 Ref.No Parts No. Description 品 名 Amt. Req 1 3200070 Pulley プーリー 1 2 160005 Screw(M6-1 × 8) 止ネジ 5 3 160007 Screw(M6-1 × 6) 止ネジ 9 4 000037 Roll Pin ロールピン 1 5 3200071 Oil Cooling Fan 冷却ファン 1 6 3200095 Ball Bearing(Right) ボールベアリング(右) 1 7 3100128 Timing Pulley(Lower) タイミングプーリー(下) 1 8 3100131 Ball Bearing(Middle) ボールベアリング(中) 1 9 3200072 Oil Pump Driving Worm ウォーム 1 10 3100129 Adapter アダプタ 1 11 3200078 Ball Bearing(Left) ボールベアリング(左) 1 12 3200073 Lower Shaft(Right) 下軸(右) 1 13 3200074 Lower Shaft Joint 継手 1 14 3200143 [3200076] Looper Thread Take-up 下糸調子カム 1 15 150000 [008047] Screw(M5-0.8 × 4)[7/32-32 × 3.6] 止ネジ 2 16 0093091 Ball Bearing ボールベアリング 1 17 3200097 Needle Guard Connecting Rod, C. Set(2) 針受ケロッド(組2) 1 18 3200096 Needle Guard Connecting Rod, C. Set(1) 針受ケロッド(組1) 1 19 3200082 Needle Guard Connecting Rod 針受ケロッド 1 20 110005 Screw(M3.5-0.6 × 12) 止ネジ 2 21 3200098 Needle Guard Eccentric 針受ケエキセン 1 22 160003 Screw(M5-0.8 × 5) 止ネジ 2 23 3200087 Connecting Rod Pin ロッドピン 1 24 3200084 Needle Guard Driving Shaft Arm 針受ケ軸腕 1 25 120030 Screw(M5-0.8 × 12) 止ネジ 1 26 160000 Screw(M3-0.5 × 3) 止ネジ 4 27 3200077 Counterweight バランスウエイト 1 28 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 29 3200075 Lower Crankshaft 下軸クランク 1 30 310035 Oil Wick 油芯 1 31 160001 Screw(M4-0.7 × 4) 諸ネジ 2 32 0020159 Ball Bearing ボールベアリング 1 33 0068202 Retaining Ring ストップリング 1 34 3200085 Spacer スペーサ 1 35 3200086 Collar(8 × 13 × 6mm) カラー 1 36 3200083 Needle Guard Driving Shaft 針受ケ軸 1 37-1 0093659 Needle Guard(Rear) (32, 40, 48, 56, 64) 針受ケ(後) 1 37-2 0093669 Needle Guard(Rear) (Extra) 針受ケ(特注品) 1 38 110033 Screw(M3.5-0.6 × 4.5) 止ネジ 1 39 3200093 Supporting Plate Stay(Lower) カム糸道取付板支工(下) 1 40 110048 Screw(M4-0.7 × 10) 止ネジ 2 Ref. No. 41 to 58 See the following Page. VF2400

Page 18

5 VF2400 jintex.in

Page 19 — MAIN SHAFT DRIVING MECHANISM

MAIN SHAFT DRIVING MECHANISM Ref.No Parts No. Description 下軸機構 5 品名 Amt. Req 41 3200092 Supporting Plate Stay(Upper) カム糸通取付板支工(上) 1 42 110009 Screw(M4-0.7 × 8) 止ネジ 1 43 3200091 Supporting Plate カム糸通取付板 1 44 130002 Screw(M3-0.5 × 6) 止ネジ 2 45 000463 Laced Wire モール(糸巻付防止) 2 46 0093515 Thread Take-up Eyelet カム糸通 2 47 000014 Washer ワッシャ 2 48 001227 Screw(1/8-44 × 3.8) 止ネジ 2 49 3200042 Looper Thread Eyelet ルーパ糸通 1 50 001818 Tension Post 糸調子棒 1 51 0037108 Supplementary Tension Disc 小調子皿 2 52 0035813 Supplementary Tension Spring 小調子バネ 1 53 000360 Adjusting Nut 調節ナット 1 54 0063197 Cast-off Plate Bracket 糸案内台 1 55 001223 Screw(9/64-40 × 7.5) 止ネジ 1 56 3200094 Cast-off Plate 糸案内 1 57 000532 Washer ワッシャ 1 58 004106 Screw(9/64-40 × 6.5) 止ネジ 1 VF2400

Page 20

6 40 4 1 3 2 5 8 7 9 10 5 21 21 20 19 18 16 15 14 13 11 12 24 23 27 26 29 28 25 30 31 32 33 34 35 36 37 38 39 VF2400 jintex.in

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 上軸及び針糸繰り機構 6 Ref.No Parts No. Description 品 名 Amt. Req 1 3204066 [3200102] Handwheel ハンドホイール 1 2 160005 Screw(M6-1 × 8) 止ネジ 1 3 160007 Screw(M6-1 × 6) 止ネジ 10 4 000989 Handwheel Mark ハンドホイールマーク 1 5 3100131 Ball Bearing ボールベアリング 2 6 3100129 Handwheel Adapter アダプタ 1 7 0095214 Timing Belt タイミングベルト 1 8 3100281 Timing Pulley(Upper) タイミングプーリ(上) 1 9 3100275 Upper Shaft(Right) 上軸(右) 1 10 3100283 Upper Shaft Joint 上軸継手 1 11 3100127 Counterweight(Small) バランスウエイト(小) 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 2 13 3200100 Upper Crankshaft 上軸クランク 1 14 310040 Oil Wick 油芯 1 15 110012 Screw(M4-0.7 × 4) 諸ネジ 1 16 3200226 Oil Sleeve オイル スリーブ 1 17 18 0060057 Retaining Ring 止メ輪 1 19 0093154 Ball Bearing ボールベアリング 2 20 000926 Rubber Seat ゴム座 1 21 160004 Screw(M6-1 × 4.8) 止ネジ 2 22 23 0095170 Connecting Rod 針糸繰りロッド 1 24 005071 Screw(11/64-32 × 14) 止ネジ 2 25 001174 Screw(9/64-40 × 10.3) 止ネジ 2 26 0095168 Guide Fork 振レ止メ 1 27 004312 Screw(1/8-44 × 7.9) 止ネジ 2 28 3100285 Driving Lever 針糸繰り軸腕 1 29 120013 Screw(M6-1 × 15) 止ネジ 1 30 120015 Screw(M5-0.8 × 10) 止ネジ 1 31 000555 Washer ワッシャ 1 32 3100286 Spacer スペーサ 1 33 3100287 Driving Shaft 針糸繰り軸 1 34 3100078 Bracket 針糸繰り台 1 35 000600 Spring Washer スプリングワッシャ 1 36 005650 Screw(M5-0.8 × 14) 止ネジ 1 37 0063096 Needle Thread Take-up 針糸繰り糸道 1 38 3200049 Top Cover Thread Take-up 飾リ糸繰リ 1 39 110004 Screw(M3.5-0.6 × 8) 止ネジ 2 40 160007 Screw(M6-1 × 6) 止ネジ 1 VF2400

Page 22

7 VF2400 jintex.in

Page 23 — NEEDLE BAR MECHANISM

NEEDLE BAR MECHANISM 7 Ref.No Parts No. Description Amt. Req 1 0063044 [3200041] Needle Bar Thread Eyelet 針棒糸道 1 2 004358 Screw(9/64-40 × 5.6) 止ネジ 1 3 3200170 [3200105] Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 5 3200111 Needle Bar Bracket 針棒抱キ 1 6 110035 Screw(M4-0.7 × 10) 止ネジ 1 7-1 3209100 Needle Clamp(32) 針止メ 1 7-2 3209101 Needle Clamp(40) 針止メ 1 7-3 3209102 Needle Clamp(48) 針止メ 1 7-4 3209104 Needle Clamp(64) 針止メ 1 8 ---- Needle(UY128 GAS) 針 2 9 001892 Screw(1/8-44 × 2.9) 止ネジ 3 10 3200046 Top Cover Thread Eyelet 飾り糸道 1 11 3200117 Needle Clamp Eyelet 針止メ糸道 1 12 001230 Screw(3/32-56 × 3.8) 止ネジ 1 13-1 3108130 [0093170] Stitch Plate(32M) 針板 1 13-2 3108131 [0093171] Stitch Plate(40M) 針板 1 13-3 3108132 [0093172] Stitch Plate(48M) 針板 1 13-4 0093174 Stitch Plate(64M) 針板 1 14 009142 Screw(9/64-40 × 4.8) 止ネジ 2 15 3200115 Counterweight, C. Set バランスウエイト(組) 1 16 3200101 Counterweight バランスウエイト 1 17 120015 Screw(M5-0.8 × 10) 止ネジ 1 18 0093214 Connecting Rod Ring 針棒ロッドリング 1 19 3200114 Connecting Rod, C. Set 針棒ロッド(組) 1 20 3200112 Connecting Rod 針棒ロッド 1 21 0093212 Roller Bearing ニードルベアリング 1 22 330000 Seal Plug 詰栓 1 23 000309 Oil Wick 油芯 1 24 3200113 Connecting Rod Pin 針棒ロッドピン 1 25 3200118 Needle Bar Guide, C. Set 針棒案内(組) 1 26 0093186 Slide Block 針棒案内 1 27 3200116 Needle Bar Guide 針棒案内 1 28 009749 Screw(M4-0.7 × 16) 止ネジ 2 29 3200120 HR Device, C. Set HR装置(組) 1 30 3200121 HR Cup HRカップ 1 31 3200122 HR Cup Lid HRカップ蓋 1 32 0093864 Seal Plug 詰栓 1 33 310036 HR Felt HRフェルト 1 34 0093663 HR Felt Guard フェルトガード 1 35 006219 Screw(M4-0.7 × 30) 止ネジ 2 36 3200090 Connecting Rod Cover Shaft カバー軸 1 37 160023 Screw(M4-0.7 × 4) 止ネジ 1 38 3200089 Connecting Rod Cover(Rear) 針棒ロッドカバー(後) 1 39 110002 Screw(M3-0.5 × 5) 止ネジ 2 40 3200088 Connecting Rod Cover(Front) 針棒ロッドカバー(前) 1 41 110012 Screw(M4-0.7 × 5) 止ネジ 1 42 260000 Screw(5/16-24 × 15.88) 止ネジ 2 jintex.in VF2400

Page 24

8 VF2400 jintex.in

Page 25 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 1 0093500 Presser Spring Regulator 押工調節ネジ 1 2 3 000445 Lock Nut ロックナット 1 4 3200132 Presser Bar Spring(Outer) 押工棒バネ(太) 1 5 3200131 Presser Bar Connecting Bracket Unit 押工棒抱キ(組) 1 6 110031 Screw(M4-0.7 × 12) 止ネジ 1 7 0093483 Presser Bar Guide 押工棒案内 1 8 004441 Screw(11/64-40 × 16) 止ネジ 2 9 3200137 Presser Bar Spring(Inner) 押工棒バネ(細) 1 10 3100110 Presser Bar 押工棒 1 11 0093611 Oil Protector Ring 油切リリング 1 12-1 3100310* Collar(9 × 17 × 7 mm) カラー 1 12-2 3500360 Collar(9 × 15 × 7.5 mm) カラー 1 13 160001* Screw(M3-0.7 × 4) 止ネジ 1 14 0020271* Thread Chain Cutting Knife チェインカッタ 1 15 110054* Screw(M3-0.52 × 3.5) 止ネジ 1 16-1 3507000 [0063318] Presser Foot, C. Set(32) 押工(組) 1 16-2 3507002 [0063319] Presser Foot, C. Set(40) 押工(組) 1 16-3 3507050 [0063320] Presser Foot, C. Set(48) 押工(組) 1 16-4 3507054 [0063322] Presser Foot, C. Set(64) 押工(組) 1 17 110004 [001186] Screw(M3.5-0.6 × 8)[9/64-40 × 7.8] 止ネジ 1 18 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 19 3107304 Presser Foot Spring(Right) 小押工バネ(右) 1 20 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 21 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 22 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 23 000327 Lock Nut ロックナット 1 24 260006 Adjusting Screw(1/8-44 × 9.5) 止ネジ 1 25 0093487 Lifter Link 吊リリンク 1 26 006038 Screw(3/16-32 × 2.2) 止ネジ 2 27 0063083 Lifter Link Lever 吊リリンクレバー 1 28 000690 Fastener Pin 止メピン 1 29 0093479 Lifter Shaft 押工揚ゲ軸 1 30 Ref. No. 41 to 53 See the following page. Note: The parts marked * are installed on the models with top cover thread sewing mechanism as standard. (注) *印の部品は、上飾り付きのモデルに標準装備されています。 VF2400

Page 26

8 VF2400 jintex.in

Page 27 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 31 3100294 Intermediate Lever 押工場ゲ中レバー 1 32 120017 Screw(M5-0.8 × 15) 止ネジ 1 33 0077179 Retaining Ring 止メ輪 2 34 0093509 Connecting Pin 連結ピン 2 35 0093507 Connecting Plate 連結桿 1 36 3160168 Lifter Spring 押工場ゲバネ 1 37 3500305 Cap キャップ 1 38 0093496 Lifter Lever 押工場ゲレバー 1 39 3101216 Lifter Lever Stop 押工場ゲレバー ストップ 1 40 004358 Screw(9/64-40 × 5.6) 止ネジ 2 41 0090801 Tension Release Lever 糸緩メ腕 1 42 005542 Screw(11/64-40 × 14.5) 止ネジ 1 43 0093545 Tension Release Shaft 糸緩メ軸 1 44 0090824 Swing-proof Spring 防振バネ 1 45 0093508 Lifter Lever(Small) 押工場ゲレバー(小) 1 46 004591 Screw(15/64-28 × 9.5) 止ネジ 1 48 340014 Roll Pin(3 × 12mm) ロールピン 1 49 0063084 Lifter Spring 押工場ゲバネ 1 50 0093491 Collar(8 × 16 × 8mm) カラー 2 51 009604 Screw(11/64-40 × 5.5) 止ネジ 4 52 3100112 Finger Guard フィンガード 1 53 110002 Screw(M3-0.5 × 5) 止ネジ 1 VF2400

Page 28

9 VF2400 jintex.in

Page 29 — SPREADER MECHANISM

SPREADER MECHANISM Ref.No. Parts No. Description 品 名 Amt. Req 1 3100302 Connecting Rod, C. Set ルーパロッド(組) 1 2 3100300 Eccentric ルーパエキセン 1 3 160003 Screw(M5-0.8 × 5) 止ネジ 2 4 0077322 Roller Bearing ニードルベアリング 1 5 3100301 Connecting Rod ルーパロッド 1 6 0094566 Retaining Ring 止メ輪 1 7 110009 Screw(M4-0.7 × 8) 止ネジ 1 8 300006 Washer ワッシャ 1 9 3100309 Adjusting Lever Pin 調節レバーピン 1 10 000528 Washer ワッシャ 1 11 100003 Nut(M6-1.0) ナット 1 12 0032646 Collar(12 × 20 × 8 mm) カラー 1 13 009604 Screw(11/64-40 × 5.5) 止ネジ 2 14 3100303 Adjusting Lever 調節レバー 1 15 120013 Screw(M6-1 × 15) 止ネジ 1 16 3100304 Driving Shaft ルーパ軸 1 17 3100305 Rocking Arm ルーパ振り腕 1 18 160007 Screw(M6-1 × 6) 止ネジ 2 19 0063051 Rocking Pin ルーパ振リピン 1 20 0063053 Spreader Bar ルーパ棒 1 21 0063056 Bushing Ring ブッシングリング 1 22 0063057 Collar(10 × 18 × 7 mm) カラー 1 23 009526 Screw(9/64-40 × 4.4) 止ネジ 2 24 3100307 Spreader Holder 飾り糸ルーパ台 1 25 3509320 Spreader 飾り糸ルーパ 1 26 110031 Screw(M4-0.7 × 12) 止ネジ 2 VF2400

Page 30

10 VF2400 jintex.in

Page 31

LOOPER DRIVING MECHANISM ルーパ機構 10 Ref.No Parts No. Description 品 名 Amt. Req 1 3200150 Looper Rocker Connecting Rod, C. Set(2) ルーパ前後ロッド(組2) 1 2 3200149 Looper Rocker Connecting Rod, C. Set(1) ルーパ前後ロッド(組1) 1 3 3200152 Looper Rocker Connecting Rod ルーパ前後ロッド 1 4 120001 Screw(M4-0.7 x 14) 止ネジ 5 5 3200151 Looper Rocker Eccentric ルーパ前後エキセン 1 6 160003 Screw(M5-0.8 x 5) 止ネジ 2 7 3200159 Connecting Rod Pin ルーパ前後ロッドピン 1 8 300000 Washer ワッシャ 1 9 100002 Nut ナット 1 10 3200154 Looper Rocker Lever ルーパ後腕 1 11 005650 Screw(M5-0.8 x 14) 止ネジ 2 12 3200155 Looper Rocker Adjusting Guide Plate ルーパ前後調節ガイド板 1 13 110007 Screw(M2.5-0.45 x 6) 止ネジ 2 14 170021 Adjusting Screw(M2.5-0.45 x 10.5) 調節ネジ 1 15 2100267 Collar(10 x 17 x 8mm) カラー 1 16 160001 Screw(M4-0.7 x 4) 止ネジ 2 17 0093314 Looper Rocker Shaft ルーパ後軸 1 18 3200157 Looper Rocker Arm ルーパ振り腕 1 19 0093319 Looper Slide Block ルーパ後駒 1 20 21 3200160 Looper Slide Block Pin ルーパ前後駒ピン 1 22 160009 Screw(M5-0.8 x 5) 止ネジ 1 23 3200161 Looper Connecting Rod ルーパロッド 1 24 0032784 Link Pin(Short) ルーパリンクピン(短) 1 25 009604 Screw(11/64-40 x 5.5) 止ネジ 1 26 0032785 Looper Driving Lever Link ルーパリンク 1 27 001457 Screw(11/64-40 x 3.3) 止ネジ 1 28 0032786 Link Pin(Long) ルーパリンクピン(長) 1 29 3200162 Looper Driving Lever ルーパ軸腕 1 30 160007 Screw(M6-1 x 6) 止ネジ 2 31 3200163 Collar カラー 1 32 0093300 Looper Driving Shaft ルーパ軸 1 33 3200164 Looper Holder ルーパ台 1 34 000669 Washer ワッシャ 1 35 3209311 Looper ルーパ 1 36 110057 Screw(M4-0.7 x 7) 止ネジ 1 37 0095723 Needle Guard(Front) 針受ケ(前) 1 38 004236 Screw(3/32-56 x 4.2) 止ネジ 1 39 009934 Screw(M5-0.8 x 16) 止ネジ 1 jintex.in VF2400

Page 32

11 VF2400 jintex.in

Page 33 — FEED DRIVING CONTROL MECHANISM

FEED DRIVING CONTROL MECHANISM 前送り調節機構 11 Ref.No Parts No. Description 品 名 Amt. Req 1 3200181 Feed Bar Driving Shaft 送り軸 1 2 3200183 Main Feed Bar Lever 後送リレバー 1 3 120006 Screw(M6-1 × 12) 止ネジ 3 4 3200184 Differential Rocker, Complete Set 前送り腕(組) 1 5 3200185 Differential Rocker 前送り腕 1 6 3200186 Differential Regulating Slider スライダ 1 7 3200187 Differential Regulating Slider Cap スライダ蓋 1 8 110033 Screw(M3-0.5 × 6) 止ネジ 2 9 2100161 Collar(10 × 19 × 9mm) カラー 1 10 160003 Screw(M5-0.8 × 5) 止ネジ 2 11 3200205 Differential Lever(Inner), C. Set 差動レバー(中)(組) 1 12 2100252 Slider Link スライダリンク 1 13 0068202 Retaining Ring ストツプリング 1 14 2100253 Slider Link Pin スライダリンクピン 1 15 3200206 Differential Lever(Inner) 差動レバー(中) 1 16 3200189 Feed Bar, Complete Set 前送り台(組) 1 17 3200190 Main Feed Bar 後送り台 1 18 3200191 Differential Feed Bar 前送り台 1 19 140018 Screw(M5-0.5 × 6) 止ネジ 1 20 300000 Washer ワツシヤ 2 21 3200194 Connection Bushing 前送りリンクブツシュ 1 22 2100243 Differential Feed Bar Connection 前送りリンク 1 23 140017 Screw(M4-0.7 × 6) 止ネジ 1 24 2100248 Main Feed Bar Connection 後送りリンク 1 25 3200192 Connection Bushing 後送りリンクブツシュ 1 26 2100215 Retaining Ring ストツプリング 1 27 2100267 Collar(10 × 17 × 8mm) カラー 1 28 160001 Screw(M4-0.7 × 4) 止ネジ 2 29 000690 Roll Pin ロールピン 1 30 3200216 Differential Lever Spring 差動レバーバネ 1 31 0020538 O-ring(P7) Oリング 1 32 3200207 Differential Lever Shaft 差動レバー軸 1 33 0095132 Differential Lever(Left) 差動レバー(左) 1 34 110009 Screw(M4-0.7 × 8) 止ネジ 1 35 004143 Screw(11/64-40 × 3.2) 鎖掛ケネジ 1 36 3200213 Differential Feed Graduation 送り目盛板 1 37 110045 Screw(M4-0.7 × 12) 止ネジ 2 38 310072 Felt フェルト 1 39 000210 Adjusting Nut 調節ナット 1 40 005511 Adjusting Screw(1/4-40×11,11/64-40×4) 調節ネジ 1 41 0020350 Differential Lever Stop 差動レバー ストツパ 2 42 000669 Washer ワツシヤ 2 43 000600 Spring Washer スプリングワツシヤ 2 44 005049 Screw(M5-0.8 × 8) 止ネジ 2 45 310071 Oil Wick 油芯 1 VF2400

Page 34

12 VF2400 jintex.in

Page 35 — FEED DRIVING MECHANISM

FEED DRIVING MECHANISM 送り機構 12 Ref.No Parts No. Description 品 名 Amt. Req 1 3200199 Feed Bar Guide(Left) 送り台ガイド(左) 1 2 110080 Screw(M4-0.7 × 8) 止ネジ 2 3 3200200 Feed Bar Guide(Right) 送り台ガイド(右) 1 4 160007 Screw(M6-1 × 6) 止ネジ 3 5 0033141 Feed Adjusting Pin エキセンピン 1 6 0093389 Feed Bar Block(Rear) 角駒(後) 1 7 3200201 Feed Bar Guide(Rear) 送り台ガイド(後) 1 8 0060076 Retaining Ring ストツプリング 1 9 0060075 Feed Bar Block(Front) 角駒(前) 1 10 2110527 Roller Bearing ニードルベアリング 1 11 3204065 Feed Dog Regulator 送り調節器 1 12 160003 Screw(M5-0.8 × 5) 止ネジ 3 13 3204059 [3200214] Driving Connecting Rod Mechanism, C. Set 送りロツド機構(組) 1 14 3200182 Feed Bar Driving Shaft Lever 送り軸腕 1 15 120006 Screw(M6-1 × 12) 止ネジ 1 16 2100173 Connecting Rod Pin 送りロツドピン 1 17 3204060 Feed Dog Regulator, C. Set 送り調節器組 1 18 3204061 [3200195] Driving Connecting Rod, C. Set 送りロツド(組) 1 19 3204064 [2100277] Feed Dog Eccentric 送りエキセン 1 20 2100278 Roller Bearing ニードルベアリング 1 21 3200196 Feed Dog Driving Connecting Rod 送りロツド 1 22 160016 Screw(M4-0.7 × 4.5) 止ネジ 1 23 3204063 Eccentric Link エキセンリンク 1 24 3204062 [2100276] Feed Dog Regulating Eccentric 送り調節エキセン 1 25 180002 Screw(M3-0.5 × 4) 止ネジ 2 26 2100289 Feed Dog Regulating Plate Spring 送り調節プレートバネ 1 27 0023473 Feed Dog Regulating Plate 送り調節プレート 1 28 2100279 [3200197] Feed Dog Regulating Gear 送り調節ギア 1 29 180003 Screw(M5-0.8 × 8) 止ネジ 1 30-1 3209001 Differential Feed Dog(32, 40, 48, 56) 前送り 1 30-2 3209003 Differential Feed Dog(64) 前送り 1 31-1 3209080 Main Feed Dog(32, 40, 48, 56) 後送り 1 31-2 3209002 Main Feed Dog(64) 後送り 1 32 110004 Screw(M3.5-0.6 × 8) 止ネジ 2 33 3200203 Feed Bar Shield Holder(Front) 送り台シール支工(前) 1 34 130003 Screw(M4-0.7 × 7.3) 止ネジ 1 35 130024 Screw(M4-0.7 × 7.3) 止ネジ 1 36 110079 Screw(M4-0.7 × 8) 止ネジ 1 37 3200211 Feed Bar Shield 送り台シール 2 38 3200204 Feed Bar Shield Holder(Rear) 送り台シール支工(後) 1 39 110070 Screw(M3-0.5 × 6.3) 止ネジ 1 jintex.in VF2400

Page 36

13 VF2400 jintex.in

Page 37 — LUBRICATING MECHANISM

LUBRICATING MECHANISM Ref.No Parts No. Description 給油機構 13 品 名 Amt. Req 1 0065453 Oil Receiver 油受皿 1 2 110012 Screw(M4-0.7 × 5) 止ネジ 5 3 3200243 [3200229] Lubricant Guiding Block 給油ブロック 1 4 320006 Top Nozzle Cap オイルノズルキャップ 1 5 3200230 Oil Adjusting Screw 給油量調節ネジ 1 6 000636 Seal Plug 詰栓 1 7 300000 Washer ワッシャ 1 8 000600 Spring Washer スプリングワッシャ 1 9 100002 Nut ナット 1 10 3100060 Oil Filter Cap オイルフィルタキャップ 1 11 110045 Screw(M4-0.7 × 12) 止ネジ 3 12 3100061 O-ring(P42) Oリング 1 13 3100345 Oil Filter オイルフィルタ 1 14 3100329 Oil Filter Connector オイルフィルタ継手 1 15 0063217 Oil Filter Screen Clamp 濾過網工 1 16 0063216 Oil Filter Screen 濾過網 1 17 3200237 Felt フェルト 1 18 3200236 Suction Pipe 吸入パイプ 1 19 0093617 Suction Pipe Bushing 吸入パイプブッシュ 1 20 3200238 Oil Tube(3 × 5 × 440mm) オイルパイプ 1 21 0065452 Drining Pipe 排油パイプ 1 22 3200227 Oil Pipe Unit 給油パイプ(組) 1 23 0031831 Oil Tube Clamp 緊束環 6 24 3200234 Oil Tube(Long), Complete Set 給油パイプ(長)(組) 1 25 3100372 Oil Tube(4 × 6 × 290mm) オイルパイプ 1 26 27 28 0037668 Oil Tube Joint, Two Way 両口管継手 1 29 0037669 Oil Tube(4 × 6 × 175mm) オイルパイプ 1 30 0037669 Oil Tube Joint, One Way 片口管継手 3 31 004124 Fitting Stud(Short) 管継手ボルト(短) 4 32 000567 Seal パッキン 9 33 3200235 Oil Tube(Short), Complete Set 給油パイプ(短)(組) 1 34 3200232 Oil Tube(4 × 6 × 45mm) オイルパイプ 1 35 3100328 Oil Pump, Complete Set ポンプ(組) 1 36 0030711 Oil Pump Driving Worm Gear ウォームギア 1 37 160001 Screw(M4-0.7 × 4) 止ネジ 2 38 120013 Screw(M6-1 × 15) 止ネジ 2 39 0090918 Suction Pipe 吸入パイプ 1 40 000419 Nut ノズル止メナット 1 41 3100349 Oil Nozzle for Worm Gear 給油パイプ 1 42 3200231 Dustproof Plate 防塵板 1 43 0020533 Oil Sight Gauge オイルゲージ 1 jintex.in VF2400

Page 38 — 14 VF2500, 2500-35

14 VF2500, 2500-35 1-1 1-2 1-3 1-4 3-1 3-2 3-3 4 5 7 8 12-1 12-2 12-3 VF2500-35 2 6 9 10 11 19 18 17 16 15 VF2500-164M only 23 24 25 20 21 22 VF2400 jintex.in

Page 39 — VF2500, 2500-35 EXCLUSIVE PARTS

VF2500, 2500-35 EXCLUSIVE PARTS サブモデル専用部品 14 Ref.No Parts No. Description 品 名 Amt. Req 1-1 3209106 Needle Clamp(48) 針止メ 1 1-2 3209107 Needle Clamp(56) 針止メ 1 1-3 0093357 Needle Clamp(56-20) 針止メ 1 1-4 3209108 Needle Clamp(64) 針止メ 1 2 001892 Screw(1/8-44 × 2.9) 止ネジ 3 3-1 3507050 [3107050] Presser Foot, Complete Set(48) 押工(組) 1 3-2 3507052 [0064041] Presser Foot, Complete Set(56) 押工(組) 1 3-3 3507054 [0064042] Presser Foot, Complete Set(64) 押工(組) 1 4 110004 [001186] Screw(M3.5-0.6 × 8)[9/64-40 × 7.8] 止ネジ 1 5 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 6 3107304 Presser Foot Spring(Riht) 小押エバネ(右) 1 7 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 8 3107306 Presser Foot Hinge Pin(48, 56, 64) 押工ヒンジピン 1 9 110084 Screw(M3.5-0.5 × 4.2) 止ネジ 1 10 000327 Lock Nut ロックナット 1 11 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 12-1 3108133 Stitch Plate(48M) 針板 1 12-2 3108134 Stitch Plate(56M) 針板 1 12-3 3108135 Stitch Plate(64M) 針板 1 13 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 14 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 15 0030255 Needle Thread Tension Spring 糸調子バネ 1 16 0000071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 17 000177 Felt フェルト 1 18 0031111 Tension Disc 糸調子皿 2 19 290029 Tension Post 糸調子棒 1 20 0090812 Tension Post Ferrule 糸調子棒糸摺レ 1 21 0090856 Tension Disc Eyelet 糸調子皿糸道 1 22 0090807 Thread Lead-in Guide 糸調子台糸道 1 23 3209081 Main Feed Dog(64) 後送り 1 24 310126 Oil Wick 油芯 1 25 000290 Oil Wick 油芯 1 VF2400

Page 40

15 VF2400-PA, 2500-PA VF2400-PA VF2500-PA 13-1 13-2 14 15 16 17 18 20 21 22 23 24 35 34 33 32 25-1 25-2 31 30 29 28 27 26 VF2400 jintex.in

Page 41

VF2400-PA, 2500-PA EXCLUSIVE PARTS サブモデル専用部品 15 Ref.No Parts No. Description 品 名 Amt. Req 1 3201014 Stitch Plate Support 針板台 1 2 3201016 Corner Sewing Sleeve 角缝スリーブ 2 3 009142 Screw(9/64-40 × 7.1) 止ネジ 2 4 3201015 Cylinder Support シリンダ取付台 1 5 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 6 1091051 Air Cylinder(MS4 NFS) エア シリンダ 1 7 0010260 Vinyl Tube(4 × 2.5mm) ビニールパイプ - 8 3209018 Main Feed Dog(40, 48, 56) 後送り 1 9 3201011 Cloth Plate(Large)(40, 48, 56) 大カバー 1 10 3201012 Cloth Plate(Small) 小カバー 1 11 3201013 Front Cover(40, 48, 56) 前開キカバー 1 12 4017013 Return Spring 戻シバネ 1 13-1 3208006 Stitch Plate(40S) 針板 1 13-2 3208007 Stitch Plate(48S) 針板 1 14 3209107 Needle Clamp(56) 針止メ 1 15 001892 Screw(1/8-44 × 2.9) 止ネジ 3 16 3507052 [0064041] Presser Foot, Complete Set(56) 押工(組) 1 17 110004 [001186] Screw(M3.5-0.6 × 8)[9/64-40 × 7.8] 止ネジ 1 18 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 19 3107304 Presser Foot Spring(Right) 小押エバネ(右) 1 20 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 21 3107306 [0063282] Presser Foot Hinge Pin(56) 押工ヒンジピン 1 22 110084 Screw(M3.5-0.5 × 4.2) 止ネジ 1 23 000327 Lock Nut ロツクナット 1 24 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 25-1 3208000 Stitch Plate(56S) 針板 1 25-2 3208002 Stitch Plate(56L)(Extra) 針板(特注品) 1 26 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 27 0024083 Tension Spring Bushing 糸調子ナット回リ止メ 1 28 0030255 Needle Thread Tension Spring 糸調子バネ 1 29 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 30 000177 Felt フェルト 1 31 0031111 Tension Disc 糸調子皿 2 32 290029 Tension Post 糸調子棒 1 33 0090812 Tension Post Ferrule 糸調子棒糸摺レ 1 34 0090856 Tension Disc Eyelet 糸調子皿糸道 1 35 0090807 Thread Lead-in Guide 糸調子台糸道 1 VF2400

Page 42

16 VF2400-PA3, 2500-PA3(1) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 VF2400 jintex.in

Page 43 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(1)

VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(1) サブモデル専用部品(1) 16 Ref.No Parts No. Description 品 名 Amt. Req 1 0010248 Air Cylinder エア シリンダ 1 2 009812 Screw(M3-0.5 × 20) 止ネジ 2 3 1094000 Connector(EC4-M5) コネクタ 1 4 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) - 5 1094057 Y-Connector(φ 4) Yコネクタ 3 6 000488 Nut ナット 3 7 190079 Stude(M3-0.5 × 20.5) スタッド 1 8 3201413 Cylinder Holder シリンダ取付板 1 9 110013 Screw (M4-0.7 × 8) 止ネジ 2 10 3201411 Tension Post Support 糸調子台 1 11 3201414 Connecting Plate 連結板 1 12 009779 Screw(M3-0.5 × 6) 止ネジ 2 13 3201412 Tension Disc Separator 糸緩メ板 1 14 3201432 Stitch Plate Support 針板台 1 15 3201016 Corner Sewing Sleeve 角縫スリーブ 2 16 3201436 Stitch Plate Driving Shaft 針板駆動レバー 1 17 170005 Screw(M4-0.7 × 6) 止ネジ 2 18 3201434 Cylinder Bracket シリンダ台 1 19 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 20 1091016 Air Cylinder エア シリンダ 1 21 3201435 Driving Shaft Bracket 駆動レバー台 1 22 1094059 Elbow Connector(φ 4-M5) エルボコネクタ 2 23 3201430 Cloth Plate(Large) 大カバー 1 24 3201431 Cloth Plate(Small) 小カバー 1 25 3201433 Front Cover 前開きカバー 1 Jintexin.in VF2400

Page 44 — 17

17 VF2400-PA3, 2500-PA3(2) VF2400-PA3 1 2 7 6 8 9 3 4 5 10 11 12 VF2500-PA3 13 2 7 6 8 9 3 4 5 14 11 12 25 26 24 23 22 21 20 19 18 17 16 15 VF2400 jintex.in

Page 45 — VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(2)

VF2400-PA3, 2500-PA3 EXCLUSIVE PARTS(2) サブモデル専用部品(2) 17 Ref.No Parts No. Description 品 名 Amt. Req 1 3207199 Presser Foot, C. Set(40S) 押工(組) 1 2 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 3 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 4 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 5 3107306 Locking Pin 回リ止メピン 1 6 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 7 000327 Nut ナット 1 8 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 9 3107304 Presser Foot Spring(Right) 小押エバネ(右) 1 10 3208003 Stitch Plate(40S) 針板 1 11 3209050 Main Feed Dog(56S, 40S) 後送り 1 12 3209051 Differential Feed Dog(56S, 40S) 前送り 1 13 3207200 Presser Foot, C. Set(56S) 押工(組) 1 14 3208004 Stitch Plate(56S) 針板 1 15 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 16 0024083 Tension Spring Bushing 糸調子ナット 回リ止メ 1 17 0030255 Needle Thread Tension Spring 糸調子バネ 1 18 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 19 000177 Felt フェルト 1 20 0031111 Tension Disc 糸調子皿 2 21 290029 Tension Post 糸調子棒 1 22 0090812 Tension Post Ferrule 糸調子棒受環 1 23 0090856 Tension Disc Eyelet 糸調子皿糸道 1 24 0090807 Thread Lead-in Guide 糸調子台糸道 1 25 3209107 Needle Clamp(56) 針止メ 1 26 001892 Screw(1/8-44 × 2.9) 止ネジ 3 Jinte.in VF2400

Page 46

18 VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-11, 2503-21(1) 17 EXTRA PARTS 18 VF2503-11S only 19 20 VF2403-50 only 21 1-1 1-2 1-3 10 9 14-1 14-2 15 16 8 11 12 13 1-1 1-2 1-3 P Q R VF2400 jintex.in

Page 47 — EXCLUSIVE PARTS(I)

VF2403, 2403-11, 2403-50, 2503, 2503-11, 2503-21 EXCLUSIVE PARTS(I) サブモデル専用部品(1) 18 Ref.No Parts No. Description 品 名 Amt. Req 1-1 0093241 Folder(for Type P) 定規(P) 1 1-2 0093242 Folder(for Type Q) 定規(Q) 1 1-3 0093243 Folder(for Type R) 定規(R) 1 2 0091736 Folder Clamp 定規取付片 1 3 009932 Screw(11/64-40 × 4) 止ネジ 2 4 005554 Screw(7/32-32 × 6.5) 止ネジ 1 5 0094245 Folder Support 定規取付台 1 6 0094246 Folder Support Fixing Plate 定規取付台固定片 1 7 140019 Screw(M5-0.8 × 14) 止ネジ 2 8 3201000 Front Cover 前開キカバー 1 9 3201002 Front Cover(Small) 前開キカバー(小) 1 10 110013 Screw(M4-0.7 × 8) 止ネジ 2 11 3201007 [0096277] Fabric Slide Plate 布滑り板 1 12 000426 Washer ワッシャ 1 13 110105 Screw(M5-0.8 × 12) 止ネジ 1 14-1 3201003 Dustproof Cover 防塵カバー 1 14-2 3201005 Dustproof Cover(VF2403-21,2503-21) 防塵カバー 1 15 110104 Screw(M4-0.7 × 8) 止ネジ 2 16 3201006 Front Cover Spring 前開キカバーバネ 1 17 3201001 Looper Thread Take-up Cover カムカバー 1 18 3201004 Front Cover(Small)(Extra)(Note 1) 前開キカバー(小)(特注品)(注1) 1 19 3201098 Main Feed Bar Lever 後送りレバー 1 20 3201099 Differential Feed Graduation 送り自盛板 1 21 3201111 Cloth Plate(Large) 大カバー 1 jintex.in VF2400

Page 48

19 VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-21 (2) VF2403, 2403-11, 2403-11H, 2403-21, 2403-50 VF2403 1-1 1-2 1-3 1-4 1-5 9 3 8 2 7 5 6 VF2403-11, 2403-11H 13 14 35 34 15 VF2503, 2503-11, 2503-21 30-1 30-2 30-3 4 9 3 8 2 5 6 7 VF2503 11-1 11-2 35 31-1 31-2 31-3 34 12-1 12-2 13-3 VF2503-11 14 35 34 15 VF2403-21, 2403-50 10-1 10-2 10-3 10-4 16-1 16-2 16-3 17 35 34 18 19-1 19-2 19-3 20 29 28 27 26 25 24 23 22 21 36 VF2503-21 33-1 33-2 33-3 17 35 34 18 VF2400 jintex.in

Page 49

VF2403, 2403-11, 2403-50, 2503, 2503-11, 2503-21 EXCLUSIVE PARTS(2) サブモデル専用部品(2) 19 Ref.No Parts No. Description 品 名 Amt. Req 1-1 3207150 Presser Foot, Complete Set(32) 押工(組) 1 1-2 3207151 Presser Foot, Complete Set(40) 押工(組) 1 1-3 0094216 Presser Foot, Complete Set(40-11H) 押工(組) 1 1-4 3207152 Presser Foot, Complete Set(48) 押工(組) 1 1-5 3207157 Presser Foot, Complete Set(64) 押工(組) 1 2 001186 Screw(9/64-40 × 7.8) 止ネジ 1 3 0091725 Presser Foot Spring 小押工バネ 1 4 005133 Screw(1/8-44 × 4.5) 止ネジ 1 5 000220 Lock Nut ロックナット 1 6 003300 Adjusting Screw(1/8-44 × 15) 調節ネジ 1 7 0091696 Presser Foot Hinge Pin 押工ヒンジピン 1 8 3207160 Tape Guide テープガイド 1 9 001230 Screw(3/32-56 × 3.8) 止ネジ 1 10-1 0094210 Stitch Plate(32M) 針板 1 10-2 0094211 Stitch Plate(40M) 針板 1 10-3 0094212 Stitch Plate(48M) 針板 1 10-4 0094214 Stitch Plate(64M) 針板 1 11-1 3209014 Main Feed Dog(32, 40, 48, 56) 後送り 1 11-2 3209016 Main Feed Dog(64) 後送り 1 12-1 3209005 Differential Feed Dog(32, 40, 48, 56) 前送り 1 12-2 3209007 Differential Feed Dog(64) 前送り 1 13 0095234 Stitch Plate(40M-11) 針板 1 14 3209008 Main Feed Dog 後送り 1 15 3209009 Differential Feed Dog 前送り 1 16-1 3208102 Stitch Plate(32M-21, 32M-50) 針板 1 16-2 3208103 Stitch Plate(40M-21) 針板 1 16-3 3208104 Stitch Plate(48M-21) 針板 1 17 3209064 Main Feed Dog 後送り 1 18 3209065 Differential Feed Dog 前送り 1 19-1 3209106 Needle Clamp(48) 針止メ 1 19-2 3209107 Needle Clamp(56) 針止メ 1 19-3 3209108 Needle Clamp(64) 針止メ 1 20 001892 Screw(1/8-44 × 2.9) 止ネジ 3 21 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 22 0030255 Needle Thread Tension Spring 糸調子バネ 1 23 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 24 000177 Felt フェルト 1 25 0031111 Tension Disc Tension Disc 糸調子皿 2 26 290029 Tension Post Tension Post 糸調子棒 1 27 0090812 Tension Post Ferrule Tension Post Ferrule 糸調子棒糸摺レ 1 28 0090856 Tension Disc Eyelet Tension Disc Eyelet 糸調子皿糸道 1 29 0090807 Thread Lead-in Guide Thread Lead-in Guide 糸調子台糸道 1 30-1 3207155 Presser Foot, Complete Set(48) 押工(組) 1 30-2 3207156 Presser Foot, Complete Set(56) 押工(組) 1 30-3 3207157 Presser Foot, Complete Set(64) 押工(組) 1 Ref. No. 31 to 36 See the following page. jintex.in VF2400

Page 50

19 VF2403, 2403-11, 2403-21, 2403-50, 2503, 2503-11, 2503-21 (2) VF2403, 2403-11, 2403-11H, 2403-21, 2403-50 VF2403 1-1 1-2 1-3 1-4 1-5 4 3 9 8 6 2 7 VF2403-11, 2403-11H 13 14 35 34 15 10-1 10-2 10-3 10-4 11-1 11-2 35 34 12-1 12-2 VF2403-21, 2403-50 17 35 34 18 VF2503, 2503-11, 2503-21 30-1 30-2 30-3 4 3 9 8 6 5 2 7 19-1 19-2 19-3 20 29 28 27 VF2503 11-1 11-2 35 34 12-1 12-2 26 25 24 23 22 21 36 VF2503-11 VF2503-21 32-1 32-2 32-3 14 35 15 34 33-1 33-2 33-3 17 35 34 18 VF2400 jintex.in

Page 51 — EXCLUSIVE PARTS(2)

VF2403, 2403-11, 2403-50, 2503, 2503-11, 2503-21 サブモデル専用部品(2) 19 EXCLUSIVE PARTS(2) Ref.No Parts No. Description 品 名 Amt. Req 31-1 3208026 Stitch Plate(48M) 針板 1 31-2 0094901 Stitch Plate(56M) 針板 1 31-3 0094902 Stitch Plate(64M) 針板 1 32-1 3208052 Stitch Plate(48M-11) 針板 1 32-2 0095085 Stitch Plate(56M-11) 針板 1 32-3 3008025 Stitch Plate(64M-11) 針板 1 33-1 3208108 Stitch Plate(56M-21) 針板 1 33-2 3208109 Stitch Plate(64M-21) 針板 1 33-3 3208105 Stitch Plate(48M-21)(Extra) 針板(特注品) 1 34 110039 Screw(M3.5-0.6 × 10) 止ネジ 1 35 300050 Spring Washer スプリングワッシャ 1 36 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 VF2400 jintex.in

Page 52

20 VF2404, 2504-11(1) 1-1 1-2 1-3 17 3 2 4 5 6 7 10 9 14 15 16 8 11 12 13 1-1 P 1-2 Q 1-3 R VF2400 jintex.in

Page 53 — VF2404, 2504-11 EXCLUSIVE PARTS(1)

VF2404, 2504-11 EXCLUSIVE PARTS(1) サブモデル専用部品(1) 20 Ref.No Parts No. Description 品 名 Amt. Req 1-1 0093241 Folder(for Type P) 定規(P) 1 1-2 0093242 Folder(for Type Q) 定規(Q) 1 1-3 0093243 Folder(for Type R) 定規(R) 1 2 0091736 Folder Clamp 定規取付片 1 3 009932 Screw(11/64-40 × 4) 止ネジ 2 4 005554 Screw(7/32-32 × 6.5) 止ネジ 1 5 0094245 Folder Support 定規取付台 1 6 0094246 Folder Support Fixing Plate 定規取付台固定片 1 7 140019 Screw(M5-0.8 × 14) 止ネジ 1 8 3201000 Front Cover 前開キカバー 2 9 3201002 Front Cover(Small) 前開キカバー(小) 1 10 110013 Screw(M4-0.7 × 8) 止ネジ 2 11 3201007 [0096277] Fabric Slide Plate 布滑リ板 1 12 000426 Washer ワツシヤ 1 13 110105 Screw(M5-0.8 × 12) 止ネジ 1 14 3201003 Dustproof Cover 防塵カバー 1 15 110104 Screw(M4-0.7 × 8) 止ネジ 2 16 3201006 Front Cover Spring 前開キカバーバネ 1 17 3201001 Looper Thread Take-up Cover カムカバー 1 VF2400

Page 54 — VF2404, 2504-11 (2)

21 VF2404, 2504-11 (2) VF2404 1-1 1-2 1-3 1-4 2 3 4 8 9 6 5 7 10-1 10-2 10-3 10-4 11-1 11-2 26 12-1 12-2 VF2504-11 13 14 15 2 3 4 8 9 6 5 7 27 29 28 19 18 17 16 20 21 22 25 24 23 30 VF2400 jintex.in

Page 55 — VF2404, 2504-11 EXCLUSIVE PARTS(2)

VF2404, 2504-11 EXCLUSIVE PARTS(2) サブモデル専用部品(2) 21 Ref.No Parts No. Description 品 名 Amt. Req 1-1 3207150 Presser Foot, Complete Set(32) 押工(組) 1 1-2 3207151 Presser Foot, Complete Set(40) 押工(組) 1 1-3 3207152 Presser Foot, Complete Set(48) 押工(組) 1 1-4 3207157 Presser Foot, Complete Set(64) 押工(組) 1 2 001186 Screw(9/64-40 × 7.8) 止ネジ 1 3 0091725 Presser Foot Spring 小押工バネ 1 4 005133 Screw(1/8-44 × 4.5) 止ネジ 1 5 000220 Lock Nut ロツクナット 1 6 003300 Adjusting Screw(1/8-44 × 15) 調節ネジ 1 7 0091696 Presser Foot Hinge Pin 押工ヒンジピン 1 8 3207160 Tape Guide テープガイド 1 9 001230 Screw(3/32-56 × 3.8) 止ネジ 1 10-1 0094210 Stitch Plate(32M) 針板 1 10-2 0094211 Stitch Plate(40M) 針板 1 10-3 0094212 Stitch Plate(48M) 針板 1 10-4 0094214 Stitch Plate(64M) 針板 1 11-1 3209014 Main Feed Dog(32, 40, 48, 56) 後送り 1 11-2 3209016 Main Feed Dog(64) 後送り 1 12-1 3209005 Differential Feed Dog(32, 40, 48, 56) 前送り 1 12-2 3209007 Differential Feed Dog(64) 前送り 1 13 3209107 Needle Clamp(56) 針止メ 1 14 001892 Screw(1/8-44 × 2.9) 止ネジ 3 15 3207156 Presser Foot, Complete Set(56) 押工(組) 1 16 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 17 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 18 0030255 Needle Thread Tension Spring 糸調子バネ 1 19 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 20 000177 Felt フェルト 1 21 0031111 Tension Disc 糸調子皿 2 22 290029 Tension Post 糸調子棒 1 23 0090812 Tension Post Ferrule 糸調子棒糸摺レ 1 24 0090856 Tension Disc Eyelet 糸調子皿糸道 1 25 0090807 Thread Lead-in Guide 糸調子台糸道 1 26 0095085 Stitch Plate(56M) 針板 1 27 3209008 Main Feed Dog 後送り 1 28 110039 Screw(M3.5-0.6 × 10) 止ネジ 1 29 300050 Spring Washer スプリングワッシャ 1 30 3209009 Differential Feed Dog 前送り 1 jintex.in VF2400

Page 56

22 VF2404, 2504-11(3) 2 3 4 4 5 1 4 4 11 12 25 26 27 28 26 10 6 7 8 10 20 9 19 21 24 22 33 31 39 32 40 41 15 14 34 13 30 29 15 16 17 18 35 36 37 38 23 22 21 38 VF2400 jintex.in

Page 57 — VF2404, 2504-11 EXCLUSIVE PARTS (3)

VF2404, 2504-11 EXCLUSIVE PARTS (3) サブモデル専用部品 (3) 22 Ref.No Parts No. Description 品 名 Amt. Req 1 190044 Screw (M4-0.7 × 12) 止ネジ 1 2 3201329 Tape Holder テープ受ケ 1 3 110048 Screw (M4-0.7 × 10) 止ネジ 2 4 000538 Washer ワッシャ 4 5 190021 Screw (M4-0.7 × 12) 止ネジ 1 6 3201369 Tension Roller Holder, C. Set ローラ台(組) 1 7 2101368 Tension Roller Holder ローラ台 1 8 3201184 Roller Shaft Bushing ローラ軸ブッシュ 2 9 3201185 Tension Roller (Large) ローラ(大) 1 10 160001 Screw (M4-0.7 × 4) 止ネジ 5 11 190075 Adjusting Screw (M5-0.8 × 28) 調節ネジ 1 12 100053 Lock Nut ロックナット 1 13 3201372 Roller Lever ローラレバー 1 14 110036 Screw (M3-0.5 × 6.5) 止ネジ 2 15 000669 Washer ワッシャ 2 16 2100043 Tension Spring 調節バネ 1 17 000665 Washer ワッシャ 1 18 0077179 Retaining Ring ストップリング 1 19 3201190 Tension Link Shaft ローラリンク軸 1 20 000425 Washer ワッシャ 1 21 3201375 Tension Link ローラリンク 2 22 150001 Screw (M4-0.7 × 4) 止ネジ 4 23 3201191 Roller Shaft(Small) ローラ軸 1 24 3201186 Tension Roller (Small) Unit ローラ(小)(組) 1 25 3201192 Tape Guide Wire テープガイドワイヤ 2 26 160000 Screw (M3-0.5 × 3) 止ネジ 3 27 3201370 Tape Guide テープガイド 2 28 190064 Knob Screw (M3-0.5 × 5) ツマミネジ 1 29 3201371 Tape Guide Stop テープガイドストッパ 1 30 110009 Screw (M4-0.7 × 8) 止ネジ 1 31 170001 Screw (M4-0.7 × 8) 止ネジ 1 32 300100 Conical Spring Washer 皿バネワッシャ 2 33 0095269 Tape Guide Bar Holder テープバー腕 1 34 009604 Screw (11/64-40 × 5.5) 止ネジ 1 35 3201377 Tape Guide Bar (Long) テープガイドバー(長) 1 36 3201197 Tape Guide Unit テープガイド(組) 1 37 0095272 Tape Guide テープガイド 1 38 001892 Screw (1/8-44 × 2.9) 止ネジ 2 39 3201331 Eye Guard Support アイガード取付板 1 40 3200252 Eye Guard アイガード 1 41 110038 Screw (M2.5-0.45 × 4.5) 止ネジ 2 jintex.in VF2400

Page 58

23 VF2404, 2504-11(4) VF2400 jintex.in

Page 59 — VF2404, 2504-11 EXCLUSIVE PARTS(4)

VF2404, 2504-11 EXCLUSIVE PARTS(4) サブモデル専用部品(4) 23 Ref.No Parts No. Description 品 名 Amt. Req 1 3201366 Roller Shaft ローラ軸 1 2 3201398 [3201382] Thrust Washer スラストワッシャ 1 3 0095027 Retaining Ring ストップリング 1 4 3201381 Clutch, Complete Set クラッチ(組) 1 5 3201358 Clutch Lever クラッチレバー 1 6 007621 Screw(9/64-40 × 7.5) 止ネジ 3 7 0095061 Clutch クラッチ 2 8 3201277 Clutch Spring クラッチバネ 12 9 0095066 Clutch Spring Seat クラッチバネ座 6 10 0095067 Clutch Roller クラッチローラ 6 11 0095063 Clutch Sleeve Collar クラッチスリーブ止メカラー 1 12 0095062 Clutch Sleeve クラッチスリーブ 1 13 003635 Screw(1/4-40 × 6) 止ネジ 2 14 007645 Screw(1/4-40 × 3) 止ネジ 1 15 3201385 Clutch Plate クラッチ板 1 16 3201184 Roller Shaft Bushing ローラ軸ブッシュ 1 17 180001 [110009] Screw(M4-0.7 × 4.5)[M4-0.7 × 8] 止ネジ 1 18 3201089 Clutch Lever Pin Adjusting Plate 調節プレート 1 19 110002 Screw(M3-0.5 × 5) 止ネジ 2 20 190034 Adjusting Screw(M4-0.7 × 69) 調節ネジ 1 21 3201367 Tension Roller Holder Bracket ローラ台ブラケット 1 22 120006 Screw(M6-1 × 12) 止ネジ 4 23 3201380 Clutch Rod Cover, C. Set クラッチロッドカバー(組) 1 24 3201364 Clutch Rod Cover クラッチロッドカバー 1 25 3201365 Clutch Rod Cover(Right) クラッチロッドカバー(右) 1 26 110047 Screw(M4-0.7 × 10) 止ネジ 2 27 160003 Screw(M5-0.8 × 5) 止ネジ 2 28 110030 Screw(M3-0.5 × 2.6) 止ネジ 1 29 007625 [007621] Screw(9/64-40 × 8.5)[9/64-40 × 7.5] 止ネジ 6 30 110035 Screw(M4-0.7 × 10) 止ネジ 1 31 000665 Washer ワッシャ 1 VF2400 Jinte.in

Page 60 — 24

24 VF2404, 2504-11 (5) 1 2 3 8 7 6 4 5 10 11 13 12 14 15 16 19 20 21 22 18 17 VF2400 jintex.in

Page 62

25 VF2411 1 2 4-1 4-2 5 6 7 8 9-1 9-2 9-3 9-4 12 11 10 14 15 17 "L" Type 13-1 13-2 13-3 A 16 "S" Type 18-1 18-2 18-3 18-4 A 19-1 19-2 20 VF2400 jintex.in

Page 63 — VF2411 EXCLUSIVE PARTS

VF2411 EXCLUSIVE PARTS サブモデル専用部品 25 Ref.No Parts No. Description 品 名 Amt. Req 1 0094604 Seal Plug 詰栓 1 2 0063548 Seal Plug 詰栓 1 3 3201021 Cloth Plate(Large) 大カバー 1 4-1 3201025 Looper Thread Take-up Cover(40, 48) カムカバー 1 4-2 3201034 Looper Thread Take-up Cover(64) カムカバー 1 5 3201026 Looper Holder ルーパホルダ 1 6 0094616 Edge Guide(on the Front Cover) 当テ定規 1 7 000426 Washer ワッシャ 2 8 110105 Screw(M5-0.8 × 12) 止ネジ 2 9-1 0094872 Presser Foot, Complete Set(40) 押工(組) 1 9-2 0094873 Presser Foot, Complete Set(48) 押工(組) 1 9-3 0063674 Presser Foot, Complete Set(64) 押工(組) 1 9-4 0094871 Presser Foot, Complete Set(32)(Extra) 押工(組)(特注品) 1 10 001186 Screw(9/64-40 × 7.8) 止ネジ 1 11 0094890 Presser Foot Spring 押エバネ 1 12 005133 Screw(1/8-44 × 4.5) 止ネジ 1 13-1 0094962 Stitch Plate(40L) 針板 1 13-2 0094963 Stitch Plate(48L) 針板 1 13-3 0094961 Stitch Plate(32L)(Extra) 針板(特注品) 1 14 0094615 Fabric Guide 布ガイド 1 15 001228 Screw(3/32-56 × 3.2) 止ネジ 1 16 3209010 Main Feed Dog 後送り 1 17 3209011 Differential Feed Dog 前送り 1 18-1 3208125 Stitch Plate(48S) 針板 1 18-2 3208020 Stitch Plate(64S) 針板 1 18-3 3208011 Stitch Plate(32S)(Extra) 針板(特注品) 1 18-4 3208012 Stitch Plate(40S)(Extra) 針板(特注品) 1 19-1 3209002 Main Feed Dog(60S, 64S) 後送り 1 19-2 3209000 Main Feed Dog(32S, 40S) 後送り 1 20 3209035 Differential Feed Dog(64S) 前送り 1 Jinteх.in VF2400

Page 64

26 VF2530 1-1 1-2 2 3 3 13-1 13-2 14 19 20 15 16 17 18 21 VF2530-164M only 22 23-1 23-2 24 27 26 28 27 25 29 31 32 33 30 34 VF2400 jintex.in

Page 65 — VF2530 EXCLUSIVE PARTS

VF2530 EXCLUSIVE PARTS サブモデル専用部品 26 Ref.No Parts No. Description 品 名 Amt. Req 1-1 0093357 Needle Clamp(56) 針止メ 1 1-2 0093358 Needle Clamp(64) 針止メ 1 2 3201232 Top Cover Thread Eyelet 飾り糸道 1 3 001900 Screw(1/8-44 × 2.4) 止ネジ 4 4 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 5 0030255 Needle Thread Tension Spring 糸調子バネ 1 6 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 7 000177 Felt フェルト 1 8 0031111 Tension Disc 糸調子皿 2 9 290029 Tension Post 糸調子棒 1 10 0090812 Tension Post Ferrie 糸調子棒糸摺レ 1 11 0090856 Tension Disc Eyelet 糸調子皿糸道 1 12 0090807 Thread Lead-in Guide 糸調子台糸道 1 13-1 3507052 [3207025] Presser Foot, Complete Set(56) 押工(組) 1 13-2 3507054 [3107047] Presser Foot, Complete Set(64) 押工(組) 1 14 110004 [001186] Screw(M3.5-0.6 × 9)[9/64-40 × 7.8] 止ネジ 1 15 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 16 3107304 Presser Foot Spring(Right) 小押エバネ(右) 1 17 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 18 3107306 [0063282] Presser Foot Hinge Pin 押工ヒンジピン 1 19 110084 Screw(M3.5-0.5 × 4.2) 止ネジ 1 20 000327 Lock Nut ロックナット 1 21 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 22 3209081 Main Feed Dog(64) 後送り 1 23-1 3108134 Stitch Plate(56M) 針板 1 23-2 3108135 Stitch Plate(64M) 針板 1 24 3201230 Counterweight, Complete Set バランスウエイト(組) 1 25 3201231 Counterweight バランスウエイト 1 26 120015 Screw(M5-0.8 × 10) 止ネジ 1 27 260000 Screw(5/16-24 × 15.9) 止ネジ 2 28 0093214 Connecting Rod Ring 針棒ロッドリング 1 29 3200114 Connecting Rod, Complete Set 針棒ロッド(組) 1 30 3200112 Connecting Rod 針棒ロッド 1 31 0093212 Roller Bearing ニードルベアリング 1 32 330000 Seal Plug 詰栓 1 33 000309 Oil Wick 油芯 1 34 3200113 Connecting Rod Pin 針棒ロッドピン 1 35 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 Jinte.x.in VF2400

Page 66

27 VF2490, 2590 VF2490 VF2590 VF2400 jintex.in

Page 67 — VF2490, 2590 EXCLUSIVE PARTS

VF2490, 2590 EXCLUSIVE PARTS Ref.No Parts No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 0093863 0090814 0090071 000177 0031111 009835 0090812 0090856 0090807 3201481 3202021 000531 110033 3120128 3201483 000548 000515 001923 3201488 3200042 110013 3201484 110009 0093535 0037108 0032426 270014 0093365 3209037 3209036 0093352 001900 0093292 001186 0091725 005133 000220 003300 0093287 0093357 Description Thread Tension Spring Cap Needle Thread Tension Spring Thread Tension Spring Retainer Felt Tension Disc Tension Post Tension Post Ferrule Tension Disc Eyelet Thread Lead-in Guide Needle Bar Guard Top Cover Thread Eyelet(Upper) Washer Screw(M3-0.5 × 6) Thread Guide Eyelet Needle Bar Thread Eyelet Washer Spacer Screw(9/64-40 × 14) Needle Thread Take-up Guard Looper Thread Eyelet Screw(M4-0.7 × 8) Thread Eyelet Support Screw(M4-0.7 × 8) Top Cover Thread Eyelet(Upper) Supplementary Tension Disc Tension Spring Screw(1/8-44 × 2.6) Top Cover Thread Eyelet(Lower) Main Feed Dog Differential Feed Dog Needle Clamp(40) Screw(1/8-44 × 2.4) Presser Foot, Complete Set(40) Screw(9/64-40 × 7.8) Presser Foot Spring Screw(1/8-44 × 4.5) Lock Nut Adjusting Screw(1/8-44 × 15) Stitch Plate(40M) Needle Clamp(56) Ref. No. 41 to 53 See the following page. サブモデル専用部品 品 名 糸調子バネキャップ(上) 糸調子バネ 糸調子バネキャップ(下) フェルト 糸調子皿 糸調子棒 糸調子棒糸掴し 糸調子皿糸道 糸棒ガイド 針棒ガード 飾り糸道(上) ワッシャ 止ネジ 糸案内糸道 針棒糸道 ワッシャ スペーサ 止ネジ 針糸繰りガード ルーパ糸道 止ネジ 飾り糸道取付板 止ネジ 飾り糸道(上) 小調子皿 小調子バネ 止ネジ 飾り糸道(下) 後送り 前送り 針止メ 止ネジ 押工(組) 止ネジ 押工バネ 止ネジ ロックナット 調節ネジ 針板 針止メ Amt. Req 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 2 1 1 2 1 1 27 VF2400

Page 68

27 VF2490, 2590 VF2490 VF2590 VF2400 jintex.in

Page 69 — VF2490, 2590 EXCLUSIVE PARTS

VF2490, 2590 EXCLUSIVE PARTS サブモデル専用部品 27 Ref.No Parts No. Description 品 名 Amt. Req 41 001900 Screw(1/8-44 × 2.4) 止ネジ 3 42 0095035 Presser Foot, Complete Set(56) 押工(組) 1 43 0093289 Stitch Plate(56M) 針板 1 44 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 45 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 46 0030255 Needle Thread Tension Spring 糸調子バネ 1 47 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 48 000177 Felt フェルト 1 49 0031111 Tension Disc 糸調子皿 2 50 290029 Tension Post 糸調子棒 1 51 0090812 Tension Post Ferrule 糸調子棒糸摺レ 1 52 0090856 Tension Disc Eyelet 糸調子皿糸道 1 53 0090807 Thread Lead-in Guide 糸調子台糸道 1 jinttex.in VF2400

Page 70 — 28 VF2560, 2560-PA(1)

28 VF2560, 2560-PA(1) 9 1 EXTRA PARTS 6 2 53 7 5 8 54 10 11 12 13 14 15 16 17 18 19 20 21 22-1 22-2 22-3 23 24 25 29 33 31 34 35 30 32 39 39 37 36 38 40 41 42-1 42-2 42-3 49-1 49-2 49-3 50 52 51 43 45 44 46 47 48 VF2400 jintex.in

Page 71 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

VF2560, 2560-PA EXCLUSIVE PARTS(1) サブモデル専用部品(1) 28 Ref.No Parts No. Description 品 名 Amt. Req 1 3201481 Needle Bar Guard 針棒ガード 1 2 3202021 Top Cover Thread Eyelet(Upper) 飾り糸道(上) 1 3 000531 Washer ワッシャ 1 4 110033 Screw(M3-0.5 × 6) 止ネジ 1 5 3120128 Thread Guide Eyelet 糸案内糸道 1 6 3201483 Needle Bar Thread Eyelet 針棒糸道 1 7 000548 Washer ワッシャ 1 8 000515 Spacer スペーサ 1 9 001923 Screw(9/64-40 × 14) 止ネジ 1 10 0066646 Needle Thread Guide 針糸受ケ 1 11 0066644 Needle Thread Take-up 針糸繰糸糸道 1 12 3202020 Top Cover Thread Guide 飾り糸案内 1 13 3201488 Needle Thread Take-up Guard 針糸繰糸ガード 1 14 3200042 Looper Thread Eyelet ルーパ糸道 1 15 110013 Screw(M4-0.7 × 8) 止ネジ 1 16 3201484 Thread Eyelet Support 飾り糸道取付板 1 17 110009 Screw(M4-0.7 × 8) 止ネジ 2 18 0093535 Top Cover Thread Eyelet(Upper) 飾り糸道(上) 1 19 0037108 Supplementary Tension Disc 小調子皿 2 20 0032426 Tension Spring 小調子バネ 1 21 270014 Screw(1/8-44 × 2.6) 止ネジ 1 22-1 3209121 Needle Clamp(56) 針止メ 1 22-2 3209123 Needle Clamp(60) 針止メ 1 22-3 3209122 Needle Clamp(64) 針止メ 1 23 --- リテーナ針 1 24 --- Retainer(FLG-8) 針 4 25 160033 Needle(FL × 118GCS) 止ネジ 5 26 Screw(M2.5-0.45 × 3) 27 28 29 3202024 Counterweight, Complete Set バランスウエイト(組) 1 30 3202025 Counterweight バランスウエイト 1 31 120015 Screw(M5-0.8 × 10) 止ネジ 1 32 0093214 Connecting Rod Ring 針棒ロッドリング 1 33 3200114 Connecting Rod, Complete Set 針棒ロッド(組) 1 34 3200112 Connecting Rod 針棒ロッド 1 35 0093212 Roller Bearing ニードルベアリング 1 36 330000 Seal Plug 詰栓 1 37 000309 Oil Wick 油芯 1 38 3200113 Connecting Rod Pin 針棒ロッドピン 1 39 260000 Screw(5/16-24 × 15.88) 止ネジ 2 40 3209312 Looper ルーパ 1 Ref. No. 41 to 54 See the following page. jintex.in VF2400

Page 72

28 VF2560, 2560-PA(1) 9 1 EXTRA PARTS 6 2 7 5 8 53 10 11 12 13 14 15 16 17 18 19 20 21 22-1 22-2 22-3 23 24 25 29 33 31 34 35 36 37 38 39 30 32 39 40 41 42-1 42-2 42-3 49-1 49-2 49-3 50 51 43 45 52 44 46 47 48 VF2400 jintex.in

Page 73 — VF2560, 2560-PA EXCLUSIVE PARTS(1)

VF2560, 2560-PA EXCLUSIVE PARTS(1) サブモデル専用部品(1) 28 Ref.No Parts No. Description 41 3209202 Needle Guard(Rear) 42-1 3207039 Presser Foot, C. Set(56) 42-2 3207052 Presser Foot, C. Set(60) 42-3 3207040 Presser Foot, C. Set(64) 43 001186 Screw(9/64-40 × 7.8) 44 3107303 Presser Foot Spring(Left) 45 3107304 Presser Foot Spring(Right) 46 0063284 Locking Pin 47 0063282 Presser Foot Hinge Pin 48 005122 Screw(3/32-56 × 5.5) 49-1 3207044 Presser Foot Stitch Tongue(56) 49-2 3207053 Presser Foot Stitch Tongue(60) 49-3 3207045 Presser Foot Stitch Tongue(64) 50 004182 Screw(3/32-56 × 2.5) 51 3207046 Fabric Guide 52 110027 Screw(M2.5-0.45 × 3.5) 53 3200035 Looper Thread Take-up Cover 54 3200262 Timing Gauge 品 名 Amt. Req 針受ケ(後) 1 押工(組) 1 押工(組) 1 押工(組) 1 止ネジ 1 小押エバネ(左) 1 小押エバネ(右) 1 回り止メピン 1 押工ヒンジピン 1 止ネジ 2 押工爪 1 押工爪 1 押工爪 1 止ネジ 1 布ガイド 1 止ネジ 1 カムカバー 1 タイミングゲージ 1 jintex.in VF2400

Page 74 — 29 VF2560(2)

29 VF2560(2) 7 6 5 4 2 3 1 22 A 17 18-1 18-2 18-3 19 20 16 15 B 12 11 10 9 23 8 21 13 14 B 24 VF2400 jintex.in

Page 75 — VF2560 EXCLUSIVE PARTS (2)

VF2560 EXCLUSIVE PARTS (2) サブモデル専用部品(2) 29 Ref.No Parts No. Description 品 名 Amt. Req 1 190021 Screw(M4-0.7 × 12) 止ネジ 1 2 000538 Washer ワッシャ 2 3 0093538 Thread Pipe Stay 糸道パイプ支エ 1 4 110013 Screw(M4-0.7 × 8) 止ネジ 1 5 0093538 Thread Pipe 糸道パイプ 1 6 0093556 Looper Thread Eyelet(Long) ルーパ糸道(長) 1 7 004267 Screw(11/64-40 × 7.5) 止ネジ 1 8 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 2 9 0030255 Needle Thread Tension Spring 糸調子バネ 2 10 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 2 11 000177 Felt フェルト 2 12 0031111 Tension Dise 糸調子皿 4 13 290029 Tension Post 糸調子棒 2 14 0090812 Tension Post Ferrule 糸調子棒糸摺レ 2 15 0090856 Tension Dise Eyelet 糸調子皿糸道 2 16 0090807 Thread Lead-in Guide 糸調子台糸道 2 17 000186 Washer ワッシャ 1 18-1 3208071 Stitch Plate(56S) 針板 1 18-2 3208160 Stitch Plate(60S) 針板 1 18-3 3208072 Stitch Plate(64S) 針板 1 19 3209046 Main Feed Dog 後送り 1 20 3209047 Differential Feed Dog 前送り 1 21 3201162 Tension Disc Separator 糸緩メ板 1 22 3201163 Tension Post Support 糸調子台 1 23 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 24 3200034 Front Cover 前開キカバー 1 Jinte.in VF2400

Page 76

30 VF2560-PA(2) VF2400 jintex.in

Page 77 — VF2560-PA EXCLUSIVE PARTS (2)

VF2560-PA EXCLUSIVE PARTS (2) サブモデル専用部品(2) 30 Ref.No Parts No. Description 品 名 Amt. Req 1 3202029 Cloth Plate(Large) 大カバー 1 2 3201018 Front Cover 前開キカバー 1 3 4017013 Return Spring 戻シバネ 1 4 3201012 Cloth Plate(Small) 小カバー 1 5 3208073 Stitch Plate(56S) 針板 1 6 3201016 Corner Sewing Sleeve 角縫スリーブ 2 7 009142 Screw(9/64-40 × 7.1) 止ネジ 2 8 3201014 Stitch Plate Support 針板台 1 9 3201015 Cylinder Support シリンダ取付板 1 10 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 11 1091051 Air Cylinder エア シリンダ 1 12 0010260 Vinyl Tube(4 × 2.5mm) ビニールパイプ - 13 3209048 Main Feed Dog 後送り 1 14 3209049 Differential Feed Dog 前送り 1 15 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 2 16 0030255 Needle Thread Tension Spring 糸調子バネ 2 17 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 2 18 000177 Felt フェルト 2 19 0031111 Tension Disc 糸調子皿 4 20 290029 Tension Post 糸調子棒 2 21 0090812 Tension Post Ferrule 糸調子棒糸摺レ 2 22 0090856 Tension Disc Eyelet 糸調子皿糸道 2 23 0090807 Thread Lead-in Guide 糸調子台糸道 2 24 0024083 Tension Spring Bushing 糸調子ナット回リ止メ 1 VF2400

Page 78 — 31

31 VF2560-PA(3) 1 2 8 7 6 5 3 4 9 10 11 12 13 17 18 14 15 16 20 19 21 22 23 24 25 26 27 28 29 30 31 VF2400 jintex.in

Page 79 — VF2560-PA EXCLUSIVE PARTS (3)

VF2560-PA EXCLUSIVE PARTS (3) サブモデル専用部品(3) 31 Ref.No Parts No. Description Amt. Req 1 3209943 Presser Foot Lifter Mechanism, C. Set 押工揚ゲ装置(組) 1 2 3101244 Presser Foot Lifter Cylinder, C. Set 押工揚ゲシリンダ(組) 1 3 1091146 Air Cylinder 押工揚ゲシリンダ 1 4 3201037 Cylinder Rod Chip シリンダロッドチップ 1 5 3101243 Cylinder Bracket シリンダ台 1 6 000426 Washer ワッシャ 2 7 120013 Screw(M6-1 × 15) 止ネジ 2 8 0010055 Connector(φ 4-PT1/8) コネクタ 2 9 3201038 Lifter Lever Supplementary Plate 押工揚ゲレバー補助板 1 10 005650 Screw(M5-0.8 × 14) 止ネジ 1 11 000426 Washer ワッシャ 1 12 000009 Nut ナット 3 13 1097009 Regulator レギュレータ 1 14 110017 Screw(M5-0.8 × 8) 止ネジ 2 15 000600 Spring Washer スプリングワッシャ 2 16 000426 Washer ワッシャ 2 17 1253240 Regulator Support レギュレータ取付板 1 18 006905 Wood Screw(φ 5.1 × 20) 木ネジ 2 19 1098015 [0033939] Hose Band ホースバンド 1 20 0010108 Hose Union ホースユニオン 1 21 0010264 Connector(φ 6-PT1/4) コネクタ 1 22 1096030 Air Tube(6 × 4mm)(Black) エアチューブ(黒) - 23 1090141 Solenoid Valve, C. Set 電磁弁(組) 1 24 0010263 Connector(φ 6-PT1/8) コネクタ 1 25 1097007 Silencer(φ 6-PT1/8) サイレンサ 2 26 0010120 Solenoid 電磁弁 1 27 009937 Wood Screw(φ 3.8 × 20) 木ネジ 2 28 1200071 Cord(J) コード(J) 1 29 1094030 Y-Connector(φ 4-PT1/8) Yコネクタ 1 30 0010057 Elbow Connector(φ 4-PT1/8) エルボコネクタ 3 31 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) -

Page 80 — EC DEVICE

32 EC DEVICE 1 2 33 31 29 30 32 28 27 13 26 24 36 37 38 40 45 41 42 43 44 47 VF2400 35 34 46 48 jintex.in

Page 81

EC DEVICE EC装置 32 Ref.No Parts No. Description 品 名 Amt. Req 1 3209924 EC Device, Complete Set EC装置(組) 1 2 3201122 Cutting Device, Complete Set カッタ装置(組) 1 3 3201104 Cutting Device Basement カッタ装置台 1 4 120011 Screw(M6-1 × 18) 止ネジ 2 5 000528 Washer ワッシャ 2 6 000011 Nut ナット 4 7 0060248 Cord Clamp(3N- φ 5.3) コードクランプ 1 8 001175 Screw(9/64-40 × 8) 止ネジ 1 9 0092288 Cutting Knife Connecting Lever カッタ腕 1 10 005115 Screw(1/4-28 × 19) 止ネジ 1 11 0092286 Sliding Block 角駒 1 12 0092287 Sliding Block Pin 角駒軸 1 13 003638 Screw(11/64-40 × 4) 止ネジ 3 14 3201106 Upper Cutting Knife Holder カッタ(上)ホルダ 1 15 003670 Screw(7/32-32 × 6.3) 止ネジ 2 16 3201105 Upper Cutting Knife カッタ(上) 1 17 000538 Washer ワッシャ 2 18 002308 Screw(11/64-40 × 10.4) 止ネジ 2 19 006245 Adjusting Screw(11/64-40 × 11.5) 調節ネジ 1 20 0092283 Upper Cutting Knife Holder Shaft カッタ(上)ホルダ軸 1 21 0092289 Cutting Knife Cover カッタカバー 1 22 004440 Screw(11/64-40 × 8.3) 止ネジ 2 23 0092285 Lower Cutting Knife カッタ(下) 1 24 005550 Screw(11/64-40 × 13.5) 止ネジ 2 25 26 0092294 Collar(10 × 18 × 7.5mm) カラー 1 27 0092292 Press Spring カッタ(上)押シバネ 1 28 000498 Washer ワッシャ 1 29 0092291 Return Spring カッタ(上)戻シバネ 1 30 005512 Screw(11/64-40 × 3) 止ネジ 1 31 0092293 Return Spring Latch バネ掛ケ 1 32 003635 Screw(1/4-40 × 6) 止ネジ 1 33 0011789 Solenoid ソレノイド 1 34 0092298 Fabric Guide テープ案内板 1 35 004314 Screw(1/8-44 × 5.6) 止ネジ 1 36 0011709 Control Box Stay 制御ボックススチィ 2 37 006905 Wood Screw(φ 5.1 × 20) 木ネジ 4 38 0011957 Control Box, Complete Set 制御装置(組) 1 39 0011952 Control Board 制御基板 1 40 0010565 Knee Switch, Complete Set 膝スイッチ(組) 1 41 0010564 Knee Switch 膝スイッチ 1 42 300031 Washer ワッシャ 4 43 300033 Spring Washer スプリングワッシャ 2 44 100038 Wing Nut チョウナット 2 45 0092232 Knee Switch Holder 膝スイッチ取付板 1 46 006910 Wood Screw(φ 6.8 × 26) 木ネジ 2 47 3201121 Stitch Plate Support 針板台 1 48 3201100 Cloth Plate(Large) 大カバー 1 jintex.in VF2400

Page 82

33 EU5 DEVICE(1) VF2404 only 31 2 32 33 27 28 23 24 25 26 30-1 30-2 30-3 30-4 21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 29 VF2400 jintex.in

Page 83

EU5 DEVICE (1) 33 Ref.No Parts No. Description 1 3204052 [3201108] Handwheel 2 0092305 Magnet 3 1200038 Rotation Detector Unit 4 110013 Screw(M4-0.7 × 8) 5 3201103 Light Emitter Support 6 000538 Washer 7 0011228 Light Emitter Unit 8 004314 Screw(1/8-44 × 5.6) 9 3201102 Stitch Plate Support 10 1200068 Emission Catcher Unit 11 0092335 Insulating Plate 12 110007 Screw(M2.5-0.45 × 6) 13 0024302 Cord Stay 14 110008 Screw(M4-0.7 × 5) 15 110013 Screw(M4-0.7 × 8) 16 0094491 Cord Clamp(2N- φ 3.3) 17 0023381 Cord Clamp(6N- φ 10.6) 18 0011709 Control Box Stay 19 006905 Wood Screw(φ 5.1 × 20) 20 1249020 Control Box, Complete Set 21 1057087 Control Board 22 0011192 Knee Switch, Complete Set 23 0011189 Knee Switch 24 300031 Washer 25 300033 Spring Washer 26 100038 Wing Nut(M4-0.7) 27 0092232 Knee Switch Holder 28 006910 Wood Screw(φ 6.8 × 26) 29 1200040 Stop Cord 30-1 0011943 Power Cord(for 100 Voltage) 30-2 0011944 Power Cord(for 200 Voltage) 30-3 0011945 Power Cord(for 220 Voltage) 30-4 0011946 Power Cord(for 380 Voltage) 31 3201373 Magnet Holder, C. Set 32 3201374 Magnet Holder 33 110036 Screw(M3-0.5 × 6.5) 品 名 Amt. Req ハンドホイール 1 マグネット 2 ホール IC(組) 1 止ネジ 6 投光器取付板 1 ワッシャ 2 投光器(組) 1 止ネジ 2 針板台 1 受光器(組) 1 絶縁板 1 止ネジ 2 コード支工 2 止ネジ 1 止ネジ 1 コードクランプ 1 コードクランプ 1 制御ボックスステイ 4 木ネジ 8 制御装置(組) 1 制御基板 1 膝スイッチ(組) 1 膝スイッチ 1 ワッシャ 4 スプリングワッシャ 2 チョウナット 2 膝スイッチ取付板 1 木ネジ 2 ストップコード 1 電源コード(100V用) 1 電源コード(200V用) 1 電源コード(220V用) 1 電源コード(380V用) 1 マグネット取付台(組) 1 マグネット取付台 1 止ネジ 2 jintex.in VF2400

Page 84

34 EU5 DEVICE (2) 1 4 29 30 32 27 28 13 26 24 23 21 22 VF2400 37 VF2403 39-1 39-2 39-3 VF2503 42-1 42-2 VF2500 38 VF2403-11 40 VF2503-11 43-1 43-2 43-3 VF2404 41-1 41-2 VF2503-21 44 33 36 35 34 VF2400 jintex.in

Page 85

EU5 DEVICE (2) EU5 装置(2) 34 Ref.No Parts No. Description 品 名 Amt. Req 1 3201107 Cutting Device, Complete Set カッタ装置(組) 1 2 3201104 Cutting Device Basement カッタ装置台 1 3 120011 Screw(M6-1 × 18) 止ネジ 2 4 1200069 Solenoid ソレノイド 1 5 000528 Washer ワッシャ 2 6 000011 Nut ナット 4 7 0060248 Cord Clamp(3N- φ 5.3) コードクランプ 1 8 001175 Screw(9/64-40 × 8) 止ネジ 1 9 0092288 Cutting Knife Connecting Lever カッタ腕 1 10 005115 Screw(1/4-28 × 19) 止ネジ 1 11 0092286 Sliding Block 角駒 1 12 0092287 Sliding Block Pin 角駒軸 1 13 003638 Screw(11/64-40 × 4) 止ネジ 3 14 3201106 Upper Cutting Knife Holder カッタ(上)ホルダ 1 15 003670 Screw(7/32-32 × 6.3) 止ネジ 2 16 3201105 Upper Cutting Knife カッタ(上) 1 17 000538 Washer ワッシャ 2 18 002308 Screw(11/64-40 × 10.4) 止ネジ 2 19 006245 Adjusting Screw(11/64-40 × 11.5) 調節ネジ 1 20 0092283 Upper Cutting Knife Holder Shaft カッタ(上)ホルダ軸 1 21 0092289 Cutting Knife Cover カッタカバー 1 22 004440 Screw(11/64-40 × 8.3) 止ネジ 2 23 0092285 Lower Cutting Knife カッタ(下) 1 24 005550 Screw(11/64-40 × 13.5) 止ネジ 2 25 0092294 Collar(10 × 18 × 7.5mm) カラー 1 26 0092292 Press Spring カッタ(上)押シバネ 1 27 000498 Washer ワッシャ 1 28 0092291 Return Spring カッタ(上)戻シバネ 1 29 005512 Screw(11/64-40 × 3) 止ネジ 1 30 0092293 Return Spring Latch バネ掛ケ 1 31 003635 Screw(1/4-40 × 6) 止ネジ 1 32 3201100 Cloth Plate(Large) 大カバー 1 33 3201101 Cloth Plate(Small) 小カバー 1 34 0092298 Fabric Guide テープ案内板 1 35 004314 Screw(1/8-44 × 5.6) 止ネジ 1 36 3208017 Stitch Plate(40M) 針板 1 37 3208015 Stitch Plate(56M) 針板 1 39-1 3208075 Stitch Plate(32M) 針板 1 39-2 3208076 Stitch Plate(40M) 針板 1 39-3 3208077 Stitch Plate(48M) 針板 1 40 3208023 Stitch Plate(40M) 針板 1 41-1 3208076 Stitch Plate(40M) 針板 1 41-2 0094212 Stitch Plate(48M) 針板 1 42-1 3208078 Stitch Plate(56M) 針板 1 42-2 3208079 Stitch Plate(64M) 針板 1 43-1 3208053 Stitch Plate(48M) 針板 1 43-2 3208016 Stitch Plate(56M) 針板 1 43-3 3208018 Stitch Plate(64M) 針板 1 44 3208143 Stitch Plate(56M) 針板 1 jintex.in VF2400

Page 86

35 EU5/PS2 DEVICE(1) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37-1 37-2 37-3 37-4 38 39 VF2400 jintex.in

Page 87

EU5/PS2 DEVICE (1) 35 Ref.No Parts No. Description 品 名 Amt. Req 1 3204052 [3201108] Handwheel ハンドホイール 1 2 0092305 Magnet マグネット 1 3 1200038 Rotation Detector Unit ホールIC(組) 1 4 110013 Screw(M4-0.7 × 8) 止ネジ 6 5 3201103 Light Emitter Support 投光器取付板 1 6 110048 Screw(M4-0.7 × 10) 止ネジ 2 7 000538 Washer ワッシャ 3 8 1200137 Light Emitter Unit(for PS2) 投光器(組)(PS2用) 1 9 0011228 Light Emitter Unit(for EU5) 投光器(組)(EU5用) 1 10 004314 Screw(1/8-44 × 5.6) 止ネジ 2 11 3201102 Stitch Plate Support 針板台 1 12 1200068 Emission Catcher Unit(for EU5) 受光器(組)(EU5用) 1 13 0092335 Insulating Plate 絶縁板 1 14 110007 Screw(M2.5-0.45 × 6) 止ネジ 2 15 0024302 Cord Stay コード支エ 2 16 110008 Screw(M4-0.7 × 5) 止ネジ 1 17 110013 Screw(M4-0.7 × 8) 止ネジ 2 18 3201132 Front Cover(Small) 前開キカバー(小) 1 19 110035 Screw(M4-0.7 × 10) 止ネジ 1 20 1200138 Emission Catcher Unit(for PS2) 受光器(組)(PS2用) 1 21 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 22 3201131 Front Cover 前開キカバー 1 23 0094491 Cord Clamp(2N- Φ 3.3) コードクランプ 3 24 0023381 Cord Clamp(6N- Φ 10.6) コードクランプ 1 25 0011709 Control Box Stay 制御ボックスススティ 4 26 006905 Wood Screw(Φ 5.1 × 20) 木ネジ 8 27 1249046 Control Box, Complete Set 制御ボックス(組) 1 28 1057028 Photoelectric Board フォト基板 1 29 1057087 Control Board 制御基板 1 30 0011192 Knee Switch, Complete Set 膝スイッチ(組) 1 31 0011189 Knee Switch 膝スイッチ 1 32 300031 Washer ワッシャ 4 33 300033 Spring Washer スプリングワッシャ 2 34 100038 Wing Nut(M4-0.7) チョウナット 2 35 0092232 Knee Switch Holder 膝スイッチ取付板 1 36 006910 Wood Screw(Φ 6.8 × 26) 木ネジ 2 37-1 0011943 Power Cord(for 100 Voltage) 電源コード(100V用) 1 37-2 0011944 Power Cord(for 200 Voltage) 電源コード(200V用) 1 37-3 0011945 Power Cord(for 220 Voltage) 電源コード(220V用) 1 37-4 0011946 Power Cord(for 380 Voltage) 電源コード(380V用) 1 38 1200132 Power Signal Cord 電源信号線(外) 1 39 1200040 Motor Cord モータ用コード 1 jintex.in VF2400

Page 88

36 EU5/PS2 DEVICE(2) 1 VF2403 37 VF2400 jintex.in

Page 89

EU5/PS2 DEVICE (2) 36 Ref.No Parts No. Description 1 3201107 Cutting Device, Complete Set 2 3201104 Cutting Device Basement 3 120011 Screw(M6-1 × 18) 4 1200069 Solenoid 5 000528 Washer 6 000011 Nut 7 0060248 Cord Clamp(3N- φ 5.3) 8 001175 Screw(9/64-40 × 8) 9 0092288 Cutting Knife Connecting Lever 10 005115 Screw(1/4-28 × 19) 11 0092286 Sliding Block 12 0092287 Sliding Block Pin 13 003638 Screw(11/64-40 × 4) 14 3201106 Upper Cutting Knife Holder 15 008670 Screw(7/32-32 × 6.3) 16 3201105 Upper Cutting Knife 17 000538 Washer 18 002308 Screw(11/64-40 × 10.4) 19 006245 Adjusting Screw(11/64-40 × 11.5) 20 0092283 Upper Cutting Knife Holder Shaft 21 0092289 Cutting Knife Cover 22 004440 Screw(11/64-40 × 8.3) 23 0092285 Lower Cutting Knife 24 005550 Screw(11/64-40 × 13.5) 25 26 0092294 Collar(10 × 18 × 7.5mm) 27 0092292 Press Spring 28 000498 Washer 29 0092291 Return Spring 30 005512 Screw(11/64-40 × 3) 31 0092293 Return Spring Latch 32 003635 Screw(1/4-40 × 6) 33 3201100 Cloth Plate(Large) 34 3201101 Cloth Plate(Small) 35 0092298 Fabric Guide 36 004314 Screw(1/8-44 × 5.6) 37 3208076 Stitch Plate(40M) 品 名 Amt. Req カッタ装置(組) 1 カッタ装置台 1 止ネジ 2 ソレノイド 1 ワッシャ 2 ナット 4 コードクランプ 1 止ネジ 1 カッタ腕 1 止ネジ 1 角駒 1 角駒軸 1 止ネジ 3 カッタ(上)ホルダ 1 止ネジ 2 カッタ(上) 1 ワッシャ 2 止ネジ 2 調節ネジ 1 カッタ(上)ホルダ軸 1 カッタカバー 1 止ネジ 2 カッタ(下) 1 止ネジ 2 カラー 1 カッタ(上)押シバネ 1 ワッシャ 1 カッタ(上)戻シバネ 1 止ネジ 1 バネ賭ケ 1 止ネジ 1 大カバー 1 小カバー 1 テープ案内板 1 止ネジ 1 針板 1 VF2400

Page 90 — FC DEVICE

37 FC DEVICE 1 2 3 4 19 16 8 15 17 10 21 26 20 27 25 12 11 13 22 18 9 23 14 24 28 VF2400 jintex.in

Page 91

FC DEVICE FC 装置 37 Ref.No Parts No. Description 品 名 Amt. Req 1 3209920 FC Device, Complete Set FC装置(組) 1 2 0090711 Cutting Knife Lever Spring Hanger カッタレバーバネ掛ケ 1 3 110009 Screw(M4-0.7 × 8) 止ネジ 1 4 0091842 Cutting Knife Lever Spring カッタレバーバネ 1 5 3201114 Cutting Knife Lever カッタレバー 1 6 003393 Screw(5/32-40 × 3.2) 止ネジ 1 7 006638 Screw(5/32-40 × 9.5) 止ネジ 1 8 007650 Screw(11/64-40 × 5) 止ネジ 3 9 0091841 Cutting Knife Lever Pin カッタレバーピン 1 10 3201112 Cutting Device Holder テープカッタ取付台 1 11 120026 Screw(M5-0.8 × 18) 止ネジ 2 12 002308 Screw(11/64-40 × 10.4) 止ネジ 1 13 000340 Nut ナット 1 14 1091835 Cutting Knife Holder Pin テープカッタ取付台ピン 1 15 3201113 Cutting Knife Holder テープカッタ取付台 1 16 009150 Screw(11/64-40 × 11) 止ネジ 2 17 0091833 Cutting Knife(Upper) テープカッタ(上) 1 18 004440 Screw(11/64-40 × 8.3) 止ネジ 4 19 0091838 Cutting Knife Spring テープカッタバネ 1 20 0091839 Cutting Knife(Lower) テープカッタ(下) 1 21 001156 Screw(11/64-40 × 13.3) 止ネジ 2 22 0091837 Cutting Knife Cover テープカッタカバー 1 23 006245 Adjusting Screw(11/64-40 × 11.5) 調節ネジ 1 24 0092298 Fabric Guide 布案内 1 25 009740 Screw(M6-1 × 10) 止ネジ 1 26 160003 Screw(M5-0.8 × 5) 止ネジ 1 27 330000 Seal Plug 詰栓 1 28 3201111 Cloth Plate(Large) 大カバー 1 jintex.in VF2400

Page 92 — 38 AU2-1 DEVICE(1)

38 AU2-1 DEVICE(1) VF2400 1 2 3 4 5 7-1 7-2 8 9 10 11 12-1 12-2 13 14 15 16 17 19-1 19-2 20 21 22 jintex.in

Page 93

AU2-1 DEVICE(1) AU2-1 装置(1) 38 Ref.No Parts No. Description 1 3204052 [3201108] Handwheel 2 0092305 Magnet 3 1200038 Rotation Detector Unit 4 110013 Screw(M4-0.7 × 8) 5 0063612 Cord Clamp(4N- φ 6.8) 7-1 3101476 Light Emitter Support 7-2 3201138 Light Emitter Support(-21/AU2-1) 8 000538 Washer 9 0011228 Light Emitter Unit 10 004314 Screw(1/8-44 × 5.6) 11 0094491 Cord Clamp(2N- φ 3.3) 12-1 3201128 Stitch Plate Support 12-2 3201136 Stitch Plate Support(-21/AU2-1) 13 1200234 Emission Catcher Unit 14 1055084 Insulating Plate 15 007630 Screw(M2.5-0.45 × 1.8) 16 0024302 Cord Stay 17 110008 Screw(M4-0.7 × 5) 18 3201125 Cloth Plate(Large) 19-1 3201126 Cloth Plate(Small) 19-2 3201137 Cloth Plate(Small)(-21/AU2-1) 20 3201127 Looper Thread Take-up Cover 21 0095961 Presser Bar 22 110009 Screw(M4-0.7 × 8) 品 名 Amt. Req ハンドホイール 1 マグネット 1 ホールIC(組) 1 止ネジ 6 コードクランプ 1 投光器取付板 1 投光器取付板 1 ワッシャ 2 投光器(組) 1 止ネジ 2 コードクランプ 1 針板台 1 針板台 1 受光器(組) 1 絶縁板 1 止ネジ 2 コード支工 2 止ネジ 1 大カバー 1 小カバー 1 小カバー 1 カムカバー 1 押工棒 1 止ネジ 1 VF2400

Page 94

39 AU2-1 DEVICE (2) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35-1 35-2 36 37-1 37-2 38 39 40 41 42 43 VF2400 jintex.in

Page 95

AU2-1 DEVICE (2) AU2-1 装置 (2) 39 Ref.No Parts No. Description 品 名 Amt. Req 1 3101497 [3101491] Cutting Device, Complete Set カッタ装置(組) 1 2 3002009 Bracket(Right) ブラケット(右) 1 3 120021 Screw(M5-0.8 × 60) 止ネジ 4 4 3002026 O-ring Oリング 2 5 3002010 Cylinder シリンダ 1 6 009935 Screw(M5-0.8 × 20) 止ネジ 1 7 3002029 Wear Ring ウェアリング 1 8 300038 Washer ワッシャ 1 9 3002027 Rubber Cushion クッション 2 10 3002028 Piston ピストン 1 11 3002030 Piston Seal ピストンシール 1 12 3002031 O-ring Oリング 2 13 3002011 Piston Shaft ピストンシャフト 1 14 3002032 Piston Shaft Seal ピストンシャフトシール 1 15 3002008 Bracket(Left) ブラケット(左) 1 16 3002012 Piston Shaft Bushing ピストンシャフトブッシュ 1 17 3002013 Piston Rod Holder ピストンロッド受ケ 1 18 120008 Screw(M4-0.7 × 8) 止ネジ 3 19 3002014 Piston Rod ピストンロッド 1 20 3002016 Link Pin リンクピン 2 21 160000 Screw(M3-0.5 × 3) 止ネジ 2 22 0095980 Piston Rod Bearing ピストンロッドベアリング 1 23 3002015 Piston Link ピストンリンク 1 24 3002017 Upper Cutting Knife Holder 上メス台 1 25 160001 Screw(M4-0.7 × 4) 止ネジ 4 26 3002018 Upper Cutting Knife 上メス 1 27 130002 Screw(M3-0.5 × 6) 止ネジ 2 28 3002019 Cutting Knife Press Shaft メス押シ軸 1 29 3002020 Shaft Bushing(Long) ブッシュ(長) 1 30 3002021 Shaft Bushing(Short) ブッシュ(短) 1 31 0095940 Upper Cutting Knife Spring 上メスバネ 1 32 3002022 Cutting Knife Press Screw メス押シネジ 1 33 3002023 Lock Nut ロックナット 1 34 3002007 Cutting Device Basement カッタ装置台 1 35-1 120026 Screw(M5-0.8 × 18) 止ネジ 1 35-2 120026 Screw(M5-0.8 × 18) (for VF) 止ネジ(VF用) 1 36 000669 Washer ワッシャ 3 37-1 120017 Screw(M5-0.8 × 15) 止ネジ 1 37-2 120017 Screw(M5-0.8 × 15) (for VC) 止ネジ(VC用) 1 38 120015 Screw(M5-0.8 × 10) 止ネジ 3 39 3101492 Lower Cutting Knife 下メス 1 40 3002025 Cutting Knife Cover メスカバー 1 41 000665 Washer ワッシャ 1 42 0010263 Connector(Φ 6-PT1/8) コネクタ 2 43 3101498 Spacer スペーサ 1 jintex.in VF2400

Page 96 — 40 AU2-1 DEVICE(3)

40 AU2-1 DEVICE(3) 1 2 3 4 5 6 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29-1 29-2 29-3 29-4 VF2400 jintex.in

Page 97

AU2-1 DEVICE(3) 40 Ref.No Parts No. Description 品 名 Amt. Req 1 1098015 [0033939] Hose Band ホースバンド 1 2 0010108 Hose Union ホースユニオン 1 3 1097009 Regulator レギュレータ 1 4 110017 Screw(M5-0.8 × 8) 止ネジ 2 5 000600 Spring Washer スプリングワッシャ 2 6 000426 Washer ワッシャ 2 7 8 1253240 Regulator Support レギュレータ取付板 1 9 006905 Wood Screw(φ 5.1 × 20) 木ネジ 10 10 0010264 Connecting(φ 6-PT1/4) コネクタ 1 11 1096030 Air Tube(6 × 4mm)(Black) エアチューブ(黒) - 12 0010123 Solenoid Valve, C. Set 電磁弁(組) 1 13 0010120 Solenoid Valve, C. Set 電磁弁 1 14 1200037 Cord(F) コード(F) 1 15 0010263 Connector(φ 6-PT1/8) コネクタ 3 16 1097007 Silencer(φ 6-PT1/8) サイレンサ 2 17 009937 Wood Screw(φ 3.8 × 20) 木ネジ 2 18 1249224 [0011989] Control Box, Complete Set 制御装置(組) 1 19 1057155 [1057088] Control Board 制御基板 1 20 0011709 Control Box Stay 制御ボックススティ 4 21 0011192 Knee Switch, Complete Set 膝スイッチ(組) 1 22 0011189 Knee Switch, Complete Set 膝スイッチ 1 23 300031 Washer ワッシャ 4 24 300033 Spring Washer スプリングワッシャ 2 25 100038 Wing Nut(M4-0.7) チョウナット 2 26 0092232 Knee Switch Holder 膝スイッチ取付板 1 27 006910 Wood Screw(φ 6.8 × 26) 木ネジ 2 28 1200040 Stop Cord ストップコード 1 29-1 0011943 Power Cord(for 100 Voltage) 電源コード(100V用) 1 29-2 0011944 Power Cord(for 200 Voltage) 電源コード(200V用) 1 29-3 0011945 Power Cord(for 220 Voltage) 電源コード(220V用) 1 29-4 0011946 Power Cord(for 380 Voltage) 電源コード(380V用) 1 AU2-1 装置(3) 40 VF2400

Page 98 — AU2-1 DEVICE(4)

41 AU2-1 DEVICE(4) VF2403, 2503 1-1 1-2 1-3 1-4 1-5 4 3 2 6 5 VF2403-21, 2503-21 9-1 9-2 9-3 9-4 12 11 4 3 2 5 6 10 14 7-1 7-2 7-3 7-4 7-5 13-1 13-2 13-3 13-4 8-1 8-2 VF2400 jintex.in

Page 99

AU2-1 DEVICE(4) 41 Ref.No Parts No. Description 品 名 Amt. Req 1-1 0096271 Presser Foot, C. Set(40) 押工(組) 1 1-2 0096272 Presser Foot, C. Set(48) 押工(組) 1 1-3 3207026 Presser Foot, C. Set(56) 押工(組) 1 1-4 3207030 Presser Foot, C. Set(64) 押工(組) 1 1-5 0096270 Presser Foot, C. Set(32)(Extra) 押工(組)(特注品) 1 2 001186 Screw(9/64-40 × 7.8) 止ネジ 1 3 0091725 Presser Foot Spring 押工バネ 1 4 005133 Screw(1/8-44 × 4.5) 止ネジ 1 5 000220 Lock Nut ロックナット 1 6 003300 Adjusting Screw(1/8-44 × 15) 調節ネジ 1 7-1 0096341 Stitch Plate(32M)(Extra) 針板(特注品) 1 7-2 0096342 Stitch Plate(40M) 針板 1 7-3 0096343 Stitch Plate(48M) 針板 1 7-4 3208050 Stitch Plate(56M) 針板 1 7-5 3208051 Stitch Plate(64M) 針板 1 8-1 3209022 Main Feed Dog(32, 40, 48, 56) 後送り 1 8-2 3209042 Main Feed Dog(64) 後送り 1 9-1 3207204 Presser Foot, C. Set(32) 押工(組) 1 9-2 3207177 Presser Foot, C. Set(56) 押工(組) 1 9-3 3207180 Presser Foot, C. Set(64) 押工(組) 1 9-4 3207175 Presser Foot, C. Set(48)(Extra) 押工(組)(特注品) 1 10 0091696 Presser Foot Hinge Pin 押工ヒンジピン 1 11 3207160 Top Guide テープガイド 1 12 001230 Screw(3/32-56 × 3.8) 止ネジ 1 13-1 3208056 Stitch Plate(32M) 針板 1 13-2 3208049 Stitch Plate(56M) 針板 1 13-3 3208054 Stitch Plate(64M) 針板 1 13-4 3208048 Stitch Plate(48M)(Extra) 針板(特注品) 1 14 3209066 Main Feed Dog 後送り 1 VF2400

Page 100 — K1 DEVICE for VF2400, 2500, 2560

42 K1 DEVICE for VF2400, 2500, 2560 1 5 6 2 22 7 3 4 20 21 VF2400, 2500, 2560 23-1 23-2 VF2400 27 28-1 VF2500 29-1 29-2 28-1 28-2 VF2560 30-1 30-2 30-3 9 8 10 11 18 17 13 12 14 15 16 18 19-1 19-2 24 25 26 VF2400 jintex.in

Page 101 — K1 DEVICE for VF2400, 2500, 2560

K1 DEVICE for VF2400, 2500, 2560 K1 装置 42 Ref.No Parts No. Description 品 名 Amt. Req 1 3209923 K1 Device, Complete Set K1装置(組) 1 2 3201141 Feed Bar Driving Shaft 送り軸 1 3 0093303 Oil Seal オイルシール 1 4 3201140 Cutting Knife Main Lever メインレバー 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 000567 Packing Piece ファイバパッキン 1 7 3201142 Ball Stud 球 1 8 0095466 Cutting Knife Driving Link 下刃リンク 1 9 170029 Screw(M4-0.7 × 8) 止ネジ 1 10 300017 Washer ワッシャ 1 11 005572 Screw(9/64-40 × 3.57) 止ネジ 1 12 0095463 Cutting Knife(Lower) 下刃 1 13 0095465 Cutting Knife Holder Pin 下刃支持ピン 1 14 0095464 Cutting Knife(Lower) Spring 下刃バネ 1 15 000014 Washer ワッシャ 1 16 005571 Screw(3/32-56 × 4) 止ネジ 1 17 0095462 Cutting Plate カッティングプレート 1 18 005328 Screw(29/256-48 × 6.5) 止ネジ 4 19-1 0095471 Cahin-off Guide(Small Mouth) 口金(小) 1 19-2 0095472 Cahin-off Guide(Large Mouth) 口金(大) 1 20 0095458 Suction Pipe Unit 吸込管(組) 1 21 110009 Screw(M4-0.7 × 8) 止ネジ 2 22 3201143 Stitch Plate Support 針板台 1 23-1 3201144 Looper Thread Take-up Cover(40, 48, 56) カムカバー 1 23-2 3201145 Looper Thread Take-up Cover(64)(VF2560) カムカバー 1 24 3201147 Cloth Plate(Large) 大カバー 1 25 300006 Spacer スペーサ 1 26 3201146 Cloth Plate(Small) 小カバー 1 27 0095541 Stitch Plate(40M) 針板 1 28-1 3209000 Main Feed Dog(40, 56) 後送り 1 28-2 3209002 Main Feed Dog(64) 後送り 1 29-1 0095456 Stitch Plate(56M) 針板 1 29-2 0095457 Stitch Plate(64M) 針板 1 30-1 3208074 Stitch Plate(56S) 針板 1 30-2 3208161 Stitch Plate(60S) 針板 1 30-3 3208086 Stitch Plate(64S) 針板 1 VF2400

Page 102

43 C DEVICE 1 13 15 14 16 17 15 18 19 20 21 22 23 24 10 9 8 7 6 5 11 12 26 27 25 12 31 30 27 28 29 VF2400 Jinte.in

Page 103

C DEVICE C 装置 43 Ref.No Parts No. Description 品 名 Amt. Req 1 2109932 C Device, Complete Set C装置(組) 1 2 1098015 [0033939] Hose Band ホースバンド 1 3 1094011 Hose Nipple(PT1/8 × 8) ホースニップル 1 4 1097000 Regulator レギュレータ 1 5 009960 Screw(M5-0.8 × 16) 止ネジ 2 6 000669 Washer ワッシャ 4 7 000600 Spring Washer スプリングワッシャ 2 8 000009 Nut ナット 2 9 1097001 Regulator Support レギュレータ取付板 1 10 006905 Wood Screw(φ 5.1 × 20) 木ネジ 2 11 0010263 Connector(φ 6-PT1/8) コネクタ 1 12 1096000 Air Hose(4 × 6 × 2000mm) エアホース 1 13 1298000 Air Valve, Complete Set エアバルブ(組) 1 14 0033938 Collar(6.4 × 13 × 9mm) カラー 1 15 005040 Screw(11/64-40 × 8.5) 止ネジ 5 16 0033937 Return Spring エアバルブ補助バネ 1 17 0033936 Air Valve Holder エアバルブ取付台 1 18 0033935 Air Valve Stop エアバルブストッパ 1 19 000334 Nut ナット 1 20 005505 Adjusting Screw(11/64-40 × 16) 調節ネジ 1 21 1090133 TAC Valve, Complete Set TACバルブ(組) 1 22 0010052 TAC Valve TACバルブ 1 23 000623 Gasket パッキン 2 24 0010112 Joint 継手 2 25 0010290 Connector(φ 6-PT1/8) コネクタ 1 26 0010310 Venturi Tube ベンチュリ管 1 27 1098015 [0033940] Hose Band ホースバンド 2 28 1096004 Air Hose(12 × 18 × 1500mm) エアホース 1 29 1096005 Air Hose(12 × 18 × 500mm) エアホース 1 30 0011987 UL Clamp ULクランプ 3 31 009814 Wood Screw(φ 3.1 × 20) 木ネジ 3 jintex.in VF2400

Page 104

44 S1 DEVICE 1 2 3 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 58 59 60 61 62 63 VF2400 jintex.in

Page 105 — S1 DEVICE

S1 DEVICE S1 装置 44 Ref.No Parts No. Description 品 名 Amt. Req 1 3209926 S1 Device, Complete Set S1 装置(組) 1 2 3201329 Tape Holder テープ受ケ 1 3 190021 Screw(M4-0.7 × 12) 止ネジ 1 4 000538 Washer ワッシャ 6 5 110048 Screw(M4-0.7 × 10) 止ネジ 2 6 190044 Screw(M4-0.7 × 12) 止ネジ 1 7 3201134 Tension Guide Support テンションガイド取付板 1 8 009784 Screw(M6-1 × 10) 止ネジ 2 9 0096066 Tension Guide テンションガイド 1 10 007627 Screw(M4-0.7 × 6) 止ネジ 2 11 000665 Washer ワッシャ 2 12 190022 Screw(M4-0.7 × 12, M5-0.8 × 21) 止ネジ 1 13 000669 Washer ワッシャ 1 14 0095269 Tape Guide Bar Holder テープバー腕 1 15 000600 Spring Washer スプリングワッシャ 1 16 100028 Wing Nut チョウナット 1 17 0095270 Tape Guide Bar テープガイドバー 1 18 009604 Screw(11/64-40 × 5.5) 止ネジ 1 19 0095296 Tape Guide Unit テープガイド(組) 1 20 0095272 Tape Guide テープガイド 1 21 001892 Screw(1/8-44 × 2.9) 止ネジ 2 22 3101270 Knee Press Complete Set 膝受ケ(組) 1 23 0064179 Knee Press Support 膝受ケ台 1 24 006910 Wood Screw(φ 6.8 × 26) 木ネジ 2 25 000428 Washer ワッシャ 2 26 000731 Pin ピン 1 27 0064187 Knee Press Pin 膝受ケピン 1 28 0068202 Retaining Ring ストップリング 2 29 0064180 Knee Press Return Spring 膝受戻シバネ 1 30 0064181 Knee Press Connecting Block 膝受ケ連結ブロック 1 31 004474 Screw(3/16-32 × 6.4) 止ネジ 2 32 0064186 Knee Press Connecting Shaft 膝受ケ連結軸 1 33 0067082 Knee Press Shaft 膝受ケ軸 1 34 0064182 Knee Press 膝受ケ 1 35 004635 Screw(1/4-40 × 14) 止ネジ 1 36 0037912 Chain 鎖 1 37 3209927 Driving Guide, Complete Set 可動ガイド装置(組) 1 38 3201133 Guide Holder ガイド取付板(組) 1 39 0096177 Guide Holder Fixing Plate 取付板固定板 1 40 110011 Screw(M5-0.8 × 10) 止ネジ 2 Ref. No. 41 to 63 See the following page. jintex.in VF2400

Page 106 — 44 S1 DEVICE

44 S1 DEVICE 1 2 3 4 4 5 6 12 13 14 15 16 17 18 19 20 21 21 37 VF2400 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 55 54 46 41 42 43 44 45 47 48 49 39 40 44 45 50 51 52 53 56 57 58 59 60 61 62 63 jintex.in

Page 107

S1 DEVICE S1 装置 44 Ref.No Parts No. Description 品 名 Amt. Req 41 0096163 Slider スライダ 1 42 0096164 Slider Ling スライダリング 1 43 007620 Screw(9/64-40 × 6.3) 止ネジ 1 44 0094403 Slider Ling Stop スライダリングストッパ 2 45 001225 Screw(1/8-44 × 2.8) 止ネジ 2 46 0096166 Elastic Tape Guide ゴムガイド 1 47 004236 Screw(3/32-56 × 4.2) 止ネジ 2 48 000014 Washer ワッシャ 2 49 0096167 Elastic Tape Guide Tube ビニールパイプ 1 50 0096161 Guide Link ガイドリンク 1 51 006120 Screw(11/64-40 × 5) 止ネジ 1 52 000511 Washer ワッシャ 1 53 000451 Nut ナット 1 54 000613 Washer ワッシャ 1 55 006046 Screw(3/16-32 × 4.5) 止ネジ 1 56 0063428 Guide Lever Link ガイドレバーリンク 1 57 006075 Screw(11/64-40 × 6) 止ネジ 2 58 0034979 Guide Lever Link Bushing ガイドレバーリンクブッシュ 2 59 000334 Nut ナット 2 60 0096178 Guide Lever ガイドレバー 1 61 170033 Screw(M6-1 × 8) 止ネジ 1 62 0095027 Retaining Ring ストツプリング 1 63 0096159 Guide Lever Spring ガイドレバーバネ 1 Jinte.in VF2400

Page 108

45 EXTRA PARTS(1) VF2400 "L" type 1-1 1-2 1-3 VF2500 "L" type 2-1 2-2 VF2500 with Fabric Guide 5 4 VF2400 "S2" type 6 VF2500 "S2" type 7 Hard plating 17 8-1 Solid type 8-2 8-3 8-4 8-5 8-6 8-7 10 11 9 12 13-1 with Tape Guide 13-2 11 9 10 12 14 5 15-1 with Tape Guide 15-2 11 9 10 12 16 5 VF2500-160M 18 19 21 20 22 24 23 25 26 27 28 VF2400 jintex.in

Page 109 — EXTRA PARTS(1)

EXTRA PARTS(1) 特注部品(1) 45 Ref.No Parts No. Description 品 名 Amt. Req 1-1 0095490 Stitch Plate(32L) 針板 1 1-2 0095491 Stitch Plate(40L) 針板 1 1-3 0095492 Stitch Plate(48L) 針板 1 2-1 0095493 Stitch Plate(56L) 針板 1 2-2 0095454 Stitch Plate(64L) 針板 1 3 3208045 Stitch Plate(56) 針板 1 4 0094615 Fabric Guide 布ガイド 1 5 001228 Screw(3/32-56 × 3.2) 止ネジ 1 6 3108199 Stitch Plate(04S2) 針板 1 7 3108201 Stitch Plate(56S2) 針板 1 8-1 0095580 Presser Foot, C. Set(32)(2 Needle) 押工(組)(2本針用) 1 8-2 0095581 Presser Foot, C. Set(40)(2 Needle) 押工(組)(2本針用) 1 8-3 0095582 Presser Foot, C. Set(48)(2 Needle) 押工(組)(2本針用) 1 8-4 0095584 Presser Foot, C. Set(64)(2 Needle) 押工(組)(2本針用) 1 8-5 0095586 Presser Foot, C. Set(48)(3 Needle) 押工(組)(3本針用) 1 8-6 0095587 Presser Foot, C. Set(56)(3 Needle) 押工(組)(3本針用) 1 8-7 0095588 Presser Foot, C. Set(64)(3 Needle) 押工(組)(3本針用) 1 9 001186 Screw(9/64-40 × 7.8) 止ネジ 1 10 0095641 Presser Foot Spring 押工バネ 1 11 005133 Screw(1/8-44 × 4.5) 止ネジ 1 12 0095642 Retaining Ring ストツプリング 2 13-1 3007029 Presser Foot, C. Set(40)(VF2400) 押工(組)(ガイド付き) 1 13-2 3007030 Presser Foot, C. Set(56)(VF2500) 押工(組)(ガイド付き) 1 14 3000009 Tape Guide テープガイド 1 15-1 0095730 Presser Foot, C. Set(40)(VF2400) 押工(組)(ガイド付き) 1 15-2 0095731 Presser Foot, C. Set(56)(VF2500) 押工(組)(ガイド付き) 1 16 0095728 Tape Guide テープガイド 1 17 0095174 Looper(Hard plating) ルーパ(硬質メッキ) 1 18 3097038 Presser Foot, Complete Set(60) 押工(組) 1 19 001186 Screw(9/64-40 × 7.8) 止ネジ 1 20 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 21 3107304 Presser Foot Spring(Right) 小押工バネ(右) 1 22 0063284 Locking Pin(60) 回り止メピン 1 23 0063282 Presser Foot Hinge Pin(60) 押工ヒンジピン 1 24 005122 Screw(3/32-56 × 5.5) ネジ 2 25 3098038 Stitch Plate(60M) 針板 1 26 3099132 Needle Clamp(60) 針止メ 1 27 001900 Screw(1/8-44 × 2.4) 止ネジ 3 28 3209002 Main Feed Dog(60) 後送り 1 VF2400

Page 110 — EXTRA PARTS (2)

46 EXTRA PARTS (2) VF2403, 2503 VF2403 VF2503 2-1 2-2 2-3 2-4 3-1 3-2 3-3 VF2403/EU5, EU5/PS2 VF2503/EU5, EU5/PS2 6-1 VF2403 6-2 4-1 4-2 4-3 6-3 VF2503 11 10 9 8 17 13 12 16-1 16-2 7 15 14 11 10 9 8 17 13 12 16-1 16-2 7 15 14 VF2400 jintex.in

Page 111 — EXTRA PARTS(2)

EXTRA PARTS(2) 特注部品(2) 46 Ref.No Parts No. Description 品 名 Amt. Req 1-1 3209004 Main Feed Dog(32, 40, 48, 56) 後送り 1 1-2 3209006 Main Feed Dog(64) 後送り 1 2-1 0094281 Stitch Plate(32M) 針板 1 2-2 0094282 Stitch Plate(40M) 針板 1 2-3 0094283 Stitch Plate(48M) 針板 1 2-4 0094285 Stitch Plate(64M) 針板 1 3-1 3208025 Stitch Plate(48M) 針板 1 3-2 0094921 Stitch Plate(56M) 針板 1 3-3 0094922 Stitch Plate(64M) 針板 1 4-1 0092324 Stitch Plate(32M) 針板 1 4-2 0092325 Stitch Plate(40M) 針板 1 4-3 0092326 Stitch Plate(48M) 針板 1 5-1 0092330 Stitch Plate(56M) 針板 1 5-2 0092331 Stitch Plate(64M) 針板 1 6-1 3207183 Presser Foot, Complete Set(40) 押工(組) 1 6-2 3207187 Presser Foot, Complete Set(48) 押工(組) 1 6-3 3207188 Presser Foot, Complete Set(56) 押工(組) 1 7 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 8 0091725 Presser Foot Spring 小押工バネ 1 9 005133 Screw(1/8-44 × 4.5) 止ネジ 1 10 000327 Lock Nut ロツクナット 1 11 003302 Adjusting Screw(1/8-44 × 11) 調節ネジ 1 12 3207107 Presser Foot Hinge Pin 押工ヒンジピン 1 13 160000 Screw(M3-0.5 × 3) 止ネジ 1 14 3267037 Tape Guide テープガイド 1 15 001228 Screw(3/32-56 × 3.2) 止ネジ 1 16-1 3207185 Tape Guide(Right) テープガイド(右) 1 16-2 3207189 Tape Guide(Right)(10mm or less)(Extra) テープガイド(右)(特注部品) 1 17 110091 Screw(M3-0.5 × 3) 止ネジ 1 jintex.in VF2400

Page 112 — EXTRA PARTS (3)

47 EXTRA PARTS (3) VF2411 1 2 4 3 7 for Covering Seam 12 11 10 8 13 for Covering Seam 12 9 15 14 8 for Covering Seam 16 17 21 22 18-1 18-2 18-3 18-4 18-5 18-6 18-7 19 20 VF2400 jintex.in

Page 113 — EXTRA PARTS(3)

EXTRA PARTS(3) 特注部品(3) 47 Ref.No Parts No. Description 品 名 Amt. Req 1 0095365 Folder(Left), C. Set 定規(左)(組) 1 2 0095366 Folder(Left) 定規(左) 1 3 0095367 Folder Chip 定規チップ 1 4 004182 Screw(3/32-56 × 2.5) 止ネジ 1 7 3201118 Fabric Guide, C. Set(Covering Seam) 定規(組)(伏縫い用) 1 8 3201117 Fabric Guide Support 布ガイド取付板 1 9 3201120 Fabric Guide Fixing Plate 布ガイド固定板 1 10 3101224 Fabric Guide(Left) 布ガイド(左) 1 11 3101223 Fabric Guide(Right) 布ガイド(右) 1 12 110054 Screw(M3-0.5 × 3.5) 止ネジ 2 13 3201119 Fabric Guide, C. Set(Covering Seam) 定規(組)(ネカシ用) 1 14 3101229 Fabric Guide(Left) 布ガイド(左) 1 15 3101228 Fabric Guide(Right) 布ガイド(右) 1 16 3209024 Differential Feed Dog 前送り 1 17 3209023 Main Feed Dog 後送り 1 18-1 0093351 Needle Clamp(32)(2 Needle) 針止メ(2本針用) 1 18-2 0093352 Needle Clamp(40)(2 Needle) 針止メ(2本針用) 1 18-3 0093353 Needle Clamp(48)(2 Needle) 針止メ(2本針用) 1 18-4 3009101 Needle Clamp(56)(2 Needle) 針止メ(2本針用) 1 18-5 0093355 Needle Clamp(64)(2 Needle) 針止メ(2本針用) 1 18-6 0093357 Needle Clamp(56)(3 Needle) 針止メ(3本針用) 1 18-7 0093358 Needle Clamp(64)(3 Needle) 針止メ(3本針用) 1 19 0093690 Timing Gauge タイミングゲージ 1 20 0095220 Looper Timing Gauge ルーパタイミングゲージ 1 21 3209040 Main Feed Dog(P=2.5mm) 後送り(ピッチ2.5mm) 1 22 3209041 Differential Feed Dog(P=2.5mm) 前送り(ピッチ2.5mm) 1 Jinte.in VF2400

Page 114 — SUPPORTING BOARD EXTRA PARTS

48 SUPPORTING BOARD EXTRA PARTS 1 14 13 12 2 2 5 6 7 8 9 9 7 10 11 7 8 8 5 7 16 17 18 19 17 7 20 21 22 VF2400 jintex.in

Page 115 — SUPPORTING BOARD

SUPPORTING BOARD Ref.No Parts No. Description 受ケ板 48 品 名 Amt. Req 1 3200240 Supporting Board, C. Set 受ケ板(組) 2 3200241 Supporting Board 受ケ板 2 3 180020 Setting Screw(M6-1 × 15) 取付ケネジ 4 4 0093035 Oil Resrvoir Rubber Cushion ゴム座 4 5 000070 Hanging Nut 吊リナット 4 6 009861 Hanging Bolt(M8-1.25 × 95) 吊リボルト 4 7 000162 Washer ワッシャ 12 8 000016 Nut ナット 12 9 2101451 Spacer(See the table below) スペーサ(下表参照) 12 10 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 4 11 0063010 SupportingBoardRubberCushion(Lower) 受ケ板ゴム座(下) 4 12 3200242 Chain Guide 鎖ガイド 1 13 000541 Washer ワッシャ 2 14 110009 Screw(M4-0.7 × 8) 止ネジ 2 15 9603903 Supporting Board 受ケ板 1 16 000676 Spring Washer スプリングワッシャ 8 17 000016 Nut ナット 16 18 009865 Hanging Bolt(M8-1.25 × 220) 吊リボルト 4 19 180024 Screw(M6-1 × 45) 止ネジ 4 20 000528 Washer ワッシャ 4 21 000667 Spring Washer スプリングワッシャ 4 22 000011 Nut ナット 4 Note : Number of Spacer(2101451) to be used. (注)スペーサ(2101451)の使用個数 Thickness of Table Number of Spacer テーブルの厚さ スペーサの個数 for 40mm 3pcs. ×4=12pcs for 45mm 2pcs. ×4= 8pcs for 50mm 1pcs. ×4= 4pcs VF2400

Page 116

49 1 19 18 2 3 7 5 4 6 7 8 9 10 20 21 23 24 11 12 13 14 16 25 26 27 22 31 VF2403-11, 2403-21 VF2403, 2503, VF2503-11, 2503-21 VF2404, 2504-11 32 33 34 37 36 43 35 37 36 43 36 41 37 39 40 29 28 30 VF2400 jintex.in

Page 117 — THREAD STAND

THREAD STAND 糸立台 49 Ref.No Parts No. Description 品 名 Amt. Req 1 9620696 Thread Stand, Complete Set (6 Spools Type) 糸立台(組)(6本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Pipe (Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder (Large) ガイドホルダ(大) 1 5 911002 Screw (M4-0.7 × 20) 止ネジ 1 6 911001 Screw (M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw (M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 8 11 9620675 Column Pipe (Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut (M16-1.5) ナット 1 15 16 9620703 Thread Hanger (3 Spools Type) スレッドハンガ(3本糸用) 4 17 9620700 Thread Eyelet アイレット 6 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 4 19 911060 Screw (M6-1 × 15) 止ネジ 4 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder (Small) ガイドホルダ(小) 1 22 9620666 Thread Guide (6 Spools Type) スレッドガイド(6本糸用) 1 23 9620678 Spool Cushion スプールクッション 6 24 9620679 Spool Pin スプール軸 6 25 9620680 Spool Mat スプールマット 6 26 9620681 Spool Seat Disc 受ケ皿 6 27 930055 Spring Washer スプリングワッシャ 6 28 3500700 [0063031] Belt Cover ベルトカバー 1 29 110028 Screw (M6-1 × 46) 止ネジ 2 30 3000010 Looper Thread Bar ルーパ糸通シ 2 31 9620750 Knitted Tape Stand, C. Set メリヤス テープスタンド 1 32 9620751 Tape Pin テープ支柱 1 33 9620752 Tape Disc テープ受ケ板 1 34 000433 Washer ワッシャ 1 35 9620753 Tape Disc Block テープ受ケ板ブロック 1 36 911062 Screw (M4-0.7 × 15) 止ネジ 4 37 910001 Nut ナット 4 38 9620756 Tape Stand Bar テープスタンド棒 1 39 001448 Screw (15/64-28 × 5.5) 止ネジ 1 40 9620757 Tape Stand テープスタンド 1 41 005148 Wood Screw (φ 4.5 × 25) 木ネジ 3 42 9620754 Tape Guide Bar テープガイド棒 1 43 9620755 Tape Guide テープガイド 2 jintex.in VF2400

Page 118 — WARNING LABEL 警告ラベル

50 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル 品番 品名 CAUTION 390140 CAUTION IN OPERATION Do not operate without eye guard and safety devices. Before threading, changing needle, cleaning etc. switch off main switch. 注意 390143 操作注意ラベル 動く部分けがをする。 安全保護装置をつけて 縫製作業をすること。 電源を切ってから、糸 通し、ボビンや針の交換、 掃除や調整をすること。 高電圧警告 このカバーを開けるときは、 電源スイッチを切った後、 5分たってから開けること。 390144 DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE DANGER 感電注意ラベル 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル ケガ注意 CAUTION 390147 EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル 高温注意 CAUTION 390148 CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル jintex.in

Page 119 — LIST of MAIN SPARE PARTS

LIST of MAIN SPARE PARTS (主要部品リスト) jintex.in

Page 120 — VF2400 class PARTS LIST of Main Spare Parts(主要部品リスト)(1)

51 VF2400 class PARTS LIST of Main Spare Parts(主要部品リスト)(1) Main Parts Needle Clamp Presser Foot C. Set 押工(組) Differential Feed Dog 前送り Stitch Plate 針板 Thread Take-up Cover ムカバー Cloth Plate (Large) 大カバー Cloth Plate (Small) 小カバー Front Cover 前開きカバー Looper ルーパ Models VF2400-132M 3507000 3108130 3209001 3200015 3200017 3201100 3201101 3209311 VF2400-140M 3507002 3108131 3208017 3200014 3201100 3201102 VF2400-140M/EU5 " " 0095541 " " " " " VF2400-140M/K1 3208006 3209006 3201013 3201011 3201147 3201144 3201143 VF2400-140S-PA 3207199 3208003 3209051 3200030 3201430 3201013 3201012 3201432 VF2400-148M 3507050 3108132 3208007 3209006 3200015 3201017 3200014 3200032 VF2400-148S-PA 3207104 0093174 3208003 3209003 3200014 3201014 VF2400-154M 3507054 0094210 3209005 3201000 3201100 3201101 VF2400-132M-21 3207150 0094010 3209055 3209064 3201111 3201121 VF2400-132M-50 " " 0094210 3209005 3209014 3201100 3201102 VF2403-132M/EC 3208075 3209006 3201014 3200032 VF2403-132M/EU5 0094211 3201101 3201102 VF2403-132M/FC 3207151 0094210 3201151 3200017 3200014 VF2400-140M " " 0095234 3209009 3209006 3201100 3201121 VF2403-140M-11 " " 3208023 3201101 3201100 3200017 VF2403-140M-11/EU5 " " 0095234 3201102 3200014 VF2403-140M-11/S1 " " " " " " " " " " jintex.in

Page 122 — VF2400 class SPARE PARTS LIST of MAIN SPARE PARTS(主要部品リスト)(3)

52 VF2400 class SPARE PARTS LIST of MAIN SPARE PARTS(主要部品リスト)(3) Main Parts Models Presser Foot C. Set Needle Clamp Differential Feed Dog Front Cover Cloth Plate (Large) Cloth Plate (Small) Thread Take-up Cover Stitch Plate Support Looper VF2404-132M 押工(組) 3207150 針板 0094210 後送り 3209005 前送り 3209005 大カバー 3200017 小カバー 3200014 カムカバー 3201001 針板台 3200032 ルーパ 3209311 VF2404-132M/S1/EC " 3207151 0094211 " " 3201100 " 3201121 " VF2404-140M " 3208076 0094212 " 3201100 3200017 3201100 3201121 3209311 VF2404-140M/EC " 3207151 0094211 " " 3201100 " 3201121 " VF2404-140M/EU5 " 3207152 0094212 " 3201102 " 3201101 3200032 " VF2404-140M/S1 " 3207157 0094214 " 3201100 3200017 3201100 3201102 " VF2404-148M/S1 " 3209101 0094662 3209007 3209015 " 3201101 3200014 " VF2404-164M " 3209102 0094673 3209011 3209015 3201021 " 3201101 3200032 " VF2411-040L " 3208125 " 3201025 " VF2411-048L " 3208125 3209080 " 3200035 " VF2411-048S 0063674 3208020 3209035 3200034 3200014 VF2490-140M 0093292 0093287 3209036 3200037 3200015 3200018 jintex.in

Page 125 — VF2400 class LIST of MAIN SPARE PARTS(主要部品リスト)(6)

VF2400 class LIST of MAIN SPARE PARTS(主要部品リスト)(6) Models Main Parts Presser Foot C. Set Differential Feed Dog 後送り 前送り Needle Clamp 針板 Stitch Plate Cloth Pite (Large) 大カバー Cloth Plate (Small) 小カバー Front Cover Thread Take-up Cover Support Stitch Plate Looper VF2560-155S 0095035 3207039 3208071 前送り 3209047 3208036 3200017 3200034 3200014 3200032 3209312 VF2560-155S-PA " " 3208073 3209049 3208046 3201018 3202029 3201012 3201014 " VF2560-160S/K1 3207052 3208161 " 3209047 3208036 3200017 3201145 3201147 3200032 " VF2560-164S 3207040 3208072 " " " 3201147 3200014 3200035 3200032 " VF2560-164S/K1 " " 3208086 " " 3201147 3200018 3200032 3209311 VF2590-156M 0093357 3209036 53

Page 126 — INDEX

54 VF2400 INDEX Page = 1 Parts No. Page No. Ref. No. Weight(g) 000009 31 12 000009 43 8 000010 2 6 000010 4 38 000011 32 6 000011 34 6 000011 36 6 000011 48 22 000014 5 47 000014 42 15 000014 44 48 000015 1 25 000016 48 8 000016 48 17 000037 5 4 000070 48 5 000162 48 7 000177 3 6 000177 14 17 000177 15 30 000177 17 19 000177 19 24 000177 21 20 000177 26 7 000177 27 4 000177 27 48 000177 29 11 000177 30 18 000186 29 17 000195 4 41 000210 11 39 000220 19 5 000220 21 5 000220 27 37 000220 41 5 000290 14 25 000309 7 23 000309 26 33 000309 28 37 000327 8 23 000327 14 10 000327 15 23 000327 17 7 000327 26 20 000327 46 10 000334 4 40 000334 43 19 000334 44 59 Parts No. Page No. Ref. No. Weight(g) 000340 37 13 000360 3 51 000360 5 53 000419 13 40 000425 2 24 000425 22 20 000425 31 6 000426 2 55 000426 18 12 000426 20 12 000426 25 7 000426 31 11 000426 31 16 000426 40 6 000428 44 25 000433 49 34 000445 8 3 000451 44 53 000463 5 45 000488 16 6 000498 32 28 000498 34 28 000498 36 28 000511 44 52 000515 27 17 000515 28 8 000528 9 10 000528 32 5 000528 34 5 000528 36 5 000528 48 20 000531 27 12 000531 28 3 000532 3 23 000532 5 57 000538 3 27 000538 22 4 000538 29 2 000538 32 17 000538 33 6 000538 34 17 000538 35 7 000538 36 17 000538 38 8 000538 44 4 000541 48 13 000547 4 39 000548 27 16 Parts No. Page No. Ref. No. Weight(g) 000548 28 7 000555 6 31 000567 13 32 000567 42 6 000600 6 35 000600 11 43 000600 13 8 000600 31 15 000600 40 5 000600 43 7 000600 44 15 000605 24 21 000613 44 54 000623 43 23 000636 13 6 000651 3 28 000665 22 17 000665 23 31 000665 39 41 000665 44 11 000667 48 21 000669 10 34 000669 11 42 000669 22 15 000669 39 36 000669 43 6 000669 44 13 000676 48 16 000690 8 28 000690 11 29 000726 1 32 000731 44 26 000745 2 38 000926 6 20 000989 6 4 001093 3 45 001156 37 21 001174 6 25 001175 32 8 001175 34 8 001175 36 8 001186 19 2 001186 21 2 001186 25 10 001186 27 34 001186 28 43 001186 41 2 jintex.in

Page 127

VF2400 INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 001186 45 9 001186 45 19 001223 5 55 001225 44 45 001227 5 48 001228 25 15 001228 45 5 001228 46 15 001230 7 12 001230 19 9 001230 21 9 001230 41 12 001448 49 39 001457 10 27 001818 3 48 001818 5 50 001892 7 9 001892 14 2 001892 15 15 001892 17 26 001892 19 20 001892 21 14 001892 22 38 001892 44 21 001900 26 3 001900 27 32 001900 27 41 001900 45 27 001923 27 18 001923 28 9 002308 32 18 002308 34 18 002308 36 18 002308 37 12 003300 19 6 003300 21 6 003300 27 38 003300 41 6 003302 46 11 003393 37 6 003635 23 13 003635 32 32 003635 34 32 003635 36 32 003638 32 13 003638 34 13 Parts No. Page No. Ref. No. Weight(g) 003638 36 13 003670 32 15 003670 34 15 003670 36 15 004106 5 58 004124 13 31 004143 11 35 004182 28 50 004182 47 4 004236 4 35 004236 10 38 004236 44 47 004267 29 7 004312 6 27 004314 32 35 004314 33 8 004314 34 36 004314 35 10 004314 36 36 004314 38 10 004353 3 24 004358 7 2 004358 8 40 004440 32 22 004440 34 22 004440 36 22 004440 37 18 004441 8 8 004474 44 31 004591 8 46 004635 44 35 005040 43 15 005049 11 44 005071 6 24 005075 1 36 005115 32 10 005115 34 10 005115 36 10 005122 28 48 005122 45 24 005133 19 4 005133 21 4 005133 25 12 005133 27 36 005133 41 4 005133 45 11 Parts No. Page No. Ref. No. Weight(g) 005133 46 9 005148 49 41 005328 42 18 005505 43 20 005511 11 40 005512 32 30 005512 34 30 005512 36 30 005542 8 42 005550 32 24 005550 34 24 005550 36 24 005554 18 4 005554 20 4 005571 42 16 005572 42 11 005650 6 36 005650 10 11 005650 31 10 006004 2 5 006004 4 37 006038 8 26 006046 44 55 006075 44 57 006120 44 51 006219 7 35 006245 32 19 006245 34 19 006245 36 19 006245 37 23 006638 37 7 006905 31 18 006905 32 37 006905 33 19 006905 35 26 006905 40 9 006905 43 10 006910 32 46 006910 33 28 006910 35 36 006910 40 27 006910 44 24 007610 2 17 007620 44 43 007621 23 6 007625 23 29 jintex.in

Page 128

VF2400 INDEX Page = 3 Parts No. Page No. Ref. No. Weight(g) 007627 44 10 007630 38 15 007645 23 14 007650 37 8 009142 7 14 009142 15 3 009142 30 7 009150 37 16 009526 9 23 009604 8 51 009604 9 13 009604 10 25 009604 22 34 009604 44 18 009736 2 13 009740 37 25 009747 2 3 009749 2 2 009749 7 28 009779 16 12 009784 4 33 009784 44 8 009812 16 2 009814 43 31 009835 27 6 009861 48 6 009865 48 18 009932 18 3 009932 20 3 009934 10 39 009935 39 6 009937 31 27 009937 40 17 009960 43 5 009970 1 29 0010052 43 22 0010055 31 8 0010057 31 30 0010108 31 20 0010108 40 2 0010112 43 24 0010120 31 26 0010120 40 13 0010123 40 12 0010248 16 1 0010260 15 7 Parts No. Page No. Ref. No. Weight(g) 0010260 30 12 0010263 31 24 0010263 39 42 0010263 40 15 0010263 43 11 0010264 31 21 0010264 40 10 0010290 43 25 0010310 43 26 0010564 32 41 0010565 32 40 0011189 33 23 0011189 35 31 0011189 40 22 0011192 33 22 0011192 35 30 0011192 40 21 0011228 33 7 0011228 35 9 0011228 38 9 0011709 32 36 0011709 33 18 0011709 35 25 0011709 40 20 0011789 32 33 0011943 33 30-1 0011943 35 37-1 0011943 40 29-1 0011944 33 30-2 0011944 35 37-2 0011944 40 29-2 0011945 33 30-3 0011945 35 37-3 0011945 40 29-3 0011946 33 30-4 0011946 35 37-4 0011946 40 29-4 0011952 32 39 0011957 32 38 0011987 43 30 0020064 48 10 0020119 3 21 0020137 1 35 0020159 5 32 0020271 8 14 0020350 11 41 Parts No. Page No. Ref. No. Weight(g) 0020472 2 23 0020533 13 43 0020538 11 31 0020759 1 5 0023381 33 17 0023381 35 24 0023473 12 27 0024083 3 16 0024083 14 14 0024083 15 27 0024083 17 16 0024083 19 36 0024083 21 17 0024083 26 35 0024083 27 45 0024083 29 23 0024083 30 24 0024084 3 1 0024084 14 13 0024084 15 26 0024084 17 15 0024084 19 21 0024084 21 16 0024084 26 4 0024084 27 44 0024084 29 8 0024084 30 15 0024302 33 13 0024302 35 15 0024302 38 16 0030255 3 2 0030255 14 15 0030255 15 28 0030255 17 17 0030255 19 22 0030255 21 18 0030255 26 5 0030255 27 46 0030255 29 9 0030255 30 16 0030711 13 36 0031111 3 7 0031111 14 18 0031111 15 31 jintex.in

Page 129 — INDEX

VF2400 INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 0031111 17 20 0031111 19 25 0031111 21 21 0031111 26 8 0031111 27 5 0031111 27 49 0031111 29 12 0031111 30 19 0031831 13 23 0032425 3 43 0032426 3 44 0032426 27 26 0032426 28 20 0032604 1 18 0032646 9 12 0032784 10 24 0032785 10 26 0032786 10 28 0032952 3 3 0032952 3 4 0033024 2 25 0033141 12 5 0033935 43 18 0033936 43 17 0033937 43 16 0033938 43 14 0034979 44 58 0035813 3 50 0035813 5 52 0036175 3 42 0037108 3 49 0037108 5 51 0037108 27 25 0037108 28 19 0037668 13 28 0037669 13 30 0037912 44 36 0060057 6 18 0060075 12 9 0060076 12 8 0060175 4 36 Parts No. Page No. Ref. No. Weight(g) 0060248 32 7 0060248 34 7 0060248 36 7 0063010 48 11 0063044 7 1 0063051 9 19 0063053 9 20 0063055 4 7 0063056 9 21 0063057 9 22 0063074 3 47 0063083 8 27 0063084 8 49 0063096 6 37 0063104 3 25 0063152 2 22 0063197 5 54 0063216 13 16 0063217 13 15 0063282 28 47 0063282 45 23 0063284 28 46 0063284 45 22 0063428 44 56 0063548 25 2 0063612 38 5 0063674 25 9-3 0064179 44 23 0064180 44 29 0064181 44 30 0064182 44 34 0064186 44 32 0064187 44 27 0065275 2 26 0065275 4 28 0065452 13 21 0065453 13 1 0066644 28 11 0066646 28 10 0067082 44 33 0068011 1 4 0068202 5 33 Parts No. Page No. Ref. No. Weight(g) 0068202 11 13 0068202 44 28 0077179 8 33 0077179 22 18 0077300 4 17 0077322 9 4 0090068 3 37 0090071 3 5 0090071 14 16 0090071 15 29 0090071 17 18 0090071 19 23 0090071 21 19 0090071 26 6 0090071 27 3 0090071 27 47 0090071 29 10 0090071 30 17 0090711 37 2 0090801 8 41 0090807 3 12 0090807 14 22 0090807 15 35 0090807 17 24 0090807 19 29 0090807 21 25 0090807 26 12 0090807 27 9 0090807 27 53 0090807 29 16 0090807 30 23 0090812 3 9 0090812 14 20 0090812 15 33 0090812 17 22 0090812 19 27 0090812 21 23 0090812 26 10 0090812 27 7 0090812 27 51 0090812 29 14 0090812 30 21 0090814 27 2 0090824 8 44 0090856 3 11 0090856 14 21 jintex.in

Page 130 — INDEX

VF2400 INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) 0090856 15 34 0090856 17 23 0090856 19 28 0090856 21 24 0090856 26 11 0090856 27 8 0090856 27 52 0090856 29 15 0090856 30 22 0090918 13 39 0091696 19 7 0091696 21 7 0091696 41 10 0091725 19 3 0091725 21 3 0091725 27 35 0091725 41 3 0091725 46 8 0091736 18 2 0091736 20 2 0091833 37 17 0091837 37 22 0091838 37 19 0091839 37 20 0091841 37 9 0091842 37 4 0092232 32 45 0092232 33 27 0092232 35 35 0092232 40 26 0092283 32 20 0092283 34 20 0092283 36 20 0092285 32 23 0092285 34 23 0092285 36 23 0092286 32 11 0092286 34 11 0092286 36 11 0092287 32 12 0092287 34 12 0092287 36 12 0092288 32 9 0092288 34 9 0092288 36 9 0092289 32 21 Parts No. Page No. Ref. No. Weight(g) 0092289 34 21 0092289 36 21 0092291 32 29 0092291 34 29 0092291 36 29 0092292 32 27 0092292 34 27 0092292 36 27 0092293 32 31 0092293 34 31 0092293 36 31 0092294 32 26 0092294 34 26 0092294 36 26 0092298 32 34 0092298 34 35 0092298 36 35 0092298 37 24 0092305 33 2 0092305 35 2 0092305 38 2 0092324 46 4-1 0092325 46 4-2 0092326 46 4-3 0092330 46 5-1 0092331 46 5-2 0092335 33 11 0092335 35 13 0093035 48 4 0093091 5 16 0093154 6 19 0093174 7 13-4 0093186 7 26 0093212 7 21 0093212 26 31 0093212 28 35 0093214 7 18 0093214 26 28 0093214 28 32 0093241 18 1-1 0093241 20 1-1 0093242 18 1-2 0093242 20 1-2 0093243 18 1-3 0093243 20 1-3 0093287 27 39 0093289 27 43 Parts No. Page No. Ref. No. Weight(g) 0093292 27 33 0093300 10 32 0093303 4 23 0093303 42 3 0093314 10 17 0093319 10 19 0093351 47 18-1 0093352 27 31 0093352 47 18-2 0093353 47 18-3 0093355 47 18-5 0093357 14 1-3 0093357 26 1-1 0093357 27 40 0093357 47 18-6 0093358 26 1-2 0093358 47 18-7 0093365 27 28 0093389 12 6 0093479 8 29 0093483 8 7 0093487 8 25 0093491 8 50 0093496 8 38 0093500 8 1 0093507 8 35 0093508 8 45 0093509 8 34 0093515 5 46 0093528 3 22 0093528 29 3 0093535 27 24 0093535 28 18 0093538 29 5 0093545 8 43 0093556 3 20 0093556 29 6 0093611 8 11 0093617 13 19 0093659 5 37-1 0093663 7 34 0093669 5 37-2 0093690 47 19 0093863 27 1 0093864 1 9 0093864 2 27 0093864 4 27 0093864 7 32 jintex.in

Page 131 — INDEX

VF2400 INDEX Page = 6 Parts No. Page No. Ref. No. Weight(g) 0094210 19 10-1 0094210 21 10-1 0094211 19 10-2 0094211 21 10-2 0094212 19 10-3 0094212 21 10-3 0094212 34 41-2 0094214 19 10-4 0094214 21 10-4 0094216 19 1-3 0094245 18 5 0094245 20 5 0094246 18 6 0094246 20 6 0094281 46 2-1 0094282 46 2-2 0094283 46 2-3 0094285 46 2-4 0094403 44 44 0094491 33 16 0094491 35 23 0094491 38 11 0094566 9 6 0094604 25 1 0094615 25 14 0094615 45 4 0094616 25 6 0094871 25 9-4 0094872 25 9-1 0094873 25 9-2 0094890 25 11 0094901 19 31-2 0094902 19 31-3 0094921 46 3-2 0094922 46 3-3 0094961 25 13-3 0094962 25 13-1 0094963 25 13-2 0095027 23 3 0095027 44 62 0095035 27 42 0095061 23 7 0095062 23 12 0095063 23 11 0095066 23 9 0095067 23 10 Parts No. Page No. Ref. No. Weight(g) 0095085 19 32-2 0095085 21 26 0095108 1 12 0095132 11 33 0095168 6 26 0095170 6 23 0095174 45 17 0095214 6 7 0095218 4 29 0095220 47 20 0095234 19 13 0095269 22 33 0095269 44 14 0095270 44 17 0095272 22 37 0095272 44 20 0095296 44 19 0095365 47 1 0095366 47 2 0095367 47 3 0095454 45 2-2 0095456 42 29-1 0095457 42 29-2 0095458 42 20 0095462 42 17 0095463 42 12 0095464 42 14 0095465 42 13 0095466 42 8 0095471 42 19-1 0095472 42 19-2 0095490 45 1-1 0095491 45 1-2 0095492 45 1-3 0095493 45 2-1 0095541 42 27 0095580 45 8-1 0095581 45 8-2 0095582 45 8-3 0095584 45 8-4 0095586 45 8-5 0095587 45 8-6 0095588 45 8-7 0095641 45 10 0095642 45 12 0095723 10 37 0095728 45 16 0095730 45 15-1 Parts No. Page No. Ref. No. Weight(g) 0095731 45 15-2 0095940 39 31 0095961 38 21 0095980 39 22 0096066 44 9 0096159 44 63 0096161 44 50 0096163 44 41 0096164 44 42 0096166 44 46 0096167 44 49 0096177 44 39 0096178 44 60 0096270 41 1-5 0096271 41 1-1 0096272 41 1-2 0096341 41 7-1 0096342 41 7-2 0096343 41 7-3 100002 10 9 100002 13 9 100003 9 11 100028 44 16 100038 32 44 100038 33 26 100038 35 34 100038 40 25 100053 22 12 100077 24 22 110001 16 19 110002 7 39 110002 8 53 110002 23 19 110004 6 39 110004 8 17 110004 12 32 110004 14 4 110004 15 17 110004 17 2 110004 26 14 110004 46 7 110005 5 20 110007 10 13 110007 33 12 110007 35 14 jintex.in

Page 132 — INDEX

VF2400 INDEX Page = 7 Parts No. Page No. Ref. No. Weight(g) 110008 33 14 110008 35 16 110008 38 17 110009 3 52 110009 5 42 110009 6 12 110009 9 7 110009 11 34 110009 22 30 110009 27 23 110009 28 17 110009 37 3 110009 38 22 110009 42 21 110009 48 14 110011 44 40 110012 1 21 110012 2 35 110012 2 50 110012 6 15 110012 7 41 110013 13 2 110013 1 24 110013 2 14 110013 3 14 110013 3 19 110013 16 9 110013 18 10 110013 20 10 110013 27 21 110013 28 15 110013 29 4 110013 33 4 110013 33 15 110013 35 4 110013 35 17 110013 38 4 110016 1 26 110016 2 42 110017 31 14 110017 40 4 110027 28 52 110028 49 29 110030 2 8 110030 23 28 110031 8 6 110031 9 26 110033 11 8 Parts No. Page No. Ref. No. Weight(g) 110033 27 13 110033 28 4 110035 7 6 110035 23 30 110035 35 19 110036 5 28 110036 15 5 110036 22 14 110036 30 10 110036 33 33 110038 22 41 110038 35 21 110039 19 34 110039 21 28 110041 2 37 110045 1 2 110045 11 37 110045 13 11 110047 23 26 110048 2 33 110048 5 40 110048 22 3 110048 35 6 110048 44 5 110054 8 15 110054 47 12 110057 10 36 110070 12 39 110079 2 57 110079 12 36 110080 12 2 110083 5 38 110084 8 22 110084 14 9 110084 15 22 110084 17 6 110084 26 19 110091 46 17 110104 18 15 110104 20 15 110105 2 54 110105 18 13 110105 20 13 110105 25 8 120001 10 4 120001 24 14 120006 11 3 Parts No. Page No. Ref. No. Weight(g) 120006 12 15 120006 23 22 120006 42 5 120008 24 8 120008 39 18 120011 32 4 120011 34 3 120011 36 3 120013 6 29 120013 9 15 120013 13 38 120013 31 7 120015 6 30 120015 7 17 120015 26 26 120015 28 31 120015 39 38 120017 8 32 120017 39 37-1 120017 39 37-2 120021 39 3 120026 37 11 120026 39 35-1 120026 39 35-2 120030 5 25 130002 5 44 130002 39 27 130003 2 10 130003 3 40 130003 12 34 130004 2 11 130006 2 18 130016 8 20 130016 14 7 130016 15 20 130016 17 4 130016 26 17 130024 12 35 140017 11 23 140018 11 19 140019 18 7 140019 20 7 150000 5 15 150001 22 22 jintex.in

Page 133 — INDEX

VF2400 INDEX Page = 8 Parts No. Page No. Ref. No. Weight(g) 160000 5 26 160000 22 26 160000 39 21 160000 46 13 160001 2 46 160001 5 31 160001 8 13 160001 10 16 160001 11 28 160001 13 37 160001 22 10 160001 39 25 160003 5 22 160003 9 3 160003 10 6 160003 11 10 160003 12 12 160003 23 27 160003 24 5 160003 37 26 160004 6 21 160005 5 2 160005 6 2 160007 5 3 160007 6 3 160007 6 40 160007 9 18 160007 10 30 160007 12 4 160007 24 16 160009 10 22 160016 12 22 160023 7 37 160033 28 25 170001 1 14 170001 22 31 170005 16 17 170020 2 44 170021 10 14 170029 42 9 170033 44 61 180001 23 17 180002 12 25 180003 12 29 180005 1 16 180017 2 47 Parts No. Page No. Ref. No. Weight(g) 180018 1 22 180018 2 51 180020 48 3 180024 48 19 190007 24 6 190021 22 5 190021 29 1 190022 44 3 190022 44 12 190034 23 20 190044 22 1 190044 44 6 190064 22 28 190075 22 11 190079 16 7 260000 7 42 260000 26 27 260000 28 39 260006 8 24 260006 14 11 260006 15 24 260006 17 8 260006 26 21 270014 27 27 270014 28 21 290029 3 8 290029 14 19 290029 15 32 290029 17 21 290029 19 26 290029 21 22 290029 26 9 290029 27 50 290029 29 13 290029 30 20 300000 10 8 300000 11 20 300000 13 7 300006 9 8 300006 42 25 300017 42 10 300031 32 42 300031 33 24 Parts No. Page No. Ref. No. Weight(g) 300031 35 32 300031 40 23 300033 32 43 300033 33 25 300033 35 33 300033 40 24 300038 39 8 300045 24 7 300050 19 35 300050 21 29 300100 1 15 300100 2 45 300100 22 32 310009 4 2 310035 5 30 310036 7 33 310040 6 14 310071 11 45 310072 11 38 310126 14 24 320006 13 4 330000 1 27 330000 7 22 330000 26 32 330000 28 36 330000 37 27 340014 8 48 340016 1 30 350009 3 35 390067 1 38 390068 1 39 390069 1 6 390073 1 10 910000 49 10 910001 49 7 910001 49 37 910003 49 14 911001 49 6 911002 49 5 911006 49 9 jintex.in

Page 134

VF2400 INDEX Page = 9 Parts No. Page No. Ref. No. Weight(g) 911060 49 19 911062 49 36 930052 49 12 930053 49 13 930055 49 27 1055084 38 14 1057028 35 28 1057087 33 21 1057087 35 29 1057155 40 19 1090133 43 21 1090141 31 23 1091016 16 20 1091051 15 6 1091051 30 11 1091146 31 3 1091835 37 14 1094000 16 3 1094011 43 3 1094030 31 29 1094057 16 5 1094059 16 22 1096000 43 12 1096004 43 28 1096005 43 29 1096029 16 4 1096029 31 31 1096030 31 22 1096030 40 11 1097000 43 4 1097001 43 9 1097007 31 25 1097007 40 16 1097009 31 13 1097009 40 3 1098015 31 19 1098015 40 1 1098015 43 2 1098015 43 27 Parts No. Page No. Ref. No. Weight(g) 1200037 40 14 1200038 33 3 1200038 35 3 1200038 38 3 1200040 33 29 1200040 35 39 1200040 40 28 1200068 33 10 1200068 35 12 1200069 34 4 1200069 36 4 1200071 31 28 1200132 35 38 1200137 35 8 1200138 35 20 1200234 38 13 1249020 33 20 1249046 35 27 1249224 40 18 1253240 31 17 1253240 40 8 1298000 43 13 2049401 1 40 2100034 4 22 2100043 22 16 2100065 3 15 2100161 11 9 2100173 12 16 2100243 11 22 2100248 11 24 2100252 11 12 2100253 11 14 2100267 10 15 2100267 11 27 2100278 12 20 2100279 12 28 2100289 12 26 2101368 22 7 2101451 48 9 2109932 43 1 Parts No. Page No. Ref. No. Weight(g) 2110527 12 10 3000009 45 14 3000010 49 30 3002007 39 34 3002008 39 15 3002009 39 2 3002010 39 5 3002011 39 13 3002012 39 16 3002013 39 17 3002014 39 19 3002015 39 23 3002016 39 20 3002017 39 24 3002018 39 26 3002019 39 28 3002020 39 29 3002021 39 30 3002022 39 32 3002023 39 33 3002025 39 40 3002026 39 4 3002027 39 9 3002028 39 10 3002029 39 7 3002030 39 11 3002031 39 12 3002032 39 14 3007029 45 13-1 3007030 45 13-2 3008025 19 32-3 3009101 47 18-4 3097038 45 18 3098038 45 25 3099132 45 26 3100006 2 56 3100026 1 1 3100030 2 41 jintex.in

Page 135

VF2400 INDEX Page = 10 Parts No. Page No. Ref. No. Weight(g) 3100060 13 10 3100061 13 12 3100071 2 52 3100074 3 13 3100075 3 10 3100078 6 34 3100087 3 41 3100098 4 12 3100100 4 6 3100110 8 10 3100112 8 52 3100113 2 28 3100127 6 11 3100128 5 7 3100129 5 10 3100129 6 6 3100131 5 8 3100131 6 5 3100275 6 9 3100281 6 8 3100283 6 10 3100285 6 28 3100286 6 32 3100287 6 33 3100294 8 31 3100300 9 2 3100301 9 5 3100302 9 1 3100303 9 14 3100304 9 16 3100305 9 17 3100307 9 24 3100309 9 9 3100310 8 12-1 3100328 13 35 3100329 13 14 3100345 13 13 3100349 13 41 3100372 13 25 3100383 3 29 3100384 3 30 3100386 3 33 3100387 3 34 3100442 3 39 3101200 4 32 3101216 8 39 3101223 47 11 Parts No. Page No. Ref. No. Weight(g) 3101224 47 10 3101228 47 15 3101229 47 14 3101243 31 5 3101244 31 2 3101270 44 22 3101476 38 7-1 3101492 39 39 3101497 39 1 3101498 39 43 3107303 8 18 3107303 14 5 3107303 15 18 3107303 17 3 3107303 26 15 3107303 28 44 3107303 45 20 3107304 8 19 3107304 14 6 3107304 15 19 3107304 17 9 3107304 26 16 3107304 28 45 3107304 45 21 3107306 8 21 3107306 14 8 3107306 15 21 3107306 17 5 3107306 26 18 3108130 7 13-1 3108131 7 13-2 3108132 7 13-3 3108133 14 12-1 3108134 14 12-2 3108134 26 23-1 3108135 14 12-3 3108135 26 23-2 3108199 45 6 3108201 45 7 3120128 27 14 3120128 28 5 3160136 4 10 3160168 8 36 Parts No. Page No. Ref. No. Weight(g) 3200006 1 34 3200007 1 33 3200010 1 11 3200011 1 13 3200012 1 20 3200013 1 23 3200014 2 9 3200015 2 43-1 3200016 2 49 3200017 2 1 3200018 2 4-1 3200019 2 7 3200020 2 53 3200021 1 37 3200022 2 19 3200023 2 20 3200024 2 15 3200025 2 16 3200026 2 39 3200027 2 40 3200028 2 29 3200029 2 30 3200030 2 31 3200031 2 32 3200032 2 36 3200033 1 19 3200033 2 48 3200034 2 43-2 3200034 29 24 3200035 2 4-2 3200035 28 53 3200042 3 18 3200042 5 49 3200042 27 20 3200042 28 14 3200045 3 46 3200046 7 10 3200047 3 26 3200048 3 17 3200049 6 38 3200050 4 13 3200051 4 25 3200052 4 16 3200053 4 20 3200055 4 26 3200056 4 18 3200057 4 19 3200059 4 4 jintex.in

Page 136 — INDEX

VF2400 INDEX Page = 11 Parts No. Page No. Ref. No. Weight(g) 3200061 4 24 3200062 4 15 3200063 4 8 3200064 4 9 3200065 4 21 3200066 4 30 3200067 4 14 3200068 4 11 3200070 5 1 3200071 5 5 3200072 5 9 3200073 5 12 3200074 5 13 3200075 5 29 3200077 5 27 3200078 5 11 3200082 5 19 3200083 5 36 3200084 5 24 3200085 5 34 3200086 5 35 3200087 5 23 3200088 7 40 3200089 7 38 3200090 7 36 3200091 5 43 3200092 5 41 3200093 5 39 3200094 5 56 3200095 5 6 3200096 5 18 3200097 5 17 3200098 5 21 3200100 6 13 3200101 7 16 3200111 7 5 3200112 7 20 3200112 26 30 3200112 28 34 3200113 7 24 3200113 26 34 3200113 28 38 3200114 7 19 3200114 26 29 3200114 28 33 3200115 7 15 3200116 7 27 3200117 7 11 Parts No. Page No. Ref. No. Weight(g) 3200118 7 25 3200120 7 29 3200121 7 30 3200122 7 31 3200131 8 5 3200132 8 4 3200137 8 9 3200143 5 14 3200149 10 2 3200150 10 1 3200151 10 5 3200152 10 3 3200154 10 10 3200155 10 12 3200157 10 18 3200159 10 7 3200160 10 21 3200161 10 23 3200162 10 29 3200163 10 31 3200164 10 33 3200170 7 3 3200181 11 1 3200182 12 14 3200183 11 2 3200184 11 4 3200185 11 5 3200186 11 6 3200187 11 7 3200189 11 16 3200190 11 17 3200191 11 18 3200192 11 25 3200194 11 21 3200196 12 21 3200199 12 1 3200200 12 3 3200201 12 7 3200203 12 33 3200204 12 38 3200205 11 11 3200206 11 15 3200207 11 32 3200209 2 21 3200210 2 34 3200211 12 37 3200213 11 36 3200215 11 26 Parts No. Page No. Ref. No. Weight(g) 3200216 11 30 3200226 6 16 3200227 13 22 3200230 13 5 3200231 13 42 3200232 13 34 3200233 13 29 3200234 13 24 3200235 13 33 3200236 13 18 3200237 13 17 3200238 13 20 3200240 48 1 3200241 48 2 3200242 48 12 3200243 13 3 3200251 4 31 3200252 4 34 3200252 22 40 3200262 28 54 3201000 18 8 3201000 20 8 3201001 18 17 3201001 20 17 3201002 18 9 3201002 20 9 3201003 18 14-1 3201003 20 14 3201004 18 18 3201005 18 14-2 3201006 18 16 3201006 20 16 3201007 18 11 3201007 20 11 3201011 15 9 3201012 15 10 3201012 30 4 3201013 15 11 3201014 15 1 3201014 30 8 3201015 15 4 3201015 30 9 3201016 15 2 3201016 16 15 3201016 30 6 3201018 30 2 3201021 25 3 jintex.in

Page 137 — INDEX

VF2400 INDEX Page = 12 Parts No. Page No. Ref. No. Weight(g) 3201025 25 4-1 3201026 25 5 3201034 25 4-2 3201037 31 4 3201038 31 9 3201089 23 18 3201098 18 19 3201099 18 20 3201100 32 48 3201100 34 33 3201100 36 33 3201101 34 34 3201101 36 34 3201102 33 9 3201102 35 11 3201103 33 5 3201103 35 5 3201104 32 3 3201104 34 2 3201104 36 2 3201105 32 16 3201105 34 16 3201105 36 16 3201106 32 14 3201106 34 14 3201106 36 14 3201107 34 1 3201107 36 1 3201108 35 1 3201111 18 21 3201111 37 28 3201112 37 10 3201113 37 15 3201114 37 5 3201117 47 8 3201118 47 7 3201119 47 13 3201120 47 9 3201121 32 47 3201122 32 2 3201125 38 18 3201126 38 19-1 3201127 38 20 3201128 38 12-1 3201131 35 22 3201132 35 18 3201133 44 38 3201134 44 7 Parts No. Page No. Ref. No. Weight(g) 3201136 38 12-2 3201137 38 19-2 3201138 38 7-2 3201140 42 4 3201141 42 2 3201142 42 7 3201143 42 22 3201144 42 23-1 3201145 42 23-2 3201146 42 26 3201147 42 24 3201162 29 21 3201163 29 22 3201184 22 8 3201184 23 16 3201185 22 9 3201186 22 24 3201190 22 19 3201191 22 23 3201192 22 25 3201197 22 36 3201230 26 24 3201231 26 25 3201232 26 2 3201277 23 8 3201329 22 2 3201329 44 2 3201331 22 39 3201350 24 9 3201351 24 4 3201352 24 12 3201353 24 11 3201354 24 20 3201355 24 19 3201356 24 13 3201357 24 18 3201358 23 5 3201362 24 1 3201364 23 24 3201365 23 25 3201366 23 1 3201367 23 21 3201369 22 6 3201370 22 27 3201371 22 29 3201372 22 13 Parts No. Page No. Ref. No. Weight(g) 3201373 33 31 3201374 33 32 3201375 22 21 3201377 22 35 3201378 24 10 3201379 24 3 3201380 23 23 3201381 23 4 3201383 24 2 3201384 24 17 3201385 23 15 3201398 23 2 3201411 16 10 3201412 16 13 3201413 16 8 3201414 16 11 3201430 16 23 3201431 16 24 3201432 16 14 3201433 16 25 3201434 16 18 3201435 16 21 3201436 16 16 3201481 27 10 3201481 28 1 3201483 27 15 3201483 28 6 3201484 27 22 3201484 28 16 3201488 27 19 3201488 28 13 3202020 28 12 3202021 27 11 3202021 28 2 3202024 28 29 3202025 28 30 3202029 30 1 3204021 4 5 3204052 33 1 3204052 38 1 3204057 24 15 3204059 12 13 3204060 12 17 3204061 12 18 3204062 12 24 jintex.in

Page 138 — INDEX

VF2400 INDEX Page = 13 Parts No. Page No. Ref. No. Weight(g) 3204063 12 23 3204064 12 19 3204065 12 11 3204066 6 1 3207026 41 1-3 3207030 41 1-4 3207039 28 42-1 3207040 28 42-3 3207044 28 49-1 3207045 28 49-3 3207046 28 51 3207052 28 42-2 3207053 28 49-2 3207107 46 12 3207150 19 1-1 3207150 21 1-1 3207151 19 1-2 3207151 21 1-2 3207152 19 1-4 3207152 21 1-3 3207155 19 30-1 3207156 19 30-2 3207156 21 15 3207157 19 1-5 3207157 1930-3 3207157 21 1-4 3207160 19 8 3207160 21 8 3207160 41 11 3207175 41 9-4 3207177 41 9-2 3207180 41 9-3 3207183 46 6-1 3207185 46 16-1 3207187 46 6-2 3207188 46 6-3 3207189 46 16-2 3207199 17 1 3207200 17 13 3207204 41 9-1 3208000 15 25-1 3208002 15 25-2 3208003 17 10 3208004 17 14 3208006 15 13-1 3208007 15 13-2 Parts No. Page No. Ref. No. Weight(g) 3208011 25 18-3 3208012 25 18-4 3208015 34 38 3208016 34 43-2 3208017 34 37 3208018 34 43-3 3208020 25 18-2 3208023 34 40 3208025 46 3-1 3208026 19 31-1 3208045 45 3 3208048 41 13-4 3208049 41 13-2 3208050 41 7-4 3208051 41 7-5 3208052 19 32-1 3208053 34 43-1 3208054 41 13-3 3208056 41 13-1 3208071 29 18-1 3208072 29 18-3 3208073 30 5 3208074 42 30-1 3208075 34 39-1 3208076 34 39-2 3208076 34 41-1 3208076 36 37 3208077 34 39-3 3208078 34 42-1 3208079 34 42-2 3208086 42 30-3 3208102 19 16-1 3208103 19 16-2 3208104 19 16-3 3208105 19 33-1 3208108 19 33-1 3208109 19 33-2 3208125 25 18-1 3208143 34 44 3208160 29 18-2 3208161 42 30-2 3209000 25 19-2 3209000 42 28-1 3209001 12 30-1 3209002 12 31-2 3209002 25 19-1 3209002 42 28-2 Parts No. Page No. Ref. No. Weight(g) 3209002 45 28 3209003 12 30-2 3209004 46 1-1 3209005 19 12-1 3209005 21 12-1 3209006 46 1-2 3209007 19 12-2 3209007 21 12-2 3209008 19 14 3209008 21 27 3209009 19 15 3209009 21 30 3209010 25 16 3209011 25 17 3209014 19 11-1 3209014 21 11-1 3209016 19 11-2 3209016 21 11-2 3209018 15 8 3209022 41 8-1 3209023 47 17 3209024 47 16 3209035 25 20 3209036 27 30 3209037 27 29 3209040 47 21 3209041 47 22 3209042 41 8-2 3209046 29 19 3209047 29 20 3209048 30 13 3209049 30 14 3209050 17 11 3209051 17 12 3209064 19 17 3209065 19 18 3209066 41 14 3209080 12 31-1 3209081 14 23 3209081 26 22 3209100 7 7-1 3209101 7 7-2 3209102 7 7-3 3209104 7 7-4 3209106 14 1-1 3209106 19 19-1 3209107 14 1-2 3209107 15 14 jintex.in

Page 139 — INDEX

VF2400 INDEX Page = 14 Parts No. Page No. Ref. No. Weight(g) 3209107 17 25 3209107 19 19-2 3209107 21 13 3209108 14 1-4 3209108 19 19-3 3209121 28 22-1 3209122 28 22-3 3209123 28 22-2 3209202 28 41 3209311 10 35 3209312 28 40 3209920 37 1 3209923 42 1 3209924 32 1 3209926 44 1 3209927 44 37 3209943 31 1 3267037 46 14 3500207 1 7 3500305 8 37 3500309 4 1 3500360 8 12-2 3500430 1 3 3500431 1 8 3500700 49 28 35007000 8 16-1 3507002 8 16-2 3507050 8 16-3 3507050 14 3-1 3507052 14 3-2 3507052 15 16 3507052 26 13-1 3507054 8 16-4 3507054 14 3-3 3507054 26 13-2 3509320 9 25 4017013 15 12 4017013 30 3 4109403 1 31 9603903 48 15 Parts No. Page No. Ref. No. Weight(g) 9620631 49 2 9620666 49 22 9620670 49 3 9620673 49 8 9620675 49 11 9620678 49 23 9620679 49 24 9620680 49 25 9620681 49 26 9620688 49 18 9620689 49 4 9620690 49 21 9620691 49 20 9620696 49 1 9620700 49 17 9620703 49 16 9620750 49 31 9620751 49 32 9620752 49 33 9620753 49 35 9620754 49 42 9620755 49 43 9620756 49 38 9620757 49 40 jintex.in

Page 140

jinttex.in jintex.in

Page 141

jintex.in

Page 142

yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO.,LTD. P/N 9710022(P) No. 8 Edited in 2006.11 (VF2400) Printed in Japan 2006.11.3H jintex.in
