Yamato VF2400 — Part Book

Yamato VF2400 — parts catalog

Page 16 (diagram): This page displays a diagram of various components of the VF2400 sewing machine, including pulleys, shafts, brackets, and fasteners, with reference numbers for each part.
Page 17 (parts_list): This page lists parts for the Main Shaft Driving Mechanism, including part numbers, descriptions, and quantities required.
Page 18 (diagram): This page displays a diagram of various components and sub-assemblies for the VF2400 model, including pulleys, shafts, brackets, and fasteners, with reference numbers for each part.
Page 19 (parts_list): This page lists parts for the MAIN SHAFT DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
Page 20 (diagram): This page displays a diagram of various machine components, including gears, shafts, belts, and mounting hardware, with reference numbers for each part.
Page 21 (parts_list): This page lists parts for the Upper Shaft & Needle Thread Take-up Mechanism, including part numbers, descriptions, and quantities.
Page 22 (diagram): This page displays a diagram of various sewing machine components, including screws, levers, shafts, and covers, with reference numbers for each part.
Page 23 (parts_list): This page lists parts for the Needle Bar Mechanism, including part numbers, descriptions, and quantities required.
Page 24 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and shafts, with corresponding reference numbers for identification.
Page 25 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
Page 26 (diagram): This page displays a diagram of various sewing machine components, including screws, springs, levers, and shafts, with corresponding reference numbers for identification.
Page 27 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
Page 28 (diagram): This page displays a diagram of various sewing machine parts, including a needle bar linkage, presser foot assembly, and a bobbin case assembly, with reference numbers for each component.
Page 29 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities required.
Page 30 (diagram): This page displays a diagram of various machine components, including screws, brackets, shafts, and levers, with reference numbers for each part.

Page 16

Yamato VF2400 parts on page 16
Ref	Part number	Part name	Qty
	1	PULLEY
	2	SCREW
	3	SCREW
	4	PIN
	5	PULLEY
	6	PULLEY
	7	PULLEY
	8	PULLEY
	9	COLLAR
	10	COLLAR
	11	PULLEY
	12	SHAFT
	13	COLLAR
	14	COVER
	15	SCREW
	16	BEARING
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	SCREW
	21	COLLAR
	22	SCREW
	23	PIN
	24	BRACKET
	25	SCREW
	26	SCREW
	27	BRACKET
	28	SCREW
	29	SHAFT
	30	BELT
	31	SPRING
	32	PULLEY
	33	WASHER
	34	RING
	35	COLLAR
	36	SHAFT
	37-1	WRENCH
	37-2	WRENCH
	38	SCREW
	39	BRACKET
	40	BRACKET
	41	BRACKET
	42	SCREW
	43	PLATE
	44	SCREW
	45	BELT
	46	SLOT
	47	WASHER
	48	SCREW
	49	PIN
	50	SHAFT
	51	WASHER
	52	SPRING
	53	NUT
	54	BRACKET
	55	SCREW
	56	BRACKET
	57	BRACKET
	58	BRACKET

5 VF2400 jintex.in 37-1 37-2

Page 17 — MAIN SHAFT DRIVING MECHANISM

Yamato VF2400 parts on page 17
Part number	Part name	Qty
3200070	Pulley	1
160005	Screw(M6-1 × 8)	5
160007	Screw(M6-1 × 6)	9
000037	Roll Pin	1
3200071	Oil Cooling Fan	1
3200095	Ball Bearing(Right)	1
3100128	Timing Pulley(Lower)	1
3100131	Ball Bearing(Middle)	1
3200072	Oil Pump Driving Worm	1
3100129	Adapter	1
3200078	Ball Bearing(Left)	1
3200073	Lower Shaft(Right)	1
3200074	Lower Shaft Joint	1
3200143	Looper Thread Take-up
150000	Screw(M5-0.8 × 4)[7/32-32 × 3.6]
0093091	Ball Bearing	1
3200097	Needle Guard Connecting Rod, C. Set(2)	1
3200096	Needle Guard Connecting Rod, C. Set(1)	1
3200082	Needle Guard Connecting Rod	1
110005	Screw(M3.5-0.6 × 12)	2
3200098	Needle Guard Eccentric	1
160003	Screw(M5-0.8 × 5)	2
3200087	Connecting Rod Pin	1
3200084	Needle Guard Driving Shaft Arm	1
120030	Screw(M5-0.8 × 12)	1
160000	Screw(M3-0.5 × 3)	4
3200077	Counterweight	1
110036	Screw(M3-0.5 × 6.5)	2
3200075	Lower Crankshaft	1
310035	Oil Wick	1
160001	Screw(M4-0.7 × 4)	2
0020159	Ball Bearing	1
0068202	Retaining Ring	1
3200085	Spacer	1
3200086	Collar(8 × 13 × 6mm)	1
3200083	Needle Guard Driving Shaft	1
0093659	Needle Guard(Rear) (32, 40, 48, 56, 64)	1
0093669	Needle Guard(Rear) (Extra)	1
110033	Screw(M3.5-0.6 × 4.5)	1
3200093	Supporting Plate Stay(Lower)	1
110048	Screw(M4-0.7 × 10)	2

MAIN SHAFT DRIVING MECHANISM 下軸機構 5 Ref.No Parts No. Description 品名 Amt. Req 1 3200070 Pulley プーリー 1 2 160005 Screw(M6-1 × 8) 止ネジ 5 3 160007 Screw(M6-1 × 6) 止ネジ 9 4 000037 Roll Pin ロールピン 1 5 3200071 Oil Cooling Fan 冷却ファン 1 6 3200095 Ball Bearing(Right) ボールベアリング(右) 1 7 3100128 Timing Pulley(Lower) タイミングプーリー(下) 1 8 3100131 Ball Bearing(Middle) ボールベアリング(中) 1 9 3200072 Oil Pump Driving Worm ウォーム 1 10 3100129 Adapter アダプタ 1 11 3200078 Ball Bearing(Left) ボールベアリング(左) 1 12 3200073 Lower Shaft(Right) 下軸(右) 1 13 3200074 Lower Shaft Joint 継手 1 14 3200143 [3200076] Looper Thread Take-up 下糸調子カム 1 15 150000 [008047] Screw(M5-0.8 × 4)[7/32-32 × 3.6] 止ネジ 2 16 0093091 Ball Bearing ボールベアリング 1 17 3200097 Needle Guard Connecting Rod, C. Set(2) 針受ケロッド(組2) 1 18 3200096 Needle Guard Connecting Rod, C. Set(1) 針受ケロッド(組1) 1 19 3200082 Needle Guard Connecting Rod 針受ケロッド 1 20 110005 Screw(M3.5-0.6 × 12) 止ネジ 2 21 3200098 Needle Guard Eccentric 針受ケエキセン 1 22 160003 Screw(M5-0.8 × 5) 止ネジ 2 23 3200087 Connecting Rod Pin ロッドピン 1 24 3200084 Needle Guard Driving Shaft Arm 針受ケ軸腕 1 25 120030 Screw(M5-0.8 × 12) 止ネジ 1 26 160000 Screw(M3-0.5 × 3) 止ネジ 4 27 3200077 Counterweight バランスウエイト 1 28 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 29 3200075 Lower Crankshaft 下軸クランク 1 30 310035 Oil Wick 油芯 1 31 160001 Screw(M4-0.7 × 4) 諸ネジ 2 32 0020159 Ball Bearing ボールベアリング 1 33 0068202 Retaining Ring ストップリング 1 34 3200085 Spacer スペーサ 1 35 3200086 Collar(8 × 13 × 6mm) カラー 1 36 3200083 Needle Guard Driving Shaft 針受ケ軸 1 37-1 0093659 Needle Guard(Rear) (32, 40, 48, 56, 64) 針受ケ(後) 1 37-2 0093669 Needle Guard(Rear) (Extra) 針受ケ(特注品) 1 38 110033 Screw(M3.5-0.6 × 4.5) 止ネジ 1 39 3200093 Supporting Plate Stay(Lower) カム糸道取付板支工(下) 1 40 110048 Screw(M4-0.7 × 10) 止ネジ 2 Ref. No. 41 to 58 See the following Page. VF2400

Page 18

Yamato VF2400 parts on page 18
Ref	Part number	Part name
1	1	PULLEY
2	2	SCREW
3	3	SCREW
4	4	PIN
5	5	PULLEY
6	6	PULLEY
7	7	PULLEY
8	8	PULLEY
9	9	COLLAR
10	10	COLLAR
11	11	PULLEY
12	12	SHAFT
13	13	COLLAR
14	14	PULLEY
15	15	SCREW
16	16	BEARING
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	COLLAR
22	22	SCREW
23	23	PIN
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	BRACKET
28	28	SCREW
29	29	SHAFT
30	30	BELT
31	31	SPRING
32	32	PULLEY
33	33	WASHER
34	34	WASHER
35	35	COLLAR
36	36	SHAFT
37-1	37-1	TOOL
37-2	37-2	TOOL
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	PLATE
44	44	SCREW
45	45	BELT
46	46	LINK
47	47	WASHER
48	48	SCREW
49	49	BRACKET
50	50	SHAFT
51	51	WASHER
52	52	SPRING
53	53	NUT
54	54	BRACKET
55	55	SCREW
56	56	BRACKET
57	57	SPRING
58	58	SCREW

5 VF2400 jintex.in

Page 19 — MAIN SHAFT DRIVING MECHANISM

Yamato VF2400 parts on page 19
Ref	Part number	Part name
41	3200092	Supporting Plate Stay(Upper)
42	110009	Screw(M4-0.7 × 8)
43	3200091	Supporting Plate
44	130002	Screw(M3-0.5 × 6)
45	000463	Laced Wire
46	0093515	Thread Take-up Eyelet
47	000014	Washer
48	001227	Screw(1/8-44 × 3.8)
49	3200042	Looper Thread Eyelet
50	001818	Tension Post
51	0037108	Supplementary Tension Disc
52	0035813	Supplementary Tension Spring
53	000360	Adjusting Nut
54	0063197	Cast-off Plate Bracket
55	001223	Screw(9/64-40 × 7.5)
56	3200094	Cast-off Plate
57	000532	Washer
58	004106	Screw(9/64-40 × 6.5)

MAIN SHAFT DRIVING MECHANISM Ref.No Parts No. Description 下軸機構 5 品名 Amt. Req 41 3200092 Supporting Plate Stay(Upper) カム糸通取付板支工(上) 1 42 110009 Screw(M4-0.7 × 8) 止ネジ 1 43 3200091 Supporting Plate カム糸通取付板 1 44 130002 Screw(M3-0.5 × 6) 止ネジ 2 45 000463 Laced Wire モール(糸巻付防止) 2 46 0093515 Thread Take-up Eyelet カム糸通 2 47 000014 Washer ワッシャ 2 48 001227 Screw(1/8-44 × 3.8) 止ネジ 2 49 3200042 Looper Thread Eyelet ルーパ糸通 1 50 001818 Tension Post 糸調子棒 1 51 0037108 Supplementary Tension Disc 小調子皿 2 52 0035813 Supplementary Tension Spring 小調子バネ 1 53 000360 Adjusting Nut 調節ナット 1 54 0063197 Cast-off Plate Bracket 糸案内台 1 55 001223 Screw(9/64-40 × 7.5) 止ネジ 1 56 3200094 Cast-off Plate 糸案内 1 57 000532 Washer ワッシャ 1 58 004106 Screw(9/64-40 × 6.5) 止ネジ 1 VF2400

Page 20

Yamato VF2400 parts on page 20
Ref	Part number	Part name
40	40	SCREW
4	4	WASHER
1	1	CLUTCH
3	3	SCREW
2	2	SCREW
5	5	BEARING
8	8	PULLEY
7	7	BELT
9	9	SHAFT
10	10	COUPLING
21	21	SPRING
20	20	SPRING
19	19	BEARING
18	18	BEARING
16	16	BEARING
15	15	SCREW
14	14	SPRING
13	13	SHAFT
11	11	BRACKET
12	12	SCREW
24	24	SCREW
23	23	BRACKET
27	27	SCREW
26	26	BRACKET
29	29	SCREW
28	28	BRACKET
25	25	SCREW
30	30	SCREW
31	31	WASHER
32	32	WASHER
33	33	SHAFT
34	34	BRACKET
35	35	WASHER
36	36	SCREW
37	37	BRACKET
38	38	BRACKET
39	39	SCREW

6 40 4 1 3 2 5 8 7 9 10 5 21 21 20 19 18 16 15 14 13 11 12 24 23 27 26 29 28 25 30 31 32 33 34 35 36 37 38 39 VF2400 jintex.in

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VF2400 parts on page 21
Ref	Part number	Part name	Qty
	3204066	Handwheel
	160005	Screw(M6-1 × 8)
	160007	Screw(M6-1 × 6)
	000989	Handwheel Mark
	3100131	Ball Bearing
	3100129	Handwheel Adapter
	0095214	Timing Belt
	3100281	Timing Pulley(Upper)
	3100275	Upper Shaft(Right)
	3100283	Upper Shaft Joint
	3100127	Counterweight(Small)
	110009	Screw(M4-0.7 × 8)
	3200100	Upper Crankshaft
	310040	Oil Wick
	110012	Screw(M4-0.7 × 4)
	3200226	Oil Sleeve
	0060057	Retaining Ring
	0093154	Ball Bearing
	000926	Rubber Seat
	160004	Screw(M6-1 × 4.8)
	0095170	Connecting Rod
	005071	Screw(11/64-32 × 14)
	001174	Screw(9/64-40 × 10.3)
	0095168	Guide Fork
	004312	Screw(1/8-44 × 7.9)
	3100285	Driving Lever
	120013	Screw(M6-1 × 15)
	120015	Screw(M5-0.8 × 10)
	000555	Washer
	3100286	Spacer
	3100287	Driving Shaft
	3100078	Bracket
	000600	Spring Washer
	005650	Screw(M5-0.8 × 14)
	0063096	Needle Thread Take-up
	3200049	Top Cover Thread Take-up
	110004	Screw(M3.5-0.6 × 8)
	160007	Screw(M6-1 × 6)

UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 上軸及び針糸繰り機構 6 Ref.No Parts No. Description 品名 Amt. Req 1 3204066 [3200102] Handwheel ハンドホイール 1 2 160005 Screw(M6-1 × 8) 止ネジ 1 3 160007 Screw(M6-1 × 6) 止ネジ 10 4 000989 Handwheel Mark ハンドホイールマーク 1 5 3100131 Ball Bearing ボールベアリング 2 6 3100129 Handwheel Adapter アダプタ 1 7 0095214 Timing Belt タイミングベルト 1 8 3100281 Timing Pulley(Upper) タイミングプーリ(上) 1 9 3100275 Upper Shaft(Right) 上軸(右) 1 10 3100283 Upper Shaft Joint 上軸継手 1 11 3100127 Counterweight(Small) バランスウエイト(小) 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 2 13 3200100 Upper Crankshaft 上軸クランク 1 14 310040 Oil Wick 油芯 1 15 110012 Screw(M4-0.7 × 4) 諸ネジ 1 16 3200226 Oil Sleeve オイルスリーブ 1 17 18 0060057 Retaining Ring 止メ輪 1 19 0093154 Ball Bearing ボールベアリング 2 20 000926 Rubber Seat ゴム座 1 21 160004 Screw(M6-1 × 4.8) 止ネジ 2 22 23 0095170 Connecting Rod 針糸繰りロッド 1 24 005071 Screw(11/64-32 × 14) 止ネジ 2 25 001174 Screw(9/64-40 × 10.3) 止ネジ 2 26 0095168 Guide Fork 振レ止メ 1 27 004312 Screw(1/8-44 × 7.9) 止ネジ 2 28 3100285 Driving Lever 針糸繰り軸腕 1 29 120013 Screw(M6-1 × 15) 止ネジ 1 30 120015 Screw(M5-0.8 × 10) 止ネジ 1 31 000555 Washer ワッシャ 1 32 3100286 Spacer スペーサ 1 33 3100287 Driving Shaft 針糸繰り軸 1 34 3100078 Bracket 針糸繰り台 1 35 000600 Spring Washer スプリングワッシャ 1 36 005650 Screw(M5-0.8 × 14) 止ネジ 1 37 0063096 Needle Thread Take-up 針糸繰り糸道 1 38 3200049 Top Cover Thread Take-up 飾リ糸繰リ 1 39 110004 Screw(M3.5-0.6 × 8) 止ネジ 2 40 160007 Screw(M6-1 × 6) 止ネジ 1 VF2400

Page 22

Yamato VF2400 parts on page 22
Ref	Part number	Part name	Qty
	1	Lever
	2	Screw
	3	Shaft
	5	Lever
	6	Screw
	7-1	Needle bar connecting rod
	7-2	Needle bar connecting rod
	7-3	Needle bar connecting rod
	7-4	Needle bar connecting rod
	8	Needle bar
	9	Screw
	10	Lever
	11	Screw
	12	Screw
	13-1	Needle plate
	13-2	Needle plate
	13-3	Needle plate
	13-4	Needle plate
	14	Screw
	15	Cover
	16	Shaft
	17	Screw
	18	Washer
	19	Arm
	20	Connecting rod
	21	Bearing
	22	Ball
	23	Shaft
	24	Shaft
	25	Bracket
	26	Block
	27	Bracket
	28	Screw
	29	Base
	30	Base
	31	Lever
	32	Screw
	33	Pad
	34	Holder
	35	Screw
	36	Cover
	37	Screw
	38	Cover
	39	Screw
	40	Cover
	41	Screw
	42	Screw

7 VF2400 jintex.in

Page 23 — NEEDLE BAR MECHANISM

Yamato VF2400 parts on page 23
Ref	Part number	Part name	Qty
	0063044	Needle Bar Thread Eyelet
	3200041	Needle Bar Thread Eyelet
	004358	Screw(9/64-40 × 5.6)
	3200170	Needle Bar & Needle Bar Bushing, C. Set
	3200105	Needle Bar & Needle Bar Bushing, C. Set
	3200111	Needle Bar Bracket
	110035	Screw(M4-0.7 × 10)
	3209100	Needle Clamp(32)
	3209101	Needle Clamp(40)
	3209102	Needle Clamp(48)
	3209104	Needle Clamp(64)
	001892	Screw(1/8-44 × 2.9)
	3200046	Top Cover Thread Eyelet
	3200117	Needle Clamp Eyelet
	001230	Screw(3/32-56 × 3.8)
	3108130	Stitch Plate(32M)
	0093170	Stitch Plate(32M)
	3108131	Stitch Plate(40M)
	0093171	Stitch Plate(40M)
	3108132	Stitch Plate(48M)
	0093172	Stitch Plate(48M)
	0093174	Stitch Plate(64M)
	009142	Screw(9/64-40 × 4.8)
	3200115	Counterweight, C. Set
	3200101	Counterweight
	120015	Screw(M5-0.8 × 10)
	0093214	Connecting Rod Ring
	3200114	Connecting Rod, C. Set
	3200112	Connecting Rod
	0093212	Roller Bearing
	330000	Seal Plug
	000309	Oil Wick
	3200113	Connecting Rod Pin
	3200118	Needle Bar Guide, C. Set
	0093186	Slide Block
	3200116	Needle Bar Guide
	009749	Screw(M4-0.7 × 16)
	3200120	HR Device, C. Set
	3200121	HR Cup
	3200122	HR Cup Lid
	0093864	Seal Plug
	310036	HR Felt
	0093663	HR Felt Guard
	006219	Screw(M4-0.7 × 30)
	3200090	Connecting Rod Cover Shaft
	160023	Screw(M4-0.7 × 4)
	3200089	Connecting Rod Cover(Rear)
	110002	Screw(M3-0.5 × 5)
	3200088	Connecting Rod Cover(Front)
	110012	Screw(M4-0.7 × 5)
	260000	Screw(5/16-24 × 15.88)

NEEDLE BAR MECHANISM 7 Ref.No Parts No. Description Amt. Req 1 0063044 [3200041] Needle Bar Thread Eyelet 針棒糸道 1 2 004358 Screw(9/64-40 × 5.6) 止ネジ 1 3 3200170 [3200105] Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 5 3200111 Needle Bar Bracket 針棒抱キ 1 6 110035 Screw(M4-0.7 × 10) 止ネジ 1 7-1 3209100 Needle Clamp(32) 針止メ 1 7-2 3209101 Needle Clamp(40) 針止メ 1 7-3 3209102 Needle Clamp(48) 針止メ 1 7-4 3209104 Needle Clamp(64) 針止メ 1 8 ---- Needle(UY128 GAS) 針 2 9 001892 Screw(1/8-44 × 2.9) 止ネジ 3 10 3200046 Top Cover Thread Eyelet 飾り糸道 1 11 3200117 Needle Clamp Eyelet 針止メ糸道 1 12 001230 Screw(3/32-56 × 3.8) 止ネジ 1 13-1 3108130 [0093170] Stitch Plate(32M) 針板 1 13-2 3108131 [0093171] Stitch Plate(40M) 針板 1 13-3 3108132 [0093172] Stitch Plate(48M) 針板 1 13-4 0093174 Stitch Plate(64M) 針板 1 14 009142 Screw(9/64-40 × 4.8) 止ネジ 2 15 3200115 Counterweight, C. Set バランスウエイト(組) 1 16 3200101 Counterweight バランスウエイト 1 17 120015 Screw(M5-0.8 × 10) 止ネジ 1 18 0093214 Connecting Rod Ring 針棒ロッドリング 1 19 3200114 Connecting Rod, C. Set 針棒ロッド(組) 1 20 3200112 Connecting Rod 針棒ロッド 1 21 0093212 Roller Bearing ニードルベアリング 1 22 330000 Seal Plug 詰栓 1 23 000309 Oil Wick 油芯 1 24 3200113 Connecting Rod Pin 針棒ロッドピン 1 25 3200118 Needle Bar Guide, C. Set 針棒案内(組) 1 26 0093186 Slide Block 針棒案内 1 27 3200116 Needle Bar Guide 針棒案内 1 28 009749 Screw(M4-0.7 × 16) 止ネジ 2 29 3200120 HR Device, C. Set HR装置(組) 1 30 3200121 HR Cup HRカップ 1 31 3200122 HR Cup Lid HRカップ蓋 1 32 0093864 Seal Plug 詰栓 1 33 310036 HR Felt HRフェルト 1 34 0093663 HR Felt Guard フェルトガード 1 35 006219 Screw(M4-0.7 × 30) 止ネジ 2 36 3200090 Connecting Rod Cover Shaft カバー軸 1 37 160023 Screw(M4-0.7 × 4) 止ネジ 1 38 3200089 Connecting Rod Cover(Rear) 針棒ロッドカバー(後) 1 39 110002 Screw(M3-0.5 × 5) 止ネジ 2 40 3200088 Connecting Rod Cover(Front) 針棒ロッドカバー(前) 1 41 110012 Screw(M4-0.7 × 5) 止ネジ 1 42 260000 Screw(5/16-24 × 15.88) 止ネジ 2 jintex.in VF2400

Page 24

Yamato VF2400 parts on page 24
Ref	Part number	Part name
1	1	Screw
3	3	Nut
4	4	Spring
5	5	Lever
6	6	Screw
7	7	Bracket
8	8	Screw
9	9	Spring
10	10	Shaft
11	11	Washer
12-1	12-1	Collar
12-2	12-2	Collar
13	13	Screw
14	14	Lever
15	15	Screw
16-1	16-1	Parts
16-2	16-2	Parts
16-3	16-3	Parts
16-4	16-4	Parts
17	17	Screw
18	18	Spring
19	19	Lever
20	20	Screw
21	21	Pin
22	22	Screw
23	23	Nut
24	24	Spring
25	25	Lever
26	26	Screw
27	27	Lever
28	28	Pin
29	29	Shaft
31	31	Clamp
32	32	Screw
33	33	Washer
34	34	Screw
35	35	Strap
36	36	Spring
37	37	Lever
38	38	Shaft
39	39	Washer
40	40	Screw
41	41	Lever
42	42	Shaft
43	43	Shaft
44	44	Screw
45	45	Collar
46	46	Screw
48	48	Pin
49	49	Spring
50	50	Collar
51	51	Screw
52	52	Bracket
53	53	Screw

8 VF2400 jintex.in

Page 25 — PRESSER FOOT MECHANISM

Yamato VF2400 parts on page 25
Ref	Part number	Part name
1	0093500	Presser Spring Regulator
3	000445	Lock Nut
4	3200132	Presser Bar Spring(Outer)
5	3200131	Presser Bar Connecting Bracket Unit
6	110031	Screw(M4-0.7 × 12)
7	0093483	Presser Bar Guide
8	004441	Screw(11/64-40 × 16)
9	3200137	Presser Bar Spring(Inner)
10	3100110	Presser Bar
11	0093611	Oil Protector Ring
12-1	3100310*	Collar(9 × 17 × 7 mm)
12-2	3500360	Collar(9 × 15 × 7.5 mm)
13	160001*	Screw(M3-0.7 × 4)
14	0020271*	Thread Chain Cutting Knife
15	110054*	Screw(M3-0.52 × 3.5)
16-1	3507000	Presser Foot, C. Set(32)
16-2	3507002	Presser Foot, C. Set(40)
16-3	3507050	Presser Foot, C. Set(48)
16-4	3507054	Presser Foot, C. Set(64)
17	110004	Screw(M3.5-0.6 × 8)[9/64-40 × 7.8]
18	3107303	Presser Foot Spring(Left)
19	3107304	Presser Foot Spring(Right)
20	130016	Screw(M2.5-0.45 × 6)
21	3107306	Presser Foot Hinge Pin
22	110084	Screw(M3-0.5 × 4.2)
23	000327	Lock Nut
24	260006	Adjusting Screw(1/8-44 × 9.5)
25	0093487	Lifter Link
26	006038	Screw(3/16-32 × 2.2)
27	0063083	Lifter Link Lever
28	000690	Fastener Pin
29	0093479	Lifter Shaft

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品名 Amt. Req 1 0093500 Presser Spring Regulator 押工調節ネジ 1 2 3 000445 Lock Nut ロックナット 1 4 3200132 Presser Bar Spring(Outer) 押工棒バネ(太) 1 5 3200131 Presser Bar Connecting Bracket Unit 押工棒抱キ(組) 1 6 110031 Screw(M4-0.7 × 12) 止ネジ 1 7 0093483 Presser Bar Guide 押工棒案内 1 8 004441 Screw(11/64-40 × 16) 止ネジ 2 9 3200137 Presser Bar Spring(Inner) 押工棒バネ(細) 1 10 3100110 Presser Bar 押工棒 1 11 0093611 Oil Protector Ring 油切リリング 1 12-1 3100310* Collar(9 × 17 × 7 mm) カラー 1 12-2 3500360 Collar(9 × 15 × 7.5 mm) カラー 1 13 160001* Screw(M3-0.7 × 4) 止ネジ 1 14 0020271* Thread Chain Cutting Knife チェインカッタ 1 15 110054* Screw(M3-0.52 × 3.5) 止ネジ 1 16-1 3507000 [0063318] Presser Foot, C. Set(32) 押工(組) 1 16-2 3507002 [0063319] Presser Foot, C. Set(40) 押工(組) 1 16-3 3507050 [0063320] Presser Foot, C. Set(48) 押工(組) 1 16-4 3507054 [0063322] Presser Foot, C. Set(64) 押工(組) 1 17 110004 [001186] Screw(M3.5-0.6 × 8)[9/64-40 × 7.8] 止ネジ 1 18 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 19 3107304 Presser Foot Spring(Right) 小押工バネ(右) 1 20 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 21 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 22 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 23 000327 Lock Nut ロックナット 1 24 260006 Adjusting Screw(1/8-44 × 9.5) 止ネジ 1 25 0093487 Lifter Link 吊リリンク 1 26 006038 Screw(3/16-32 × 2.2) 止ネジ 2 27 0063083 Lifter Link Lever 吊リリンクレバー 1 28 000690 Fastener Pin 止メピン 1 29 0093479 Lifter Shaft 押工揚ゲ軸 1 30 Ref. No. 41 to 53 See the following page. Note: The parts marked * are installed on the models with top cover thread sewing mechanism as standard. (注) *印の部品は、上飾り付きのモデルに標準装備されています。 VF2400

Page 26

Yamato VF2400 parts on page 26
Ref	Part number	Part name	Qty
	1	NEEDLE BAR CONNECTING ROD
	3	COLLAR
	4	NEEDLE BAR CONNECTING ROD SPRING
	5	BRACKET
	6	SCREW
	7	BRACKET
	8	SCREW
	9	SPRING
	10	NEEDLE BAR
	11	WASHER
	12-1	COLLAR
	12-2	COLLAR
	13	SCREW
	14	BRACKET
	15	SCREW
	16-1	BRACKET
	16-2	BRACKET
	16-3	BRACKET
	16-4	BRACKET
	17	SCREW
	18	SPRING
	19	SCREW
	20	SCREW
	21	BRACKET
	22	SCREW
	23	WASHER
	24	SPRING
	25	BRACKET
	26	SCREW
	27	BRACKET
	28	PIN
	29	SHAFT
	31	BRACKET
	32	SCREW
	33	WASHER
	34	PIN
	35	BRACKET
	36	SPRING
	37	BRACKET
	38	BRACKET
	39	SPRING
	40	SCREW
	41	BRACKET
	42	SHAFT
	43	SHAFT
	44	SPRING
	45	BRACKET
	46	SCREW
	48	PIN
	49	SPRING
	50	COLLAR
	51	SCREW
	52	BRACKET
	53	SCREW

8 VF2400 jintex.in

Page 27 — PRESSER FOOT MECHANISM

Yamato VF2400 parts on page 27
Ref	Part number	Part name	Qty
	3100294	Intermediate Lever
	120017	Screw(M5-0.8 × 15)
	0077179	Retaining Ring
	0093509	Connecting Pin
	0093507	Connecting Plate
	3160168	Lifter Spring
	3500305	Cap
	0093496	Lifter Lever
	3101216	Lifter Lever Stop
	004358	Screw(9/64-40 × 5.6)
	0090801	Tension Release Lever
	005542	Screw(11/64-40 × 14.5)
	0093545	Tension Release Shaft
	0090824	Swing-proof Spring
	0093508	Lifter Lever(Small)
	004591	Screw(15/64-28 × 9.5)
	340014	Roll Pin(3 × 12mm)
	0063084	Lifter Spring
	0093491	Collar(8 × 16 × 8mm)
	009604	Screw(11/64-40 × 5.5)
	3100112	Finger Guard
	110002	Screw(M3-0.5 × 5)

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品名 Amt. Req 31 3100294 Intermediate Lever 押工場ゲ中レバー 1 32 120017 Screw(M5-0.8 × 15) 止ネジ 1 33 0077179 Retaining Ring 止メ輪 2 34 0093509 Connecting Pin 連結ピン 2 35 0093507 Connecting Plate 連結桿 1 36 3160168 Lifter Spring 押工場ゲバネ 1 37 3500305 Cap キャップ 1 38 0093496 Lifter Lever 押工場ゲレバー 1 39 3101216 Lifter Lever Stop 押工場ゲレバーストップ 1 40 004358 Screw(9/64-40 × 5.6) 止ネジ 2 41 0090801 Tension Release Lever 糸緩メ腕 1 42 005542 Screw(11/64-40 × 14.5) 止ネジ 1 43 0093545 Tension Release Shaft 糸緩メ軸 1 44 0090824 Swing-proof Spring 防振バネ 1 45 0093508 Lifter Lever(Small) 押工場ゲレバー(小) 1 46 004591 Screw(15/64-28 × 9.5) 止ネジ 1 48 340014 Roll Pin(3 × 12mm) ロールピン 1 49 0063084 Lifter Spring 押工場ゲバネ 1 50 0093491 Collar(8 × 16 × 8mm) カラー 2 51 009604 Screw(11/64-40 × 5.5) 止ネジ 4 52 3100112 Finger Guard フィンガード 1 53 110002 Screw(M3-0.5 × 5) 止ネジ 1 VF2400

Page 28

Yamato VF2400 parts on page 28
Ref	Part number	Part name	Qty
	1	BOBBIN CASE ASSEMBLY
	2	BOBBIN CASE HOLDER
	3	SPRING
	4	BOBBIN CASE
	5	BOBBIN CASE HOLDER
	6	CIRCLIP
	7	SCREW
	8	WASHER
	9	NEEDLE BAR BUSH
	10	SCREW
	11	WASHER
	12	COLLAR
	13	SCREW
	14	NEEDLE BAR CONNECTING PIECE
	15	SCREW
	16	NEEDLE BAR CONNECTING ROD
	17	NEEDLE BAR CONNECTING PIECE
	18	NEEDLE BAR CONNECTING PIECE
	19	NEEDLE BAR CONNECTING PIECE
	20	NEEDLE BAR CONNECTING ROD
	21	WASHER
	22	NEEDLE BAR CONNECTING PIECE
	23	PIN
	24	PRESSER BAR CONNECTING PIECE
	25	PRESSER BAR CONNECTING ROD
	26	SCREW

9 VF2400 jintex.in

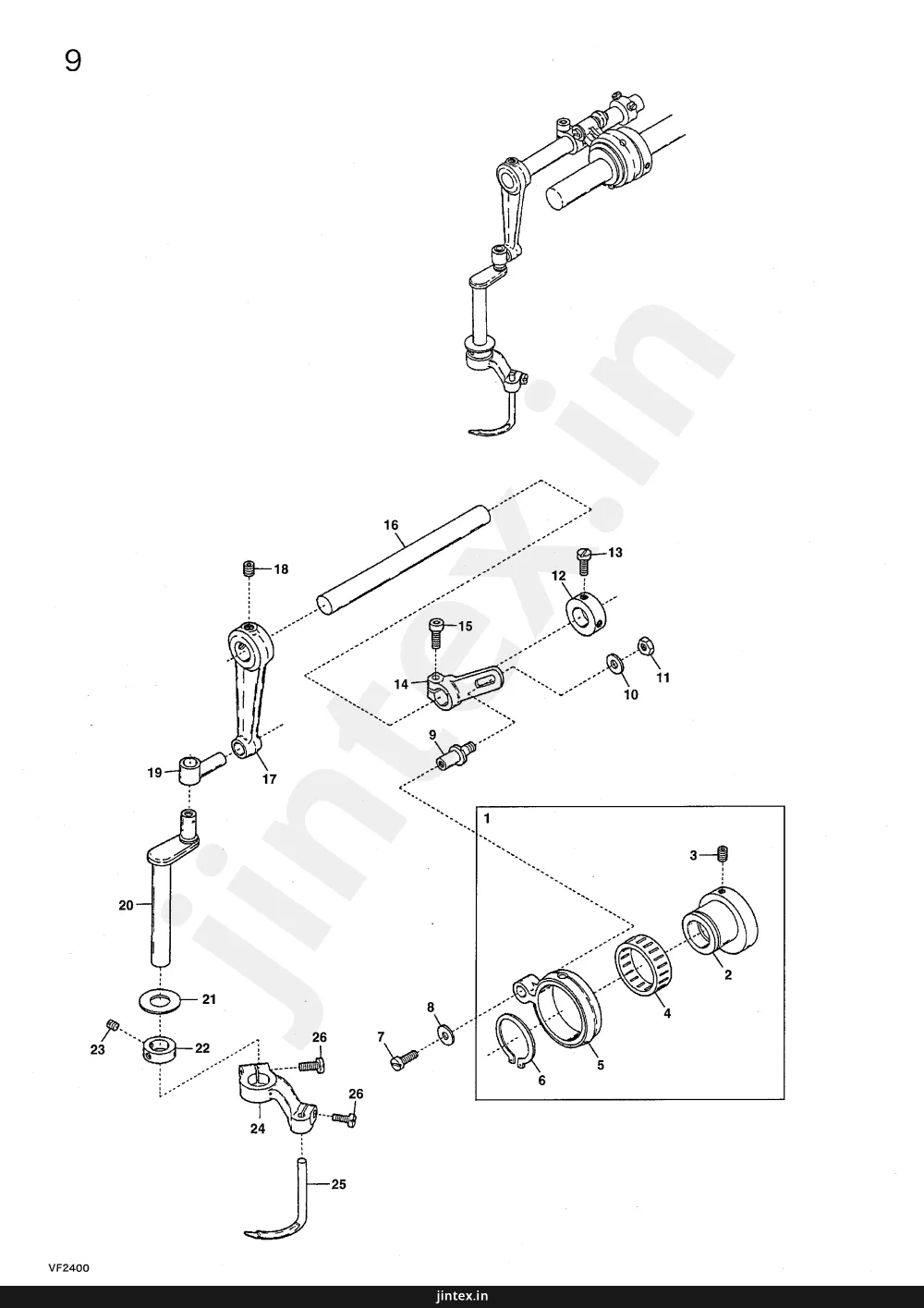

Page 29 — SPREADER MECHANISM

Yamato VF2400 parts on page 29
Part number	Part name	Qty
3100302	Connecting Rod, C. Set	1
3100300	Eccentric	1
160003	Screw(M5-0.8 × 5)	2
0077322	Roller Bearing	1
3100301	Connecting Rod	1
0094566	Retaining Ring	1
110009	Screw(M4-0.7 × 8)	1
300006	Washer	1
3100309	Adjusting Lever Pin	1
000528	Washer	1
100003	Nut(M6-1.0)	1
0032646	Collar(12 × 20 × 8 mm)	1
009604	Screw(11/64-40 × 5.5)	2
3100303	Adjusting Lever	1
120013	Screw(M6-1 × 15)	1
3100304	Driving Shaft	1
3100305	Rocking Arm	1
160007	Screw(M6-1 × 6)	2
0063051	Rocking Pin	1
0063053	Spreader Bar	1
0063056	Bushing Ring	1
0063057	Collar(10 × 18 × 7 mm)	1
009526	Screw(9/64-40 × 4.4)	2
3100307	Spreader Holder	1
3509320	Spreader	1
110031	Screw(M4-0.7 × 12)	2

SPREADER MECHANISM Ref.No. Parts No. Description 品名 Amt. Req 1 3100302 Connecting Rod, C. Set ルーパロッド(組) 1 2 3100300 Eccentric ルーパエキセン 1 3 160003 Screw(M5-0.8 × 5) 止ネジ 2 4 0077322 Roller Bearing ニードルベアリング 1 5 3100301 Connecting Rod ルーパロッド 1 6 0094566 Retaining Ring 止メ輪 1 7 110009 Screw(M4-0.7 × 8) 止ネジ 1 8 300006 Washer ワッシャ 1 9 3100309 Adjusting Lever Pin 調節レバーピン 1 10 000528 Washer ワッシャ 1 11 100003 Nut(M6-1.0) ナット 1 12 0032646 Collar(12 × 20 × 8 mm) カラー 1 13 009604 Screw(11/64-40 × 5.5) 止ネジ 2 14 3100303 Adjusting Lever 調節レバー 1 15 120013 Screw(M6-1 × 15) 止ネジ 1 16 3100304 Driving Shaft ルーパ軸 1 17 3100305 Rocking Arm ルーパ振り腕 1 18 160007 Screw(M6-1 × 6) 止ネジ 2 19 0063051 Rocking Pin ルーパ振リピン 1 20 0063053 Spreader Bar ルーパ棒 1 21 0063056 Bushing Ring ブッシングリング 1 22 0063057 Collar(10 × 18 × 7 mm) カラー 1 23 009526 Screw(9/64-40 × 4.4) 止ネジ 2 24 3100307 Spreader Holder 飾り糸ルーパ台 1 25 3509320 Spreader 飾り糸ルーパ 1 26 110031 Screw(M4-0.7 × 12) 止ネジ 2 VF2400

Page 30

Yamato VF2400 parts on page 30
Ref	Part number	Part name
4	4	SCREW
5	5	BEARING HOLDER
6	6	SCREW
7	7	SHAFT
8	8	WASHER
9	9	NUT
10	10	BRACKET
11	11	SCREW
12	12	WASHER
13	13	SCREW
14	14	SCREW
15	15	BEARING HOLDER
16	16	SCREW
17	17	SHAFT
18	18	BRACKET
19	19	BLOCK
21	21	PIN
22	22	SCREW
23	23	BRACKET
24	24	SLEEVE
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	SHAFT
29	29	BRACKET
30	30	SCREW
31	31	BRACKET
32	32	SHAFT
33	33	LEVER
34	34	WASHER
35	35	BRACKET
36	36	SCREW
37	37	BRACKET
38	38	SCREW
39	39	SCREW

10 VF2400 jintex.in

Part Books

Search
