Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40037158 | SIDE PLATE | 1 |
| 2 | 40041161 | FACE PLATE | 1 |
| 3 | 40052819 | FACE PLATE PACKING | 1 |
| 4 | 23600505 | THREAD TAKE-UP LEVER COVER | 1 |
| 5 | SM4051055SP | SCREW | 1 |
| 6 | 40086713 | BED_STUD_A | 1 |
| 7 | SM6061002TP | SCREW M6 L=10 | 2 |
| 8 | 22951552 | GROUND WIRE ASM. | 1 |
| 9 | SM4050855SP | SCREW | 1 |
| 10 | EA9500B0100 | CABLE BAND | 1 |
| 11 | 40094561 | SEWING MACHINE LABEL (EU) | 1 |
| 12 | 22901250 | SLIDE PLATE ASM. | 1 |
| 13 | 22902753 | SLIDE PLATE ASM. | 1 |
| 14 | 22901201 | SLIDE PLATE | 1 |
| 15 | 22902704 | SLIDE PLATE | 1 |
| 16 | 22901300 | SLIDE PLATE SPRING | 1 |
| 17 | 22901300 | SLIDE PLATE SPRING | 1 |
| 18 | SS6060210SP | SCREW 3/32-56 L=1.9 | 2 |
| 19 | SM4050855SP | SCREW | 2 |
| 20 | 40069110 | ATTACHMENT FIXATION SCREW | 1 |
| 21 | 22944508 | WIRE PRESSER A | 1 |
| 22 | SM4040855SP | SCREW | 1 |
| 23 | CM300200001 | ATTENTION SEAL | 1 |
| 24 | 40069097 | RULER PLATE I | 1 |
| 25 | CM300200003 | ATTENTION LABEL | 1 |
| 26 | SM6052502TP | SCREW M5X25 | 3 |
| 27 | SM2040955TP | SCREW M4 L=8.5 | 1 |
| 28 | SM2040750TP | SCREW M4 L=7.4 | 1 |
| 29 | CM301300001 | SAFETY LABEL | 1 |
| 30 | 22902506 | FACE PLATE | 1 |
| 31 | SM4051055SP | SCREW | 4 |
| 32 | SM4051255SP | SCREW M5 L=12 | 2 |
| 33 | 40086732 | PULLEY_COVER | 1 |
| 34 | 40086714 | BED_STUD_B | 1 |
| 35 | SM6061202TP | SCREW M6 L=12 | 2 |
| 36 | SM4040655SP | SCREW M4 L=6 | 1 |
| 37 | 40035589 | RULER PLATE | 1 |
| 38 | 40091461 | FEED LEVER SPRING HOOK | 1 |
| 39 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 40 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 41 | TA1470704R0 | RUBBER PLUG | 1 |
| 42 | NM6040001SP | NUT M4X0.7 | 1 |
| 43 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 1 |
| 44 | 40114043 | FEED_ADJUSTING_SPRING_PLATE | 1 |
| 45 | 40052933 | ARM THREAD GUIDE C | 1 |
| 46 | SM80608A2TP | SCREW M6 L=8 | 1 |
| 47 | 23640006 | SHEET | 1 |
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40037488 | SHEET | 1 |
| 49 | 40086639 | THREAD_TENSION_DISK_ASM. | 1 |
| 50 | 23626005 | THREAD TENSION NUT | 1 |
| 51 | 22921209 | THREAD TENSION POST | 1 |
| 52 | 22921407 | ROTATION STOPPER | 1 |
| 53 | 22921506 | THREAD TENSION DISK | 2 |
| 54 | 22921605 | THREAD TAKE-UP SPRING | 1 |
| 55 | 22921704 | THREAD TENSION SPRING A | 1 |
| 56 | 22921803 | DISK STOPPER | 1 |
| 57 | 40086640 | TENSION_POST_SOCKET_ASM. | 1 |
| 58 | SS8090670SP | SCREW 9/64-40 L=5.5 | 1 |
| 59 | SS6110610TP | SCREW 11/64-40 L=6 | 1 |
| 60 | 22920607 | ARM THREAD GUIDE B | 1 |
| 61 | 22963458 | THREAD TENSION ASM. | 1 |
| 62 | 22945414 | THREAD TENSION POST | 1 |
| 63 | 22945604 | THREAD TENSION GUIDE | 1 |
| 64 | 22963409 | THREAD TENSION SPRING | 1 |
| 65 | 22945703 | THREAD TENSION NUT | 1 |
| 66 | 22945802 | THREAD TENSION DISK | 2 |
| 67 | SM80608A2TP | L=8SCREW M6 L=8 | 1 |
| 68 | SM5040655SN | SCREW | 1 |
| 69 | 23626104 | ARM THREAD GUIDE A | 1 |
| 70 | SM80608A2TP | L=8SCREW M6 L=8 | 1 |
| 71 | 40086659 | SAFETY_SWITCH_ASM. | 1 |
| 72 | 40086660 | SAFETY_SWITCH_BASE | 1 |
| 73 | 23638109 | SAFETY SWITCH ARM | 1 |
| 74 | 23638208 | SAFETY SWITCH SPRING | 1 |
| 75 | 23638307 | SAFETY SWITCH ARM SHAFT | 1 |
| 76 | 23638406 | SAFETY SWITCH NUT | 1 |
| 77 | 40098386 | SAFETY_SWITCH_CORD_ASM. | 1 |
| 78 | EA9500B0100 | CABLE BAND | 1 |
| 79 | SM4021201SC | SCREW M2 L=12 | 2 |
| 80 | SM4050655SP | SCREW M5 L=6 | 1 |
| 81 | 22901805 | GROUND MARK | 1 |
| 82 | 23629900 | AIR-DISCHARGING | 1 |
| 83 | RO080150200 | RUBBER RING | 1 |
| 84 | 23601305 | AIR-DISCHARGING CAP | 1 |
| 85 | WP0621016SD | WASHER 6.2X13X1 | 2 |
| 86 | WP0501016SD | WASHER 5X10.5X1 | 3 |
| 87 | CM600100101 | WEEE MARK LABEL S | 1 |
| 88 | CM600600101 | CHINA ENVIRONMENT LABEL | 1 |
| 89 | SM4051055SP | SCREW | 2 |
| 90 | WP0550800SP | WASHER 5.5X10X0.8 | 2 |
| 91 | 40091397 | CABLE COVER | 1 |
| 92 | 40163071 | THROAT_PLATE_IB_R | 1 |
| 93 | WP0621016SD | WASHER 6.2X13X1 | 2 |
| 94 | 11417615 | THROAT PLATE A | 1 |

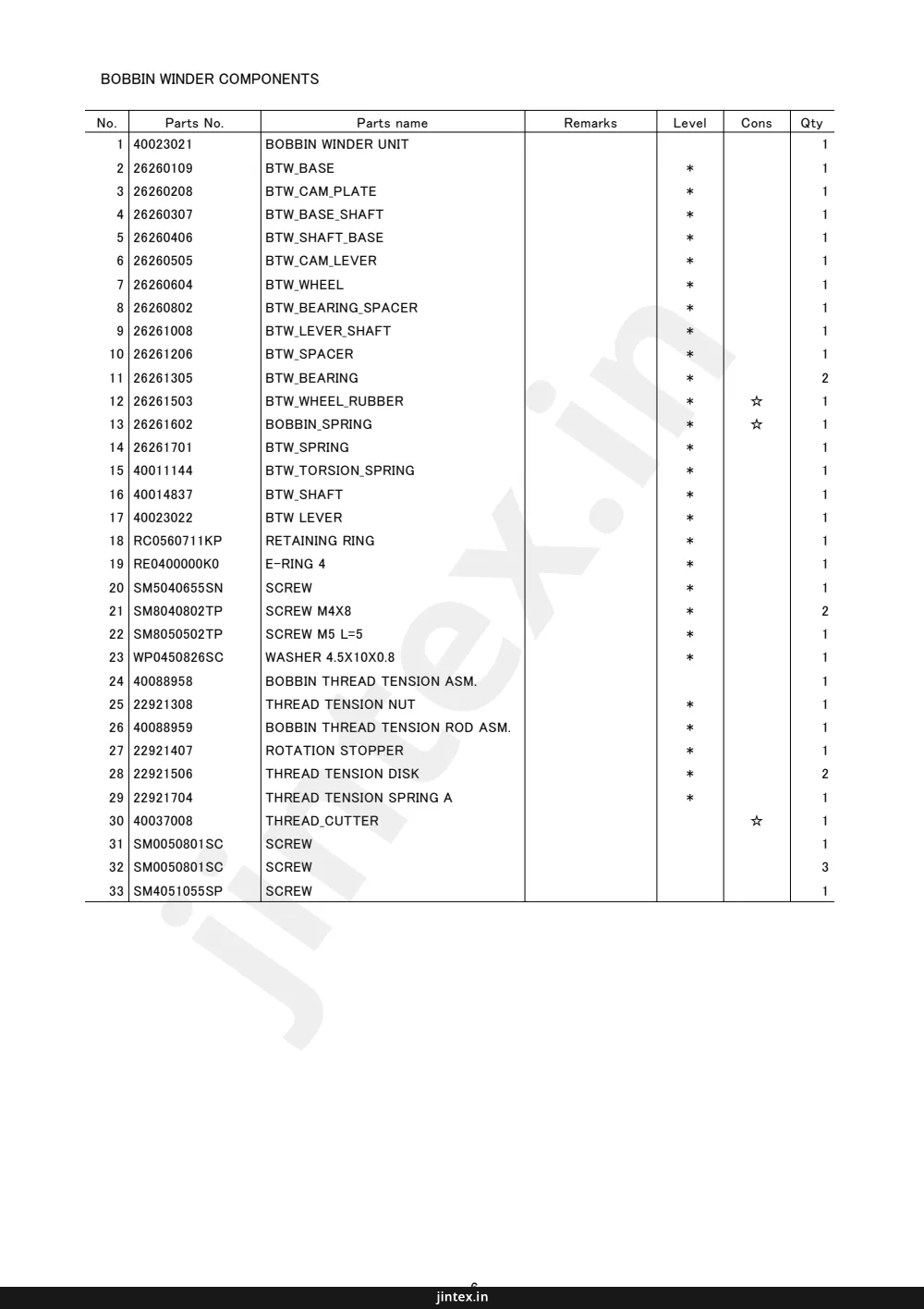

Page 8 — BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40023021 | BOBBIN WINDER UNIT | 1 |
| 2 | 26260109 | BTW_BASE | 1 |
| 3 | 26260208 | BTW_CAM_PLATE | 1 |
| 4 | 26260307 | BTW_BASE_SHAFT | 1 |
| 5 | 26260406 | BTW_SHAFT_BASE | 1 |
| 6 | 26260505 | BTW_CAM_LEVER | 1 |
| 7 | 26260604 | BTW_WHEEL | 1 |
| 8 | 26260802 | BTW_BEARING_SPACER | 1 |
| 9 | 26261008 | BTW_LEVER_SHAFT | 1 |
| 10 | 26261206 | BTW_SPACER | 1 |
| 11 | 26261305 | BTW_BEARING | 2 |
| 12 | 26261503 | BTW_WHEEL_RUBBER | 1 |
| 13 | 26261602 | BOBBIN_SPRING | 1 |
| 14 | 26261701 | BTW_SPRING | 1 |
| 15 | 40011144 | BTW_TORSION_SPRING | 1 |
| 16 | 40014837 | BTW_SHAFT | 1 |
| 17 | 40023022 | BTW LEVER | 1 |
| 18 | RC0560711KP | RETAINING RING | 1 |
| 19 | RE0400000K0 | E-RING 4 | 1 |
| 20 | SM5040655SN | SCREW | 1 |
| 21 | SM8040802TP | SCREW M4X8 | 2 |
| 22 | SM8050502TP | SCREW M5 L=5 | 1 |
| 23 | WP0450826SC | WASHER 4.5X10X0.8 | 1 |
| 24 | 40088958 | BOBBIN THREAD TENSION ASM. | 1 |
| 25 | 22921308 | THREAD TENSION NUT | 1 |
| 26 | 40088959 | BOBBIN THREAD TENSION ROD ASM. | 1 |
| 27 | 22921407 | ROTATION STOPPER | 1 |
| 28 | 22921506 | THREAD TENSION DISK | 2 |
| 29 | 22921704 | THREAD TENSION SPRING A | 1 |
| 30 | 40037008 | THREAD_CUTTER | 1 |
| 31 | SM0050801SC | SCREW | 1 |
| 32 | SM0050801SC | SCREW | 3 |
| 33 | SM4051055SP | SCREW | 1 |

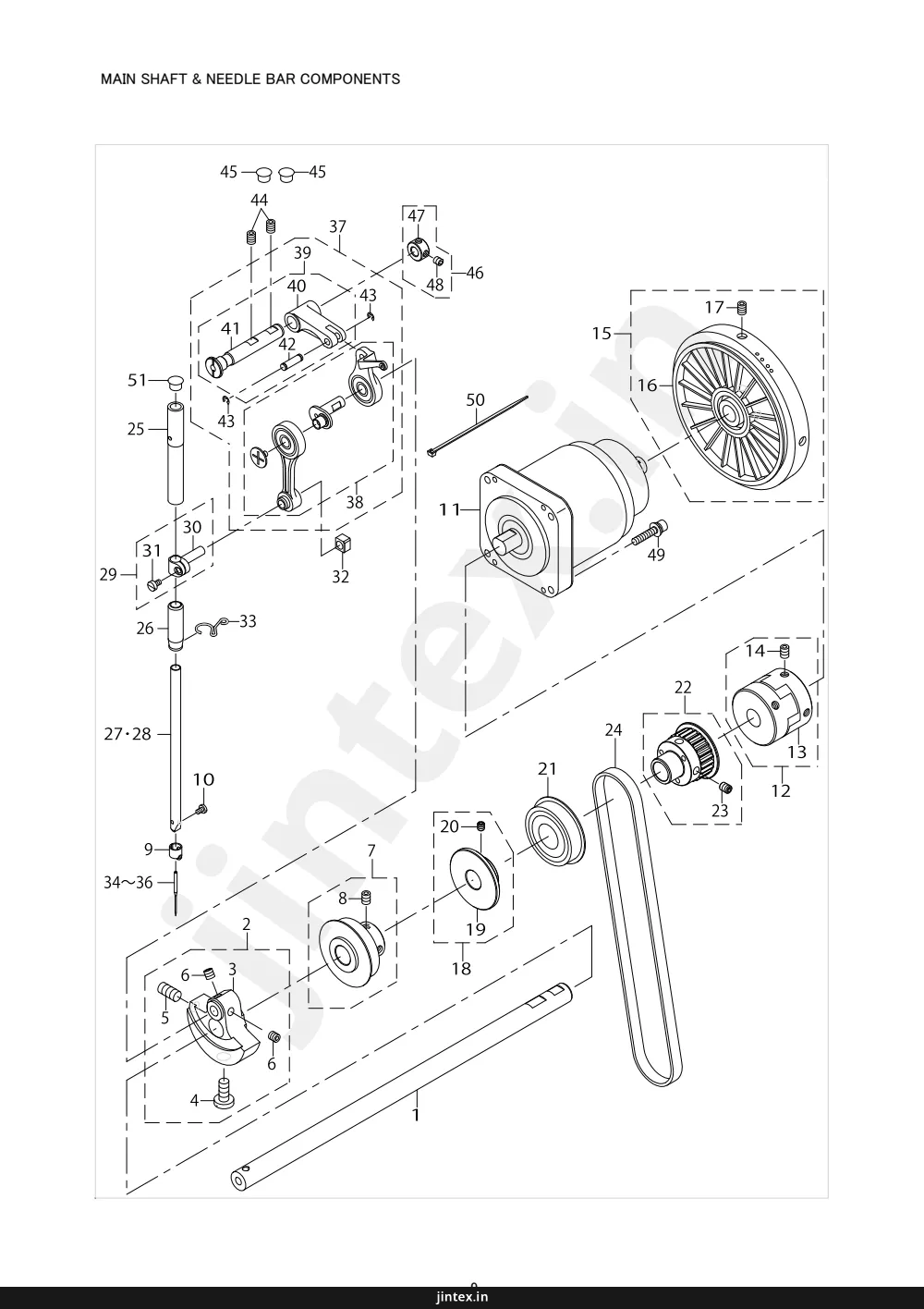

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40086597 | MAIN_SHAFT | 1 |
| 2 | 40135904 | ASSY_COUNTER WEIGHT | 1 |
| 3 | 40135916 | COUNTER WEIGHT | 1 |
| 4 | 40004171 | COUNTER_WEIGHT_SCREW | 1 |
| 5 | SM8081652TP | SCREW M8 L=16 | 1 |
| 6 | SM80606A2TP | 6SCREW M6 L=6 | 2 |
| 7 | 40150011 | FRONT_BEARING | 1 |
| 8 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 9 | 22906309 | NEEDLE BAR THREAD GUIDE | 1 |
| 10 | SS7080510TP | SCREW 1/8-44 L=4.5 | 1 |
| 11 | 40089196 | AC SERVO MOTOR | 1 |
| 12 | 40051473 | COUPLING ASM. | 1 |
| 13 | 40051474 | COUPLING | 1 |
| 14 | SM80608A2TP | SCREW M6 L=8 | 4 |
| 15 | 40037007 | HAND WHEEL ASM. | 1 |
| 16 | 40037006 | HAND WHEEL | 1 |
| 17 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 18 | 40136292 | BTW_DRIVING_WHEEL_ASM | 1 |
| 19 | 40136293 | BTW_DRIVING_WHEEL | 1 |
| 20 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 21 | SB120002700 | BEARING | 1 |
| 22 | 40141440 | UPPER SPROCKET ASM. | 1 |
| 23 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 24 | 40086731 | TIMING_BELT_550 | 1 |
| 25 | 23608003 | NEEDLE BAR METAL UPPER | 1 |
| 26 | 40107707 | NEEDLE_BAR_METAL_LOWER | 1 |
| 27 | 22886907 | NEEDLE BAR (A) | 1 |
| 28 | 22887004 | NEEDLE BAR (B) | 1 |
| 29 | 22906457 | NEEDLE BAR HOLDER ASM. | 1 |
| 30 | 22906408 | NEEDLE ROD HOLDER | 1 |
| 31 | SS6090670TP | SCREW 9/64-40 L=6 | 1 |
| 32 | 40090058 | SLIDE BLOCK | 1 |
| 33 | 23626203 | NEEDLE BAR THREAD GUIDE | 1 |
| 34 | MDB100B1100 | NEEDLE DBX1 #11 | 1 |
| 35 | MC200500750 | NEEDLE 134 NM75 | 1 |
| 36 | MDB100B1400 | NEEDLE DBX1 #14 | 1 |
| 37 | 40135900 | THREAD TAKE UP COMPL. | 1 |
| 38 | 40135905 | THREAD_TAKE_UP_ASM._C | 1 |
| 39 | 40141165 | TAKE_UP_CRANK_ASM | 1 |
| 40 | 40135906 | TAKE_UP_CRANK | 1 |
| 41 | 40143184 | TAKE_UP_CRANK_SHAFT | 1 |
| 42 | 40135907 | THREAD_TAKE_UP_PIN | 1 |
| 43 | RE0300000K0 | E-RING 3 | 2 |
| 44 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 45 | TA0850604R0 | RUBBER PLUG | 2 |
| 46 | 40032269 | THRUST COLLAR | 1 |
| 47 | CS1000881TP | THRUST COLLAR | 1 |
Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM8050412TP | SCREW M5 L=4 | 2 |
| 49 | SL6052592TN | BOLT | 4 |
| 50 | EA9500B0100 | CABLE BAND | 2 |
| 51 | TA0850604R0 | RUBBER PLUG | 1 |
Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40136700 | PRESSER_BAR_BUSHING | 1 |
| 2 | 40086606 | PRESSER_BAR_GUIDE_BRACKET_ASM. | 1 |
| 3 | 40086607 | PRESSER_BAR_GUIDE_BRACKET | 1 |
| 4 | SM6051400SP | SCREW | 1 |
| 5 | 23609357 | LIFTING LEVER CONNECT ROD ASM. | 1 |
| 6 | 23609456 | LIFTING LINK COMPL. | 1 |
| 7 | 23609605 | PLATE | 1 |
| 8 | 22908008 | LIFTING PLATE | 1 |
| 9 | SM6040602TP | SCREW M4 L=6 | 1 |
| 10 | RE0500000K0 | E-RING | 1 |
| 11 | RE0500000K0 | E-RING | 1 |
| 12 | 23609308 | LIFTING LEVER CONNECT ROD | 1 |
| 13 | 40086760 | CONNECTING ROD | 1 |
| 14 | 23609704 | LIFTING LEVER LINK | 1 |
| 15 | 22907406 | PRESSER SPRING | 1 |
| 16 | 23610207 | PRESSER BAR | 1 |
| 17 | 23610306 | PRESSER GUIDE BAR | 1 |
| 18 | 40037359 | PRESSER SPRING REGURATOR ASM. | 1 |
| 19 | 40037141 | PRESSER SPRING REGULATOR | 1 |
| 20 | 40037144 | PRESSER SPRING REGULATOR NUT | 1 |
| 21 | 40050583 | LINK SHAFT | 2 |
| 22 | 22907802 | HAND LIFTER | 1 |
| 23 | B1521555000 | SCREW | 1 |
| 24 | 22908552 | HAND LIFTER CAM ASM. | 1 |
| 25 | RO037180100 | RUBBER RING | 1 |
| 26 | B15240120BA | PRESSER FOOT ASM. | 1 |
| 27 | SS7091110TP | SCREW 9/64-40 L=10.5 | 1 |
| 28 | RE0500000K0 | E-RING | 3 |
| 29 | 22908909 | HINGE SCREW | 1 |
| 30 | 40082078 | SHOULDER SCREW D=7.24 H=3.3 | 1 |
| 31 | NM6060003SE | NUT FOR BRACKET | 1 |
| 32 | 40036706 | ADJUSTING SCREW | 1 |
| 33 | WP0621016SD | WASHER 6.2X13X1 | 1 |
| 34 | 22944508 | WIRE PRESSER A | 2 |
| 35 | SM4040855SP | SCREW | 1 |
| 36 | SM4040855SP | SCREW | 1 |
| 37 | SM6051402TP | SCREW M5X0.8 L=14 | 1 |
| 38 | 40086643 | WIRE_HOLDER | 1 |
| 39 | 40050582 | TENSION RELEASE SHAFT | 1 |
| 40 | 22920300 | THREAD RELEASE SUPPORTING PIN | 1 |
| 41 | 22920409 | THREAD RELEASE PIN SPRING | 1 |
| 42 | 23626351 | THREAD TENSION RELEASE WIRE | 1 |
| 43 | 23626807 | TENSION RELEASE RETURN SPRING | 1 |
| 44 | NS6620310SP | NUT 3/16-32 | 2 |
| 45 | RE0500000K0 | E-RING | 2 |
| 46 | 40056622 | MINUTE LIFTING DEVICE ASM. | 1 |
| 47 | 23611106 | HAND LIFTER | 1 |
Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 23610504 | STOPPER BASE | 1 |
| 49 | 23610652 | STOPPER SCREW ASM. | 1 |
| 50 | D5119206K0K | SPACER | 2 |
| 51 | 23610702 | STOPPER SCREW NUT | 1 |
| 52 | SL6053592TN | BOLT | 1 |
| 53 | R0044240100 | RUBBER RING | 1 |
| 54 | B3118552F00 | TENSION RELEASING PIN | 1 |
| 55 | WP0501016SD | WASHER 5X10.5X1 | 1 |
Page 18 — FEED ADJUST MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40086735 | ADJUSTING_LINK_ASM. | 1 |
| 2 | 40086695 | FEED_ADJUSTING_LINK | 1 |
| 3 | 40086696 | FEED_ADJUSTING_LINK_PIN | 2 |
| 4 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 5 | 40086608 | ADJUSTING_LINK_FULCRUM_SHAFT | 1 |
| 6 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 7 | 40086615 | FEED_CHANGING_SHAFT_METAL_A | 1 |
| 8 | 40086704 | FEED_CHANGING_SHAFT_ARM_ASM. | 1 |
| 9 | 40086705 | FEED_CHANGING_SHAFT_ARM | 1 |
| 10 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 11 | 22910509 | FEED ADJUSTING LINK PIN | 1 |
| 12 | 40086706 | FEED_CHANGING_SPRING_PIN | 1 |
| 13 | 40086616 | FEED_CHANGING_SHAFT_METAL_B | 1 |
| 14 | 40086614 | FEED_CHANGING_SHAFT | 1 |
| 15 | 40086738 | REVERSE_FEED_LEVER | 1 |
| 16 | 23613706 | FEED LEVER SHAFT | 1 |
| 17 | 40086674 | FEED_LEVER_ARM_ASM. | 1 |
| 18 | 40086675 | FEED_LEVER_ARM | 1 |
| 19 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 20 | 40086737 | FEED ADJUSTING SPRING | 1 |
| 21 | 40086739 | FEED LEVER SPRING | 1 |
| 22 | 40086609 | FEED_ADJUSTING_ROD | 1 |
| 23 | 23630007 | TUBE | 0.1 |
| 24 | RE0500000K0 | E-RING | 1 |
| 25 | 23612609 | FEED CHANGING SHAFT OIL SEAL | 1 |
| 26 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 27 | 22952501 | BACK LEVER STOPPER | 1 |
| 28 | SM6051850TP | SCREW M5 L=18 | 1 |
| 29 | 40141842 | FEED REGULATOR SCREW | 1 |
| 30 | 40123098 | FEED_REGULATOR_PIN_SPRING | 1 |
| 31 | 40161440 | FEED_REGULATOR_PIN | 1 |
| 32 | 40141840 | REGULATOR STOPPER SPRING | 1 |
| 33 | 40141838 | FEED REGULATOR WASHER | 1 |
| 34 | 40141841 | REGULATOR PIN DIAL | 1 |
| 35 | SS6121860SP | SCREW 3/16-28 L=18 | 1 |
| 36 | 40086617 | FEED_LEVER_SHAFT_METAL | 1 |
| 37 | 40086736 | RUBBER PLUG | 1 |
| 38 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 39 | 23613409 | FEED ADJUSTING PIN | 1 |
| 40 | 40095847 | FEED REGULATOR ASM. | 1 |
| 41 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 42 | 40122891 | FEED_REGULATOR | 1 |
| 43 | RO092270200 | RUBBER RING | 1 |
| 44 | 40161441 | REGULATOR_PIN_STOPPER | 1 |
| 45 | 40086613 | FEED_REGULATOR_STOPPER_PIN | 2 |
| 46 | 40006716 | THREAD_TRIMMER_SHAFT | 1 |
| 47 | SM80606A2TP | SCREW M6 L=6 | 1 |
Page 20 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40037192 | FEED ROCKER CAM ASM. | 1 |
| 2 | 23616006 | FEED ROCKER CAM | 1 |
| 3 | SS8150822TP | SCREW 15/64-28 L=8 | 2 |
| 4 | 40037365 | FEED ROCKER ROD ASM. | 1 |
| 5 | 40026277 | FEED ROCKER ROD | 1 |
| 6 | 22911101 | WALKING FOOT PIN C | 1 |
| 7 | SS6090620TP | SCREW | 1 |
| 8 | 40061246 | FEED ROCKER ARM ALL ASM. | 1 |
| 9 | 40058504 | FEED ROCKER ARM ASM. | 1 |
| 10 | 40042079 | FEED ROCKER ARM | 1 |
| 11 | SS6121610SP | SCREW 3/16-28 L=15.5 | 1 |
| 12 | SS6090620TP | SCREW | 1 |
| 13 | 22911002 | WALKING FOOT PIN B | 1 |
| 14 | 23616709 | FEED ROCKER SHAFT METAL | 1 |
| 15 | 40037005 | ASSY_FEED_ROCKER_BASE_ARM | 1 |
| 16 | 40026281 | FEED ROCKER BASE ARM | 1 |
| 17 | SM6051400SP | SCREW | 1 |
| 18 | WP0480856SP | WASHER 4.8X8.4X0.8 | 1 |
| 19 | SM4050855SP | SCREW | 1 |
| 20 | 23616204 | FEED ROCKER CAM PLATE | 1 |
| 21 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 22 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 2 |
| 23 | 22904106 | MAIN SHAFT THRUST COLLAR | 1 |
| 24 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 25 | 40164902 | FEED_DOG_I_ST | 1 |
| 26 | RO036080200 | RUBBER RING | 1 |
| 27 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 28 | B412352200A | NEEDLE BEARING | 1 |
| 29 | B412352200B | NEEDLE ROLLAR | 1 |
| 30 | B412352200C | NEEDLE ROLLAR | 1 |
| 31 | 40026278 | CONNECTING LINK A | 2 |
| 32 | 23616402 | CONNECTING LINK B | 2 |
| 33 | 23616600 | FEED ROCKER SHAFT | 1 |
| 34 | 40086743 | BEARING SUPPORT ASM. | 1 |
| 35 | SS6110710TP | SCREW 11/64-40 L=6.5 | 2 |
| 36 | 40026282 | FEED ROCKER BASE SHAFT | 1 |
| 37 | 40000391 | VERTICAL FEED CAM ASM. 5 | 1 |
| 38 | 40000392 | VERTICAL FEED CAM 5 | 1 |
| 39 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 40 | 40053720 | FEED DRIVING BASE ARM ASM. | 1 |
| 41 | 40026287 | FEED DRIVING BASE ARM | 1 |
| 42 | SM4040655SP | SCREW M4 L=6 | 1 |
| 43 | 40026288 | FEED DRIVING BASE SHAFT | 1 |
| 44 | 40086757 | FEED DRIVING SHAFT | 1 |
| 45 | 40086690 | FEED_DRIVING_BEARING_SUPPORT | 1 |
| 46 | SS8661012TP | SCREW | 2 |
| 47 | 23618101 | FEED DRIVING CAM THRUST BUSH | 2 |
Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SB32000060A | BEARING | 1 |
| 49 | SB32000060B | BEARING | 1 |
| 50 | SB32000060C | BEARING | 1 |
| 51 | SB117001200 | BEARING | 1 |
| 52 | 23618309 | FEED DRIVING CAM PLATE | 1 |
| 53 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 54 | 23620503 | GEAR (LARGE) | 1 |
| 55 | SS8661012TP | SCREW | 2 |
| 56 | 23620008 | HOOK SHAFT | 1 |
| 57 | 23620156 | HOOK SHAFT METAL COMPL. | 1 |
| 58 | 40145927 | OIL SEAL | 2 |
| 59 | 22916555 | OIL SEAL SCREW ASM. | 1 |
| 60 | 22916506 | SET SCREW | 1 |
| 61 | 11015906 | OIL WICK | 1 |
| 62 | 23620701 | GEAR (SMALL)(A) | 1 |
| 63 | 23620800 | GEAR (SMALL)(B) | 1 |
| 64 | 23620909 | GEAR (SMALL)(C) | 1 |
| 65 | 23621006 | GEAR (SMALL)(D) | 1 |
| 66 | SS8661012TP | SCREW | 2 |
| 67 | 11038759 | BOBBIN CASE ASM. | 1 |
| 68 | 11141355 | HOOK ASM. | 1 |
| 69 | 11038650 | HOOK ASM. | 1 |
| 70 | 40086740 | OIL SEAL | 1 |
| 71 | 40030786 | FEED BASE COMPL. | 1 |
| 72 | 22964001 | BOBBIN A | 1 |
| 73 | 40086744 | HOOK DRIVING SHAFT OIL SEAL | 1 |
| 74 | 23620404 | HOOK SHAFT REAR METAL | 1 |
| 75 | 40089607 | INNER_HOOK_HOLDER | 1 |
| 76 | SM4051055SP | SCREW | 1 |
| 77 | 40086618 | FEED_SHAFT_REAR_METAL | 1 |
| 78 | 40086741 | OIL SEAL | 1 |
| 79 | 40086742 | OIL SEAL | 1 |
| 80 | SB120001800 | BEARING | 1 |
| 81 | 40141443 | UNDER SPROCKET ASM. | 1 |
| 82 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 83 | RC1200001KP | C-SHAPED SNAP RING | 1 |
| 84 | 11079506 | FRONT SCREW | 1 |
| 85 | 11417714 | FEED_DOG_A | 1 |
Page 24 — THREAD TRIMMER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40067412 | KNIFE UNIT | 1 |
| 2 | 11497302 | THREAD HAUL KNIFE | 1 |
| 3 | 40067413 | KNIFE BASE ASM. | 1 |
| 4 | 11497104 | LOOP SPREADING BASE | 1 |
| 5 | 11420601 | SCREW | 4 |
| 6 | 11420106 | THREAD CUTTER KNIFE | 1 |
| 7 | 11091204 | ADJUST LINK SPRING | 1 |
| 8 | 40016706 | OIL_TANK_STUD_B | 1 |
| 9 | 40029398 | PICKER SPRING | 1 |
| 10 | 40010434 | THRUST_COLLAR_ASM | 1 |
| 11 | 40066590 | ASSY PICKER ARM | 1 |
| 12 | 40036997 | ASSY_PICKER | 1 |
| 13 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 14 | 40066591 | PICKER ARM | 1 |
| 15 | 22950000 | PICKER LINK PIN | 1 |
| 16 | WP0621016SH | WASHER | 1 |
| 17 | NS6150310SP | NUT 15/64-28 | 1 |
| 18 | 40113199 | THREAD_CUTTER_DRIVING_UNIT_MS_PBN | 1 |
| 19 | 11420700 | THREAD CUTTER KNIFE SHAFT | 1 |
| 20 | 11421500 | KNIFE DRIVING ARM | 1 |
| 21 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 22 | 11420809 | LOOP SPREADING SHAFT | 1 |
| 23 | 40060792 | LOOP SPREADING ARM ASM. | 1 |
| 24 | SS8110410TP | SCREW 11/64-40 L=3.5 | 1 |
| 25 | SS6110710TP | SCREW 11/64-40 L=6.5 | 1 |
| 26 | SD0500251SP | HINGE SCREW D=5 H=2.5 | 1 |
| 27 | 40113200 | BASE_PLATE_MS_PBN | 1 |
| 28 | WP0651056SH | WASHER 6.5X11X1 | 1 |
| 29 | 40060799 | STOPPER BLOCK | 1 |
| 30 | 11421104 | LOOP SPREADING ARM | 1 |
| 31 | 11421203 | KNIFE DRIVING STITCH TONGUE | 1 |
| 32 | NM6050001SD | NUT M5X0.8 | 2 |
| 33 | SM8053002TP | SCREW M5 L=30 | 2 |
| 34 | SM6051002TP | SCREW M5X0.8 L=10 | 2 |
| 35 | 40062180 | KNIFE RETURN SPRING | 1 |
| 36 | SD0640321TP | HINGE SCREW D=6.35 H=3.2 | 1 |
| 37 | 40082582 | CLUTCH PLATE ASM. | 1 |
| 38 | 40066592 | LOOP SPREAD SPRING | 1 |
| 39 | 11421708 | SPRING HOOK | 1 |
| 40 | RE0500000K0 | E-RING | 1 |
| 41 | 40082588 | CLUTCH PLATE SHAFT | 1 |
| 42 | SS6621212TP | SCREW 3/16-32 L=12.0 | 1 |
| 43 | SD0500402SP | HINGE SCREW D=5 H=4 | 1 |
| 44 | D2422530D00 | CAM ROLLER | 1 |
| 45 | NS6110310SP | NUT 11/64-40 | 1 |
| 46 | SS6621212TP | SCREW 3/16-32 L=12.0 | 1 |
| 47 | RC1200001KP | C-SHAPED SNAP RING | 1 |
Page 26 — THREAD TRIMMER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SD0380551SL | HINGE SCREW D=3.80 H=5.5 | 1 |
| 49 | 11421401 | LOOP SPREADING CONNECTING LINK | 1 |
| 50 | 40082583 | TENSION RELEASING LEVER | 1 |
| 51 | 40082585 | LEVER SPRING HOOK | 1 |
| 52 | SL6061292TN | SCREW | 2 |
| 53 | SD0500251SP | HINGE SCREW D=5 H=2.5 | 1 |
| 54 | 40066602 | KNIFE DRIVING ARM STOPPER | 1 |
| 55 | SM4040655SP | SCREW M4 L=6 | 1 |
| 56 | PS0300062KH | SPRING PIN 3X6 | 1 |
| 57 | SD0641456TP | SHOULDER SCREW D=6.35 H=14.5 | 1 |
| 58 | SD0630275SP | HINGE SCREW D=6.35 H=2.7 | 1 |
| 59 | 40082584 | PICKER LINK | 1 |
| 60 | SL6052092TN | SCREW | 1 |
| 61 | 22956809 | WIPER COLLAR | 1 |
| 62 | 40100135 | STUD BOLT | 1 |
| 63 | 40060801 | STOPPER PLATE | 1 |
| 64 | SL6061292TN | SCREW | 1 |
| 65 | 40082589 | BASE PLATE SCREW | 1 |
| 66 | WP0531001SC | WASHER M5 | 1 |
| 67 | 40062168 | PICKER SPRING HOOK | 1 |
Page 28 — THREAD TRIMMER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40113201 | THREAD_CUTTER_CAM_MS_PBN | 1 |
| 2 | 11419405 | SAFETY CAM | 1 |
| 3 | SS8660612TP | SCREW 1/4-40 L=6 | 4 |
| 4 | 40113204 | CLUTCH_MS_PBN | 1 |
| 5 | 11419207 | THREAD CUTTER DRIVING COLLAR | 1 |
| 6 | 22950950 | CAM COLLAR ASM. | 1 |
| 7 | SS8110520TP | SCREW 11/64-40 L=4.5 | 1 |
| 8 | RC2651218KP | RETAINING RING | 1 |
| 9 | 11419603 | THRUST COLLAR B | 1 |
| 10 | 11419504 | THRUST COLLAR A | 1 |
| 11 | 11419702 | THRUST COLLAR C | 1 |
| 12 | 11419801 | THRUST COLLAR D | 1 |
| 13 | 11419900 | THRUST COLLAR E | 1 |
| 14 | 40060794 | SOLENOID ASM. | 1 |
| 15 | 40060791 | SOLENOID BASE | 1 |
| 16 | 40089263 | THREAD TRIMMER SOLENOID | 1 |
| 17 | 11043304 | SOLENOID RUBBER | 1 |
| 18 | NS6660410SH | NUT | 1 |
| 19 | NS6660430SP | NUT 1/4-40 | 1 |
| 20 | NM6040000SN | NUT M4 | 2 |
| 21 | WP0430800SC | WASHER M4 | 2 |
| 22 | HK03464000B | PIN CONTACT | 2 |
| 23 | SL6061292TN | SCREW | 2 |
| 24 | 23624554 | DRIVING BLOCK ASM. | 1 |
| 25 | 23624505 | DRIVING BLOCK | 1 |
| 26 | SS6110710TP | SCREW 11/64-40 L=6.5 | 1 |
Page 30 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40082059 | GEAR BOX COVER ASM. | 1 |
| 2 | 40135639 | GEAR_BOX_COVER | 1 |
| 3 | 40034246 | OIL_SIGHT_WINDOW | 1 |
| 4 | RO195240100 | RUBBER RING | 1 |
| 5 | 13171004 | DRAIN SCREW | 1 |
| 6 | 13170105 | RUBBER RING | 1 |
| 7 | 23629256 | OIL WICK SUPPORT ASM. | 1 |
| 8 | 23629207 | OIL WICK SUPPORT | 1 |
| 9 | CQ250000001 | OIL WICK | 0.25 |
| 10 | 23629306 | PIPE STOPPER A | 3 |
| 11 | 23629405 | PIPE STOPPER B | 4 |
| 12 | 40037166 | GEAR BOX PACKING | 1 |
| 13 | 40135640 | MAGNET_HOLDER | 1 |
| 14 | SQ2050453MZ | CONNECTING SCREW | 2 |
| 15 | 40086648 | FLOATER_ASM. | 1 |
| 16 | RO068190100 | RUBBER RING | 1 |
| 17 | 23630007 | TUBE | 0.57 |
| 18 | 23630007 | TUBE | 0.08 |
| 19 | 23630007 | TUBE | 0.11 |
| 20 | CQ200000001 | OIL WICK | 0.75 |
| 21 | 23630106 | TUBE B | 0.165 |
| 22 | 23630106 | TUBE B | 0.2 |
| 23 | 40075404 | FACE FELT ASM. | 1 |
| 24 | 22925101 | OIL FELT PRESSER | 1 |
| 25 | RO098240100 | RUBBER RING | 1 |
| 26 | RO172180100 | RUBBER RING | 1 |
| 27 | SL6061292TN | SCREW | 3 |
| 28 | SM6051402TP | SCREW M5X0.8 L=14 | 9 |
| 29 | SM5040655SN | SCREW | 1 |
| 30 | 40013595 | OIL_EXIT_CAP | 1 |
| 31 | 40098329 | OIL_TANK | 1 |
| 32 | 40086646 | FLOATER_CASE_ASM. | 1 |
| 33 | 40086647 | FLOATER_CASE | 1 |
| 34 | 23630403 | OIL FILTER | 1 |
| 35 | 23630502 | OIL FILTER STOPPER | 1 |
| 36 | 23628902 | PLUNGER SPRING | 1 |
| 37 | 40038328 | PLUNGER SCREW | 1 |
| 38 | 40037502 | OIL ADJUSTING SCREW | 1 |
| 39 | RO037180100 | RUBBER RING | 1 |
| 40 | 23628803 | PLUNGER | 1 |
| 41 | 40086693 | FROATER_CASE_GUIDE | 1 |
| 42 | SL6040892TN | BOLT | 1 |
| 43 | SL6051492TN | BOLT | 1 |
| 44 | B8228125000 | OIL RESERVOIR MAGNET | 2 |
| 45 | 40149785 | ASSY_FLOATER_SIGHT_WINDOW_B | 1 |
| 46 | 40000344 | LUBRICATING INLET CAP | 1 |
| 47 | RO048190100 | RUBBER RING | 1 |
Page 32 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40086697 | FLOATER_SIGHT_WINDOW_B | 1 |
| 49 | SM4040601SC | SCREW M4X0.7 L=6 | 1 |
| 50 | WP0501016SD | WASHER 5X10.5X1 | 9 |
| 51 | NM6050001SC | NUT M5X0.8 TYPE1 | 1 |
Page 34 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40086750 | REVERSE FEED SOLENOID ASM. | 1 |
| 2 | HK03464000B | PIN CONTACT | 2 |
| 3 | 40086753 | REVERSE FEED SOLENOID PLUNGER | 1 |
| 4 | RE1200000K0 | E-RING 12 | 1 |
| 5 | D2468555B00 | RUBBER PLUNGER | 1 |
| 6 | WP1602616SZ | WASHER 16X24X2.6 | 1 |
| 7 | WP0550800SP | WASHER 5.5X10X0.8 | 3 |
| 8 | SM4051055SP | SCREW | 3 |
| 9 | WP0551016SH | WASHER 5.5X13X1 | 1 |
| 10 | NM6050001SP | NUT M5 | 2 |
| 11 | WS0610002KN | SPRING WASHER 6.1X12.2X1.5 | 1 |
| 12 | 40095844 | REVERSE FEED ARM ASM. | 1 |
| 13 | 40086698 | REVERSE_FEED_ARM | 1 |
| 14 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 15 | 23631757 | REVERSE FEED SWITCH ASM. | 1 |
| 16 | 23632102 | REVERSE FEED SWITCH BASE GUIDE | 1 |
| 17 | 23632359 | REVERSE FEED CORD ASM. | 1 |
| 18 | EA9500B0100 | CABLE BAND | 1 |
| 19 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 20 | 23631708 | REVERSE FEED SWITCH COVER | 1 |
| 21 | 23631807 | REVERSE FEED SWITCH SHAFT | 1 |
| 22 | 23631906 | REVERSE FEED SWITCH SUPPORT | 1 |
| 23 | 23632003 | REVERSE FEED SWITCH BASE | 1 |
| 24 | SM4051055SP | SCREW | 1 |
| 25 | 23632656 | OPTION SWITCH ASM. | 1 |
| 26 | 23632102 | REVERSE FEED SWITCH BASE GUIDE | 1 |
| 27 | 23632250 | REVERSE FEED CORD ASM. | 1 |
| 28 | EA9500B0100 | CABLE BAND | 1 |
| 29 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 30 | 23631708 | REVERSE FEED SWITCH COVER | 1 |
| 31 | 23631807 | REVERSE FEED SWITCH SHAFT | 1 |
| 32 | 23631906 | REVERSE FEED SWITCH SUPPORT | 1 |
| 33 | 23632607 | OPTION SWITCH BASE | 1 |
| 34 | 40086655 | REVERSE_FEED_CONNECTION_LINK | 1 |
| 35 | 40086699 | REVERSE_FEED_LINK_PIN | 1 |
| 36 | SM8480652TP | SCREW | 1 |
| 37 | 40086759 | BACK_SOLENOID_PLUNGER_PIN | 1 |
Page 36 — CONDENSE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40100043 | CONDENSE_SOLENOID_ASM. | 1 |
| 2 | SM5040401SE | SCREW M4 L=4 | 2 |
| 3 | 40100046 | SOLENOID_BASE_A | 1 |
| 4 | SM6050802TP | SCREW M5X0.8 L=8 | 2 |
| 5 | WP0501016SD | WASHER 5X10.5X1 | 2 |
| 6 | 22962906 | PLUNGER ARM PIN | 1 |
| 7 | NS6110350SP | NUT 11/64-40 | 2 |
| 8 | 40100038 | CONDENSE_ARM_ASM. | 1 |
| 9 | 40100050 | CONDENSE_SPRING | 1 |
| 10 | SD1001506TP | SHOULDER SCREW D=10 H=15 | 1 |
| 11 | 40162657 | CONDENSE_STOPPER | 1 |
| 12 | 40060833 | CONDENSE PIVOT | 1 |
| 13 | RE0600000K0 | E-RING 6 | 1 |
| 14 | SM6051202TP | SCREW M5X0.8 L=12 | 1 |
| 15 | WP0531000SD | WASHER M5 | 1 |
| 16 | 40061486 | STOPPER COLLAR | 1 |
| 17 | SM6051202TP | SCREW M5X0.8 L=12 | 1 |
| 18 | 40100172 | CONDENSE_ARM_STOPPER¥n | 1 |
| 19 | 22609606 | FEED DRIVING ROCKER BLOCK S | 1 |
| 20 | SM6050802TP | SCREW M5X0.8 L=8 | 2 |
| 21 | WP0501016SD | WASHER 5X10.5X1 | 2 |
| 22 | 40100047 | SOLENOID_BASE_B | 1 |
| 23 | SM6061002TP | SCREW M6 L=10 | 1 |
| 24 | WP0641601SD | WASHER M6 | 1 |
| 25 | 40100048 | SOLENOID_COVER | 1 |
Page 38 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40086676 | WIPER ASM. | 1 |
| 2 | 40077853 | WIPER BASE ASM. | 1 |
| 3 | 40086723 | WIPER LINK B | 1 |
| 4 | 40086724 | WIPER SHAFT ASM. | 1 |
| 5 | 40095175 | WIPER_SOLENOID_ASM. | 1 |
| 6 | 40089264 | WIPER SOLENOID | 1 |
| 7 | HK03464000B | PIN CONTACT | 2 |
| 8 | HW500070000 | 2-CORE CABTYRE CORD | 1.3 |
| 9 | 22956106 | WIPER LINK A | 1 |
| 10 | 22956205 | WIPER HINGE SCREW COLLAR | 1 |
| 11 | 22956304 | WIPER SPRING | 1 |
| 12 | 22956809 | WIPER COLLAR | 1 |
| 13 | 22956908 | WIPER LINK B HINGE SCREW | 1 |
| 14 | 22957005 | WIPER | 1 |
| 15 | 22957203 | WIPER LINK COLLAR | 1 |
| 16 | 40077852 | WIPER SOLENOID SHAFT | 1 |
| 17 | 40086678 | WIPER_SW_RUBBER | 1 |
| 18 | 22955900 | WIPER RUBBER A | 1 |
| 19 | 40086717 | FELT_B | 1 |
| 20 | 22956007 | WIPER RUBBER B | 1 |
| 21 | NS6090310SP | NUT 9/64-40 | 1 |
| 22 | NS6110310SP | NUT 11/64-40 | 1 |
| 23 | RC0370411KP | RETAINING RING | 1 |
| 24 | RE0500000K0 | E-RING | 1 |
| 25 | SD0650321TP | HINGE SCREW D=6.5 H=3.2 | 1 |
| 26 | SL4030631SC | SCREW M3X6 | 1 |
| 27 | SL4030641SE | SCREW | 3 |
| 28 | SS6090540SP | SCREW 9/64-40 L=5.0 | 1 |
| 29 | 40077851 | WIPER SOLENOID SHAFT GUIDE | 1 |
| 30 | SS4110615SP | SCREW 11/64-40 L=6 | 2 |
| 31 | 40086680 | WIPER_STOPPER_RUBBER_HOLDER | 1 |
| 32 | 40086679 | WIPER_STOPPER_RUBBER | 1 |
| 33 | WP0661016SP | WASHER | 1 |
| 34 | WP0651001SC | WASHER | 1 |
| 35 | 40086716 | FELT_A | 1 |
| 36 | 22955504 | WIPER COVER | 1 |
| 37 | SM4051055SP | SCREW | 1 |
Page 40 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40108402 | THRED_STAND_B | 1 |
| 2 | 40085786 | SPOOL REST ARM (LOWER) | 1 |
| 3 | 40085787 | SPOOL REST ARM (UPPER) | 1 |
| 4 | 40085788 | SPOOL REST | 2 |
| 5 | 40085789 | SPOOL REST CUSHION | 2 |
| 6 | 40085790 | SPOOL PIN | 2 |
| 7 | 40085791 | SPOOL RETAINER | 2 |
| 8 | 40085794 | THREAD GUIDE | 2 |
| 9 | 40085795 | THREAD GUIDE BUSHING | 2 |
| 10 | 40096326 | SPOOL REST ARM LOWER SCREW | 1 |
| 11 | NM6050001SE | NUT M5 | 2 |
| 12 | 40096327 | SPOOL REST ARM UPPER SCREW | 1 |
| 13 | NM6050001SE | NUT M5 | 2 |
| 14 | WS0510002KN | SPRING WASHER M5 | 2 |
| 15 | WP0531001SC | WASHER M5 | 2 |
| 16 | 40108401 | THREAD_STAND_A | 1 |
| 17 | 40085784 | SPOOL REST ROD LOWER | 1 |
| 18 | 40085785 | SPOOL REST ROD UPPER | 1 |
| 19 | 40085792 | SPOOL REST ROD JOINT | 1 |
| 20 | 40085793 | SPOOL REST ROD RUBBER CAP | 1 |
| 21 | 40096325 | SPOOL REST ROD NUT | 1 |
| 22 | WP1612616SE | WASHER 16X30X2.6 | 2 |
| 23 | 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 |
| 24 | SM4051405SE | SCREW M5 L=14 | 2 |
| 25 | NM6050001SE | NUT M5 | 2 |
Page 42 — UNDER COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40089665 | UNDER COVER AH ASM. | 1 |
| 2 | 40062321 | UNDER COVER A ASM. | 1 |
| 3 | 40089671 | UNDER COVER BH ASM. | 1 |
| 4 | 40062323 | UNDER COVER B ASM. | 1 |
| 5 | 23639008 | UNDER COVER | 1 |
| 6 | 22932008 | RUBBER CUSHION | 2 |
| 7 | B1116210D00 | FRAME SUPPORT RUBBER | 2 |
| 8 | B1116210D00 | FRAME SUPPORT RUBBER | 2 |
| 9 | 23639156 | BRACKET ASM. | 1 |
| 10 | 23639107 | BRACKET | 1 |
| 11 | NM6060001SE | NUT M6 | 2 |
| 12 | SM8063012TR | SCREW M6 L=30 | 2 |
| 13 | 23639206 | CONNECTING ROT | 1 |
| 14 | 23639305 | KNEE PRESS ROD | 1 |
| 15 | 23639404 | SHAFT | 1 |
| 16 | 23639503 | SPRING | 1 |
| 17 | 23639602 | CONNECTING ROD | 1 |
| 18 | WP0650876SD | WASHER 6.5X13X0.8 | 2 |
| 19 | 22932453 | BRACKET ASM. | 1 |
| 20 | 22932404 | BRACKET | 1 |
| 21 | SM9062053SR | SCREW M6 L=20 | 2 |
| 22 | NS6150310SP | NUT 15/64-28 | 2 |
| 23 | RE1000000K0 | E-RING 10 | 2 |
| 24 | RE1000000K0 | E-RING 10 | 1 |
| 25 | SD0720331SP | HINGE SCREW D=7.24 H=3.3 | 2 |
| 26 | SM9061853SR | SCREW M6 L=17.5 | 1 |
| 27 | SM9061853SR | SCREW M6 L=17.5 | 1 |
| 28 | 22934251 | KNEE PAD PLATE ASM. | 1 |
| 29 | 22934202 | KNEE PAD PLATE | 1 |
| 30 | 22934301 | KNEE PAD PLATE SUPPORT | 1 |
| 31 | 22934400 | KNEE PAD PLATE RUBBER | 1 |
| 32 | 22934509 | KNEE PAD PLATE COVER | 1 |
| 33 | 22934608 | KNEE PAD UPRIGHT SHAFT | 1 |
| 34 | SM9061203SE | SCREW M6 L=12 | 1 |
Page 44 — ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40089663 | ACCESSORIE BAG ASM. | 1 |
| 2 | 40091140 | ACCESSORIE BAG AK ASM. | 1 |
| 3 | 40099736 | ACCESSORIE BAG ASM. 2 | 1 |
| 4 | 40099737 | ACCESSORIE BAG AK ASM. 2 | 1 |
| 5 | 22932800 | ACCESSORIE BAG | 1 |
| 6 | 22933204 | SCREW DRIVER (SMALL) | 1 |
| 7 | 22502504 | THREAD GUIDE BAR | 1 |
| 8 | 23639701 | KNEE LIFTER PRESSER ROD | 1 |
| 9 | EA9500B0100 | CABLE BAND | 1 |
| 10 | 40055591 | HEXAGONAL WRENCH KYE | 1 |
| 11 | 22933105 | SCREW DRIVER (MIDDLE) | 1 |
| 12 | 22931604 | FRAME SUPPORT BAR | 1 |
| 13 | 40024081 | HEAD SUPPORT ROD | 1 |
| 14 | 22958052 | RUBBER HINGE ASM. | 1 |
| 15 | 22926505 | WASHER | 2 |
| 16 | 22926000 | RUBBER CUSHION | 2 |
| 17 | 22958003 | FRAME BUBBER CUSHION | 2 |
| 18 | 22926208 | NAIL | 8 |
| 19 | 22926356 | HINGE COMPL. | 2 |
| 20 | B91210120A0 | OILER ASM. | 1 |
| 21 | MDB100B1100 | NEEDLE DBX1 #11 | 1 |
| 22 | MDB100B0900 | NEEDLE DBX1 #9 | 1 |
| 23 | MDB100B2100 | NEEDLE DBX1 #21 | 1 |
| 24 | MDB100B1400 | NEEDLE DBX1 #14 | 1 |
| 25 | MC200501300 | NEEDLE 134 NM130 | 1 |
| 26 | MC200500650 | NEEDLE 134 NM65 | 1 |
| 27 | MC200500750 | NEEDLE 134 NM75 | 1 |
| 28 | 40135803 | HEAD COVER | 1 |
| 29 | 40089323 | DDL-9000B SETUP DOCUMENT | 1 |
| 30 | CM600100201 | WEEE INFORMATION SHEET | 1 |
| 31 | B9117012000 | BOBBIN | 1 |
| 32 | 22964001 | BOBBIN A | 1 |
| 33 | 40102087 | JUKI_MACHINE_OIL_7 | 1 |
Page 46 — EXCLUSIVE PARTS DDL-9000B DS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40086605 | NEEDLE_BAR_LOWER_METAL_MD | 1 |
| 2 | SM4050501SC | SCREW M5X0.8 L=5 | 1 |
| 3 | 40037146 | FLOATER SIGHT WINDOW D | 1 |
| 4 | 40086604 | NEEDLE_BAR_D_(B) | 1 |
| 5 | 40086602 | NEEDLE_BAR_D_(A) | 1 |
| 6 | 40089274 | HOOK_SHAFT_FRONT_BEARING_COMPL. | 1 |
| 7 | SS6110420TP | SCREW 11/64-40 L=4.8 | 2 |
| 8 | 22890404 | RP HOOK C | 1 |
| 9 | 22890206 | RP HOOK | 1 |
| 10 | 22890305 | RP HOOK S | 1 |
| 11 | 22964001 | BOBBIN | 1 |
| 12 | 22896252 | BOBBIN CASE ASM. | 1 |
| 13 | 40050586 | KNIFE UNIT D | 1 |
| 14 | 22895908 | COUNTER KNIFE | 1 |
| 15 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 16 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 17 | 11040052 | MOVING KNIFE ASM. | 1 |
| 18 | 40050588 | THREAD GUIDE FOR KNIFE D | 1 |
| 19 | 22947907 | KNIFE MOUNTING BASE | 1 |
| 20 | 11040409 | MOVING KNIFE HINGE SCREW | 1 |
| 21 | 22896005 | FORKED BASE FOR KNIFE | 1 |
| 22 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 23 | 40006323 | JUKI GREASE A TUBE | 1 |
| 24 | 40050581 | JOINT_CABLE_ASM. | 1 |
Page 48 — EXCLUSIVE PARTS DDL-9000B MS,MA
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11001906 | THROAT PLATE K | 1 |
| 2 | 11162104 | SPRING | 1 |
| 3 | MDB100B1100 | NEEDLE DBX1 #11 | 1 |
| 4 | D1613155W00 | FEED DOG W | 1 |
| 5 | D1524555DBB | PRESSER FOOT ASM. | 1 |
| 6 | MDB100B0900 | NEEDLE DBX1 #9 | 1 |
| 7 | MC200500650 | NEEDLE 134 NM65 | 1 |
| 8 | 40141843 | REGULATOR PIN DIAL 4 | 1 |
| 9 | 40037439 | THREAD TAKE UP COMP. A | 1 |
| 10 | 40037479 | THREAD TENSION DISK ASM. A | 1 |
| 11 | 23626005 | THREAD TENSION NUT | 1 |
| 12 | B3132552000 | THREAD TENSION DISK PRESSER | 1 |
| 13 | B3126012000 | THREAD TENSION DISK | 2 |
| 14 | 40024845 | TENSION POST SOCKET ASM. | 1 |
| 15 | B3115552000 | TENSION POST | 1 |
| 16 | B3120125000 | ROTATING STOPPER | 1 |
| 17 | D3129555D00 | THREAD TENSION SPRING | 1 |
| 18 | D3128555D00 | TAKE-UP SPRING | 1 |
| 19 | SS8090670SP | SCREW 9/64-40 L=5.5 | 1 |
| 20 | 40086605 | NEEDLE_BAR_LOWER_METAL_MD | 1 |
| 21 | SM4050501SC | SCREW M5X0.8 L=5 | 1 |
| 22 | 40086604 | NEEDLE_BAR_D_(B) | 1 |
| 23 | 40086602 | NEEDLE_BAR_D_(A) | 1 |
| 24 | 40000264 | BOBBIN CASE ASM. | 1 |
| 25 | 40006323 | JUKI GREASE A TUBE | 1 |
| 26 | 23629306 | PIPE STOPPER A | 1 |
| 27 | 40042086 | CAP | 1 |
| 28 | 11038759 | BOBBIN CASE ASM. | 1 |
| 29 | 23630007 | TUBE | 0.07 |
Page 50 — EXCLUSIVE PARTS DDL-9000B SH
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40089605 | THROAT_PLATE_J | 1 |
| 2 | 40107708 | NEEDLE_BAR_METAL_LOWER_H | 1 |
| 3 | 40061767 | NEEDLE BAR H | 1 |
| 4 | MDB100B2100 | NEEDLE DBX1 #21 | 1 |
| 5 | B9117012000 | BOBBIN | 1 |
| 6 | B1505552000A | PRESSER SPRING | 1 |
| 7 | D1524555EBL | PRESSER FOOT ASM. | 1 |
| 8 | 40064839 | PRESSER FOOT ASM. | 1 |
| 9 | 40089610 | INNER_HOOK_HOLDER_H | 1 |
| 10 | 11092251 | LUBRICATING BOBBIN ASM. | 1 |
| 11 | 40055604 | THREAD TAKE UP COMP. H | 1 |
| 12 | 40050587 | KNIFE UNIT H | 1 |
| 13 | 11095502 | KNIFE MOUNT BASE | 1 |
| 14 | 40044190 | THREAD_GUIDE_FOR_KNIFE H | 1 |
| 15 | 11409257 | MOVING KNIFE J ASM. | 1 |
| 16 | 40009894 | FORKED BASE FOR KNIFE | 1 |
| 17 | 40050589 | FIX KNIFE H | 1 |
| 18 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 19 | SD0500131TP | HINGE SCREW D=5 H=1.25 | 1 |
| 20 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 21 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 22 | 40000264 | BOBBIN CASE ASM. | 1 |
| 23 | 40037313 | THREAD TENSION DISK ASM. H | 1 |
| 24 | 23626005 | THREAD TENSION NUT | 1 |
| 25 | B3115552000 | TENSION POST | 1 |
| 26 | B3120125000 | ROTATING STOPPER | 1 |
| 27 | B3126012000 | THREAD TENSION DISK | 2 |
| 28 | B3128012000 | TAKE-UP SPRING | 1 |
| 29 | B3132552000 | THREAD TENSION DISK PRESSER | 1 |
| 30 | 40024845 | TENSION POST SOCKET ASM. | 1 |
| 31 | B3114232000 | THREAD TENSION SPRING | 1 |
| 32 | SS8090670SP | SCREW 9/64-40 L=5.5 | 1 |
| 33 | J1063000000 | WRENCH | 1 |
| 34 | 40024124 | NEEDLE BAR THREAD GUIDE | 1 |
| 35 | 23619059 | VERTICAL FEED CAM H ASM. | 1 |
| 36 | 23619000 | VERTICAL FEED CAM H | 1 |
| 37 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 38 | 40055058 | ASSY COUNTER WEIGHT H | 1 |
| 39 | 40053411 | COUNTER WEIGHT H | 1 |
| 40 | 40004171 | COUNTER_WEIGHT_SCREW | 1 |
| 41 | SM8081652TP | SCREW M8 L=16 | 1 |
| 42 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 43 | 40069369 | VERTICAL FEED CAM ASM. 2.0 | 1 |
| 44 | 40069370 | VERTICAL FEED CAM 2.0 | 1 |
| 45 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 46 | 40063697 | ARM THREAD GUIDE A H | 1 |
| 47 | 11062601 | FEED DOG | 1 |
Page 52 — EXCLUSIVE PARTS DDL-9000B SH
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 11062007 | THROAT PLATE A | 1 |
| 49 | 11403003 | FEED J | 1 |
Page 54 — TABLE & STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23642259 | TABLE ASM. | 1 |
| 2 | 23642200 | TABLE | 1 |
| 3 | 11075900 | RUBBER SPACER | 2 |
| 4 | 11075801 | RUBBER SPACER | 2 |
| 5 | B8210012000 | CUSHION SET NAIL | 4 |
| 6 | B8210012000 | CUSHION SET NAIL | 4 |
| 7 | D8226555E00 | FRAME RUBBER CUSHION A | 2 |
| 8 | 11157567 | T LEG JUNCTION | 1 |
| 9 | GPK700010A0 | 3-JOINT PEDAL 70 | 1 |
| 10 | 11157559 | T-STAND ASM. | 1 |
| 11 | 11155769 | SMALL CASTINGS BOX B ASM. | 1 |
| 12 | 11156007 | CASE | 1 |
| 13 | 11155801 | CASE MAGNET | 1 |
| 14 | 11155751 | CASE ASM. B | 1 |
| 15 | SK3382001SC | WOOD SCREW D=3.8 L=20 | 4 |
| 16 | 11155157 | DRAWER ASM. | 1 |
| 17 | 11155108 | DRAWER | 1 |
| 18 | 11155207 | DRAWER SUPPORT | 2 |
| 19 | SK3311600SE | WOOD SCREW D=3.1 L=16 | 6 |
| 20 | GPK710010A0 | 2-PEDAL ASM. 71 | 1 |
| 21 | D8204555D00 | DRAWER STOPPER | 1 |
| 22 | SK3513200SC | WOOD SCREW D=5.1 L=32 | 4 |
| 23 | 11159456 | CASTER ASM. | 1 |
| 24 | SM9086523SE | HEXAGONAL BOLT | 2 |
| 25 | 11159407 | CASTER | 4 |
| 26 | 11159506 | STRUT AUXILIARY PLATE | 2 |
| 27 | WS0861410KR | SPRING WASHER 8.6X15X1.4 | 2 |
| 28 | WP0871602SE | WASHER 8.7X18X1.6 | 2 |
Page 56 — SPECIAL ORDER PART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40065571 | ELECTRIC FAN HOOK COOLING DEVICE | 1 |
| 2 | 40044065 | FAN_RELAY_CABLE | 1 |
| 3 | 40064805 | FAN FILTER | 1 |
| 4 | 40064806 | FAN COOLING COVER | 1 |
| 5 | 40065564 | FAN MOTOR ASSY | 1 |
| 6 | SK3415001SE | SCREW D=4.1 L=50 | 2 |
| 7 | MAO11532000 | CORD STAPLE | 3 |
| 8 | 40065572 | HOOK COOLING DEVICE INSTRUCTION MANUAL | 1 |
Page 58 — NEEDLE THREAD PRESSER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40131641 | THREAD CATCHER ASM. | 1 |
| 2 | SM8040612TP | SCREW M4 L=6 | 1 |
Page 60 — LED REVERSE FEED SWITCH COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40163072 | LED_BT_SWITCH_ASSY_921 | 1 |
| 2 | SM4050655SP | SCREW M5 L=6 | 1 |
Page 62 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11001906 | ||
| 30 | 11421104 | ||
| 25 | 22921308 | ||
| 61 | 11015906 | ||
| 31 | 11421203 | ||
| 52 | 22921407 | ||
| 68･69 | 11038650 | ||
| 49 | 11421401 | ||
| 27 | 22921407 | ||
| 67 | 11038759 | ||
| 20 | 11421500 | ||
| 53 | 22921506 | ||
| 24･28 | 11038759 | ||
| 39 | 11421708 | ||
| 28 | 22921506 | ||
| 17 | 11040052 | ||
| 4 | 11497104 | ||
| 54 | 22921605 | ||
| 20 | 11040409 | ||
| 2 | 11497302 | ||
| 55 | 22921704 | ||
| 17 | 11043304 | ||
| 6 | 13170105 | ||
| 29 | 22921704 | ||
| 48 | 11062007 | ||
| 5 | 13171004 | ||
| 56 | 22921803 | ||
| 47 | 11062601 | ||
| 7 | 22502504 | ||
| 24 | 22925101 | ||
| 4 | 11075801 | ||
| 19 | 22609606 | ||
| 16 | 22926000 | ||
| 3 | 11075900 | ||
| 27･28 | 22886907 | ||
| 18 | 22926208 | ||
| 84 | 11079506 | ||
| 27･28 | 22887004 | ||
| 19 | 22926356 | ||
| 7 | 11091204 | ||
| 8～10 | 22890206 | ||
| 15 | 22926505 | ||
| 10 | 11092251 | ||
| 8～10 | 22890305 | ||
| 12･13 | 22931604 | ||
| 13 | 11095502 | ||
| 8～10 | 22890404 | ||
| 6･7 | 22932008 | ||
| 68･69 | 11141355 | ||
| 14 | 22895908 | ||
| 20 | 22932404 | ||
| 17 | 11155108 | ||
| 21 | 22896005 | ||
| 19 | 22932453 | ||
| 16 | 11155157 | ||
| 12 | 22896252 | ||
| 5 | 22932800 | ||
| 18 | 11155207 | ||
| 14･15 | 22901201 | ||
| 11 | 22933105 | ||
| 14 | 11155751 | ||
| 12･13 | 22901250 | ||
| 6 | 22933204 | ||
| 11 | 11155769 | ||
| 16･17 | 22901300 | ||
| 29 | 22934202 | ||
| 13 | 11155801 | ||
| 81 | 22901805 | ||
| 28 | 22934251 | ||
| 12 | 11156007 | ||
| 30 | 22902506 | ||
| 30 | 22934301 | ||
| 10 | 11157559 | ||
| 14･15 | 22902704 | ||
| 31 | 22934400 | ||
| 8 | 11157567 | ||
| 12･13 | 22902753 | ||
| 32 | 22934509 | ||
| 25 | 11159407 | ||
| 23 | 22904106 | ||
| 33 | 22934608 | ||
| 23 | 11159456 | ||
| 22 | 22904155 | ||
| 21 | 22944508 | ||
| 26 | 11159506 | ||
| 9 | 22906309 | ||
| 34 | 22944508 | ||
| 2 | 11162104 | ||
| 30 | 22906408 | ||
| 62 | 22945414 | ||
| 49 | 11403003 | ||
| 29 | 22906457 | ||
| 63 | 22945604 | ||
| 15 | 11409257 | ||
| 15 | 22907406 | ||
| 65 | 22945703 | ||
| 94 | 11417615 | ||
| 22 | 22907802 | ||
| 66 | 22945802 | ||
| 85 | 11417714 | ||
| 8 | 22908008 | ||
| 19 | 22947907 | ||
| 5 | 11419207 | ||
| 24 | 22908552 | ||
| 15 | 22950000 | ||
| 2 | 11419405 | ||
| 29 | 22908909 | ||
| 6 | 22950950 | ||
| 10 | 11419504 | ||
| 11 | 22910509 | ||
| 8 | 22951552 | ||
| 9 | 11419603 | ||
| 13 | 22911002 | ||
| 27 | 22952501 | ||
| 11 | 11419702 | ||
| 6 | 22911101 | ||
| 36 | 22955504 | ||
| 12 | 11419801 | ||
| 60 | 22916506 | ||
| 18 | 22955900 | ||
| 13 | 11419900 | ||
| 59 | 22916555 | ||
| 20 | 22956007 | ||
| 6 | 11420106 | ||
| 40 | 22920300 | ||
| 9 | 22956106 | ||
| 5 | 11420601 | ||
| 41 | 22920409 | ||
| 10 | 22956205 | ||
| 19 | 11420700 | ||
| 60 | 22920607 | ||
| 11 | 22956304 | ||
| 22 | 11420809 | ||
| 51 | 22921209 | ||
| 61 | 22956809 |
Page 63 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12 | 22956809 | 36 | |
| 13 | 22956908 | 36 | |
| 14 | 22957005 | 36 | |
| 15 | 22957203 | 36 | |
| 17 | 22958003 | 42 | |
| 14 | 22958052 | 42 | |
| 6 | 22962906 | 34 | |
| 64 | 22963409 | 4 | |
| 61 | 22963458 | 4 | |
| 72 | 22964001 | 20 | |
| 32 | 22964001 | 42 | |
| 11 | 22964001 | 44 | |
| 4 | 23600505 | 2 | |
| 84 | 23601305 | 4 | |
| 25 | 23608003 | 8 | |
| 12 | 23609308 | 12 | |
| 5 | 23609357 | 12 | |
| 6 | 23609456 | 12 | |
| 7 | 23609605 | 12 | |
| 14 | 23609704 | 12 | |
| 16 | 23610207 | 12 | |
| 17 | 23610306 | 12 | |
| 48 | 23610504 | 14 | |
| 49 | 23610652 | 14 | |
| 51 | 23610702 | 14 | |
| 47 | 23611106 | 12 | |
| 25 | 23612609 | 16 | |
| 39 | 23613409 | 16 | |
| 16 | 23613706 | 16 | |
| 2 | 23616006 | 18 | |
| 20 | 23616204 | 18 | |
| 32 | 23616402 | 18 | |
| 33 | 23616600 | 18 | |
| 14 | 23616709 | 18 | |
| 47 | 23618101 | 18 | |
| 52 | 23618309 | 20 | |
| 36 | 23619000 | 48 | |
| 35 | 23619059 | 48 | |
| 56 | 23620008 | 20 | |
| 57 | 23620156 | 20 | |
| 74 | 23620404 | 20 | |
| 54 | 23620503 | 20 | |
| 62~65 | 23620701 | 20 | |
| 62~65 | 23620800 | 20 | |
| 62~65 | 23620909 | 20 | |
| 62~65 | 23621006 | 20 | |
| 25 | 23624505 | 26 | |
| 24 | 23624554 | 26 | |
| 50 | 23626005 | 4 | |
| 11 | 23626005 | 46 | |
| 24 | 23626005 | 48 | |
| 69 | 23626104 | 4 | |
| 33 | 23626203 | 8 | |
| 42 | 23626351 | 12 | |
| 43 | 23626807 | 12 | |
| 40 | 23628803 | 28 | |
| 36 | 23628902 | 28 | |
| 8 | 23629207 | 28 | |
| 7 | 23629256 | 28 | |
| 10 | 23629306 | 28 | |
| 26 | 23629306 | 46 | |
| 11 | 23629405 | 28 | |
| 82 | 23629900 | 4 | |
| 23 | 23630007 | 16 | |
| 19 | 23630007 | 28 | |
| 29 | 23630007 | 46 | |
| 22 | 23630106 | 28 | |
| 34 | 23630403 | 28 | |
| 35 | 23630502 | 28 | |
| 30 | 23631708 | 32 | |
| 15 | 23631757 | 32 | |
| 31 | 23631807 | 32 | |
| 32 | 23631906 | 32 | |
| 23 | 23632003 | 32 | |
| 26 | 23632102 | 32 | |
| 27 | 23632250 | 32 | |
| 17 | 23632359 | 32 | |
| 33 | 23632607 | 32 | |
| 25 | 23632656 | 32 | |
| 73 | 23638109 | 4 | |
| 74 | 23638208 | 4 | |
| 75 | 23638307 | 4 | |
| 76 | 23638406 | 4 | |
| 5 | 23639008 | 40 | |
| 10 | 23639107 | 40 | |
| 9 | 23639156 | 40 | |
| 13 | 23639206 | 40 | |
| 14 | 23639305 | 40 | |
| 15 | 23639404 | 40 | |
| 16 | 23639503 | 40 | |
| 17 | 23639602 | 40 | |
| 8 | 23639701 | 42 | |
| 47-48 | 23640006 | 2 | |
| 2 | 23642200 | 52 | |
| 1 | 23642259 | 52 | |
| 2 | 26260109 | 6 | |
| 3 | 26260208 | 6 | |
| 4 | 26260307 | 6 | |
| 5 | 26260406 | 6 | |
| 6 | 26260505 | 6 | |
| 7 | 26260604 | 6 | |
| 8 | 26260802 | 6 | |
| 9 | 26261008 | 6 | |
| 10 | 26261206 | 6 | |
| 11 | 26261505 | 6 | |
| 12 | 26261503 | 6 | |
| 13 | 26261602 | 6 | |
| 14 | 26261701 | 6 | |
| 24-28 | 40000264 | 46 | |
| 22 | 40000264 | 48 | |
| 46 | 40000344 | 28 | |
| 37 | 40000391 | 18 | |
| 38 | 40000392 | 18 | |
| 4 | 40004171 | 8 | |
| 40 | 40004171 | 48 | |
| 23 | 40006323 | 44 | |
| 25 | 40006323 | 46 | |
| 46 | 40006716 | 16 | |
| 16 | 40009894 | 48 | |
| 10 | 40010434 | 22 | |
| 15 | 40011144 | 6 | |
| 30 | 40013595 | 28 | |
| 16 | 40014837 | 6 | |
| 8 | 40016706 | 22 | |
| 1 | 40023021 | 6 | |
| 17 | 40023022 | 6 | |
| 12-13 | 40024081 | 42 | |
| 34 | 40024124 | 48 | |
| 14 | 40024845 | 46 | |
| 30 | 40024845 | 48 | |
| 5 | 40026277 | 18 | |
| 31 | 40026278 | 18 | |
| 16 | 40026281 | 18 | |
| 36 | 40026282 | 18 | |
| 41 | 40026287 | 18 |
Page 64 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 40026288 | ||
| 9 | 40029398 | ||
| 71 | 40030786 | ||
| 46 | 40032269 | ||
| 3 | 40034246 | ||
| 37 | 40035589 | ||
| 12 | 40036706 | ||
| 12 | 40036997 | ||
| 18 | 40037005 | ||
| 8 | 40037006 | ||
| 8 | 40037007 | ||
| 6 | 40037008 | ||
| 12 | 40037141 | ||
| 12 | 40037144 | ||
| 44 | 40037146 | ||
| 2 | 40037158 | ||
| 28 | 40037166 | ||
| 18 | 40037192 | ||
| 48 | 40037313 | ||
| 12 | 40037359 | ||
| 18 | 40037365 | ||
| 46 | 40037439 | ||
| 46 | 40037479 | ||
| 4 | 40037488 | ||
| 28 | 40037502 | ||
| 28 | 40038328 | ||
| 2 | 40041161 | ||
| 18 | 40042079 | ||
| 46 | 40042086 | ||
| 54 | 40044065 | ||
| 48 | 40044190 | ||
| 44 | 40050581 | ||
| 12 | 40050582 | ||
| 12 | 40050583 | ||
| 44 | 40050586 | ||
| 48 | 40050587 | ||
| 44 | 40050588 | ||
| 48 | 40050589 | ||
| 8 | 40051473 | ||
| 8 | 40051474 | ||
| 2 | 40052819 | ||
| 2 | 40052933 | ||
| 48 | 40053411 | ||
| 18 | 40053720 | ||
| 48 | 40055058 | ||
| 24 | 40082589 | ||
| 38 | 40085784 | ||
| 38 | 40085785 | ||
| 38 | 40085786 | ||
| 38 | 40085787 | ||
| 38 | 40085788 | ||
| 38 | 40085789 | ||
| 38 | 40085790 | ||
| 38 | 40085791 | ||
| 38 | 40085792 | ||
| 38 | 40085793 | ||
| 38 | 40085794 | ||
| 38 | 40085795 | ||
| 38 | 40085796 | ||
| 8 | 40086597 | ||
| 44 | 40086602 | ||
| 46 | 40086602 | ||
| 44 | 40086604 | ||
| 46 | 40086604 | ||
| 44 | 40086605 | ||
| 46 | 40086605 | ||
| 12 | 40086606 | ||
| 12 | 40086607 | ||
| 16 | 40086608 | ||
| 16 | 40086609 | ||
| 16 | 40086613 | ||
| 16 | 40086614 | ||
| 16 | 40086615 | ||
| 16 | 40086616 | ||
| 16 | 40086617 | ||
| 20 | 40086618 | ||
| 4 | 40086639 | ||
| 4 | 40086640 | ||
| 12 | 40086643 | ||
| 28 | 40086646 | ||
| 28 | 40086647 | ||
| 28 | 40086648 | ||
| 32 | 40086655 | ||
| 4 | 40086659 | ||
| 4 | 40086660 | ||
| 16 | 40086674 | ||
| 16 | 40086675 | ||
| 36 | 40086676 | ||
| 36 | 40086678 |
Page 65 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31 | 40086680 | ||
| 45 | 40086690 | ||
| 41 | 40086693 | ||
| 2 | 40086695 | ||
| 3 | 40086696 | ||
| 48 | 40086697 | ||
| 13 | 40086698 | ||
| 35 | 40086699 | ||
| 8 | 40086704 | ||
| 9 | 40086705 | ||
| 12 | 40086706 | ||
| 6 | 40086713 | ||
| 34 | 40086714 | ||
| 29 | 40086716 | ||
| 19 | 40086717 | ||
| 3 | 40086723 | ||
| 4 | 40086724 | ||
| 24 | 40086731 | ||
| 33 | 40086732 | ||
| 1 | 40086735 | ||
| 37 | 40086736 | ||
| 20 | 40086737 | ||
| 15 | 40086738 | ||
| 21 | 40086739 | ||
| 70 | 40086740 | ||
| 78 | 40086741 | ||
| 79 | 40086742 | ||
| 34 | 40086743 | ||
| 73 | 40086744 | ||
| 1 | 40086750 | ||
| 3 | 40086753 | ||
| 37 | 40086757 | ||
| 44 | 40086759 | ||
| 12 | 40086760 | ||
| 24 | 40088958 | ||
| 6 | 40089959 | ||
| 8 | 40089196 | ||
| 26 | 40089263 | ||
| 36 | 40089264 | ||
| 44 | 40089274 | ||
| 42 | 40089323 | ||
| 48 | 40089605 | ||
| 20 | 40089607 | ||
| 48 | 40089610 | ||
| 42 | 40089663 | ||
| 40 | 40089665 | ||
| 40 | 40089671 | ||
| 8 | 40090058 | ||
| 42 | 40091140 | ||
| 4 | 40091397 | ||
| 2 | 40091461 | ||
| 2 | 40094561 | ||
| 36 | 40095175 | ||
| 32 | 40095844 | ||
| 16 | 40095847 | ||
| 38 | 40096325 | ||
| 38 | 40096326 | ||
| 38 | 40096327 | ||
| 28 | 40098329 | ||
| 4 | 40098386 | ||
| 42 | 40099736 | ||
| 42 | 40099737 | ||
| 34 | 40100038 | ||
| 34 | 40100043 | ||
| 34 | 40100046 | ||
| 34 | 40100047 | ||
| 34 | 40100048 | ||
| 34 | 40100050 | ||
| 24 | 40100135 | ||
| 34 | 40100172 | ||
| 42 | 40102087 | ||
| 8 | 40107707 | ||
| 48 | 40107708 | ||
| 38 | 40108401 | ||
| 38 | 40108402 | ||
| 22 | 40113199 | ||
| 22 | 40113200 | ||
| 26 | 40113201 | ||
| 26 | 40113204 | ||
| 2 | 40114043 | ||
| 16 | 40122891 | ||
| 16 | 40123098 | ||
| 56 | 40131641 | ||
| 28 | 40135639 | ||
| 28 | 40135640 | ||
| 42 | 40135803 | ||
| 8 | 40135900 | ||
| 8 | 40135904 | ||
| 8 | 40135905 | ||
| 8 | 40135906 | ||
| 8 | 40135907 | ||
| 8 | 40135916 | ||
| 8 | 40136292 | ||
| 8 | 40136293 | ||
| 12 | 40136700 | ||
| 8 | 40141165 | ||
| 8 | 40141440 | ||
| 20 | 40141443 | ||
| 16 | 40141838 | ||
| 16 | 40141840 | ||
| 16 | 40141841 | ||
| 16 | 40141842 | ||
| 46 | 40141843 | ||
| 8 | 40143184 | ||
| 20 | 40145927 | ||
| 28 | 40149785 | ||
| 8 | 40150011 | ||
| 16 | 40161440 | ||
| 16 | 40161441 | ||
| 34 | 40162657 | ||
| 4 | 40163071 | ||
| 58 | 40163072 | ||
| 18 | 40164902 | ||
| 40 | B1116210D00 | B1116210D00 | |
| 48 | B1505552000A | B1505552000A | |
| 12 | B152155000 | B152155000 | |
| 12 | B15240120BA | B15240120BA | |
| 48 | B3114232000 | B3114232000 | |
| 46 | B3115552000 | B3115552000 | |
| 48 | B3115552000 | B3115552000 | |
| 14 | B3118552F00 | B3118552F00 | |
| 46 | B3120125000 | B3120125000 | |
| 48 | B3120125000 | B3120125000 | |
| 46 | B3126012000 | B3126012000 | |
| 48 | B3126012000 | B3126012000 | |
| 48 | B3128012000 | B3128012000 | |
| 46 | B3132552000 | B3132552000 | |
| 48 | B3132552000 | B3132552000 | |
| 18 | B412352200A | B412352200A | |
| 18 | B412352200B | B412352200B | |
| 18 | B412352200C | B412352200C | |
| 52 | B8210012000 | B8210012000 | |
| 28 | B8228125000 | B8228125000 | |
| 42 | B9117012000 | B9117012000 | |
| 48 | B9117012000 | B9117012000 |
Page 66 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20 | B91210120A0 | CM300200001 | |
| 23 | CM300200001 | MDB100B2100 | |
| 25 | CM300200003 | MDB100B2100 | |
| 29 | CM301300001 | NM6040000SN | |
| 87 | CM600100101 | NM6040001SP | |
| 30 | CM600100201 | NM6050001SC | |
| 88 | CM600600101 | NM6050001SD | |
| 20 | CQ200000001 | NM6050001SE | |
| 9 | CQ250000001 | NM6050001SP | |
| 47 | CS1000881TP | NM6060001SE | |
| 5 | D152455DBB | NM6060003SE | |
| 7 | D1524555EBL | NS6090310SP | |
| 4 | D1613155W00 | NS6110310SP | |
| 44 | D2422530D00 | NS6110310SP | |
| 5 | D2468555B00 | NS6110350SP | |
| 18 | D3128555D00 | NS6150310SP | |
| 17 | D3129555D00 | NS6150310SP | |
| 50 | D5119206KOK | NS620310SP | |
| 21 | D8204555D00 | NS660410SH | |
| 7 | D8226555E00 | NS660430SP | |
| 78 | EA9500B0100 | RC0370411KP | |
| 78 | EA9500B0100 | RC0560711KP | |
| 50 | EA9500B0100 | RC0560711KP | |
| 32 | EA9500B0100 | RC1200001KP | |
| 42 | EA9500B0100 | RC1200001KP | |
| 52 | GPK700010A0 | RC2651218KP | |
| 52 | GPK710010A0 | RE0300000K0 | |
| 26 | HK03464000B | RE0400000K0 | |
| 32 | HK03464000B | RE0500000K0 | |
| 36 | HK03464000B | RE0500000K0 | |
| 36 | HW500070000 | RE0500000K0 | |
| 48 | J1063000000 | RE0500000K0 | |
| 54 | MA011532000 | RE0600000K0 | |
| 42 | MC200500650 | RE1000000K0 | |
| 42 | MC200500750 | RE1200000K0 | |
| 8 | MC200500750 | RO036080200 | |
| 42 | MC200501300 | RO037180100 | |
| 42 | MC200501300 | RO037180100 | |
| 42 | MDB100B0900 | RO044240100 | |
| 46 | MDB100B0900 | RO048190100 | |
| 8 | MDB100B1100 | RO068190100 | |
| 42 | MDB100B1100 | RO080150200 | |
| 46 | MDB100B1100 | RO092270200 | |
| 8 | MDB100B1400 | RO098240100 | |
| 42 | MDB100B1400 | RO172180100 | |
| 20 | SB117001200 | RO195240100 | |
| 20 | SB120001800 | MDB100B2100 | |
| 8 | SB120002700 | MDB100B2100 | |
| 20 | SB32000060A | NM6040000SN | |
| 20 | SB32000060B | NM6040001SP | |
| 20 | SB32000060C | NM6050001SC | |
| 24 | SD00380551SL | NM6050001SD | |
| 44 | SD0460703TP | NM6050001SE | |
| 48 | SD0460703TP | NM6050001SP | |
| 48 | SD0500131TP | NM6060001SE | |
| 22 | SD0500251SP | NM6060003SE | |
| 24 | SD0500251SP | NS6090310SP | |
| 22 | SD0500402SP | NS6110310SP | |
| 24 | SD0630275SP | NS6110310SP | |
| 22 | SD0640321TP | NS6110350SP | |
| 24 | SD0641456TP | NS6150310SP | |
| 36 | SD0650321TP | NS6150310SP | |
| 40 | SD0720331SP | NS620310SP | |
| 34 | SD1001506TP | NS660410SH | |
| 52 | SK3311600SE | NS660430SP | |
| 52 | SK3382001SC | RC0370411KP | |
| 54 | SK3415001SE | RC0560711KP | |
| 52 | SK3513200SC | RC1200001KP | |
| 36 | SL4030631SC | RC1200001KP | |
| 36 | SL4030641SE | RC2651218KP | |
| 28 | SL6040892TN | RE0300000K0 | |
| 28 | SL6051492TN | RE0400000K0 | |
| 24 | SL6052092TN | RE0500000K0 | |
| 10 | SL6052592TN | RE0500000K0 | |
| 14 | SL6053592TN | RE0500000K0 | |
| 24 | SL6061292TN | RE0500000K0 | |
| 26 | SL6061292TN | RE0600000K0 | |
| 28 | SL6061292TN | RE1000000K0 | |
| 6 | SM0050801SC | RE1200000K0 | |
| 2 | SM2040750TP | RO036080200 | |
| 2 | SM2040955TP | RO037180100 | |
| 4 | SM4021201SC | RO037180100 | |
| 30 | SM4040601SC | RO044240100 | |
| 2 | SM4040655SP | RO048190100 | |
| 18 | SM4040655SP | RO068190100 | |
| 24 | SM4040655SP | RO080150200 | |
| 2 | SM4040855SP | RO092270200 | |
| 12 | SM4040855SP | RO098240100 | |
| 44 | SM4050501SC | RO172180100 | |
| 46 | SM4050501SC | RO195240100 |
Page 67 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 80 | SM4050655SP | SM4050655SP | |
| 2 | SM4050655SP | SM4050655SP | |
| 19 | SM4050855SP | SM4050855SP | |
| 19 | SM4050855SP | SM4050855SP | |
| 89 | SM4051055SP | SM4051055SP | |
| 89 | SM4051055SP | SM4051055SP | |
| 33 | SM4051055SP | SM4051055SP | |
| 76 | SM4051055SP | SM4051055SP | |
| 24 | SM4051055SP | SM4051055SP | |
| 37 | SM4051055SP | SM4051055SP | |
| 32 | SM4051255SP | SM4051255SP | |
| 24 | SM4051405SE | SM4051405SE | |
| 2 | SM5040401SE | SM5040401SE | |
| 68 | SM5040655SN | SM5040655SN | |
| 20 | SM5040655SN | SM5040655SN | |
| 29 | SM5040655SN | SM5040655SN | |
| 9 | SM6040602TP | SM6040602TP | |
| 20 | SM6050802TP | SM6050802TP | |
| 34 | SM6051002TP | SM6051002TP | |
| 17 | SM6051202TP | SM6051202TP | |
| 17 | SM6051400SP | SM6051400SP | |
| 17 | SM6051400SP | SM6051400SP | |
| 37 | SM6051402TP | SM6051402TP | |
| 28 | SM6051402TP | SM6051402TP | |
| 19 | SM6051602TP | SM6051602TP | |
| 14 | SM6051602TP | SM6051602TP | |
| 28 | SM6051850TP | SM6051850TP | |
| 26 | SM6052502TP | SM6052502TP | |
| 7 | SM6061002TP | SM6061002TP | |
| 23 | SM6061002TP | SM6061002TP | |
| 35 | SM6061202TP | SM6061202TP | |
| 2 | SM8040612TP | SM8040612TP | |
| 21 | SM8040802TP | SM8040802TP | |
| 22 | SM8050412TP | SM8050412TP | |
| 22 | SM8050502TP | SM8050502TP | |
| 20 | SM80506A2TP | SM80506A2TP | |
| 4 | SM80506A2TP | SM80506A2TP | |
| 33 | SM8053002TP | SM8053002TP | |
| 6 | SM80606A2TP | SM80606A2TP | |
| 47 | SM80606A2TP | SM80606A2TP | |
| 33 | SM80606A2TP | SM80606A2TP | |
| 70 | SM80608A2TP | SM80608A2TP | |
| 70 | SM80608A2TP | SM80608A2TP | |
| 44 | SM80608A2TP | SM80608A2TP | |
| 26 | SM80608A2TP | SM80608A2TP | |
| 20 | SM80608A2TP | SM80608A2TP | |
| 82 | SM80608A2TP | SM80608A2TP | |
| 12 | SM8063012TR | SM8063012TR | |
| 5 | SM8081652TP | SM8081652TP | |
| 41 | SM8081652TP | SM8081652TP | |
| 36 | SM8480652TP | SM8480652TP | |
| 34 | SM9061203SE | SM9061203SE | |
| 27 | SM9061853SR | SM9061853SR | |
| 21 | SM9062053SR | SM9062053SR | |
| 24 | SM9086523SE | SM9086523SE | |
| 14 | SQ2050453MZ | SQ2050453MZ | |
| 15 | SS2060210SP | SS2060210SP | |
| 20 | SS2060210SP | SS2060210SP | |
| 27 | SS4080620TP | SS4080620TP | |
| 16 | SS4080620TP | SS4080620TP | |
| 21 | SS4080620TP | SS4080620TP | |
| 30 | SS4110615SP | SS4110615SP | |
| 18 | SS6060210SP | SS6060210SP | |
| 28 | SS6090540SP | SS6090540SP | |
| 12 | SS6090620TP | SS6090620TP | |
| 31 | SS6090670TP | SS6090670TP | |
| 53 | SS6090670TP | SS6090670TP | |
| 13 | SS6090670TP | SS6090670TP | |
| 7 | SS6110420TP | SS6110420TP | |
| 59 | SS6110610TP | SS6110610TP | |
| 35 | SS6110710TP | SS6110710TP | |
| 25 | SS6110710TP | SS6110710TP | |
| 26 | SS6110710TP | SS6110710TP | |
| 11 | SS6121610SP | SS6121610SP | |
| 35 | SS6121860SP | SS6121860SP | |
| 46 | SS6621212TP | SS6621212TP | |
| 10 | SS7080510TP | SS7080510TP | |
| 27 | SS7091110TP | SS7091110TP | |
| 21 | SS7110740TP | SS7110740TP | |
| 29 | SS7110740TP | SS7110740TP | |
| 58 | SS8090670SP | SS8090670SP | |
| 19 | SS8090670SP | SS8090670SP | |
| 32 | SS8090670SP | SS8090670SP | |
| 24 | SS8110410TP | SS8110410TP | |
| 7 | SS8110520TP | SS8110520TP | |
| 3 | SS8150822TP | SS8150822TP | |
| 39 | SS8151150TP | SS8151150TP | |
| 45 | SS8151150TP | SS8151150TP | |
| 24 | SS8660610TP | SS8660610TP | |
| 3 | SS8660612TP | SS8660612TP | |
| 66 | SS8661012TP | SS8661012TP | |
| 66 | SS8661012TP | SS8661012TP | |
| 51 | TA0850604R0 | TA0850604R0 | |
| 51 | TA0850604R0 | TA0850604R0 | |
| 43 | TA1250406R0 | TA1250406R0 | |
| 41 | TA1470704R0 | TA1470704R0 | |
| 21 | WP0430800SC | WP0430800SC | |
| 23 | WP0450826SC | WP0450826SC | |
| 18 | WP0480856SP | WP0480856SP | |
| 86 | WP0501016SD | WP0501016SD | |
| 55 | WP0501016SD | WP0501016SD | |
| 50 | WP0501016SD | WP0501016SD | |
| 21 | WP0501016SD | WP0501016SD | |
| 15 | WP0531000SD | WP0531000SD | |
| 66 | WP0531001SC | WP0531001SC | |
| 15 | WP0531001SC | WP0531001SC | |
| 90 | WP0550800SP | WP0550800SP | |
| 7 | WP0550800SP | WP0550800SP | |
| 9 | WP0651016SH | WP0651016SH | |
| 93 | WP0621016SD | WP0621016SD | |
| 33 | WP0621016SD | WP0621016SD | |
| 16 | WP0621016SH | WP0621016SH | |
| 24 | WP0641601SD | WP0641601SD | |
| 18 | WP0650876SD | WP0650876SD | |
| 34 | WP0651001SC | WP0651001SC | |
| 28 | WP0651056SH | WP0651056SH | |
| 33 | WP0661016SP | WP0661016SP | |
| 28 | WP0671602SE | WP0671602SE | |
| 6 | WP1612616SZ | WP1612616SZ | |
| 22 | WP1612616SE | WP1612616SE | |
| 14 | WS0510002KN | WS0510002KN | |
| 11 | WS0610002KN | WS0610002KN | |
| 27 | WS0861410KR | WS0861410KR |
Juki DDL-9000B (X73199) — parts catalog
- Page 1 (cover): This page is the cover of a parts list for the DDL-9000B/X73199 model, with list number 1686-00, published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts numbered for identification.
- Page 4 (parts_list): This page lists parts for the machine frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 5 (diagram): This page illustrates the machine frame and miscellaneous cover components of an industrial sewing machine, with various parts identified by reference numbers.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, level, consumption, and quantity.
- Page 7 (diagram): This page illustrates the components of a bobbin winder, showing an exploded view of its various parts and their assembly.
- Page 8 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
- Page 9 (diagram): This page displays a diagram of the main shaft and needle bar components for an industrial sewing machine.
- Page 10 (parts_list): This page lists the main shaft and needle bar components, including part numbers, names, and quantities.
- Page 11 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view with reference numbers for each part.
- Page 12 (parts_list): This page lists components for the main shaft and needle bar, including screws, bolts, cable bands, and rubber plugs, with their respective part numbers and quantities.
- Page 13 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for a sewing machine, showing an exploded view with reference numbers for each part.
- Page 14 (parts_list): This page lists the parts for the hand lifter and tension release components, including part numbers, names, and quantities.
- Page 15 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for an industrial sewing machine, showing an exploded view with reference numbers.
- Page 16 (parts_list): This page lists the components for the hand lifter and tension release, including part numbers, names, and quantities.
- Page 17 (diagram): This page displays a diagram of the feed adjust mechanism components.
- Page 18 (parts_list): This page lists the components of the feed adjust mechanism, including part numbers, names, and quantities.
- Page 19 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft.
- Page 20 (parts_list): This page lists the parts for the horizontal feed, vertical feed, and hook driving shaft components, including part numbers, names, and quantities.
- Page 21 (diagram): This page displays an exploded diagram of horizontal feed, vertical feed, and hook driving shaft components.
- Page 22 (parts_list): This page lists parts for the horizontal feed, vertical feed, and hook driving shaft components, including bearings, screws, gears, oil seals, and other related parts.
- Page 23 (diagram): This page displays a diagram of thread trimmer components, showing various parts and their reference numbers.
- Page 24 (parts_list): This page lists thread trimmer components, including knives, screws, springs, and other related parts, with their respective part numbers and quantities.
- Page 25 (diagram): This page illustrates the components of a thread trimmer, showing various parts with their corresponding reference numbers.
- Page 26 (parts_list): This page lists thread trimmer components, including hinge screws, connecting links, levers, springs, and other related parts, with their part numbers, names, and quantities.
- Page 27 (diagram): This page displays an exploded view diagram of thread trimmer components, showing various parts with reference numbers.
- Page 28 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities for various screws, collars, solenoids, nuts, washers, and other parts.
- Page 29 (diagram): This page illustrates the oil lubrication components of a machine, showing various parts such as the oil pan, oil filter, and associated hoses and fittings.
- Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities.
- Page 31 (diagram): This page displays a diagram of oil lubrication components, illustrating various parts with reference numbers for identification.
- Page 32 (parts_list): This page lists oil lubrication components including a floater sight window, screws, washers, and nuts with their respective part numbers and quantities.
- Page 33 (diagram): This page contains a diagram of automatic reverse feed components, with reference numbers indicating various parts.
- Page 34 (parts_list): This page lists automatic reverse feed components with part numbers, descriptions, remarks, and quantities.
- Page 35 (diagram): This page displays a diagram of condense components with numbered parts for identification.
- Page 36 (parts_list): This page lists components for the condenser, including part numbers, descriptions, and quantities.
- Page 37 (diagram): This page displays a diagram of wiper components for the DDL-9000B-**-WB model, with numbered parts indicated.
- Page 38 (parts_list): This page lists wiper components for the DDL-9000B-WB model, including part numbers, descriptions, and quantities.
- Page 39 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding details.
- Page 40 (parts_list): This page lists components for thread stand, including part numbers, descriptions, and quantities.
- Page 41 (diagram): This page displays a diagram of under cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 42 (parts_list): This page lists components for under cover parts, including part numbers, names, remarks, and quantities.
- Page 43 (diagram): This page displays a diagram of accessory part components for an industrial sewing machine, with numbered illustrations of various tools and accessories.
- Page 44 (parts_list): This page lists accessory part components with their part numbers, names, remarks, and quantities. It includes items like accessory bags, screws, thread guides, and machine oil.
- Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B DS sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 46 (parts_list): This page lists parts for the DDL-9000B DS sewing machine, including part numbers, names, quantities, and remarks.
- Page 47 (diagram): This page contains a diagram illustrating the parts of the DDL-9000B MS,MA sewing machine, with various components numbered for reference.
- Page 48 (parts_list): This page lists exclusive parts for the Juki DDL-9000B-MS and DDL-9000B-MA sewing machines, including part numbers, names, and quantities.
- Page 49 (diagram): This page contains a diagram of exclusive parts for the DDL-9000B SH sewing machine, with reference numbers indicating component locations.
- Page 50 (parts_list): This page lists parts for the DDL-9000B SH sewing machine, including part numbers, names, quantities, and remarks.
- Page 51 (diagram): This page contains a diagram of parts for the DDL-9000B SH sewing machine, with reference numbers indicating the location of each part.
- Page 52 (parts_list): This page lists parts for the DDL-9000B SH, including throat plate A and feed J, with quantities and remarks.
- Page 53 (diagram): This page contains a diagram illustrating table and stand components for a sewing machine, with various parts numbered for reference.
- Page 54 (parts_list): This page lists table and stand components with part numbers, descriptions, remarks, and quantities.
- Page 55 (diagram): This page displays a diagram of special order parts for an industrial sewing machine, including a blower, screws, and clips, with reference numbers for each component.
- Page 56 (parts_list): This page lists special order parts for an electric fan cooling device, including part numbers, names, and quantities. It also includes a manual for the hook cooling device.
- Page 57 (diagram): This page displays a diagram of needle thread presser components, showing parts labeled with reference numbers 1 and 2.
- Page 58 (parts_list): This page lists needle thread presser components, including thread catcher assembly and screws, with their part numbers and quantities.
- Page 59 (diagram): This page displays a diagram of LED reverse feed switch components, with two numbered parts indicated.
- Page 60 (parts_list): This page lists components for the LED Reverse Feed Switch, including the LED_BT_SWITCH_ASSY_921 and SCREW M5 L=6.
- Page 61 (text): This page provides instructions on how to use the parts list, including explanations for codes, numbers, and symbols used in the catalog, along with a table indicating the place of destination for parts.
- Page 62 (index): Numerical index of parts with part numbers, page references, and reference numbers.
- Page 63 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 64 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
- Page 65 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
- Page 66 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 67 (index): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers.
