Juki DDL-9000B (X73199) — Part Book

Juki DDL-9000B (X73199) — parts catalog

Page 1 (cover): This page is the cover of a parts list for the DDL-9000B/X73199 model, with list number 1686-00, published on October 9, 2017.
Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
Page 3 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts numbered for identification.
Page 4 (parts_list): This page lists parts for the machine frame and miscellaneous cover components, including part numbers, names, and quantities.
Page 5 (diagram): This page illustrates the machine frame and miscellaneous cover components of an industrial sewing machine, with various parts identified by reference numbers.
Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, level, consumption, and quantity.
Page 7 (diagram): This page illustrates the components of a bobbin winder, showing an exploded view of its various parts and their assembly.
Page 8 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
Page 9 (diagram): This page displays a diagram of the main shaft and needle bar components for an industrial sewing machine.
Page 10 (parts_list): This page lists the main shaft and needle bar components, including part numbers, names, and quantities.
Page 11 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view with reference numbers for each part.
Page 12 (parts_list): This page lists components for the main shaft and needle bar, including screws, bolts, cable bands, and rubber plugs, with their respective part numbers and quantities.
Page 13 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for a sewing machine, showing an exploded view with reference numbers for each part.
Page 14 (parts_list): This page lists the parts for the hand lifter and tension release components, including part numbers, names, and quantities.
Page 15 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for an industrial sewing machine, showing an exploded view with reference numbers.
Page 16 (parts_list): This page lists the components for the hand lifter and tension release, including part numbers, names, and quantities.
Page 17 (diagram): This page displays a diagram of the feed adjust mechanism components.
Page 18 (parts_list): This page lists the components of the feed adjust mechanism, including part numbers, names, and quantities.
Page 19 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft.
Page 20 (parts_list): This page lists the parts for the horizontal feed, vertical feed, and hook driving shaft components, including part numbers, names, and quantities.
Page 21 (diagram): This page displays an exploded diagram of horizontal feed, vertical feed, and hook driving shaft components.
Page 22 (parts_list): This page lists parts for the horizontal feed, vertical feed, and hook driving shaft components, including bearings, screws, gears, oil seals, and other related parts.
Page 23 (diagram): This page displays a diagram of thread trimmer components, showing various parts and their reference numbers.
Page 24 (parts_list): This page lists thread trimmer components, including knives, screws, springs, and other related parts, with their respective part numbers and quantities.
Page 25 (diagram): This page illustrates the components of a thread trimmer, showing various parts with their corresponding reference numbers.
Page 26 (parts_list): This page lists thread trimmer components, including hinge screws, connecting links, levers, springs, and other related parts, with their part numbers, names, and quantities.
Page 27 (diagram): This page displays an exploded view diagram of thread trimmer components, showing various parts with reference numbers.
Page 28 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities for various screws, collars, solenoids, nuts, washers, and other parts.
Page 29 (diagram): This page illustrates the oil lubrication components of a machine, showing various parts such as the oil pan, oil filter, and associated hoses and fittings.
Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities.
Page 34 (parts_list): This page lists automatic reverse feed components with part numbers, descriptions, remarks, and quantities.
Page 35 (diagram): This page displays a diagram of condense components with numbered parts for identification.
Page 36 (parts_list): This page lists components for the condenser, including part numbers, descriptions, and quantities.
Page 37 (diagram): This page displays a diagram of wiper components for the DDL-9000B-**-WB model, with numbered parts indicated.
Page 38 (parts_list): This page lists wiper components for the DDL-9000B-WB model, including part numbers, descriptions, and quantities.
Page 39 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding details.
Page 40 (parts_list): This page lists components for thread stand, including part numbers, descriptions, and quantities.
Page 41 (diagram): This page displays a diagram of under cover components for an industrial sewing machine, with numbered parts and their corresponding references.
Page 42 (parts_list): This page lists components for under cover parts, including part numbers, names, remarks, and quantities.
Page 43 (diagram): This page displays a diagram of accessory part components for an industrial sewing machine, with numbered illustrations of various tools and accessories.
Page 44 (parts_list): This page lists accessory part components with their part numbers, names, remarks, and quantities. It includes items like accessory bags, screws, thread guides, and machine oil.
Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B DS sewing machine, with numbered components and their corresponding part numbers and descriptions.

Page 1 — PARTS LIST

MODEL : DDL-9000B/X73199 List No : 1686-00 PARTS LIST Published:09/10/2017 jintex.in

Page 2 — CONTENTS

Juki DDL-9000B (X73199) parts on page 2
Ref	Part number	Part name	Qty
	1	MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
	5	BOBBIN WINDER COMPONENTS
	7	MAIN SHAFT & NEEDLE BAR COMPONENTS
	11	HAND LIFTER & TENSION RELEASE COMPONENTS
	15	FEED ADJUST MECHANISM COMPONENTS
	17	HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
	21	THREAD TRIMMER COMPONENTS (1)
	25	THREAD TRIMMER COMPONENTS (2)
	27	OIL LUBRICATION COMPONENTS
	31	AUTOMATIC REVERSE FEED COMPONENTS
	33	CONDENSE COMPONENTS
	35	WIPER COMPONENTS (FOR DDL-9000B-**-WB)
	37	THREAD STAND COMPONENTS
	39	UNDER COVER COMPONENTS
	41	ACCESSORIE PART COMPONENTS
	43	EXCLUSIVE PARTS DDL-9000B DS
	45	EXCLUSIVE PARTS DDL-9000B MS,MA
	47	EXCLUSIVE PARTS DDL-9000B SH
	51	TABLE & STAND COMPONENTS
	53	SPECIAL ORDER PART
	55	NEEDLE THREAD PRESSER COMPONENTS
	57	LED REVERSE FEED SWITCH COMPONENTS
	59	HOW TO MAKE USE OF THIS PARTS LIST

CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 4
Part number	Part name	Qty
40037158	SIDE PLATE	1
40041161	FACE PLATE	1
40052819	FACE PLATE PACKING	1
23600505	THREAD TAKE-UP LEVER COVER	1
SM4051055SP	SCREW	1
40086713	BED,STUD,A	1
SM6061002TP	SCREW M6 L=10	2
22951552	GROUND WIRE ASM.	1
SM4050855SP	SCREW	1
EA9500B0100	CABLE BAND
40094561	SEWING MACHINE LABEL (EU)	1
22901250	SLIDE PLATE ASM.	1
22902753	SLIDE PLATE ASM.	1
22901201	SLIDE PLATE	1
22902704	SLIDE PLATE	1
22901300	SLIDE PLATE SPRING	1
22901300	SLIDE PLATE SPRING	1
SS6060210SP	SCREW 3/32-56 L=1.9	2
SM4050855SP	SCREW	2
40069110	ATTACHMENT FIXATION SCREW	1
22944508	WIRE PRESSER A	1
SM4040855SP	SCREW	1
CM300200001	ATTENTION SEAL	1
40069097	RULER PLATE I	1
CM300200003	ATTENTION LABEL	1
SM6052502TP	SCREW M5X25	3
SM2040955TP	SCREW M4 L=8.5	1
SM2040750TP	SCREW M4 L=7.4	1
CM301300001	SAFETY LABEL	1
22902506	FACE PLATE	4
SM4051055SP	SCREW	2
SM4051255SP	SCREW M5 L=12	1
40086732	PULLEY_COVER	1
40086714	BED,STUD,B	1
SM6061202TP	SCREW M6 L=12	2
SM4040655SP	SCREW M4 L=6	1
40035589	RULER PLATE	1
40091461	FEED LEVER SPRING HOOK	1
TA1250406R0	RUBBER PLUG D=12.5 L=4	2
TA1250406R0	RUBBER PLUG D=12.5 L=4	2
TA1470704R0	RUBBER PLUG	1
NM6040001SP	NUT M4X0.7	1
TA1250406R0	RUBBER PLUG D=12.5 L=4	1
40114043	FEED ADJUSTING SPRING,PLATE	1
40052933	ARM THREAD GUIDE C	1
SM80608A2TP	SCREW M6 L=8	1
23640006	SHEET	1

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037158 SIDE PLATE 1 2 40041161 FACE PLATE 1 3 40052819 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 SM4051055SP SCREW 1 6 40086713 BED,STUD,A 1 7 SM6061002TP SCREW M6 L=10 2 8 22951552 GROUND WIRE ASM. 1 9 SM4050855SP SCREW 1 10 EA9500B0100 CABLE BAND FOR BB 1 11 40094561 SEWING MACHINE LABEL (EU) FOR BB,EE 1 12 22901250 SLIDE PLATE ASM. FOR AA,GG 1 13 22902753 SLIDE PLATE 1 14 22901201 SLIDE PLATE * 1 15 22902704 SLIDE PLATE * 1 16 22901300 SLIDE PLATE SPRING * 1 17 22901300 SLIDE PLATE SPRING * 1 18 SS6060210SP SCREW 3/32-56 L=1.9 * 2 19 SM4050855SP SCREW 2 20 40069110 ATTACHMENT FIXATION SCREW OPTIONAL PARTS 1 21 22944508 WIRE PRESSER A 1 22 SM4040855SP SCREW 1 23 CM300200001 ATTENTION SEAL 1 24 40069097 RULER PLATE I OPTIONAL PARTS 1 25 CM300200003 ATTENTION LABEL 1 26 SM6052502TP SCREW M5X25 3 27 SM2040955TP SCREW M4 L=8.5 1 28 SM2040750TP SCREW M4 L=7.4 1 29 CM301300001 SAFETY LABEL 1 30 22902506 FACE PLATE 4 31 SM4051055SP SCREW 2 32 SM4051255SP SCREW M5 L=12 1 33 40086732 PULLEY_COVER 1 34 40086714 BED,STUD,B 1 35 SM6061202TP SCREW M6 L=12 2 36 SM4040655SP SCREW M4 L=6 1 37 40035589 RULER PLATE 1 38 40091461 FEED LEVER SPRING HOOK 1 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1470704R0 RUBBER PLUG 1 42 NM6040001SP NUT M4X0.7 1 43 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 44 40114043 FEED ADJUSTING SPRING,PLATE 1 45 40052933 ARM THREAD GUIDE C 1 46 SM80608A2TP SCREW M6 L=8 1 47 23640006 SHEET 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 6
Ref	Part number	Part name	Qty
	40037488	SHEET
	40086639	THREAD_TENSION_DISK_ASM.
	23626005	THREAD TENSION NUT
	22921209	THREAD TENSION POST
	22921407	ROTATION STOPPER
	22921506	THREAD TENSION DISK
	22921605	THREAD TAKE-UP SPRING
	22921704	THREAD TENSION SPRING A
	22921803	DISK STOPPER
	40086640	TENSION_POST_SOCKET_ASM.
	SS8090670SP	SCREW 9/64-40 L=5.5
	SS6110610TP	SCREW 11/64-40 L=6
	22920607	ARM THREAD GUIDE B
	22963458	THREAD TENSION ASM.
	22945414	THREAD TENSION POST
	22963409	THREAD TENSION SPRING
	22945703	THREAD TENSION NUT
	22945802	THREAD TENSION DISK
	SM80608A2TP	L=8SCREW M6 L=8
	SM5040655SN	SCREW
	23626104	ARM THREAD GUIDE A
	SM80608A2TP	L=8SCREW M6 L=8
	40086659	SAFETY_SWITCH_ASM.
	40086660	SAFETY_SWITCH_BASE
	23638109	SAFETY SWITCH ARM
	23638208	SAFETY SWITCH SPRING
	23638307	SAFETY SWITCH ARM SHAFT
	23638406	SAFETY SWITCH NUT
	40098386	SAFETY_SWITCH_CORD_ASM.
	EA9500B0100	CABLE BAND
	SM4021201SC	SCREW M2 L=12
	SM4050655SP	SCREW M5 L=6
	22901805	GROUND MARK
	23629900	AIR-DISCHARGING
	RO080150200	RUBBER RING
	23601305	AIR-DISCHARGING CAP
	WP0621016SD	WASHER 6.2X13X1
	WP0501016SD	WASHER 5X10.5X1
	CM600100101	WEEE MARK LABEL S
	CM600600101	CHINA ENVIRONMENT LABEL
	SM4051055SP	SCREW
	WP0550800SP	WASHER 5.5X10X0.8
	40091397	CABLE COVER
	40163071	THROAT_PLATE_IB_R
	WP0621016SD	WASHER 6.2X13X1
	11417615	THROAT PLATE A

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40037488 SHEET FOR GG 1 49 40086639 THREAD_TENSION_DISK_ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 22921209 THREAD TENSION POST * 1 52 22921407 ROTATION STOPPER * 1 53 22921506 THREAD TENSION DISK * 2 54 22921605 THREAD TAKE-UP SPRING * ☆ 1 55 22921704 THREAD TENSION SPRING A * 1 56 22921803 DISK STOPPER * 1 57 40086640 TENSION_POST_SOCKET_ASM. * 1 58 SS8090670SP SCREW 9/64-40 L=5.5 1 59 SS6110610TP SCREW 11/64-40 L=6 1 60 22920607 ARM THREAD GUIDE B 1 61 22963458 THREAD TENSION ASM. 1 62 22945414 THREAD TENSION POST * 1 63 22963409 THREAD TENSION SPRING * 1 64 22945703 THREAD TENSION NUT * 1 65 22945802 THREAD TENSION DISK * 2 66 SM80608A2TP L=8SCREW M6 L=8 1 67 SM5040655SN SCREW 1 68 23626104 ARM THREAD GUIDE A 1 69 SM80608A2TP L=8SCREW M6 L=8 1 70 40086659 SAFETY_SWITCH_ASM. 1 71 40086660 SAFETY_SWITCH_BASE * 1 72 23638109 SAFETY SWITCH ARM * 1 73 23638208 SAFETY SWITCH SPRING * 1 74 23638307 SAFETY SWITCH ARM SHAFT * 1 75 23638406 SAFETY SWITCH NUT * 1 76 40098386 SAFETY_SWITCH_CORD_ASM. * 1 77 EA9500B0100 CABLE BAND * 1 78 SM4021201SC SCREW M2 L=12 * 2 79 SM4050655SP SCREW M5 L=6 1 80 22901805 GROUND MARK 1 81 23629900 AIR-DISCHARGING 1 82 RO080150200 RUBBER RING 1 83 23601305 AIR-DISCHARGING CAP 1 84 WP0621016SD WASHER 6.2X13X1 2 85 WP0501016SD WASHER 5X10.5X1 3 86 CM600100101 WEEE MARK LABEL S FOR BB 1 87 CM600600101 CHINA ENVIRONMENT LABEL FOR GG 1 88 SM4051055SP SCREW 2 89 WP0550800SP WASHER 5.5X10X0.8 2 90 40091397 CABLE COVER 1 91 40163071 THROAT_PLATE_IB_R FOR EXPORT 1 92 WP0621016SD WASHER 6.2X13X1 2 93 11417615 THROAT PLATE A FOR JAPAN 1 jintex.in

Page 7 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS jintex.in

Page 8 — BOBBIN WINDER COMPONENTS

Juki DDL-9000B (X73199) parts on page 8
Part number	Part name	Qty
40023021	BOBBIN WINDER UNIT	1
26260109	BTW_BASE	1
26260208	BTW_CAM_PLATE	1
26260307	BTW_BASE_SHAFT	1
26260406	BTW_SHAFT_BASE	1
26260505	BTW_CAM_LEVER	1
26260604	BTW_WHEEL	1
26260802	BTW_BEARING_SPACER	1
26261008	BTW_LEVER_SHAFT	1
26261206	BTW_SPACER	1
26261305	BTW_BEARING	2
26261503	BTW_WHEEL_RUBBER	1
26261602	BOBBIN_SPRING	1
26261701	BTW_SPRING	1
40011144	BTW_TORSION_SPRING	1
40014837	BTW_SHAFT	1
40023022	BTW_LEVER	1
RC0560711KP	RETAINING RING	1
RE0400000K0	E-RING 4	1
SM5040655SN	SCREW	1
SM8040802TP	SCREW M4X8	2
SM8050502TP	SCREW M5 L=5	1
WP0450826SC	WASHER 4.5X10X0.8	1
40088958	BOBBIN THREAD TENSION ASM.	1
22921308	THREAD TENSION NUT	1
40088959	BOBBIN THREAD TENSION ROD ASM.	1
22921407	ROTATION STOPPER	1
22921506	THREAD TENSION DISK	2
22921704	THREAD TENSION SPRING A	1
40037008	THREAD_CUTTER	1
SM0050801SC	SCREW	1
SM0050801SC	SCREW	3
SM4051055SP	SCREW	1

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40023021 BOBBIN WINDER UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * ☆ 1 13 26261602 BOBBIN_SPRING * ☆ 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40014837 BTW_SHAFT * 1 17 40023022 BTW_LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE0400000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40088958 BOBBIN THREAD TENSION ASM. 1 25 22921308 THREAD TENSION NUT * 1 26 40088959 BOBBIN THREAD TENSION ROD ASM. * 1 27 22921407 ROTATION STOPPER * 1 28 22921506 THREAD TENSION DISK * 2 29 22921704 THREAD TENSION SPRING A * 1 30 40037008 THREAD_CUTTER * ☆ 1 31 SM0050801SC SCREW 1 32 SM0050801SC SCREW 3 33 SM4051055SP SCREW 1 jintex.in

Page 9 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 37 39 40 43 41 42 51 25 43 30 31 29 26 33 27-28 10 9 34~36 2 6 3 5 4 47 48 46 50 38 32 11 15 16 49 24 21 20 19 18 1 14 22 13 12 23 jintex.in

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000B (X73199) parts on page 10
Part number	Part name	Qty
40086597	MAIN_SHAFT	1
40135904	ASSY_COUNTER WEIGHT	1
40135916	COUNTER WEIGHT
40004171	COUNTER_WEIGHT_SCREW
SM8081652TP	SCREW M8 L=16
SM80606A2TP	6SCREW M6 L=6
40150011	FRONT_BEARING	1
SM80608A2TP	SCREW M6 L=8
22906309	NEEDLE BAR THREAD GUIDE	1
SS7080510TP	SCREW 1/8-44 L=4.5
40089196	AC SERVO MOTOR	1
40051473	COUPLING ASM.	1
40051474	COUPLING	1
SM80608A2TP	SCREW M6 L=8
40037007	HAND WHEEL ASM.	1
40037006	HAND WHEEL
SM80608A2TP	SCREW M6 L=8
40136292	BTW_DRIVING_WHEEL_ASM	1
40136293	BTW_DRIVING_WHEEL
SM80506A2TP	SCREW M5 L=6
SB120002700	BEARING	1
40141440	UPPER SPROCKET ASM.	1
SM80608A2TP	SCREW M6 L=8
40086731	TIMING_BELT_550	1
23608003	NEEDLE BAR METAL UPPER	1
40107707	NEEDLE_BAR_METAL_LOWER	1
22886907	NEEDLE BAR (A)
22887004	NEEDLE BAR (B)
22906457	NEEDLE BAR HOLDER ASM.	1
22906408	NEEDLE ROD HOLDER	1
SS6090670TP	SCREW 9/64-40 L=6
40090058	SLIDE BLOCK
23626203	NEEDLE BAR THREAD GUIDE	1
MDB100B1100	NEEDLE DBX1 #11
MC200500750	NEEDLE 134 NM75
MDB100B1400	NEEDLE DBX1 #14
40135900	THREAD_TAKE_UP_COMPL.	1
40135905	THREAD_TAKE_UP_ASM._C
40141165	TAKE_UP_CRANK_ASM
40135906	TAKE_UP_CRANK
40143184	TAKE_UP_CRANK_SHAFT
40135907	THREAD_TAKE_UP_PIN
RE030000K0	E-RING 3
SM80608A2TP	SCREW M6 L=8	2
TA0850604R0	RUBBER PLUG	2
40032269	THRUST COLLAR	1
CS1000881TP	THRUST COLLAR

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086597 MAIN_SHAFT 1 2 40135904 ASSY_COUNTER WEIGHT 1 3 40135916 COUNTER WEIGHT * 1 4 40004171 COUNTER_WEIGHT_SCREW * 1 5 SM8081652TP SCREW M8 L=16 * 1 6 SM80606A2TP 6SCREW M6 L=6 * 2 7 40150011 FRONT_BEARING 1 8 SM80608A2TP SCREW M6 L=8 * 2 9 22906309 NEEDLE BAR THREAD GUIDE 1 10 SS7080510TP SCREW 1/8-44 L=4.5 ☆ 1 11 40089196 AC SERVO MOTOR 1 12 40051473 COUPLING ASM. 1 13 40051474 COUPLING 1 14 SM80608A2TP SCREW M6 L=8 * 4 15 40037007 HAND WHEEL ASM. 1 16 40037006 HAND WHEEL * 1 17 SM80608A2TP SCREW M6 L=8 * 2 18 40136292 BTW_DRIVING_WHEEL_ASM 1 19 40136293 BTW_DRIVING_WHEEL * 1 20 SM80506A2TP SCREW M5 L=6 * 2 21 SB120002700 BEARING 1 22 40141440 UPPER SPROCKET ASM. 1 23 SM80608A2TP SCREW M6 L=8 * 2 24 40086731 TIMING_BELT_550 1 25 23608003 NEEDLE BAR METAL UPPER 1 26 40107707 NEEDLE_BAR_METAL_LOWER 1 27 22886907 NEEDLE BAR (A) FOR EE,AA,GG 1 28 22887004 NEEDLE BAR (B) FOR BB 1 29 22906457 NEEDLE BAR HOLDER ASM. 1 30 22906408 NEEDLE ROD HOLDER 1 31 SS6090670TP SCREW 9/64-40 L=6 * 1 32 40090058 SLIDE BLOCK * 1 33 23626203 NEEDLE BAR THREAD GUIDE 1 34 MDB100B1100 NEEDLE DBX1 #11 FOR EE,AA ☆ 1 35 MC200500750 NEEDLE 134 NM75 FOR BB ☆ 1 36 MDB100B1400 NEEDLE DBX1 #14 FOR GG ☆ 1 37 40135900 THREAD_TAKE_UP_COMPL. 1 38 40135905 THREAD_TAKE_UP_ASM._C * 1 39 40141165 TAKE_UP_CRANK_ASM * 1 40 40135906 TAKE_UP_CRANK * 1 41 40143184 TAKE_UP_CRANK_SHAFT * 1 42 40135907 THREAD_TAKE_UP_PIN * 1 43 RE030000K0 E-RING 3 * 2 44 SM80608A2TP SCREW M6 L=8 2 45 TA0850604R0 RUBBER PLUG 2 46 40032269 THRUST COLLAR 1 47 CS1000881TP THRUST COLLAR * 1 jintex.in

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 39 40 41 42 43 51 25 30 31 29 26 33 27-28 10 9 34~36 2 3 5 6 4 45 37 43 38 32 47 48 46 50 11 15 16 49 24 21 20 19 18 1 14 22 13 12 23 jintex.in

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000B (X73199) parts on page 12
Ref	Part number	Part name	Qty
48	SM8050412TP	SCREW M5 L=4	2
49	SL6052592TN	BOLT	4
50	EA9500B0100	CABLE BAND	2
51	TA0850604R0	RUBBER PLUG	1

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050412TP SCREW M5 L=4 * 2 49 SL6052592TN BOLT 4 50 EA9500B0100 CABLE BAND 2 51 TA0850604R0 RUBBER PLUG 1 jintex.in

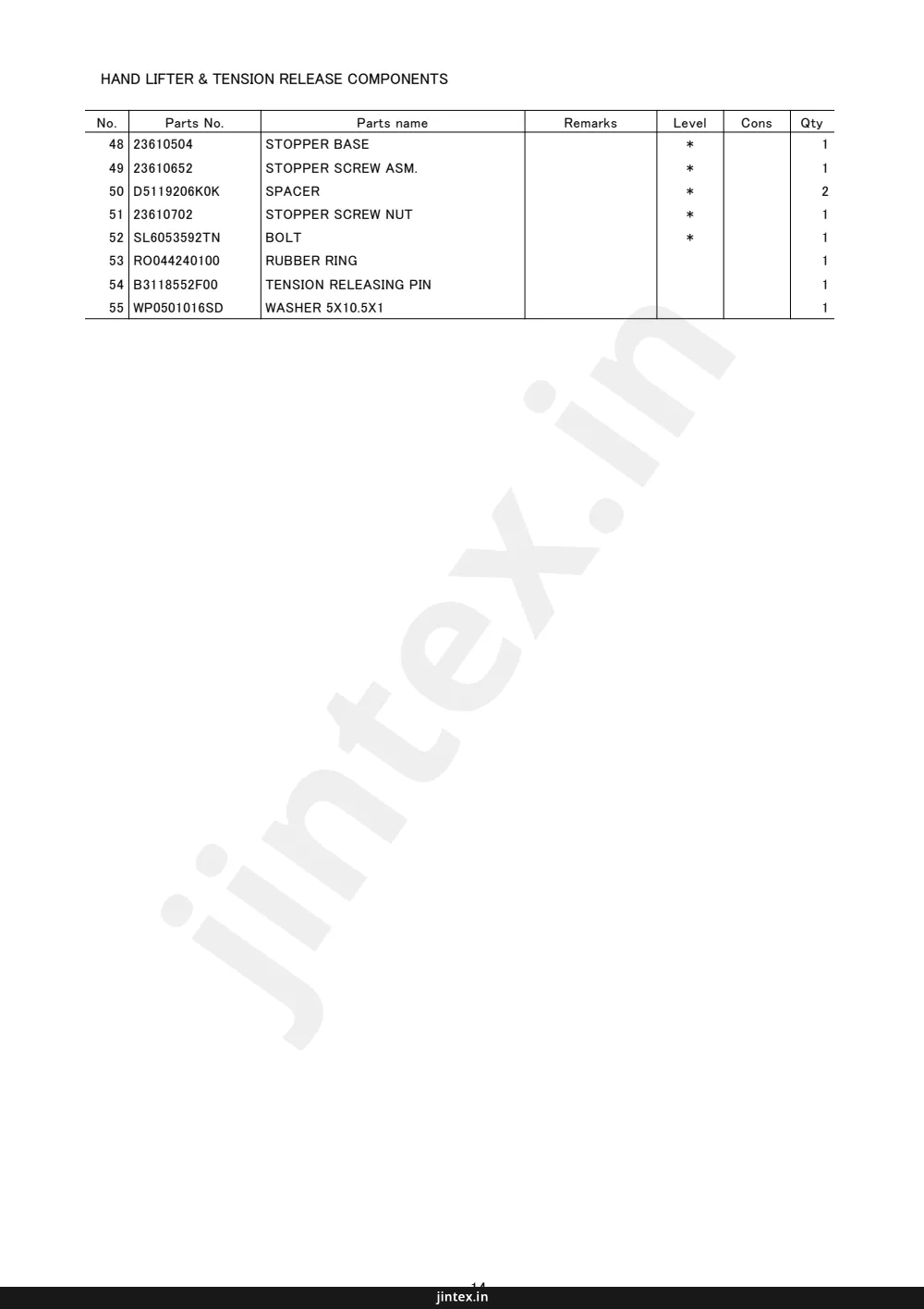

Page 13 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS jintex.in

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000B (X73199) parts on page 14
Ref	Part number	Part name	Qty
1	40136700	PRESSER BAR BUSHING	1
2	40086606	PRESSER BAR GUIDE BRACKET ASM.	1
3	40086607	PRESSER BAR GUIDE BRACKET	1
4	SM6051400SP	SCREW	1
5	23609357	LIFTING LEVER CONNECT ROD ASM.	1
6	23609456	LIFTING LINK COMPL.	1
7	23609605	PLATE	1
8	22908008	LIFTING PLATE	1
9	SM6040602TP	SCREW M4 L=6	1
10	RE050000K0	E-RING	1
11	RE050000K0	E-RING	1
12	23609308	LIFTING LEVER CONNECT ROD	1
13	40086760	CONNECTING ROD	1
14	23609704	LIFTING LEVER LINK	1
15	22907406	PRESSER SPRING	1
16	23610207	PRESSER BAR	1
17	23610306	PRESSER GUIDE BAR	1
18	40037359	PRESSER SPRING REGURATOR ASM.	1
19	40037141	PRESSER SPRING REGULATOR	1
20	40037144	PRESSER SPRING REGULATOR NUT	1
21	40050583	LINK SHAFT	2
22	22907802	HAND LIFTER	1
23	B152155000	SCREW	1
24	22908552	HAND LIFTER CAM ASM.	1
25	RO037180100	RUBBER RING	1
26	B15240120BA	PRESSER FOOT ASM.	1
27	SS7091110TP	SCREW 9/64-40 L=10.5	1
28	RE050000K0	E-RING	3
29	22908909	HINGE SCREW	1
30	40082078	SHOULDER SCREW D=7.24 H=3.3	1
31	NM6060003SE	NUT FOR BRACKET	1
32	40036706	ADJUSTING SCREW	1
33	WP0621016SD	WASHER 6.2X13X1	1
34	22944508	WIRE PRESSER A	2
35	SM4040855SP	SCREW	1
36	SM4040855SP	SCREW	1
37	SM6051402TP	SCREW M5X0.8 L=14	1
38	40086643	WIRE HOLDER	1
39	40050582	TENSION RELEASE SHAFT	1
40	22920300	THREAD RELEASE SUPPORTING PIN	1
41	22920409	THREAD RELEASE PIN SPRING	1
42	23626351	THREAD TENSION RELEASE WIRE	1
43	23626807	TENSION RELEASE RETURN SPRING	1
44	NS6620310SP	NUT 3/16-32	2
45	RE050000K0	E-RING	2
46	40056622	MINUTE LIFTING DEVICE ASM.	1
47	23611106	HAND LIFTER	1

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40136700 PRESSER BAR BUSHING 1 2 40086606 PRESSER BAR GUIDE BRACKET ASM. 1 3 40086607 PRESSER BAR GUIDE BRACKET * 1 4 SM6051400SP SCREW * 1 5 23609357 LIFTING LEVER CONNECT ROD ASM. 1 6 23609456 LIFTING LINK COMPL. * 1 7 23609605 PLATE * 1 8 22908008 LIFTING PLATE * 1 9 SM6040602TP SCREW M4 L=6 * 1 10 RE050000K0 E-RING * 1 11 RE050000K0 E-RING 1 12 23609308 LIFTING LEVER CONNECT ROD 1 13 40086760 CONNECTING ROD 1 14 23609704 LIFTING LEVER LINK 1 15 22907406 PRESSER SPRING 1 16 23610207 PRESSER BAR 1 17 23610306 PRESSER GUIDE BAR 1 18 40037359 PRESSER SPRING REGURATOR ASM. 1 19 40037141 PRESSER SPRING REGULATOR * 1 20 40037144 PRESSER SPRING REGULATOR NUT * 1 21 40050583 LINK SHAFT 2 22 22907802 HAND LIFTER 1 23 B152155000 SCREW 1 24 22908552 HAND LIFTER CAM ASM. 1 25 RO037180100 RUBBER RING 1 26 B15240120BA PRESSER FOOT ASM. 1 27 SS7091110TP SCREW 9/64-40 L=10.5 1 28 RE050000K0 E-RING 3 29 22908909 HINGE SCREW 1 30 40082078 SHOULDER SCREW D=7.24 H=3.3 1 31 NM6060003SE NUT FOR BRACKET 1 32 40036706 ADJUSTING SCREW 1 33 WP0621016SD WASHER 6.2X13X1 1 34 22944508 WIRE PRESSER A 2 35 SM4040855SP SCREW 1 36 SM4040855SP SCREW 1 37 SM6051402TP SCREW M5X0.8 L=14 1 38 40086643 WIRE HOLDER 1 39 40050582 TENSION RELEASE SHAFT 1 40 22920300 THREAD RELEASE SUPPORTING PIN 1 41 22920409 THREAD RELEASE PIN SPRING 1 42 23626351 THREAD TENSION RELEASE WIRE 1 43 23626807 TENSION RELEASE RETURN SPRING 1 44 NS6620310SP NUT 3/16-32 2 45 RE050000K0 E-RING 2 46 40056622 MINUTE LIFTING DEVICE ASM. OPTIONAL PARTS 1 47 23611106 HAND LIFTER * 1 jintex.in

Page 15 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000B (X73199) parts on page 16
Ref	Part number	Part name	Qty
48	23610504	STOPPER BASE	1
49	23610652	STOPPER SCREW ASM.	1
50	D5119206K0K	SPACER	2
51	23610702	STOPPER SCREW NUT	1
52	SL6053592TN	BOLT	1
53	R0044240100	RUBBER RING	1
54	B3118552F00	TENSION RELEASING PIN	1
55	WP0501016SD	WASHER 5X10.5X1	1

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23610504 STOPPER BASE * 1 49 23610652 STOPPER SCREW ASM. * 1 50 D5119206K0K SPACER * 2 51 23610702 STOPPER SCREW NUT * 1 52 SL6053592TN BOLT * 1 53 R0044240100 RUBBER RING 1 54 B3118552F00 TENSION RELEASING PIN 1 55 WP0501016SD WASHER 5X10.5X1 1 jintex.in

Page 17 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS jintex.in

Page 18 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000B (X73199) parts on page 18
Part number	Part name	Qty
40086735	ADJUSTING_LINK_ASM.	1
40086695	FEED_ADJUSTING_LINK	1
40086696	FEED_ADJUSTING_LINK_PIN	2
SM80506A2TP	SCREW M5 L=6	2
40086608	ADJUSTING_LINK_FULCRUM_SHAFT	1
SM80606A2TP	SCREW M6 L=6	1
40086615	FEED_CHANGING_SHAFT_METAL_A	1
40086704	FEED_CHANGING_SHAFT_ARM_ASM.	1
40086705	FEED_CHANGING_SHAFT_ARM	1
SM6051602TP	SCREW M5X0.8 L=16	1
22910509	FEED_ADJUSTING LINK PIN	1
40086706	FEED_CHANGING_SPRING_PIN	1
40086616	FEED_CHANGING_SHAFT_METAL_B	1
40086614	FEED_CHANGING_SHAFT	1
40086738	REVERSE_FEED_LEVER	1
23613706	FEED LEVER SHAFT	1
40086674	FEED_LEVER_ARM_ASM.	1
40086675	FEED LEVER ARM	1
SM6051602TP	SCREW M5X0.8 L=16	1
40086737	FEED ADJUSTING SPRING	1
40086739	FEED LEVER SPRING	1
40086609	FEED_ADJUSTING_ROD	1
23630007	TUBE	0.1
RE050000K0	E-RING	1
23612609	FEED CHANGING SHAFT OIL SEAL	1
SM80608A2TP	SCREW M6 L=8	2
22952501	BACK LEVER STOPPER	1
SM6051850TP	SCREW M5 L=18	1
40141842	FEED REGULATOR SCREW	1
40123098	FEED_REGULATOR_PIN_SPRING	1
40161440	FEED_REGULATOR_PIN	1
40141840	REGULATOR_STOPPER_SPRING	1
40141838	FEED REGULATOR WASHER	1
40141841	REGULATOR PIN DIAL	1
SS6121860SP	SCREW 3/16-28 L=18	1
40086617	FEED_LEVER_SHAFT_METAL	1
40086736	RUBBER PLUG	1
SM80606A2TP	SCREW M6 L=6	1
23613409	FEED ADJUSTING PIN	1
40095847	FEED REGULATOR ASM.	1
SM80606A2TP	SCREW M6 L=6	1
40122891	FEED_REGULATOR	1
RO092270200	RUBBER RING	1
40161441	REGULATOR_PIN_STOPPER	1
40086613	FEED_REGULATOR_STOPPER_PIN	2
40006716	THREAD_TRIMMER_SHAFT	1
SM80606A2TP	SCREW M6 L=6	1

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086735 ADJUSTING_LINK_ASM. 1 2 40086695 FEED_ADJUSTING_LINK * 1 3 40086696 FEED_ADJUSTING_LINK_PIN * 2 4 SM80506A2TP SCREW M5 L=6 * 2 5 40086608 ADJUSTING_LINK_FULCRUM_SHAFT 1 6 SM80606A2TP SCREW M6 L=6 1 7 40086615 FEED_CHANGING_SHAFT_METAL_A 1 8 40086704 FEED_CHANGING_SHAFT_ARM_ASM. 1 9 40086705 FEED_CHANGING_SHAFT_ARM * 1 10 SM6051602TP SCREW M5X0.8 L=16 * 1 11 22910509 FEED_ADJUSTING LINK PIN * 1 12 40086706 FEED_CHANGING_SPRING_PIN * 1 13 40086616 FEED_CHANGING_SHAFT_METAL_B 1 14 40086614 FEED_CHANGING_SHAFT 1 15 40086738 REVERSE_FEED_LEVER 1 16 23613706 FEED LEVER SHAFT 1 17 40086674 FEED_LEVER_ARM_ASM. 1 18 40086675 FEED LEVER ARM * 1 19 SM6051602TP SCREW M5X0.8 L=16 * 1 20 40086737 FEED ADJUSTING SPRING 1 21 40086739 FEED LEVER SPRING 1 22 40086609 FEED_ADJUSTING_ROD 1 23 23630007 TUBE 0.1 24 RE050000K0 E-RING 1 25 23612609 FEED CHANGING SHAFT OIL SEAL 1 26 SM80608A2TP SCREW M6 L=8 2 27 22952501 BACK LEVER STOPPER 1 28 SM6051850TP SCREW M5 L=18 1 29 40141842 FEED REGULATOR SCREW 1 30 40123098 FEED_REGULATOR_PIN_SPRING 1 31 40161440 FEED_REGULATOR_PIN 1 32 40141840 REGULATOR_STOPPER_SPRING 1 33 40141838 FEED REGULATOR WASHER 1 34 40141841 REGULATOR PIN DIAL 1 35 SS6121860SP SCREW 3/16-28 L=18 1 36 40086617 FEED_LEVER_SHAFT_METAL 1 37 40086736 RUBBER PLUG 1 38 SM80606A2TP SCREW M6 L=6 1 39 23613409 FEED ADJUSTING PIN 1 40 40095847 FEED REGULATOR ASM. 1 41 SM80606A2TP SCREW M6 L=6 * 1 42 40122891 FEED_REGULATOR * 1 43 RO092270200 RUBBER RING 1 44 40161441 REGULATOR_PIN_STOPPER 1 45 40086613 FEED_REGULATOR_STOPPER_PIN 2 46 40006716 THREAD_TRIMMER_SHAFT 1 47 SM80606A2TP SCREW M6 L=6 1 jintex.in

Page 19 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS jintex.in

Page 20 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000B (X73199) parts on page 20
Part number	Part name	Qty
40037192	FEED ROCKER CAM ASM.	1
23616006	FEED ROCKER CAM	1
SS8150822TP	SCREW 15/64-28 L=8	2
40037365	FEED ROCKER ROD ASM.	1
40026277	FEED ROCKER ROD	1
22911101	WALKING FOOT PIN C	1
SS6090620TP	SCREW	1
40061246	FEED ROCKER ARM ALL ASM.	1
40058504	FEED ROCKER ARM ASM.	1
40042079	FEED ROCKER ARM	1
SS6121610SP	SCREW 3/16-28 L=15.5	1
SS6090620TP	SCREW	1
22911002	WALKING FOOT PIN B	1
23616709	FEED ROCKER SHAFT METAL	1
40037005	ASSY.FEED_ROCKER_BASE_ARM	1
40026281	FEED ROCKER BASE ARM	1
SM6051400SP	SCREW	1
WP0480856SP	WASHER 4.8X8.4X0.8	1
SM4050855SP	SCREW	1
23616204	FEED ROCKER CAM PLATE	1
SS6090670TP	SCREW 9/64-40 L=6	2
22904155	MAIN SHAFT THRUST COLLAR ASM.	2
22904106	MAIN SHAFT THRUST COLLAR	1
SS8660610TP	SCREW 1/4-40 L=6	2
40164902	FEED DOG I ST	1
RO036080200	RUBBER RING	1
SS4080620TP	SCREW 1/8-44 L=6	2
B412352200A	NEEDLE BEARING	1
B412352200B	NEEDLE ROLLAR	1
B412352200C	NEEDLE ROLLAR	1
40026278	CONNECTING LINK A	2
23616402	CONNECTING LINK B	2
23616600	FEED ROCKER SHAFT	1
40086743	BEARING SUPPORT ASM.	1
SS6110710TP	SCREW 11/64-40 L=6.5	2
40026282	FEED ROCKER BASE SHAFT	1
4000391	VERTICAL FEED CAM ASM. 5	1
4000392	VERTICAL FEED CAM 5	1
SS8151150TP	SCREW 15/64-28 L=10.5	2
40053720	FEED DRIVING BASE ARM ASM.	1
40026287	FEED DRIVING BASE ARM	1
SM4040655SP	SCREW M4 L=6	1
40026288	FEED DRIVING BASE SHAFT	1
40086757	FEED DRIVING SHAFT	1
40086690	FEED_DRIVING_BEARING_SUPPORT	1
SS8661012TP	SCREW	2
23618101	FEED DRIVING CAM THRUST BUSH	2

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037192 FEED ROCKER CAM ASM. 1 2 23616006 FEED ROCKER CAM * 1 3 SS8150822TP SCREW 15/64-28 L=8 * 2 4 40037365 FEED ROCKER ROD ASM. 1 5 40026277 FEED ROCKER ROD * 1 6 22911101 WALKING FOOT PIN C * 1 7 SS6090620TP SCREW * 1 8 40061246 FEED ROCKER ARM ALL ASM. 1 9 40058504 FEED ROCKER ARM ASM. * 1 10 40042079 FEED ROCKER ARM * 1 11 SS6121610SP SCREW 3/16-28 L=15.5 * 1 12 SS6090620TP SCREW * 1 13 22911002 WALKING FOOT PIN B * 1 14 23616709 FEED ROCKER SHAFT METAL 1 15 40037005 ASSY.FEED_ROCKER_BASE_ARM 1 16 40026281 FEED ROCKER BASE ARM * 1 17 SM6051400SP SCREW * 1 18 WP0480856SP WASHER 4.8X8.4X0.8 * 1 19 SM4050855SP SCREW * 1 20 23616204 FEED ROCKER CAM PLATE 1 21 SS6090670TP SCREW 9/64-40 L=6 2 22 22904155 MAIN SHAFT THRUST COLLAR ASM. 2 23 22904106 MAIN SHAFT THRUST COLLAR * 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 40164902 FEED DOG I ST FOR EXPORT 1 26 RO036080200 RUBBER RING OPTIONAL PARTS 1 27 SS4080620TP SCREW 1/8-44 L=6 2 28 B412352200A NEEDLE BEARING SELECTIVE PARTS 1 29 B412352200B NEEDLE ROLLAR SELECTIVE PARTS 1 30 B412352200C NEEDLE ROLLAR SELECTIVE PARTS 1 31 40026278 CONNECTING LINK A 2 32 23616402 CONNECTING LINK B 2 33 23616600 FEED ROCKER SHAFT 1 34 40086743 BEARING SUPPORT ASM. 1 35 SS6110710TP SCREW 11/64-40 L=6.5 * 2 36 40026282 FEED ROCKER BASE SHAFT 1 37 4000391 VERTICAL FEED CAM ASM. 5 1 38 4000392 VERTICAL FEED CAM 5 * 1 39 SS8151150TP SCREW 15/64-28 L=10.5 * 2 40 40053720 FEED DRIVING BASE ARM ASM. 1 41 40026287 FEED DRIVING BASE ARM * 1 42 SM4040655SP SCREW M4 L=6 * 1 43 40026288 FEED DRIVING BASE SHAFT 1 44 40086757 FEED DRIVING SHAFT 1 45 40086690 FEED_DRIVING_BEARING_SUPPORT 1 46 SS8661012TP SCREW 2 47 23618101 FEED DRIVING CAM THRUST BUSH 2 jintex.in

Page 21 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000B (X73199) parts on page 22
Ref	Part number	Part name	Qty
48	SB3200060A	BEARING	1
49	SB3200060B	BEARING	1
50	SB3200060C	BEARING	1
51	SB117001200	BEARING	1
52	23618309	FEED DRIVING CAM PLATE	1
53	SS6090670TP	SCREW 9/64-40 L=6	2
54	23620503	GEAR (LARGE)	1
55	SS8661012TP	SCREW	2
56	23620008	HOOK SHAFT	1
57	23620156	HOOK SHAFT METAL COMPL.	1
58	40145927	OIL SEAL	2
59	22916555	OIL SEAL SCREW ASM.	1
60	22916506	SET SCREW	1
61	11015906	OIL WICK	1
62	23620701	GEAR (SMALL)(A)	1
63	23620800	GEAR (SMALL)(B)	1
64	23620909	GEAR (SMALL)(C)	1
65	23621006	GEAR (SMALL)(D)	1
66	SS8661012TP	SCREW	2
67	11038759	BOBBIN CASE ASM.	1
68	11141355	HOOK ASM.	1
69	11038650	HOOK ASM.	1
70	40086740	OIL SEAL	1
71	40030786	FEED BASE COMPL.	1
72	22964001	BOBBIN A	1
73	40086744	HOOK DRIVING SHAFT OIL SEAL	1
74	23620404	HOOK SHAFT REAR METAL	1
75	40089607	INNER_HOOK_HOLDER	1
76	SM4051055SP	SCREW	1
77	40086618	FEED_SHAFT_REAR_METAL	1
78	40086741	OIL SEAL	1
79	40086742	OIL SEAL	1
80	SB120001800	BEARING	1
81	40141443	UNDER SPROCKET ASM.	1
82	SM80608A2TP	SCREW M6 L=8	2
83	RC1200001KP	C-SHAPED SNAP RING	1
84	11079506	FRONT SCREW	1
85	11417714	FEED_DOG_A	1

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB3200060A BEARING SELECTIVE PARTS 1 49 SB3200060B BEARING SELECTIVE PARTS 1 50 SB3200060C BEARING SELECTIVE PARTS 1 51 SB117001200 BEARING 1 52 23618309 FEED DRIVING CAM PLATE 1 53 SS6090670TP SCREW 9/64-40 L=6 2 54 23620503 GEAR (LARGE) 1 55 SS8661012TP SCREW 2 56 23620008 HOOK SHAFT 1 57 23620156 HOOK SHAFT METAL COMPL. 1 58 40145927 OIL SEAL 2 59 22916555 OIL SEAL SCREW ASM. 1 60 22916506 SET SCREW * 1 61 11015906 OIL WICK * 1 62 23620701 GEAR (SMALL)(A) SELECTIVE PARTS 1 63 23620800 GEAR (SMALL)(B) SELECTIVE PARTS 1 64 23620909 GEAR (SMALL)(C) SELECTIVE PARTS 1 65 23621006 GEAR (SMALL)(D) SELECTIVE PARTS 1 66 SS8661012TP SCREW 2 67 11038759 BOBBIN CASE ASM. ☆ 1 68 11141355 HOOK ASM. FOR BB ☆ 1 69 11038650 HOOK ASM. FOR AA,EE,GG ☆ 1 70 40086740 OIL SEAL 1 71 40030786 FEED BASE COMPL. 1 72 22964001 BOBBIN A ☆ 1 73 40086744 HOOK DRIVING SHAFT OIL SEAL 1 74 23620404 HOOK SHAFT REAR METAL 1 75 40089607 INNER_HOOK_HOLDER 1 76 SM4051055SP SCREW 1 77 40086618 FEED_SHAFT_REAR_METAL 1 78 40086741 OIL SEAL 1 79 40086742 OIL SEAL 1 80 SB120001800 BEARING 1 81 40141443 UNDER SPROCKET ASM. 1 82 SM80608A2TP SCREW M6 L=8 * 2 83 RC1200001KP C-SHAPED SNAP RING 1 84 11079506 FRONT SCREW OPTIONAL PARTS 1 85 11417714 FEED_DOG_A FOR JAPAN 1 jintex.in

Page 23 — THREAD TRIMMER COMPONENTS (1)

THREAD TRIMMER COMPONENTS (1) 67 9 1 5 2 4 63 64 14 11 12 15 59 13 6 3 50 7 61 51 60 57 56 54 58 16 17 10 55 18 43 44 39 66 48 30 35 22 45 31 38 46 42 47 40 19 23 27 26 20 25 34 8 53 24 49 28 29 21 62 32 52 33 41 37 36 65 jintex.in

Page 24 — THREAD TRIMMER COMPONENTS (1)

Juki DDL-9000B (X73199) parts on page 24
Part number	Part name	Qty
40067412	KNIFE UNIT	1
11497302	THREAD HAUL KNIFE	1
40067413	KNIFE BASE ASM.	1
11497104	LOOP SPREADING BASE	1
11420601	SCREW	4
11420106	THREAD CUTTER KNIFE	1
11091204	ADJUST LINK SPRING	1
40016706	OIL_TANK_STUD_B	1
40029398	PICKER SPRING	1
40010434	THRUST_COLLAR_ASM	1
40066590	ASSY PICKER ARM	1
40036997	ASSY_PICKER	1
SS6090670TP	SCREW 9/64-40 L=6	2
40066591	PICKER ARM	1
22950000	PICKER LINK PIN	1
WP0621016SH	WASHER	1
NS6150310SP	NUT 15/64-28	1
40113199	THREAD CUTTER DRIVING UNIT_MS_PBN	1
11420700	THREAD CUTTER KNIFE SHAFT	1
11421500	KNIFE DRIVING ARM	1
SS7110740TP	SCREW 11/64-40 L=7	1
11420809	LOOP SPREADING SHAFT	1
40060792	LOOP SPREADING ARM ASM.	1
SS8110410TP	SCREW 11/64-40 L=3.5	1
SS6110710TP	SCREW 11/64-40 L=6.5	1
SD0500251SP	HINGE SCREW D=5 H=2.5	1
40113200	BASE_PLATE_MS_PBN	1
WP0651056SH	WASHER 6.5X11X1	1
40060799	STOPPER BLOCK	1
11421104	LOOP SPREADING ARM	1
11421203	KNIFE DRIVING STITCH TONGUE	1
NM6050001SD	NUT M5X0.8	2
SM8053002TP	SCREW M5 L=30	2
SM6051002TP	SCREW M5X0.8 L=10	2
40062180	KNIFE RETURN SPRING	1
SD0640321TP	HINGE SCREW D=6.35 H=3.2	1
40082582	CLUTCH PLATE ASM.	1
40066592	LOOP SPREAD SPRING	1
11421708	SPRING HOOK	1
RE0500000K0	E-RING	1
40082588	CLUTCH PLATE SHAFT	1
SS6621212TP	SCREW 3/16-32 L=12.0	1
SD0500402SP	HINGE SCREW D=5 H=4	1
D2422530D0	CAM ROLLER	1
NS6110310SP	NUT 11/64-40	1
SS6621212TP	SCREW 3/16-32 L=12.0	1
RC1200001KP	C-SHAPED SNAP RING	1

THREAD TRIMMER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 40067412 KNIFE UNIT 1 2 11497302 THREAD HAUL KNIFE * ☆ 1 3 40067413 KNIFE BASE ASM. * 1 4 11497104 LOOP SPREADING BASE * 1 5 11420601 SCREW * 4 6 11420106 THREAD CUTTER KNIFE * ☆ 1 7 11091204 ADJUST LINK SPRING 1 8 40016706 OIL_TANK_STUD_B 1 9 40029398 PICKER SPRING 1 10 40010434 THRUST_COLLAR_ASM 1 11 40066590 ASSY PICKER ARM 1 12 40036997 ASSY_PICKER * 1 13 SS6090670TP SCREW 9/64-40 L=6 * 2 14 40066591 PICKER ARM * 1 15 22950000 PICKER LINK PIN 1 16 WP0621016SH WASHER 1 17 NS6150310SP NUT 15/64-28 1 18 40113199 THREAD CUTTER DRIVING UNIT_MS_PBN 1 19 11420700 THREAD CUTTER KNIFE SHAFT * 1 20 11421500 KNIFE DRIVING ARM * 1 21 SS7110740TP SCREW 11/64-40 L=7 * 1 22 11420809 LOOP SPREADING SHAFT * 1 23 40060792 LOOP SPREADING ARM ASM. * 1 24 SS8110410TP SCREW 11/64-40 L=3.5 * 1 25 SS6110710TP SCREW 11/64-40 L=6.5 * 1 26 SD0500251SP HINGE SCREW D=5 H=2.5 * 1 27 40113200 BASE_PLATE_MS_PBN * 1 28 WP0651056SH WASHER 6.5X11X1 * 1 29 40060799 STOPPER BLOCK * 1 30 11421104 LOOP SPREADING ARM * 1 31 11421203 KNIFE DRIVING STITCH TONGUE * 1 32 NM6050001SD NUT M5X0.8 * 2 33 SM8053002TP SCREW M5 L=30 * 2 34 SM6051002TP SCREW M5X0.8 L=10 * 2 35 40062180 KNIFE RETURN SPRING * 1 36 SD0640321TP HINGE SCREW D=6.35 H=3.2 * 1 37 40082582 CLUTCH PLATE ASM. * 1 38 40066592 LOOP SPREAD SPRING * 1 39 11421708 SPRING HOOK * 1 40 RE0500000K0 E-RING * 1 41 40082588 CLUTCH PLATE SHAFT * 1 42 SS6621212TP SCREW 3/16-32 L=12.0 * 1 43 SD0500402SP HINGE SCREW D=5 H=4 * 1 44 D2422530D0 CAM ROLLER * 1 45 NS6110310SP NUT 11/64-40 * 1 46 SS6621212TP SCREW 3/16-32 L=12.0 * 1 47 RC1200001KP C-SHAPED SNAP RING * 1 jintex.in

Page 25 — THREAD TRIMMER COMPONENTS (1)

THREAD TRIMMER COMPONENTS (1)

Page 26 — THREAD TRIMMER COMPONENTS (1)

Juki DDL-9000B (X73199) parts on page 26
Ref	Part number	Part name	Qty
48	SD0380551SL	HINGE SCREW D=3.80 H=5.5	1
49	11421401	LOOP SPREADING CONNECTING LINK	1
50	40082583	TENSION RELEASING LEVER	1
51	40082585	LEVER SPRING HOOK	1
52	SL6061292TN	SCREW	2
53	SD0500251SP	HINGE SCREW D=5 H=2.5	1
54	40066602	KNIFE DRIVING ARM STOPPER	1
55	SM4040655SP	SCREW M4 L=6	1
56	PS0300062KH	SPRING PIN 3X6	1
57	SD0641456TP	SHOULDER SCREW D=6.35 H=14.5	1
58	SD0630275SP	HINGE SCREW D=6.35 H=2.7	1
59	40082584	PICKER LINK	1
60	SL6052092TN	SCREW	1
61	22956809	WIPER COLLAR	1
62	40100135	STUD BOLT	1
63	40060801	STOPPER PLATE	1
64	SL6061292TN	SCREW	1
65	40082589	BASE PLATE SCREW	1
66	WP0531001SC	WASHER M5	1
67	40062168	PICKER SPRING HOOK	1

THREAD TRIMMER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 48 SD0380551SL HINGE SCREW D=3.80 H=5.5 * 1 49 11421401 LOOP SPREADING CONNECTING LINK * 1 50 40082583 TENSION RELEASING LEVER 1 51 40082585 LEVER SPRING HOOK 1 52 SL6061292TN SCREW 2 53 SD0500251SP HINGE SCREW D=5 H=2.5 1 54 40066602 KNIFE DRIVING ARM STOPPER 1 55 SM4040655SP SCREW M4 L=6 1 56 PS0300062KH SPRING PIN 3X6 1 57 SD0641456TP SHOULDER SCREW D=6.35 H=14.5 1 58 SD0630275SP HINGE SCREW D=6.35 H=2.7 1 59 40082584 PICKER LINK 1 60 SL6052092TN SCREW 1 61 22956809 WIPER COLLAR 1 62 40100135 STUD BOLT 1 63 40060801 STOPPER PLATE 1 64 SL6061292TN SCREW 1 65 40082589 BASE PLATE SCREW 1 66 WP0531001SC WASHER M5 1 67 40062168 PICKER SPRING HOOK 1 jintex.in

Page 27 — THREAD TRIMMER COMPONENTS (2)

THREAD TRIMMER COMPONENTS (2)

Page 28 — THREAD TRIMMER COMPONENTS (2)

Juki DDL-9000B (X73199) parts on page 28
Ref	Part number	Part name
1	40113201	THREAD_CUTTER_CAM_MS_PBN
2	11419405	SAFETY CAM
3	SS8660612TP	SCREW 1/4-40 L=6
4	40113204	CLUTCH_MS_PBN
5	11419207	THREAD CUTTER DRIVING COLLAR
6	22950950	CAM COLLAR ASM.
7	SS8110520TP	SCREW 11/64-40 L=4.5
8	RC2651218KP	RETAINING RING
9	11419603	THRUST COLLAR B
10	11419504	THRUST COLLAR A
11	11419702	THRUST COLLAR C
12	11419801	THRUST COLLAR D
13	11419900	THRUST COLLAR E
14	40060794	SOLENOID ASM.
15	40060791	SOLENOID BASE
16	40089263	THREAD TRIMMER SOLENOID
17	11043304	SOLENOID RUBBER
18	NS6660410SH	NUT
19	NS6660430SP	NUT 1/4-40
20	NM6040000SN	NUT M4
21	WP0430800SC	WASHER M4
22	HK03464000B	PIN CONTACT
23	SL6061292TN	SCREW
24	23624554	DRIVING BLOCK ASM.
25	23624505	DRIVING BLOCK
26	SS6110710TP	SCREW 11/64-40 L=6.5

THREAD TRIMMER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40113201 THREAD_CUTTER_CAM_MS_PBN 1 2 11419405 SAFETY CAM 1 3 SS8660612TP SCREW 1/4-40 L=6 4 4 40113204 CLUTCH_MS_PBN 1 5 11419207 THREAD CUTTER DRIVING COLLAR 1 6 22950950 CAM COLLAR ASM. 1 7 SS8110520TP SCREW 11/64-40 L=4.5 * 1 8 RC2651218KP RETAINING RING 1 9 11419603 THRUST COLLAR B 1 10 11419504 THRUST COLLAR A 1 11 11419702 THRUST COLLAR C 1 12 11419801 THRUST COLLAR D 1 13 11419900 THRUST COLLAR E 1 14 40060794 SOLENOID ASM. 1 15 40060791 SOLENOID BASE * 1 16 40089263 THREAD TRIMMER SOLENOID * 1 17 11043304 SOLENOID RUBBER * 1 18 NS6660410SH NUT * 1 19 NS6660430SP NUT 1/4-40 * 1 20 NM6040000SN NUT M4 * 2 21 WP0430800SC WASHER M4 * 2 22 HK03464000B PIN CONTACT * 2 23 SL6061292TN SCREW 1 24 23624554 DRIVING BLOCK ASM. 1 25 23624505 DRIVING BLOCK * 1 26 SS6110710TP SCREW 11/64-40 L=6.5 * 1 jintex.in

Page 29 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS jintex.in

Page 30 — OIL LUBRICATION COMPONENTS

Juki DDL-9000B (X73199) parts on page 30
Ref	Part number	Part name
1	40082059	GEAR BOX COVER ASM.
2	40135639	GEAR_BOX_COVER
3	40034246	OIL_SIGHT_WINDOW
4	RO195240100	RUBBER RING
5	13171004	DRAIN SCREW
6	13170105	RUBBER RING
7	23629256	OIL WICK SUPPORT ASM.
8	23629207	OIL WICK
9	CQ250000001	OIL WICK
10	23629306	PIPE STOPPER A
11	23629405	PIPE STOPPER B
12	40037166	GEAR BOX PACKING
13	40135640	MAGNET_HOLDER
14	SQ2050453MZ	CONNECTING SCREW
15	40086648	FLOATER ASM.
16	RO068190100	RUBBER RING
17	23630007	TUBE
18	23630007	TUBE
19	23630007	TUBE
20	CQ200000001	OIL WICK
21	23630106	TUBE B
22	23630106	TUBE B
23	40075404	FACE FELT ASM
24	22925101	OIL FELT PRESSER
25	RO098240100	RUBBER RING
26	RO172180100	RUBBER RING
27	SL6061292TN	SCREW
28	SM6051402TP	SCREW M5X0.8 L=14
29	SM5040655SN	SCREW
30	40013595	OIL_EXIT_CAP
31	40098329	OIL_TANK
32	40086646	FLOATER_CASE_ASM.
33	40086647	FLOATER_CASE
34	23630403	OIL FILTER
35	23630502	OIL FILTER STOPPER
36	23628902	PLUNGER SPRING
37	40038328	PLUNGER SCREW
38	40037502	OIL ADJUSTING SCREW
39	RO037180100	RUBBER RING
40	23628803	PLUNGER
41	40086693	FROATER_CASE_GUIDE
42	SL6040892TN	BOLT
43	SL6051492TN	BOLT
44	B8228125000	OIL RESERVOIR MAGNET
45	40149785	ASSY_FLOATER_SIGHT_WINDOW_B
46	40000344	LUBRICATING INLET CAP
47	RO048190100	RUBBER RING

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40082059 GEAR BOX COVER ASM. 1 2 40135639 GEAR_BOX_COVER * 1 3 40034246 OIL_SIGHT_WINDOW * 1 4 RO195240100 RUBBER RING * 1 5 13171004 DRAIN SCREW * 1 6 13170105 RUBBER RING * 1 7 23629256 OIL WICK SUPPORT ASM. 1 8 23629207 OIL WICK * 1 9 CQ250000001 OIL WICK 0.25 10 23629306 PIPE STOPPER A 3 11 23629405 PIPE STOPPER B 4 12 40037166 GEAR BOX PACKING 1 13 40135640 MAGNET_HOLDER 1 14 SQ2050453MZ CONNECTING SCREW 2 15 40086648 FLOATER ASM. 1 16 RO068190100 RUBBER RING 1 17 23630007 TUBE 0.57 18 23630007 TUBE 0.08 19 23630007 TUBE 0.11 20 CQ200000001 OIL WICK 0.75 21 23630106 TUBE B 0.165 22 23630106 TUBE B 0.2 23 40075404 FACE FELT ASM 1 24 22925101 OIL FELT PRESSER 1 25 RO098240100 RUBBER RING 1 26 RO172180100 RUBBER RING 1 27 SL6061292TN SCREW 3 28 SM6051402TP SCREW M5X0.8 L=14 9 29 SM5040655SN SCREW 1 30 40013595 OIL_EXIT_CAP 1 31 40098329 OIL_TANK 1 32 40086646 FLOATER_CASE_ASM. 1 33 40086647 FLOATER_CASE * 1 34 23630403 OIL FILTER * 1 35 23630502 OIL FILTER STOPPER * 1 36 23628902 PLUNGER SPRING 1 37 40038328 PLUNGER SCREW 1 38 40037502 OIL ADJUSTING SCREW 1 39 RO037180100 RUBBER RING 1 40 23628803 PLUNGER 1 41 40086693 FROATER_CASE_GUIDE 1 42 SL6040892TN BOLT 1 43 SL6051492TN BOLT 1 44 B8228125000 OIL RESERVOIR MAGNET 2 45 40149785 ASSY_FLOATER_SIGHT_WINDOW_B 1 46 40000344 LUBRICATING INLET CAP * 1 47 RO048190100 RUBBER RING * 1 jintex.in

Page 34

Juki DDL-9000B (X73199) parts on page 34
Part number	Part name	Qty
40086750	REVERSE FEED SOLENOID ASM.	1
HK03464000B	PIN CONTACT	2
40086753	REVERSE FEED SOLENOID PLUNGER	1
RE1200000K0	E-RING 12	1
D2468555B00	RUBBER PLUNGER	1
WP1602616SZ	WASHER 16X24X2.6	1
WP0550800SP	WASHER 5.5X10X0.8	3
SM4051055SP	SCREW	3
WP0551016SH	WASHER 5.5X13X1	1
NM6050001SP	NUT M5	2
WS0610002KN	SPRING WASHER 6.1X12.2X1.5	1
40095844	REVERSE FEED ARM ASM.	1
40086698	REVERSE_FEED_ARM	1
SM6051602TP	SCREW M5X0.8 L=16	1
23631757	REVERSE FEED SWITCH ASM.	1
23632102	REVERSE FEED SWITCH BASE GUIDE	1
23632359	REVERSE FEED CORD ASM.	1
EA9500B0100	CABLE BAND	1
SS7110740TP	SCREW 11/64-40 L=7	1
23631708	REVERSE FEED SWITCH COVER	1
23631807	REVERSE FEED SWITCH SHAFT	1
23631906	REVERSE FEED SWITCH SUPPORT	1
23632003	REVERSE FEED SWITCH BASE	1
SM4051055SP	SCREW	1
23632656	OPTION SWITCH ASM.
23632102	REVERSE FEED SWITCH BASE GUIDE	1
23632250	REVERSE FEED CORD ASM.	1
EA9500B0100	CABLE BAND	1
SS7110740TP	SCREW 11/64-40 L=7	1
23631708	REVERSE FEED SWITCH COVER	1
23631807	REVERSE FEED SWITCH SHAFT	1
23631906	REVERSE FEED SWITCH SUPPORT	1
23632607	OPTION SWITCH BASE	1
40086655	REVERSE_FEED_CONNECTION_LINK	1
40086699	REVERSE_FEED_LINK_PIN	1
SM480652TP	SCREW	1
40086759	BACK_SOLENOID_PLUNGER_PIN	1

AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086750 REVERSE FEED SOLENOID ASM. 1 2 HK03464000B PIN CONTACT * 2 3 40086753 REVERSE FEED SOLENOID PLUNGER * 1 4 RE1200000K0 E-RING 12 * 1 5 D2468555B00 RUBBER PLUNGER * 1 6 WP1602616SZ WASHER 16X24X2.6 * 1 7 WP0550800SP WASHER 5.5X10X0.8 3 8 SM4051055SP SCREW 3 9 WP0551016SH WASHER 5.5X13X1 1 10 NM6050001SP NUT M5 2 11 WS0610002KN SPRING WASHER 6.1X12.2X1.5 1 12 40095844 REVERSE FEED ARM ASM. 1 13 40086698 REVERSE_FEED_ARM * 1 14 SM6051602TP SCREW M5X0.8 L=16 * 1 15 23631757 REVERSE FEED SWITCH ASM. * 1 16 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 17 23632359 REVERSE FEED CORD ASM. * 1 18 EA9500B0100 CABLE BAND * 1 19 SS7110740TP SCREW 11/64-40 L=7 * 1 20 23631708 REVERSE FEED SWITCH COVER * 1 21 23631807 REVERSE FEED SWITCH SHAFT * 1 22 23631906 REVERSE FEED SWITCH SUPPORT * 1 23 23632003 REVERSE FEED SWITCH BASE 1 24 SM4051055SP SCREW * 1 25 23632656 OPTION SWITCH ASM. OPTIONAL PARTS 1 26 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 27 23632250 REVERSE FEED CORD ASM. * 1 28 EA9500B0100 CABLE BAND * 1 29 SS7110740TP SCREW 11/64-40 L=7 * 1 30 23631708 REVERSE FEED SWITCH COVER * 1 31 23631807 REVERSE FEED SWITCH SHAFT * 1 32 23631906 REVERSE FEED SWITCH SUPPORT * 1 33 23632607 OPTION SWITCH BASE * 1 34 40086655 REVERSE_FEED_CONNECTION_LINK 1 35 40086699 REVERSE_FEED_LINK_PIN 1 36 SM480652TP SCREW 1 37 40086759 BACK_SOLENOID_PLUNGER_PIN 1

Page 35 — CONDENSE COMPONENTS

Juki DDL-9000B (X73199) parts on page 35
Ref	Part number	Part name
1	1	BASE
2	2	BRACKET
3	3	BRACKET
4	4	SCREW
5	5	WASHER
6	6	SCREW
7	7	NUT
8	8	LEVER
9	9	SPRING
10	10	PIN
11	11	BRACKET
12	12	PIN
13	13	CLIP
14	14	SCREW
15	15	WASHER
16	16	WASHER
17	17	SCREW
18	18	PIN
19	19	COVER
20	20	PLUG
21	21	WASHER
22	22	BRACKET
23	23	PLUG
24	24	WASHER
25	25	BRACKET

CONDENSE COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 36 — CONDENSE COMPONENTS

Juki DDL-9000B (X73199) parts on page 36
Part number	Part name	Qty
40100043	CONDENSE SOLENOID ASM.	1
SM5040401SE	SCREW M4 L=4	2
40100046	SOLENOID BASE A	1
SM6050802TP	SCREW M5X0.8 L=8	2
WP0501016SD	WASHER 5X10.5X1	2
22962906	PLUNGER ARM PIN	1
NS6110350SP	NUT 11/64-40	2
40100038	CONDENSE ARM ASM.	1
40100050	CONDENSE SPRING	1
SD1001506TP	SHOULDER SCREW D=10 H=15	1
40162657	CONDENSE STOPPER	1
40060833	CONDENSE PIVOT	1
RE0600000K0	E-RING 6	1
SM6051202TP	SCREW M5X0.8 L=12	1
WP0531000SD	WASHER M5	1
40061486	STOPPER COLLAR	1
SM6051202TP	SCREW M5X0.8 L=12	1
40100172	CONDENSE ARM STOPPER¥n	1
22609606	FEED DRIVING ROCKER BLOCK S	1
SM6050802TP	SCREW M5X0.8 L=8	2
WP0501016SD	WASHER 5X10.5X1	2
40100047	SOLENOID BASE B	1
SM6061002TP	SCREW M6 L=10	1
WP0641601SD	WASHER M6	1
40100048	SOLENOID COVER	1

CONDENSE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40100043 CONDENSE SOLENOID ASM. 1 2 SM5040401SE SCREW M4 L=4 2 3 40100046 SOLENOID BASE A 1 4 SM6050802TP SCREW M5X0.8 L=8 2 5 WP0501016SD WASHER 5X10.5X1 2 6 22962906 PLUNGER ARM PIN 1 7 NS6110350SP NUT 11/64-40 2 8 40100038 CONDENSE ARM ASM. 1 9 40100050 CONDENSE SPRING 1 10 SD1001506TP SHOULDER SCREW D=10 H=15 1 11 40162657 CONDENSE STOPPER 1 12 40060833 CONDENSE PIVOT 1 13 RE0600000K0 E-RING 6 1 14 SM6051202TP SCREW M5X0.8 L=12 1 15 WP0531000SD WASHER M5 1 16 40061486 STOPPER COLLAR 1 17 SM6051202TP SCREW M5X0.8 L=12 1 18 40100172 CONDENSE ARM STOPPER¥n 1 19 22609606 FEED DRIVING ROCKER BLOCK S 1 20 SM6050802TP SCREW M5X0.8 L=8 2 21 WP0501016SD WASHER 5X10.5X1 2 22 40100047 SOLENOID BASE B 1 23 SM6061002TP SCREW M6 L=10 1 24 WP0641601SD WASHER M6 1 25 40100048 SOLENOID COVER 1

Page 37 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

Juki DDL-9000B (X73199) parts on page 37
Ref	Part number	Part name	Qty
	1	COVER
	2	BRACKET
	3	BRACKET
	4	SHAFT
	5	BRACKET
	6	BRACKET
	7	TERMINAL
	8	SHAFT
	9	BRACKET
	10	BUSH
	11	SPRING
	12	BUSH
	13	SCREW
	14	LEVER
	15	BRACKET
	16	BRACKET
	17	COVER
	18	BUSH
	19	WASHER
	20	BRACKET
	21	WASHER
	22	NUT
	23	WASHER
	24	CIRCLIP
	25	SCREW
	26	SCREW
	27	BRACKET
	28	SCREW
	29	BRACKET
	30	SCREW
	31	BRACKET
	32	BRACKET
	33	WASHER
	34	WASHER
	35	BRACKET
	36	COVER
	37	SCREW

WIPER COMPONENTS (FOR DDL-9000B-**-WB) 1 36 26 5 37 6 17 27 20 15 18 32 31 8 25 21 9 10 11 22 2 29 30 3 13 14 4 24 33 35 12 28 19 7

Page 38 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

Juki DDL-9000B (X73199) parts on page 38
Part number	Part name	Qty
40086676	WIPER ASM.	1
40077853	WIPER BASE ASM.	1
40086723	WIPER LINK B	1
40086724	WIPER SHAFT ASM.	1
40095175	WIPER_SOLENOID_ASM.	1
40089264	WIPER SOLENOID	1
HK03464000B	PIN CONTACT	2
HW500070000	2-CORE CABTYRE CORD	1.3
22956106	WIPER LINK A	1
22956205	WIPER HINGE SCREW COLLAR	1
22956304	WIPER SPRING	1
22956809	WIPER COLLAR	1
22956908	WIPER LINK B HINGE SCREW	1
22957005	WIPER	1
22957203	WIPER LINK COLLAR	1
40077852	WIPER SOLENOID SHAFT	1
40086678	WIPER_SW_RUBBER	1
22955900	WIPER RUBBER A	1
40086717	FELT_B	1
22956007	WIPER RUBBER B	1
NS6090310SP	NUT 9/64-40	1
NS6110310SP	NUT 11/64-40	1
RC0370411KP	RETAINING RING	1
RE0500000K0	E-RING	1
SD0650321TP	HINGE SCREW D=6.5 H=3.2	1
SL4030631SC	SCREW M3X6	3
SL4030641SE	SCREW	1
SS6090540SP	SCREW 9/64-40 L=5.0	1
40077851	WIPER SOLENOID SHAFT GUIDE	2
SS4110615SP	SCREW 11/64-40 L=6	1
40086680	WIPER_STOPPER_RUBBER_HOLDER	1
40086679	WIPER_STOPPER_RUBBER	1
WP0661016SP	WASHER	1
WP0651001SC	WASHER	1
40086716	FELT_A	1
22955504	WIPER COVER	1
SM4051055SP	SCREW	1

WIPER COMPONENTS (FOR DDL-9000B-**-WB) No. Parts No. Parts name Remarks Level Cons Qty 1 40086676 WIPER ASM. * 1 2 40077853 WIPER BASE ASM. * 1 3 40086723 WIPER LINK B * 1 4 40086724 WIPER SHAFT ASM. * 1 5 40095175 WIPER_SOLENOID_ASM. * 1 6 40089264 WIPER SOLENOID * 1 7 HK03464000B PIN CONTACT * 2 8 HW500070000 2-CORE CABTYRE CORD * 1.3 9 22956106 WIPER LINK A * 1 10 22956205 WIPER HINGE SCREW COLLAR * 1 11 22956304 WIPER SPRING * 1 12 22956809 WIPER COLLAR * 1 13 22956908 WIPER LINK B HINGE SCREW * 1 14 22957005 WIPER * 1 15 22957203 WIPER LINK COLLAR * 1 16 40077852 WIPER SOLENOID SHAFT * 1 17 40086678 WIPER_SW_RUBBER * 1 18 22955900 WIPER RUBBER A * 1 19 40086717 FELT_B * 1 20 22956007 WIPER RUBBER B * 1 21 NS6090310SP NUT 9/64-40 * 1 22 NS6110310SP NUT 11/64-40 * 1 23 RC0370411KP RETAINING RING * 1 24 RE0500000K0 E-RING * 1 25 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 26 SL4030631SC SCREW M3X6 * 3 27 SL4030641SE SCREW * 1 28 SS6090540SP SCREW 9/64-40 L=5.0 * 1 29 40077851 WIPER SOLENOID SHAFT GUIDE * 2 30 SS4110615SP SCREW 11/64-40 L=6 * 1 31 40086680 WIPER_STOPPER_RUBBER_HOLDER * 1 32 40086679 WIPER_STOPPER_RUBBER * 1 33 WP0661016SP WASHER * 1 34 WP0651001SC WASHER * 1 35 40086716 FELT_A * 1 36 22955504 WIPER COVER * 1 37 SM4051055SP SCREW * 1 jintex.in 26

Page 39 — THREAD STAND COMPONENTS

Juki DDL-9000B (X73199) parts on page 39
Ref	Part number	Part name
1	1	THREAD STAND
2	2	BRACKET
3	3	BRACKET
4	4	WASHER
5	5	WASHER
6	6	ROD
7	7	THREAD HOLDER
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	SCREW
12	12	SCREW
13	13	SCREW
14	14	WASHER
15	15	WASHER
16	16	THREAD STAND
17	17	THREAD STAND
18	18	THREAD STAND
19	19	THREAD STAND
20	20	COLLAR
21	21	NUT
22	22	WASHER
23	23	WASHER
24	24	SCREW
25	25	SCREW

THREAD STAND COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 40 — THREAD STAND COMPONENTS

Juki DDL-9000B (X73199) parts on page 40
Part number	Part name	Qty
40108402	THRED_STAND_B	1
40085786	SPOOL REST ARM (LOWER)	1
40085787	SPOOL REST ARM (UPPER)	1
40085788	SPOOL REST	2
40085789	SPOOL REST CUSHION	2
40085790	SPOOL PIN	2
40085791	SPOOL RETAINER	2
40085794	THREAD GUIDE	2
40085795	THREAD GUIDE BUSHING	2
40096326	SPOOL REST ARM LOWER SCREW	1
NM6050001SE	NUT M5	1
40096327	SPOOL REST ARM UPPER SCREW	2
NM6050001SE	NUT M5	1
WS0510002KN	SPRING WASHER M5	2
WP0531001SC	WASHER M5	2
40108401	THREAD_STAND_A	1
40085784	SPOOL REST ROD LOWER	1
40085785	SPOOL REST ROD UPPER	1
40085792	SPOOL REST ROD JOINT	1
40085793	SPOOL REST ROD RUBBER CAP	1
40096325	SPOOL REST ROD NUT	1
WP1612616SE	WASHER 16X30X2.6	2
40085796	SPOOL REST ROD RUBBER CUSHION	2
SM4051405SE	SCREW M5 L=14	2
NM6050001SE	NUT M5	2

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40108402 THRED_STAND_B 1 2 40085786 SPOOL REST ARM (LOWER) * 1 3 40085787 SPOOL REST ARM (UPPER) * 1 4 40085788 SPOOL REST * 2 5 40085789 SPOOL REST CUSHION * 2 6 40085790 SPOOL PIN * 2 7 40085791 SPOOL RETAINER * 2 8 40085794 THREAD GUIDE * 2 9 40085795 THREAD GUIDE BUSHING * 2 10 40096326 SPOOL REST ARM LOWER SCREW * 1 11 NM6050001SE NUT M5 * 1 12 40096327 SPOOL REST ARM UPPER SCREW * 2 13 NM6050001SE NUT M5 * 1 14 WS0510002KN SPRING WASHER M5 * 2 15 WP0531001SC WASHER M5 * 2 16 40108401 THREAD_STAND_A 1 17 40085784 SPOOL REST ROD LOWER * 1 18 40085785 SPOOL REST ROD UPPER * 1 19 40085792 SPOOL REST ROD JOINT * 1 20 40085793 SPOOL REST ROD RUBBER CAP * 1 21 40096325 SPOOL REST ROD NUT * 1 22 WP1612616SE WASHER 16X30X2.6 * 2 23 40085796 SPOOL REST ROD RUBBER CUSHION * 2 24 SM4051405SE SCREW M5 L=14 * 2 25 NM6050001SE NUT M5 * 2

Page 41 — UNDER COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 41
Ref	Part number	Part name
1	1	COVER
2	2	COVER
3	3	COVER
4	4	COVER
5	5	COVER
6	6	COVER
7	7	COVER
8	8	COVER
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	SHAFT
15	15	SHAFT
16	16	SPRING
17	17	SPRING
18	18	SPRING
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
27	27	BRACKET
28	28	BRACKET
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET

UNDER COVER COMPONENTS 1.2 3.4 6.7 8 5 13 22 27 15 24 18 23 10 11 12 26 17 25 16 14 A 19 20 21 21 33 32 28 29 30 31 A

Page 42 — UNDER COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 42
Ref	Part number	Part name	Qty
	40089665	UNDER COVER AH ASM.
	40062321	UNDER COVER A ASM.
	40089671	UNDER COVER BH ASM.
	40062323	UNDER COVER B ASM.
	23639008	UNDER COVER
	22932008	RUBBER CUSHION
	B1116210D00	FRAME SUPPORT RUBBER
	B1116210D00	FRAME SUPPORT RUBBER
	23639156	BRACKET ASM.
	23639107	BRACKET
	NM60600001SE	NUT M6
	SM8063012TR	SCREW M6 L=30
	23639206	CONNECTING ROT
	23639305	KNEE PRESS ROD
	23639404	SHAFT
	23639503	SPRING
	23639602	CONNECTING ROD
	WP0650876SD	WASHER 6.5X13X0.8
	22932453	BRACKET ASM.
	22932404	BRACKET
	SM9062053SR	SCREW M6 L=20
	NS6150310SP	NUT 15/64-28
	RE100000K0	E-RING 10
	RE100000K0	E-RING 10
	SD0720331SP	HINGE SCREW D=7.24 H=3.3
	SM9061853SR	SCREW M6 L=17.5
	SM9061853SR	SCREW M6 L=17.5
	22934251	KNEE PAD PLATE ASM.
	22934202	KNEE PAD PLATE
	22934301	KNEE PAD PLATE SUPPORT
	22934400	KNEE PAD PLATE RUBBER
	22934509	KNEE PAD PLATE COVER
	22934608	KNEE PAD UPRIGHT SHAFT
	SM9061203SE	SCREW M6 L=12

UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089665 UNDER COVER AH ASM. FOR DDL-9000B-SH 1 2 40062321 UNDER COVER A ASM. EXCEPT DDL-9000B-SH 1 3 40089671 UNDER COVER BH ASM. FOR DDL-9000B-SH 1 4 40062323 UNDER COVER B ASM. EXCEPT DDL-9000B-SH 1 5 23639008 UNDER COVER 1 6 22932008 RUBBER CUSHION FOR DDL-9000B-SH 2 7 B1116210D00 FRAME SUPPORT RUBBER EXCEPT DDL-9000B-SH 2 8 B1116210D00 FRAME SUPPORT RUBBER 2 9 23639156 BRACKET ASM. 1 10 23639107 BRACKET 1 11 NM60600001SE NUT M6 2 12 SM8063012TR SCREW M6 L=30 2 13 23639206 CONNECTING ROT 1 14 23639305 KNEE PRESS ROD 1 15 23639404 SHAFT 1 16 23639503 SPRING 1 17 23639602 CONNECTING ROD 1 18 WP0650876SD WASHER 6.5X13X0.8 2 19 22932453 BRACKET ASM. 1 20 22932404 BRACKET 1 21 SM9062053SR SCREW M6 L=20 2 22 NS6150310SP NUT 15/64-28 2 23 RE100000K0 E-RING 10 1 24 RE100000K0 E-RING 10 1 25 SD0720331SP HINGE SCREW D=7.24 H=3.3 2 26 SM9061853SR SCREW M6 L=17.5 1 27 SM9061853SR SCREW M6 L=17.5 1 28 22934251 KNEE PAD PLATE ASM. 1 29 22934202 KNEE PAD PLATE 1 30 22934301 KNEE PAD PLATE SUPPORT 1 31 22934400 KNEE PAD PLATE RUBBER 1 32 22934509 KNEE PAD PLATE COVER 1 33 22934608 KNEE PAD UPRIGHT SHAFT 1 34 SM9061203SE SCREW M6 L=12 1

Page 43

Juki DDL-9000B (X73199) parts on page 43
Ref	Part number	Part name
1~4	1~4	ACCESSORIE PART COMPONENTS
5	5	ACCESSORIE PART COMPONENTS
6	6	ACCESSORIE PART COMPONENTS
7	7	ACCESSORIE PART COMPONENTS
8	8	ACCESSORIE PART COMPONENTS
9	9	ACCESSORIE PART COMPONENTS
10	10	ACCESSORIE PART COMPONENTS
11	11	ACCESSORIE PART COMPONENTS
12-13	12-13	ACCESSORIE PART COMPONENTS
14	14	ACCESSORIE PART COMPONENTS
15	15	ACCESSORIE PART COMPONENTS
16	16	ACCESSORIE PART COMPONENTS
17	17	ACCESSORIE PART COMPONENTS
18	18	ACCESSORIE PART COMPONENTS
19	19	ACCESSORIE PART COMPONENTS
20	20	ACCESSORIE PART COMPONENTS
21~27	21~27	ACCESSORIE PART COMPONENTS
28	28	JUKI
29	29	ACCESSORIE PART COMPONENTS
30	30	ACCESSORIE PART COMPONENTS
31	31	ACCESSORIE PART COMPONENTS
32	32	ACCESSORIE PART COMPONENTS
33	33	ACCESSORIE PART COMPONENTS

ACCESSORIE PART COMPONENTS 1~4 5 9 10 12-13 8 6 7 11 14 16 19 21~27 17 18 15 20 33 31 32 29 28 JUKI 30 jintex.in

Page 44

Juki DDL-9000B (X73199) parts on page 44
Ref	Part number	Part name	Qty
	40089663	ACCESSORIE BAG ASM.
	40091140	ACCESSORIE BAG AK ASM.
	40099737	ACCESSORIE BAG ASM. 2
	40099737	ACCESSORIE BAG AK ASM. 2
	22932800	ACCESSORIE BAG
	22933204	SCREW DRIVER (SMALL)
	22502504	THREAD GUIDE BAR
	23639701	KNEE LIFTER PRESSER ROD
	EA9500B0100	CABLE BAND
	40055591	HEXAGONAL WRENCH KYE
	22933105	SCREW DRIVER (MIDDLE)
	22931604	FRAME SUPPORT BAR
	40024081	HEAD SUPPORT ROD
	22958052	RUBBER HINGE ASM.
	22926505	WASHER
	22926000	RUBBER CUSHION
	22958003	FRAME BUBBER CUSHION
	22926208	NAIL
	22926356	HINGE COMPL.
	B91210120A0	OILER ASM.
	MDB100B1100	NEEDLE DBX1 #11
	MDB100B0900	NEEDLE DBX1 #9
	MDB100B2100	NEEDLE DBX1 #21
	MDB100B1400	NEEDLE DBX1 #14
	MC20050130	NEEDLE 134 NM130
	MC20050650	NEEDLE 134 NM65
	MC200500750	NEEDLE 134 NM75
	40135803	HEAD COVER
	40089323	DDL-9000B SETUP DOCUMENT
	CM600100201	WEEE INFORMATION SHEET
	B9117012000	BOBBIN
	22964001	BOBBIN A
	40102087	JUKI MACHINE OIL 7

ACCESSORIE PART COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089663 ACCESSORIE BAG ASM. EXCEPT TYPE AK 1 2 40091140 ACCESSORIE BAG AK ASM. TYPE AK 1 3 40099737 ACCESSORIE BAG ASM. 2 FOR CHINA (EXCEPT TYPE AK) 1 4 40099737 ACCESSORIE BAG AK ASM. 2 FOR CHINA (TYPE AK) 1 5 22932800 ACCESSORIE BAG * 1 6 22933204 SCREW DRIVER (SMALL) EXCEPT CHINA * 1 7 22502504 THREAD GUIDE BAR * 1 8 23639701 KNEE LIFTER PRESSER ROD * 1 9 EA9500B0100 CABLE BAND * 1 10 40055591 HEXAGONAL WRENCH KYE * 1 11 22933105 SCREW DRIVER (MIDDLE) EXCEPT CHINA * 1 12 22931604 FRAME SUPPORT BAR EXCEPT TYPE AK * 1 13 40024081 HEAD SUPPORT ROD TYPE AK * 1 14 22958052 RUBBER HINGE ASM. * 2 15 22926505 WASHER * 2 16 22926000 RUBBER CUSHION * 2 17 22958003 FRAME BUBBER CUSHION * 8 18 22926208 NAIL * 2 19 22926356 HINGE COMPL. * 2 20 B91210120A0 OILER ASM. 1 21 MDB100B1100 NEEDLE DBX1 #11 VARIOUS NOS.FOR DESTINATIONS 1 22 MDB100B0900 NEEDLE DBX1 #9 VARIOUS NOS.FOR DESTINATIONS 1 23 MDB100B2100 NEEDLE DBX1 #21 VARIOUS NOS.FOR DESTINATIONS 1 24 MDB100B1400 NEEDLE DBX1 #14 VARIOUS NOS.FOR DESTINATIONS 1 25 MC20050130 NEEDLE 134 NM130 VARIOUS NOS.FOR DESTINATIONS 1 26 MC20050650 NEEDLE 134 NM65 VARIOUS NOS.FOR DESTINATIONS 1 27 MC200500750 NEEDLE 134 NM75 VARIOUS NOS.FOR DESTINATIONS 1 28 40135803 HEAD COVER 1 29 40089323 DDL-9000B SETUP DOCUMENT EXCEPT CHINA 1 30 CM600100201 WEEE INFORMATION SHEET VARIOUS NOS.FOR DESTINATIONS 1 31 B9117012000 BOBBIN VARIOUS NOS.FOR DESTINATIONS 1 32 22964001 BOBBIN A VARIOUS NOS.FOR DESTINATIONS 1 33 40102087 JUKI MACHINE OIL 7 EXCEPT CHINA 1

Page 45 — EXCLUSIVE PARTS DDL-9000B DS

Juki DDL-9000B (X73199) parts on page 45
Ref	Part number	Part name	Qty
	1	CYLINDER
	2	SCREW
	3	DRY
	4-5	TUBE
	6	BOBBIN CASE HOLDER
	7	BOBBIN CASE
	8~10	BOBBIN WINDER PARTS
	11	BOBBIN WINDER PULLEY
	12	BOBBIN WINDER SHAFT
	13	NEEDLE BAR MECHANISM PARTS
	14	NEEDLE BAR CONNECTING PIECE
	15	NEEDLE BAR CONNECTING PIECE SCREW
	16	NEEDLE BAR CONNECTING PIECE SCREW
	17	NEEDLE BAR CONNECTING PIECE
	18	NEEDLE BAR CONNECTING PIECE
	19	NEEDLE BAR CONNECTING PIECE
	20	NEEDLE BAR CONNECTING PIECE SCREW
	21	NEEDLE BAR CONNECTING PIECE
	22	NEEDLE BAR CONNECTING PIECE SCREW
	23	GREASE TUBE
	24	WIRE HARNESS

EXCLUSIVE PARTS DDL-9000B DS 1 2 4-5 3 DRY 13 16 14 22 15 21 18 20 17 19 24 23 6 7 8~10 11 12 jintex.in

Part Books

Search
