Parts index — Juki DDL-9000B (X73199)tap a row to open its page

Page 2 — CONTENTS

Juki DDL-9000B (X73199) parts on page 2

Ref	Part number	Part name	Qty
	1	MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
	5	BOBBIN WINDER COMPONENTS
	7	MAIN SHAFT & NEEDLE BAR COMPONENTS
	11	HAND LIFTER & TENSION RELEASE COMPONENTS
	15	FEED ADJUST MECHANISM COMPONENTS
	17	HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
	21	THREAD TRIMMER COMPONENTS (1)
	25	THREAD TRIMMER COMPONENTS (2)

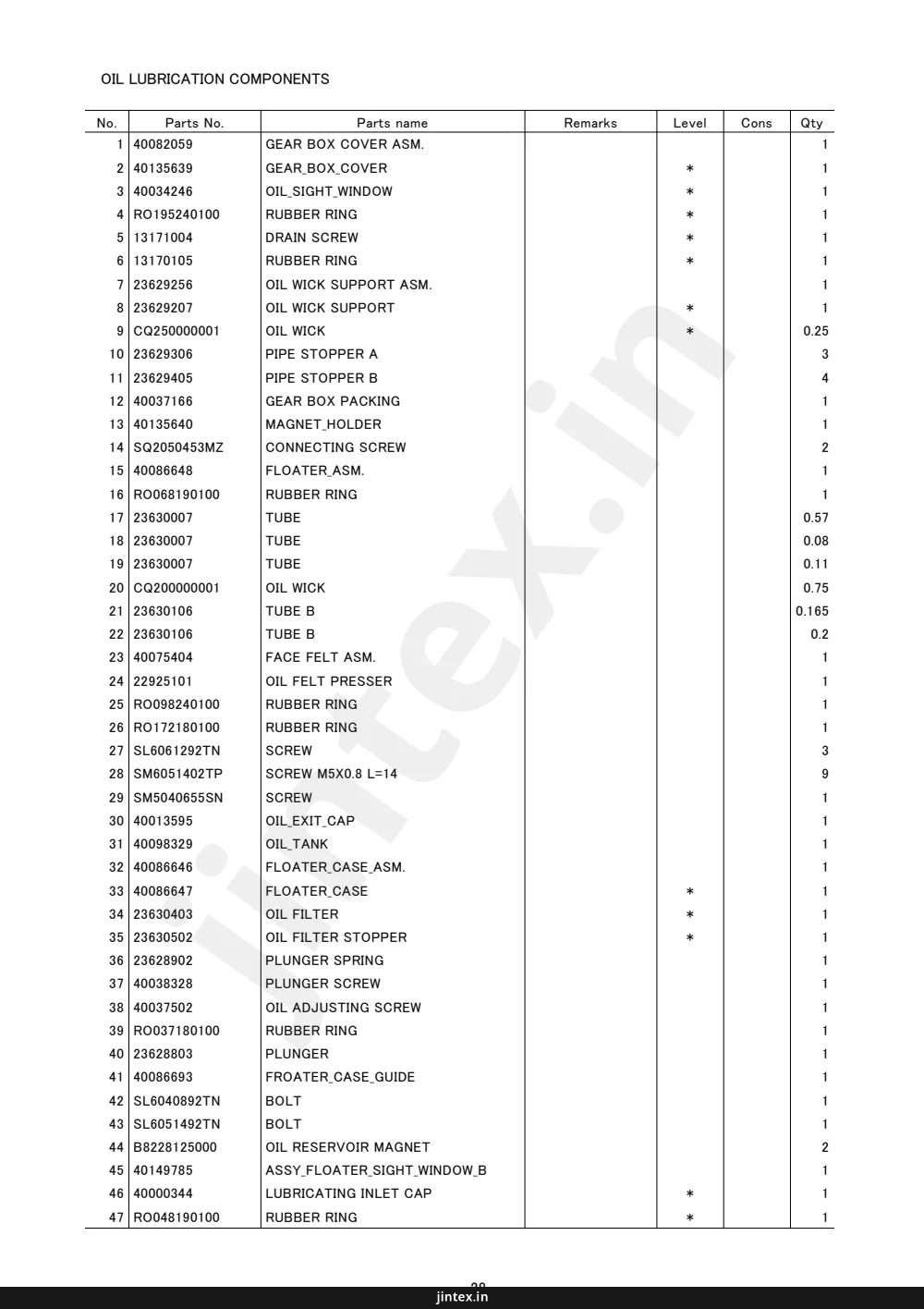

	27	OIL LUBRICATION COMPONENTS
	31	AUTOMATIC REVERSE FEED COMPONENTS
	33	CONDENSE COMPONENTS
	35	WIPER COMPONENTS (FOR DDL-9000B-**-WB)
	37	THREAD STAND COMPONENTS
	39	UNDER COVER COMPONENTS
	41	ACCESSORIE PART COMPONENTS
	43	EXCLUSIVE PARTS DDL-9000B DS
	45	EXCLUSIVE PARTS DDL-9000B MS,MA
	47	EXCLUSIVE PARTS DDL-9000B SH
	51	TABLE & STAND COMPONENTS
	53	SPECIAL ORDER PART
	55	NEEDLE THREAD PRESSER COMPONENTS
	57	LED REVERSE FEED SWITCH COMPONENTS
	59	HOW TO MAKE USE OF THIS PARTS LIST

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 4

Ref	Part number	Part name	Qty
	40037158	SIDE PLATE	1
	40041161	FACE PLATE	1
	40052819	FACE PLATE PACKING	1
	23600505	THREAD TAKE-UP LEVER COVER	1
	SM4051055SP	SCREW	1
	40086713	BED,STUD,A	1
	SM6061002TP	SCREW M6 L=10	2
	22951552	GROUND WIRE ASM.	1
	SM4050855SP	SCREW	1
	EA9500B0100	CABLE BAND
	40094561	SEWING MACHINE LABEL (EU)	1
	22901250	SLIDE PLATE ASM.	1
	22902753	SLIDE PLATE ASM.	1
	22901201	SLIDE PLATE	1
	22902704	SLIDE PLATE	1
	22901300	SLIDE PLATE SPRING	1
	22901300	SLIDE PLATE SPRING	1
	SS6060210SP	SCREW 3/32-56 L=1.9	2
	SM4050855SP	SCREW	2
	40069110	ATTACHMENT FIXATION SCREW	1
	22944508	WIRE PRESSER A	1
	SM4040855SP	SCREW	1
	CM300200001	ATTENTION SEAL	1
	40069097	RULER PLATE I	1
	CM300200003	ATTENTION LABEL	1
	SM6052502TP	SCREW M5X25	3
	SM2040955TP	SCREW M4 L=8.5	1
	SM2040750TP	SCREW M4 L=7.4	1
	CM301300001	SAFETY LABEL	1
	22902506	FACE PLATE	4
	SM4051055SP	SCREW	2
	SM4051255SP	SCREW M5 L=12	1
	40086732	PULLEY_COVER	1
	40086714	BED,STUD,B	1
	SM6061202TP	SCREW M6 L=12	2
	SM4040655SP	SCREW M4 L=6	1
	40035589	RULER PLATE	1
	40091461	FEED LEVER SPRING HOOK	1
	TA1250406R0	RUBBER PLUG D=12.5 L=4	2
	TA1250406R0	RUBBER PLUG D=12.5 L=4	2
	TA1470704R0	RUBBER PLUG	1
	NM6040001SP	NUT M4X0.7	1
	TA1250406R0	RUBBER PLUG D=12.5 L=4	1
	40114043	FEED ADJUSTING SPRING,PLATE	1
	40052933	ARM THREAD GUIDE C	1
	SM80608A2TP	SCREW M6 L=8	1
	23640006	SHEET	1

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 6

Ref	Part number	Part name	Qty
	40037488	SHEET
	40086639	THREAD_TENSION_DISK_ASM.
	23626005	THREAD TENSION NUT
	22921209	THREAD TENSION POST
	22921407	ROTATION STOPPER
	22921506	THREAD TENSION DISK
	22921605	THREAD TAKE-UP SPRING
	22921704	THREAD TENSION SPRING A
	22921803	DISK STOPPER
	40086640	TENSION_POST_SOCKET_ASM.
	SS8090670SP	SCREW 9/64-40 L=5.5
	SS6110610TP	SCREW 11/64-40 L=6
	22920607	ARM THREAD GUIDE B
	22963458	THREAD TENSION ASM.
	22945414	THREAD TENSION POST
	22963409	THREAD TENSION SPRING
	22945703	THREAD TENSION NUT
	22945802	THREAD TENSION DISK
	SM80608A2TP	L=8SCREW M6 L=8
	SM5040655SN	SCREW
	23626104	ARM THREAD GUIDE A
	SM80608A2TP	L=8SCREW M6 L=8
	40086659	SAFETY_SWITCH_ASM.
	40086660	SAFETY_SWITCH_BASE
	23638109	SAFETY SWITCH ARM
	23638208	SAFETY SWITCH SPRING
	23638307	SAFETY SWITCH ARM SHAFT
	23638406	SAFETY SWITCH NUT
	40098386	SAFETY_SWITCH_CORD_ASM.
	EA9500B0100	CABLE BAND
	SM4021201SC	SCREW M2 L=12
	SM4050655SP	SCREW M5 L=6
	22901805	GROUND MARK
	23629900	AIR-DISCHARGING
	RO080150200	RUBBER RING
	23601305	AIR-DISCHARGING CAP
	WP0621016SD	WASHER 6.2X13X1
	WP0501016SD	WASHER 5X10.5X1
	CM600100101	WEEE MARK LABEL S
	CM600600101	CHINA ENVIRONMENT LABEL
	SM4051055SP	SCREW
	WP0550800SP	WASHER 5.5X10X0.8
	40091397	CABLE COVER
	40163071	THROAT_PLATE_IB_R
	WP0621016SD	WASHER 6.2X13X1
	11417615	THROAT PLATE A

Page 8 — BOBBIN WINDER COMPONENTS

Juki DDL-9000B (X73199) parts on page 8

Ref	Part number	Part name	Qty
	40023021	BOBBIN WINDER UNIT	1
	26260109	BTW_BASE	1
	26260208	BTW_CAM_PLATE	1
	26260307	BTW_BASE_SHAFT	1
	26260406	BTW_SHAFT_BASE	1
	26260505	BTW_CAM_LEVER	1
	26260604	BTW_WHEEL	1
	26260802	BTW_BEARING_SPACER	1
	26261008	BTW_LEVER_SHAFT	1
	26261206	BTW_SPACER	1
	26261305	BTW_BEARING	2
	26261503	BTW_WHEEL_RUBBER	1
	26261602	BOBBIN_SPRING	1
	26261701	BTW_SPRING	1
	40011144	BTW_TORSION_SPRING	1
	40014837	BTW_SHAFT	1
	40023022	BTW_LEVER	1
	RC0560711KP	RETAINING RING	1
	RE0400000K0	E-RING 4	1
	SM5040655SN	SCREW	1
	SM8040802TP	SCREW M4X8	2
	SM8050502TP	SCREW M5 L=5	1
	WP0450826SC	WASHER 4.5X10X0.8	1
	40088958	BOBBIN THREAD TENSION ASM.	1
	22921308	THREAD TENSION NUT	1
	40088959	BOBBIN THREAD TENSION ROD ASM.	1
	22921407	ROTATION STOPPER	1
	22921506	THREAD TENSION DISK	2
	22921704	THREAD TENSION SPRING A	1
	40037008	THREAD_CUTTER	1
	SM0050801SC	SCREW	1
	SM0050801SC	SCREW	3
	SM4051055SP	SCREW	1

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000B (X73199) parts on page 10

Ref	Part number	Part name	Qty
	40086597	MAIN_SHAFT	1
	40135904	ASSY_COUNTER WEIGHT	1
	40135916	COUNTER WEIGHT
	40004171	COUNTER_WEIGHT_SCREW
	SM8081652TP	SCREW M8 L=16
	SM80606A2TP	6SCREW M6 L=6
	40150011	FRONT_BEARING	1
	SM80608A2TP	SCREW M6 L=8
	22906309	NEEDLE BAR THREAD GUIDE	1
	SS7080510TP	SCREW 1/8-44 L=4.5
	40089196	AC SERVO MOTOR	1
	40051473	COUPLING ASM.	1
	40051474	COUPLING	1
	SM80608A2TP	SCREW M6 L=8
	40037007	HAND WHEEL ASM.	1
	40037006	HAND WHEEL
	SM80608A2TP	SCREW M6 L=8
	40136292	BTW_DRIVING_WHEEL_ASM	1
	40136293	BTW_DRIVING_WHEEL
	SM80506A2TP	SCREW M5 L=6
	SB120002700	BEARING	1
	40141440	UPPER SPROCKET ASM.	1
	SM80608A2TP	SCREW M6 L=8
	40086731	TIMING_BELT_550	1
	23608003	NEEDLE BAR METAL UPPER	1
	40107707	NEEDLE_BAR_METAL_LOWER	1
	22886907	NEEDLE BAR (A)
	22887004	NEEDLE BAR (B)
	22906457	NEEDLE BAR HOLDER ASM.	1
	22906408	NEEDLE ROD HOLDER	1
	SS6090670TP	SCREW 9/64-40 L=6
	40090058	SLIDE BLOCK
	23626203	NEEDLE BAR THREAD GUIDE	1
	MDB100B1100	NEEDLE DBX1 #11
	MC200500750	NEEDLE 134 NM75
	MDB100B1400	NEEDLE DBX1 #14
	40135900	THREAD_TAKE_UP_COMPL.	1
	40135905	THREAD_TAKE_UP_ASM._C
	40141165	TAKE_UP_CRANK_ASM
	40135906	TAKE_UP_CRANK
	40143184	TAKE_UP_CRANK_SHAFT
	40135907	THREAD_TAKE_UP_PIN
	RE030000K0	E-RING 3
	SM80608A2TP	SCREW M6 L=8	2
	TA0850604R0	RUBBER PLUG	2
	40032269	THRUST COLLAR	1
	CS1000881TP	THRUST COLLAR

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000B (X73199) parts on page 12

Ref	Part number	Part name	Qty
48	SM8050412TP	SCREW M5 L=4	2
49	SL6052592TN	BOLT	4
50	EA9500B0100	CABLE BAND	2
51	TA0850604R0	RUBBER PLUG	1

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000B (X73199) parts on page 14

Ref	Part number	Part name	Qty
1	40136700	PRESSER BAR BUSHING	1
2	40086606	PRESSER BAR GUIDE BRACKET ASM.	1
3	40086607	PRESSER BAR GUIDE BRACKET	1
4	SM6051400SP	SCREW	1
5	23609357	LIFTING LEVER CONNECT ROD ASM.	1
6	23609456	LIFTING LINK COMPL.	1
7	23609605	PLATE	1
8	22908008	LIFTING PLATE	1
9	SM6040602TP	SCREW M4 L=6	1
10	RE050000K0	E-RING	1
11	RE050000K0	E-RING	1
12	23609308	LIFTING LEVER CONNECT ROD	1
13	40086760	CONNECTING ROD	1
14	23609704	LIFTING LEVER LINK	1
15	22907406	PRESSER SPRING	1
16	23610207	PRESSER BAR	1
17	23610306	PRESSER GUIDE BAR	1
18	40037359	PRESSER SPRING REGURATOR ASM.	1
19	40037141	PRESSER SPRING REGULATOR	1
20	40037144	PRESSER SPRING REGULATOR NUT	1
21	40050583	LINK SHAFT	2
22	22907802	HAND LIFTER	1
23	B152155000	SCREW	1
24	22908552	HAND LIFTER CAM ASM.	1
25	RO037180100	RUBBER RING	1
26	B15240120BA	PRESSER FOOT ASM.	1
27	SS7091110TP	SCREW 9/64-40 L=10.5	1
28	RE050000K0	E-RING	3
29	22908909	HINGE SCREW	1
30	40082078	SHOULDER SCREW D=7.24 H=3.3	1
31	NM6060003SE	NUT FOR BRACKET	1
32	40036706	ADJUSTING SCREW	1
33	WP0621016SD	WASHER 6.2X13X1	1
34	22944508	WIRE PRESSER A	2
35	SM4040855SP	SCREW	1
36	SM4040855SP	SCREW	1
37	SM6051402TP	SCREW M5X0.8 L=14	1
38	40086643	WIRE HOLDER	1
39	40050582	TENSION RELEASE SHAFT	1
40	22920300	THREAD RELEASE SUPPORTING PIN	1
41	22920409	THREAD RELEASE PIN SPRING	1
42	23626351	THREAD TENSION RELEASE WIRE	1
43	23626807	TENSION RELEASE RETURN SPRING	1
44	NS6620310SP	NUT 3/16-32	2
45	RE050000K0	E-RING	2
46	40056622	MINUTE LIFTING DEVICE ASM.	1
47	23611106	HAND LIFTER	1

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000B (X73199) parts on page 16

Ref	Part number	Part name	Qty
48	23610504	STOPPER BASE	1
49	23610652	STOPPER SCREW ASM.	1
50	D5119206K0K	SPACER	2
51	23610702	STOPPER SCREW NUT	1
52	SL6053592TN	BOLT	1
53	R0044240100	RUBBER RING	1
54	B3118552F00	TENSION RELEASING PIN	1
55	WP0501016SD	WASHER 5X10.5X1	1

Page 18 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000B (X73199) parts on page 18

Ref	Part number	Part name	Qty
	40086735	ADJUSTING_LINK_ASM.	1
	40086695	FEED_ADJUSTING_LINK	1
	40086696	FEED_ADJUSTING_LINK_PIN	2
	SM80506A2TP	SCREW M5 L=6	2
	40086608	ADJUSTING_LINK_FULCRUM_SHAFT	1
	SM80606A2TP	SCREW M6 L=6	1
	40086615	FEED_CHANGING_SHAFT_METAL_A	1
	40086704	FEED_CHANGING_SHAFT_ARM_ASM.	1
	40086705	FEED_CHANGING_SHAFT_ARM	1
	SM6051602TP	SCREW M5X0.8 L=16	1
	22910509	FEED_ADJUSTING LINK PIN	1
	40086706	FEED_CHANGING_SPRING_PIN	1
	40086616	FEED_CHANGING_SHAFT_METAL_B	1
	40086614	FEED_CHANGING_SHAFT	1
	40086738	REVERSE_FEED_LEVER	1
	23613706	FEED LEVER SHAFT	1
	40086674	FEED_LEVER_ARM_ASM.	1
	40086675	FEED LEVER ARM	1
	SM6051602TP	SCREW M5X0.8 L=16	1
	40086737	FEED ADJUSTING SPRING	1
	40086739	FEED LEVER SPRING	1
	40086609	FEED_ADJUSTING_ROD	1
	23630007	TUBE	0.1
	RE050000K0	E-RING	1
	23612609	FEED CHANGING SHAFT OIL SEAL	1
	SM80608A2TP	SCREW M6 L=8	2
	22952501	BACK LEVER STOPPER	1
	SM6051850TP	SCREW M5 L=18	1
	40141842	FEED REGULATOR SCREW	1
	40123098	FEED_REGULATOR_PIN_SPRING	1
	40161440	FEED_REGULATOR_PIN	1
	40141840	REGULATOR_STOPPER_SPRING	1
	40141838	FEED REGULATOR WASHER	1
	40141841	REGULATOR PIN DIAL	1
	SS6121860SP	SCREW 3/16-28 L=18	1
	40086617	FEED_LEVER_SHAFT_METAL	1
	40086736	RUBBER PLUG	1
	SM80606A2TP	SCREW M6 L=6	1
	23613409	FEED ADJUSTING PIN	1
	40095847	FEED REGULATOR ASM.	1
	SM80606A2TP	SCREW M6 L=6	1
	40122891	FEED_REGULATOR	1
	RO092270200	RUBBER RING	1
	40161441	REGULATOR_PIN_STOPPER	1
	40086613	FEED_REGULATOR_STOPPER_PIN	2
	40006716	THREAD_TRIMMER_SHAFT	1
	SM80606A2TP	SCREW M6 L=6	1

Page 20 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000B (X73199) parts on page 20

Ref	Part number	Part name	Qty
	40037192	FEED ROCKER CAM ASM.	1
	23616006	FEED ROCKER CAM	1
	SS8150822TP	SCREW 15/64-28 L=8	2
	40037365	FEED ROCKER ROD ASM.	1
	40026277	FEED ROCKER ROD	1
	22911101	WALKING FOOT PIN C	1
	SS6090620TP	SCREW	1
	40061246	FEED ROCKER ARM ALL ASM.	1
	40058504	FEED ROCKER ARM ASM.	1
	40042079	FEED ROCKER ARM	1
	SS6121610SP	SCREW 3/16-28 L=15.5	1
	SS6090620TP	SCREW	1
	22911002	WALKING FOOT PIN B	1
	23616709	FEED ROCKER SHAFT METAL	1
	40037005	ASSY.FEED_ROCKER_BASE_ARM	1
	40026281	FEED ROCKER BASE ARM	1
	SM6051400SP	SCREW	1
	WP0480856SP	WASHER 4.8X8.4X0.8	1
	SM4050855SP	SCREW	1
	23616204	FEED ROCKER CAM PLATE	1
	SS6090670TP	SCREW 9/64-40 L=6	2
	22904155	MAIN SHAFT THRUST COLLAR ASM.	2
	22904106	MAIN SHAFT THRUST COLLAR	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	40164902	FEED DOG I ST	1
	RO036080200	RUBBER RING	1
	SS4080620TP	SCREW 1/8-44 L=6	2
	B412352200A	NEEDLE BEARING	1
	B412352200B	NEEDLE ROLLAR	1
	B412352200C	NEEDLE ROLLAR	1
	40026278	CONNECTING LINK A	2
	23616402	CONNECTING LINK B	2
	23616600	FEED ROCKER SHAFT	1
	40086743	BEARING SUPPORT ASM.	1
	SS6110710TP	SCREW 11/64-40 L=6.5	2
	40026282	FEED ROCKER BASE SHAFT	1
	4000391	VERTICAL FEED CAM ASM. 5	1
	4000392	VERTICAL FEED CAM 5	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	40053720	FEED DRIVING BASE ARM ASM.	1
	40026287	FEED DRIVING BASE ARM	1
	SM4040655SP	SCREW M4 L=6	1
	40026288	FEED DRIVING BASE SHAFT	1
	40086757	FEED DRIVING SHAFT	1
	40086690	FEED_DRIVING_BEARING_SUPPORT	1
	SS8661012TP	SCREW	2
	23618101	FEED DRIVING CAM THRUST BUSH	2

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000B (X73199) parts on page 22

Ref	Part number	Part name	Qty
48	SB3200060A	BEARING	1
49	SB3200060B	BEARING	1
50	SB3200060C	BEARING	1
51	SB117001200	BEARING	1
52	23618309	FEED DRIVING CAM PLATE	1
53	SS6090670TP	SCREW 9/64-40 L=6	2
54	23620503	GEAR (LARGE)	1
55	SS8661012TP	SCREW	2
56	23620008	HOOK SHAFT	1
57	23620156	HOOK SHAFT METAL COMPL.	1
58	40145927	OIL SEAL	2
59	22916555	OIL SEAL SCREW ASM.	1
60	22916506	SET SCREW	1
61	11015906	OIL WICK	1
62	23620701	GEAR (SMALL)(A)	1
63	23620800	GEAR (SMALL)(B)	1
64	23620909	GEAR (SMALL)(C)	1
65	23621006	GEAR (SMALL)(D)	1
66	SS8661012TP	SCREW	2
67	11038759	BOBBIN CASE ASM.	1
68	11141355	HOOK ASM.	1
69	11038650	HOOK ASM.	1
70	40086740	OIL SEAL	1
71	40030786	FEED BASE COMPL.	1
72	22964001	BOBBIN A	1
73	40086744	HOOK DRIVING SHAFT OIL SEAL	1
74	23620404	HOOK SHAFT REAR METAL	1
75	40089607	INNER_HOOK_HOLDER	1
76	SM4051055SP	SCREW	1
77	40086618	FEED_SHAFT_REAR_METAL	1
78	40086741	OIL SEAL	1
79	40086742	OIL SEAL	1
80	SB120001800	BEARING	1
81	40141443	UNDER SPROCKET ASM.	1
82	SM80608A2TP	SCREW M6 L=8	2
83	RC1200001KP	C-SHAPED SNAP RING	1
84	11079506	FRONT SCREW	1
85	11417714	FEED_DOG_A	1

Page 24 — THREAD TRIMMER COMPONENTS (1)

Juki DDL-9000B (X73199) parts on page 24

Ref	Part number	Part name	Qty
	40067412	KNIFE UNIT	1
	11497302	THREAD HAUL KNIFE	1
	40067413	KNIFE BASE ASM.	1
	11497104	LOOP SPREADING BASE	1
	11420601	SCREW	4
	11420106	THREAD CUTTER KNIFE	1
	11091204	ADJUST LINK SPRING	1
	40016706	OIL_TANK_STUD_B	1
	40029398	PICKER SPRING	1
	40010434	THRUST_COLLAR_ASM	1
	40066590	ASSY PICKER ARM	1
	40036997	ASSY_PICKER	1
	SS6090670TP	SCREW 9/64-40 L=6	2
	40066591	PICKER ARM	1
	22950000	PICKER LINK PIN	1
	WP0621016SH	WASHER	1
	NS6150310SP	NUT 15/64-28	1
	40113199	THREAD CUTTER DRIVING UNIT_MS_PBN	1
	11420700	THREAD CUTTER KNIFE SHAFT	1
	11421500	KNIFE DRIVING ARM	1
	SS7110740TP	SCREW 11/64-40 L=7	1
	11420809	LOOP SPREADING SHAFT	1
	40060792	LOOP SPREADING ARM ASM.	1
	SS8110410TP	SCREW 11/64-40 L=3.5	1
	SS6110710TP	SCREW 11/64-40 L=6.5	1
	SD0500251SP	HINGE SCREW D=5 H=2.5	1
	40113200	BASE_PLATE_MS_PBN	1
	WP0651056SH	WASHER 6.5X11X1	1
	40060799	STOPPER BLOCK	1
	11421104	LOOP SPREADING ARM	1
	11421203	KNIFE DRIVING STITCH TONGUE	1
	NM6050001SD	NUT M5X0.8	2
	SM8053002TP	SCREW M5 L=30	2
	SM6051002TP	SCREW M5X0.8 L=10	2
	40062180	KNIFE RETURN SPRING	1
	SD0640321TP	HINGE SCREW D=6.35 H=3.2	1
	40082582	CLUTCH PLATE ASM.	1
	40066592	LOOP SPREAD SPRING	1
	11421708	SPRING HOOK	1
	RE0500000K0	E-RING	1
	40082588	CLUTCH PLATE SHAFT	1
	SS6621212TP	SCREW 3/16-32 L=12.0	1
	SD0500402SP	HINGE SCREW D=5 H=4	1
	D2422530D0	CAM ROLLER	1
	NS6110310SP	NUT 11/64-40	1
	SS6621212TP	SCREW 3/16-32 L=12.0	1
	RC1200001KP	C-SHAPED SNAP RING	1

Page 26 — THREAD TRIMMER COMPONENTS (1)

Juki DDL-9000B (X73199) parts on page 26

Ref	Part number	Part name	Qty
48	SD0380551SL	HINGE SCREW D=3.80 H=5.5	1
49	11421401	LOOP SPREADING CONNECTING LINK	1
50	40082583	TENSION RELEASING LEVER	1
51	40082585	LEVER SPRING HOOK	1
52	SL6061292TN	SCREW	2
53	SD0500251SP	HINGE SCREW D=5 H=2.5	1
54	40066602	KNIFE DRIVING ARM STOPPER	1
55	SM4040655SP	SCREW M4 L=6	1
56	PS0300062KH	SPRING PIN 3X6	1
57	SD0641456TP	SHOULDER SCREW D=6.35 H=14.5	1
58	SD0630275SP	HINGE SCREW D=6.35 H=2.7	1
59	40082584	PICKER LINK	1
60	SL6052092TN	SCREW	1
61	22956809	WIPER COLLAR	1
62	40100135	STUD BOLT	1
63	40060801	STOPPER PLATE	1
64	SL6061292TN	SCREW	1
65	40082589	BASE PLATE SCREW	1
66	WP0531001SC	WASHER M5	1
67	40062168	PICKER SPRING HOOK	1

Page 28 — THREAD TRIMMER COMPONENTS (2)

Juki DDL-9000B (X73199) parts on page 28

Ref	Part number	Part name	Qty
1	40113201	THREAD_CUTTER_CAM_MS_PBN
2	11419405	SAFETY CAM
3	SS8660612TP	SCREW 1/4-40 L=6
4	40113204	CLUTCH_MS_PBN
5	11419207	THREAD CUTTER DRIVING COLLAR
6	22950950	CAM COLLAR ASM.
7	SS8110520TP	SCREW 11/64-40 L=4.5
8	RC2651218KP	RETAINING RING
9	11419603	THRUST COLLAR B
10	11419504	THRUST COLLAR A
11	11419702	THRUST COLLAR C
12	11419801	THRUST COLLAR D
13	11419900	THRUST COLLAR E
14	40060794	SOLENOID ASM.
15	40060791	SOLENOID BASE
16	40089263	THREAD TRIMMER SOLENOID
17	11043304	SOLENOID RUBBER
18	NS6660410SH	NUT
19	NS6660430SP	NUT 1/4-40
20	NM6040000SN	NUT M4
21	WP0430800SC	WASHER M4
22	HK03464000B	PIN CONTACT
23	SL6061292TN	SCREW
24	23624554	DRIVING BLOCK ASM.
25	23624505	DRIVING BLOCK
26	SS6110710TP	SCREW 11/64-40 L=6.5

Page 30 — OIL LUBRICATION COMPONENTS

Juki DDL-9000B (X73199) parts on page 30

Ref	Part number	Part name	Qty
1	40082059	GEAR BOX COVER ASM.
2	40135639	GEAR_BOX_COVER
3	40034246	OIL_SIGHT_WINDOW
4	RO195240100	RUBBER RING
5	13171004	DRAIN SCREW
6	13170105	RUBBER RING
7	23629256	OIL WICK SUPPORT ASM.
8	23629207	OIL WICK
9	CQ250000001	OIL WICK
10	23629306	PIPE STOPPER A
11	23629405	PIPE STOPPER B
12	40037166	GEAR BOX PACKING
13	40135640	MAGNET_HOLDER
14	SQ2050453MZ	CONNECTING SCREW
15	40086648	FLOATER ASM.
16	RO068190100	RUBBER RING
17	23630007	TUBE
18	23630007	TUBE
19	23630007	TUBE
20	CQ200000001	OIL WICK
21	23630106	TUBE B
22	23630106	TUBE B
23	40075404	FACE FELT ASM
24	22925101	OIL FELT PRESSER
25	RO098240100	RUBBER RING
26	RO172180100	RUBBER RING
27	SL6061292TN	SCREW
28	SM6051402TP	SCREW M5X0.8 L=14
29	SM5040655SN	SCREW
30	40013595	OIL_EXIT_CAP
31	40098329	OIL_TANK
32	40086646	FLOATER_CASE_ASM.
33	40086647	FLOATER_CASE
34	23630403	OIL FILTER
35	23630502	OIL FILTER STOPPER
36	23628902	PLUNGER SPRING
37	40038328	PLUNGER SCREW
38	40037502	OIL ADJUSTING SCREW
39	RO037180100	RUBBER RING
40	23628803	PLUNGER
41	40086693	FROATER_CASE_GUIDE
42	SL6040892TN	BOLT
43	SL6051492TN	BOLT
44	B8228125000	OIL RESERVOIR MAGNET
45	40149785	ASSY_FLOATER_SIGHT_WINDOW_B
46	40000344	LUBRICATING INLET CAP
47	RO048190100	RUBBER RING

Page 31

Juki DDL-9000B (X73199) parts on page 31

Ref	Part number	Part name	Qty
	1	OIL PAN
	2	GASKET
	3	OIL FILTER HOUSING
	4	O-RING
	5	OIL FILTER
	6	WASHER
	7	BRACKET
	8	BRACKET
	9	BRACKET
	10	CLAMP
	11	CLAMP
	12	COVER
	13	BRACKET
	14	SCREW
	15	TUBE
	16	WASHER
	17	TUBE
	18	SCREW
	19	SCREW
	20	TUBE
	21	TUBE
	22	TUBE
	23	BRACKET
	24	CLIP
	25	O-RING
	26	O-RING
	27	PLUG
	28	PLUG
	29	BRACKET
	30	NUT
	31	BRACKET
	32	BRACKET
	33	BRACKET
	34	WASHER
	35	WASHER
	36	SPRING
	37	SPRING
	38	SCREW
	39	WASHER
	40	PLUG
	41	TUBE
	42	PLUG
	43	PLUG
	44	PLUG
	45	BRACKET
	46	BRACKET
	47	O-RING
	48	BRACKET
	49	SCREW
	50	PLUG
	51	SCREW

Page 32 — OIL LUBRICATION COMPONENTS

Juki DDL-9000B (X73199) parts on page 32

Ref	Part number	Part name	Qty
48	40086697	FLOATER_SIGHT_WINDOW_B	1
49	SM4040601SC	SCREW M4X0.7 L=6	1
50	WP0501016SD	WASHER 5X10.5X1	9
51	NM6050001SC	NUT M5X0.8 TYPE1	1

Page 34

Juki DDL-9000B (X73199) parts on page 34

Ref	Part number	Part name	Qty
	40086750	REVERSE FEED SOLENOID ASM.	1
	HK03464000B	PIN CONTACT	2
	40086753	REVERSE FEED SOLENOID PLUNGER	1
	RE1200000K0	E-RING 12	1
	D2468555B00	RUBBER PLUNGER	1
	WP1602616SZ	WASHER 16X24X2.6	1
	WP0550800SP	WASHER 5.5X10X0.8	3
	SM4051055SP	SCREW	3
	WP0551016SH	WASHER 5.5X13X1	1
	NM6050001SP	NUT M5	2
	WS0610002KN	SPRING WASHER 6.1X12.2X1.5	1
	40095844	REVERSE FEED ARM ASM.	1
	40086698	REVERSE_FEED_ARM	1
	SM6051602TP	SCREW M5X0.8 L=16	1
	23631757	REVERSE FEED SWITCH ASM.	1
	23632102	REVERSE FEED SWITCH BASE GUIDE	1
	23632359	REVERSE FEED CORD ASM.	1
	EA9500B0100	CABLE BAND	1
	SS7110740TP	SCREW 11/64-40 L=7	1
	23631708	REVERSE FEED SWITCH COVER	1
	23631807	REVERSE FEED SWITCH SHAFT	1
	23631906	REVERSE FEED SWITCH SUPPORT	1
	23632003	REVERSE FEED SWITCH BASE	1
	SM4051055SP	SCREW	1
	23632656	OPTION SWITCH ASM.
	23632102	REVERSE FEED SWITCH BASE GUIDE	1
	23632250	REVERSE FEED CORD ASM.	1
	EA9500B0100	CABLE BAND	1
	SS7110740TP	SCREW 11/64-40 L=7	1
	23631708	REVERSE FEED SWITCH COVER	1
	23631807	REVERSE FEED SWITCH SHAFT	1
	23631906	REVERSE FEED SWITCH SUPPORT	1
	23632607	OPTION SWITCH BASE	1
	40086655	REVERSE_FEED_CONNECTION_LINK	1
	40086699	REVERSE_FEED_LINK_PIN	1
	SM480652TP	SCREW	1
	40086759	BACK_SOLENOID_PLUNGER_PIN	1

Page 35 — CONDENSE COMPONENTS

Juki DDL-9000B (X73199) parts on page 35

Ref	Part number	Part name	Qty
1	1	BASE
2	2	BRACKET
3	3	BRACKET
4	4	SCREW
5	5	WASHER
6	6	SCREW
7	7	NUT
8	8	LEVER
9	9	SPRING
10	10	PIN
11	11	BRACKET
12	12	PIN
13	13	CLIP
14	14	SCREW
15	15	WASHER
16	16	WASHER
17	17	SCREW
18	18	PIN
19	19	COVER
20	20	PLUG
21	21	WASHER
22	22	BRACKET
23	23	PLUG
24	24	WASHER
25	25	BRACKET

Page 36 — CONDENSE COMPONENTS

Juki DDL-9000B (X73199) parts on page 36

Ref	Part number	Part name	Qty
	40100043	CONDENSE SOLENOID ASM.	1
	SM5040401SE	SCREW M4 L=4	2
	40100046	SOLENOID BASE A	1
	SM6050802TP	SCREW M5X0.8 L=8	2
	WP0501016SD	WASHER 5X10.5X1	2
	22962906	PLUNGER ARM PIN	1
	NS6110350SP	NUT 11/64-40	2
	40100038	CONDENSE ARM ASM.	1
	40100050	CONDENSE SPRING	1
	SD1001506TP	SHOULDER SCREW D=10 H=15	1
	40162657	CONDENSE STOPPER	1
	40060833	CONDENSE PIVOT	1
	RE0600000K0	E-RING 6	1
	SM6051202TP	SCREW M5X0.8 L=12	1
	WP0531000SD	WASHER M5	1
	40061486	STOPPER COLLAR	1
	SM6051202TP	SCREW M5X0.8 L=12	1
	40100172	CONDENSE ARM STOPPER¥n	1
	22609606	FEED DRIVING ROCKER BLOCK S	1
	SM6050802TP	SCREW M5X0.8 L=8	2
	WP0501016SD	WASHER 5X10.5X1	2
	40100047	SOLENOID BASE B	1
	SM6061002TP	SCREW M6 L=10	1
	WP0641601SD	WASHER M6	1
	40100048	SOLENOID COVER	1

Page 37 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

Juki DDL-9000B (X73199) parts on page 37

Ref	Part number	Part name	Qty
	1	COVER
	2	BRACKET
	3	BRACKET
	4	SHAFT
	5	BRACKET
	6	BRACKET
	7	TERMINAL
	8	SHAFT
	9	BRACKET
	10	BUSH
	11	SPRING
	12	BUSH
	13	SCREW
	14	LEVER
	15	BRACKET
	16	BRACKET
	17	COVER
	18	BUSH
	19	WASHER
	20	BRACKET
	21	WASHER
	22	NUT
	23	WASHER
	24	CIRCLIP
	25	SCREW
	26	SCREW
	27	BRACKET
	28	SCREW
	29	BRACKET
	30	SCREW
	31	BRACKET
	32	BRACKET
	33	WASHER
	34	WASHER
	35	BRACKET
	36	COVER
	37	SCREW

Page 38 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

Juki DDL-9000B (X73199) parts on page 38

Ref	Part number	Part name	Qty
	40086676	WIPER ASM.	1
	40077853	WIPER BASE ASM.	1
	40086723	WIPER LINK B	1
	40086724	WIPER SHAFT ASM.	1
	40095175	WIPER_SOLENOID_ASM.	1
	40089264	WIPER SOLENOID	1
	HK03464000B	PIN CONTACT	2
	HW500070000	2-CORE CABTYRE CORD	1.3
	22956106	WIPER LINK A	1
	22956205	WIPER HINGE SCREW COLLAR	1
	22956304	WIPER SPRING	1
	22956809	WIPER COLLAR	1
	22956908	WIPER LINK B HINGE SCREW	1
	22957005	WIPER	1
	22957203	WIPER LINK COLLAR	1
	40077852	WIPER SOLENOID SHAFT	1
	40086678	WIPER_SW_RUBBER	1
	22955900	WIPER RUBBER A	1
	40086717	FELT_B	1
	22956007	WIPER RUBBER B	1
	NS6090310SP	NUT 9/64-40	1
	NS6110310SP	NUT 11/64-40	1
	RC0370411KP	RETAINING RING	1
	RE0500000K0	E-RING	1
	SD0650321TP	HINGE SCREW D=6.5 H=3.2	1
	SL4030631SC	SCREW M3X6	3
	SL4030641SE	SCREW	1
	SS6090540SP	SCREW 9/64-40 L=5.0	1
	40077851	WIPER SOLENOID SHAFT GUIDE	2
	SS4110615SP	SCREW 11/64-40 L=6	1
	40086680	WIPER_STOPPER_RUBBER_HOLDER	1
	40086679	WIPER_STOPPER_RUBBER	1
	WP0661016SP	WASHER	1
	WP0651001SC	WASHER	1
	40086716	FELT_A	1
	22955504	WIPER COVER	1
	SM4051055SP	SCREW	1

Page 39 — THREAD STAND COMPONENTS

Juki DDL-9000B (X73199) parts on page 39

Ref	Part number	Part name	Qty
1	1	THREAD STAND
2	2	BRACKET
3	3	BRACKET
4	4	WASHER
5	5	WASHER
6	6	ROD
7	7	THREAD HOLDER
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	SCREW
12	12	SCREW
13	13	SCREW
14	14	WASHER
15	15	WASHER
16	16	THREAD STAND
17	17	THREAD STAND
18	18	THREAD STAND
19	19	THREAD STAND
20	20	COLLAR
21	21	NUT
22	22	WASHER
23	23	WASHER
24	24	SCREW
25	25	SCREW

Page 40 — THREAD STAND COMPONENTS

Juki DDL-9000B (X73199) parts on page 40

Ref	Part number	Part name	Qty
	40108402	THRED_STAND_B	1
	40085786	SPOOL REST ARM (LOWER)	1
	40085787	SPOOL REST ARM (UPPER)	1
	40085788	SPOOL REST	2
	40085789	SPOOL REST CUSHION	2
	40085790	SPOOL PIN	2
	40085791	SPOOL RETAINER	2
	40085794	THREAD GUIDE	2
	40085795	THREAD GUIDE BUSHING	2
	40096326	SPOOL REST ARM LOWER SCREW	1
	NM6050001SE	NUT M5	1
	40096327	SPOOL REST ARM UPPER SCREW	2
	NM6050001SE	NUT M5	1
	WS0510002KN	SPRING WASHER M5	2
	WP0531001SC	WASHER M5	2
	40108401	THREAD_STAND_A	1
	40085784	SPOOL REST ROD LOWER	1
	40085785	SPOOL REST ROD UPPER	1
	40085792	SPOOL REST ROD JOINT	1
	40085793	SPOOL REST ROD RUBBER CAP	1
	40096325	SPOOL REST ROD NUT	1
	WP1612616SE	WASHER 16X30X2.6	2
	40085796	SPOOL REST ROD RUBBER CUSHION	2
	SM4051405SE	SCREW M5 L=14	2
	NM6050001SE	NUT M5	2

Page 41 — UNDER COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 41

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	COVER
4	4	COVER
5	5	COVER
6	6	COVER
7	7	COVER
8	8	COVER
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	SHAFT
15	15	SHAFT
16	16	SPRING
17	17	SPRING
18	18	SPRING
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
27	27	BRACKET
28	28	BRACKET
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET

Page 42 — UNDER COVER COMPONENTS

Juki DDL-9000B (X73199) parts on page 42

Ref	Part number	Part name	Qty
	40089665	UNDER COVER AH ASM.
	40062321	UNDER COVER A ASM.
	40089671	UNDER COVER BH ASM.
	40062323	UNDER COVER B ASM.
	23639008	UNDER COVER
	22932008	RUBBER CUSHION
	B1116210D00	FRAME SUPPORT RUBBER
	B1116210D00	FRAME SUPPORT RUBBER
	23639156	BRACKET ASM.
	23639107	BRACKET
	NM60600001SE	NUT M6
	SM8063012TR	SCREW M6 L=30
	23639206	CONNECTING ROT
	23639305	KNEE PRESS ROD
	23639404	SHAFT
	23639503	SPRING
	23639602	CONNECTING ROD
	WP0650876SD	WASHER 6.5X13X0.8
	22932453	BRACKET ASM.
	22932404	BRACKET
	SM9062053SR	SCREW M6 L=20
	NS6150310SP	NUT 15/64-28
	RE100000K0	E-RING 10
	RE100000K0	E-RING 10
	SD0720331SP	HINGE SCREW D=7.24 H=3.3
	SM9061853SR	SCREW M6 L=17.5
	SM9061853SR	SCREW M6 L=17.5
	22934251	KNEE PAD PLATE ASM.
	22934202	KNEE PAD PLATE
	22934301	KNEE PAD PLATE SUPPORT
	22934400	KNEE PAD PLATE RUBBER
	22934509	KNEE PAD PLATE COVER
	22934608	KNEE PAD UPRIGHT SHAFT
	SM9061203SE	SCREW M6 L=12

Page 43

Juki DDL-9000B (X73199) parts on page 43

Ref	Part number	Part name	Qty
1~4	1~4	ACCESSORIE PART COMPONENTS
5	5	ACCESSORIE PART COMPONENTS
6	6	ACCESSORIE PART COMPONENTS
7	7	ACCESSORIE PART COMPONENTS
8	8	ACCESSORIE PART COMPONENTS
9	9	ACCESSORIE PART COMPONENTS
10	10	ACCESSORIE PART COMPONENTS
11	11	ACCESSORIE PART COMPONENTS
12-13	12-13	ACCESSORIE PART COMPONENTS
14	14	ACCESSORIE PART COMPONENTS
15	15	ACCESSORIE PART COMPONENTS
16	16	ACCESSORIE PART COMPONENTS
17	17	ACCESSORIE PART COMPONENTS
18	18	ACCESSORIE PART COMPONENTS
19	19	ACCESSORIE PART COMPONENTS
20	20	ACCESSORIE PART COMPONENTS
21~27	21~27	ACCESSORIE PART COMPONENTS
28	28	JUKI
29	29	ACCESSORIE PART COMPONENTS
30	30	ACCESSORIE PART COMPONENTS
31	31	ACCESSORIE PART COMPONENTS
32	32	ACCESSORIE PART COMPONENTS
33	33	ACCESSORIE PART COMPONENTS

Page 44

Juki DDL-9000B (X73199) parts on page 44

Ref	Part number	Part name	Qty
	40089663	ACCESSORIE BAG ASM.
	40091140	ACCESSORIE BAG AK ASM.
	40099737	ACCESSORIE BAG ASM. 2
	40099737	ACCESSORIE BAG AK ASM. 2
	22932800	ACCESSORIE BAG
	22933204	SCREW DRIVER (SMALL)
	22502504	THREAD GUIDE BAR
	23639701	KNEE LIFTER PRESSER ROD
	EA9500B0100	CABLE BAND
	40055591	HEXAGONAL WRENCH KYE
	22933105	SCREW DRIVER (MIDDLE)
	22931604	FRAME SUPPORT BAR
	40024081	HEAD SUPPORT ROD
	22958052	RUBBER HINGE ASM.
	22926505	WASHER
	22926000	RUBBER CUSHION
	22958003	FRAME BUBBER CUSHION
	22926208	NAIL
	22926356	HINGE COMPL.
	B91210120A0	OILER ASM.
	MDB100B1100	NEEDLE DBX1 #11
	MDB100B0900	NEEDLE DBX1 #9
	MDB100B2100	NEEDLE DBX1 #21
	MDB100B1400	NEEDLE DBX1 #14
	MC20050130	NEEDLE 134 NM130
	MC20050650	NEEDLE 134 NM65
	MC200500750	NEEDLE 134 NM75
	40135803	HEAD COVER
	40089323	DDL-9000B SETUP DOCUMENT
	CM600100201	WEEE INFORMATION SHEET
	B9117012000	BOBBIN
	22964001	BOBBIN A
	40102087	JUKI MACHINE OIL 7

Page 45 — EXCLUSIVE PARTS DDL-9000B DS

Juki DDL-9000B (X73199) parts on page 45

Ref	Part number	Part name	Qty
	1	CYLINDER
	2	SCREW
	3	DRY
	4-5	TUBE
	6	BOBBIN CASE HOLDER
	7	BOBBIN CASE
	8~10	BOBBIN WINDER PARTS
	11	BOBBIN WINDER PULLEY
	12	BOBBIN WINDER SHAFT
	13	NEEDLE BAR MECHANISM PARTS
	14	NEEDLE BAR CONNECTING PIECE
	15	NEEDLE BAR CONNECTING PIECE SCREW
	16	NEEDLE BAR CONNECTING PIECE SCREW
	17	NEEDLE BAR CONNECTING PIECE
	18	NEEDLE BAR CONNECTING PIECE
	19	NEEDLE BAR CONNECTING PIECE
	20	NEEDLE BAR CONNECTING PIECE SCREW
	21	NEEDLE BAR CONNECTING PIECE
	22	NEEDLE BAR CONNECTING PIECE SCREW
	23	GREASE TUBE
	24	WIRE HARNESS

Page 46 — EXCLUSIVE PARTS DDL-9000B DS

Juki DDL-9000B (X73199) parts on page 46

Ref	Part number	Part name	Qty
	40086605	NEEDLE_BAR_LOWER_METAL_MD	1
	SM4050501SC	SCREW M5X0.8 L=5	1
	40037146	FLOATER SIGHT WINDOW D	1
	40086604	NEEDLE_BAR_D_(B)
	40086602	NEEDLE_BAR_D_(A)
	40089274	HOOK_SHAFT_FRONT_BEARING_COMPL.
	SS6110420TP	SCREW 11/64-40 L=4.8	2
	22890404	RP HOOK C
	22890206	RP HOOK
	22890305	RP HOOK S
	22964001	BOBBIN
	22896252	BOBBIN CASE ASM.
	40050586	KNIFE UNIT D
	22895908	COUNTER KNIFE
	SS2060210SP	SCREW 3/32-56 L=2.3
	SS4080620TP	SCREW 1/8-44 L=6	2
	11040052	MOVING KNIFE ASM.
	40050588	THREAD GUIDE FOR KNIFE D
	22947907	KNIFE MOUNTING BASE
	11040409	MOVING KNIFE HINGE SCREW
	22896005	FORKED BASE FOR KNIFE
	SD0460703TP	HINGE SCREW D=4.6 H=7
	40006323	JUKI GREASE A TUBE
	40050581	JOINT_CABLE_ASM.

Page 48 — EXCLUSIVE PARTS DDL-9000B MS,MA

Juki DDL-9000B (X73199) parts on page 48

Ref	Part number	Part name	Qty
	11001906	THROAT PLATE K
	11162104	SPRING
	MDB100B1100	NEEDLE DBX1 #11
	D1613155W00	FEED DOG W
	D1524555DBB	PRESSER FOOT ASM.
	MDB100B0900	NEEDLE DBX1 #9
	MC200500650	NEEDLE 134 NM65
	40141843	REGULATOR PIN DIAL 4
	40037439	THREAD TAKE UP COMP. A
	40037479	THREAD TENSION DISK ASM. A
	23626005	THREAD TENSION NUT
	B3132552000	THREAD TENSION DISK PRESSER
	B3126012000	THREAD TENSION DISK
	40024845	TENSION POST SOCKET ASM.
	B3115552000	TENSION POST
	B3120125000	ROTATING STOPPER
	D3129555D00	THREAD TENSION SPRING
	D3128555D00	TAKE-UP SPRING
	SS8090670SP	SCREW 9/64-40 L=5.5
	40086605	NEEDLE_BAR_LOWER_METAL_MD
	SM4050501SC	SCREW M5X0.8 L=5
	40086604	NEEDLE_BAR_D_(B)
	40086602	NEEDLE_BAR_D_(A)
	40000264	BOBBIN CASE ASM.
	40006323	JUKI GREASE A TUBE
	23629306	PIPE STOPPER A
	40042086	CAP
	11038759	BOBBIN CASE ASM.
	23630007	TUBE

Page 50 — EXCLUSIVE PARTS DDL-9000B SH

Juki DDL-9000B (X73199) parts on page 50

Ref	Part number	Part name	Qty
	40089605	THROAT_PLATE_J	1
	40107708	NEEDLE_BAR_METAL_LOWER_H	1
	40061767	NEEDLE BAR H	1
	MDB100B2100	NEEDLE DBX1 #21	1
	B9117012000	BOBBIN	1
	B1505552000A	PRESSER SPRING	1
	D1524555EBL	PRESSER FOOT ASM.	1
	40064839	PRESSER FOOT ASM.	1
	40089610	INNER_HOOK_HOLDER_H	1
	11092251	LUBRICATING BOBBIN ASM.	1
	40055604	THREAD TAKE UP COMP. H	1
	40050587	KNIFE UNIT H	1
	11095502	KNIFE MOUNT BASE	1
	40044190	THREAD_GUIDE_FOR_KNIFE H	1
	11409257	MOVING KNIFE J ASM.	1
	40009894	FORKED BASE FOR KNIFE	1
	40050589	FIX KNIFE H	1
	SD0460703TP	HINGE SCREW D=4.6 H=7	1
	SD0500131TP	HINGE SCREW D=5 H=1.25	1
	SS2060210SP	SCREW 3/32-56 L=2.3	1
	SS4080620TP	SCREW 1/8-44 L=6	2
	40000264	BOBBIN CASE ASM.	1
	40037313	THREAD TENSION DISK ASM. H	1
	23626005	THREAD TENSION NUT	1
	B3115552000	TENSION POST	1
	B3120125000	ROTATING STOPPER	1
	B3126012000	THREAD TENSION DISK	2
	B3128012000	TAKE-UP SPRING	1
	B3132552000	THREAD TENSION DISK PRESSER	1
	40024845	TENSION POST SOCKET ASM.	1
	B3114232000	THREAD TENSION SPRING	1
	SS8090670SP	SCREW 9/64-40 L=5.5	1
	J1063000000	WRENCH	1
	40024124	NEEDLE BAR THREAD GUIDE	1
	23619059	VERTICAL FEED CAM H ASM.	1
	23619000	VERTICAL FEED CAM H	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	40055058	ASSY COUNTER WEIGHT H	1
	40053411	COUNTER WEIGHT H	1
	40004171	COUNTER_WEIGHT_SCREW	1
	SM8081652TP	SCREW M8 L=16	1
	SM80606A2TP	SCREW M6 L=6	2
	40069369	VERTICAL FEED CAM ASM. 2.0	1
	40069370	VERTICAL FEED CAM 2.0	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	40063697	ARM THREAD GUIDE A H	1
	11062601	FEED DOG	1

Page 52 — EXCLUSIVE PARTS DDL-9000B SH

Juki DDL-9000B (X73199) parts on page 52

Ref	Part number	Part name	Qty
	11062007	THROAT PLATE A
	11403003	FEED J

Page 54 — TABLE & STAND COMPONENTS

Juki DDL-9000B (X73199) parts on page 54

Ref	Part number	Part name	Qty
	23642259	TABLE ASM.	1
	23642200	TABLE
	11075900	RUBBER SPACER
	11075801	RUBBER SPACER
	B8210012000	CUSHION SET NAIL
	B8210012000	CUSHION SET NAIL
	D8226555E00	FRAME RUBBER CUSHION A
	11157567	T LEG JUNCTION
	GPK700010A0	3-JOINT PEDAL 70
	11157559	T-STAND ASM.
	11155769	SMALL CASTINGS BOX B ASM.
	11156007	CASE
	11155801	CASE MAGNET
	11155751	CASE ASM. B
	SK3382001SC	WOOD SCREW D=3.8 L=20
	11155157	DRAWER ASM.
	11155108	DRAWER
	11155207	DRAWER SUPPORT
	SK3311600SE	WOOD SCREW D=3.1 L=16
	GPK710010A0	2-PEDAL ASM. 71
	D8204555D00	DRAWER STOPPER
	SK3513200SC	WOOD SCREW D=5.1 L=32
	11159456	CASTER ASM.
	SM9086523SE	HEXAGONAL BOLT
	11159407	CASTER
	11159506	STRUT AUXILIARY PLATE
	WS0861410KR	SPRING WASHER 8.6X15X1.4
	WP0871602SE	WASHER 8.7X18X1.6

Page 55

Juki DDL-9000B (X73199) parts on page 55

Ref	Part number	Part name	Qty
1	1	WIRE HARNESS
2	2	WIRE HARNESS
3	3	FILTER
4	4	GASKET
5	5	BLOWER
6	6	SCREW
7	7	CLIP
8	8	BLOWER HOUSING

Page 56 — SPECIAL ORDER PART

Juki DDL-9000B (X73199) parts on page 56

Ref	Part number	Part name	Qty
1	40065571	ELECTRIC FAN HOOK COOLING DEVICE	1
2	40044065	FAN_RELAY_CABLE	1
3	40064805	FAN FILTER	1
4	40064806	FAN COOLING COVER	1
5	40065564	FAN MOTOR ASSY	1
6	SK3415001SE	SCREW D=4.1 L=50	2
7	MAO11532000	CORD STAPLE	3
8	40065572	HOOK COOLING DEVICE INSTRUCTION MANUAL	1

Page 57 — NEEDLE THREAD PRESSER COMPONENTS

Juki DDL-9000B (X73199) parts on page 57

Ref	Part number	Part name	Qty
1	1	NEEDLE THREAD PRESSER
2	2	PRESSER FOOT

Page 58 — NEEDLE THREAD PRESSER COMPONENTS

Juki DDL-9000B (X73199) parts on page 58

Ref	Part number	Part name	Qty
1	40131641	THREAD CATCHER ASM.	1
2	SM8040612TP	SCREW M4 L=6	1

Page 59 — LED REVERSE FEED SWITCH COMPONENTS

Juki DDL-9000B (X73199) parts on page 59

Ref	Part number	Part name	Qty
	1	LED REVERSE FEED SWITCH COMPONENTS
	2	LED REVERSE FEED SWITCH COMPONENTS

Page 60 — LED REVERSE FEED SWITCH COMPONENTS

Juki DDL-9000B (X73199) parts on page 60

Ref	Part number	Part name	Qty
1	40163072	LED_BT_SWITCH_ASSY_921	1
2	SM4050655SP	SCREW M5 L=6	1

Page 61 — HOW TO MAKE USE OF THIS PARTS LIST

Juki DDL-9000B (X73199) parts on page 61

Ref	Part number	Part name	Qty
	GG	China
	BB	Europe
	EE	Japan
	AA	excludes China,Europe and Japan
	GG	中国
	BB	ヨーロッパ
	EE	日本
	AA	中国、ヨーロッパ、日本を除く

Page 62 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B (X73199) parts on page 62

Ref	Part number	Part name	Qty
1	11001906	46
30	11421104	22
25	22921308	6
61	11015906	20
31	11421203	22
52	22921407	4
68･69	11038650	20
49	11421401	24
27	22921407	6
67	11038759	20
20	11421500	22
53	22921506	4
24･28	11038759	46
39	11421708	22
28	22921506	6
17	11040052	44
4	11497104	22
54	22921605	4
20	11040409	44
2	11497302	22
55	22921704	4
17	11043304	26
6	13170105	28
29	22921704	6
48	11062007	50
5	13171004	28
56	22921803	4
47	11062601	48
7	22502504	42
24	22925101	28
4	11075801	52
19	22609606	34
16	22926000	42
3	11075900	52
27･28	22886907	8
18	22926208	42
84	11079506	20
27･28	22887004	8
19	22926356	42
7	11091204	22
8～10	22890206	44
15	22926505	42
10	11092251	48
8～10	22890305	44
12･13	22931604	42
13	11095502	48
8～10	22890404	44
6･7	22932008	40
68･69	11141355	20
14	22895908	44
20	22932404	40
17	11155108	52
21	22896005	44
19	22932453	40
16	11155157	52
12	22896252	44
5	22932800	42
18	11155207	52
14･15	22901201	2
11	22933105	42
14	11155751	52
12･13	22901250	2
6	22933204	42
11	11155769	52
16･17	22901300	2
29	22934202	40
13	11155801	52
81	22901805	4
28	22934251	40
12	11156007	52
30	22902506	2
30	22934301	40
10	11157559	52
14･15	22902704	2
31	22934400	40
8	11157567	52
12･13	22902753	2
32	22934509	40
25	11159407	52
23	22904106	18
33	22934608	40
23	11159456	52
22	22904155	18
21	22944508	2
26	11159506	52
9	22906309	8
34	22944508	12
2	11162104	46
30	22906408	8
62	22945414	4
49	11403003	50
29	22906457	8
63	22945604	4
15	11409257	48
15	22907406	12
65	22945703	4
94	11417615	4
22	22907802	12
66	22945802	4
85	11417714	20
8	22908008	12
19	22947907	44
5	11419207	26
24	22908552	12
15	22950000	22
2	11419405	26
29	22908909	12
6	22950950	26
10	11419504	26
11	22910509	16
8	22951552	2
9	11419603	26
13	22911002	18
27	22952501	16
11	11419702	26
6	22911101	18
36	22955504	36
12	11419801	26
60	22916506	20
18	22955900	36
13	11419900	26
59	22916555	20
20	22956007	36
6	11420106	22
40	22920300	12
9	22956106	36
5	11420601	22
41	22920409	12
10	22956205	36
19	11420700	22
60	22920607	4
11	22956304	36
22	11420809	22
51	22921209	4
61	22956809	24

Page 63 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B (X73199) parts on page 63

Ref	Part number	Part name	Qty
12	22956809		36
13	22956908		36
14	22957005		36
15	22957203		36
17	22958003		42
14	22958052		42
6	22962906		34
64	22963409		4
61	22963458		4
72	22964001		20
32	22964001		42
11	22964001		44
4	23600505		2
84	23601305		4
25	23608003		8
12	23609308		12
5	23609357		12
6	23609456		12
7	23609605		12
14	23609704		12
16	23610207		12
17	23610306		12
48	23610504		14
49	23610652		14
51	23610702		14
47	23611106		12
25	23612609		16
39	23613409		16
16	23613706		16
2	23616006		18
20	23616204		18
32	23616402		18
33	23616600		18
14	23616709		18
47	23618101		18
52	23618309		20
36	23619000		48
35	23619059		48
56	23620008		20
57	23620156		20
74	23620404		20
54	23620503		20
62~65	23620701		20
62~65	23620800		20
62~65	23620909		20
62~65	23621006		20
25	23624505		26
24	23624554		26
50	23626005		4
11	23626005		46
24	23626005		48
69	23626104		4
33	23626203		8
42	23626351		12
43	23626807		12
40	23628803		28
36	23628902		28
8	23629207		28
7	23629256		28
10	23629306		28
26	23629306		46
11	23629405		28
82	23629900		4
23	23630007		16
19	23630007		28
29	23630007		46
22	23630106		28
34	23630403		28
35	23630502		28
30	23631708		32
15	23631757		32
31	23631807		32
32	23631906		32
23	23632003		32
26	23632102		32
27	23632250		32
17	23632359		32
33	23632607		32
25	23632656		32
73	23638109		4
74	23638208		4
75	23638307		4
76	23638406		4
5	23639008		40
10	23639107		40
9	23639156		40
13	23639206		40
14	23639305		40
15	23639404		40
16	23639503		40
17	23639602		40
8	23639701		42
47-48	23640006		2
2	23642200		52
1	23642259		52
2	26260109		6
3	26260208		6
4	26260307		6
5	26260406		6
6	26260505		6
7	26260604		6
8	26260802		6
9	26261008		6
10	26261206		6
11	26261505		6
12	26261503		6
13	26261602		6
14	26261701		6
24-28	40000264		46
22	40000264		48
46	40000344		28
37	40000391		18
38	40000392		18
4	40004171		8
40	40004171		48
23	40006323		44
25	40006323		46
46	40006716		16
16	40009894		48
10	40010434		22
15	40011144		6
30	40013595		28
16	40014837		6
8	40016706		22
1	40023021		6
17	40023022		6
12-13	40024081		42
34	40024124		48
14	40024845		46
30	40024845		48
5	40026277		18
31	40026278		18
16	40026281		18
36	40026282		18
41	40026287		18

Page 64 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B (X73199) parts on page 64

Ref	Part number	Part name	Qty
43	40026288	40055591
9	40029398	40055604
71	40030786	40056622
46	40032269	40058504
3	40034246	40060791
37	40035589	40060792
12	40036706	40060794
12	40036997	40060799
18	40037005	40060801
8	40037006	40060833
8	40037007	40061246
6	40037008	40061486
12	40037141	40061767
12	40037144	40062168
44	40037146	40062180
2	40037158	40062321
28	40037166	40062323
18	40037192	40063697
48	40037313	40064805
12	40037359	40064806
18	40037365	40064839
46	40037439	40065564
46	40037479	40065571
4	40037488	40065572
28	40037502	40066590
28	40038328	40066591
2	40041161	40066592
18	40042079	40066602
46	40042086	40067412
54	40044065	40067413
48	40044190	40069097
44	40050581	40069110
12	40050582	40069369
12	40050583	40069370
44	40050586	40075404
48	40050587	40077851
44	40050588	40077852
48	40050589	40077853
8	40051473	40082059
8	40051474	40082078
2	40052819	40082582
2	40052933	40082583
48	40053411	40082584
18	40053720	40082585
48	40055058	40082588
24	40082589	40085784
38	40085784	40085785
38	40085785	40085786
38	40085786	40085787
38	40085787	40085788
38	40085788	40085789
38	40085789	40085790
38	40085790	40085791
38	40085791	40085792
38	40085792	40085793
38	40085793	40085794
38	40085794	40085795
38	40085795	40085796
38	40085796	40086597
8	40086597	40086602
44	40086602	40086602
46	40086602	40086604
44	40086604	40086604
46	40086604	40086605
44	40086605	40086605
46	40086605	40086606
12	40086606	40086607
12	40086607	40086608
16	40086608	40086609
16	40086609	40086613
16	40086613	40086614
16	40086614	40086615
16	40086615	40086616
16	40086616	40086617
16	40086617	40086618
20	40086618	40086639
4	40086639	40086640
4	40086640	40086643
12	40086643	40086646
28	40086646	40086647
28	40086647	40086648
28	40086648	40086655
32	40086655	40086659
4	40086659	40086660
4	40086660	40086674
16	40086674	40086675
16	40086675	40086676
36	40086676	40086678
36	40086678	40086679

Page 65 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B (X73199) parts on page 65

Ref	Part number	Part name	Qty
31	40086680	40086680
45	40086690	40086690
41	40086693	40086693
2	40086695	40086695
3	40086696	40086696
48	40086697	40086697
13	40086698	40086698
35	40086699	40086699
8	40086704	40086704
9	40086705	40086705
12	40086706	40086706
6	40086713	40086713
34	40086714	40086714
29	40086716	40086716
19	40086717	40086717
3	40086723	40086723
4	40086724	40086724
24	40086731	40086731
33	40086732	40086732
1	40086735	40086735
37	40086736	40086736
20	40086737	40086737
15	40086738	40086738
21	40086739	40086739
70	40086740	40086740
78	40086741	40086741
79	40086742	40086742
34	40086743	40086743
73	40086744	40086744
1	40086750	40086750
3	40086753	40086753
37	40086757	40086757
44	40086759	40086759
12	40086760	40086760
24	40088958	40088958
6	40089959	40089959
8	40089196	40089196
26	40089263	40089263
36	40089264	40089264
44	40089274	40089274
42	40089323	40089323
48	40089605	40089605
20	40089607	40089607
48	40089610	40089610
42	40089663	40089663
40	40089665	40089665
40	40089671	40089671
8	40090058	40090058
42	40091140	40091140
4	40091397	40091397
2	40091461	40091461
2	40094561	40094561
36	40095175	40095175
32	40095844	40095844
16	40095847	40095847
38	40096325	40096325
38	40096326	40096326
38	40096327	40096327
28	40098329	40098329
4	40098386	40098386
42	40099736	40099736
42	40099737	40099737
34	40100038	40100038
34	40100043	40100043
34	40100046	40100046
34	40100047	40100047
34	40100048	40100048
34	40100050	40100050
24	40100135	40100135
34	40100172	40100172
42	40102087	40102087
8	40107707	40107707
48	40107708	40107708
38	40108401	40108401
38	40108402	40108402
22	40113199	40113199
22	40113200	40113200
26	40113201	40113201
26	40113204	40113204
2	40114043	40114043
16	40122891	40122891
16	40123098	40123098
56	40131641	40131641
28	40135639	40135639
28	40135640	40135640
42	40135803	40135803
8	40135900	40135900
8	40135904	40135904
8	40135905	40135905
8	40135906	40135906
8	40135907	40135907
8	40135916	40135916
8	40136292	40136292
8	40136293	40136293
12	40136700	40136700
8	40141165	40141165
8	40141440	40141440
20	40141443	40141443
16	40141838	40141838
16	40141840	40141840
16	40141841	40141841
16	40141842	40141842
46	40141843	40141843
8	40143184	40143184
20	40145927	40145927
28	40149785	40149785
8	40150011	40150011
16	40161440	40161440
16	40161441	40161441
34	40162657	40162657
4	40163071	40163071
58	40163072	40163072
18	40164902	40164902
40	B1116210D00	B1116210D00
48	B1505552000A	B1505552000A
12	B152155000	B152155000
12	B15240120BA	B15240120BA
48	B3114232000	B3114232000
46	B3115552000	B3115552000
48	B3115552000	B3115552000
14	B3118552F00	B3118552F00
46	B3120125000	B3120125000
48	B3120125000	B3120125000
46	B3126012000	B3126012000
48	B3126012000	B3126012000
48	B3128012000	B3128012000
46	B3132552000	B3132552000
48	B3132552000	B3132552000
18	B412352200A	B412352200A
18	B412352200B	B412352200B
18	B412352200C	B412352200C
52	B8210012000	B8210012000
28	B8228125000	B8228125000
42	B9117012000	B9117012000
48	B9117012000	B9117012000

Page 66 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B (X73199) parts on page 66

Ref	Part number	Part name	Qty
20	B91210120A0	CM300200001
23	CM300200001	MDB100B2100
25	CM300200003	MDB100B2100
29	CM301300001	NM6040000SN
87	CM600100101	NM6040001SP
30	CM600100201	NM6050001SC
88	CM600600101	NM6050001SD
20	CQ200000001	NM6050001SE
9	CQ250000001	NM6050001SP
47	CS1000881TP	NM6060001SE
5	D152455DBB	NM6060003SE
7	D1524555EBL	NS6090310SP
4	D1613155W00	NS6110310SP
44	D2422530D00	NS6110310SP
5	D2468555B00	NS6110350SP
18	D3128555D00	NS6150310SP
17	D3129555D00	NS6150310SP
50	D5119206KOK	NS620310SP
21	D8204555D00	NS660410SH
7	D8226555E00	NS660430SP
78	EA9500B0100	RC0370411KP
78	EA9500B0100	RC0560711KP
50	EA9500B0100	RC0560711KP
32	EA9500B0100	RC1200001KP
42	EA9500B0100	RC1200001KP
52	GPK700010A0	RC2651218KP
52	GPK710010A0	RE0300000K0
26	HK03464000B	RE0400000K0
32	HK03464000B	RE0500000K0
36	HK03464000B	RE0500000K0
36	HW500070000	RE0500000K0
48	J1063000000	RE0500000K0
54	MA011532000	RE0600000K0
42	MC200500650	RE1000000K0
42	MC200500750	RE1200000K0
8	MC200500750	RO036080200
42	MC200501300	RO037180100
42	MC200501300	RO037180100
42	MDB100B0900	RO044240100
46	MDB100B0900	RO048190100
8	MDB100B1100	RO068190100
42	MDB100B1100	RO080150200
46	MDB100B1100	RO092270200
8	MDB100B1400	RO098240100
42	MDB100B1400	RO172180100
20	SB117001200	RO195240100
20	SB120001800	MDB100B2100
8	SB120002700	MDB100B2100
20	SB32000060A	NM6040000SN
20	SB32000060B	NM6040001SP
20	SB32000060C	NM6050001SC
24	SD00380551SL	NM6050001SD
44	SD0460703TP	NM6050001SE
48	SD0460703TP	NM6050001SP
48	SD0500131TP	NM6060001SE
22	SD0500251SP	NM6060003SE
24	SD0500251SP	NS6090310SP
22	SD0500402SP	NS6110310SP
24	SD0630275SP	NS6110310SP
22	SD0640321TP	NS6110350SP
24	SD0641456TP	NS6150310SP
36	SD0650321TP	NS6150310SP
40	SD0720331SP	NS620310SP
34	SD1001506TP	NS660410SH
52	SK3311600SE	NS660430SP
52	SK3382001SC	RC0370411KP
54	SK3415001SE	RC0560711KP
52	SK3513200SC	RC1200001KP
36	SL4030631SC	RC1200001KP
36	SL4030641SE	RC2651218KP
28	SL6040892TN	RE0300000K0
28	SL6051492TN	RE0400000K0
24	SL6052092TN	RE0500000K0
10	SL6052592TN	RE0500000K0
14	SL6053592TN	RE0500000K0
24	SL6061292TN	RE0500000K0
26	SL6061292TN	RE0600000K0
28	SL6061292TN	RE1000000K0
6	SM0050801SC	RE1200000K0
2	SM2040750TP	RO036080200
2	SM2040955TP	RO037180100
4	SM4021201SC	RO037180100
30	SM4040601SC	RO044240100
2	SM4040655SP	RO048190100
18	SM4040655SP	RO068190100
24	SM4040655SP	RO080150200
2	SM4040855SP	RO092270200
12	SM4040855SP	RO098240100
44	SM4050501SC	RO172180100
46	SM4050501SC	RO195240100

Page 67 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B (X73199) parts on page 67

Ref	Part number	Part name	Qty
80	SM4050655SP	SM4050655SP
2	SM4050655SP	SM4050655SP
19	SM4050855SP	SM4050855SP
19	SM4050855SP	SM4050855SP
89	SM4051055SP	SM4051055SP
89	SM4051055SP	SM4051055SP
33	SM4051055SP	SM4051055SP
76	SM4051055SP	SM4051055SP
24	SM4051055SP	SM4051055SP
37	SM4051055SP	SM4051055SP
32	SM4051255SP	SM4051255SP
24	SM4051405SE	SM4051405SE
2	SM5040401SE	SM5040401SE
68	SM5040655SN	SM5040655SN
20	SM5040655SN	SM5040655SN
29	SM5040655SN	SM5040655SN
9	SM6040602TP	SM6040602TP
20	SM6050802TP	SM6050802TP
34	SM6051002TP	SM6051002TP
17	SM6051202TP	SM6051202TP
17	SM6051400SP	SM6051400SP
17	SM6051400SP	SM6051400SP
37	SM6051402TP	SM6051402TP
28	SM6051402TP	SM6051402TP
19	SM6051602TP	SM6051602TP
14	SM6051602TP	SM6051602TP
28	SM6051850TP	SM6051850TP
26	SM6052502TP	SM6052502TP
7	SM6061002TP	SM6061002TP
23	SM6061002TP	SM6061002TP
35	SM6061202TP	SM6061202TP
2	SM8040612TP	SM8040612TP
21	SM8040802TP	SM8040802TP
22	SM8050412TP	SM8050412TP
22	SM8050502TP	SM8050502TP
20	SM80506A2TP	SM80506A2TP
4	SM80506A2TP	SM80506A2TP
33	SM8053002TP	SM8053002TP
6	SM80606A2TP	SM80606A2TP
47	SM80606A2TP	SM80606A2TP
33	SM80606A2TP	SM80606A2TP
70	SM80608A2TP	SM80608A2TP
70	SM80608A2TP	SM80608A2TP
44	SM80608A2TP	SM80608A2TP
26	SM80608A2TP	SM80608A2TP
20	SM80608A2TP	SM80608A2TP
82	SM80608A2TP	SM80608A2TP
12	SM8063012TR	SM8063012TR
5	SM8081652TP	SM8081652TP
41	SM8081652TP	SM8081652TP
36	SM8480652TP	SM8480652TP
34	SM9061203SE	SM9061203SE
27	SM9061853SR	SM9061853SR
21	SM9062053SR	SM9062053SR
24	SM9086523SE	SM9086523SE
14	SQ2050453MZ	SQ2050453MZ
15	SS2060210SP	SS2060210SP
20	SS2060210SP	SS2060210SP
27	SS4080620TP	SS4080620TP
16	SS4080620TP	SS4080620TP
21	SS4080620TP	SS4080620TP
30	SS4110615SP	SS4110615SP
18	SS6060210SP	SS6060210SP
28	SS6090540SP	SS6090540SP
12	SS6090620TP	SS6090620TP
31	SS6090670TP	SS6090670TP
53	SS6090670TP	SS6090670TP
13	SS6090670TP	SS6090670TP
7	SS6110420TP	SS6110420TP
59	SS6110610TP	SS6110610TP
35	SS6110710TP	SS6110710TP
25	SS6110710TP	SS6110710TP
26	SS6110710TP	SS6110710TP
11	SS6121610SP	SS6121610SP
35	SS6121860SP	SS6121860SP
46	SS6621212TP	SS6621212TP
10	SS7080510TP	SS7080510TP
27	SS7091110TP	SS7091110TP
21	SS7110740TP	SS7110740TP
29	SS7110740TP	SS7110740TP
58	SS8090670SP	SS8090670SP
19	SS8090670SP	SS8090670SP
32	SS8090670SP	SS8090670SP
24	SS8110410TP	SS8110410TP
7	SS8110520TP	SS8110520TP
3	SS8150822TP	SS8150822TP
39	SS8151150TP	SS8151150TP
45	SS8151150TP	SS8151150TP
24	SS8660610TP	SS8660610TP
3	SS8660612TP	SS8660612TP
66	SS8661012TP	SS8661012TP
66	SS8661012TP	SS8661012TP
51	TA0850604R0	TA0850604R0
51	TA0850604R0	TA0850604R0
43	TA1250406R0	TA1250406R0
41	TA1470704R0	TA1470704R0
21	WP0430800SC	WP0430800SC
23	WP0450826SC	WP0450826SC
18	WP0480856SP	WP0480856SP
86	WP0501016SD	WP0501016SD
55	WP0501016SD	WP0501016SD
50	WP0501016SD	WP0501016SD
21	WP0501016SD	WP0501016SD
15	WP0531000SD	WP0531000SD
66	WP0531001SC	WP0531001SC
15	WP0531001SC	WP0531001SC
90	WP0550800SP	WP0550800SP
7	WP0550800SP	WP0550800SP
9	WP0651016SH	WP0651016SH
93	WP0621016SD	WP0621016SD
33	WP0621016SD	WP0621016SD
16	WP0621016SH	WP0621016SH
24	WP0641601SD	WP0641601SD
18	WP0650876SD	WP0650876SD
34	WP0651001SC	WP0651001SC
28	WP0651056SH	WP0651056SH
33	WP0661016SP	WP0661016SP
28	WP0671602SE	WP0671602SE
6	WP1612616SZ	WP1612616SZ
22	WP1612616SE	WP1612616SE
14	WS0510002KN	WS0510002KN
11	WS0610002KN	WS0610002KN
27	WS0861410KR	WS0861410KR

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki DDL-9000B (X73199) — parts catalog

• Page 1 (cover): This page is the cover of a parts list for the DDL-9000B/X73199 model, with list number 1686-00, published on October 9, 2017.
• Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
• Page 3 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts numbered for identification.
• Page 4 (parts_list): This page lists parts for the machine frame and miscellaneous cover components, including part numbers, names, and quantities.
• Page 5 (diagram): This page illustrates the machine frame and miscellaneous cover components of an industrial sewing machine, with various parts identified by reference numbers.
• Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, level, consumption, and quantity.
• Page 7 (diagram): This page illustrates the components of a bobbin winder, showing an exploded view of its various parts and their assembly.
• Page 8 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
• Page 9 (diagram): This page displays a diagram of the main shaft and needle bar components for an industrial sewing machine.
• Page 10 (parts_list): This page lists the main shaft and needle bar components, including part numbers, names, and quantities.
• Page 11 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view with reference numbers for each part.
• Page 12 (parts_list): This page lists components for the main shaft and needle bar, including screws, bolts, cable bands, and rubber plugs, with their respective part numbers and quantities.
• Page 13 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for a sewing machine, showing an exploded view with reference numbers for each part.
• Page 14 (parts_list): This page lists the parts for the hand lifter and tension release components, including part numbers, names, and quantities.
• Page 15 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for an industrial sewing machine, showing an exploded view with reference numbers.
• Page 16 (parts_list): This page lists the components for the hand lifter and tension release, including part numbers, names, and quantities.
• Page 17 (diagram): This page displays a diagram of the feed adjust mechanism components.
• Page 18 (parts_list): This page lists the components of the feed adjust mechanism, including part numbers, names, and quantities.
• Page 19 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft.
• Page 20 (parts_list): This page lists the parts for the horizontal feed, vertical feed, and hook driving shaft components, including part numbers, names, and quantities.
• Page 21 (diagram): This page displays an exploded diagram of horizontal feed, vertical feed, and hook driving shaft components.
• Page 22 (parts_list): This page lists parts for the horizontal feed, vertical feed, and hook driving shaft components, including bearings, screws, gears, oil seals, and other related parts.
• Page 23 (diagram): This page displays a diagram of thread trimmer components, showing various parts and their reference numbers.
• Page 24 (parts_list): This page lists thread trimmer components, including knives, screws, springs, and other related parts, with their respective part numbers and quantities.
• Page 25 (diagram): This page illustrates the components of a thread trimmer, showing various parts with their corresponding reference numbers.
• Page 26 (parts_list): This page lists thread trimmer components, including hinge screws, connecting links, levers, springs, and other related parts, with their part numbers, names, and quantities.
• Page 27 (diagram): This page displays an exploded view diagram of thread trimmer components, showing various parts with reference numbers.
• Page 28 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities for various screws, collars, solenoids, nuts, washers, and other parts.
• Page 29 (diagram): This page illustrates the oil lubrication components of a machine, showing various parts such as the oil pan, oil filter, and associated hoses and fittings.
• Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities.
• Page 31 (diagram): This page displays a diagram of oil lubrication components, illustrating various parts with reference numbers for identification.
• Page 32 (parts_list): This page lists oil lubrication components including a floater sight window, screws, washers, and nuts with their respective part numbers and quantities.
• Page 33 (diagram): This page contains a diagram of automatic reverse feed components, with reference numbers indicating various parts.
• Page 34 (parts_list): This page lists automatic reverse feed components with part numbers, descriptions, remarks, and quantities.
• Page 35 (diagram): This page displays a diagram of condense components with numbered parts for identification.
• Page 36 (parts_list): This page lists components for the condenser, including part numbers, descriptions, and quantities.
• Page 37 (diagram): This page displays a diagram of wiper components for the DDL-9000B-**-WB model, with numbered parts indicated.
• Page 38 (parts_list): This page lists wiper components for the DDL-9000B-WB model, including part numbers, descriptions, and quantities.
• Page 39 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding details.
• Page 40 (parts_list): This page lists components for thread stand, including part numbers, descriptions, and quantities.
• Page 41 (diagram): This page displays a diagram of under cover components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 42 (parts_list): This page lists components for under cover parts, including part numbers, names, remarks, and quantities.
• Page 43 (diagram): This page displays a diagram of accessory part components for an industrial sewing machine, with numbered illustrations of various tools and accessories.
• Page 44 (parts_list): This page lists accessory part components with their part numbers, names, remarks, and quantities. It includes items like accessory bags, screws, thread guides, and machine oil.
• Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B DS sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 46 (parts_list): This page lists parts for the DDL-9000B DS sewing machine, including part numbers, names, quantities, and remarks.
• Page 47 (diagram): This page contains a diagram illustrating the parts of the DDL-9000B MS,MA sewing machine, with various components numbered for reference.
• Page 48 (parts_list): This page lists exclusive parts for the Juki DDL-9000B-MS and DDL-9000B-MA sewing machines, including part numbers, names, and quantities.
• Page 49 (diagram): This page contains a diagram of exclusive parts for the DDL-9000B SH sewing machine, with reference numbers indicating component locations.
• Page 50 (parts_list): This page lists parts for the DDL-9000B SH sewing machine, including part numbers, names, quantities, and remarks.
• Page 51 (diagram): This page contains a diagram of parts for the DDL-9000B SH sewing machine, with reference numbers indicating the location of each part.
• Page 52 (parts_list): This page lists parts for the DDL-9000B SH, including throat plate A and feed J, with quantities and remarks.
• Page 53 (diagram): This page contains a diagram illustrating table and stand components for a sewing machine, with various parts numbered for reference.
• Page 54 (parts_list): This page lists table and stand components with part numbers, descriptions, remarks, and quantities.
• Page 55 (diagram): This page displays a diagram of special order parts for an industrial sewing machine, including a blower, screws, and clips, with reference numbers for each component.
• Page 56 (parts_list): This page lists special order parts for an electric fan cooling device, including part numbers, names, and quantities. It also includes a manual for the hook cooling device.
• Page 57 (diagram): This page displays a diagram of needle thread presser components, showing parts labeled with reference numbers 1 and 2.
• Page 58 (parts_list): This page lists needle thread presser components, including thread catcher assembly and screws, with their part numbers and quantities.
• Page 59 (diagram): This page displays a diagram of LED reverse feed switch components, with two numbered parts indicated.
• Page 60 (parts_list): This page lists components for the LED Reverse Feed Switch, including the LED_BT_SWITCH_ASSY_921 and SCREW M5 L=6.
• Page 61 (text): This page provides instructions on how to use the parts list, including explanations for codes, numbers, and symbols used in the catalog, along with a table indicating the place of destination for parts.
• Page 62 (index): Numerical index of parts with part numbers, page references, and reference numbers.
• Page 63 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 64 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
• Page 65 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
• Page 66 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 67 (index): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers.

Page 1 — PARTS LIST

MODEL : DDL-9000B/X73199 List No : 1686-00 PARTS LIST Published:09/10/2017 jintex.in

Page 2 — CONTENTS

CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037158 SIDE PLATE 1 2 40041161 FACE PLATE 1 3 40052819 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 SM4051055SP SCREW 1 6 40086713 BED,STUD,A 1 7 SM6061002TP SCREW M6 L=10 2 8 22951552 GROUND WIRE ASM. 1 9 SM4050855SP SCREW 1 10 EA9500B0100 CABLE BAND FOR BB 1 11 40094561 SEWING MACHINE LABEL (EU) FOR BB,EE 1 12 22901250 SLIDE PLATE ASM. FOR AA,GG 1 13 22902753 SLIDE PLATE 1 14 22901201 SLIDE PLATE * 1 15 22902704 SLIDE PLATE * 1 16 22901300 SLIDE PLATE SPRING * 1 17 22901300 SLIDE PLATE SPRING * 1 18 SS6060210SP SCREW 3/32-56 L=1.9 * 2 19 SM4050855SP SCREW 2 20 40069110 ATTACHMENT FIXATION SCREW OPTIONAL PARTS 1 21 22944508 WIRE PRESSER A 1 22 SM4040855SP SCREW 1 23 CM300200001 ATTENTION SEAL 1 24 40069097 RULER PLATE I OPTIONAL PARTS 1 25 CM300200003 ATTENTION LABEL 1 26 SM6052502TP SCREW M5X25 3 27 SM2040955TP SCREW M4 L=8.5 1 28 SM2040750TP SCREW M4 L=7.4 1 29 CM301300001 SAFETY LABEL 1 30 22902506 FACE PLATE 4 31 SM4051055SP SCREW 2 32 SM4051255SP SCREW M5 L=12 1 33 40086732 PULLEY_COVER 1 34 40086714 BED,STUD,B 1 35 SM6061202TP SCREW M6 L=12 2 36 SM4040655SP SCREW M4 L=6 1 37 40035589 RULER PLATE 1 38 40091461 FEED LEVER SPRING HOOK 1 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1470704R0 RUBBER PLUG 1 42 NM6040001SP NUT M4X0.7 1 43 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 44 40114043 FEED ADJUSTING SPRING,PLATE 1 45 40052933 ARM THREAD GUIDE C 1 46 SM80608A2TP SCREW M6 L=8 1 47 23640006 SHEET 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40037488 SHEET FOR GG 1 49 40086639 THREAD_TENSION_DISK_ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 22921209 THREAD TENSION POST * 1 52 22921407 ROTATION STOPPER * 1 53 22921506 THREAD TENSION DISK * 2 54 22921605 THREAD TAKE-UP SPRING * ☆ 1 55 22921704 THREAD TENSION SPRING A * 1 56 22921803 DISK STOPPER * 1 57 40086640 TENSION_POST_SOCKET_ASM. * 1 58 SS8090670SP SCREW 9/64-40 L=5.5 1 59 SS6110610TP SCREW 11/64-40 L=6 1 60 22920607 ARM THREAD GUIDE B 1 61 22963458 THREAD TENSION ASM. 1 62 22945414 THREAD TENSION POST * 1 63 22963409 THREAD TENSION SPRING * 1 64 22945703 THREAD TENSION NUT * 1 65 22945802 THREAD TENSION DISK * 2 66 SM80608A2TP L=8SCREW M6 L=8 1 67 SM5040655SN SCREW 1 68 23626104 ARM THREAD GUIDE A 1 69 SM80608A2TP L=8SCREW M6 L=8 1 70 40086659 SAFETY_SWITCH_ASM. 1 71 40086660 SAFETY_SWITCH_BASE * 1 72 23638109 SAFETY SWITCH ARM * 1 73 23638208 SAFETY SWITCH SPRING * 1 74 23638307 SAFETY SWITCH ARM SHAFT * 1 75 23638406 SAFETY SWITCH NUT * 1 76 40098386 SAFETY_SWITCH_CORD_ASM. * 1 77 EA9500B0100 CABLE BAND * 1 78 SM4021201SC SCREW M2 L=12 * 2 79 SM4050655SP SCREW M5 L=6 1 80 22901805 GROUND MARK 1 81 23629900 AIR-DISCHARGING 1 82 RO080150200 RUBBER RING 1 83 23601305 AIR-DISCHARGING CAP 1 84 WP0621016SD WASHER 6.2X13X1 2 85 WP0501016SD WASHER 5X10.5X1 3 86 CM600100101 WEEE MARK LABEL S FOR BB 1 87 CM600600101 CHINA ENVIRONMENT LABEL FOR GG 1 88 SM4051055SP SCREW 2 89 WP0550800SP WASHER 5.5X10X0.8 2 90 40091397 CABLE COVER 1 91 40163071 THROAT_PLATE_IB_R FOR EXPORT 1 92 WP0621016SD WASHER 6.2X13X1 2 93 11417615 THROAT PLATE A FOR JAPAN 1 jintex.in

Page 7 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS jintex.in

Page 8 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40023021 BOBBIN WINDER UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * ☆ 1 13 26261602 BOBBIN_SPRING * ☆ 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40014837 BTW_SHAFT * 1 17 40023022 BTW_LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE0400000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40088958 BOBBIN THREAD TENSION ASM. 1 25 22921308 THREAD TENSION NUT * 1 26 40088959 BOBBIN THREAD TENSION ROD ASM. * 1 27 22921407 ROTATION STOPPER * 1 28 22921506 THREAD TENSION DISK * 2 29 22921704 THREAD TENSION SPRING A * 1 30 40037008 THREAD_CUTTER * ☆ 1 31 SM0050801SC SCREW 1 32 SM0050801SC SCREW 3 33 SM4051055SP SCREW 1 jintex.in

Page 9 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 37 39 40 43 41 42 51 25 43 30 31 29 26 33 27-28 10 9 34~36 2 6 3 5 4 47 48 46 50 38 32 11 15 16 49 24 21 20 19 18 1 14 22 13 12 23 jintex.in

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086597 MAIN_SHAFT 1 2 40135904 ASSY_COUNTER WEIGHT 1 3 40135916 COUNTER WEIGHT * 1 4 40004171 COUNTER_WEIGHT_SCREW * 1 5 SM8081652TP SCREW M8 L=16 * 1 6 SM80606A2TP 6SCREW M6 L=6 * 2 7 40150011 FRONT_BEARING 1 8 SM80608A2TP SCREW M6 L=8 * 2 9 22906309 NEEDLE BAR THREAD GUIDE 1 10 SS7080510TP SCREW 1/8-44 L=4.5 ☆ 1 11 40089196 AC SERVO MOTOR 1 12 40051473 COUPLING ASM. 1 13 40051474 COUPLING 1 14 SM80608A2TP SCREW M6 L=8 * 4 15 40037007 HAND WHEEL ASM. 1 16 40037006 HAND WHEEL * 1 17 SM80608A2TP SCREW M6 L=8 * 2 18 40136292 BTW_DRIVING_WHEEL_ASM 1 19 40136293 BTW_DRIVING_WHEEL * 1 20 SM80506A2TP SCREW M5 L=6 * 2 21 SB120002700 BEARING 1 22 40141440 UPPER SPROCKET ASM. 1 23 SM80608A2TP SCREW M6 L=8 * 2 24 40086731 TIMING_BELT_550 1 25 23608003 NEEDLE BAR METAL UPPER 1 26 40107707 NEEDLE_BAR_METAL_LOWER 1 27 22886907 NEEDLE BAR (A) FOR EE,AA,GG 1 28 22887004 NEEDLE BAR (B) FOR BB 1 29 22906457 NEEDLE BAR HOLDER ASM. 1 30 22906408 NEEDLE ROD HOLDER 1 31 SS6090670TP SCREW 9/64-40 L=6 * 1 32 40090058 SLIDE BLOCK * 1 33 23626203 NEEDLE BAR THREAD GUIDE 1 34 MDB100B1100 NEEDLE DBX1 #11 FOR EE,AA ☆ 1 35 MC200500750 NEEDLE 134 NM75 FOR BB ☆ 1 36 MDB100B1400 NEEDLE DBX1 #14 FOR GG ☆ 1 37 40135900 THREAD_TAKE_UP_COMPL. 1 38 40135905 THREAD_TAKE_UP_ASM._C * 1 39 40141165 TAKE_UP_CRANK_ASM * 1 40 40135906 TAKE_UP_CRANK * 1 41 40143184 TAKE_UP_CRANK_SHAFT * 1 42 40135907 THREAD_TAKE_UP_PIN * 1 43 RE030000K0 E-RING 3 * 2 44 SM80608A2TP SCREW M6 L=8 2 45 TA0850604R0 RUBBER PLUG 2 46 40032269 THRUST COLLAR 1 47 CS1000881TP THRUST COLLAR * 1 jintex.in

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 39 40 41 42 43 51 25 30 31 29 26 33 27-28 10 9 34~36 2 3 5 6 4 45 37 43 38 32 47 48 46 50 11 15 16 49 24 21 20 19 18 1 14 22 13 12 23 jintex.in

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050412TP SCREW M5 L=4 * 2 49 SL6052592TN BOLT 4 50 EA9500B0100 CABLE BAND 2 51 TA0850604R0 RUBBER PLUG 1 jintex.in

Page 13 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS jintex.in

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40136700 PRESSER BAR BUSHING 1 2 40086606 PRESSER BAR GUIDE BRACKET ASM. 1 3 40086607 PRESSER BAR GUIDE BRACKET * 1 4 SM6051400SP SCREW * 1 5 23609357 LIFTING LEVER CONNECT ROD ASM. 1 6 23609456 LIFTING LINK COMPL. * 1 7 23609605 PLATE * 1 8 22908008 LIFTING PLATE * 1 9 SM6040602TP SCREW M4 L=6 * 1 10 RE050000K0 E-RING * 1 11 RE050000K0 E-RING 1 12 23609308 LIFTING LEVER CONNECT ROD 1 13 40086760 CONNECTING ROD 1 14 23609704 LIFTING LEVER LINK 1 15 22907406 PRESSER SPRING 1 16 23610207 PRESSER BAR 1 17 23610306 PRESSER GUIDE BAR 1 18 40037359 PRESSER SPRING REGURATOR ASM. 1 19 40037141 PRESSER SPRING REGULATOR * 1 20 40037144 PRESSER SPRING REGULATOR NUT * 1 21 40050583 LINK SHAFT 2 22 22907802 HAND LIFTER 1 23 B152155000 SCREW 1 24 22908552 HAND LIFTER CAM ASM. 1 25 RO037180100 RUBBER RING 1 26 B15240120BA PRESSER FOOT ASM. 1 27 SS7091110TP SCREW 9/64-40 L=10.5 1 28 RE050000K0 E-RING 3 29 22908909 HINGE SCREW 1 30 40082078 SHOULDER SCREW D=7.24 H=3.3 1 31 NM6060003SE NUT FOR BRACKET 1 32 40036706 ADJUSTING SCREW 1 33 WP0621016SD WASHER 6.2X13X1 1 34 22944508 WIRE PRESSER A 2 35 SM4040855SP SCREW 1 36 SM4040855SP SCREW 1 37 SM6051402TP SCREW M5X0.8 L=14 1 38 40086643 WIRE HOLDER 1 39 40050582 TENSION RELEASE SHAFT 1 40 22920300 THREAD RELEASE SUPPORTING PIN 1 41 22920409 THREAD RELEASE PIN SPRING 1 42 23626351 THREAD TENSION RELEASE WIRE 1 43 23626807 TENSION RELEASE RETURN SPRING 1 44 NS6620310SP NUT 3/16-32 2 45 RE050000K0 E-RING 2 46 40056622 MINUTE LIFTING DEVICE ASM. OPTIONAL PARTS 1 47 23611106 HAND LIFTER * 1 jintex.in

Page 15 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23610504 STOPPER BASE * 1 49 23610652 STOPPER SCREW ASM. * 1 50 D5119206K0K SPACER * 2 51 23610702 STOPPER SCREW NUT * 1 52 SL6053592TN BOLT * 1 53 R0044240100 RUBBER RING 1 54 B3118552F00 TENSION RELEASING PIN 1 55 WP0501016SD WASHER 5X10.5X1 1 jintex.in

Page 17 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS jintex.in

Page 18 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086735 ADJUSTING_LINK_ASM. 1 2 40086695 FEED_ADJUSTING_LINK * 1 3 40086696 FEED_ADJUSTING_LINK_PIN * 2 4 SM80506A2TP SCREW M5 L=6 * 2 5 40086608 ADJUSTING_LINK_FULCRUM_SHAFT 1 6 SM80606A2TP SCREW M6 L=6 1 7 40086615 FEED_CHANGING_SHAFT_METAL_A 1 8 40086704 FEED_CHANGING_SHAFT_ARM_ASM. 1 9 40086705 FEED_CHANGING_SHAFT_ARM * 1 10 SM6051602TP SCREW M5X0.8 L=16 * 1 11 22910509 FEED_ADJUSTING LINK PIN * 1 12 40086706 FEED_CHANGING_SPRING_PIN * 1 13 40086616 FEED_CHANGING_SHAFT_METAL_B 1 14 40086614 FEED_CHANGING_SHAFT 1 15 40086738 REVERSE_FEED_LEVER 1 16 23613706 FEED LEVER SHAFT 1 17 40086674 FEED_LEVER_ARM_ASM. 1 18 40086675 FEED LEVER ARM * 1 19 SM6051602TP SCREW M5X0.8 L=16 * 1 20 40086737 FEED ADJUSTING SPRING 1 21 40086739 FEED LEVER SPRING 1 22 40086609 FEED_ADJUSTING_ROD 1 23 23630007 TUBE 0.1 24 RE050000K0 E-RING 1 25 23612609 FEED CHANGING SHAFT OIL SEAL 1 26 SM80608A2TP SCREW M6 L=8 2 27 22952501 BACK LEVER STOPPER 1 28 SM6051850TP SCREW M5 L=18 1 29 40141842 FEED REGULATOR SCREW 1 30 40123098 FEED_REGULATOR_PIN_SPRING 1 31 40161440 FEED_REGULATOR_PIN 1 32 40141840 REGULATOR_STOPPER_SPRING 1 33 40141838 FEED REGULATOR WASHER 1 34 40141841 REGULATOR PIN DIAL 1 35 SS6121860SP SCREW 3/16-28 L=18 1 36 40086617 FEED_LEVER_SHAFT_METAL 1 37 40086736 RUBBER PLUG 1 38 SM80606A2TP SCREW M6 L=6 1 39 23613409 FEED ADJUSTING PIN 1 40 40095847 FEED REGULATOR ASM. 1 41 SM80606A2TP SCREW M6 L=6 * 1 42 40122891 FEED_REGULATOR * 1 43 RO092270200 RUBBER RING 1 44 40161441 REGULATOR_PIN_STOPPER 1 45 40086613 FEED_REGULATOR_STOPPER_PIN 2 46 40006716 THREAD_TRIMMER_SHAFT 1 47 SM80606A2TP SCREW M6 L=6 1 jintex.in

Page 19 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS jintex.in

Page 20 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037192 FEED ROCKER CAM ASM. 1 2 23616006 FEED ROCKER CAM * 1 3 SS8150822TP SCREW 15/64-28 L=8 * 2 4 40037365 FEED ROCKER ROD ASM. 1 5 40026277 FEED ROCKER ROD * 1 6 22911101 WALKING FOOT PIN C * 1 7 SS6090620TP SCREW * 1 8 40061246 FEED ROCKER ARM ALL ASM. 1 9 40058504 FEED ROCKER ARM ASM. * 1 10 40042079 FEED ROCKER ARM * 1 11 SS6121610SP SCREW 3/16-28 L=15.5 * 1 12 SS6090620TP SCREW * 1 13 22911002 WALKING FOOT PIN B * 1 14 23616709 FEED ROCKER SHAFT METAL 1 15 40037005 ASSY.FEED_ROCKER_BASE_ARM 1 16 40026281 FEED ROCKER BASE ARM * 1 17 SM6051400SP SCREW * 1 18 WP0480856SP WASHER 4.8X8.4X0.8 * 1 19 SM4050855SP SCREW * 1 20 23616204 FEED ROCKER CAM PLATE 1 21 SS6090670TP SCREW 9/64-40 L=6 2 22 22904155 MAIN SHAFT THRUST COLLAR ASM. 2 23 22904106 MAIN SHAFT THRUST COLLAR * 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 40164902 FEED DOG I ST FOR EXPORT 1 26 RO036080200 RUBBER RING OPTIONAL PARTS 1 27 SS4080620TP SCREW 1/8-44 L=6 2 28 B412352200A NEEDLE BEARING SELECTIVE PARTS 1 29 B412352200B NEEDLE ROLLAR SELECTIVE PARTS 1 30 B412352200C NEEDLE ROLLAR SELECTIVE PARTS 1 31 40026278 CONNECTING LINK A 2 32 23616402 CONNECTING LINK B 2 33 23616600 FEED ROCKER SHAFT 1 34 40086743 BEARING SUPPORT ASM. 1 35 SS6110710TP SCREW 11/64-40 L=6.5 * 2 36 40026282 FEED ROCKER BASE SHAFT 1 37 4000391 VERTICAL FEED CAM ASM. 5 1 38 4000392 VERTICAL FEED CAM 5 * 1 39 SS8151150TP SCREW 15/64-28 L=10.5 * 2 40 40053720 FEED DRIVING BASE ARM ASM. 1 41 40026287 FEED DRIVING BASE ARM * 1 42 SM4040655SP SCREW M4 L=6 * 1 43 40026288 FEED DRIVING BASE SHAFT 1 44 40086757 FEED DRIVING SHAFT 1 45 40086690 FEED_DRIVING_BEARING_SUPPORT 1 46 SS8661012TP SCREW 2 47 23618101 FEED DRIVING CAM THRUST BUSH 2 jintex.in

Page 21 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB3200060A BEARING SELECTIVE PARTS 1 49 SB3200060B BEARING SELECTIVE PARTS 1 50 SB3200060C BEARING SELECTIVE PARTS 1 51 SB117001200 BEARING 1 52 23618309 FEED DRIVING CAM PLATE 1 53 SS6090670TP SCREW 9/64-40 L=6 2 54 23620503 GEAR (LARGE) 1 55 SS8661012TP SCREW 2 56 23620008 HOOK SHAFT 1 57 23620156 HOOK SHAFT METAL COMPL. 1 58 40145927 OIL SEAL 2 59 22916555 OIL SEAL SCREW ASM. 1 60 22916506 SET SCREW * 1 61 11015906 OIL WICK * 1 62 23620701 GEAR (SMALL)(A) SELECTIVE PARTS 1 63 23620800 GEAR (SMALL)(B) SELECTIVE PARTS 1 64 23620909 GEAR (SMALL)(C) SELECTIVE PARTS 1 65 23621006 GEAR (SMALL)(D) SELECTIVE PARTS 1 66 SS8661012TP SCREW 2 67 11038759 BOBBIN CASE ASM. ☆ 1 68 11141355 HOOK ASM. FOR BB ☆ 1 69 11038650 HOOK ASM. FOR AA,EE,GG ☆ 1 70 40086740 OIL SEAL 1 71 40030786 FEED BASE COMPL. 1 72 22964001 BOBBIN A ☆ 1 73 40086744 HOOK DRIVING SHAFT OIL SEAL 1 74 23620404 HOOK SHAFT REAR METAL 1 75 40089607 INNER_HOOK_HOLDER 1 76 SM4051055SP SCREW 1 77 40086618 FEED_SHAFT_REAR_METAL 1 78 40086741 OIL SEAL 1 79 40086742 OIL SEAL 1 80 SB120001800 BEARING 1 81 40141443 UNDER SPROCKET ASM. 1 82 SM80608A2TP SCREW M6 L=8 * 2 83 RC1200001KP C-SHAPED SNAP RING 1 84 11079506 FRONT SCREW OPTIONAL PARTS 1 85 11417714 FEED_DOG_A FOR JAPAN 1 jintex.in

Page 23 — THREAD TRIMMER COMPONENTS (1)

THREAD TRIMMER COMPONENTS (1) 67 9 1 5 2 4 63 64 14 11 12 15 59 13 6 3 50 7 61 51 60 57 56 54 58 16 17 10 55 18 43 44 39 66 48 30 35 22 45 31 38 46 42 47 40 19 23 27 26 20 25 34 8 53 24 49 28 29 21 62 32 52 33 41 37 36 65 jintex.in

Page 24 — THREAD TRIMMER COMPONENTS (1)

THREAD TRIMMER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 40067412 KNIFE UNIT 1 2 11497302 THREAD HAUL KNIFE * ☆ 1 3 40067413 KNIFE BASE ASM. * 1 4 11497104 LOOP SPREADING BASE * 1 5 11420601 SCREW * 4 6 11420106 THREAD CUTTER KNIFE * ☆ 1 7 11091204 ADJUST LINK SPRING 1 8 40016706 OIL_TANK_STUD_B 1 9 40029398 PICKER SPRING 1 10 40010434 THRUST_COLLAR_ASM 1 11 40066590 ASSY PICKER ARM 1 12 40036997 ASSY_PICKER * 1 13 SS6090670TP SCREW 9/64-40 L=6 * 2 14 40066591 PICKER ARM * 1 15 22950000 PICKER LINK PIN 1 16 WP0621016SH WASHER 1 17 NS6150310SP NUT 15/64-28 1 18 40113199 THREAD CUTTER DRIVING UNIT_MS_PBN 1 19 11420700 THREAD CUTTER KNIFE SHAFT * 1 20 11421500 KNIFE DRIVING ARM * 1 21 SS7110740TP SCREW 11/64-40 L=7 * 1 22 11420809 LOOP SPREADING SHAFT * 1 23 40060792 LOOP SPREADING ARM ASM. * 1 24 SS8110410TP SCREW 11/64-40 L=3.5 * 1 25 SS6110710TP SCREW 11/64-40 L=6.5 * 1 26 SD0500251SP HINGE SCREW D=5 H=2.5 * 1 27 40113200 BASE_PLATE_MS_PBN * 1 28 WP0651056SH WASHER 6.5X11X1 * 1 29 40060799 STOPPER BLOCK * 1 30 11421104 LOOP SPREADING ARM * 1 31 11421203 KNIFE DRIVING STITCH TONGUE * 1 32 NM6050001SD NUT M5X0.8 * 2 33 SM8053002TP SCREW M5 L=30 * 2 34 SM6051002TP SCREW M5X0.8 L=10 * 2 35 40062180 KNIFE RETURN SPRING * 1 36 SD0640321TP HINGE SCREW D=6.35 H=3.2 * 1 37 40082582 CLUTCH PLATE ASM. * 1 38 40066592 LOOP SPREAD SPRING * 1 39 11421708 SPRING HOOK * 1 40 RE0500000K0 E-RING * 1 41 40082588 CLUTCH PLATE SHAFT * 1 42 SS6621212TP SCREW 3/16-32 L=12.0 * 1 43 SD0500402SP HINGE SCREW D=5 H=4 * 1 44 D2422530D0 CAM ROLLER * 1 45 NS6110310SP NUT 11/64-40 * 1 46 SS6621212TP SCREW 3/16-32 L=12.0 * 1 47 RC1200001KP C-SHAPED SNAP RING * 1 jintex.in

Page 25 — THREAD TRIMMER COMPONENTS (1)

THREAD TRIMMER COMPONENTS (1)

Page 26 — THREAD TRIMMER COMPONENTS (1)

THREAD TRIMMER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 48 SD0380551SL HINGE SCREW D=3.80 H=5.5 * 1 49 11421401 LOOP SPREADING CONNECTING LINK * 1 50 40082583 TENSION RELEASING LEVER 1 51 40082585 LEVER SPRING HOOK 1 52 SL6061292TN SCREW 2 53 SD0500251SP HINGE SCREW D=5 H=2.5 1 54 40066602 KNIFE DRIVING ARM STOPPER 1 55 SM4040655SP SCREW M4 L=6 1 56 PS0300062KH SPRING PIN 3X6 1 57 SD0641456TP SHOULDER SCREW D=6.35 H=14.5 1 58 SD0630275SP HINGE SCREW D=6.35 H=2.7 1 59 40082584 PICKER LINK 1 60 SL6052092TN SCREW 1 61 22956809 WIPER COLLAR 1 62 40100135 STUD BOLT 1 63 40060801 STOPPER PLATE 1 64 SL6061292TN SCREW 1 65 40082589 BASE PLATE SCREW 1 66 WP0531001SC WASHER M5 1 67 40062168 PICKER SPRING HOOK 1 jintex.in

Page 27 — THREAD TRIMMER COMPONENTS (2)

THREAD TRIMMER COMPONENTS (2)

Page 28 — THREAD TRIMMER COMPONENTS (2)

THREAD TRIMMER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40113201 THREAD_CUTTER_CAM_MS_PBN 1 2 11419405 SAFETY CAM 1 3 SS8660612TP SCREW 1/4-40 L=6 4 4 40113204 CLUTCH_MS_PBN 1 5 11419207 THREAD CUTTER DRIVING COLLAR 1 6 22950950 CAM COLLAR ASM. 1 7 SS8110520TP SCREW 11/64-40 L=4.5 * 1 8 RC2651218KP RETAINING RING 1 9 11419603 THRUST COLLAR B 1 10 11419504 THRUST COLLAR A 1 11 11419702 THRUST COLLAR C 1 12 11419801 THRUST COLLAR D 1 13 11419900 THRUST COLLAR E 1 14 40060794 SOLENOID ASM. 1 15 40060791 SOLENOID BASE * 1 16 40089263 THREAD TRIMMER SOLENOID * 1 17 11043304 SOLENOID RUBBER * 1 18 NS6660410SH NUT * 1 19 NS6660430SP NUT 1/4-40 * 1 20 NM6040000SN NUT M4 * 2 21 WP0430800SC WASHER M4 * 2 22 HK03464000B PIN CONTACT * 2 23 SL6061292TN SCREW 1 24 23624554 DRIVING BLOCK ASM. 1 25 23624505 DRIVING BLOCK * 1 26 SS6110710TP SCREW 11/64-40 L=6.5 * 1 jintex.in

Page 29 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS jintex.in

Page 30 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40082059 GEAR BOX COVER ASM. 1 2 40135639 GEAR_BOX_COVER * 1 3 40034246 OIL_SIGHT_WINDOW * 1 4 RO195240100 RUBBER RING * 1 5 13171004 DRAIN SCREW * 1 6 13170105 RUBBER RING * 1 7 23629256 OIL WICK SUPPORT ASM. 1 8 23629207 OIL WICK * 1 9 CQ250000001 OIL WICK 0.25 10 23629306 PIPE STOPPER A 3 11 23629405 PIPE STOPPER B 4 12 40037166 GEAR BOX PACKING 1 13 40135640 MAGNET_HOLDER 1 14 SQ2050453MZ CONNECTING SCREW 2 15 40086648 FLOATER ASM. 1 16 RO068190100 RUBBER RING 1 17 23630007 TUBE 0.57 18 23630007 TUBE 0.08 19 23630007 TUBE 0.11 20 CQ200000001 OIL WICK 0.75 21 23630106 TUBE B 0.165 22 23630106 TUBE B 0.2 23 40075404 FACE FELT ASM 1 24 22925101 OIL FELT PRESSER 1 25 RO098240100 RUBBER RING 1 26 RO172180100 RUBBER RING 1 27 SL6061292TN SCREW 3 28 SM6051402TP SCREW M5X0.8 L=14 9 29 SM5040655SN SCREW 1 30 40013595 OIL_EXIT_CAP 1 31 40098329 OIL_TANK 1 32 40086646 FLOATER_CASE_ASM. 1 33 40086647 FLOATER_CASE * 1 34 23630403 OIL FILTER * 1 35 23630502 OIL FILTER STOPPER * 1 36 23628902 PLUNGER SPRING 1 37 40038328 PLUNGER SCREW 1 38 40037502 OIL ADJUSTING SCREW 1 39 RO037180100 RUBBER RING 1 40 23628803 PLUNGER 1 41 40086693 FROATER_CASE_GUIDE 1 42 SL6040892TN BOLT 1 43 SL6051492TN BOLT 1 44 B8228125000 OIL RESERVOIR MAGNET 2 45 40149785 ASSY_FLOATER_SIGHT_WINDOW_B 1 46 40000344 LUBRICATING INLET CAP * 1 47 RO048190100 RUBBER RING * 1 jintex.in

Page 31

OIL LUBRICATION COMPONENTS jintex.in

Page 32 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40086697 FLOATER_SIGHT_WINDOW_B * 1 49 SM4040601SC SCREW M4X0.7 L=6 1 50 WP0501016SD WASHER 5X10.5X1 9 51 NM6050001SC NUT M5X0.8 TYPE1 1 - 30 -

Page 33 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS 35 34 13 12 4 15 6 5 37 24 14 16 18 36 8 9 7 11 8 23 10 7 3 8 7 2019 17 22 21 1 25 2 26 28 33 29 30 32 27 31 - 31 -

Page 34

AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086750 REVERSE FEED SOLENOID ASM. 1 2 HK03464000B PIN CONTACT * 2 3 40086753 REVERSE FEED SOLENOID PLUNGER * 1 4 RE1200000K0 E-RING 12 * 1 5 D2468555B00 RUBBER PLUNGER * 1 6 WP1602616SZ WASHER 16X24X2.6 * 1 7 WP0550800SP WASHER 5.5X10X0.8 3 8 SM4051055SP SCREW 3 9 WP0551016SH WASHER 5.5X13X1 1 10 NM6050001SP NUT M5 2 11 WS0610002KN SPRING WASHER 6.1X12.2X1.5 1 12 40095844 REVERSE FEED ARM ASM. 1 13 40086698 REVERSE_FEED_ARM * 1 14 SM6051602TP SCREW M5X0.8 L=16 * 1 15 23631757 REVERSE FEED SWITCH ASM. * 1 16 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 17 23632359 REVERSE FEED CORD ASM. * 1 18 EA9500B0100 CABLE BAND * 1 19 SS7110740TP SCREW 11/64-40 L=7 * 1 20 23631708 REVERSE FEED SWITCH COVER * 1 21 23631807 REVERSE FEED SWITCH SHAFT * 1 22 23631906 REVERSE FEED SWITCH SUPPORT * 1 23 23632003 REVERSE FEED SWITCH BASE 1 24 SM4051055SP SCREW * 1 25 23632656 OPTION SWITCH ASM. OPTIONAL PARTS 1 26 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 27 23632250 REVERSE FEED CORD ASM. * 1 28 EA9500B0100 CABLE BAND * 1 29 SS7110740TP SCREW 11/64-40 L=7 * 1 30 23631708 REVERSE FEED SWITCH COVER * 1 31 23631807 REVERSE FEED SWITCH SHAFT * 1 32 23631906 REVERSE FEED SWITCH SUPPORT * 1 33 23632607 OPTION SWITCH BASE * 1 34 40086655 REVERSE_FEED_CONNECTION_LINK 1 35 40086699 REVERSE_FEED_LINK_PIN 1 36 SM480652TP SCREW 1 37 40086759 BACK_SOLENOID_PLUNGER_PIN 1

Page 35 — CONDENSE COMPONENTS

CONDENSE COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 36 — CONDENSE COMPONENTS

CONDENSE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40100043 CONDENSE SOLENOID ASM. 1 2 SM5040401SE SCREW M4 L=4 2 3 40100046 SOLENOID BASE A 1 4 SM6050802TP SCREW M5X0.8 L=8 2 5 WP0501016SD WASHER 5X10.5X1 2 6 22962906 PLUNGER ARM PIN 1 7 NS6110350SP NUT 11/64-40 2 8 40100038 CONDENSE ARM ASM. 1 9 40100050 CONDENSE SPRING 1 10 SD1001506TP SHOULDER SCREW D=10 H=15 1 11 40162657 CONDENSE STOPPER 1 12 40060833 CONDENSE PIVOT 1 13 RE0600000K0 E-RING 6 1 14 SM6051202TP SCREW M5X0.8 L=12 1 15 WP0531000SD WASHER M5 1 16 40061486 STOPPER COLLAR 1 17 SM6051202TP SCREW M5X0.8 L=12 1 18 40100172 CONDENSE ARM STOPPER¥n 1 19 22609606 FEED DRIVING ROCKER BLOCK S 1 20 SM6050802TP SCREW M5X0.8 L=8 2 21 WP0501016SD WASHER 5X10.5X1 2 22 40100047 SOLENOID BASE B 1 23 SM6061002TP SCREW M6 L=10 1 24 WP0641601SD WASHER M6 1 25 40100048 SOLENOID COVER 1

Page 37 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

WIPER COMPONENTS (FOR DDL-9000B-**-WB) 1 36 26 5 37 6 17 27 20 15 18 32 31 8 25 21 9 10 11 22 2 29 30 3 13 14 4 24 33 35 12 28 19 7

Page 38 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

WIPER COMPONENTS (FOR DDL-9000B-**-WB) No. Parts No. Parts name Remarks Level Cons Qty 1 40086676 WIPER ASM. * 1 2 40077853 WIPER BASE ASM. * 1 3 40086723 WIPER LINK B * 1 4 40086724 WIPER SHAFT ASM. * 1 5 40095175 WIPER_SOLENOID_ASM. * 1 6 40089264 WIPER SOLENOID * 1 7 HK03464000B PIN CONTACT * 2 8 HW500070000 2-CORE CABTYRE CORD * 1.3 9 22956106 WIPER LINK A * 1 10 22956205 WIPER HINGE SCREW COLLAR * 1 11 22956304 WIPER SPRING * 1 12 22956809 WIPER COLLAR * 1 13 22956908 WIPER LINK B HINGE SCREW * 1 14 22957005 WIPER * 1 15 22957203 WIPER LINK COLLAR * 1 16 40077852 WIPER SOLENOID SHAFT * 1 17 40086678 WIPER_SW_RUBBER * 1 18 22955900 WIPER RUBBER A * 1 19 40086717 FELT_B * 1 20 22956007 WIPER RUBBER B * 1 21 NS6090310SP NUT 9/64-40 * 1 22 NS6110310SP NUT 11/64-40 * 1 23 RC0370411KP RETAINING RING * 1 24 RE0500000K0 E-RING * 1 25 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 26 SL4030631SC SCREW M3X6 * 3 27 SL4030641SE SCREW * 1 28 SS6090540SP SCREW 9/64-40 L=5.0 * 1 29 40077851 WIPER SOLENOID SHAFT GUIDE * 2 30 SS4110615SP SCREW 11/64-40 L=6 * 1 31 40086680 WIPER_STOPPER_RUBBER_HOLDER * 1 32 40086679 WIPER_STOPPER_RUBBER * 1 33 WP0661016SP WASHER * 1 34 WP0651001SC WASHER * 1 35 40086716 FELT_A * 1 36 22955504 WIPER COVER * 1 37 SM4051055SP SCREW * 1 jintex.in 26

Page 39 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 40 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40108402 THRED_STAND_B 1 2 40085786 SPOOL REST ARM (LOWER) * 1 3 40085787 SPOOL REST ARM (UPPER) * 1 4 40085788 SPOOL REST * 2 5 40085789 SPOOL REST CUSHION * 2 6 40085790 SPOOL PIN * 2 7 40085791 SPOOL RETAINER * 2 8 40085794 THREAD GUIDE * 2 9 40085795 THREAD GUIDE BUSHING * 2 10 40096326 SPOOL REST ARM LOWER SCREW * 1 11 NM6050001SE NUT M5 * 1 12 40096327 SPOOL REST ARM UPPER SCREW * 2 13 NM6050001SE NUT M5 * 1 14 WS0510002KN SPRING WASHER M5 * 2 15 WP0531001SC WASHER M5 * 2 16 40108401 THREAD_STAND_A 1 17 40085784 SPOOL REST ROD LOWER * 1 18 40085785 SPOOL REST ROD UPPER * 1 19 40085792 SPOOL REST ROD JOINT * 1 20 40085793 SPOOL REST ROD RUBBER CAP * 1 21 40096325 SPOOL REST ROD NUT * 1 22 WP1612616SE WASHER 16X30X2.6 * 2 23 40085796 SPOOL REST ROD RUBBER CUSHION * 2 24 SM4051405SE SCREW M5 L=14 * 2 25 NM6050001SE NUT M5 * 2

Page 41 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS 1.2 3.4 6.7 8 5 13 22 27 15 24 18 23 10 11 12 26 17 25 16 14 A 19 20 21 21 33 32 28 29 30 31 A

Page 42 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089665 UNDER COVER AH ASM. FOR DDL-9000B-SH 1 2 40062321 UNDER COVER A ASM. EXCEPT DDL-9000B-SH 1 3 40089671 UNDER COVER BH ASM. FOR DDL-9000B-SH 1 4 40062323 UNDER COVER B ASM. EXCEPT DDL-9000B-SH 1 5 23639008 UNDER COVER 1 6 22932008 RUBBER CUSHION FOR DDL-9000B-SH 2 7 B1116210D00 FRAME SUPPORT RUBBER EXCEPT DDL-9000B-SH 2 8 B1116210D00 FRAME SUPPORT RUBBER 2 9 23639156 BRACKET ASM. 1 10 23639107 BRACKET 1 11 NM60600001SE NUT M6 2 12 SM8063012TR SCREW M6 L=30 2 13 23639206 CONNECTING ROT 1 14 23639305 KNEE PRESS ROD 1 15 23639404 SHAFT 1 16 23639503 SPRING 1 17 23639602 CONNECTING ROD 1 18 WP0650876SD WASHER 6.5X13X0.8 2 19 22932453 BRACKET ASM. 1 20 22932404 BRACKET 1 21 SM9062053SR SCREW M6 L=20 2 22 NS6150310SP NUT 15/64-28 2 23 RE100000K0 E-RING 10 1 24 RE100000K0 E-RING 10 1 25 SD0720331SP HINGE SCREW D=7.24 H=3.3 2 26 SM9061853SR SCREW M6 L=17.5 1 27 SM9061853SR SCREW M6 L=17.5 1 28 22934251 KNEE PAD PLATE ASM. 1 29 22934202 KNEE PAD PLATE 1 30 22934301 KNEE PAD PLATE SUPPORT 1 31 22934400 KNEE PAD PLATE RUBBER 1 32 22934509 KNEE PAD PLATE COVER 1 33 22934608 KNEE PAD UPRIGHT SHAFT 1 34 SM9061203SE SCREW M6 L=12 1

Page 43

ACCESSORIE PART COMPONENTS 1~4 5 9 10 12-13 8 6 7 11 14 16 19 21~27 17 18 15 20 33 31 32 29 28 JUKI 30 jintex.in

Page 44

ACCESSORIE PART COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089663 ACCESSORIE BAG ASM. EXCEPT TYPE AK 1 2 40091140 ACCESSORIE BAG AK ASM. TYPE AK 1 3 40099737 ACCESSORIE BAG ASM. 2 FOR CHINA (EXCEPT TYPE AK) 1 4 40099737 ACCESSORIE BAG AK ASM. 2 FOR CHINA (TYPE AK) 1 5 22932800 ACCESSORIE BAG * 1 6 22933204 SCREW DRIVER (SMALL) EXCEPT CHINA * 1 7 22502504 THREAD GUIDE BAR * 1 8 23639701 KNEE LIFTER PRESSER ROD * 1 9 EA9500B0100 CABLE BAND * 1 10 40055591 HEXAGONAL WRENCH KYE * 1 11 22933105 SCREW DRIVER (MIDDLE) EXCEPT CHINA * 1 12 22931604 FRAME SUPPORT BAR EXCEPT TYPE AK * 1 13 40024081 HEAD SUPPORT ROD TYPE AK * 1 14 22958052 RUBBER HINGE ASM. * 2 15 22926505 WASHER * 2 16 22926000 RUBBER CUSHION * 2 17 22958003 FRAME BUBBER CUSHION * 8 18 22926208 NAIL * 2 19 22926356 HINGE COMPL. * 2 20 B91210120A0 OILER ASM. 1 21 MDB100B1100 NEEDLE DBX1 #11 VARIOUS NOS.FOR DESTINATIONS 1 22 MDB100B0900 NEEDLE DBX1 #9 VARIOUS NOS.FOR DESTINATIONS 1 23 MDB100B2100 NEEDLE DBX1 #21 VARIOUS NOS.FOR DESTINATIONS 1 24 MDB100B1400 NEEDLE DBX1 #14 VARIOUS NOS.FOR DESTINATIONS 1 25 MC20050130 NEEDLE 134 NM130 VARIOUS NOS.FOR DESTINATIONS 1 26 MC20050650 NEEDLE 134 NM65 VARIOUS NOS.FOR DESTINATIONS 1 27 MC200500750 NEEDLE 134 NM75 VARIOUS NOS.FOR DESTINATIONS 1 28 40135803 HEAD COVER 1 29 40089323 DDL-9000B SETUP DOCUMENT EXCEPT CHINA 1 30 CM600100201 WEEE INFORMATION SHEET VARIOUS NOS.FOR DESTINATIONS 1 31 B9117012000 BOBBIN VARIOUS NOS.FOR DESTINATIONS 1 32 22964001 BOBBIN A VARIOUS NOS.FOR DESTINATIONS 1 33 40102087 JUKI MACHINE OIL 7 EXCEPT CHINA 1

Page 45 — EXCLUSIVE PARTS DDL-9000B DS

EXCLUSIVE PARTS DDL-9000B DS 1 2 4-5 3 DRY 13 16 14 22 15 21 18 20 17 19 24 23 6 7 8~10 11 12 jintex.in

Page 46 — EXCLUSIVE PARTS DDL-9000B DS

EXCLUSIVE PARTS DDL-9000B DS No. Parts No. Parts name Remarks Level Cons Qty 1 40086605 NEEDLE_BAR_LOWER_METAL_MD 1 2 SM4050501SC SCREW M5X0.8 L=5 1 3 40037146 FLOATER SIGHT WINDOW D 1 4 40086604 NEEDLE_BAR_D_(B) FOR DDL-9000B-DS BB 1 5 40086602 NEEDLE_BAR_D_(A) FOR DDL-9000B-DS AA,EE,GG 1 6 40089274 HOOK_SHAFT_FRONT_BEARING_COMPL. 1 7 SS6110420TP SCREW 11/64-40 L=4.8 * 2 8 22890404 RP HOOK C FOR DDL-9000B-DS BB ☆ 1 9 22890206 RP HOOK FOR DDL-9000B-DS EE,GG ☆ 1 10 22890305 RP HOOK S FOR DDL-9000B-DS AA ☆ 1 11 22964001 BOBBIN ☆ 1 12 22896252 BOBBIN CASE ASM. ☆ 1 13 40050586 KNIFE UNIT D 1 14 22895908 COUNTER KNIFE * ☆ 1 15 SS2060210SP SCREW 3/32-56 L=2.3 * 1 16 SS4080620TP SCREW 1/8-44 L=6 * 2 17 11040052 MOVING KNIFE ASM. * ☆ 1 18 40050588 THREAD GUIDE FOR KNIFE D * ☆ 1 19 22947907 KNIFE MOUNTING BASE * 1 20 11040409 MOVING KNIFE HINGE SCREW * 1 21 22896005 FORKED BASE FOR KNIFE * 1 22 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 23 40006323 JUKI GREASE A TUBE FOR OPTIONAL PARTS 1 24 40050581 JOINT_CABLE_ASM. 1 - 44 -

Page 47 — EXCLUSIVE PARTS DDL-9000B MS,MA

EXCLUSIVE PARTS DDL-9000B MS,MA 1 27 5 29 26 2 22･23 4 24･28 9 3･6･7 19 21 20 10 14 18 25 15 8 13 12 17 16 11 - 45 -

Page 48 — EXCLUSIVE PARTS DDL-9000B MS,MA

EXCLUSIVE PARTS DDL-9000B MS,MA No. Parts No. Parts name Remarks Level Cons Qty 1 11001906 THROAT PLATE K FOR DDL-9000B-MA EE 1 2 11162104 SPRING FOR DDL-9000B-MA 1 3 MDB100B1100 NEEDLE DBX1 #11 FOR DDL-9000B-MA GG ☆ 1 4 D1613155W00 FEED DOG W FOR DDL-9000B-MA EE 1 5 D1524555DBB PRESSER FOOT ASM. FOR DDL-9000B-MA AA,BB,EE 1 6 MDB100B0900 NEEDLE DBX1 #9 FOR DDL-9000B-MA AA,EE ☆ 1 7 MC200500650 NEEDLE 134 NM65 FOR DDL-9000B-MA BB ☆ 1 8 40141843 REGULATOR PIN DIAL 4 FOR DDL-9000B-MA 1 9 40037439 THREAD TAKE UP COMP. A FOR DDL-9000B-MA 1 10 40037479 THREAD TENSION DISK ASM. A FOR DDL-9000B-MA 1 11 23626005 THREAD TENSION NUT * 1 12 B3132552000 THREAD TENSION DISK PRESSER * 1 13 B3126012000 THREAD TENSION DISK * 2 14 40024845 TENSION POST SOCKET ASM. * 1 15 B3115552000 TENSION POST * 1 16 B3120125000 ROTATING STOPPER * 1 17 D3129555D00 THREAD TENSION SPRING * 1 18 D3128555D00 TAKE-UP SPRING * ☆ 1 19 SS8090670SP SCREW 9/64-40 L=5.5 * 1 20 40086605 NEEDLE_BAR_LOWER_METAL_MD 1 21 SM4050501SC SCREW M5X0.8 L=5 1 22 40086604 NEEDLE_BAR_D_(B) FOR DDL-9000B-MS MA,BB 1 23 40086602 NEEDLE_BAR_D_(A) FOR DDL-9000B-MS MA,AA,EE,GG 1 24 40000264 BOBBIN CASE ASM. FOR DDL-9000B-MA 1 25 40006323 JUKI GREASE A TUBE OPTIONAL PARTS 1 26 23629306 PIPE STOPPER A 1 27 40042086 CAP 1 28 11038759 BOBBIN CASE ASM. FOR DDL-9000B-MS 1 29 23630007 TUBE 0.07 - 46 -

Page 49 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH 22 10 1 48 49 6 23 5 47 32 9 7 8 34 30 28 25 38 27 42 35 29 41 42 36 31 26 A 37 24 39 40 11 12 18 A 16 21 19 17 15 20 3 14 13 43 2 4 45 33 44 - 47 -

Page 50 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH No. Parts No. Parts name Remarks Level Cons Qty 1 40089605 THROAT_PLATE_J FOR AA,BB,EE 1 2 40107708 NEEDLE_BAR_METAL_LOWER_H 1 3 40061767 NEEDLE BAR H 1 4 MDB100B2100 NEEDLE DBX1 #21 FOR AA,GG,EE ☆ 1 5 B9117012000 BOBBIN 1 6 B1505552000A PRESSER SPRING 1 7 D1524555EBL PRESSER FOOT ASM. FOR AA,BB,EE 1 8 40064839 PRESSER FOOT ASM. 1 9 40089610 INNER_HOOK_HOLDER_H 1 10 11092251 LUBRICATING BOBBIN ASM. ☆ 1 11 40055604 THREAD TAKE UP COMP. H 1 12 40050587 KNIFE UNIT H 1 13 11095502 KNIFE MOUNT BASE * 1 14 40044190 THREAD_GUIDE_FOR_KNIFE H * ☆ 1 15 11409257 MOVING KNIFE J ASM. * ☆ 1 16 40009894 FORKED BASE FOR KNIFE * 1 17 40050589 FIX KNIFE H * ☆ 1 18 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 19 SD0500131TP HINGE SCREW D=5 H=1.25 * 1 20 SS2060210SP SCREW 3/32-56 L=2.3 * 1 21 SS4080620TP SCREW 1/8-44 L=6 2 22 40000264 BOBBIN CASE ASM. ☆ 1 23 40037313 THREAD TENSION DISK ASM. H 1 24 23626005 THREAD TENSION NUT * 1 25 B3115552000 TENSION POST * 1 26 B3120125000 ROTATING STOPPER * 1 27 B3126012000 THREAD TENSION DISK * 2 28 B3128012000 TAKE-UP SPRING * ☆ 1 29 B3132552000 THREAD TENSION DISK PRESSER * 1 30 40024845 TENSION POST SOCKET ASM. * 1 31 B3114232000 THREAD TENSION SPRING * 1 32 SS8090670SP SCREW 9/64-40 L=5.5 * 1 33 J1063000000 WRENCH OPTIONAL PARTS 1 34 40024124 NEEDLE BAR THREAD GUIDE 1 35 23619059 VERTICAL FEED CAM H ASM. 1 36 23619000 VERTICAL FEED CAM H * 1 37 SS8151150TP SCREW 15/64-28 L=10.5 * 2 38 40055058 ASSY COUNTER WEIGHT H 1 39 40053411 COUNTER WEIGHT H * 1 40 40004171 COUNTER_WEIGHT_SCREW * 1 41 SM8081652TP SCREW M8 L=16 * 1 42 SM80606A2TP SCREW M6 L=6 * 2 43 40069369 VERTICAL FEED CAM ASM. 2.0 OPTIONAL PARTS 1 44 40069370 VERTICAL FEED CAM 2.0 * 1 45 SS8151150TP SCREW 15/64-28 L=10.5 * 2 46 40063697 ARM THREAD GUIDE A H 1 47 11062601 FEED DOG FOR GG 1 - 48 -

Page 51 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH 22 10 1 48 49 6 23 5 47 32 9 7 8 34 30 28 25 38 27 42 35 29 41 42 36 31 26 A 37 24 39 40 11 12 18 A 16 21 19 17 15 20 3 14 13 43 2 4 45 33 44 - 49 -

Page 52 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH No. Parts No. Parts name Remarks Level Cons Qty 48 11062007 THROAT PLATE A FOR GG 1 49 11403003 FEED J FOR AA,BB,EE 1 - 50 -

Page 53 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS 15 13 23 14 15 11 12 28 27 26 25 24 5 3 7 1 6 4 2 10 18 21 22 19 17 9 8 16 20 - 51 -

Page 54 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23642259 TABLE ASM. 1 2 23642200 TABLE 1 3 11075900 RUBBER SPACER 2 4 11075801 RUBBER SPACER 2 5 B8210012000 CUSHION SET NAIL 4 6 B8210012000 CUSHION SET NAIL 4 7 D8226555E00 FRAME RUBBER CUSHION A 2 8 11157567 T LEG JUNCTION FOR JT-D950 1 9 GPK700010A0 3-JOINT PEDAL 70 FOR JT-D95A,-D95B 1 10 11157559 T-STAND ASM. FOR JT-D95A,-D95B 1 11 11155769 SMALL CASTINGS BOX B ASM. 1 12 11156007 CASE 1 13 11155801 CASE MAGNET 1 14 11155751 CASE ASM. B 4 15 SK3382001SC WOOD SCREW D=3.8 L=20 1 16 11155157 DRAWER ASM. 1 17 11155108 DRAWER 2 18 11155207 DRAWER SUPPORT 6 19 SK3311600SE WOOD SCREW D=3.1 L=16 1 20 GPK710010A0 2-PEDAL ASM. 71 FOR JT-D95A,-D95B 1 21 D8204555D00 DRAWER STOPPER 1 22 SK3513200SC WOOD SCREW D=5.1 L=32 4 23 11159456 CASTER ASM. OPTIONAL PARTS 1 24 SM9086523SE HEXAGONAL BOLT 2 25 11159407 CASTER 4 26 11159506 STRUT AUXILIARY PLATE 2 27 WS0861410KR SPRING WASHER 8.6X15X1.4 2 28 WP0871602SE WASHER 8.7X18X1.6 2 jintex.in

Page 55

SPECIAL ORDER PART 1 2 3 4 5 6 7 8 jintex.in

Page 56 — SPECIAL ORDER PART

SPECIAL ORDER PART No. Parts No. Parts name Remarks Level Cons Qty 1 40065571 ELECTRIC FAN HOOK COOLING DEVICE 1 2 40044065 FAN_RELAY_CABLE * 1 3 40064805 FAN FILTER * 1 4 40064806 FAN COOLING COVER * 1 5 40065564 FAN MOTOR ASSY * 1 6 SK3415001SE SCREW D=4.1 L=50 * 2 7 MAO11532000 CORD STAPLE * 3 8 40065572 HOOK COOLING DEVICE INSTRUCTION MANUAL * 1 - 54 -

Page 57 — NEEDLE THREAD PRESSER COMPONENTS

NEEDLE THREAD PRESSER COMPONENTS 1 2

Page 58 — NEEDLE THREAD PRESSER COMPONENTS

NEEDLE THREAD PRESSER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40131641 THREAD CATCHER ASM. 1 2 SM8040612TP SCREW M4 L=6 1 - 56 -

Page 59 — LED REVERSE FEED SWITCH COMPONENTS

LED REVERSE FEED SWITCH COMPONENTS 1 2

Page 60 — LED REVERSE FEED SWITCH COMPONENTS

LED REVERSE FEED SWITCH COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40163072 LED_BT_SWITCH_ASSY_921 1 2 SM4050655SP SCREW M5 L=6 1 - 58 -

Page 61 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1.As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(Consumable parts)and "◎"(optional parts)on the respective parts, it is recommended to prepare spares. Sign Place of destination GG China BB Europe EE Japan AA excludes China,Europe and Japan 1. リストページの#01、#02の印は、ページ下の“注記”の説明を参照して下さい。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の( )は、組部品を構成している子部品であることを意味します。 4.イラストページのーーー枠は、組構成であることを意味します。 5. リストページの“☆”(消耗部品)、“◎”(オプション部品)の印が付いた部品は、 予備を準備しておくことをお奨めします。 記号 仕向地 GG 中国 BB ヨーロッパ EE 日本 AA 中国、ヨーロッパ、日本を除く

Page 62 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 11001906 46 1 11421104 22 30 22921308 6 25 11015906 20 61 11421203 22 31 22921407 4 52 11038650 20 68･69 11421401 24 49 22921407 6 27 11038759 20 67 11421500 22 20 22921506 4 53 11038759 46 24･28 11421708 22 39 22921506 6 28 11040052 44 17 11497104 22 4 22921605 4 54 11040409 44 20 11497302 22 2 22921704 4 55 11043304 26 17 13170105 28 6 22921704 6 29 11062007 50 48 13171004 28 5 22921803 4 56 11062601 48 47 22502504 42 7 22925101 28 24 11075801 52 4 22609606 34 19 22926000 42 16 11075900 52 3 22886907 8 27･28 22926208 42 18 11079506 20 84 22887004 8 27･28 22926356 42 19 11091204 22 7 22890206 44 8～10 22926505 42 15 11092251 48 10 22890305 44 8～10 22931604 42 12･13 11095502 48 13 22890404 44 8～10 22932008 40 6･7 11141355 20 68･69 22895908 44 14 22932404 40 20 11155108 52 17 22896005 44 21 22932453 40 19 11155157 52 16 22896252 44 12 22932800 42 5 11155207 52 18 22901201 2 14･15 22933105 42 11 11155751 52 14 22901250 2 12･13 22933204 42 6 11155769 52 11 22901300 2 16･17 22934202 40 29 11155801 52 13 22901805 4 81 22934251 40 28 11156007 52 12 22902506 2 30 22934301 40 30 11157559 52 10 22902704 2 14･15 22934400 40 31 11157567 52 8 22902753 2 12･13 22934509 40 32 11159407 52 25 22904106 18 23 22934608 40 33 11159456 52 23 22904155 18 22 22944508 2 21 11159506 52 26 22906309 8 9 22944508 12 34 11162104 46 2 22906408 8 30 22945414 4 62 11403003 50 49 22906457 8 29 22945604 4 63 11409257 48 15 22907406 12 15 22945703 4 65 11417615 4 94 22907802 12 22 22945802 4 66 11417714 20 85 22908008 12 8 22947907 44 19 11419207 26 5 22908552 12 24 22950000 22 15 11419405 26 2 22908909 12 29 22950950 26 6 11419504 26 10 22910509 16 11 22951552 2 8 11419603 26 9 22911002 18 13 22952501 16 27 11419702 26 11 22911101 18 6 22955504 36 36 11419801 26 12 22916506 20 60 22955900 36 18 11419900 26 13 22916555 20 59 22956007 36 20 11420106 22 6 22920300 12 40 22956106 36 9 11420601 22 5 22920409 12 41 22956205 36 10 11420700 22 19 22920607 4 60 22956304 36 11 11420809 22 22 22921209 4 51 22956809 24 61 INDEX - 1

Page 63 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22956809 36 12 23621006 20 62~65 23639602 40 17 22956908 36 13 23624505 26 25 23639701 42 8 22957005 36 14 23624554 26 24 23640006 2 47-48 22957203 36 15 23626005 4 50 23642200 52 2 22958003 42 17 23626005 46 11 23642259 52 1 22958052 42 14 23626005 48 24 26260109 6 2 22962906 34 6 23626104 4 69 26260208 6 3 22963409 4 64 23626203 8 33 26260307 6 4 22963458 4 61 23626351 12 42 26260406 6 5 22964001 20 72 23626807 12 43 26260505 6 6 22964001 42 32 23628803 28 40 26260604 6 7 22964001 44 11 23628902 28 36 26260802 6 8 23600505 2 4 23629207 28 8 26261008 6 9 23601305 4 84 23629256 28 7 26261206 6 10 23608003 8 25 23629306 28 10 26261505 6 11 23609308 12 12 23629306 46 26 26261503 6 12 23609357 12 5 23629405 28 11 26261602 6 13 23609456 12 6 23629900 4 82 26261701 6 14 23609605 12 7 23630007 16 23 40000264 46 24-28 23609704 12 14 23630007 28 19 40000264 48 22 23610207 12 16 23630007 46 29 40000344 28 46 23610306 12 17 23630106 28 22 40000391 18 37 23610504 14 48 23630403 28 34 40000392 18 38 23610652 14 49 23630502 28 35 40004171 8 4 23610702 14 51 23631708 32 30 40004171 48 40 23611106 12 47 23631757 32 15 40006323 44 23 23612609 16 25 23631807 32 31 40006323 46 25 23613409 16 39 23631906 32 32 40006716 16 46 23613706 16 16 23632003 32 23 40009894 48 16 23616006 18 2 23632102 32 26 40010434 22 10 23616204 18 20 23632250 32 27 40011144 6 15 23616402 18 32 23632359 32 17 40013595 28 30 23616600 18 33 23632607 32 33 40014837 6 16 23616709 18 14 23632656 32 25 40016706 22 8 23618101 18 47 23638109 4 73 40023021 6 1 23618309 20 52 23638208 4 74 40023022 6 17 23619000 48 36 23638307 4 75 40024081 42 12-13 23619059 48 35 23638406 4 76 40024124 48 34 23620008 20 56 23639008 40 5 40024845 46 14 23620156 20 57 23639107 40 10 40024845 48 30 23620404 20 74 23639156 40 9 40026277 18 5 23620503 20 54 23639206 40 13 40026278 18 31 23620701 20 62~65 23639305 40 14 40026281 18 16 23620800 20 62~65 23639404 40 15 40026282 18 36 23620909 20 62~65 23639503 40 16 40026287 18 41 INDEX - 2 jintex.in

Page 64 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40026288 18 43 40055591 42 10 40082589 24 65 40029398 22 9 40055604 48 11 40085784 38 17 40030786 20 71 40056622 12 46 40085785 38 18 40032269 8 46 40058504 18 9 40085786 38 2 40034246 28 3 40060791 26 15 40085787 38 3 40035589 2 37 40060792 22 23 40085788 38 4 40036706 12 32 40060794 26 14 40085789 38 5 40036997 22 12 40060799 22 29 40085790 38 6 40037005 18 15 40060801 24 63 40085791 38 7 40037006 8 16 40060833 34 12 40085792 38 19 40037007 8 15 40061246 18 8 40085793 38 20 40037008 6 30 40061486 34 16 40085794 38 8 40037141 12 19 40061767 48 3 40085795 38 9 40037144 12 20 40062168 24 67 40085796 38 23 40037146 44 3 40062180 22 35 40086597 8 1 40037158 2 1 40062321 40 1-2 40086602 44 4-5 40037166 28 12 40062323 40 3-4 40086602 46 22-23 40037192 18 1 40063697 48 46 40086604 44 4-5 40037313 48 23 40064805 54 3 40086604 46 22-23 40037359 12 18 40064806 54 4 40086605 44 1 40037365 18 4 40064839 48 8 40086605 46 20 40037439 46 9 40065564 54 5 40086606 12 2 40037479 46 10 40065571 54 1 40086607 12 3 40037488 4 47-48 40065572 54 8 40086608 16 5 40037502 28 38 40066590 22 11 40086609 16 22 40038328 28 37 40066591 22 14 40086613 16 45 40041161 2 2 40066592 22 38 40086614 16 14 40042079 18 10 40066602 24 54 40086615 16 7 40042086 46 27 40067412 22 1 40086616 16 13 40044065 54 2 40067413 22 3 40086617 16 36 40044190 48 14 40069097 2 24 40086618 20 77 40050581 44 24 40069110 2 20 40086639 4 49 40050582 12 39 40069369 48 43 40086640 4 57 40050583 12 21 40069370 48 44 40086643 12 38 40050586 44 13 40075404 28 23 40086646 28 32 40050587 48 12 40077851 36 29 40086647 28 33 40050588 44 18 40077852 36 16 40086648 28 15 40050589 48 17 40077853 36 2 40086655 32 34 40051473 8 12 40082059 28 1 40086659 4 71 40051474 8 13 40082078 12 30 40086660 4 72 40052819 2 3 40082582 22 37 40086674 16 17 40052933 2 45 40082583 24 50 40086675 16 18 40053411 48 39 40082584 24 59 40086676 36 1 40053720 18 40 40082585 24 51 40086678 36 17 40055058 48 38 40082588 22 41 40086679 36 32 INDEX - 3 jintex.in

Page 65 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40086680 36 31 40089665 40 1-2 40135907 8 42 40086690 18 45 40089671 40 3-4 40135916 8 3 40086693 28 41 40090058 8 32 40136292 8 18 40086695 16 2 40091140 42 1-4 40136293 8 19 40086696 16 3 40091397 4 91 40136700 12 1 40086697 30 48 40091461 2 38 40141165 8 39 40086698 32 13 40094561 2 11 40141440 8 22 40086699 32 35 40095175 36 5 40141443 20 81 40086704 16 8 40095844 32 12 40141838 16 33 40086705 16 9 40095847 16 40 40141840 16 32 40086706 16 12 40096325 38 21 40141841 16 34 40086713 2 6 40096326 38 10 40141842 16 29 40086714 2 34 40096327 38 12 40141843 46 8 40086716 36 29 40098329 28 31 40143184 8 41 40086717 36 19 40098386 4 77 40145927 20 58 40086723 36 3 40099736 42 1-4 40149785 28 45 40086724 36 4 40099737 42 1-4 40150011 8 7 40086731 8 24 40100038 34 8 40161440 16 31 40086732 2 33 40100043 34 1 40161441 16 44 40086735 16 1 40100046 34 3 40162657 34 11 40086736 16 37 40100047 34 22 40163071 4 92 40086737 16 20 40100048 34 25 40163072 58 1 40086738 16 15 40100050 34 9 40164902 18 25 40086739 16 21 40100135 24 62 B1116210D00 40 8 40086740 20 70 40100172 34 18 B1505552000A 48 6 40086741 20 78 40102087 42 33 B152155000 12 23 40086742 20 79 40107707 8 26 B15240120BA 12 26 40086743 18 34 40107708 48 2 B3114232000 48 31 40086744 20 73 40108401 38 16 B3115552000 46 15 40086750 32 1 40108402 38 1 B3115552000 48 25 40086753 32 3 40113199 22 18 B3118552F00 14 54 40086757 18 37 40113200 22 27 B3120125000 46 16 40086759 32 44 40113201 26 1 B3120125000 48 26 40086760 12 11 40113204 26 4 B3126012000 46 13 40088958 6 24 40114043 2 44 B3126012000 48 27 40089959 6 26 40122891 16 42 B3128012000 48 28 40089196 8 11 40123098 16 30 B3132552000 46 12 40089263 26 16 40131641 56 1 B3132552000 48 29 40089264 36 6 40135639 28 2 B412352200A 18 28-30 40089274 44 6 40135640 28 13 B412352200B 18 28-30 40089323 42 28 40135803 42 28 B412352200C 18 28-30 40089605 48 1 40135900 8 37 B8210012000 52 6 40089607 20 75 40135904 8 2 B8228125000 28 44 40089610 48 9 40135905 8 38 B9117012000 42 31 40089663 42 1-4 40135906 8 40 B9117012000 48 5 INDEX - 4 jintex.in

Page 66 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. B91210120A0 42 20 MDB100B2100 42 21~27 SB117001200 20 51 CM300200001 2 23 MDB100B2100 48 4 SB120001800 20 80 CM300200003 2 25 NM6040000SN 26 20 SB120002700 8 21 CM301300001 2 29 NM6040001SP 2 42 SB32000060A 20 48~50 CM600100101 4 87 NM6050001SC 30 51 SB32000060B 20 48~50 CM600100201 42 30 NM6050001SD 22 32 SB32000060C 20 48~50 CM600600101 4 88 NM6050001SE 38 25 SD00380551SL 24 48 CQ200000001 28 20 NM6050001SP 32 10 SD0460703TP 44 22 CQ250000001 28 9 NM6060001SE 40 11 SD0460703TP 48 18 CS1000881TP 8 47 NM6060003SE 12 31 SD0500131TP 48 19 D152455DBB 46 5 NS6090310SP 36 21 SD0500251SP 22 53 D1524555EBL 48 7 NS6110310SP 22 45 SD0500251SP 24 53 D1613155W00 46 4 NS6110310SP 36 22 SD0500402SP 22 43 D2422530D00 22 44 NS6110350SP 34 7 SD0630275SP 24 58 D2468555B00 32 5 NS6150310SP 22 17 SD0640321TP 22 36 D3128555D00 46 18 NS6150310SP 40 22 SD0641456TP 24 57 D3129555D00 46 17 NS620310SP 12 44 SD0650321TP 36 25 D5119206KOK 14 50 NS660410SH 26 18 SD0720331SP 40 25 D8204555D00 52 21 NS660430SP 26 19 SD1001506TP 34 10 D8226555E00 52 7 RC0370411KP 24 56 SK3311600SE 52 19 EA9500B0100 2 78 RC0560711KP 36 23 SK3382001SC 52 15 EA9500B0100 4 78 RC0560711KP 6 18 SK3415001SE 54 6 EA9500B0100 10 50 RC1200001KP 20 83 SK3513200SC 52 22 EA9500B0100 32 28 RC1200001KP 22 47 SL4030631SC 36 26 EA9500B0100 42 9 RC2651218KP 26 8 SL4030641SE 36 27 GPK700010A0 52 9 RE0300000K0 8 43 SL6040892TN 28 42 GPK710010A0 52 20 RE0400000K0 6 19 SL6051492TN 28 43 HK03464000B 26 22 RE0500000K0 12 45 SL6052092TN 24 60 HK03464000B 32 2 RE0500000K0 16 24 SL6052592TN 10 49 HK03464000B 36 7 RE0500000K0 22 40 SL6053592TN 14 52 HW500070000 36 8 RE0500000K0 36 24 SL6061292TN 24 64 J1063000000 48 33 RE0600000K0 34 13 SL6061292TN 26 23 MA011532000 54 7 RE1000000K0 40 24 SL6061292TN 28 27 MC200500650 42 21~27 RE1200000K0 32 4 SM0050801SC 6 32 MC200500750 42 3~6 RO036080200 18 26 SM2040750TP 2 28 MC200500750 8 34~36 RO037180100 12 25 SM2040955TP 2 27 MC200501300 42 21~27 RO037180100 28 39 SM4021201SC 4 79 MC200501300 42 21~27 RO044240100 14 53 SM4040601SC 30 49 MDB100B0900 42 21~27 RO048190100 28 47 SM4040655SP 2 36 MDB100B0900 46 3~6 RO068190100 28 16 SM4040655SP 18 42 MDB100B1100 8 34~36 RO080150200 4 83 SM4040655SP 24 55 MDB100B1100 42 21~27 RO092270200 16 43 SM4040855SP 2 22 MDB100B1100 46 3~6 RO098240100 28 25 SM4040855SP 12 36 MDB100B1400 8 34~36 RO172180100 28 26 SM4050501SC 44 2 MDB100B1400 42 21~27 RO195240100 28 4 SM4050501SC 46 21 INDEX - 5 jintex.in

Page 67 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. SM4050655SP 4 80 SM80608A2TP 20 82 SS8661012TP 18 66 SM4050655SP 58 2 SM8063012TR 40 12 SS8661012TP 20 66 SM4050855SP 2 19 SM8081652TP 8 5 TA0850604R0 8 51 SM4050855SP 18 19 SM8081652TP 48 41 TA0850604R0 10 51 SM4051055SP 2 89 SM8480652TP 32 36 TA1250406R0 2 43 SM4051055SP 4 89 SM9061203SE 40 34 TA1470704R0 2 41 SM4051055SP 6 33 SM9061853SR 40 27 WP0430800SC 26 21 SM4051055SP 20 76 SM9062053SR 40 21 WP0450826SC 6 23 SM4051055SP 32 24 SM9086523SE 52 24 WP0480856SP 18 18 SM4051055SP 36 37 SQ2050453MZ 28 14 WP0501016SD 4 86 SM4051255SP 2 32 SS2060210SP 44 15 WP0501016SD 14 55 SM4051405SE 38 24 SS2060210SP 48 20 WP0501016SD 30 50 SM5040401SE 34 2 SS4080620TP 18 27 WP0501016SD 34 21 SM5040655SN 4 68 SS4080620TP 44 16 WP0531000SD 34 15 SM5040655SN 6 20 SS4080620TP 48 21 WP0531001SC 24 66 SM5040655SN 28 29 SS4110615SP 36 30 WP0531001SC 38 15 SM6040602TP 12 9 SS6060210SP 2 18 WP0550800SP 4 90 SM6050802TP 34 20 SS6090540SP 36 28 WP0550800SP 32 7 SM6051002TP 22 34 SS6090620TP 18 12 WP0651016SH 32 9 SM6051202TP 34 17 SS6090670TP 8 31 WP0621016SD 4 93 SM6051400SP 12 17 SS6090670TP 18 53 WP0621016SD 12 33 SM6051400SP 18 17 SS6090670TP 20 53 WP0621016SH 22 16 SM6051402TP 12 37 SS6090670TP 22 13 WP0641601SD 34 24 SM6051402TP 28 28 SS6110420TP 44 7 WP0650876SD 40 18 SM6051602TP 16 19 SS6110610TP 4 59 WP0651001SC 36 34 SM6051602TP 32 14 SS6110710TP 18 35 WP0651056SH 22 28 SM6051850TP 16 28 SS6110710TP 22 25 WP0661016SP 36 33 SM6052502TP 2 26 SS6110710TP 26 26 WP0671602SE 52 28 SM6061002TP 2 7 SS6121610SP 18 11 WP1612616SZ 32 6 SM6061002TP 34 23 SS6121860SP 16 35 WP1612616SE 38 22 SM6061202TP 2 35 SS6621212TP 22 46 WS0510002KN 38 14 SM8040612TP 56 2 SS7080510TP 8 10 WS0610002KN 32 11 SM8040802TP 6 21 SS7091110TP 12 27 WS0861410KR 52 27 SM8050412TP 10 22 SS7110740TP 22 21 SM8050502TP 6 22 SS7110740TP 32 29 SM80506A2TP 8 20 SS8090670SP 4 58 SM80506A2TP 16 4 SS8090670SP 46 19 SM8053002TP 22 33 SS8090670SP 48 32 SM80606A2TP 8 6 SS8110410TP 22 24 SM80606A2TP 16 47 SS8110520TP 26 7 SM80606A2TP 48 33 SS8150822TP 18 3 SM80608A2TP 2 70 SS8151150TP 18 39 SM80608A2TP 4 70 SS8151150TP 48 45 SM80608A2TP 8 44 SS8660610TP 18 24 SM80608A2TP 16 26 SS8660612TP 26 3 INDEX - 6 jintex.in
