Parts index — Typical GK0056tap a row to open its page
Page 1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | COVER | |
| 2 | 2 | COVER | |
| 3 | 3 | SCREW | |
| 4 | 4 | SCREW | |
| 5 | 5 | SCREW | |
| 6 | 6 | COVER | |
| 7 | 7 | COVER | |
| 8 | 8 | COVER | |
| 9 | 9 | COVER | |
| 10 | 10 | COVER | |
| 11 | 11 | SCREW | |
| 12 | 12 | SCREW | |
| 13 | 13 | COVER | |
| 14 | 14 | WASHER | |
| 15 | 15 | BASE PLATE | |
| 16 | 16 | SCREW | |
| 17 | 17 | SCREW | |
| 18 | 18 | BASE PLATE | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | SCREW | |
| 22 | 22 | BRACKET | |
| 23 | 23 | WASHER | |
| 24 | 24 | PLATE | |
| 25 | 25 | BRACKET | |
| 26 | 26 | SCREW | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | SCREW | |
| 30 | 30 | COVER | |
| 31 | 31 | PIN | |
| 32 | 32 | WASHER | |
| 33 | 33 | WASHER | |
| 34 | 34 | BRUSH |
Page 2 — 1. ARM BED AND ITS ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 124120001 | Face plate | 1 | |
| 124120002 | Face plate gasket | 1 | |
| 022130003-1 | Rubber plug(Ø19) | 2 | |
| 022130004-1 | Rubber plug(Ø11.8) | 4 | |
| 022100004 | Screw | 3 | |
| 022140001 -1 | Side plate | 1 | |
| 022140002 | Gasket | 1 | |
| 022100002 | Screw | 8 | |
| 022100007 | Washer | 8 | |
| 022180001 | Oil check window | 1 | |
| 158100003 | Bed support | 2 | |
| S4A0400011 | Washer | 3 | |
| 022100015-1 | Rubber plug | 2 | |
| 022100016-1 | Rubber plug | 1 | |
| 158120000 | Right slide plate | 1 | |
| 039710006 | Screw | 1 | |
| 020100024 | Screw for slide plate spring | 8 | |
| 158100000 | Left slide plate | 1 | |
| 158140000 | Left spanner asm | 1 | |
| 028400068 | Screw | 1 | |
| 022200004 | Screw | 5 | |
| 158150000 | Thread take - up lever cover | 1 | |
| 022100007 | Washer | 1 | |
| 158160000 | Right spanner asm | 1 | |
| 158160002 | Screw | 1 | |
| 158170000 | Folder asm | 1 | |
| 022230005 | Set screw | 1 | |
| 036550005 | Screw | 2 | |
| 22T8-009 | Screw | 2 | |
| 22T1 -017 | Rubber plug | 1 | |
| 158410000 | Guard plate | 1 | |
| S120501011 | Nut | 1 | |
| S150633001 | Washer 6 | 1 | |
| 158100002 | Spring | 1 |
Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Presser Bar | |
| 2 | 2 | Presser Foot Bar | |
| 3 | 3 | Needle | |
| 4 | 4 | Needle Clamp Screw | |
| 5 | 5 | Presser Foot | |
| 6 | 6 | Presser Foot Spring | |
| 7 | 7 | Screw | |
| 8 | 8 | Presser Bar Guide | |
| 9 | 9 | Presser Bar Cap | |
| 10 | 10 | Presser Bar Spring | |
| 11 | 11 | Presser Bar Spring Guide | |
| 12 | 12 | Bobbin Case | |
| 13 | 13 | Bobbin Case Spring | |
| 14 | 14 | Bobbin | |
| 15 | 15 | Screw | |
| 16 | 16 | Screw | |
| 17 | 17 | Feed Dog | |
| 18 | 18 | Feed Dog Spring | |
| 19 | 19 | Feed Dog Lever | |
| 20 | 20 | Feed Shaft | |
| 21 | 21 | Feed Shaft Collar | |
| 22 | 22 | Feed Shaft Bushing | |
| 23 | 23 | Feed Shaft Screw | |
| 24 | 24 | Feed Shaft Screw | |
| 25 | 25 | Feed Rock Shaft | |
| 26 | 26 | Feed Mechanism Assembly | |
| 27 | 27 | Screw | |
| 28 | 28 | Shaft | |
| 29 | 29 | Collar | |
| 30 | 30 | Spring | |
| 31 | 31 | Shaft Support | |
| 32 | 32 | Bearing | |
| 33 | 33 | Bearing | |
| 34 | 34 | Handwheel | |
| 35 | 35 | Screw | |
| 36 | 36 | Screw | |
| 37 | 37 | Shaft | |
| 38 | 38 | Spring | |
| 39 | 39 | Collar | |
| 40 | 40 | Collar | |
| 41 | 41 | Connecting Rod | |
| 42 | 42 | Connecting Rod | |
| 43 | 43 | Washer | |
| 44 | 44 | Screw | |
| 45 | 45 | Bracket |
Page 4 — 2. ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 158200001 | Needle bar | 1 | |
| 158200002 | Needle holder | 1 | |
| S150901002 | Needle | 2 | |
| 022230005 | Screw | 2 | |
| 158200003 | Needle bar bushing (lower) | 1 | |
| 158200004 | Needle bar bushing (upper) | 1 | |
| 020700008 | Screw | 1 | |
| 022200010 | Felt plug | 1 | |
| 022200011 -1 | Rubber plug(Ø8. 8) | 1 | |
| 158200005 | Oil guard plate | 1 | |
| 028300038 | Screw | 1 | |
| 022220001 | Needle crank | 1 | |
| 022220002 | Screw | 1 | |
| 022220003 | Set screw | 1 | |
| 022200006 | Screw | 1 | |
| 022200007 | Set screw | 1 | |
| 022210004 | Thread take -up crank | 1 | |
| 022210006 | Screw (left hand thread) | 1 | |
| 02225 | Needle bar link asm | 1 | |
| 022210008 | Needle bar connecting | 1 | |
| 022210009 | Screw | 1 | |
| 022200018 | Slide block guide | 1 | |
| 022200019 | Screw | 1 | |
| 022200020 | Slide block | 2 | |
| 158200014 | Washer | 1 | |
| 158210000 | Thread take -up lever asm | 1 | |
| 006200027 | Screw | 1 | |
| 108310001 | Arm shaft | 1 | |
| 022320001 | Collar | 1 | |
| 022220003 | Screw | 2 | |
| 022300003 | Left bushing of arm shaft | 1 | |
| 124330001 | Right bushing of arm shaft | 1 | |
| 124330002 | Oil seal | 1 | |
| 153300001 | Balance wheel | 1 | |
| 022330002 | Screw | 2 | |
| 022300008 | Screw of oil seal | 1 | |
| 03634 | Feed eccentric cam | 1 | |
| 020300007 | Screw | 2 | |
| 036300004 | Guard plate | 1 | |
| 100600012 | Screw | 3 | |
| 022343001 | Feed lifting link | 1 | |
| 022342001 | Stop collar | 1 | |
| 158200009 | Middle bushing of arm shaft | 1 | |
| 0222310002 | Rubber plug | 1 | |
| 022210009 | Screw | 2 |
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BRACKET | ||
| 2 | SCREW | ||
| 3 | WASHER | ||
| 4 | COVER | ||
| 5 | BRACKET | ||
| 6 | BRACKET | ||
| 7 | BRACKET | ||
| 8 | SCREW | ||
| 9 | SCREW | ||
| 10 | SCREW | ||
| 11 | BRACKET | ||
| 12 | BRACKET | ||
| 13 | WASHER | ||
| 14 | SPRING | ||
| 15 | SPRING | ||
| 16 | BRACKET | ||
| 17 | KNOB | ||
| 18 | COLLAR | ||
| 19 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | WASHER | ||
| 22 | PIN | ||
| 23 | ROD | ||
| 24 | WASHER | ||
| 25 | BRACKET | ||
| 26 | SCREW | ||
| 27 | BRACKET | ||
| 28 | SCREW | ||
| 29 | BRACKET | ||
| 30 | ROD | ||
| 31 | BRACKET | ||
| 32 | SCREW |
Page 6 — 3. ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 158200006 | Thread guide | 1 | |
| 022200004 | Screw | 1 | |
| 022100007 | Washer | 2 | |
| 158200007 | Bobbin guard plate | 1 | |
| 022200004 | Screw | 2 | |
| 158200008 | Main thread guide holder | 1 | |
| 158200010 | Throat plate(6.4) | 1 | |
| 020100002 | Screw of throat plate | 2 | |
| 158220006 | Tension screw | 4 | |
| 158220009 | Screw | 1 | |
| 028100063 | Screw | 1 | |
| 158200001 | Thread guide base | 1 | |
| 022160005 | Tension disc | 8 | |
| 028283001 | Tension spring | 2 | |
| 028283002 | Tension spring | 2 | |
| 158200003 | Thread tension plate | 1 | |
| 028283005 | Tension nut | 4 | |
| 028280002 | Tension base | 4 | |
| 116200016 | Thread tension guide plate | 4 | |
| 116200015 | Upper thread tension guide plate | 4 | |
| 022160004 | Thread release plate | 4 | |
| 158200008 | Pin | 4 | |
| 158220005 | Thread release shaft | 1 | |
| 158220017 | O - ring | 1 | |
| 158600011 | Tension crank | 1 | |
| 022100011 | Screw | 2 | |
| 158240000 | Thread tension asm(S) | 1 | |
| 028400004 | Screw | 1 | |
| 028300034 | Set screw | 2 | |
| 158600023 | Thread guider slot | 1 | |
| 158600024 | Bed thread guider plate | 1 | |
| 020100002 | Screw | 1 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27 | 27 | ||
| 28 | 28 | ||
| 25 | 25 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 26 | 26 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 36 | 36 | ||
| 35 | 35 | ||
| 38 | 38 | ||
| 37 | 37 | ||
| 22 | 22 | ||
| 21 | 21 | ||
| 20 | 20 | ||
| 47 | 47 | ||
| 19 | 19 | ||
| 18 | 18 | ||
| 17 | 17 | ||
| 48 | 48 | ||
| 49 | 49 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 3 | 3 | ||
| 8 | 8 | ||
| 7 | 7 | ||
| 6 | 6 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 16 | 16 | ||
| 15 | 15 | ||
| 30 | 30 | ||
| 32 | 32 | ||
| 31 | 31 | ||
| 34 | 34 | ||
| 2 | 2 | ||
| 1 | 1 | ||
| 33 | 33 | ||
| 32 | 32 | ||
| 29 | 29 | ||
| 32 | 32 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 44 | 44 |
Page 8 — 4. PRESSER BAR.VERTICAL SHAFT AND HOOK SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 022300112 | Vertical shaft bushing (lower) | 1 | |
| 158300002 | Vertical shaft | 1 | |
| 158300003 | Hook shaft | 1 | |
| 158300004 | Bushing (left) | 1 | |
| 020300007 | Screw | 1 | |
| 158300005 | Thrust collar | 1 | |
| 022220003 | Screw | 2 | |
| 158300006 | Bushing (intermediate) | 1 | |
| 158300007 | Bushing (right) | 1 | |
| 020700008 | Screw | 1 | |
| 022430002 | Oil pipe | 1 | |
| 036400015 | Plunger | 1 | |
| 036400016 | Screw | 1 | |
| 158300008 | Guide plate | 1 | |
| 022820001 | Screw | 1 | |
| S4A0400011 | Spring washer | 1 | |
| 158300010 | Cut knife | 1 | |
| 158300011 | Guide plate | 1 | |
| 028300034 | Screw | 1 | |
| 022700009 | Bushing | 1 | |
| 020300007 | Screw | 1 | |
| 158300012 | Presser bar | 1 | |
| 158300013 | Press bar lifting bracket | 1 | |
| 020300007 | Screw | 1 | |
| 022700012 | Presser bar guide | 1 | |
| 022700013 | Presser spring | 1 | |
| 022750001 -1 | Presser regulating thumb screw | 1 | |
| 022750002 -1 | Presser regulating thumb nut | 1 | |
| 158340001 | Bevel gear for hook shaft | 1 | |
| 022300128 | Bevel gear for arm shaft | 2 | |
| 022300129 | Bevel gear for vertical shaft (upper) | 5 | |
| 022200003 | Screw | 2 | |
| 022300111 | Vertical shaft bushing (upper) | 1 | |
| 020300007 | Screw | 2 | |
| 022710007 | Presser bar lifter | 1 | |
| 022100006 | Screw | 1 | |
| 022700002 | Presser bar cam | 1 | |
| 036620002 | Oil seal for presser bar cam | 1 | |
| 022721001 | Knee lifter lever (left) | 1 | |
| 022720002 | Hinge screw | 2 | |
| 022720003 | Knee lift lever | 1 | |
| 158310000 | Knee lift lever (right) | 1 | |
| 022730002 | Spring for knee lift lever(right) | 1 | |
| 022730004 | Screw for knee lift lever(right) | 2 | |
| 022730003 | Knee lifter lever | 1 | |
| 022700008 | Spring pin | 1 | |
| 022700015 | Screw | 1 | |
| 158320000 | Presser bar asm | 1 | |
| 158330000 | Seal cover for hook shaft asm | 1 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SCREW | ||
| 2 | BRACKET | ||
| 3 | SCREW | ||
| 4 | SCREW | ||
| 5 | SCREW | ||
| 6 | SCREW | ||
| 7 | SCREW | ||
| 8 | SCREW | ||
| 9 | SCREW | ||
| 10 | SCREW | ||
| 11 | SCREW | ||
| 12 | PIN | ||
| 13 | COLLAR | ||
| 14 | COLLAR | ||
| 15 | SPRING PIN | ||
| 16 | PLATE | ||
| 17 | BLOCK | ||
| 18 | BRACKET | ||
| 19 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | SCREW | ||
| 22 | BAR | ||
| 23 | SHAFT | ||
| 24 | WASHER | ||
| 25 | SCREW | ||
| 26 | SPRING | ||
| 27 | WASHER | ||
| 28 | SPRING | ||
| 29 | O-RING | ||
| 30 | DIAL | ||
| 31 | BRACKET | ||
| 32 | PIN | ||
| 33 | SCREW | ||
| 34 | PIN | ||
| 35 | SPRING | ||
| 36 | ROD | ||
| 37 | SCREW | ||
| 38 | PIN | ||
| 39 | BRACKET | ||
| 40 | SCREW | ||
| 41 | BLOCK | ||
| 42 | SCREW |
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 036500001 | Connecting stud | 1 | |
| 057500001 | Feed regulator | 1 | |
| 036550008 | Screw | 1 | |
| 036550009 | Lever link eccentric shaft | 1 | |
| 036550010 | Lever regulator | 1 | |
| 036580002 | Pin(left) | 1 | |
| 022640003 | Screw | 1 | |
| 036580001 | Pin(right) | 1 | |
| 020640003 | Screw | 1 | |
| 022540004 | Screw for feed regulator | 1 | |
| 022200019 | Screw | 1 | |
| 022500003 | Feed regulator bushing | 1 | |
| 022500004 | Feed regulator shaft | 1 | |
| 036500003 | Rubber plug(Ø20) | 1 | |
| 020300007 | Set screw | 1 | |
| 022550001 | Back tacking crank | 1 | |
| 022551001 | Slide block pin | 1 | |
| 057520001 | Lever spring | 1 | |
| 022500013 | Screw | 1 | |
| 057500005 | Bracket for spring | 1 | |
| 036550007 | Screw | 1 | |
| 022540001 -1 | Backtacking lever | 1 | |
| 036531001 | Backtacking lever shaft | 1 | |
| S4A0604005 | O-ring | 2 | |
| 022540003 | Screw | 1 | |
| 022540004 | Screw | 1 | |
| 022500011 | Washer | 1 | |
| 124510002 | Feed regulator screw | 1 | |
| 124510003 | O-ring | 1 | |
| 124510001 | Knob | 1 | |
| 036558001 | Feed rock link | 1 | |
| 036550006 | Pin | 1 | |
| 036540005 | Screw | 1 | |
| 022500008 | Stopping pin | 1 | |
| 022500009 | Spring for stopping pin | 1 | |
| 036550002 | Lever feed connecting rod | 1 | |
| 036550003 | Feed regulator link | 1 | |
| 036400104 | Sink shaft | 1 | |
| 036558002 | Feed rock arm link | 2 | |
| 036550005 | Screw | 1 | |
| 022551002 | Crank slide block | 1 | |
| 036540004 | Bush for screw | 1 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Shaft | |
| 3 | 3 | Bracket | |
| 4 | 4 | Lever | |
| 5 | 5 | Screw | |
| 6 | 6 | Shaft | |
| 7 | 7 | Lever | |
| 8 | 8 | Shaft | |
| 9 | 9 | Shaft | |
| 10 | 10 | Shaft | |
| 11 | 11 | Shaft | |
| 12 | 12 | Shaft | |
| 13 | 13 | Shaft | |
| 14 | 14 | Shaft | |
| 15 | 15 | Shaft | |
| 16 | 16 | Screw | |
| 17 | 17 | Screw | |
| 18 | 18 | Shaft | |
| 19 | 19 | Shaft | |
| 20 | 20 | Screw | |
| 21 | 21 | Shaft | |
| 22 | 22 | Screw | |
| 23 | 23 | Screw | |
| 24 | 24 | Screw | |
| 25 | 25 | Screw | |
| 26 | 26 | Wire | |
| 27 | 27 | Shaft | |
| 28 | 28 | Screw |
Page 12 — 6. FEEDING AND FEED LIFTING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 158510001 | Feed dog | 1 | |
| 158511000 | Feed bar | 1 | |
| 022610006 | Washer | 1 | |
| 158511002 | Feed bracket shaft | 1 | |
| S120203041 | Screw | 2 | |
| 022611001 | Feed rock bracket | 1 | |
| 158500006 | Screw | 2 | |
| 022200019 | Screw | 1 | |
| 158500001 | Feed rock shaft | 1 | |
| S4A0500010 | Spring stop ring | 2 | |
| 124600001 | Feed rock shaft bushing | 1 | |
| 022620001 | Collar | 2 | |
| 006200021 | Screw | 4 | |
| 036400003 | Feed rock shaft crank(right) | 1 | |
| 036400204 | Pin | 1 | |
| 036550005 | Screw | 1 | |
| 022640003 | Screw | 2 | |
| 022600007 | Hinge pin | 1 | |
| 036400017 | Feed lifting crank (right) | 1 | |
| 022600016 | Screw | 2 | |
| 158500004 | Bushing | 1 | |
| 036484001 | Forked feed lifting | 1 | |
| 158500003 | Feed lifting rock shaft | 1 | |
| 020700008 | Screw | 1 | |
| 020300007 | Screw | 1 | |
| 36T4-001A3 | Oil wick | 1 | |
| 158500005 | Feed rock shaft bushing (left) | 1 | |
| 008230003 | Washer | 1 |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BASE | |
| 2 | 2 | BOLT | |
| 3 | 3 | BUSH | |
| 4 | 4 | SCREW | |
| 5 | 5 | SHAFT | |
| 6 | 6 | SHAFT | |
| 7 | 7 | PIN | |
| 8 | 8 | SHAFT | |
| 9 | 9 | COLLAR | |
| 10 | 10 | COLLAR | |
| 11 | 11 | SHAFT | |
| 12 | 12 | SCREW | |
| 13 | 13 | PIN | |
| 14 | 14 | PIN | |
| 15 | 15 | GEAR | |
| 16 | 16 | SHAFT | |
| 17 | 17 | GEAR | |
| 18 | 18 | SCREW | |
| 19 | 19 | GEAR | |
| 20 | 20 | GEAR | |
| 21 | 21 | GEAR | |
| 22 | 22 | PIN | |
| 23 | 23 | PIN | |
| 24 | 24 | SHAFT | |
| 25 | 25 | ARM | |
| 26 | 26 | SCREW | |
| 27 | 27 | LEVER | |
| 28 | 28 | NUT | |
| 29 | 29 | BRACKET | |
| 30 | 30 | SCREW | |
| 31 | 31 | LEVER | |
| 32 | 32 | LEVER | |
| 33 | 33 | SCREW | |
| 34 | 34 | ARM | |
| 35 | 35 | BUSH | |
| 36 | 36 | ARM | |
| 37 | 37 | SHAFT | |
| 38 | 38 | SCREW | |
| 39 | 39 | SCREW | |
| 40 | 40 | SHAFT | |
| 41 | 41 | BRACKET | |
| 42 | 42 | SPRING | |
| 43 | 43 | SHAFT | |
| 44 | 44 | COVER | |
| 45 | 45 | SHAFT | |
| 46 | 46 | SHAFT | |
| 47 | 47 | BOLT | |
| 48 | 48 | BASE | |
| 49 | 49 | BRACKET | |
| 50 | 50 | LEVER | |
| 51 | 51 | LEVER | |
| 52 | 52 | LEVER | |
| 53 | 53 | BRACKET | |
| 54 | 54 | SCREW | |
| 55 | 55 | SCREW | |
| 56 | 56 | SPRING | |
| 57 | 57 | LEVER | |
| 58 | 58 | BRACKET | |
| 59 | 59 | LEVER | |
| 60 | 60 | SCREW | |
| 61 | 61 | SPRING | |
| 62 | 62 | SPRING | |
| 63 | 63 | SCREW | |
| 64 | 64 | SCREW | |
| 65 | 65 | SCREW | |
| 66 | 66 | COLLAR | |
| 67 | 67 | SCREW | |
| 68 | 68 | SHAFT |
Page 14 — 7. LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 158600001 | Looper holder | 1 | |
| S150220013 | Screw M6 x20 | 4 | |
| 158600002 | Bushing | 2 | |
| 022100011 | Screw | 2 | |
| 158600003 | Looper shaft | 1 | |
| 158600004 | Looper shaft bushing (front) | 1 | |
| 020300007 | Screw | 3 | |
| 158300006 | Looper shaft bushing (rear) | 1 | |
| 158300005 | Collar | 1 | |
| 022200003 | Screw | 2 | |
| 158600005 | Forked protecting crank | 1 | |
| 022640003 | Screw | 1 | |
| 158600006 | Pin | 1 | |
| 158600007 | Protecting crank | 1 | |
| 028700004 | Screw | 1 | |
| 158600008 | Thread guard cam | 1 | |
| 058130004 | Screw | 4 | |
| 158600009 | Gear(right hand) | 1 | |
| 058613002 | Screw | 4 | |
| 158600010 | Gear (left hand) | 1 | |
| 158600011 | Protecting shaft | 1 | |
| 158600012 | Bushing | 1 | |
| 158600013 | Driving thread guard frame | 1 | |
| 022600016 | Screw | 3 | |
| 158600014 | Driving thread guard bar | 1 | |
| 036500007 | Screw | 1 | |
| 158600015 | Thread guard plate | 1 | |
| 022200019 | Screw | 2 | |
| 158600016 | Left thread guard bar | 1 | |
| 158600017 | Right thread guard bar | 1 | |
| 022830004 | Screw | 2 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BASE | ||
| 2 | BOLT | ||
| 3 | BUSH | ||
| 4 | BOLT | ||
| 5 | SHAFT | ||
| 6 | CYLINDER | ||
| 7 | PIN | ||
| 8 | CYLINDER | ||
| 9 | COLLAR | ||
| 10 | GEAR | ||
| 11 | COLLAR | ||
| 12 | PIN | ||
| 13 | PIN | ||
| 14 | SHAFT | ||
| 15 | GEAR | ||
| 16 | SHAFT | ||
| 17 | BOLT | ||
| 18 | BOLT | ||
| 19 | GEAR | ||
| 20 | PIN | ||
| 21 | GEAR | ||
| 22 | COLLAR | ||
| 23 | PIN | ||
| 24 | CYLINDER | ||
| 25 | SHAFT | ||
| 26 | BOLT | ||
| 27 | LEVER | ||
| 28 | BOLT | ||
| 29 | BRACKET | ||
| 30 | BOLT | ||
| 31 | LEVER | ||
| 32 | LEVER | ||
| 33 | BOLT | ||
| 34 | ARM | ||
| 35 | BOLT | ||
| 36 | ARM | ||
| 37 | SHAFT | ||
| 38 | BOLT | ||
| 39 | SHAFT | ||
| 40 | BRACKET | ||
| 41 | BOLT | ||
| 42 | BOLT | ||
| 43 | COLLAR | ||
| 44 | HOUSING | ||
| 45 | BOLT | ||
| 46 | SHAFT | ||
| 47 | BOLT | ||
| 48 | BRACKET | ||
| 49 | BRACKET | ||
| 50 | BOLT | ||
| 51 | SHAFT | ||
| 52 | BOLT | ||
| 53 | BRACKET | ||
| 54 | BOLT | ||
| 55 | BOLT | ||
| 56 | BOLT | ||
| 57 | SHAFT | ||
| 58 | BRACKET | ||
| 59 | SHAFT | ||
| 60 | BOLT | ||
| 61 | SHAFT | ||
| 62 | BOLT | ||
| 63 | BOLT | ||
| 64 | BOLT | ||
| 65 | SHAFT | ||
| 66 | COLLAR | ||
| 67 | BOLT | ||
| 68 | BRACKET |
Page 16 — 7. LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15860018 | Left looper holder | 1 | |
| 15860019 | Right looper holder | 1 | |
| 15860020 | Left looper | 1 | |
| 15860021 | Right looper | 1 | |
| 058710007 | Screw of looper | 2 | |
| 15860022 | Screw of cam | 1 | |
| 158610001 | Looper rocker shaft asm | 1 | |
| 028200056 | Screw | 4 | |
| 158620000 | Cross asm | 1 | |
| 158630000 | Looper crank cover asm | 1 | |
| 022130004-1 | Rubber plug | 1 | |
| 158630003 | Oil pipe Ø3/5x82 | 1 | |
| 158630004 | Screw | 3 | |
| 158640000 | Thread take -up cam asm | 1 | |
| 158640001 | Thread take -up cam | 1 | |
| 158640002 | Thread guide plate(S) | 1 | |
| 158640003 | Thread guide bracket | 1 | |
| 158160002 | Screw | 3 | |
| 158640004 | Thread guide spring | 1 | |
| 028400068 | Screw | 2 | |
| S8A3103002 | Washer 3A | 2 | |
| 158640006 | Screw for cam holder | 1 | |
| 158640005 | Screw for cam hodler | 1 | |
| 158640007 | Screw | 1 | |
| 158640008 | Nut | 1 | |
| 158640009 | Washer | 2 | |
| 158640010 | Right thread guide plate | 1 | |
| 158640011 | Left thread guide plate | 1 | |
| 022800004 | Screw | 1 | |
| 022200004 | Screw | 2 | |
| 158650000 | Cam holder asm | 1 | |
| 158660000 | Looper crank asm | 1 | |
| 158660002 | Eccentric screw | 1 | |
| 158600025 | Thrust collar | 1 |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BASE PLATE | |
| 2 | 2 | NEEDLE PLATE | |
| 3 | 3 | FEED DOG | |
| 4 | 4 | SCREW | |
| 5 | 5 | SCREW | |
| 6 | 6 | FEED DOG HOLDER | |
| 7 | 7 | SPRING | |
| 8 | 8 | FEED DOG SPRING | |
| 9 | 9 | SCREW | |
| 10 | 10 | LINKAGE ROD | |
| 11 | 11 | PRESSER BAR | |
| 12 | 12 | PRESSER FOOT | |
| 13 | 13 | NEEDLE BAR | |
| 14 | 14 | THREAD GUIDE | |
| 15 | 15 | UPPER THREAD TENSION | |
| 16 | 16 | THREAD TAKE-UP LEVER | |
| 17 | 17 | ARM SHAFT | |
| 18 | 18 | BRACKET |

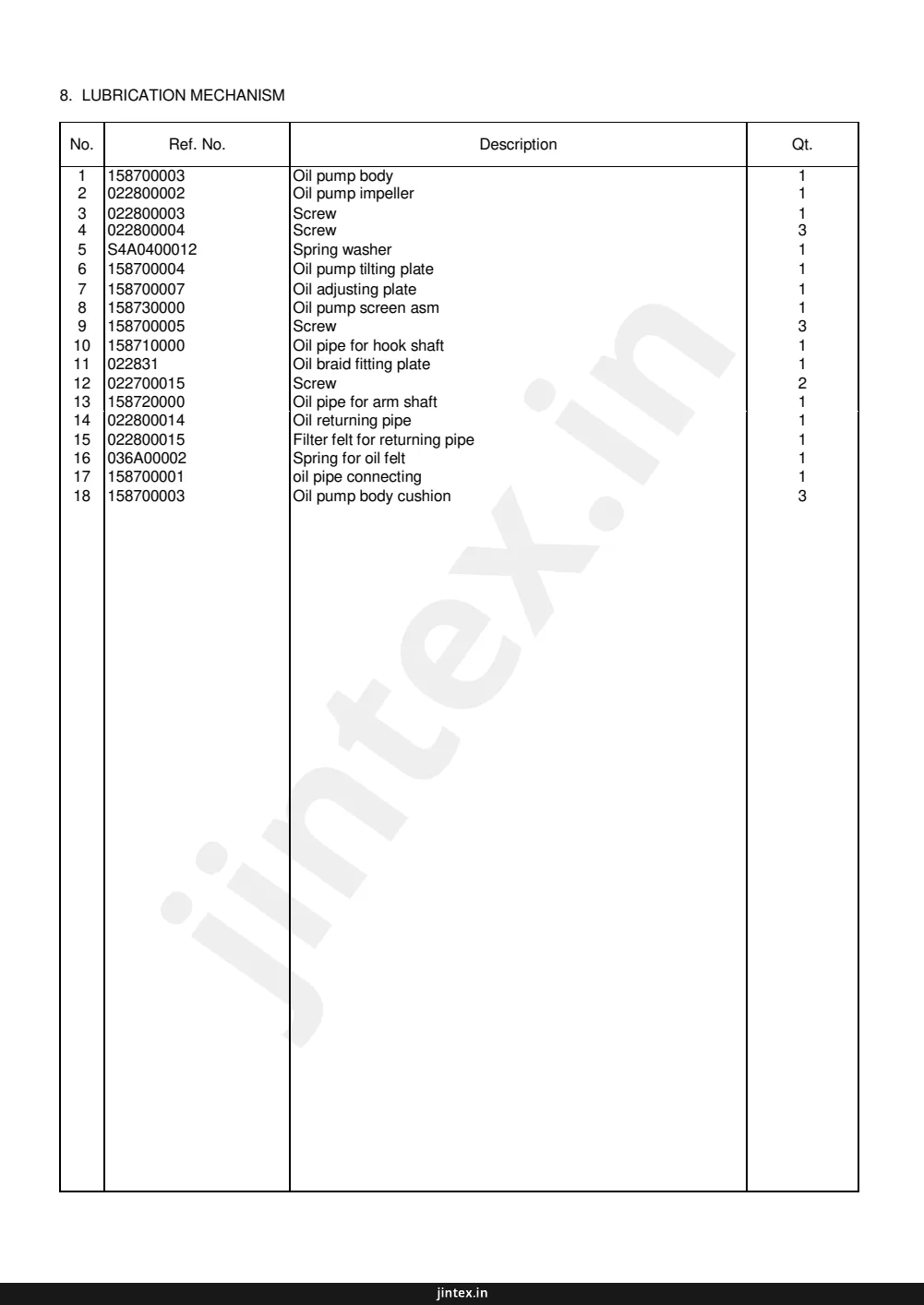

Page 18 — 8. LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 158700003 | Oil pump body | 1 | |
| 022800002 | Oil pump impeller | 1 | |
| 022800003 | Screw | 1 | |
| 022800004 | Screw | 3 | |
| S4A0400012 | Spring washer | 1 | |
| 158700004 | Oil pump tilting plate | 1 | |
| 158700007 | Oil adjusting plate | 1 | |
| 158730000 | Oil pump screen asm | 1 | |
| 158700005 | Screw | 3 | |
| 158710000 | Oil pipe for hook shaft | 1 | |
| 022831 | Oil braid fitting plate | 2 | |
| 022700015 | Screw | 1 | |
| 158720000 | Oil pipe for arm shaft | 1 | |
| 022800014 | Oil returning pipe | 1 | |
| 022800015 | Filter felt for returning pipe | 1 | |
| 036A00002 | Spring for oil felt | 1 | |
| 158700001 | Oil pipe connecting | 1 | |
| 158700003 | Oil pump body cushion | 3 |
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 0056-1 | Bobbin Winder Assembly | |
| 2 | 2 | Screw | |
| 3 | 3 | Screw | |
| 4 | 4 | Base | |
| 5 | 5 | Cover | |
| 6 | 6 | Screw | |
| 7 | 7 | Screw | |
| 8 | 8 | Clip | |
| 9 | 9 | Screw | |
| 10 | 10 | Screw | |
| 11 | 11 | Screw | |
| 12 | 12 | Screw | |
| 13 | 13 | Screw | |
| 15 | 15 | Shaft | |
| 16 | 16 | Bracket | |
| 17 | 17 | Screw | |
| 18 | 18 | Screw | |
| 19 | 19 | Screw | |
| 20 | 20 | Screw | |
| 21 | 21 | Screw | |
| 22 | 22 | Screw | |
| 23 | 23 | Cover | |
| 24 | 24 | Cover | |
| 25 | 25 | Thread Stand | |
| 26 | 26 | Presser Foot | |
| 27 | 27 | Presser Foot | |
| 28 | 28 | Bobbin Case | |
| 29 | 29 | Bobbin | |
| 30 | 30 | Oil Can | |
| 31 | 31 | Screwdriver | |
| 32 | 32 | Screwdriver | |
| 33 | 33 | Screwdriver | |
| 34 | 34 | Wrench | |
| 35 | 35 | Oil | |
| 36 | 36 | Cloth | |
| 37 | 37 | Belt | |
| 38 | 38 | Screw | |
| 39 | 39 | Nozzle | |
| 40 | 40 | Screw | |
| 41 | 41 | Needle |
Page 20 — 9. OIL RESERVOIR AND OTHER ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 158810001 | Oil reservoir | 1 | |
| 22T9-001A2 | Oil drain screw | 1 | |
| 22T9-001A3 | Washer | 1 | |
| 158810002 | Gasket for oil reservoir (L) | 2 | |
| 158810003 | Gasket for oil reservoir (S) | 1 | |
| 158810004 | Gasket for oil reservoir (M) | 1 | |
| 22T9-001A6 | Hinge pin for knee lifter lever | 1 | |
| GB896-76 9 | Thrust collar | 1 | |
| 22T9-001A7 | Back spring for knee lifter | 1 | |
| 22T9-001A8 | Knee lifter stop bracket | 1 | |
| 22T9 -36 | Screw | 1 | |
| 22T9-001A9 | Adjusting screw | 2 | |
| 22T9-001A10 | Lock nut | 1 | |
| 158810005 | Knee lifter lifting rod | 1 | |
| 22T9-003B2 | Knee lifter plate crank | 1 | |
| 22T9-003B3 | Knee lifter plate crank joint | 1 | |
| GB5781 -86 | Screw | 2 | |
| 22T9-003B5 | Knee lifter plate crank joint | 1 | |
| 22T9-003B6 | Bracket for knee lifter plate | 1 | |
| 22T9-003B7 | Screw | 1 | |
| 22T9 -003B8 | Gasket for knee lifter plate | 1 | |
| 153F10000 | Belt cover asm(L) | 1 | |
| 153F20000 | Belt cover asm(S) | 1 | |
| GXJ-4B | Spool stand | 1 | |
| 22T9-007F1 | Hinge of maching head | 2 | |
| 22T9-007F2 | Hing socket of machine head | 2 | |
| 22T9-009 | Rubber cap(L) | 2 | |
| 22T9-010 | Rubber cap(S) | 2 | |
| 22T9-011 | Oil pot | 1 | |
| 22T9-012 | Magnet | 1 | |
| 22T9-013 | Screw driver(L) | 1 | |
| 22T9-015 | Screw driver(S) | 1 | |
| 22T9-016 | Double end wrench | 1 | |
| 22T9-017 | Oil can | 1 | |
| 22T9-018 | Machine head cover | 1 | |
| 22T9-035 | Triangle belt | 1 | |
| 158820000 | 1/4 " folder (0056-1) | 1 | |
| 124T9-002 | Support for machine head | 1 | |
| w050102035 | Allen wrench | 1 | |
| w050103006 | Tweezer | 1 |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Rod | |
| 2 | 2 | Bracket | |
| 3 | 3 | Rod | |
| 4 | 4 | Plate | |
| 5 | 5 | Presser Foot | |
| 6 | 6 | Lever | |
| 7 | 7 | Lever | |
| 8 | 8 | Presser Foot | |
| 9 | 9 | Screw | |
| 10 | 10 | Bush | |
| 1 | 1 | Plate | |
| 2 | 2 | Presser Foot | |
| 3 | 3 | Lever | |
| 4 | 4 | Bracket | |
| 5 | 5 | Lever | |
| 6 | 6 | Presser Foot | |
| 7 | 7 | Wheel |
Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 078200004 | Needle bar | 1 | |
| 048200004 | Thread guide | 1 | |
| 158900006 | Presser bar | 1 | |
| 158900001 | Throat plate | 1 | |
| 158900002 | Feed dog | 1 | |
| 158900003 | Fixing guard plate | 1 | |
| 158900004 | Driving guard plate | 1 | |
| 158910000 | Presser foot asm | 1 | |
| 022200017 | Set screw | 1 | |
| 158900005 | Looper holder cap | 1 | |
| 158A00001 | Throat plate | 1 | |
| 158A00002 | Feed dog | 1 | |
| 158A00003 | Needle holder | 1 | |
| 158A00004 | Driving guard plate | 1 | |
| 158A00005 | Fixing guard plate | 1 | |
| 158A10000 | Presser foot asm | 1 | |
| 124520001 | Knob | 1 |
Typical GK0056 — parts catalog
- Page 1 (diagram): This page displays a diagram of sewing machine components, with various parts numbered for identification. It includes a detailed illustration of the machine's frame and associated parts, along with smaller diagrams for specific assemblies.
- Page 2 (parts_list): This page lists parts for the ARM BED AND ITS ACCESSORIES, including part numbers, descriptions, and quantities.
- Page 3 (diagram): This page contains a diagram of various sewing machine components, including needles, a presser foot assembly, a bobbin case, a handwheel, and associated hardware, with each part labeled with a reference number.
- Page 4 (parts_list): This page lists parts for the ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1), including part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays a diagram of various sewing machine parts, including brackets, screws, washers, and other components, each identified by a reference number.
- Page 6 (parts_list): This page lists parts for the ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2), including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as screws, shafts, gears, and levers, numbered from 1 to 49.
- Page 8 (parts_list): This page lists parts for the Presser Bar, Vertical Shaft and Hook Shaft Mechanism, including part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and other components, with reference numbers indicating their positions.
- Page 10 (parts_list): This page lists parts for the stitch length regulating mechanism, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of various machine components, including levers, shafts, and fasteners, with corresponding reference numbers for identification.
- Page 12 (parts_list): This page lists parts for the feeding and feed lifting mechanism, including feed dogs, feed bars, screws, washers, and bushings, with their corresponding part numbers and quantities.
- Page 13 (diagram): This page displays a diagram of various sewing machine parts, including gears, levers, shafts, and mounting components, each identified by a reference number.
- Page 14 (parts_list): This page lists parts for the Looper Mechanism, including part numbers, descriptions, and quantities.
- Page 15 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes components such as gears, shafts, levers, and housings, with some parts numbered from 1 to 68.
- Page 16 (parts_list): This page lists parts for the Looper Mechanism, including part numbers, descriptions, and quantities.
- Page 17 (diagram): This page contains a diagram of sewing machine components, with numbered parts indicated by reference numbers.
- Page 18 (parts_list): This page lists parts for the lubrication mechanism, including oil pump components, screws, washers, and pipes, with their corresponding part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays a diagram of various sewing machine parts, including a bobbin winder assembly, thread guides, a belt, and various tools and accessories, each labeled with a reference number.
- Page 20 (parts_list): This page lists parts for the oil reservoir and other accessories, including part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays diagrams of sewing machine parts, divided into two sections: 0056-2 and 0056-3, with various components labeled with reference numbers.
- Page 22 (parts_list): This page lists special parts for models 0056-2 and 0056-3, including part numbers, descriptions, and quantities.
Page 2 — 1. ARM BED AND ITS ACCESSORIES
1. ARM BED AND ITS ACCESSORIES No. Ref. No. Description Qt. 1 124120001 Face plate 1 2 124120002 Face plate gasket 1 3 022130003-1 Rubber plug(Ø19) 2 4 022130004-1 Rubber plug(Ø11.8) 4 5 022100004 Screw 3 6 022140001 -1 Side plate 1 7 022140002 Gasket 1 8 022100002 Screw 8 9 022100007 Washer 8 10 022180001 Oil check window 1 11 158100003 Bed support 2 12 S4A0400011 Washer 3 13 022100015-1 Rubber plug 2 14 022100016-1 Rubber plug 1 15 158120000 Right slide plate 1 16 039710006 Screw 1 17 020100024 Screw for slide plate spring 8 18 158100000 Left slide plate 1 19 158140000 Left spanner asm 1 20 028400068 Screw 1 21 022200004 Screw 5 22 158150000 Thread take - up lever cover 1 23 022100007 Washer 1 24 158160000 Right spanner asm 1 25 158160002 Screw 1 26 158170000 Folder asm 1 27 022230005 Set screw 1 28 036550005 Screw 2 29 22T8-009 Screw 2 30 22T1 -017 Rubber plug 1 31 158410000 Guard plate 1 32 S120501011 Nut 1 33 S150633001 Washer 6 1 34 158100002 Spring 1 jintex.in
Page 3
jinte x.in
Page 4 — 2. ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1)
2. ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1) No. Ref. No. Description Qt. 1 158200001 Needle bar 1 2 158200002 Needle holder 1 3 S150901002 Needle 2 4 022230005 Screw 2 5 158200003 Needle bar bushing (lower) 1 6 158200004 Needle bar bushing (upper) 1 7 020700008 Screw 1 8 022200010 Felt plug 1 9 022200011 -1 Rubber plug(Ø8. 8) 1 10 158200005 Oil guard plate 1 11 028300038 Screw 1 12 022220001 Needle crank 1 13 022220002 Screw 1 14 022220003 Set screw 1 15 022200006 Screw 1 16 022200007 Set screw 1 17 022210004 Thread take -up crank 1 18 022210006 Screw (left hand thread) 1 19 02225 Needle bar link asm 1 20 022210008 Needle bar connecting 1 21 022210009 Screw 1 22 022200018 Slide block guide 1 23 022200019 Screw 1 24 022200020 Slide block 2 25 158200014 Washer 1 26 158210000 Thread take -up lever asm 1 27 006200027 Screw 1 28 108310001 Arm shaft 1 29 022320001 Collar 1 30 022220003 Screw 2 31 022300003 Left bushing of arm shaft 1 32 124330001 Right bushing of arm shaft 1 33 124330002 Oil seal 1 34 153300001 Balance wheel 1 35 022330002 Screw 2 36 022300008 Screw of oil seal 1 37 03634 Feed eccentric cam 1 38 020300007 Screw 2 39 036300004 Guard plate 1 40 100600012 Screw 3 41 022343001 Feed lifting link 1 42 022342001 Stop collar 1 43 158200009 Middle bushing of arm shaft 1 44 0222310002 Rubber plug 1 45 022210009 Screw 2 jintex.in
Page 5
jinttex.in
Page 6 — 3. ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2)
3. ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2) No. Ref. No. Description Qt. 1 158200006 Thread guide 1 2 022200004 Screw 1 3 022100007 Washer 2 4 158200007 Bobbin guard plate 1 5 022200004 Screw 2 6 158200008 Main thread guide holder 1 7 158200010 Throat plate(6.4) 1 8 020100002 Screw of throat plate 2 9 158220006 Tension screw 4 10 158220009 Screw 1 11 028100063 Screw 1 12 158200001 Thread guide base 1 13 022160005 Tension disc 8 14 028283001 Tension spring 2 15 028283002 Tension spring 2 16 158200003 Thread tension plate 1 17 028283005 Tension nut 4 18 028280002 Tension base 4 19 116200016 Thread tension guide plate 4 20 116200015 Upper thread tension guide plate 4 21 022160004 Thread release plate 4 22 158200008 Pin 4 23 158220005 Thread release shaft 1 24 158220017 O - ring 1 25 158600011 Tension crank 1 26 022100011 Screw 2 27 158240000 Thread tension asm(S) 1 28 028400004 Screw 1 29 028300034 Set screw 2 30 158600023 Thread guider slot 1 31 158600024 Bed thread guider plate 1 32 020100002 Screw 1 jintex.in
Page 7
27 28 25 40 41 26 23 24 36 35 38 37 22 21 20 47 19 18 17 48 49 4 5 3 8 7 6 9 10 11 12 13 14 16 15 30 32 31 34 2 1 33 32 29 32 42 43 45 46 44 jintex.in
Page 8 — 4. PRESSER BAR.VERTICAL SHAFT AND HOOK SHAFT MECHANISM
4. PRESSER BAR.VERTICAL SHAFT AND HOOK SHAFT MECHANISM No. Ref. No. Description Qt. 1 022300112 Vertical shaft bushing (lower) 1 2 158300002 Vertical shaft 1 3 158300003 Hook shaft 1 4 158300004 Bushing (left) 1 5 020300007 Screw 1 6 158300005 Thrust collar 1 7 022220003 Screw 2 8 158300006 Bushing (intermediate) 1 9 158300007 Bushing (right) 1 10 020700008 Screw 1 11 022430002 Oil pipe 1 12 036400015 Plunger 1 13 036400016 Screw 1 14 158300008 Guide plate 1 15 022820001 Screw 1 16 S4A0400011 Spring washer 1 17 158300010 Cut knife 1 18 158300011 Guide plate 1 19 028300034 Screw 1 20 022700009 Bushing 1 21 020300007 Screw 1 22 158300012 Presser bar 1 23 158300013 Press bar lifting bracket 1 24 020300007 Screw 1 25 022700012 Presser bar guide 1 26 022700013 Presser spring 1 27 022750001 -1 Presser regulating thumb screw 1 28 022750002 -1 Presser regulating thumb nut 1 29 158340001 Bevel gear for hook shaft 1 30 022300128 Bevel gear for arm shaft 2 31 022300129 Bevel gear for vertical shaft (upper) 5 32 022200003 Screw 2 33 022300111 Vertical shaft bushing (upper) 1 34 020300007 Screw 2 35 022710007 Presser bar lifter 1 36 022100006 Screw 1 37 022700002 Presser bar cam 1 38 036620002 Oil seal for presser bar cam 1 39 022721001 Knee lifter lever (left) 1 40 022720002 Hinge screw 2 41 022720003 Knee lift lever 1 42 158310000 Knee lift lever (right) 1 43 022730002 Spring for knee lift lever(right) 1 44 022730004 Screw for knee lift lever(right) 2 45 022730003 Knee lifter lever 1 46 022700008 Spring pin 1 47 022700015 Screw 1 48 158320000 Presser bar asm 1 49 158330000 Seal cover for hook shaft asm 1 jintex.in
Page 9
1 2 37 11 10 18 15 12 13 14 29 28 35 34 30 42 33 17 41 23 24 27 26 25 19 20 16 22 36 31 39 32 40 7 6 5 8 9 4 jintex.in
Page 10
5. STITCH LENGTH REGULATING MECHANISM No. Ref. No. Description Qt. 1 036500001 Connecting stud 1 2 057500001 Feed regulator 1 3 036550008 Screw 1 4 036550009 Lever link eccentric shaft 1 5 036550010 Lever regulator 1 6 036580002 Pin(left) 1 7 022640003 Screw 1 8 036580001 Pin(right) 1 9 020640003 Screw 1 10 022540004 Screw for feed regulator 1 11 022200019 Screw 1 12 022500003 Feed regulator bushing 1 13 022500004 Feed regulator shaft 1 14 036500003 Rubber plug(Ø20) 1 15 020300007 Set screw 1 16 022550001 Back tacking crank 1 17 022551001 Slide block pin 1 18 057520001 Lever spring 1 19 022500013 Screw 1 20 057500005 Bracket for spring 1 21 036550007 Screw 1 22 022540001 -1 Backtacking lever 1 23 036531001 Backtacking lever shaft 1 24 S4A0604005 O-ring 2 25 022540003 Screw 1 26 022540004 Screw 1 27 022500011 Washer 1 28 124510002 Feed regulator screw 1 29 124510003 O-ring 1 30 124510001 Knob 1 31 036558001 Feed rock link 1 32 036550006 Pin 1 33 036540005 Screw 1 34 022500008 Stopping pin 1 35 022500009 Spring for stopping pin 1 36 036550002 Lever feed connecting rod 1 37 036550003 Feed regulator link 1 38 036400104 Sink shaft 1 39 036558002 Feed rock arm link 2 40 036550005 Screw 1 41 022551002 Crank slide block 1 42 036540004 Bush for screw 1 jintex.in
Page 11
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 jintex.in
Page 12 — 6. FEEDING AND FEED LIFTING MECHANISM
6. FEEDING AND FEED LIFTING MECHANISM No. Ref. No. Description Qt. 1 158510001 Feed dog 1 2 158511000 Feed bar 1 3 022610006 Washer 1 4 158511002 Feed bracket shaft 1 5 S120203041 Screw 2 6 022611001 Feed rock bracket 1 7 158500006 Screw 2 8 022200019 Screw 1 9 158500001 Feed rock shaft 1 10 S4A0500010 Spring stop ring 2 11 124600001 Feed rock shaft bushing 1 12 022620001 Collar 2 13 006200021 Screw 4 14 036400003 Feed rock shaft crank(right) 1 15 036400204 Pin 1 16 036550005 Screw 1 17 022640003 Screw 2 18 022600007 Hinge pin 1 19 036400017 Feed lifting crank (right) 1 20 022600016 Screw 2 21 158500004 Bushing 1 22 036484001 Forked feed lifting 1 23 158500003 Feed lifting rock shaft 1 24 020700008 Screw 1 25 020300007 Screw 1 26 36T4-001A3 Oil wick 1 27 158500005 Feed rock shaft bushing (left) 1 28 008230003 Washer 1
Page 13
jintez.in
Page 14 — 7. LOOPER MECHANISM
7. LOOPER MECHANISM No. Ref. No. Description Qt. 1 158600001 Looper holder 1 2 S150220013 Screw M6 x20 4 3 158600002 Bushing 2 4 022100011 Screw 2 5 158600003 Looper shaft 1 6 158600004 Looper shaft bushing (front) 1 7 020300007 Screw 3 8 158300006 Looper shaft bushing (rear) 1 9 158300005 Collar 1 10 022200003 Screw 2 11 158600005 Forked protecting crank 1 12 022640003 Screw 1 13 158600006 Pin 1 14 Yarn Ø3 x35 1 15 158600007 Protecting crank 1 16 028700004 Screw 1 17 158600008 Thread guard cam 1 18 058130004 Screw 4 19 158600009 Gear(right hand) 1 20 058613002 Screw 4 21 158600010 Gear (left hand) 1 22 158600011 Protecting shaft 1 23 Yarn Ø4x200 1 24 158600012 Bushing 1 25 158600013 Driving thread guard frame 1 26 022600016 Screw 3 27 158600014 Driving thread guard bar 1 28 036500007 Screw 1 29 158600015 Thread guard plate 1 30 022200019 Screw 2 31 158600016 Left thread guard bar 1 32 158600017 Right thread guard bar 1 33 022830004 Screw 2
Page 15
jinttex.in
Page 16 — 7. LOOPER MECHANISM
7. LOOPER MECHANISM No. Ref. No. Description Qt. 34 15860018 Left looper holder 1 35 15860019 Right looper holder 1 36 15860020 Left looper 1 37 15860021 Right looper 1 38 058710007 Screw of looper 2 39 15860022 Screw of cam 1 40 158610001 Looper rocker shaft asm 1 41 028200056 Screw 4 42 Yarn Ø 4 x 140 1 43 158620000 Cross asm 1 44 158630000 Looper crank cover asm 1 45 022130004-1 Rubber plug 1 46 158630003 Oil pipe Ø3/5x82 1 47 158630004 Screw 3 48 158640000 Thread take -up cam asm 1 49 158640001 Thread take -up cam 1 50 158640002 Thread guide plate(S) 1 51 158640003 Thread guide bracket 1 52 158160002 Screw 3 53 158640004 Thread guide spring 1 54 028400068 Screw 2 55 S8A3103002 Washer 3A 2 56 158640006 Screw for cam holder 1 57 158640005 Screw for cam hodler 1 58 158640007 Screw 1 59 158640008 Nut 1 60 158640009 Washer 2 61 158640010 Right thread guide plate 1 62 158640011 Left thread guide plate 1 63 022800004 Screw 1 64 022200004 Screw 2 65 158650000 Cam holder asm 1 66 158660000 Looper crank asm 1 67 158660002 Eccentric screw 1 68 158600025 Thrust collar 1
Page 17
11 12 13 14 15 16 17 18 1 2 3 4 5 6 7 8 9 jintex.in
Page 18 — 8. LUBRICATION MECHANISM
8. LUBRICATION MECHANISM No. Ref. No. Description Qt. 1 158700003 Oil pump body 1 2 022800002 Oil pump impeller 1 3 022800003 Screw 1 4 022800004 Screw 3 5 S4A0400012 Spring washer 1 6 158700004 Oil pump tilting plate 1 7 158700007 Oil adjusting plate 1 8 158730000 Oil pump screen asm 1 9 158700005 Screw 3 10 158710000 Oil pipe for hook shaft 1 11 022831 Oil braid fitting plate 2 12 022700015 Screw 1 13 158720000 Oil pipe for arm shaft 1 14 022800014 Oil returning pipe 1 15 022800015 Filter felt for returning pipe 1 16 036A00002 Spring for oil felt 1 17 158700001 Oil pipe connecting 1 18 158700003 Oil pump body cushion 3
Page 19
0056-1 jintex.in
Page 20 — 9. OIL RESERVOIR AND OTHER ACCESSORIES
9. OIL RESERVOIR AND OTHER ACCESSORIES No. Ref. No. Description Qt. 1 158810001 Oil reservoir 1 2 22T9-001A2 Oil drain screw 1 3 22T9-001A3 Washer 1 4 158810002 Gasket for oil reservoir (L) 2 5 158810003 Gasket for oil reservoir (S) 1 6 158810004 Gasket for oil reservoir (M) 1 7 22T9-001A6 Hinge pin for knee lifter lever 1 8 GB896-76 9 Thrust collar 1 9 22T9-001A7 Back spring for knee lifter 1 10 22T9-001A8 Knee lifter stop bracket 1 11 22T9 -36 Screw 1 12 22T9-001A9 Adjusting screw 2 13 22T9-001A10 Lock nut 1 15 158810005 Knee lifter lifting rod 1 16 22T9-003B2 Knee lifter plate crank 1 17 22T9-003B3 Knee lifter plate crank joint 1 18 GB5781 -86 Screw 2 19 22T9-003B5 Knee lifter plate crank joint 1 20 22T9-003B6 Bracket for knee lifter plate 1 21 22T9-003B7 Screw 1 22 22T9 -003B8 Gasket for knee lifter plate 1 23 153F10000 Belt cover asm(L) 1 24 153F20000 Belt cover asm(S) 1 25 GXJ-4B Spool stand 1 26 22T9-007F1 Hinge of maching head 2 27 22T9-007F2 Hing socket of machine head 2 28 22T9-009 Rubber cap(L) 2 29 22T9-010 Rubber cap(S) 2 30 22T9-011 Oil pot 1 31 22T9-012 Magnet 1 32 22T9-013 Screw driver(L) 1 33 22T9-015 Screw driver(S) 1 34 22T9-016 Double end wrench 1 35 22T9-017 Oil can 1 36 22T9-018 Machine head cover 1 37 22T9-035 Triangle belt 1 38 158820000 1/4 " folder (0056-1) 1 39 124T9-002 Support for machine head 1 40 w050102035 Allen wrench 1 41 w050103006 Tweezer 1 jintex.in
Page 21
0056-2 0056-3
Page 22
0056 -2 SPECIAL PARTS No. Ref. No Description Qt. 1 078200004 Needle bar 1 2 048200004 Thread guide 1 3 158900006 Presser bar 1 4 158900001 Throat plate 1 5 158900002 Feed dog 1 6 158900003 Fixing guard plate 1 7 158900004 Driving guard plate 1 8 158910000 Presser foot asm 1 9 022200017 Set screw 1 10 158900005 Looper holder cap 1 0056 - 3 SPECIAL PARTS No. Ref. No Description Qt. 1 158A00001 Throat plate 1 2 158A00002 Feed dog 1 3 158A00003 Needle holder 1 4 158A00004 Driving guard plate 1 5 158A00005 Fixing guard plate 1 6 158A10000 Presser foot asm 1 7 124520001 Knob 1 jintex.in
