Typical GK0056 Parts Book (PDF)
Text index — Typical GK0056

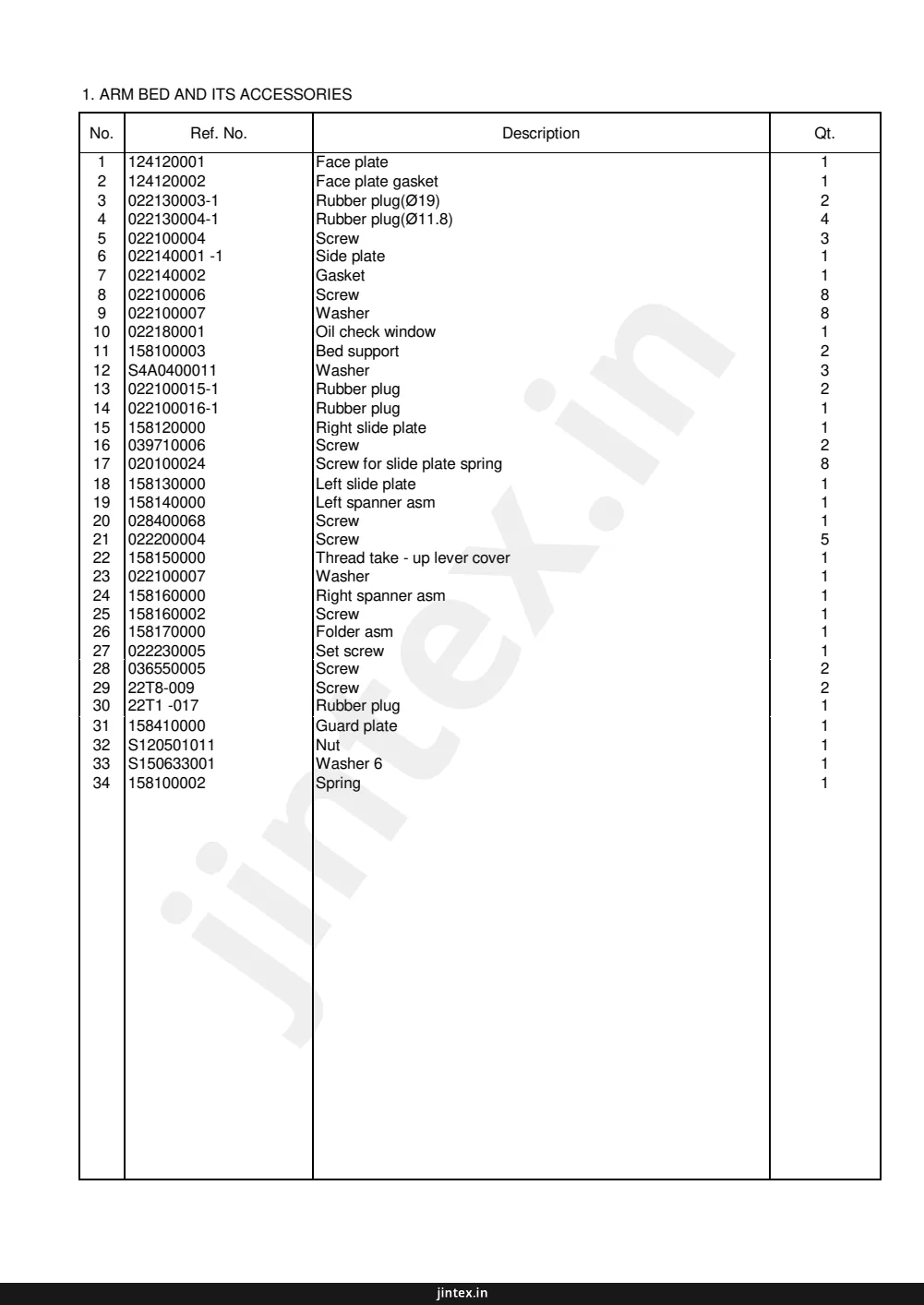

Page 2 — 1. ARM BED AND ITS ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 124120001 | Face plate | 1 |
| 2 | 124120002 | Face plate gasket | 1 |
| 3 | 022130003-1 | Rubber plug(Ø19) | 2 |
| 4 | 022130004-1 | Rubber plug(Ø11.8) | 4 |
| 5 | 022100004 | Screw | 3 |
| 6 | 022140001 -1 | Side plate | 1 |
| 7 | 022140002 | Gasket | 1 |
| 8 | 022100006 | Screw | 8 |
| 9 | 022100007 | Washer | 8 |
| 10 | 022180001 | Oil check window | 1 |
| 11 | 158100003 | Bed support | 2 |
| 12 | S4A0400011 | Washer | 3 |
| 13 | 022100015-1 | Rubber plug | 2 |
| 14 | 022100016-1 | Rubber plug | 1 |
| 15 | 158120000 | Right slide plate | 1 |
| 16 | 039710006 | Screw | 2 |
| 17 | 020100024 | Screw for slide plate spring | 8 |
| 18 | 158130000 | Left slide plate | 1 |
| 19 | 158140000 | Left spanner asm | 1 |
| 20 | 028400068 | Screw | 1 |
| 21 | 022200004 | Screw | 5 |
| 22 | 158150000 | Thread take - up lever cover | 1 |
| 23 | 022100007 | Washer | 1 |
| 24 | 158160000 | Right spanner asm | 1 |
| 25 | 158160002 | Screw | 1 |
| 26 | 158170000 | Folder asm | 1 |
| 27 | 022230005 | Set screw | 1 |
| 28 | 036550005 | Screw | 2 |
| 29 | 22T8-009 | Screw | 2 |
| 30 | 22T1 -017 | Rubber plug | 1 |
| 31 | 158410000 | Guard plate | 1 |
| 32 | S120501011 | Nut | 1 |
| 33 | S150633001 | Washer 6 | 1 |
| 34 | 158100002 | Spring | 1 |
Page 4 — 2. ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 158200001 | Needle bar | 1 |
| 2 | 158200002 | Needle holder | 1 |
| 3 | S150901002 | Needle | 2 |
| 4 | 022230005 | Screw | 2 |
| 5 | 158200003 | Needle bar bushing (lower) | 1 |
| 6 | 158200004 | Needle bar bushing (upper) | 1 |
| 7 | 020700008 | Screw | 1 |
| 8 | 022200010 | Felt plug | 1 |
| 9 | 022200011 -1 | Rubber plug(Ø8. 8) | 1 |
| 10 | 158200005 | Oil guard plate | 1 |
| 11 | 028300038 | Screw | 1 |
| 12 | 022220001 | Needle crank | 1 |
| 13 | 022220002 | Screw | 1 |
| 14 | 022220003 | Set screw | 1 |
| 15 | 022200006 | Screw | 1 |
| 16 | 022200007 | Set screw | 1 |
| 17 | 022210004 | Thread take -up crank | 1 |
| 18 | 022210006 | Screw (left hand thread) | 1 |
| 19 | 02225 | Needle bar link asm | 1 |
| 20 | 022210008 | Needle bar connecting | 1 |
| 21 | 022210009 | Screw | 1 |
| 22 | 022200018 | Slide block guide | 1 |
| 23 | 022200019 | Screw | 2 |
| 24 | 022200020 | Slide block | 1 |
| 25 | 158200014 | Washer | 1 |
| 26 | 158210000 | Thread take -up lever asm | 1 |
| 27 | 006200027 | Screw | 1 |
| 28 | 108310001 | Arm shaft | 1 |
| 29 | 022320001 | Collar | 1 |
| 30 | 022220003 | Screw | 2 |
| 31 | 022300003 | Left bushing of arm shaft | 1 |
| 32 | 124330001 | Right bushing of arm shaft | 2 |
| 33 | 124330002 | Oil seal | 1 |
| 34 | 153300001 | Balance wheel | 1 |
| 35 | 022330002 | Screw | 2 |
| 36 | 022300008 | Screw of oil seal | 1 |
| 37 | 03634 | Feed eccentric cam | 1 |
| 38 | 020300007 | Screw | 2 |
| 39 | 036300004 | Guard plate | 1 |
| 40 | 100600012 | Screw | 3 |
| 41 | 022343001 | Feed lifting link | 1 |
| 42 | 022342001 | Stop collar | 1 |
| 43 | 158200009 | Middle bushing of arm shaft | 1 |
| 44 | 0222310002 | Rubber plug | 1 |
| 45 | 022210009 | Screw | 2 |
Page 6 — 3. ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 158200006 | Thread guide | 1 |
| 2 | 022200004 | Screw | 1 |
| 3 | 022100007 | Washer | 2 |
| 4 | 158200007 | Bobbin guard plate | 1 |
| 5 | 022200004 | Screw | 2 |
| 6 | 158200008 | Main thread guide holder | 1 |
| 7 | 158200010 | Throat plate(6.4) | 1 |
| 8 | 020100002 | Screw of throat plate | 2 |
| 9 | 158220006 | Tension screw | 4 |
| 10 | 158220009 | Screw | 1 |
| 11 | 028100063 | Screw | 1 |
| 12 | 158220001 | Thread guide base | 1 |
| 13 | 022160005 | Tension disc | 8 |
| 14 | 028283001 | Tension spring | 2 |
| 15 | 028283002 | Tension spring | 2 |
| 16 | 158220002 | Thread tension plate | 1 |
| 17 | 028283005 | Tension nut | 4 |
| 18 | 028280002 | Tension base | 4 |
| 19 | 116200016 | Thread tension guide plate | 4 |
| 20 | 116200015 | Upper thread tension guide plate | 4 |
| 21 | 022160004 | Thread release plate | 4 |
| 22 | 158220008 | Pin | 4 |
| 23 | 158220005 | Thread release shaft | 1 |
| 24 | 158220007 | O - ring | 1 |
| 25 | 158200015 | Tension crank | 1 |
| 26 | 022100011 | Screw | 2 |
| 27 | 158240000 | Thread tension asm(S) | 1 |
| 28 | 028400004 | Screw | 1 |
| 29 | 028300034 | Set screw | 2 |
| 30 | 158600023 | Thread guider slot | 1 |
| 31 | 158600024 | Bed thread guider plate | 1 |
| 32 | 020100002 | Screw | 1 |
Page 8 — 4. PRESSER BAR.VERTICAL SHAFT AND HOOK SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 022300112 | Vertical shaft bushing (lower) | 1 |
| 2 | 158300002 | Vertical shaft | 1 |
| 3 | 158300003 | Hook shaft | 1 |
| 4 | 158300004 | Bushing (left) | 1 |
| 5 | 020300007 | Screw | 1 |
| 6 | 158300005 | Thrust collar | 1 |
| 7 | 022220003 | Screw | 2 |
| 8 | 158300006 | Bushing (intermediate) | 1 |
| 9 | 158300007 | Bushing (right) | 1 |
| 10 | 020700008 | Screw | 1 |
| 11 | 022430002 | Oil pipe | 1 |
| 12 | 036400015 | Plunger | 1 |
| 13 | 036400016 | Screw | 1 |
| 14 | 158300008 | Guide plate | 1 |
| 15 | 022820001 | Screw | 1 |
| 16 | S4A0400011 | Spring washer | 1 |
| 17 | 158300010 | Cut knife | 1 |
| 18 | 158300011 | Guide plate | 1 |
| 19 | 028300034 | Screw | 1 |
| 20 | 022700009 | Bushing | 1 |
| 21 | 020300007 | Screw | 1 |
| 22 | 158300012 | Presser bar | 1 |
| 23 | 158300013 | Press bar lifting bracket | 1 |
| 24 | 020300007 | Screw | 1 |
| 25 | 022700012 | Presser bar guide | 1 |
| 26 | 022700013 | Presser spring | 1 |
| 27 | 022750001 -1 | Presser regulating thumb screw | 1 |
| 28 | 022750002 -1 | Presser regulating thumb nut | 1 |
| 29 | 158340001 | Bevel gear for hook shaft | 1 |
| 30 | 022300128 | Bevel gear for arm shaft | 1 |
| 31 | 022300129 | Bevel gear for vertical shaft (upper) | 2 |
| 32 | 022220003 | Screw | 8 |
| 33 | 022300111 | Vertical shaft bushing (upper) | 1 |
| 34 | 020300007 | Screw | 2 |
| 35 | 022710001 | Presser bar lifter | 1 |
| 36 | 022100006 | Screw | 1 |
| 37 | 022700002 | Presser bar cam | 1 |
| 38 | 036620002 | Oil seal for presser bar cam | 1 |
| 39 | 022721001 | Knee lifter lever (left) | 1 |
| 40 | 022720002 | Hinge screw | 2 |
| 41 | 022720003 | Knee lift lever | 1 |
| 42 | 158310000 | Knee lift lever (right) | 1 |
| 43 | 022730002 | Spring for knee lift lever(right) | 1 |
| 44 | 022730004 | Screw for knee lift lever(right) | 2 |
| 45 | 022730003 | Knee lifter lever | 1 |
| 46 | 022700008 | Spring pin | 1 |
| 47 | 022700015 | Screw | 1 |
| 48 | 158320000 | Presser bar asm | 1 |
| 49 | 158330000 | Seal cover for hook shaft asm | 1 |
Page 10 — 5. STITCH LENGTH REGULATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 036500001 | Connecting stud | 1 |
| 2 | 057500001 | Feed regulator | 1 |
| 3 | 036550008 | Screw | 1 |
| 4 | 036550009 | Lever link eccentric shaft | 1 |
| 5 | 036550010 | Lever regulator | 1 |
| 6 | 036580002 | Pin(left) | 1 |
| 7 | 022640003 | Screw | 1 |
| 8 | 036580001 | Pin(ringt) | 1 |
| 9 | 020640003 | Screw | 1 |
| 10 | 022540004 | Screw for feed regulator | 1 |
| 11 | 022200019 | Screw | 1 |
| 12 | 022500003 | Feed regulator bushing | 1 |
| 13 | 022500004 | Feed regulator shaft | 1 |
| 14 | 036500003 | Rubber plug(Ø20) | 1 |
| 15 | 020300007 | Set screw | 1 |
| 16 | 022550001 | Back tacking crank | 1 |
| 17 | 022551001 | Slide block pin | 1 |
| 18 | 057520001 | Lever spring | 1 |
| 19 | 022500013 | Screw | 1 |
| 20 | 057500005 | Bracket for spring | 1 |
| 21 | 036550007 | Screw | 1 |
| 22 | 022540001 -1 | Backtacking lever | 1 |
| 23 | 036531001 | Backtacking lever shaft | 1 |
| 24 | S4A0604005 | O -ring | 1 |
| 25 | 022540003 | Screw | 1 |
| 26 | 022540004 | Screw | 2 |
| 27 | 022500011 | Washer | 1 |
| 28 | 124510002 | Feed regulator screw | 1 |
| 29 | 124510003 | 0 -ring | 1 |
| 30 | 124510001 | Knob | 1 |
| 31 | 036558001 | Feed rock link | 1 |
| 32 | 036550006 | Pin | 1 |
| 33 | 036540005 | Screw | 1 |
| 34 | 022500008 | Stopping pin | 1 |
| 35 | 022500009 | Spring for stopping pin | 1 |
| 36 | 036550002 | Lever feed connecting rod | 1 |
| 37 | 036550003 | Feed regulator link | 1 |
| 38 | 036400104 | Sink shaft | 1 |
| 39 | 036558002 | Feed rock arm link | 2 |
| 40 | 036550005 | Screw | 1 |
| 41 | 022551002 | Crank slide block | 1 |
| 42 | 036540004 | Bush for screw | 1 |
Page 12 — 6. FEEDING AND FEED LIFTING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 158510001 | Feed dog | 1 |
| 2 | 158511000 | Feed bar | 1 |
| 3 | 022610006 | Washer | 1 |
| 4 | 158511002 | Feed bracket shaft | 1 |
| 5 | S120203041 | Screw | 2 |
| 6 | 022611001 | Feed rock bracket | 1 |
| 7 | 158500006 | Screw | 2 |
| 8 | 022200019 | Screw | 1 |
| 9 | 158500001 | Feed rock shaft | 1 |
| 10 | S4A0500010 | Spring stop ring | 2 |
| 11 | 124600001 | Feed rock shaft bushing | 1 |
| 12 | 022620001 | Collar | 2 |
| 13 | 006200021 | Screw | 4 |
| 14 | 036400003 | Feed rock shaft crank(right) | 1 |
| 15 | 036400204 | Pin | 1 |
| 16 | 036550005 | Screw | 1 |
| 17 | 022640003 | Screw | 2 |
| 18 | 022600007 | Hinge pin | 1 |
| 19 | 036400017 | Feed lifting crank (right) | 1 |
| 20 | 022600016 | Screw | 2 |
| 21 | 158500004 | Bushing | 1 |
| 22 | 036484001 | Forked feed lifting | 1 |
| 23 | 158500003 | Feed lifting rock shaft | 1 |
| 24 | 020700008 | Screw | 1 |
| 25 | 020300007 | Screw | 1 |
| 26 | 36T4-001A3 | Oil wick | 1 |
| 27 | 158500005 | Feed rock shaft bushing (left) | 1 |
| 28 | 008230003 | Washer | 1 |
Page 14 — 7. LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 158600001 | Looper holder | 1 |
| 2 | S150220013 | Screw M6 x20 | 4 |
| 3 | 158600002 | Bushing | 2 |
| 4 | 022100011 | Screw | 2 |
| 5 | 158600003 | Looper shaft | 1 |
| 6 | 158600004 | Looper shaft bushing (front) | 1 |
| 7 | 020300007 | Screw | 3 |
| 8 | 158300006 | Looper shaft bushing (rear) | 1 |
| 9 | 158300005 | Collar | 1 |
| 10 | 022220003 | Screw | 2 |
| 11 | 158600005 | Forked protecting crank | 1 |
| 12 | 022640003 | Screw | 1 |
| 13 | 158600006 | Pin | 1 |
| 15 | 158600007 | Protecting crank | 1 |
| 16 | 028700004 | Screw | 1 |
| 17 | 158600008 | Thread guard cam | 1 |
| 18 | 058613002 | Screw | 4 |
| 19 | 158600009 | Gear(right hand) | 1 |
| 20 | 058613002 | Screw | 4 |
| 21 | 158600010 | Gear (left hand) | 1 |
| 22 | 158600011 | Protecting shaft | 1 |
| 24 | 158600012 | Bushing | 1 |
| 25 | 158600013 | Driving thread guard frame | 1 |
| 26 | 022600016 | Screw | 3 |
| 27 | 158600014 | Driving thread guard bar | 1 |
| 28 | 036550007 | Screw | 1 |
| 29 | 158600015 | Thread guard plate | 1 |
| 30 | 022200019 | Screw | 2 |
| 31 | 158600016 | Left thread guard bar | 1 |
| 32 | 158600017 | Right thread guard bar | 1 |
| 33 | 022830004 | Screw | 2 |
Page 16 — 7. LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 34 | 158600018 | Left looper holder | 1 |
| 35 | 158600019 | Right looper holder | 1 |
| 36 | 158600020 | Left looper | 1 |
| 37 | 158600021 | Right looper | 1 |
| 38 | 058710007 | Screw of looper | 2 |
| 39 | 158600022 | Screw of cam | 1 |
| 40 | 158610001 | Looper rocker shaft asm | 1 |
| 41 | 028200056 | Screw | 4 |
| 43 | 158620000 | Cross asm | 1 |
| 44 | 158630000 | Looper crank cover asm | 1 |
| 45 | 022130004-1 | Rubber plug | 1 |
| 46 | 158630003 | Oil pipe Ø3/5x82 | 1 |
| 47 | 158630004 | Screw | 3 |
| 48 | 158640000 | Thread take -up cam asm | 1 |
| 49 | 158640001 | Thread take -up cam | 1 |
| 50 | 158640002 | Thread guide plate(S) | 1 |
| 51 | 158640003 | Thread guide bracket | 1 |
| 52 | 158160002 | Screw | 3 |
| 53 | 158640004 | Thread guide spring | 1 |
| 54 | 028400068 | Screw | 2 |
| 55 | S8A3103002 | Washer 3A | 2 |
| 56 | 158640006 | Screw for cam holder | 1 |
| 57 | 158640005 | Screw for cam hodler | 1 |
| 58 | 158640007 | Screw | 1 |
| 59 | 158640008 | Nut | 1 |
| 60 | 158640009 | Washer | 2 |
| 61 | 158640010 | Right thread guide plate | 1 |
| 62 | 158640011 | Left thread guide plate | 1 |
| 63 | 022800004 | Screw | 1 |
| 64 | 022200004 | Screw | 2 |
| 65 | 158650000 | Cam holder asm | 1 |
| 66 | 158660000 | Looper crank asm | 1 |
| 67 | 158660002 | Eccentric screw | 1 |
| 68 | 158600025 | Thrust collar | 1 |
Page 18 — 8. LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 158700003 | Oil pump body | 1 |
| 2 | 022800002 | Oil pump impeller | 1 |
| 3 | 022800003 | Screw | 1 |
| 4 | 022800004 | Screw | 3 |
| 5 | S4A0400012 | Spring washer | 1 |
| 6 | 158700004 | Oil pump tilting plate | 1 |
| 7 | 158700007 | Oil adjusting plate | 1 |
| 8 | 158730000 | Oil pump screen asm | 1 |
| 9 | 158700005 | Screw | 3 |
| 10 | 158710000 | Oil pipe for hook shaft | 1 |
| 11 | 022831 | Oil braid fitting plate | 1 |
| 12 | 022700015 | Screw | 2 |
| 13 | 158720000 | Oil pipe for arm shaft | 1 |
| 14 | 022800014 | Oil returning pipe | 1 |
| 15 | 022800015 | Filter felt for returning pipe | 1 |
| 16 | 036A00002 | Spring for oil felt | 1 |
| 17 | 158700001 | oil pipe connecting | 1 |
| 18 | 158700003 | Oil pump body cushion | 3 |
Page 20 — 9. OIL RESERVOIR AND OTHER ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 158810001 | Oil reservoir | 1 |
| 2 | 22T9-001A2 | Oil drain screw | 1 |
| 3 | 22T9-001A3 | Washer | 1 |
| 4 | 158810002 | Gasket for oil reservoir (L) | 2 |
| 5 | 158810003 | Gasket for oil reservoir (S) | 1 |
| 6 | 158810004 | Gasket for oil reservoir (M) | 1 |
| 7 | 22T9-001A6 | Hinge pin for knee lifter lever | 1 |
| 8 | GB896-76 9 | Thrust collar | 1 |
| 9 | 22T9-001A7 | Back spring for knee lifter | 1 |
| 10 | 22T9-001A8 | Knee lifter stop bracket | 1 |
| 11 | 22T9 -36 | Screw | 1 |
| 12 | 22T9-001A9 | Adjusting screw | 2 |
| 13 | 22T9-001A10 | Lock nut | 1 |
| 15 | 158810005 | Knee lifter lifting rod | 1 |
| 16 | 22T9-003B2 | Knee lifter plate crank | 1 |
| 17 | 22T9-003B3 | Knee lifter plate crank joint | 1 |
| 18 | GB5781 -86 | Screw | 2 |
| 19 | 22T9-003B5 | Knee lifter plate crank joint | 1 |
| 20 | 22T9-003B6 | Bracket for knee lifter plate | 1 |
| 21 | 22T9-003B7 | Screw | 1 |
| 22 | 22T9 -003B8 | Gasket for knee lifter plate | 1 |
| 23 | 153F10000 | Belt cover asm(L) | 1 |
| 24 | 153F20000 | Belt cover asm(S) | 1 |
| 25 | GXJ-4B | Spool stand | 1 |
| 26 | 22T9-007F1 | Hinge of maching head | 2 |
| 27 | 22T9-007F2 | Hing socket of machine head | 2 |
| 28 | 22T9-009 | Rubber cap(L) | 2 |
| 29 | 22T9-010 | Rubber cap(S) | 2 |
| 30 | 22T9-011 | Oil pot | 1 |
| 31 | 22T9-012 | Magnet | 1 |
| 32 | 22T9-013 | Screw driver(L) | 1 |
| 33 | 22T9-015 | Screw driver(S) | 1 |
| 34 | 22T9-016 | Double end wrench | 1 |
| 35 | 22T9-017 | Oil can | 1 |
| 36 | 22T9-018 | Machine head cover | 1 |
| 37 | 22T9-035 | Triangle belt | 1 |
| 38 | 158820000 | 1/4 " folder (0056-1) | 1 |
| 39 | 124T9-002 | Support for machine head | 1 |
| 40 | w050102035 | Allen wrench | 1 |
| 41 | w050103006 | Tweezer | 1 |
Page 22 — 0056 -2 SPECIAL PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 078200004 | Needle bar | 1 |
| 2 | 048200004 | Thread guide | 1 |
| 3 | 158900006 | Presser bar | 1 |
| 4 | 158900001 | Throat plate | 1 |
| 5 | 158900002 | Feed dog | 1 |
| 6 | 158900003 | Fixing guard plate | 1 |
| 7 | 158900004 | Driving guard plate | 1 |
| 8 | 158910000 | Presser foot asm | 1 |
| 9 | 022200017 | Set screw | 1 |
| 10 | 158900005 | Looper holder cap | 1 |
| 1 | 158A00001 | Throat plate | 1 |
| 2 | 158A00002 | Feed dog | 1 |
| 3 | 158A00003 | Needle holder | 1 |
| 4 | 158A00004 | Driving guard plate | 1 |
| 5 | 158A00005 | Fixing guard plate | 1 |
| 6 | 158A10000 | Presser foot asm | 1 |
| 7 | 124520001 | Knob | 1 |
Typical GK0056 — parts catalog
- Page 1 (diagram): This page displays a diagram of sewing machine components, with various parts numbered for identification. It includes a detailed illustration of the machine's frame and associated parts, along with smaller diagrams for specific assemblies.
- Page 2 (parts_list): This page lists parts for the ARM BED AND ITS ACCESSORIES, including part numbers, descriptions, and quantities.
- Page 3 (diagram): This page contains a diagram of various sewing machine components, including needles, a presser foot assembly, a bobbin case, a handwheel, and associated hardware, with each part labeled with a reference number.
- Page 4 (parts_list): This page lists parts for the ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1), including part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays a diagram of various sewing machine parts, including brackets, screws, washers, and other components, each identified by a reference number.
- Page 6 (parts_list): This page lists parts for the ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2), including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as screws, shafts, gears, and levers, numbered from 1 to 49.
- Page 8 (parts_list): This page lists parts for the Presser Bar, Vertical Shaft and Hook Shaft Mechanism, including part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and other components, with reference numbers indicating their positions.
- Page 10 (parts_list): This page lists parts for the stitch length regulating mechanism, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of various machine components, including levers, shafts, and fasteners, with corresponding reference numbers for identification.
- Page 12 (parts_list): This page lists parts for the feeding and feed lifting mechanism, including feed dogs, feed bars, screws, washers, and bushings, with their corresponding part numbers and quantities.
- Page 13 (diagram): This page displays a diagram of various sewing machine parts, including gears, levers, shafts, and mounting components, each identified by a reference number.
- Page 14 (parts_list): This page lists parts for the Looper Mechanism, including part numbers, descriptions, and quantities.
- Page 15 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes components such as gears, shafts, levers, and housings, with some parts numbered from 1 to 68.
- Page 16 (parts_list): This page lists parts for the Looper Mechanism, including part numbers, descriptions, and quantities.
- Page 17 (diagram): This page contains a diagram of sewing machine components, with numbered parts indicated by reference numbers.
- Page 18 (parts_list): This page lists parts for the lubrication mechanism, including oil pump components, screws, washers, and pipes, with their corresponding part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays a diagram of various sewing machine parts, including a bobbin winder assembly, thread guides, a belt, and various tools and accessories, each labeled with a reference number.
- Page 20 (parts_list): This page lists parts for the oil reservoir and other accessories, including part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays diagrams of sewing machine parts, divided into two sections: 0056-2 and 0056-3, with various components labeled with reference numbers.
- Page 22 (parts_list): This page lists special parts for models 0056-2 and 0056-3, including part numbers, descriptions, and quantities.
