Typical GK0056 — Part Book

Typical GK0056 — parts catalog

Page 1 (diagram): This page displays a diagram of sewing machine components, with various parts numbered for identification. It includes a detailed illustration of the machine's frame and associated parts, along with smaller diagrams for specific assemblies.
Page 2 (parts_list): This page lists parts for the ARM BED AND ITS ACCESSORIES, including part numbers, descriptions, and quantities.
Page 3 (diagram): This page contains a diagram of various sewing machine components, including needles, a presser foot assembly, a bobbin case, a handwheel, and associated hardware, with each part labeled with a reference number.
Page 4 (parts_list): This page lists parts for the ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1), including part numbers, descriptions, and quantities.
Page 5 (diagram): This page displays a diagram of various sewing machine parts, including brackets, screws, washers, and other components, each identified by a reference number.
Page 6 (parts_list): This page lists parts for the ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2), including part numbers, descriptions, and quantities.
Page 7 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as screws, shafts, gears, and levers, numbered from 1 to 49.
Page 8 (parts_list): This page lists parts for the Presser Bar, Vertical Shaft and Hook Shaft Mechanism, including part numbers, descriptions, and quantities.
Page 9 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and other components, with reference numbers indicating their positions.
Page 10 (parts_list): This page lists parts for the stitch length regulating mechanism, including part numbers, descriptions, and quantities.
Page 11 (diagram): This page displays a diagram of various machine components, including levers, shafts, and fasteners, with corresponding reference numbers for identification.
Page 13 (diagram): This page displays a diagram of various sewing machine parts, including gears, levers, shafts, and mounting components, each identified by a reference number.
Page 14 (parts_list): This page lists parts for the Looper Mechanism, including part numbers, descriptions, and quantities.
Page 15 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes components such as gears, shafts, levers, and housings, with some parts numbered from 1 to 68.
Page 18 (parts_list): This page lists parts for the lubrication mechanism, including oil pump components, screws, washers, and pipes, with their corresponding part numbers, descriptions, and quantities.
Page 19 (diagram): This page displays a diagram of various sewing machine parts, including a bobbin winder assembly, thread guides, a belt, and various tools and accessories, each labeled with a reference number.
Page 21 (diagram): This page displays diagrams of sewing machine parts, divided into two sections: 0056-2 and 0056-3, with various components labeled with reference numbers.

Page 1

Typical GK0056 parts on page 1
Ref	Part number	Part name
1	1	COVER
2	2	COVER
3	3	SCREW
4	4	SCREW
5	5	SCREW
6	6	COVER
7	7	COVER
8	8	COVER
9	9	COVER
10	10	COVER
11	11	SCREW
12	12	SCREW
13	13	COVER
14	14	WASHER
15	15	BASE PLATE
16	16	SCREW
17	17	SCREW
18	18	BASE PLATE
19	19	BRACKET
20	20	SCREW
21	21	SCREW
22	22	BRACKET
23	23	WASHER
24	24	PLATE
25	25	BRACKET
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	COVER
31	31	PIN
32	32	WASHER
33	33	WASHER
34	34	BRUSH

30 4 3 13 6 10 9 7 10 2 5 1 3 4 5 24 13 34 25 27 26 19 21 20 18 17 16 17 15 17 16 21 22 23 21 31 32 33 14 12 26 28 29 jintex.in

Page 2 — 1. ARM BED AND ITS ACCESSORIES

Typical GK0056 parts on page 2
Part number	Part name	Qty
124120001	Face plate	1
124120002	Face plate gasket	1
022130003-1	Rubber plug(Ø19)	2
022130004-1	Rubber plug(Ø11.8)	4
022100004	Screw	3
022140001 -1	Side plate	1
022140002	Gasket	1
022100002	Screw	8
022100007	Washer	8
022180001	Oil check window	1
158100003	Bed support	2
S4A0400011	Washer	3
022100015-1	Rubber plug	2
022100016-1	Rubber plug	1
158120000	Right slide plate	1
039710006	Screw	1
020100024	Screw for slide plate spring	8
158100000	Left slide plate	1
158140000	Left spanner asm	1
028400068	Screw	1
022200004	Screw	5
158150000	Thread take - up lever cover	1
022100007	Washer	1
158160000	Right spanner asm	1
158160002	Screw	1
158170000	Folder asm	1
022230005	Set screw	1
036550005	Screw	2
22T8-009	Screw	2
22T1 -017	Rubber plug	1
158410000	Guard plate	1
S120501011	Nut	1
S150633001	Washer 6	1
158100002	Spring	1

1. ARM BED AND ITS ACCESSORIES No. Ref. No. Description Qt. 1 124120001 Face plate 1 2 124120002 Face plate gasket 1 3 022130003-1 Rubber plug(Ø19) 2 4 022130004-1 Rubber plug(Ø11.8) 4 5 022100004 Screw 3 6 022140001 -1 Side plate 1 7 022140002 Gasket 1 8 022100002 Screw 8 9 022100007 Washer 8 10 022180001 Oil check window 1 11 158100003 Bed support 2 12 S4A0400011 Washer 3 13 022100015-1 Rubber plug 2 14 022100016-1 Rubber plug 1 15 158120000 Right slide plate 1 16 039710006 Screw 1 17 020100024 Screw for slide plate spring 8 18 158100000 Left slide plate 1 19 158140000 Left spanner asm 1 20 028400068 Screw 1 21 022200004 Screw 5 22 158150000 Thread take - up lever cover 1 23 022100007 Washer 1 24 158160000 Right spanner asm 1 25 158160002 Screw 1 26 158170000 Folder asm 1 27 022230005 Set screw 1 28 036550005 Screw 2 29 22T8-009 Screw 2 30 22T1 -017 Rubber plug 1 31 158410000 Guard plate 1 32 S120501011 Nut 1 33 S150633001 Washer 6 1 34 158100002 Spring 1 jintex.in

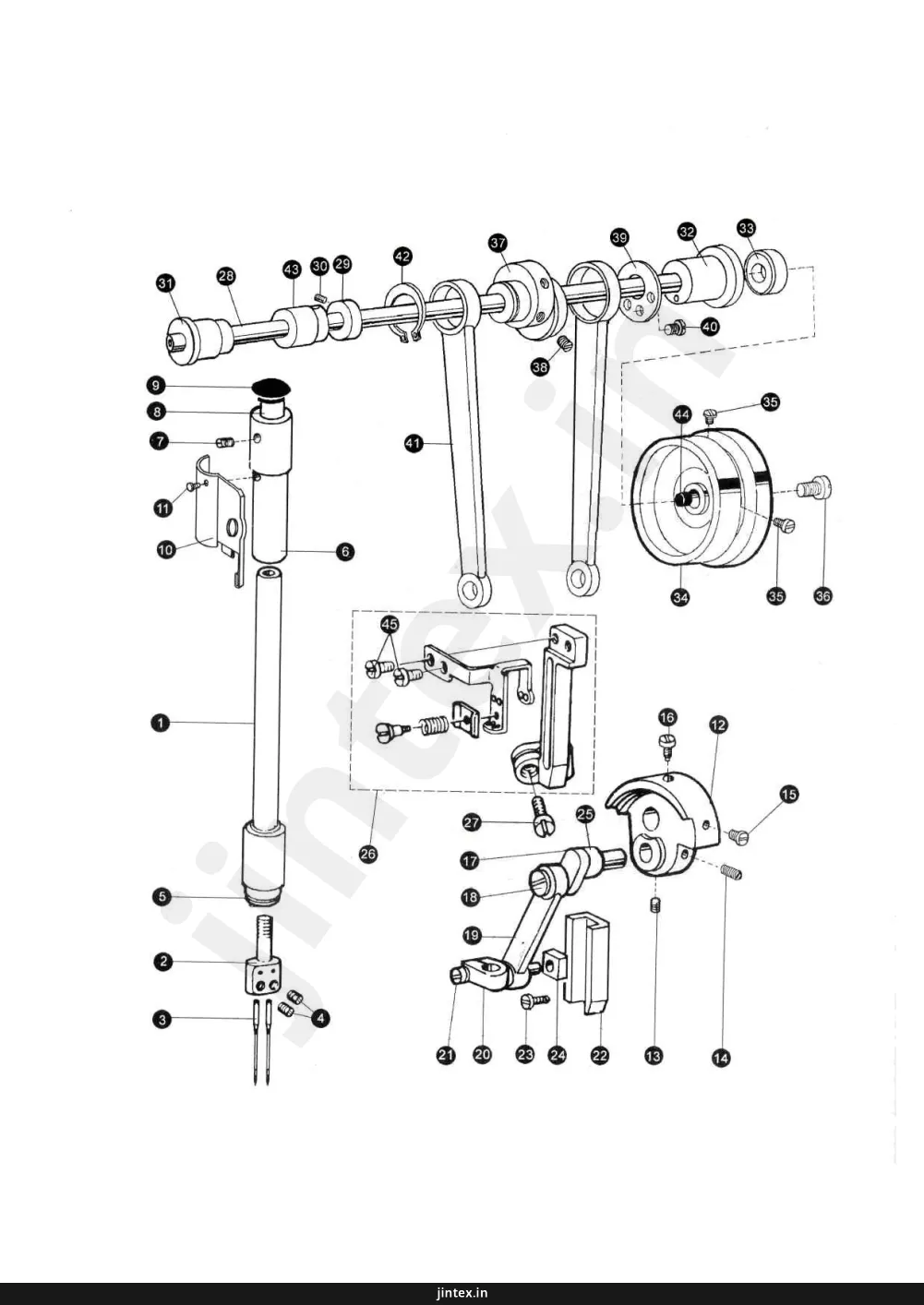

Page 3

Typical GK0056 parts on page 3
Ref	Part number	Part name
1	1	Presser Bar
2	2	Presser Foot Bar
3	3	Needle
4	4	Needle Clamp Screw
5	5	Presser Foot
6	6	Presser Foot Spring
7	7	Screw
8	8	Presser Bar Guide
9	9	Presser Bar Cap
10	10	Presser Bar Spring
11	11	Presser Bar Spring Guide
12	12	Bobbin Case
13	13	Bobbin Case Spring
14	14	Bobbin
15	15	Screw
16	16	Screw
17	17	Feed Dog
18	18	Feed Dog Spring
19	19	Feed Dog Lever
20	20	Feed Shaft
21	21	Feed Shaft Collar
22	22	Feed Shaft Bushing
23	23	Feed Shaft Screw
24	24	Feed Shaft Screw
25	25	Feed Rock Shaft
26	26	Feed Mechanism Assembly
27	27	Screw
28	28	Shaft
29	29	Collar
30	30	Spring
31	31	Shaft Support
32	32	Bearing
33	33	Bearing
34	34	Handwheel
35	35	Screw
36	36	Screw
37	37	Shaft
38	38	Spring
39	39	Collar
40	40	Collar
41	41	Connecting Rod
42	42	Connecting Rod
43	43	Washer
44	44	Screw
45	45	Bracket

jinte x.in

Page 4 — 2. ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1)

Typical GK0056 parts on page 4
Part number	Part name	Qty
158200001	Needle bar	1
158200002	Needle holder	1
S150901002	Needle	2
022230005	Screw	2
158200003	Needle bar bushing (lower)	1
158200004	Needle bar bushing (upper)	1
020700008	Screw	1
022200010	Felt plug	1
022200011 -1	Rubber plug(Ø8. 8)	1
158200005	Oil guard plate	1
028300038	Screw	1
022220001	Needle crank	1
022220002	Screw	1
022220003	Set screw	1
022200006	Screw	1
022200007	Set screw	1
022210004	Thread take -up crank	1
022210006	Screw (left hand thread)	1
02225	Needle bar link asm	1
022210008	Needle bar connecting	1
022210009	Screw	1
022200018	Slide block guide	1
022200019	Screw	1
022200020	Slide block	2
158200014	Washer	1
158210000	Thread take -up lever asm	1
006200027	Screw	1
108310001	Arm shaft	1
022320001	Collar	1
022220003	Screw	2
022300003	Left bushing of arm shaft	1
124330001	Right bushing of arm shaft	1
124330002	Oil seal	1
153300001	Balance wheel	1
022330002	Screw	2
022300008	Screw of oil seal	1
03634	Feed eccentric cam	1
020300007	Screw	2
036300004	Guard plate	1
100600012	Screw	3
022343001	Feed lifting link	1
022342001	Stop collar	1
158200009	Middle bushing of arm shaft	1
0222310002	Rubber plug	1
022210009	Screw	2

2. ARM SHAFTSNEEDLE BAR AND THREAD GUIDE MECHANISM (1) No. Ref. No. Description Qt. 1 158200001 Needle bar 1 2 158200002 Needle holder 1 3 S150901002 Needle 2 4 022230005 Screw 2 5 158200003 Needle bar bushing (lower) 1 6 158200004 Needle bar bushing (upper) 1 7 020700008 Screw 1 8 022200010 Felt plug 1 9 022200011 -1 Rubber plug(Ø8. 8) 1 10 158200005 Oil guard plate 1 11 028300038 Screw 1 12 022220001 Needle crank 1 13 022220002 Screw 1 14 022220003 Set screw 1 15 022200006 Screw 1 16 022200007 Set screw 1 17 022210004 Thread take -up crank 1 18 022210006 Screw (left hand thread) 1 19 02225 Needle bar link asm 1 20 022210008 Needle bar connecting 1 21 022210009 Screw 1 22 022200018 Slide block guide 1 23 022200019 Screw 1 24 022200020 Slide block 2 25 158200014 Washer 1 26 158210000 Thread take -up lever asm 1 27 006200027 Screw 1 28 108310001 Arm shaft 1 29 022320001 Collar 1 30 022220003 Screw 2 31 022300003 Left bushing of arm shaft 1 32 124330001 Right bushing of arm shaft 1 33 124330002 Oil seal 1 34 153300001 Balance wheel 1 35 022330002 Screw 2 36 022300008 Screw of oil seal 1 37 03634 Feed eccentric cam 1 38 020300007 Screw 2 39 036300004 Guard plate 1 40 100600012 Screw 3 41 022343001 Feed lifting link 1 42 022342001 Stop collar 1 43 158200009 Middle bushing of arm shaft 1 44 0222310002 Rubber plug 1 45 022210009 Screw 2 jintex.in

Page 5

Typical GK0056 parts on page 5
Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	WASHER
	4	COVER
	5	BRACKET
	6	BRACKET
	7	BRACKET
	8	SCREW
	9	SCREW
	10	SCREW
	11	BRACKET
	12	BRACKET
	13	WASHER
	14	SPRING
	15	SPRING
	16	BRACKET
	17	KNOB
	18	COLLAR
	19	BRACKET
	20	BRACKET
	21	WASHER
	22	PIN
	23	ROD
	24	WASHER
	25	BRACKET
	26	SCREW
	27	BRACKET
	28	SCREW
	29	BRACKET
	30	ROD
	31	BRACKET
	32	SCREW

jinttex.in

Page 6 — 3. ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2)

Typical GK0056 parts on page 6
Part number	Part name	Qty
158200006	Thread guide	1
022200004	Screw	1
022100007	Washer	2
158200007	Bobbin guard plate	1
022200004	Screw	2
158200008	Main thread guide holder	1
158200010	Throat plate(6.4)	1
020100002	Screw of throat plate	2
158220006	Tension screw	4
158220009	Screw	1
028100063	Screw	1
158200001	Thread guide base	1
022160005	Tension disc	8
028283001	Tension spring	2
028283002	Tension spring	2
158200003	Thread tension plate	1
028283005	Tension nut	4
028280002	Tension base	4
116200016	Thread tension guide plate	4
116200015	Upper thread tension guide plate	4
022160004	Thread release plate	4
158200008	Pin	4
158220005	Thread release shaft	1
158220017	O - ring	1
158600011	Tension crank	1
022100011	Screw	2
158240000	Thread tension asm(S)	1
028400004	Screw	1
028300034	Set screw	2
158600023	Thread guider slot	1
158600024	Bed thread guider plate	1
020100002	Screw	1

3. ARM SHAFT.NEEDLE BAR AND THREAD GUIDE MECHANISM (2) No. Ref. No. Description Qt. 1 158200006 Thread guide 1 2 022200004 Screw 1 3 022100007 Washer 2 4 158200007 Bobbin guard plate 1 5 022200004 Screw 2 6 158200008 Main thread guide holder 1 7 158200010 Throat plate(6.4) 1 8 020100002 Screw of throat plate 2 9 158220006 Tension screw 4 10 158220009 Screw 1 11 028100063 Screw 1 12 158200001 Thread guide base 1 13 022160005 Tension disc 8 14 028283001 Tension spring 2 15 028283002 Tension spring 2 16 158200003 Thread tension plate 1 17 028283005 Tension nut 4 18 028280002 Tension base 4 19 116200016 Thread tension guide plate 4 20 116200015 Upper thread tension guide plate 4 21 022160004 Thread release plate 4 22 158200008 Pin 4 23 158220005 Thread release shaft 1 24 158220017 O - ring 1 25 158600011 Tension crank 1 26 022100011 Screw 2 27 158240000 Thread tension asm(S) 1 28 028400004 Screw 1 29 028300034 Set screw 2 30 158600023 Thread guider slot 1 31 158600024 Bed thread guider plate 1 32 020100002 Screw 1 jintex.in

Page 7

Typical GK0056 parts on page 7
Ref	Part number	Part name	Qty
	27	27
	28	28
	25	25
	40	40
	41	41
	26	26
	23	23
	24	24
	36	36
	35	35
	38	38
	37	37
	22	22
	21	21
	20	20
	47	47
	19	19
	18	18
	17	17
	48	48
	49	49
	4	4
	5	5
	3	3
	8	8
	7	7
	6	6
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	15	15
	30	30
	32	32
	31	31
	34	34
	2	2
	1	1
	33	33
	32	32
	29	29
	32	32
	42	42
	43	43
	45	45
	46	46
	44	44

27 28 25 40 41 26 23 24 36 35 38 37 22 21 20 47 19 18 17 48 49 4 5 3 8 7 6 9 10 11 12 13 14 16 15 30 32 31 34 2 1 33 32 29 32 42 43 45 46 44 jintex.in

Page 8 — 4. PRESSER BAR.VERTICAL SHAFT AND HOOK SHAFT MECHANISM

Typical GK0056 parts on page 8
Part number	Part name	Qty
022300112	Vertical shaft bushing (lower)	1
158300002	Vertical shaft	1
158300003	Hook shaft	1
158300004	Bushing (left)	1
020300007	Screw	1
158300005	Thrust collar	1
022220003	Screw	2
158300006	Bushing (intermediate)	1
158300007	Bushing (right)	1
020700008	Screw	1
022430002	Oil pipe	1
036400015	Plunger	1
036400016	Screw	1
158300008	Guide plate	1
022820001	Screw	1
S4A0400011	Spring washer	1
158300010	Cut knife	1
158300011	Guide plate	1
028300034	Screw	1
022700009	Bushing	1
020300007	Screw	1
158300012	Presser bar	1
158300013	Press bar lifting bracket	1
020300007	Screw	1
022700012	Presser bar guide	1
022700013	Presser spring	1
022750001 -1	Presser regulating thumb screw	1
022750002 -1	Presser regulating thumb nut	1
158340001	Bevel gear for hook shaft	1
022300128	Bevel gear for arm shaft	2
022300129	Bevel gear for vertical shaft (upper)	5
022200003	Screw	2
022300111	Vertical shaft bushing (upper)	1
020300007	Screw	2
022710007	Presser bar lifter	1
022100006	Screw	1
022700002	Presser bar cam	1
036620002	Oil seal for presser bar cam	1
022721001	Knee lifter lever (left)	1
022720002	Hinge screw	2
022720003	Knee lift lever	1
158310000	Knee lift lever (right)	1
022730002	Spring for knee lift lever(right)	1
022730004	Screw for knee lift lever(right)	2
022730003	Knee lifter lever	1
022700008	Spring pin	1
022700015	Screw	1
158320000	Presser bar asm	1
158330000	Seal cover for hook shaft asm	1

4. PRESSER BAR.VERTICAL SHAFT AND HOOK SHAFT MECHANISM No. Ref. No. Description Qt. 1 022300112 Vertical shaft bushing (lower) 1 2 158300002 Vertical shaft 1 3 158300003 Hook shaft 1 4 158300004 Bushing (left) 1 5 020300007 Screw 1 6 158300005 Thrust collar 1 7 022220003 Screw 2 8 158300006 Bushing (intermediate) 1 9 158300007 Bushing (right) 1 10 020700008 Screw 1 11 022430002 Oil pipe 1 12 036400015 Plunger 1 13 036400016 Screw 1 14 158300008 Guide plate 1 15 022820001 Screw 1 16 S4A0400011 Spring washer 1 17 158300010 Cut knife 1 18 158300011 Guide plate 1 19 028300034 Screw 1 20 022700009 Bushing 1 21 020300007 Screw 1 22 158300012 Presser bar 1 23 158300013 Press bar lifting bracket 1 24 020300007 Screw 1 25 022700012 Presser bar guide 1 26 022700013 Presser spring 1 27 022750001 -1 Presser regulating thumb screw 1 28 022750002 -1 Presser regulating thumb nut 1 29 158340001 Bevel gear for hook shaft 1 30 022300128 Bevel gear for arm shaft 2 31 022300129 Bevel gear for vertical shaft (upper) 5 32 022200003 Screw 2 33 022300111 Vertical shaft bushing (upper) 1 34 020300007 Screw 2 35 022710007 Presser bar lifter 1 36 022100006 Screw 1 37 022700002 Presser bar cam 1 38 036620002 Oil seal for presser bar cam 1 39 022721001 Knee lifter lever (left) 1 40 022720002 Hinge screw 2 41 022720003 Knee lift lever 1 42 158310000 Knee lift lever (right) 1 43 022730002 Spring for knee lift lever(right) 1 44 022730004 Screw for knee lift lever(right) 2 45 022730003 Knee lifter lever 1 46 022700008 Spring pin 1 47 022700015 Screw 1 48 158320000 Presser bar asm 1 49 158330000 Seal cover for hook shaft asm 1 jintex.in

Page 9

Typical GK0056 parts on page 9
Ref	Part number	Part name	Qty
	1	SCREW
	2	BRACKET
	3	SCREW
	4	SCREW
	5	SCREW
	6	SCREW
	7	SCREW
	8	SCREW
	9	SCREW
	10	SCREW
	11	SCREW
	12	PIN
	13	COLLAR
	14	COLLAR
	15	SPRING PIN
	16	PLATE
	17	BLOCK
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	SCREW
	22	BAR
	23	SHAFT
	24	WASHER
	25	SCREW
	26	SPRING
	27	WASHER
	28	SPRING
	29	O-RING
	30	DIAL
	31	BRACKET
	32	PIN
	33	SCREW
	34	PIN
	35	SPRING
	36	ROD
	37	SCREW
	38	PIN
	39	BRACKET
	40	SCREW
	41	BLOCK
	42	SCREW

1 2 37 11 10 18 15 12 13 14 29 28 35 34 30 42 33 17 41 23 24 27 26 25 19 20 16 22 36 31 39 32 40 7 6 5 8 9 4 jintex.in

Page 10

Typical GK0056 parts on page 10
Part number	Part name	Qty
036500001	Connecting stud	1
057500001	Feed regulator	1
036550008	Screw	1
036550009	Lever link eccentric shaft	1
036550010	Lever regulator	1
036580002	Pin(left)	1
022640003	Screw	1
036580001	Pin(right)	1
020640003	Screw	1
022540004	Screw for feed regulator	1
022200019	Screw	1
022500003	Feed regulator bushing	1
022500004	Feed regulator shaft	1
036500003	Rubber plug(Ø20)	1
020300007	Set screw	1
022550001	Back tacking crank	1
022551001	Slide block pin	1
057520001	Lever spring	1
022500013	Screw	1
057500005	Bracket for spring	1
036550007	Screw	1
022540001 -1	Backtacking lever	1
036531001	Backtacking lever shaft	1
S4A0604005	O-ring	2
022540003	Screw	1
022540004	Screw	1
022500011	Washer	1
124510002	Feed regulator screw	1
124510003	O-ring	1
124510001	Knob	1
036558001	Feed rock link	1
036550006	Pin	1
036540005	Screw	1
022500008	Stopping pin	1
022500009	Spring for stopping pin	1
036550002	Lever feed connecting rod	1
036550003	Feed regulator link	1
036400104	Sink shaft	1
036558002	Feed rock arm link	2
036550005	Screw	1
022551002	Crank slide block	1
036540004	Bush for screw	1

5. STITCH LENGTH REGULATING MECHANISM No. Ref. No. Description Qt. 1 036500001 Connecting stud 1 2 057500001 Feed regulator 1 3 036550008 Screw 1 4 036550009 Lever link eccentric shaft 1 5 036550010 Lever regulator 1 6 036580002 Pin(left) 1 7 022640003 Screw 1 8 036580001 Pin(right) 1 9 020640003 Screw 1 10 022540004 Screw for feed regulator 1 11 022200019 Screw 1 12 022500003 Feed regulator bushing 1 13 022500004 Feed regulator shaft 1 14 036500003 Rubber plug(Ø20) 1 15 020300007 Set screw 1 16 022550001 Back tacking crank 1 17 022551001 Slide block pin 1 18 057520001 Lever spring 1 19 022500013 Screw 1 20 057500005 Bracket for spring 1 21 036550007 Screw 1 22 022540001 -1 Backtacking lever 1 23 036531001 Backtacking lever shaft 1 24 S4A0604005 O-ring 2 25 022540003 Screw 1 26 022540004 Screw 1 27 022500011 Washer 1 28 124510002 Feed regulator screw 1 29 124510003 O-ring 1 30 124510001 Knob 1 31 036558001 Feed rock link 1 32 036550006 Pin 1 33 036540005 Screw 1 34 022500008 Stopping pin 1 35 022500009 Spring for stopping pin 1 36 036550002 Lever feed connecting rod 1 37 036550003 Feed regulator link 1 38 036400104 Sink shaft 1 39 036558002 Feed rock arm link 2 40 036550005 Screw 1 41 022551002 Crank slide block 1 42 036540004 Bush for screw 1 jintex.in

Page 11

Typical GK0056 parts on page 11
Ref	Part number	Part name
1	1	Lever
2	2	Shaft
3	3	Bracket
4	4	Lever
5	5	Screw
6	6	Shaft
7	7	Lever
8	8	Shaft
9	9	Shaft
10	10	Shaft
11	11	Shaft
12	12	Shaft
13	13	Shaft
14	14	Shaft
15	15	Shaft
16	16	Screw
17	17	Screw
18	18	Shaft
19	19	Shaft
20	20	Screw
21	21	Shaft
22	22	Screw
23	23	Screw
24	24	Screw
25	25	Screw
26	26	Wire
27	27	Shaft
28	28	Screw

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 jintex.in

Page 13

Typical GK0056 parts on page 13
Ref	Part number	Part name
1	1	BASE
2	2	BOLT
3	3	BUSH
4	4	SCREW
5	5	SHAFT
6	6	SHAFT
7	7	PIN
8	8	SHAFT
9	9	COLLAR
10	10	COLLAR
11	11	SHAFT
12	12	SCREW
13	13	PIN
14	14	PIN
15	15	GEAR
16	16	SHAFT
17	17	GEAR
18	18	SCREW
19	19	GEAR
20	20	GEAR
21	21	GEAR
22	22	PIN
23	23	PIN
24	24	SHAFT
25	25	ARM
26	26	SCREW
27	27	LEVER
28	28	NUT
29	29	BRACKET
30	30	SCREW
31	31	LEVER
32	32	LEVER
33	33	SCREW
34	34	ARM
35	35	BUSH
36	36	ARM
37	37	SHAFT
38	38	SCREW
39	39	SCREW
40	40	SHAFT
41	41	BRACKET
42	42	SPRING
43	43	SHAFT
44	44	COVER
45	45	SHAFT
46	46	SHAFT
47	47	BOLT
48	48	BASE
49	49	BRACKET
50	50	LEVER
51	51	LEVER
52	52	LEVER
53	53	BRACKET
54	54	SCREW
55	55	SCREW
56	56	SPRING
57	57	LEVER
58	58	BRACKET
59	59	LEVER
60	60	SCREW
61	61	SPRING
62	62	SPRING
63	63	SCREW
64	64	SCREW
65	65	SCREW
66	66	COLLAR
67	67	SCREW
68	68	SHAFT

jintez.in

Page 14 — 7. LOOPER MECHANISM

Typical GK0056 parts on page 14
Part number	Part name	Qty
158600001	Looper holder	1
S150220013	Screw M6 x20	4
158600002	Bushing	2
022100011	Screw	2
158600003	Looper shaft	1
158600004	Looper shaft bushing (front)	1
020300007	Screw	3
158300006	Looper shaft bushing (rear)	1
158300005	Collar	1
022200003	Screw	2
158600005	Forked protecting crank	1
022640003	Screw	1
158600006	Pin	1
158600007	Protecting crank	1
028700004	Screw	1
158600008	Thread guard cam	1
058130004	Screw	4
158600009	Gear(right hand)	1
058613002	Screw	4
158600010	Gear (left hand)	1
158600011	Protecting shaft	1
158600012	Bushing	1
158600013	Driving thread guard frame	1
022600016	Screw	3
158600014	Driving thread guard bar	1
036500007	Screw	1
158600015	Thread guard plate	1
022200019	Screw	2
158600016	Left thread guard bar	1
158600017	Right thread guard bar	1
022830004	Screw	2

7. LOOPER MECHANISM No. Ref. No. Description Qt. 1 158600001 Looper holder 1 2 S150220013 Screw M6 x20 4 3 158600002 Bushing 2 4 022100011 Screw 2 5 158600003 Looper shaft 1 6 158600004 Looper shaft bushing (front) 1 7 020300007 Screw 3 8 158300006 Looper shaft bushing (rear) 1 9 158300005 Collar 1 10 022200003 Screw 2 11 158600005 Forked protecting crank 1 12 022640003 Screw 1 13 158600006 Pin 1 14 Yarn Ø3 x35 1 15 158600007 Protecting crank 1 16 028700004 Screw 1 17 158600008 Thread guard cam 1 18 058130004 Screw 4 19 158600009 Gear(right hand) 1 20 058613002 Screw 4 21 158600010 Gear (left hand) 1 22 158600011 Protecting shaft 1 23 Yarn Ø4x200 1 24 158600012 Bushing 1 25 158600013 Driving thread guard frame 1 26 022600016 Screw 3 27 158600014 Driving thread guard bar 1 28 036500007 Screw 1 29 158600015 Thread guard plate 1 30 022200019 Screw 2 31 158600016 Left thread guard bar 1 32 158600017 Right thread guard bar 1 33 022830004 Screw 2

Page 15

Typical GK0056 parts on page 15
Ref	Part number	Part name	Qty
	1	BASE
	2	BOLT
	3	BUSH
	4	BOLT
	5	SHAFT
	6	CYLINDER
	7	PIN
	8	CYLINDER
	9	COLLAR
	10	GEAR
	11	COLLAR
	12	PIN
	13	PIN
	14	SHAFT
	15	GEAR
	16	SHAFT
	17	BOLT
	18	BOLT
	19	GEAR
	20	PIN
	21	GEAR
	22	COLLAR
	23	PIN
	24	CYLINDER
	25	SHAFT
	26	BOLT
	27	LEVER
	28	BOLT
	29	BRACKET
	30	BOLT
	31	LEVER
	32	LEVER
	33	BOLT
	34	ARM
	35	BOLT
	36	ARM
	37	SHAFT
	38	BOLT
	39	SHAFT
	40	BRACKET
	41	BOLT
	42	BOLT
	43	COLLAR
	44	HOUSING
	45	BOLT
	46	SHAFT
	47	BOLT
	48	BRACKET
	49	BRACKET
	50	BOLT
	51	SHAFT
	52	BOLT
	53	BRACKET
	54	BOLT
	55	BOLT
	56	BOLT
	57	SHAFT
	58	BRACKET
	59	SHAFT
	60	BOLT
	61	SHAFT
	62	BOLT
	63	BOLT
	64	BOLT
	65	SHAFT
	66	COLLAR
	67	BOLT
	68	BRACKET

jinttex.in

Page 18 — 8. LUBRICATION MECHANISM

Typical GK0056 parts on page 18
Part number	Part name	Qty
158700003	Oil pump body	1
022800002	Oil pump impeller	1
022800003	Screw	1
022800004	Screw	3
S4A0400012	Spring washer	1
158700004	Oil pump tilting plate	1
158700007	Oil adjusting plate	1
158730000	Oil pump screen asm	1
158700005	Screw	3
158710000	Oil pipe for hook shaft	1
022831	Oil braid fitting plate	2
022700015	Screw	1
158720000	Oil pipe for arm shaft	1
022800014	Oil returning pipe	1
022800015	Filter felt for returning pipe	1
036A00002	Spring for oil felt	1
158700001	Oil pipe connecting	1
158700003	Oil pump body cushion	3

8. LUBRICATION MECHANISM No. Ref. No. Description Qt. 1 158700003 Oil pump body 1 2 022800002 Oil pump impeller 1 3 022800003 Screw 1 4 022800004 Screw 3 5 S4A0400012 Spring washer 1 6 158700004 Oil pump tilting plate 1 7 158700007 Oil adjusting plate 1 8 158730000 Oil pump screen asm 1 9 158700005 Screw 3 10 158710000 Oil pipe for hook shaft 1 11 022831 Oil braid fitting plate 2 12 022700015 Screw 1 13 158720000 Oil pipe for arm shaft 1 14 022800014 Oil returning pipe 1 15 022800015 Filter felt for returning pipe 1 16 036A00002 Spring for oil felt 1 17 158700001 Oil pipe connecting 1 18 158700003 Oil pump body cushion 3

Page 19

Typical GK0056 parts on page 19
Ref	Part number	Part name
1	0056-1	Bobbin Winder Assembly
2	2	Screw
3	3	Screw
4	4	Base
5	5	Cover
6	6	Screw
7	7	Screw
8	8	Clip
9	9	Screw
10	10	Screw
11	11	Screw
12	12	Screw
13	13	Screw
15	15	Shaft
16	16	Bracket
17	17	Screw
18	18	Screw
19	19	Screw
20	20	Screw
21	21	Screw
22	22	Screw
23	23	Cover
24	24	Cover
25	25	Thread Stand
26	26	Presser Foot
27	27	Presser Foot
28	28	Bobbin Case
29	29	Bobbin
30	30	Oil Can
31	31	Screwdriver
32	32	Screwdriver
33	33	Screwdriver
34	34	Wrench
35	35	Oil
36	36	Cloth
37	37	Belt
38	38	Screw
39	39	Nozzle
40	40	Screw
41	41	Needle

0056-1 jintex.in

Page 21

Typical GK0056 parts on page 21
Ref	Part number	Part name
1	1	Rod
2	2	Bracket
3	3	Rod
4	4	Plate
5	5	Presser Foot
6	6	Lever
7	7	Lever
8	8	Presser Foot
9	9	Screw
10	10	Bush
1	1	Plate
2	2	Presser Foot
3	3	Lever
4	4	Bracket
5	5	Lever
6	6	Presser Foot
7	7	Wheel

0056-2 0056-3

Part Books

Search

Ref	Part number	Part name	Qty
	27	27
	28	28
	25	25
	40	40
	41	41
	26	26
	23	23
	24	24
	36	36
	35	35
	38	38
	37	37
	22	22
	21	21
	20	20
	47	47
	19	19
	18	18
	17	17
	48	48
	49	49
	4	4
	5	5
	3	3
	8	8
	7	7
	6	6
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	15	15
	30	30
	32	32
	31	31
	34	34
	2	2
	1	1
	33	33
	32	32
	29	29
	32	32
	42	42
	43	43
	45	45
	46	46
	44	44

Ref	Part number	Part name	Qty
	27	27
	28	28
	25	25
	40	40
	41	41
	26	26
	23	23
	24	24
	36	36
	35	35
	38	38
	37	37
	22	22
	21	21
	20	20
	47	47
	19	19
	18	18
	17	17
	48	48
	49	49
	4	4
	5	5
	3	3
	8	8
	7	7
	6	6
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	15	15
	30	30
	32	32
	31	31
	34	34
	2	2
	1	1
	33	33
	32	32
	29	29
	32	32
	42	42
	43	43
	45	45
	46	46
	44	44

Ref	Part number	Part name	Qty
	27	27
	28	28
	25	25
	40	40
	41	41
	26	26
	23	23
	24	24
	36	36
	35	35
	38	38
	37	37
	22	22
	21	21
	20	20
	47	47
	19	19
	18	18
	17	17
	48	48
	49	49
	4	4
	5	5
	3	3
	8	8
	7	7
	6	6
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	15	15
	30	30
	32	32
	31	31
	34	34
	2	2
	1	1
	33	33
	32	32
	29	29
	32	32
	42	42
	43	43
	45	45
	46	46
	44	44
