Jack JK-T1310 / JK-T2210 Parts Book (PDF)
Text index — Jack JK-T1310 / JK-T2210
Page 95 — A、机体部分/Machine body
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41703001 | BUSHING U | 1 |
| 2 | 41729001 | DOWEL PIN | 1 |
| 3 | 41722001 | RUBBER CAP 20-15 | 1 |
| 4 | 41722002 | RUBBER CAP 13.5 | 1 |
| 5 | 41722003 | RUBBER CAP 10. 5 | 3 |
| 6 | 41711205 | MOTOR COVER QR | 1 |
| 7 | S04038 | SCREW PAN M6 X 10 | 4 |
| 8 | 41711206 | MOTOR COVER QL | 1 |
| 9 | S04038 | SCREW PAN M6 X 10 | 4 |
| 10 | 304727 | FACE PLATE | 1 |
| 11 | 41722004 | RUBBER CAP 15. 5 | 1 |
| 12 | 41712003 | F-PLATE PACKING | 1 |
| 13 | S04038 | SCREW PAN M6 X 10 | 3 |
| 14 | 301383 | SHUTTLE RACE COVER | 1 |
| 15 | 41712005 | SHUTTLE RACE COVER HOOK D | 1 |
| 16 | S02031 | SCREW PAN M3 X 5 | 2 |
| 17 | 41712006 | NUT PLATE | 1 |
| 18 | 4171220200 | HINGE | 1 |
| 19 | NO1013 | STEPPING COVER | 2 |
| 20 | S04082 | SCREW PAN M3 X 6 | 2 |
| 23 | 301384 | THREAD TAKE-UP COVER | 1 |
| 24 | S04079 | SCREW PAN M4 X 10 | 1 |
| 25 | 41711207 | STEPPING COVER Q | 1 |
| 26 | 417S30012 | SHOULDER SCREW 7-3 | 1 |
| 27 | 41728020 | SPRING WASHER | 1 |
| 28 | 41728035 | WAHER PLAIN | 1 |
| 29 | 41711208 | SCREW M5 Q | 1 |
| 30 | 41737001 | MARK INJURY | 1 |
| 31 | 20131063 | WARNING SIGN | 1 |
| 33 | 41722009 | RUBBER CAP 13 | 1 |
| 34 | 41712009 | FINGER GUARD | 1 |
| 35 | 41728025 | WASHER PLAIN L3. 5 | 2 |
| 36 | 41712010 | HEAD REST | 1 |
| 37 | 417S30037 | BOLT SOCKET(S /P WASHER)M6 X 14 | 4 |
| 38 | S04075 | SCREW PAN M3 X 5 | 2 |
| 39 | 41722006 | RUBBER CAP 26 | 1 |
| 40 | 41722007 | RUBBER CAP 11.5 | 2 |
| 41 | 41722008 | RUBBER CAP | 2 |
| 42 | 41722009 | RUBBER CAP 13 | 1 |
Page 97 — B. 上轴·针杆装置/Upper shaft and needle bar mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41702001 | UPPER SHUFT | 1 |
| 2 | 4170501100 | CRANK ROD ASSY | 1 |
| 3 | S05124 | BOLT SOCKET M5 X 16 | 2 |
| 4 | 41724001 | NEEDLE BEARTNG:BLUE | 1 |
| 4 | 41724001 | NEEDLE BEARING:BLACK | 1 |
| 4 | 41724001 | NEEDLE BEARING:GRAY | 1 |
| 4 | 41724001 | NEEDLE BEARING:YELLOW | 1 |
| 5 | 41703002 | BALL BEARING BUSH | 1 |
| 6 | B10014 | BALL BEARING 6904DDUNR | 1 |
| 7 | B06005 | BALL BEARING 6904DDU | 1 |
| 8 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 9 | 41703002 | BALL BEARING BUSH | 1 |
| 10 | B10012 | BALL BEAR1NG 6004DDUNR | 1 |
| 11 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 12 | 41703004 | J01NT G | 1 |
| 13 | B10013 | BALL BEARING 6204DDUNR | 1 |
| 14 | S10018 | SET SCREW SOCKET (FT)M6 X 6 | 4 |
| 15 | 417S30002 | SCREW,M8 | 1 |
| 16 | 41704001 | THREAD TAKE-UP CRANK G | 1 |
| 17 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 4 |
| 18 | 41712133 | WASHER,PLAIN SPECIAL 8 | 1 |
| 19 | 14170500400 | THREAD TAKE-UP LEVER FK SET | 1 |
| 19-1 | 41726021 | TAKE-UP RACK PIN | 1 |
| 19-2 | 41712103 | THREAD RACK | 1 |
| 19-3 | 4171210400 | TAKE-UP ROD ASSEMBLY | 1 |
| 19-4 | 41724003 | NEEDLE ROLLER BEARING K8X 12 X 7. 7 | 2 |
| 19-5 | 41712102 | PICK CRANK | 1 |
| 19-6 | 41705101 | NEEDLE BAR LINKAGE | 1 |
| 19-7 | 41704100 | NEEDLE BAR CONNECTOR | 1 |
| 20 | 417S17003 | SCREW FLAT M5 X 6 | 1 |
| 21 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 1 |
| 22 | S04078 | SCREW PAN M4 X 8 | 1 |
| 23 | 417S14001 | SCREW SM3. 57-40 X 6L | 1 |
| 24 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 25 | 41709001 | SLIDE BLOCK | 1 |
| 26 | 41709002 | SLIDE BLOCK GUIDE | 1 |
| 27 | S05118 | BOLT SOCKET M4 X 16 | 2 |
| 28 | 41702002 | NEEDLE BAR | 1 |
| 29 | 417S15002 | SET SCREW,SM3. 57-40 X 4. 5 | 1 |
| 30 | 41703005 | NEEDLE BAR BUSH UK | 1 |
| 31 | 41703006 | NEEDLE,RAR RUSH D | 1 |
| 32 | 41217002 | NEEDLE | 1 |
| 33 | 12411002 | FAN | 1 |
| 34 | S04078 | SCREW PAN M4 X 8 | 3 |
| 35 | 41225010 | PULLEY GEAR R | 1 |
| 36 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 2 |
| 37 | 41702003 | PULLEY SHUFT | 1 |
| 38 | 41703007 | PULLEY BUSH | 1 |
| 39 | 41727001 | PULLEY SPRING | 1 |
| 40 | 41703008 | PULLEY BASE | 1 |
| 41 | P03027 | PTN SPRJNG ROLL AW4 | 1 |
| 42 | 41725002 | PULLEY GE\RL | 1 |
| 43 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 2 |
| 44 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 45 | 41711001 | PULLEY | 1 |
| 46 | S04079 | SCREW PAN M4 X 10 | 3 |
| 47 | 41728024 | WASHER PLAIN L4 | 3 |
| 48 | S10019 | SET SCREW SOCKET (FT)M6 X 6 | 1 |
| 49 | S05124 | BOLT SOCKET M5 X 16 | 4 |
| 50 | 41712011 | FRIES WHEEL 2 | 2 |
| 51 | 403S11043 | SCREW PAN M4 X 12 | 3 |
| 52 | S09041 | SET SCREW SOCKET (FT) M6 X 5 | 1 |
Page 99 — C1、送料装置 / Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400994 | |||
| 42224502 | X-LM 导轨 | 2 | |
| 413S14012 | 螺栓 M3 X 14 | 15 | |
| 4170 1003 | 送布台(X) | 1 | |
| S05192 | 螺栓 M3 X 6 | 8 | |
| S02032 | 螺钉 M3 X 6 | 8 | |
| 41709004 | 传感器板(X) | 1 | |
| S02032 | 螺钉 M3 X 6 | 2 | |
| 41709005 | 1 | ||
| S05116 | 螺栓 M4 X 8 | 2 | |
| 41735001 | X-GT 皮带 | 1 | |
| 41712012 | 皮带支架板(X) | 1 | |
| S05116 | 螺栓 M4 X 8 | 2 | |
| 42224501 | 花键轴组件C | 1 | |
| B06006 | 球轴承 6000VV | 1 | |
| 41728001 | 1 | ||
| H03008 | 轴用挡圈 C10 | 1 | |
| 4173500200 | X-左轮组件 | 1 | |
| S10019 | 螺栓 M6 X 6 | 1 | |
| B06007 | 球轴承 6806VV | 2 | |
| H01004 | 孔用挡圈 C42 | 2 | |
| 41701013 | X-轮基座 | 1 | |
| S05035 | 螺栓 M5 X 16 | 2 | |
| W01009 | 平垫圈 M5 | 2 | |
| 4173500200 | X-右轮组件 | 1 | |
| 41728001 | 1 | ||
| S10015 | 球轴承 6900ZZNR | 2 | |
| 41702005 | X-轮支点轴 | 1 | |
| S10019 | 螺钉 M6 X 6 | 2 | |
| 41712013 | Y-传感器板 | 1 | |
| S05119 | 螺栓 M4 X 20 | 2 | |
| 42224503 | Y-LM 导向 | 2 | |
| 41728002 | Y-LM 垫片 | 2 | |
| S02032 | 螺钉 M3 X 6 | 16 | |
| S05119 | 螺栓 M4 X 20 | 8 | |
| W01006 | 8 | ||
| W02008 | 8 | ||
| 4 1709032 | |||
| S05119 | 螺栓 M4 X 20 | ||
| 41711062 | 2 | ||
| 41726020 | 4 | ||
| S09005 | 螺钉 M3 X 5 | 4 |
Page 101 — C2、送料装置 / Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S05111 | BOLT SOCKET M6 X 20 | 4 |
| 2 | 41725003 | X-FEED GEAR | 1 |
| 3 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 4 | B10015 | BALL BEARING 6900ZZNR | 2 |
| 5 | 41725004 | Y-FEED GEAR | 1 |
| 6 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 7 | B10015 | BALL BEARING 6900ZZNR | 2 |
| 8 | H05011 | RETAINING RING 9 | 1 |
| 9 | 4173501100 | Y-PULLEY ASSY | 1 |
| 10 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 4 |
| 11 | 41703009 | Y-PULLEY COLLAR | 1 |
| 12 | 41702006 | Y-PULLEY DRIVING SHAFT | 1 |
| 13 | 41701005 | Y-PULLEY BRACKET | 1 |
| 14 | 810015 | BALL BEARING 6900ZZNR | 2 |
| 15 | 4173502100 | Y-PULLEY ASSY | 1 |
| 16 | S10019 | SET SCREW SOCKET (FT)M6 X 6 | 2 |
| 17 | 41702007 | Y-PULLEY FULCRUM SHAFT | 1 |
| 18 | 41735005 | Y-GT BELT | 1 |
| 19 | 4 1712014 | BELT SUPPORT PLATEY | 1 |
| 20 | 41712015 | Y-BELT WORK CLAMP PLATE | 1 |
| 21 | S05116 | BOLT SOCKET M4 X 8 | 4 |
| 22 | 417S30304 | B0LT SOCKET(S/P WASHER) M6 X 20 | 2 |
| 23 | S05119 | B0LT SOCKET M4 X 20 | 4 |
| 24 | 41711204 | COVER RAIL Q | 2 |
| 25 | 41712017 | FIXATION R | 1 |
| 26 | 41712018 | FIXATION L | 1 |
| 403S11043 | SCREW FAN M4 X 10 | 12 | |
| 28 | 417S30009 | SCREW FAN M4 X 6 | 4 |
| 29 | 41711201 | INSIDE COVER QR | 1 |
| 30 | 41711202 | INSIDE COVER QL | 1 |
| 31 | 41711203 | OUTSDE COVER Q ASSY | 2 |
| 32 | 41711002 | BELT COVER Y | 1 |
| 33 | 417S30025 | SCREW PAJ (S/P WASHER) M4 X 10 | 2 |
| 34 | 41712022 | AUXI LIARY PLATE | 1 |
| 35 | 41722010 | AUXILIARY PLATE CUSHION | 10 |
| 36 | 417S15003 | SCREW M4 X 12 | 10 |
| 37 | 417N01002 | LOCKNUT | 10 |
| 38 | 41712023 | AUXILIARY PLATE BRACKET | 4 |
| 38 | 41712064 | L TYPE BRACKET | 2 |
| 39 | 417S30304 | BOLT SOCKET(S/P IVASHER) M6 X 20 | 6 |
| 40 | 41712024 | SUPPORT PLATE GUIDE U | 2 |
| 41 | 4 1712025 | SUPPORT PLATE GUIOE D | 2 |
| 42 | 417S30035 | BOLT SOCKET (S/P IVA5HER) M5 X 10 | 4 |
| 43 | 417S30304 | BOLT SOCKET(S/P IVASHER) M6 X 20 | 4 |
| 44 | 41722011 | BELLOW | 1 |
| 45 | 41712026 | BELLOW PRESSER R | 1 |
| 46 | 41712027 | BELLOW PRES5ER F | 1 |
| 47 | 41712060 | BELLOW NUT | 2 |
| 48 | S04036 | SCREW FAN M3 X 4 | 4 |
| 417S30009 | SCREW FAN M4 X 6 | 4 | |
| 50 | 141733002 | PULSE MOTOR X | 1 |
| 51 | 41712029 | MOTOR BRACKET PLATE | 1 |
| 52 | S05048 | B0LT SocKET M4 X 10 | 4 |
| 53 | 41725005 | GEAR 16 | 1 |
| 54 | S09041 | SET SCREIV SOCKET (FT) M6 X 5 | 2 |
| 55 | 141733003 | PULSE MOTOR Y | 1 |
| 56 | 41712029 | MOTOR BRACET PLATE | 1 |
| 57 | S05048 | BOLT SOCKET M4 X 10 | 4 |
| 58 | 41725005 | GEAR 16 | 1 |
| 59 | S09041 | SET SCREIV SOCKET (FT) M6 X 5 | 2 |
| 60 | 417S30304 | B0LT SOCKET(S/P IVASHER) M6 X 20 | 6 |
Page 103 — C2、送料装置 / Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 61 | 41712030 | COVER CONNECT PLATE | 1 |
| 62 | 417S15006 | SCREW M4 X 5 | 2 |
| 63 | 41728012 | WASHER | 4 |
| 65 | 41712100 | BEARING HOLDER BASE | 2 |
| 66 | S05121 | BOLT SOCKET M5 X 10 | 4 |
| 67 | 41712101 | BEARING HOLDER | 2 |
| 67 | 41724005 | BALL BEARING 126 | 2 |
| 68 | S05048 | BOLT SOCKET M4 X 10 | 4 |
| 70 | 417S30037 | BOLT SOCKET M6 X 14 | 10 |
Page 105 — C3、送料装置/Feed mechanism (T1310)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41701006 | WORK CLAMP | 1 |
| 2 | 41711007 | SLIDER | 1 |
| 3 | H03008 | RETAINING RING EXTERNAL C10 | 1 |
| 4 | 41712031 | SUPPORT SLIDER | 1 |
| 5 | 41726001 | SUPPORT SHAFT SL DER | 1 |
| 6 | H03018 | RETAINING RING EXTERNAL C4 | 2 |
| 7 | 41712032 | WORK CLAMP LIFTER LEVER R | 1 |
| 8 | 41712033 | WORK CLAMP LIFTER LEVER L | 1 |
| 9 | 41702012 | WORK CLAMP LIFTER SHAFT | 1 |
| 10 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 11 | H03006 | RETAINING RING EXTERNAL C8 | 1 |
| 12 | 41712133 | WASHER PLAIN SPECIAL 8 | 1 |
| 13 | 41708002 | SET SCREW COLLAR B | 1 |
| 14 | S09041 | SET SCREW SOCKET (FT) M6 X 5 | 2 |
| 15 | 41712034 | CONNECTING ROD | 2 |
| 16 | 41702021 | SPR NG HOLDER SHAFT A | 1 |
| 17 | 417S30003 | SHOULDER SCREW M5 | 2 |
| 18 | 41702009 | SPRING HOLDER SHAFT B | 1 |
| 19 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 20 | 41727002 | SPRING LIFT | 1 |
| 21 | 41712035 | CONNECTING LINK | 2 |
| 22 | 417S12002 | WORK CLAMP SPRING HOLDER | 2 |
| 23 | N01017 | NUT 2 M5 | 2 |
| 24 | 41727003 | WORK CLAMP SPRING | 2 |
| 25 | 41712036 | WORK CLAMP LIFTER LEVER R | 1 |
| 26 | 41712037 | WORK CLAMP LIFTER LEVER L | 1 |
| 27 | 41702012 | WORK CLAMP LIFTER LEVER | 1 |
| 28 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 29 | H03006 | RETAINING RING EXTERNAL C8 | 1 |
| 30 | 41712133 | WASHER PLA IN SPECIAL 8 | 1 |
| 31 | 41708002 | SET SCREW COLLAR B | 1 |
| 32 | S09041 | SET SCREW SOCKET (FT)M6 X 5 | 2 |
| 33 | 41712038 | STOPPER | 2 |
| 34 | S05120 | BOLT SOCKET M5 X 8 | 4 |
| 35 | W01009 | IVASHER PLAIN M5 | 4 |
| 36 | W02001 | WASHER SPRING 2-5 | 4 |
| 37 | 4170901300 | WORK CLAMP GUIDE A ASSY | 1 |
| 38 | 417S15003 | SCREW M4 X 16 | 2 |
| 39 | 4170901400 | WORK CLAMP GUIDE B ASSY | 2 |
| 40 | 417S30034 | BOLT SOCKET(S/P WASHER) M4 X 14 | 4 |
| 41 | 4170901500 | WORK CLAMP SUDER ASSY R | 1 |
| 42 | 4170901600 | WORK CLAMP SLIDER ASSY L | 1 |
| 43 | 141712271 | IVORK CLAMP RETAINER ASSY | 4 |
| 44 | 41712039 | WORK CLAMP | 1 |
| 45 | 417S30035 | BOLT S0CKET (S/P WASHER) M5 X 10 | 2 |
| 46 | S09009 | SET SCREW SOCKET (FT)M5 X 10 | 2 |
| 47 | N01017 | NUT 2 M5 | 2 |
| 48 | 417S20001 | SHOULDER SCREW | 2 |
| 49 | 401219 | WORK CLAMP 1310 ASSY | 1 |
| 50 | 417S30035 | BOLT SOCKET(S/P WASHER) M5 X 10 | 2 |
| 51 | L02006 | BOLT M5 X 16 | 4 |
| 52 | W01009 | WASHER PLAIN M5 | 4 |
| 53 | W02001 | WASHER SPRING 2-5 | 4 |
| 54 | 400992 | FEED PLATE 1310 | 1 |
| 55 | 417S30035 | BOLT SOCKET(S/P WASHER) M5 X 10 | 2 |
| 55 | 41728004 | WASHER | 2 |
Page 107 — C4、送料装置/Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SA4686101 | 41701006 | WORK CLAMP | 1 |
| SA4717001 | 41702011 | CYLINOER SHAFT | 1 |
| 12060636 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 40736004 | Φ4可调节气管接头(螺纹M5) | 2 | |
| SA4719001 | 41730035 | AIR CYLINDER ASSY | 2 |
| 48050142 | H03019 | RETAINING RING EXTE AL C5 | 2 |
| SA4720001 | 41709012 | CYLINDER JOINT | 2 |
| SA4721001 | 41726002 | CYL NDER JOINT SHAFT | 2 |
| 48060142 | H05027 | RETAINING RING EXTE AL C6 | 4 |
| SA4722001 | 41712042 | WORK CLAMP LIFTER LEVER R AIR | 1 |
| SA4723001 | 41712043 | WORK CLAMP LIFTER LEVER L AIR | 1 |
| SA4724001 | 41712044 | WORK CLAMP LIFTER SHAFT A R | 2 |
| S55479001 | 413S13008 | BOLT SOCKET (S/P WASHER) M4 X 8 | 2 |
| SA4692001 | 41702012 | WORK CLAMP LIFTER SHAFT | 1 |
| 12060636 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 48080142 | H03006 | RETA NING RING EXTERNAL C8 | 1 |
| 110367001 | 41712133 | WASHER PLAIN SPECIAL 8 | 1 |
| SA3231001 | 41708002 | SET SCREW COLLAR B | 1 |
| 12060536 | S09041 | SET SCREW SOCKET (FT)M6 X 5 | 2 |
| SA4863001 | 4170901300 | WORK CLAMP GUIOE A ASSY | 1 |
| S23849001 | 417S15003 | SCREW M4 X 12 | 2 |
| SA4864001 | 4170901400 | WORK CLMP GUIOE B ASSY | 2 |
| S55482001 | 417S30034 | BOLT SOCKET(S/P WASHER) M4X 14 | 4 |
| SA4712001 | 4170901500 | WORK CLAMP SLIDER ASSY R | 1 |
| SA4714001 | 4170901600 | WORK CLAMP SLIDER ASSY L | 1 |
| SA4706101 | I41712271 | WORK CLAMP SLIDER ASSY | 4 |
| SA4725001 | 41712045 | WORK CLAMP R | 1 |
| S55485001 | 417S30036 | BOLT SOCKET(S/P WASHER) M5 X 12 | 1 |
| 12501031 | S09009 | SET SCREW SOCKET (FT) M5 X 10 | 2 |
| 21500216 | N01017 | NUT 2 M5 | 2 |
| SA4709001 | 417S20001 | SHOULDER SCREW | 2 |
| SA4726001 | 41712046 | WORK CLAMP L | 1 |
| S55485001 | 417S30036 | BOLT SOCKET (S/P WASHER) M5 X 12 | 1 |
| 12501031 | S09009 | SET SCREW SOCKET (FT)M5 X 10 | 2 |
| 21500216 | N01017 | NUT 2 M5 | 2 |
| SA4709001 | 417S20001 | SHOULDER SCREW | 2 |
| SA4868101 | 401219 | WORK CLAMP 311R ASSY | 1 |
| S55484002 | 417S30035 | BOLT SOCKET(S/P WASHER) M5 X 10 | 4 |
| 17501616 | L01011 | BOLT M5X16 | 4 |
| 25050236 | W01009 | WASHER PLAIN M5 | 4 |
| 28050246 | W02001 | WASHER SPRING 2-5 | 4 |
| SA4715001 | 400996 | FEED PLATE 311G | 1 |
| S55484002 | 417S30035 | BOLT SOCKET(S/P WASHER) M5 X 10 | 2 |
| SA4870101 | 41712441 | WORK CLAMP 2210R ASSY | I |
| SA4871101 | 41712442 | WORK CLMP 2210L ASSY | 1 |
| S55484002 | 417S30035 | BOLT SOCKET (S/P WASHER) M5 X 10 | 4 |
| 17501616 | L02006 | BOLT M5 X 16 | 4 |
| 25050236 | WOI009 | WASHER PLAIN M5 | 4 |
| 28050246 | W02001 | WASHER SPRING 2-5 | 4 |
| S55484002 | 417S30035 | BOLT SOCKET(S/P WASHER) M5X 10 | 2 |
| SA4852001 | 400996 | FEED PLATE 2210 | 1 |
Page 109 — D1、拾压脚装置/Work clamp lifter mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41710001 | STEPPING CLAM CAM | 1 |
| 2 | 41705001 | STEPPINGCLAMP CON. ROD | 1 |
| 3 | 41728003 | WASHER STEPPING CLAMP CAM | 1 |
| 4 | B06008 | BALL BEARING 6805VV | 1 |
| 5 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 6 | S04035 | SCREW PAN M4 X 6 | 2 |
| 7 | 41726003 | ROLLER SHAFT STEPPING CLAMP | 1 |
| 8 | 41703010 | ROLLER STEPPING CLAMP | 1 |
| 9 | 41728004 | WASHER | 2 |
| 10 | N01021 | NUT 1 M6 | 1 |
| 11 | 41709017 | STEPPING CLAMP ARM R | 1 |
| 12 | L02032 | BOLT M6 X 12 | 1 |
| 13 | 41702013 | STEPP NG CLAMP ARM F | 1 |
| 14 | S10019 | SET SCREW SOCKET(FT)M6 X 6 | 1 |
| 15 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 16 | 41703011 | BUSH STEPPING CLAMP F | 1 |
| 17 | 41703012 | BUSH STEPPING CLMW R | 1 |
| 18 | 41712053 | STEPP NG CLAMP LINK A | 1 |
| 19 | 417S30007 | SHOULDER SCREW 6 | 4 |
| 20 | S04036 | SCREIV PAN M3 X 4 | 4 |
| 21 | 41712054 | STEPPING CLAMP LINK B | 1 |
| 22 | 41712055 | STEPPING CLAMP LINK | 1 |
| 23 | 41726004 | SHAFT STEPPING CLAMP LINK | 1 |
| 24 | S10019 | SET SCREW SOCKET (FT)M6 X 6 | 1 |
| 25 | S09006 | SET SCREW SOCKET (FT)M4 X 4 | 1 |
| 26 | 41709018 | STEPP NG CLAMP LIFTER LINK | 1 |
| 27 | 41702014 | SHAFT STEPPING CLAMP LIFTER LINK | 1 |
| 28 | 41728031 | WASHER | 1 |
| 29 | H03006 | RETA NING RING EXTERNAL C8 | 1 |
| 30 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 31 | S09006 | SET SCREW SOCKET (FT) M4 X 4 | 1 |
| 32 | 41709019 | STEPPING CLAMP LIFTER | 1 |
| 33 | 41703013 | ROLLER STEPPING CLAMP LIFTER | 1 |
| 34 | 41726005 | ROLLER | 1 |
| 35 | 41702015 | SHAFT STEPPING CLAMP LIFTER | 1 |
| 36 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 37 | S02039 | SCREW FLAT M4 | 1 |
| 38 | 41702016 | STEPPING CLAMP LIFTER ROD | 1 |
| 39 | 417S12003 | JOINT STEPP NG CLAMP LIFTER | 1 |
| 40 | 4170500300 | BALL JOINT ASSY | 2 |
| 41 | N01021 | NUT M6 | 2 |
| 42 | 417S16001 | NUT (FT) M6 | 1 |
| 43 | 417S30008 | SHOULDER SCREW | 1 |
| 44 | 417S12005 | SHOULDER SCREW B M6 | 1 |
| 45 | L01007 | BOLT M6 X 50 | 1 |
| 46 | N01021 | NUT 1 M6 | 1 |
| 47 | 41709020 | PRESSER BAR CLAMP | 1 |
| 48 | S05116 | BOLT SOCKET M4 X 8 | 1 |
| 49 | 123S30002 | PESSER ADJUSTING SCREW M14 | 1 |
| 50 | 129S16001 | ADJUST SCREW NUT | 1 |
| 51 | 41727004 | PRESSER BAR SPRING | 1 |
| 52 | 41702017 | PRESSER BAR SPRING GUIOE | 1 |
| 53 | 41703014 | COLLAR PRESSER BAR SPRING | 1 |
| 54 | 41703015 | PRESSER BAR BUSH | 1 |
| 55 | S09041 | SET SCREW SOCKET (FT)M6 X 5 | 1 |
| 56 | 41702018 | PRESSER BAR | 1 |
| 57 | 41716001 | WORK CLAMP | 1 |
| 58 | 417S15011 | SCREW SM3. 57 X 12 | 1 |
| 59 | 41728032 | WASHER | 1 |
Page 111 — D2、拾压装置/Work clamp lifter mechanism (T1310)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41724004 | SLIDE BUSH | 1 |
| 2 | S05048 | BOLT SOCKET M4 X 10 | 4 |
| 3 | 41712056 | WORK CLAMP LIFTER PATE ASSY | 1 |
| 3-1 | 41702008 | PRESSER LIFT SHAFT | 1 |
| 3-2 | 41712076 | PRESSER FOOT LIFT PLATE | 1 |
| 4 | 400993 | SEAT E | 1 |
| 5 | S04080 | SCREW PAN M4 X 4 | 1 |
| 6 | 41709021 | WORK CLAMP LIFTER LEVER | 1 |
| 7 | 41726006 | PIN | 1 |
| 8 | 41709022 | NEEDLE BAR GUIDE SLIDE BLOCK | 1 |
| 9 | 41702019 | WORK CLAMP LEVER SHAFT B | 1 |
| 10 | S10019 | SET SCREW SOCKET (FT)M6 X 6 | 1 |
| 11 | 41728001 | WASHER PLAIN 10 | 1 |
| 12 | H05033 | RETAIN NG RING E8 | 1 |
| 13 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 14 | 41729002 | DOWEL PIN | 1 |
| 15 | 41712058 | WORK CLAMP LIFTER PATE ASSY | 1 |
| 16 | 417S20010 | SHOULDER SCREW | 2 |
| 17 | 41727005 | PRESSER BAR SPRING | 1 |
| 18 | 41701008 | MOTOR BRACKET | 1 |
| 19 | 41712063 | WORK CLAMP MOTOR PLATE | 1 |
| 20 | S05121 | BOLT SOCKET M5 X 10 | 2 |
| 21 | 141733010 | PULSE MOTOR ASSY Z | 1 |
| 22 | 41730044 | MOTOI HARNESS P | 1 |
| 23 | S05133 | BOLT SOCKET M4 X 12 | 4 |
| 24 | 41725009 | WORK CLAMP DRIV NG GEAR | 1 |
| 25 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 26 | 41702020 | WORK CLAMP FULCRUM SHAFT | 1 |
| 27 | B10015 | BALL BEARING 6900ZZ | 2 |
| 28 | H03008 | RETAIN NG RING EXTERNAL C10 | 2 |
| 29 | S04035 | SCREW PAIN M4 X 6 | 1 |
| 30 | W01001 | WAS也R PLAIN M4 | 1 |
| 31 | 41725010 | WORK CLAMP CAM GEAR | 1 |
| 32 | S10021 | SET SCREW SOCKET (CN) M6 X 10 | 1 |
| 33 | S10019 | SET SCREW SOCK ET (FT)M6 X 6 | 1 |
| 34 | 4171000200 | WORK CLAMP CAM | 1 |
| 37 | S10019 | SET SCREW SOCKET (FT)M6 X 6 | 1 |
| 38 | 4170301700 | WORK CLAMP H-POS TION DOG | 1 |
| 39 | S05115 | BOLT SOCKET M4X 6 | 1 |
| 40 | 41702025 | WORK CLAMP LEVER SHAFT | 1 |
| 41 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 42 | 41709023 | STEPPING W-CLAMP DRIVING LEVER | 1 |
| 43 | 41702022 | W-CLAMP LIFTER ROLLER SHAFT | 1 |
| 44 | B04026 | BALL BEARING RAD AL 696ZZ | 1 |
| 45 | 41728005 | WASHER | 1 |
| 46 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 1 |
| 47 | 400683 | WORK CLAMP DRIVING SHAFT | 1 |
| 48 | 41702022 | W-CLAMP LIFTER ROLLER SHAFT | 1 |
| 49 | B04026 | BALL BEARING RAD AL 696ZZ | 1 |
| 50 | 41728005 | WASHER | 1 |
| 51 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 1 |
| 52 | 41728001 | WASHER PLAIN 10 | 1 |
| 53 | 41712061 | WORK CLAMP CAM STOPPER | 1 |
| 54 | S04035 | SCREW PAN M4 X 6 | 2 |
| 55 | 41712062 | WORK CLAMP SENSOR PLATE | 1 |
| 56 | S04035 | SCREW PAN M4 X 6 | 2 |
| 57 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 59 | S05110 | BOLT SOCKET M6 X 12 | 2 |
Page 113 — D3、抬压装置/Work clamp lifter mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41701008 | MOTOR BRACKET | 1 |
| 2 | 41712063 | WORK CLAMP MOTOR PLATE | 1 |
| 3 | S05121 | BOLT SOCKET M5X10 | 2 |
| 6 | S05133 | BOLT SOCKET M4X10 | 4 |
| 7 | 41725009 | WORK CLAMP DRIVING GEAR | 1 |
| 8 | S10019 | SET SCREW SOCKET M6X6 | 2 |
| 9 | 41702020 | WORK CLAMP FULCRUM SHAFT | 1 |
| 10 | B10015 | BALL BEARING 6900ZZNR | 2 |
| 11 | H03008 | RETAINING RING EXTERNAL C10 | 2 |
| 12 | S04035 | SCREW PAN M4X6 | 1 |
| 13 | W01001 | WASHER PLAIN M4 | 1 |
| 14 | 41725010 | WORK CLAMP CAM GEAR | 1 |
| 15 | S10021 | SET SCREW SOCKET M6X10 | 1 |
| 16 | S10019 | SET SCREW SOCKET M6X6 | 1 |
| 17 | 4170301700 | WORK CLAMP H-POSITION DOG | 1 |
| 18 | S05115 | BOLT SOCKET M4X6 | 1 |
| 19 | 41702025 | WORK CLAMP LEVER SHAFT | 1 |
| 20 | S10019 | SET SCREW SOCKET M6X6 | 1 |
| 21 | 41709023 | STEPPING W-CLAMP DRIVING LEVER | 1 |
| 22 | 41702022 | W-CLAMP LIFTER ROLLER SHAFT | 1 |
| 23 | B04026 | BALL BEARING RADIAL 696ZZ | 1 |
| 24 | 41728005 | WASHER | 1 |
| 25 | S09019 | SET SCREW SOCKET M5X5 | 1 |
| 26 | 41712062 | WORK CLAMP SENSOR PLATE | 1 |
| 27 | S04035 | SCREW PAN M4X6 | 2 |
| 29 | S05110 | BOLT SOCKET M6X12 | 2 |
| 33 | 41708302 | SET SCREW COLLAR | 1 |
| 34 | S10019 | SET SCREW SOCKET M6X6 | 2 |
| 35 | S10019 | SET SCREW SOCKET M6X6 | 1 |
| 40 | 41728001 | WASHER PLAIN 10 | 1 |
Page 115 — E、下轴装置/Lower shaf t mechan sm
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 417S20062 | SHOULDER SCREW | 1 |
| 2 | 417S16001 | NUT(FT) M6 | 1 |
| 3 | 41725011 | ROCK GEAR | 1 |
| 4 | 41702027 | ROCK GEAR SHAFT | 1 |
| 5 | 41708002 | SET SCREW COLLAR 8 | 1 |
| 6 | S09041 | SET SCREW SOCKET (FT) M6 X 5 | 2 |
| 7 | 41708006 | SET SCREW COLLAR | 1 |
| 8 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 9 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 10 | 4170202800 | LOWER SHAFT ASSY | 1 |
| 10-1 | 41702028 | LOWER SHAFT | 1 |
| 10-2 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 1 |
| 12 | 41703019 | LOWER SHAFT BUSH | 1 |
| 13 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 14 | 41702029 | ADJUSTING STUD | 2 |
| 15 | 41722015 | o RING PW3 | 2 |
| 16 | 41701009 | SHUTTLE RACE BASE ASSY G | 1 |
| 17 | 41712190 | SHUTTLE RACE THREAD GUIDE | 1 |
| 18 | 417S15007 | SCREW M3 X 4 | 2 |
| 19 | 41712601500 | S-RACE BASE SETTING CLAW | 2 |
| 20 | 41727006 | COMPRESSION SPRING | 2 |
| 21 | W01002 | WASHER PLAIN M3 | 2 |
| 22 | S04082 | SCREW PAN M3 X 6 | 2 |
| 23 | 41723013 | S-RACE BASE FELT | 2 |
| 29 | 41723012 | FELT L=360 | 2 |
| 30 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 31 | H05032 | RETAINING RING E7 | 1 |
| 32 | 41718001 | DRWER D | 1 |
| 33 | S05122 | 80LT SOCKET M5 X 12 | 1 |
| 34 | 41718002 | SHUTTLE RACE BASE | 1 |
| 35 | 4171801700 | BOBBIN CASE ASSY | 1 |
| 36 | 41727015 | TENSION SPRING | 1 |
| 37 | 417S30005 | SCREW | 1 |
| 38 | 41727016 | ANTI-SPIN SPRING | 1 |
| 39 | 41718004 | BOBBIN | 1 |
| 40 | 41703020 | SET SCREW COLLAR R | 1 |
| 41 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 1 |
| 42 | 41718018 | SHUTTLE HOOK | 1 |
| 43 | 12923018 | W ICK 4X4 L=400 | 1 |
| 44 | 41711027 | BUSH | 1 |
| 45 | 41724008 | NEEDLE BEARING | 2 |
| 46 | 41711028 | SPACER COLLER | 2 |
| 47 | 41729005 | RETAINING RING | 2 |
Page 117 — F、供油润滑装置 / Lubrication
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 417S30022 | SET SCREW | 1 |
| 2 | 41712065 | CRANK COVER | 1 |
| 3 | S04038 | SCREW PAN M6X10 | 3 |
| 4 | 41712066 | CRANK WICK PLATE | 1 |
| 5 | S04035 | SCREW PAN M4X6 | 2 |
| 6 | 41723027 | FLAT WICK | 0.27 |
| 7 | 41723005 | FELT | 1 |
| 8 | 41712067 | LOWER SHAFT WICK SUPPORT | 1 |
| 9 | 41723006 | LOWER SHAFT GEAR FELT | 1 |
| 10 | S04035 | BOLT SOCKET M4X6 | 2 |
| 11 | 41712068 | WICK SUPPORT | 1 |
| 12 | S04035 | SCREW PAN M4X6 | 1 |
| 14 | 41723026 | FLAT WICK | 1 |
| 16 | 12921002 | OIL TUBE | 0.21 |
| 17 | 41712069 | WICK SUPPORT | 1 |
| 18 | 41712070 | WICK SUPPORT | 1 |
| 19 | 41711003 | OIL GAUGE WINDOW | 1 |
| 19 | 41711021 | 1 | |
| 19 | 41722030 | 1 | |
| 20 | 41711004 | OIL GAUGE WINDOW | 1 |
| 20 | 41711022 | 1 | |
| 20 | 41722031 | 1 | |
| 23 | 12923018 | WICK 4X4 | 0.68 |
| 24 | 12921002 | OIL TUBE | 0.45 |
| 25 | 12921005 | OIL TUBE | 0.3 |
| 25 | 12923018 | WICK 4X4 | 0.4 |
| 26 | 12923019 | WICK 6X6 | 0.3 |
| 27 | 41723011 | FELT | 4 |
| 30 | 41712071 | GEAR WICK SUPPORT | 1 |
| 31 | 41723031 | GEAR FELT | 1 |
| 32 | 41712072 | LOWER SHAFT WICK SUPPORT B | 1 |
| 33 | S04033 | SCREW PAN M6X8 | 1 |
| 34 | 41712073 | TUBE HOLDER | 1 |
| 35 | S04035 | SCREW PAN M4X6 | 1 |
| 36 | 12923019 | WICK 6X6 | 0.7 |
| 37 | 12921005 | OIL TUBE | 0.82 |
| 38 | 41711014 | CORD HOLDER 6.4 | 1 |
| 39 | 41711016 | CORD HOLDER 8.4 | 1 |
| 40 | 417S30025 | SCREW PAN(S/P WASHER) M4X10 | 1 |
| 40 | 417S30025 | SCREW PAN(S/P WASHER) M4X10 | 6 |
| 41 | 41711014 | CORD HOLDER6.4 | 1 |
| 42 | 417S30025 | SCREW PAN(S/P WASHER) M4X10 | 5 |
| 43 | 41712074 | OIL COVER | 1 |
| 45 | 403S11043 | SCREW PAN M4X10 | 5 |
| 46 | 41736001 | TERMINAL L | 1 |
| 47 | 41722016 | RUBBER CAP 4.2 | 1 |
| 52 | 41723026 | WICK 2.5X200 | 0.2 |
| 53 | 12921002 | OIL TUBE | 0.11 |
| 54 | 41736002 | OIL FEEDING PIPE | 1 |
| 55 | 41711016 | CORD HOLDER 8.4 | 2 |
| 60 | 12921002 | OIL TUBE | 0.3 |
| 61 | 41711015 | CORD HOLDER 13.2 | 6 |
| 63 | 41712110 | WICK SUPPORT L | 1 |
| 64 | 41723024 | FELT BED L | 1 |
| 65 | S04035 | SCREW PAN M4X6 | 3 |
Page 119 — F、供油润滑装置 / Lubrication
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 66 | 028040246 | WASHER SPRING 2-4 | 3 |
| 67 | SA6582001 | WICK SUPPORT R | 1 |
| 68 | SA6584001 | FELT BED R | 1 |
| 69 | S25310101 | SCREW FLAT M4X9 | 3 |
Page 121 — G. 穿线装置/Threading mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41712077 | ARM THREAD GUIDE A | 1 |
| 2 | S04030 | SCREW PAN M5 X 6 | 1 |
| 3 | 41712078 | ARM THREAD GUIDE B | 1 |
| 4 | S04030 | SCREW PAN M5 X 6 | 1 |
| 5 | 41712079 | ARM THREAD GUIDE C | 1 |
| 6 | S04030 | SCREW PAN M5 X 6 | 1 |
| 7 | 41702030 | UPPER THREAD GUIDE STUD | 1 |
| 8 | 41713001 | TENSION BRACKET | 1 |
| 9 | 41713002 | THREAD TAKE-UP SPRING | 1 |
| 10 | 41713003 | TENSION STUP | 1 |
| 11 | 138S16013 | TENSION NUT | 1 |
| 12 | 41713005 | TENSION DISC PRESSER | 1 |
| 13 | 41713006 | DISC TENSION | 1 |
| 14 | 417515012 | SET SCREW SM3. 75 | 1 |
| 15 | S12001 | SET SCREW (FT) M6 X 8 | 1 |
| 16 | 41702031 | TEN5ION RELEASE PIN | 1 |
| 17 | 41713007 | TENSION STUD A | 1 |
| 18 | 41713006 | DISC TENSION | 2 |
| 19 | 41712080 | THREAD GUIDE ARM | 1 |
| 19 | 41722320 | RUBBER | 1 |
| 19 | N01024 | NUT M4 | 1 |
| 20 | 41726014 | NEEOLE SLEEVE | 1 |
| 21 | 41712082 | N-BAR BUSH THREAD GUIDE D | 1 |
| 22 | 41203018 | NEEDLE COOLER ASSY | 1 |
| 22 | 41222019 | RUBBER | 1 |
| 23 | S10019 | SET SCREW S0CKET (FT) M6 X 6 | 1 |
| 24 | 41223043 | FELT 8 X 15.5 | 1 |
| 25 | 41213008 | NEEDLE COOLER THREAD GUIDE | 1 |
| 26 | 409S11017 | SCREW PAN SM3. 57-40 X 4 | 1 |
| 27 | 41713009 | TENSION NUT | 1 |
| 28 | 41713012 | SUB TENSION SPRING | 1 |
| 29 | 41713011 | WASHER | 1 |
| 30 | 41713010 | TENSION SPRING | 1 |
| 31 | 4171302000 | MAIN TENSION ASSY Q | 1 |
| 32 | 4171301400 | DEPUTY TENSION ASSY | 1 |
Page 123 — H、卷线装置/Bobbin winder mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 301382 | TOP COVER | 1 |
| 2 | 41702033 | SHAFT BW-LEVER | 1 |
| 3 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 1 |
| 4 | 41709026 | BOBBIN WINDER LEVER | 1 |
| 5 | 41702034 | SPRING HOOK | 1 |
| 6 | 41712084 | PLATE SPRING | 1 |
| 7 | 41712085 | WASHER | 1 |
| 8 | S04077 | SCREW PAN M3. 5 X 6 | 1 |
| 9 | W01015 | WASHER | 1 |
| 10 | H05006 | RETAINING RING E5 | 1 |
| 11 | 41702035 | STUD B-WINDER | 1 |
| 12 | 41709027 | BOBBINPRESSER ARM | 1 |
| 13 | S01081 | SCREW PAN 4 X 12 | 1 |
| 14 | 41712086 | BOBBIN PRESSER | 1 |
| 15 | 417S15006 | SCREW M4 X 5 | 1 |
| 16 | 41709028 | CLAW B-WINDER | 1 |
| 17 | S09006 | SET SCR EW SOCKET (FT)M4 X 4 | 2 |
| 18 | 41727007 | SPRING TWIST | 1 |
| 19 | H05006 | RETA NING RING E5 | 2 |
| 20 | 41708025 | SPRCER COLLER | 1 |
| 21 | 41702036 | BOBBIN WINDER SHAFT | 1 |
| 22 | 11703021 | WHEEL B-WINDER | 1 |
| 23 | 41722017 | BOBBIN WINDER RUBBER BAND | 1 |
| 24 | S09006 | SET SCREW SOCKET (FT) M4 X 4 | 2 |
| 25 | W01015 | WASHER | 2 |
| 26 | 41711063 | BOBBIN SUPPORT | 1 |
| 27 | 41727008 | SPRING | 1 |
| 28 | 41702037 | STPPER SHAFT B-WINDER | 1 |
| 29 | 41719001 | KNIFT | 1 |
| 30 | S04030 | SCREW PAN M5 X 6 | 1 |
| 31 | 4171302100 | BOBBIN WINDER TENS ON ASSY Q | 1 |
| 32 | 41713006 | DISC TENSION | 2 |
| 33 | 12927016 | TENSION SPR NG | 1 |
| 34 | 138S16013 | TENSION NUT | 1 |
| 35 | 41713011 | WASHER | 1 |
| 36 | S09019 | SET SCREW SOCKET (FT) M5 X 5 | 1 |
| 37 | S04038 | SCREW PAN M6 X 10 | 6 |
| 38 | 41704002 | DR VING WHEEL B-WINDER | 1 |
| 39 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
Page 125 — J、切线装置 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41710003 | THREAD TRIMMER CAM | 1 |
| 2 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 3 |
| 3 | 41712087 | SETTING PLATE SOLENOID | 1 |
| 4 | 41730001 | THREAD TRIMMER SOLENOID | 1 |
| 5 | L02031 | BOLT M4X8 | 2 |
| 6 | W02008 | WASHER SPRING 2-4 | 4 |
| 7 | W01001 | WASHER PLAIN M4 | 2 |
| 8 | 41702038 | SOLENOID LEVER | 1 |
| 9 | S09006 | SET SCREW SOCKET (FT) M4 X 4 | 1 |
| 11 | 41728033 | WASHEWR | 1 |
| 13 | 417S30306 | BOLT SCREW SOCKET M5 X 10 | 2 |
| 14 | 41712088 | PUSHING LEVER D-LEVER | 1 |
| 15 | 417S30012 | SHOULDER SCREW 7-3 | 1 |
| 16 | 4171211100 | TR-DRIVING LEVER | 1 |
| 17 | 41703022 | COLLAR TR-TRIMMER | 1 |
| 18 | 41702039 | COLLAR SHAFT | 1 |
| 19 | 417S12009 | SET SCREW M4 X 5 | 1 |
| 20 | H05029 | RETAINING RING E4 | 1 |
| 21 | 41702040 | TIIREAD TRIMMER RODV | 1 |
| 22 | 4170500300 | BALL JOINT ASSY | 2 |
| 23 | N01021 | NUT 1 M6 | 2 |
| 24 | 417S12005 | SHOULDER SCREW B M6 | 1 |
| 25 | N01012 | NUT 3 M6 | 1 |
| 26 | S10018 | SET SCREW SOCKET (FT) M6 X 6 | 1 |
| 27 | 41703023 | BUSH 8X15 | 1 |
| 28 | 41702041 | GUIDE SHAFT | 1 |
| 29 | 41727009 | SPRING COMPRESSION | 1 |
| 30 | 41722018 | CUSHION | 1 |
| 31 | 417S12005 | SHOULDER SCREW B M6 | 1 |
| 32 | N01012 | NUT 3 M6 | 1 |
| 33 | 417S10003 | SET SCREW M6 x 19 | 1 |
| 34 | N01021 | NUT 1 M6 | 1 |
| 35 | 41712089 | THREAD TRIMMER LEVER V | 1 |
| 36 | 41712090 | THREAD TRIMMER LEVER H | 1 |
| 37 | 41712091 | THREAD TRIMMER ROD H | 1 |
| 38 | 4170500300 | BALL JOTNT ASSY | 2 |
| 39 | N01021 | NUT 1 M6 | 2 |
| 40 | 417S12005 | SHOULDER SCREW B M6 | 1 |
| 41 | N01012 | NUT 3 M6 | 1 |
| 42 | 41702042 | SHAFT TR-TRIMMER LEVER | 1 |
| 43 | 41728023 | SPACER | 2 |
| 44 | H03006 | RETAINING RING EXTERNAL C8 | 1 |
| 45 | S10019 | SET SCREW SOCKET (FT) M6 X 6 | 2 |
| 46 | 41712092 | SPRING HOOK | 1 |
| 47 | 41727010 | SPRING EXTENSION | 1 |
| 48 | S05123 | BOLT SOCKET M5 x 12 | 1 |
| 49 | W02001 | WASHER SPRING 2-5 | 1 |
Page 127 — J, 切线装置 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 50 | 41728028 | WASHER PLAIN 5 | 1 |
| 51 | 41709029 | MOVING KNIFE LEVER | 1 |
| 52 | 417S12007 | SHOULDER SCREW 6. 35-6 | 1 |
| 53 | 41702043 | SHAFT MOVABLE KNIFE LEVER | 1 |
| 54 | S10019 | SET SCREW SOCKET M6X6 | 1 |
| 55 | 41712093 | M-KNIFE CONNECTINC PLATE | 1 |
| 56 | 417S30013 | SHOULDER SCREW 6—1.8 | 1 |
| 57 | 4171500100 | NEEDLE PLATE A | 1 |
| 58 | 4170903000 | MOVABLE KNIFE ASSY F | 1 |
| 59 | 417S30014 | MOVABLE KNIFE SHOULDER SCREW | 1 |
| 60 | 41728007 | THRUST WASHER | 1 |
| 61 | 41728008 | MOVABLE KNIFE COLLAR | 1 |
| 62 | 41728009 | M-KNIFE SPACER T0.2 | 1 |
| 62 | 41728009 | M-KNIFE SPACER T0.3 | 1 |
| 62 | 41728009 | M-KNIFE SPACER T0.4 | 1 |
| 63 | 41719002 | FIXED KNIFE F | 1 |
| 64 | S04036 | SCREW PAN M3 x 4 | 2 |
| 65 | W01002 | WASHER PLAIN M3 | 2 |
| 66 | 41712094 | NEEDLE HOLE PLATE | 1 |
| 67 | 417S17001 | SCREW | 2 |
| 68 | S02039 | BOLT SOCKET M4 x 9 | 2 |
| 69 | 417S15008 | BOLT SOCKET M4 x 8 | 2 |
| 70 | 41712095 | SHUTTLE BASE COVER HOOK U | 1 |
| 71 | w02007 | WASHER SPRING 2-3 | 2 |
| 72 | W01002 | WASHER PLAIN M3 | 2 |
| 73 | S04036 | SCREW PAN M3 X 4 | 2 |
Page 129 — K, 扫线装置/Thread wiper mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41730002 | THREAD WIPER SOLENOIO ASSY | 1 |
| 1-2 | 41727011 | THREAD WIPER SPRING | 1 |
| 3 | 41728011 | WASHER PLAIN | 1 |
| 1-4 | 41726007 | PLUNGER PIN | 3 |
| 5 | 41712210 | T-WIPER SOLENOID SETTING PLATE | 1 |
| 6 | 41711210 | SOLENOIO COVER Q | 1 |
| 7 | S04082 | SCREW PAN M3 X 6 | 6 |
| 8 | 41712096 | THREAD WIPER SHAFT BRACKET | 1 |
| 9 | S05116 | BOLT SOCKET M4x8 | 1 |
| 10 | W01001 | WAS HER PLAN M4 | 1 |
| 11 | 4170204400 | THREAD WIPER CRANK ASSY | 1 |
| 12 | H05029 | RETAINING RING E4 | 1 |
| 13 | 41708007 | SET SCREW COLLAR | 1 |
| 14 | 417S15005 | SET SCREW (CP)M3. 5-5 | 1 |
| 15 | 41727012 | SPRING | 1 |
| 16 | 41722012 | RUBBER WASHER | 1 |
| 17 | 41712097 | THREAD WIPER ROD | 1 |
| 18 | W01024 | WASHER | 1 |
| 19 | H05002 | RETAINING RING E3 | 1 |
| 20 | 41712098 | WIPER | 1 |
| 21 | 417S15013 | SCREW BIND M4 X 5 | 1 |
| 22 | 41708008 | THREAD WIPER STUD COLLAR | 1 |
| 23 | 41728034 | WASHER | 1 |
| 24 | 41730003 | STOP SWITCH ASSY | 1 |
| 25 | 417S30306 | BOLT SOCKET (S/P WASHER) M5 X 15 | 2 |
| 26 | 41730022 | SOLENOID VALVE WIRING | 1 |
| 27 | 41730059 | WIPER SWITCH PLUG INS B | 1 |
| 28 | 141730001 | STOP SWITCH PLUG INS B | 1 |
Page 131 — L, 松线装置/Tension release mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SA485500 1 | TENSION RELEASE SOLENOID HV | 1 |
| 2 | 17400802 | BOLT M4 X 8 | 2 |
| 3 | 28040246 | WASHER SPRINC 2-4 | 2 |
| 4 | 25040236 | WASHER PLAIN M4 | 2 |
| 5 | 17401415 | BOLT M4 X 18 | 1 |
| 1-6 | 21400306 | NUT 3 M4 | 1 |
| 1-7 | 25040236 | WASHER PLANT M4 | 1 |
| 1-8 | 154599000 | SOLENOID CUSHION | 1 |
| 9 | SA6389001 | SETTING PLATE SOLENOID | 1 |
| 1-10 | S04159000 | BAND 1M | 1 |
| 11 | SA3347001 | TENSION RELEASE BAR | 1 |
| 12 | 48040342 | RETA INING RING E4 | 1 |
| 13 | 25050236 | WASHER PLAIN M5 | 1 |
| 14 | SA3348001 | SPRING COMPRESSION | 1 |
| 15 | SA3349001 | SOLENOID COVER | 1 |
| 16 | SA3306001 | SHOULDE SCREW 7-3 | 2 |
| 17 | 81007070 | O RING P7 | 2 |
| 1-18 | 218859001 | BINOER M150 | 1 |
Page 133 — M、电控装置/Electronic control device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41730450 | BASE PLATE | 1 |
| 2 | 41330121 | SHORT COLUMNS | 5 |
| 3 | 41730451 | FRONT PLATE | 1 |
| 4 | 41330124 | LONG COLUMNS | 7 |
| 5 | 41730449 | PCB 1 | 1 |
| 6 | 41730452 | COVER | 1 |
| 7 | 41330129 | SCREW | 12 |
| 8 | 41730453 | BACK PLATE | 1 |
| 9 | 41730448 | PCB 2 | 1 |
| 10 | 4173044800 | CONTROL PANEL | 1 |
| 11 | 41730446 | TOUCH-SCREEN | 1 |
| 12 | 41730454 | FRONT COVER | 1 |
| 13 | 810087 | SUPPORT STRIP | 1 |
| 14 | 41730447 | PCB 3 | 1 |
| 15 | 41730455 | BACK COVER | 1 |
| 16 | 810530 | CONNECTERS | 1 |
Page 135 — P、空压装置/Air pressure mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 42130096 | VALVE VHK3 | 1 |
| 2 | 141845004 | AIR VALVE | 1 |
| 3 | 417S30026 | TOINT | 1 |
| 4 | 407S12002 | SCREW | 2 |
| 5 | 41730014 | MANIFOLD2 | 1 |
| 6 | 40728003 | SILENCER | 2 |
| 7 | 41730012 | VALVE M5B075-02-R-B | 2 |
| 8 | 41730013 | VALVE CONNECTOR | 4 |
| 9 | 41730033 | BLANK NG PLATE ASSY | 3 |
| 10 | 417S30024 | 80LT SOCKET M4 X 30 | 2 |
| 11 | 41712106 | SETTING PLATE VALVE | 1 |
| 12 | N01024 | NUT M4 | 2 |
| 13 | 417S30025 | SCREW PAN M4X10 | 1 |
| 14 | 41711016 | CORD HOLDER 13.2 | 1 |
| 17 | 61911006 | AIR TUBE L | 2 |
| 18 | 61911006 | AIR TUBE R | 2 |
| 19 | 61911006 | AIR TUBE R | 2 |
| 20 | 61911006 | AIR TUBE L | 2 |
Page 137 — Q、电气部品装置/Power supply equipment mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 525567000 | CORD HOLDER 13.2 | 3 |
| 2 | 149547000 | CORD HOLDER 6.4 | 1 |
| 3 | 525567000 | CORD HOLDER 16 | 3 |
| 4 | OA5401006 | SCREW PAN M4X10DB | 7 |
| 5 | SA4830001 | H-POSITION SENSOR ASSY | 1 |
| 6 | 62300816 | SCREW PAN M3X8 | 3 |
| 7 | SA3481001 | SWITCH ASSY MACHINE HEAD | 1 |
| 8 | OA5301605 | SCREW PAN(S/PWASHER) M4X16DB | 2 |
| 9 | OA5401006 | SCREW PAN(S/PWASHER) M4X10DB | 2 |
| 10 | SA4824001 | HEAD DETECTOR UNIT ASSY | 1 |
| 11 | SA5210001 | THREAD WIPER SOLENOID HARNESS | 1 |
| 12 | SA521400 1 | STOP SWITCH HARNESS | 1 |
| 13 | SA5261001 | GROUND WIRE 450 | 1 |
| 14 | OA5401006 | SCREW PAN(S/P WASHER) M4 X 10D8 | 1 |
| 15 | 554482000 | CORD HOLDER 19 | 1 |
| 16 | 554482000 | CORD HOLDER 23 | 1 |
| 17 | OA5401006 | SCREW PAN(S/P WASHER)M4X 10 | 2 |
| 21 | S04159000 | BAND | 8 |

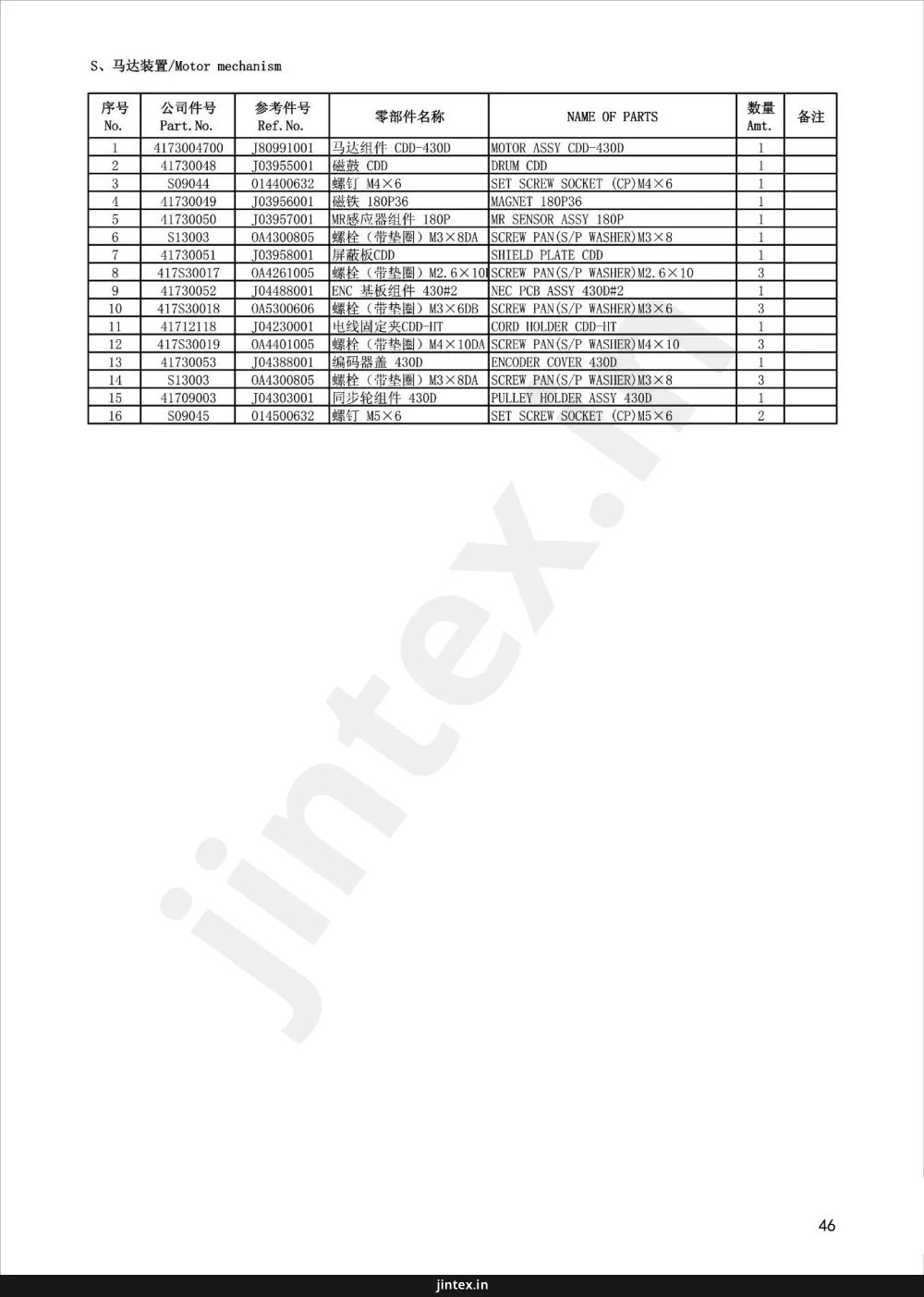

Page 139 — S、马达装置/Motor mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4173004700 | MOTOR ASSY CDD-430D | 1 |
| 2 | 41730048 | DRUM CDD | 1 |
| 3 | S09044 | SET SCREW SOCKET (CP)M4X6 | 1 |
| 4 | 41730049 | MAGNET 180P36 | 1 |
| 5 | 41730050 | MR SENSOR ASSY 180P | 1 |
| 6 | S13003 | SCREW PAN(S/P WASHER)M3X8 | 1 |
| 7 | 41730051 | SHIELD PLATE CDD | 1 |
| 8 | 417S30017 | SCREW PAN(S/P WASHER)M2.6X10 | 3 |
| 9 | 41730052 | NEC PCB ASSY 430D#2 | 1 |
| 10 | 417S30018 | SCREW PAN(S/P WASHER)M3X6 | 3 |
| 11 | 41712118 | CORD HOLDER CDD-HT | 1 |
| 12 | 417S30019 | SCREW PAN(S/P WASHER)M4X10 | 3 |
| 13 | 41730053 | ENCODER COVER 430D | 1 |
| 14 | S13003 | SCREW PAN(S/P WASHER)M3X8 | 3 |
| 15 | 41709003 | PULLEY HOLDER ASSY 430D | 1 |
| 16 | S09045 | SET SCREW SOCKET (CP)M5X6 | 2 |
Page 141 — T、踏板关系/Foot switch pedal mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4173001200 | TREADLE UINT.A ASSY | 1 |
| 2 | 4173004500 | 2-PEDAL FOOT SWITCH SW ASSY | 1 |
| 3 | 41727018 | SPRING COMPRESSION 10×30 | 1 |
| 4 | 41727018 | FOOT PEDAL SPRING | 2 |
| 5 | 41730046 | PIN BUTTON MICRO SWITCH VX | 3 |
| 6 | 41712115 | FOOT PEDAL | 2 |
| 7 | 41712116 | PROTECTION PLATE PEDAL | 2 |
| 8 | 41712117 | SPRING PLATE | 2 |
Page 143 — Z、附件/Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41711212 | MOTOR COVER Q | 1 |
| 3 | S04038 | SCREW PAN M6 X 10 | 4 |
| 4 | 41711031 | OIL PAN | 1 |
| 5 | 41711006 | DUST OILER COVER | 1 |
| 7 | 41722005 | RUBBER CUSHION | 3 |
| 8 | 101530010 | NAIL | 7 |
| 9 | 41711066 | DUST OILER | 1 |
| 10 | 20131076 | ACCESSORY BAG | 1 |
| 11 | 41712355 | SCREW-DRIVER FOR | 1 |
| 12 | 41718004 | BOBBIN LAN | 3 |
| 13 | 41532020 | CASTERS | 4 |
| 14 | 41217002 | NEEDLE | 5 |
| 15 | 11631008 | OILER ASSY | 1 |
| 16 | 1011101200 | OIL TANK ASSY | 1 |
| 17 | 10131004 | SCREW-DRIVER 1.9 X 52 | 1 |
| 18 | 10131003 | SCREW-DRIVER 3.4 X 70 | 1 |
| 19 | 10131002 | SCREW-DRIVER 5.5 X 190 | 1 |
| 20 | 30131005 | WRENCH 6 X 7 | 1 |
| 21 | 30131006 | WRENCH 8 X 10 | 1 |
| 22 | 20131051 | TWEEZERS | 1 |
| 23 | 30131007 | HEXAGONAL WRENCH 1.5 | 1 |
| 24 | 20131046 | HEXAGONAL WRENCH 2 | 1 |
| 25 | 30131010 | HEXAGONAL WRENCH 2.5 | 1 |
| 26 | 30131012 | HEXAGONAL WRENCH 3 | 1 |
| 27 | 30131047 | HEXAGONAL WRENCH 4 | 1 |
| 28 | 20131056 | HEXAGONAL WRENCH 5 | 1 |
| 29 | 1383100300 | COTTON STAND ASSY | 1 |
| 30 | 40730010 | SPIRAL TUBE | 1 |
| 31 | 40736001 | SPIRAL TUBE JOINT | 1 |
| 78 | 140744001 | RUST-PROOF BAG | 1 |
| 82 | 4121208400 | EYE GUARD ASSY | 1 |
| 83 | 4121208100 | HINGE ASSY | 1 |
| 84 | 41212082 | EYE GUARD HINGE | 1 |
| 88 | 41211005 | EYE GUARD | 1 |
| 89 | 412S17004 | SCREW FLAT SM3. 18-40 X 8 | 2 |
| 90 | 412S16012 | NUT M3. 18 | 2 |
| 91 | 41228047 | WASHER PLAIN M3 | 2 |
| 92 | 41211005 | EYE GUARD HOLDER A | 2 |
| 93 | 401S11022 | SCREW PAN SM3.57-40 X 5 | 2 |
| 94 | S04035 | SCREW PAN M4 X 6 | 2 |
Page 145 — Z、附件/Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 97 | SA3395001 | RUBBER CUSHION | 2 |
| 98 | SA3392001 | SPACER | 2 |
| 99 | SA3384001 | PIN | 2 |
| 100 | 12060636 | SET SCREW SOCKET (CP) M6 X 6 | 2 |
| 101 | SA3385001 | HINGE HOLDER | 2 |
| 102 | 18066036 | BOLT SOCKET M6 X 50 | 4 |
| 103 | 213650001 | WASHER 2.3 X 8.5 X 38 | 4 |
| 105 | 21060106 | NUT M6 | 4 |
| 106 | SA3540001 | RUBBER CUSHION | 4 |
| 107 | SA4845001 | SHOCK ABSORBER GAS | 1 |
| 108 | 41712113 | HOLDER ABSORBER | 2 |
| 109 | SA5251001 | SPACER | I |
| 110 | 18064031 | BOLT SOCKET M6 X 40 | 1 |
| 111 | 21060106 | NUT 1 M6 | 1 |
| 112 | SA4847001 | SHAFT U | I |
| 113 | 12060636 | SET SCREW SOCKET (CP) M6 X 6 | 1 |
| 114 | S17974001 | SHAFT D | 1 |
| 115 | S17975100 | SHAFT COLLAR GAS | 2 |
| 116 | 25080132 | WASHER PLAIN S8 | 2 |
| 117 | 48060342 | RETAINING RING E6 | 2 |
| 118 | SA3387001 | BOLT SOCKET M6 X 60 | 2 |
| 119 | 25060236 | WASHER PLAIN M6 | 2 |
| 120 | 213650001 | WASHER 2.3 X 8.5 X38 | 2 |
| 121 | 28060246 | WASHER SPRING 2-6 | 2 |
| 122 | 21060106 | NUT 1 M6 | 2 |
| 128 | 41712114 | HOLDER ABSORBER COVER | 1 |
| 129 | S55479001 | BOLT SOCKET(S/P WASHER)M4 X 8 | 6 |
Page 146 — Ga. 工具一览表 / Gauge parts list
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S42843-001 | |||
| S42844-001 | |||
| S42845-001 | |||
| S42846-001 | |||
| S42847-001 | |||
| 157237-001 | |||
| 158592-001 | |||
| S42848-001 | |||
| S40214-001 | A-CUT | ||
| S49448-001 | B-L | ||
| S42849-101 | XA | ||
| SA4811-001 | H | ||
| SA3336-001 | 2.4 C0.4 | ||
| SA5221-001 | |||
| SA5222-001 | 3.0 C1.5 |
Jack JK-T1310 / JK-T2210 — parts catalog
- Page 1 (text): This page contains an introductory message in both Chinese and English, thanking the user for their purchase and providing guidance on using the manual.
- Page 2 (unknown): This page contains a watermark with the text "jinteх.in" and a footer with the same text.
- Page 3 (text): This page explains safety symbols and their meanings, including danger and caution warnings, as well as prohibition and mandatory action symbols.
- Page 4 (text): This page contains safety precautions for operating and installing the sewing machine, divided into 'Danger', 'Caution', and 'Installation' sections. It covers electrical safety, environmental conditions, and handling procedures.
- Page 5 (text): This page contains safety precautions and maintenance guidelines for the industrial sewing machine, including warnings about operation, cleaning, and repairs.
- Page 6 (diagram): This page contains a diagram illustrating various safety warnings and machine parts, including warnings for hazardous voltage, caution for moving parts, and symbols for grounding and direction of rotation, along with labeled components like the motor cover and needle guard.
- Page 7 (toc): This page contains the table of contents for the manual, listing sections such as "Part Name", "Specifications", "Installation Method", "Preparation Before Sewing", "Sewing", "Maintenance", "Standard Adjustment", and "Troubleshooting".
- Page 8 (diagram): This page displays a diagram of a sewing machine with various components labeled with reference numbers. It also includes a list of parts with their corresponding reference numbers and descriptions.
- Page 9 (text): This page contains specifications for the T1310 and T2210 A sewing machines, including details on stitch type, speed, dimensions, drive methods, and power requirements.
- Page 10 (diagram): This page contains installation instructions and a diagram for the sewing machine base, including dimensions and mounting hole specifications.
- Page 11 (diagram): This page contains diagrams and parts lists for installing the control box and the oil pan on an industrial sewing machine.
- Page 12 (diagram): This page shows the installation method for the sewing machine head, including a diagram with numbered parts and a list of parts with their corresponding numbers and quantities.
- Page 13 (diagram): This page shows a diagram illustrating the installation method for the needle plate auxiliary board and related components, with instructions and precautions for adjustment and mounting.
- Page 14 (diagram): This page shows a diagram illustrating the installation method for various parts of the sewing machine, including dampers, brackets, screws, and nuts, with a detailed list of components and a note regarding specific installation procedures.
- Page 15 (diagram): This page shows a diagram illustrating the installation method for a head switch, including a screw and its dimensions.
- Page 16 (diagram): This page illustrates how to tilt the sewing machine head, showing the movement of the presser bar and the correct way to lower the head to avoid damaging the cover.
- Page 17 (diagram): This page contains diagrams and instructions for installing the foot pedal assembly for electromagnetic and pneumatic specifications, including part details and operational notes.
- Page 18 (diagram): This page shows a diagram illustrating the installation method for the thread stand, with numbered components and instructions for proper assembly.
- Page 19 (diagram): This page shows the installation method for pneumatic composite components, including a diagram of the components and instructions for connecting air tubes and adjusting speed control.
- Page 20 (diagram): This page shows installation instructions for the eye guard and the shuttle cover, including diagrams and lists of parts.
- Page 21 (text): This page provides instructions on how to lubricate the sewing machine, including warnings and specific steps for different parts of the machine.
- Page 22 (diagram): This page shows a diagram illustrating the installation method for securing the machine head with a screw and washer, along with a note regarding removal during operation.
- Page 23 (text): This page contains instructions for installing the machine needle and threading the machine, with diagrams illustrating the steps.
- Page 24 (text): This page describes the preparation steps for threading a sewing machine, including entering and exiting threading mode, and pressing the presser foot.
- Page 25 (text): This page details the preparation and method for winding the bobbin on an industrial sewing machine, including important safety precautions and adjustments for even winding.
- Page 26 (text): This page describes the method for installing the bobbin case, including safety precautions and step-by-step instructions with diagrams.
- Page 27 (text): This page details the thread tension settings for different fabric types and provides instructions and diagrams for adjusting bottom thread tension and upper thread tension.
- Page 28 (text): This page details the method for sewing, including safety precautions and step-by-step instructions for operating the sewing machine.
- Page 29 (text): This page describes how to use the pause switch and the thread trimming switch on the sewing machine, with diagrams illustrating their locations and operation.
- Page 30 (text): This page contains maintenance instructions for a sewing machine, specifically focusing on cleaning the bobbin case and related components. It includes safety warnings and step-by-step procedures with diagrams.
- Page 31 (text): This page contains maintenance instructions for the sewing machine, including cleaning the control box air inlet, replacing lubricating oil, cleaning the needle plate, inspecting the needle, and oiling the machine.
- Page 32 (text): This page contains safety warnings and instructions for adjusting the sewing machine, including a section on confirming the head switch.
- Page 33 (text): This page contains information on standard adjustments for the thread tensioner and the bobbin case guide R, including specifications and adjustment procedures.
- Page 34 (diagram): This page contains diagrams and instructions for adjusting the needle bar height and needle bar stroke, with specific references to parts like the needle bar metal (1), screw (2), and eccentric shaft (3).
- Page 35 (text): This page contains instructions and diagrams for adjusting the needle bar, needle guide, and oil supply on an industrial sewing machine.
- Page 36 (diagram): This page contains diagrams and instructions for adjusting the position of the thread cutter, with numbered parts and specific measurements indicated.
- Page 37 (diagram): This page contains a diagram illustrating standard adjustments for a sewing machine, with numbered parts and detailed instructions for their manipulation.
- Page 38 (diagram): This page contains a diagram illustrating the replacement method for the moving knife and fixed knife, with numbered parts and step-by-step instructions.
- Page 39 (diagram): This page contains diagrams and instructions for adjusting the thread trimmer and the presser foot installation position.
- Page 40 (diagram): This page details the adjustment of the intermittent presser foot stroke, including a diagram and a table showing stroke ranges for different installation positions.
- Page 41 (diagram): This page contains diagrams and instructions for adjusting the position of the presser foot linkage, including steps for loosening screws, adjusting linkage position, and checking for interference with the needle plate and needle bar.
- Page 42 (diagram): This page contains diagrams and instructions for adjusting the presser foot lift and air pressure on an industrial sewing machine.
- Page 43 (text): This page contains troubleshooting information for common issues with the sewing machine, including sections on "Presser Foot Cannot Rise", "Presser Foot Cannot Lower", "Presser Foot Lift Height Incorrect", "Presser Foot Cannot Rise to Highest Point", "Bobbin Winder Operation Poor", "Thread Path Issues", and "Wire Breakage". Each issue is described with its cause and the corresponding remedy or action to take, with some actions referencing specific page numbers for further details.
- Page 44 (text): This page contains a troubleshooting guide for common sewing machine issues, listing phenomena, causes, solutions, and reference pages.
- Page 45 (text): This page contains a troubleshooting guide for common sewing machine issues, listing phenomena, causes, and corrective actions with corresponding page references.
- Page 46 (unknown): This page contains a watermark and a website address at the bottom.
- Page 47 (text): This page contains safety instructions and symbols for the sewing machine, including indications for danger and caution, and explanations of various symbols.
- Page 48 (text): This page contains safety instructions and environmental requirements for operating the sewing machine, including warnings about electrical hazards, temperature, humidity, and installation procedures.
- Page 49 (text): This page contains safety precautions and instructions for sewing machine operation, cleaning, and maintenance, including warnings about proper usage, protective gear, and handling potential issues.
- Page 50 (text): This page contains warning labels and safety instructions for the sewing machine, including hazardous voltage warnings, caution notices, and directions of operation.
- Page 51 (toc): This page contains the table of contents for the manual, listing sections such as Names of Major Parts, Specifications, Installation, Preparation Before Sewing, Cleaning, Standard Adjustments, and Troubleshooting, along with their corresponding page numbers.
- Page 52 (diagram): This page displays a diagram of the major parts of an industrial sewing machine, with a numbered list of components and their descriptions.
- Page 53 (text): This page contains specifications for the T1310 and T2210 A sewing machines, including details on stitch formation, speed, dimensions, feed mechanism, stitch length, memory capacity, work clamp, rotary hook, and power supply.
- Page 54 (diagram): This page contains a diagram illustrating the table processing and dimensions for installing a sewing machine, including details on table thickness, leg spacing, and control box placement.
- Page 55 (diagram): This page shows diagrams and parts lists for installing the control box and the oil pan, including components like bolts, washers, nuts, oil pan, and waste oil tank.
- Page 56 (diagram): This page shows a diagram for installing the machine head, including parts like pins, set screws, hinge rubber assemblies, hinge holders, bolts, plain washers, nuts, and head rest.
- Page 57 (diagram): This page shows a diagram illustrating the installation of an auxiliary plate and needle plate, with instructions on how to adjust them for proper height and orientation. It also includes a note about tilting the machine head.
- Page 58 (diagram): This page displays a diagram illustrating the installation of gas springs and related components, with a detailed list of parts including gas spring holders, spacers, bolts, nuts, and washers.
- Page 59 (diagram): This page shows a diagram illustrating the installation of a machine head switch and a screw, with accompanying instructions for securing the machine head.
- Page 60 (text): This page describes the procedure for tilting the sewing machine head, including a caution note about potential damage to the outer cover.
- Page 61 (diagram): This page details the installation of the treadle unit (solenoid specifications) and the two-pedal foot switch (pneumatic specifications), including diagrams and operating instructions.
- Page 62 (diagram): This page shows a diagram for installing the cotton stand, with numbered parts and instructions on how to fit the washer and tighten the nut.
- Page 63 (text): This page details the installation of the pneumatic unit, including a list of components, instructions for adjustment, and notes on operation.
- Page 64 (diagram): This page contains diagrams and parts lists for installing the eye guard and installing the motor cover on a sewing machine.
- Page 65 (text): This page provides instructions and warnings regarding the lubrication of the sewing machine, including steps for filling oil tanks and notes on oil levels and types.
- Page 66 (diagram): This page shows how to install the machine head fixing bolt, including a diagram and a note about removing the bolt when operating the machine.
- Page 67 (text): This page details the preparation steps for sewing, specifically focusing on installing the needle and threading the upper thread. It includes cautionary notes and step-by-step instructions with diagrams.
- Page 68 (text): This page describes the threading mode of the sewing machine, including how to turn on the power switch, press the home position key, thread the thread, and end the threading mode.
- Page 69 (text): This page details the process of winding the lower thread on a sewing machine, including cautions and adjustments for uneven winding.
- Page 70 (diagram): This page details the process of installing the bobbin case, including a caution notice and step-by-step instructions with corresponding diagram references.
- Page 71 (text): This page provides a reference table for thread tension settings for heavy-weight and medium-weight materials, along with diagrams and instructions for adjusting lower and upper thread tension.
- Page 72 (text): This page provides instructions on how to operate the sewing machine, including safety precautions and step-by-step guidance for sewing an article. It also includes a diagram illustrating the sewing process and related components.
- Page 73 (text): This page describes how to use the STOP switch and the thread wiper switch on the sewing machine, including instructions for continuing sewing after stopping and operating the thread wiper.
- Page 74 (text): This page contains safety precautions and instructions for cleaning the rotary hook of the sewing machine, including diagrams and numbered steps.
- Page 75 (text): This page contains instructions for cleaning the control box air inlet ports, draining the oil, cleaning the eye guard, checking the needle, and lubrication for an industrial sewing machine.
- Page 76 (text): This page contains safety precautions and instructions for checking the machine head switch, including a diagram illustrating the switch.
- Page 77 (text): This page details standard adjustments for thread take-up spring height and tension for different material weights, along with instructions for adjusting the arm thread guide R.
- Page 78 (text): This page contains instructions for adjusting the needle bar height, needle bar lift amount, and driver needle guard on an industrial sewing machine, along with diagrams illustrating these adjustments.
- Page 79 (text): This page details standard adjustments for a sewing machine, including adjusting needle clearance, adjusting the shuttle race thread guide, and rotary hook lubrication amount. It includes diagrams and notes for each adjustment.
- Page 80 (diagram): This page details the adjustment of the movable knife on a sewing machine, including numbered diagrams and step-by-step instructions for setting the correct distance.
- Page 81 (diagram): This page contains a diagram illustrating standard adjustments for a sewing machine, with numbered parts and detailed instructions for adjustments.
- Page 82 (diagram): This page illustrates the process of replacing the movable and fixed knives on an industrial sewing machine, including detailed diagrams and step-by-step instructions.
- Page 83 (diagram): This page contains diagrams and instructions for adjusting the thread wiper and installing the presser foot.
- Page 84 (text): This page describes how to change the intermittent stroke of a sewing machine by adjusting the position of the stepping clamp connecting rod, with a table showing different installation positions and their corresponding intermittent stroke ranges.
- Page 85 (text): This page details the adjustment procedure for the stepping clamp connecting rod and presser foot timing, including diagrams and step-by-step instructions.
- Page 86 (text): This page contains instructions for adjusting the work clamp lift amount and air pressure on an industrial sewing machine, including diagrams and numbered steps.
- Page 87 (text): This page contains troubleshooting information for common problems encountered with the sewing machine, including issues with the work clamp, thread wiper, and thread winding. It provides potential causes and remedies for each problem, along with corresponding reference page numbers.
- Page 88 (text): This page contains troubleshooting information for common sewing machine problems, including causes and remedies with corresponding reference page numbers.
- Page 89 (text): This page contains troubleshooting information for common sewing machine problems, including issues with upper thread trimming, stitch finish, thread tension, and machine operation, along with their causes and remedies.
- Page 90 (unknown): This page contains a watermark and a website address at the bottom.
- Page 91 (cover): This is the cover page of a parts book, titled "PARTS BOOK" in English and "零件样本" in Chinese.
- Page 92 (unknown): This page contains a watermark with the text "jinte.in" and a footer with the text "jinte.in". There is no other discernible content on this page.
- Page 93 (toc): This page contains the table of contents for the parts catalog, listing various mechanisms and components with their corresponding page numbers.
- Page 94 (diagram): This page displays a diagram of the machine body and its components, with numbered parts indicated for reference.
- Page 95 (parts_list): This page lists machine body parts with their corresponding part numbers, descriptions, quantities, and remarks. It includes items like bushings, pins, rubber caps, screws, and covers.
- Page 96 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, with numbered parts and their corresponding labels.
- Page 97 (parts_list): This page lists parts for the Upper shaft and needle bar mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 98 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts indicated for identification and replacement.
- Page 99 (parts_list): This page lists parts for the C1, Feed mechanism section of the machine, including part numbers, descriptions, quantities, and remarks.
- Page 100 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with various parts numbered for identification.
- Page 101 (parts_list): This page lists parts for the C2, Feed mechanism section of the machine, including part numbers, descriptions, quantities, and remarks.
- Page 102 (diagram): This page displays a diagram of the feed mechanism, with numbered parts and their corresponding references.
- Page 103 (parts_list): This page lists parts for the C2, Feed mechanism section, including part numbers, descriptions, quantities, and remarks.
- Page 104 (diagram): This page displays a diagram of the feed mechanism for a solenoid type sewing machine, with numbered parts and their corresponding references.
- Page 105 (parts_list): This page lists parts for the C3, Feed mechanism (T1310) section, including part numbers, descriptions, quantities, and reference numbers.
- Page 106 (diagram): This page displays a diagram of the feed mechanism for pneumatic type machines, as well as parts for models 1310 and 2210.
- Page 107 (parts_list): This page lists parts for the Feed mechanism (C4) of an industrial sewing machine, including part numbers, descriptions, quantities, and remarks.
- Page 108 (diagram): This page displays a diagram of the work clamp lifter mechanism, illustrating various components with reference numbers for identification.
- Page 109 (parts_list): This page lists parts for the D1, Work clamp lifter mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 110 (diagram): This page displays a diagram of the work clamp lifter mechanism for solenoid type machines, with numbered parts and their corresponding references.
- Page 111 (parts_list): This page lists parts for the D2 Work clamp lifter mechanism (T1310), including part numbers, descriptions, quantities, and remarks.
- Page 112 (diagram): This page displays a diagram of the work clamp lifter mechanism for pneumatic type machines, with numbered parts and their corresponding references.
- Page 113 (parts_list): This page lists parts for the D3, Work clamp lifter mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 114 (diagram): This page displays a diagram of the lower shaft mechanism, illustrating various components with reference numbers and part numbers.
- Page 115 (parts_list): This page lists parts for the Lower Shaft Mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 116 (diagram): This page displays a diagram of the lubrication system for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 117 (parts_list): This page lists parts for lubrication equipment, including part numbers, descriptions, quantities, and remarks.
- Page 118 (diagram): This page displays a diagram of the lubrication system for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 119 (parts_list): This page lists parts for the lubrication system, including part numbers, descriptions, quantities, and remarks.
- Page 120 (diagram): This page displays a diagram of the threading mechanism for an industrial sewing machine, with numbered parts indicated.
- Page 121 (parts_list): This page lists parts for the "G. Threading mechanism" section, including part numbers, descriptions, quantities, and remarks.
- Page 122 (diagram): This page displays a diagram of the bobbin winder mechanism, with numbered parts and their corresponding references.
- Page 123 (parts_list): This page lists parts for the H, Bobbin winder mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 124 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
- Page 125 (parts_list): This page lists parts for the J, Thread trimmer mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 126 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding details.
- Page 127 (parts_list): This page lists parts for the J, Thread trimmer mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 128 (diagram): This page displays a diagram of the thread wiper mechanism, with numbered parts and their corresponding references.
- Page 129 (parts_list): This page lists parts for the K, Thread wiper mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 130 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts and their corresponding details.
- Page 131 (parts_list): This page lists parts for the L,松线装置/Tension release mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 132 (diagram): This page displays a diagram of the electronic control device, with numbered parts indicating various components of the machine's control system.
- Page 133 (parts_list): This page lists parts for the Electronic Control Device, including part numbers, descriptions, quantities, and remarks.
- Page 134 (diagram): This page displays a diagram of the air pressure mechanism, with numbered parts and their corresponding references.
- Page 135 (parts_list): This page lists parts for the P, Air pressure mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 136 (diagram): This page displays a diagram of the power supply equipment mechanism, illustrating various components with reference numbers for identification.
- Page 137 (parts_list): This page lists parts for power supply equipment, including part numbers, descriptions, quantities, and remarks.
- Page 138 (diagram): This page displays a diagram of the motor mechanism, with numbered parts and their corresponding references.
- Page 139 (parts_list): Parts list for the motor mechanism section (S) listing 16 items with company part numbers, reference numbers, Chinese and English names, and quantities.
- Page 140 (diagram): This page displays diagrams for foot switch pedal mechanisms, including a solenoid type and a pneumatic type, with numbered parts for reference.
- Page 141 (parts_list): This page lists parts for the T, Foot switch pedal mechanism, including parts for solenoid and pneumatic types. It details part numbers, descriptions, quantities, and reference numbers.
- Page 142 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding references.
- Page 143 (parts_list): This page lists accessories for the sewing machine, including part numbers, descriptions, quantities, and remarks.
- Page 144 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding references.
- Page 145 (parts_list): This page lists accessories for industrial sewing machines, including part numbers, descriptions, quantities, and remarks.
- Page 146 (parts_list): This page lists various presser feet and needle hole plates with their part numbers and dimensions, including a note that parts marked with an asterisk are standard parts.
