Parts index — Jack JK-T1310 / JK-T2210tap a row to open its page

Page 6

Jack JK-T1310 / JK-T2210 parts on page 6
RefPart numberPart nameQty
11警告标签
22警告标签
33警告标签
44PE
55表示转动方向
马达盖马达盖
内盖 L内盖 L
外盖外盖
固定盖 L固定盖 L
挑线杆防护罩挑线杆防护罩
护眼板护眼板
内盖 R内盖 R
外盖外盖
固定盖 R固定盖 R
马达盖 R马达盖 R
马达盖 L马达盖 L
11缓冲器支架盖

Page 8 — 1. 各部件名称

Jack JK-T1310 / JK-T2210 parts on page 8
RefPart numberPart nameQty
(1)电源开关
(2)控制箱
(3)USB接口
(4)操作盘
(5)脚踏开关 (电磁规格)
(6)压脚开关 (空压规格)
(7)启动开关 (空压规格)
(8)暂停开关
(9)扫线用开关
(10)皮带轮
(11)线架
(12)电磁阀 (空压规格)
(13)护指器
(14)护眼板
(15)挑线杆防护罩
(16)马达罩

Page 9

Jack JK-T1310 / JK-T2210 parts on page 9
RefPart numberPart nameQty
S电磁式拾压脚
A空压式拾压脚

Page 11 — 3. 安装方法

Jack JK-T1310 / JK-T2210 parts on page 11
RefPart numberPart nameQty
(1)固定螺钉
(2)控制箱的盖子
(3)控制箱
(4)螺栓
(5)垫圈
(6)螺母
(1)油盘
(2)
(3)防震橡皮
(4)注油罐

Page 12 — 3-4. 缝纫机头部的安装方法

Jack JK-T1310 / JK-T2210 parts on page 12
RefPart numberPart nameQty
(1)机头支撑销2个
(2)螺钉2个
(3)机头链橡胶组2个
(4)机头链套2个
(5)螺栓4个
(6)垫圈4片
(7)螺母4个
(8)机头支撑杆
(9)螺栓带垫圈4个

Page 13 — 3. 安装方法

Jack JK-T1310 / JK-T2210 parts on page 13
RefPart numberPart nameQty
10(10)针板辅助板
11(11)螺栓带垫圈10个
12(12)螺栓带垫圈

Page 14

Jack JK-T1310 / JK-T2210 parts on page 14
RefPart numberPart nameQty
(13)缓冲器支架 [2片]
(14)垫片
(15)螺栓
(16)螺母
(17)缓冲器
(18)轴套 [2片]
(19)缓冲器轴 D
(20)垫圈 [2片]
(21)制动轮E [2个]
(22)螺栓 [2个]
(23)垫圈(大)[2片]
(24)垫圈(大)[2片]
(25)弹簧垫圈 [2片]
(26)螺母 [2个]
(27)缓冲器轴 U
(28)螺钉
(29)缓冲器支架盖
(30)螺栓带垫圈 [6个]

Page 15 — 3. 安装方法

Jack JK-T1310 / JK-T2210 parts on page 15
RefPart numberPart nameQty
33M3 X 20螺钉
31(31)螺钉
32(32)头部品关

Page 16 — 3-5. 缝纫机头部的倒下

Jack JK-T1310 / JK-T2210 parts on page 16
RefPart numberPart nameQty
(1)压臂
(2)外盖 L

Page 17 — 3. 安装方法

Jack JK-T1310 / JK-T2210 parts on page 17
RefPart numberPart nameQty
(1)踏脚用复合件
(2)螺栓[3个]
(3)垫圈[3片]
(4)弹簧垫圈[3片]
(5)螺母[3个]
(1)脚踏开关

Page 18 — 3-8. 线架的安装方法

Jack JK-T1310 / JK-T2210 parts on page 18
RefPart numberPart nameQty
1(1)线架
2(2)垫圈
3(3)螺母

Page 19 — 3-9. 空压用复合件的安装方法 (空压规格)

Jack JK-T1310 / JK-T2210 parts on page 19
RefPart numberPart nameQty
(1)电磁阀组
(2)垫圈
(3)螺钉
(4)皮管
(1A)气缸 R
(1B)气缸 R
(2A)气缸 L
(2B)气缸 L

Page 20 — 3. 安装方法

Jack JK-T1310 / JK-T2210 parts on page 20
RefPart numberPart nameQty
(1)护眼板组件
(2)垫圈
(3)螺钉
(1)马达盖 R
(2)螺钉
(3)马达盖 L
(4)螺钉
(5)马达盖
(6)螺钉

Page 21

Jack JK-T1310 / JK-T2210 parts on page 21
RefPart numberPart nameQty
(1)压臂
(2)外盖 L
(3)内盖 L
(4)大旋梭本体组件的2个孔
(5)冷却液槽

Page 22 — 3-13. 机头部固定螺栓的安装法

Jack JK-T1310 / JK-T2210 parts on page 22
RefPart numberPart nameQty
(1)(1)垫圈
(2)(2)机头部固定螺栓

Page 23 — 4. 缝纫前的准备

Jack JK-T1310 / JK-T2210 parts on page 23
RefPart numberPart nameQty
(1)螺钉
(2)机针
(1)交线盘
(3)挑线杆
(2)缝纫机手轮

Page 25 — 4-3. 底线的绕线方法

Jack JK-T1310 / JK-T2210 parts on page 25
RefPart numberPart nameQty
(1)梭芯卷线轴
(2)梭芯压臂柄
(3)回零键
(4)绕线键
(5)绕线键
(6)切刀
(7)螺钉
(8)梭芯压杆
(9)止动螺钉
(10)卷线用夹线器

Page 26 — 4. 缝纫前的准备

Jack JK-T1310 / JK-T2210 parts on page 26
RefPart numberPart nameQty
(1)大旋梭盖
(2)线槽
(3)导线器
(4)线孔

Page 27

Jack JK-T1310 / JK-T2210 parts on page 27
RefPart numberPart nameQty
-01厚布料
-02中厚布料
相当20号面线
相当50号面线
相当20号底线
相当50号底线
1.4~1.8面线的张力(N)
0.8~1.2面线的张力(N)
0.2~0.3底线的张力(N)
0.1~0.6预张力(N)
0.1~0.3预张力(N)
DP×17 #19机针
DP×5 #16机针
2,000 rpm常用回转数
2,000 rpm常用回转数

Page 28 — 5. 缝纫 5-1. 缝纫的方法

Jack JK-T1310 / JK-T2210 parts on page 28
RefPart numberPart nameQty
1回零键
2连脚踏开关
3压脚
4脚踏

Page 29 — 5. 缝纫

Jack JK-T1310 / JK-T2210 parts on page 29
RefPart numberPart nameQty
(1)暂停开关
(1)扫线用开关
(2)扫线杆

Page 30 — 6. 保养

Jack JK-T1310 / JK-T2210 parts on page 30
RefPart numberPart nameQty
1(1)大旋梭固定柄
2(2)大旋梭
3(3)中旋梭
4(4)梭托

Page 31 — 6. 保养

Jack JK-T1310 / JK-T2210 parts on page 31
RefPart numberPart nameQty
(1)控制箱
(2)进气口
(1)注油器瓶

Page 33 — 7-2. 挑线簧

Jack JK-T1310 / JK-T2210 parts on page 33
RefPart numberPart nameQty
-01厚布料
-01厚布料
-02中厚布料

Page 34 — 7. 标准调整

Jack JK-T1310 / JK-T2210 parts on page 34
RefPart numberPart nameQty
1(1)针棒金属
2(2)螺钉
3(3)梭托
1(1)针棒金属
2(2)固定螺钉
3(3)梭托
1(1)梭托导针部
2(2)固定螺钉
3(3)偏心轴

Page 35 — 7. 标准调整

Jack JK-T1310 / JK-T2210 parts on page 35
RefPart numberPart nameQty
(1)固定螺钉
(3)偏心轴
(1)旋梭导线器
(1)螺钉

Page 36 — 7-10. 动刀的位置调整

Jack JK-T1310 / JK-T2210 parts on page 36
RefPart numberPart nameQty
(1)手轮
(2)切线电磁铁
(3)切线滚轮
(4)切线凸轮
(5)切线驱动杆
(6)挑线杆
(7)插孔螺栓
(8)动刀
(9)切线杆H

Page 37 — 7. 标准调整

Jack JK-T1310 / JK-T2210 parts on page 37
RefPart numberPart nameQty
(1)手轮
(10)螺母
(3)切线滚轮
(4)切线凸轮
(11)螺钉
(5)切线驱动杆
(8)动刀
(12)旋线导向

Page 38 — 7-11. 动刀和定刀的更换方法

Jack JK-T1310 / JK-T2210 parts on page 38
RefPart numberPart nameQty
(1)螺栓
(2)送料板
(3)螺钉
(4)螺钉
(5)针板
(6)动刀
(7)定刀
(8)动刀轴套
(9)垫圈
(10)轴向垫圈
(11)垫圈
(12)
(13)动刀连杆

Page 39 — 7. 标准调整

Jack JK-T1310 / JK-T2210 parts on page 39
RefPart numberPart nameQty
1(1)电磁铁插棒
2(2)扫线杆
3(3)螺钉
4(4)安装板
5(5)螺钉
1(1)间歇压脚
2(2)螺钉

Page 40 — 7-14. 间歇压脚行程的变换

Jack JK-T1310 / JK-T2210 parts on page 40
RefPart numberPart nameQty
(1)螺钉2个
(2)段螺钉2个
(3)间歇连杆 A

Page 41 — 7. 标准调整

Jack JK-T1310 / JK-T2210 parts on page 41
RefPart numberPart nameQty
(1)手柄螺钉
(2)间歇盖
(3)螺母
(4)间歇压脚连杆
(5)针杆轴套
(6)螺钉
(7)间歇压脚凸轮
(1)间歇压脚
(2)压杆抱箍
(3)压杆轴套
(4)马达盖
(5)螺母
(6)回转螺栓
(7)间歇驱动杆

Page 42 — 7. 标准调整

Jack JK-T1310 / JK-T2210 parts on page 42
RefPart numberPart nameQty
(1)脚踏开关
(2)压脚
(3)压脚脚臂
(4)螺栓
(1)调节器
(2)旋轮
(3)排水旋栓
(4)气压栓

Page 43 — 8. 故障检修

Jack JK-T1310 / JK-T2210 parts on page 43
RefPart numberPart nameQty
P. 35调整压脚臂杆的位置
P. 32调整扫线器的位置
P. 32调整扫线器的操作量
P. 32调整扫线器的操作量
P. 18调整卷线夹线器组的高度
P. 18调整梭芯压杆的位置
P. 37请参考「跳针」一览
P. 20调整副夹线器
P. 28调整旋梭导线器的位置

Page 50

Jack JK-T1310 / JK-T2210 parts on page 50
RefPart numberPart nameQty
1DANGER
1GEFAHR
1危険
1PELIGRO
2CAUTION
2注意
3Warning
4PE
5Direction of operation
Motor coverMotor cover
Tension release solenoid coverTension release solenoid cover
Inner cover LInner cover L
Outer coverOuter cover
Fixed cover LFixed cover L
Thread take-up coverThread take-up cover
Motor cover I.Motor cover I.
Eye guardEye guard
Inner cover RInner cover R
Outer coverOuter cover
Fixed cover RFixed cover R
Motor cover RMotor cover R
Gas spring support coverGas spring support cover
Finger guardFinger guard

Page 52 — 1. NAMES OF MAJOR PARTS

Jack JK-T1310 / JK-T2210 parts on page 52
RefPart numberPart nameQty
(1)Power switch
(2)Control box
(3)USBslot
(4)Operation panel
(5)Foot switch (solenoid specifications)
(6)Work clamp switch (pneumatic specifications)
(7)Start switch (pneumatic specifications)
(8)STOP switch
(9)Thread wiper switch
(10)Pulley
(11)Cotton stand
(12)Solenoid valve (pneumatic specifications)
(13)Finger guard
(14)Eye guard
(15)Thread take-up cover
(16)Motor cover

Page 53 — 2. SPECIFICATIONS

Jack JK-T1310 / JK-T2210 parts on page 53
RefPart numberPart nameQty
SSolenoid-type work clamp lifter
APneumatic-type work clamp lifter

Page 55 — 3. INSTALLATION

Jack JK-T1310 / JK-T2210 parts on page 55
RefPart numberPart nameQty
(1)screws
(2)control box cover
(3)Control box
(4)Bolts4 pcs.
(5)Plain washers4 pcs.
(6)Nuts8 pcs.
(1)Oil pan
(2)Nails7 pcs.
(3)Rubber cushions4 pcs.
(4)Waste oil tank

Page 56 — 3-4. Installing the machine head

Jack JK-T1310 / JK-T2210 parts on page 56
RefPart numberPart nameQty
(1)Pins
(2)Set screws
(3)Hinge rubber assemblies
(4)Hinge holders
(5)Bolts
(6)Plain washers
(7)Nuts
(8)Head rest
(9)Bolts with washer

Page 57 — 3. INSTALLATION

Jack JK-T1310 / JK-T2210 parts on page 57
RefPart numberPart nameQty
(10)(10)Auxiliary plate
(11)(11)Bolts with washer [10 pcs.]
(12)(12)washer

Page 58 — 3. INSTALLATION

Jack JK-T1310 / JK-T2210 parts on page 58
RefPart numberPart nameQty
(13)Gas spring holders2 pcs.
(14)Spacer
(15)Bolt
(16)Nut
(17)Gas spring
(18)Shaft collars2 pcs.
(19)Gas spring shaft D
(20)Plain washers2 pcs.
(21)Retaining rings E2 pcs.
(22)Bolts2 pcs.
(23)Plain washers (medium)2 pcs.
(24)Plain washers (large)2 pcs.
(25)Spring washers2 pcs.
(26)Nuts2 pcs.
(27)Gas spring shaft U
(28)Set screw
(29)Gas spring support cover
(30)Bolts with washer6 pcs.

Page 59 — 3. INSTALLATION

Jack JK-T1310 / JK-T2210 parts on page 59
RefPart numberPart nameQty
3131screw
3232machine head switch
3333accessory M3x20 screw

Page 60 — 3-5. Tilting the sewing machine head

Jack JK-T1310 / JK-T2210 parts on page 60
RefPart numberPart nameQty
(1)presser arm assembly
(2)outer cover L

Page 61 — 3. INSTALLATION

Jack JK-T1310 / JK-T2210 parts on page 61
RefPart numberPart nameQty
1Treadle unit
2Bolts3 pcs.
3Plain washers3 pcs.
4Spring washers3 pcs.
5Nuts3 pcs.
1Foot switch

Page 62 — 3-8. Installing the cotton stand

Jack JK-T1310 / JK-T2210 parts on page 62
RefPart numberPart nameQty
(1)Cotton stand
(2)washer
(3)nut

Page 63 — 3-9. Installing the pneumatic unit (pneumatic specifications)

Jack JK-T1310 / JK-T2210 parts on page 63
RefPart numberPart nameQty
(1)Solenoid valve assembly
(2)Washers [2 pcs.]
(3)Wood screws [2 pcs.]
(4)Rubber hose
(1A)Cylinder R
(1B)Cylinder R
(2A)Cylinder L
(2B)Cylinder L

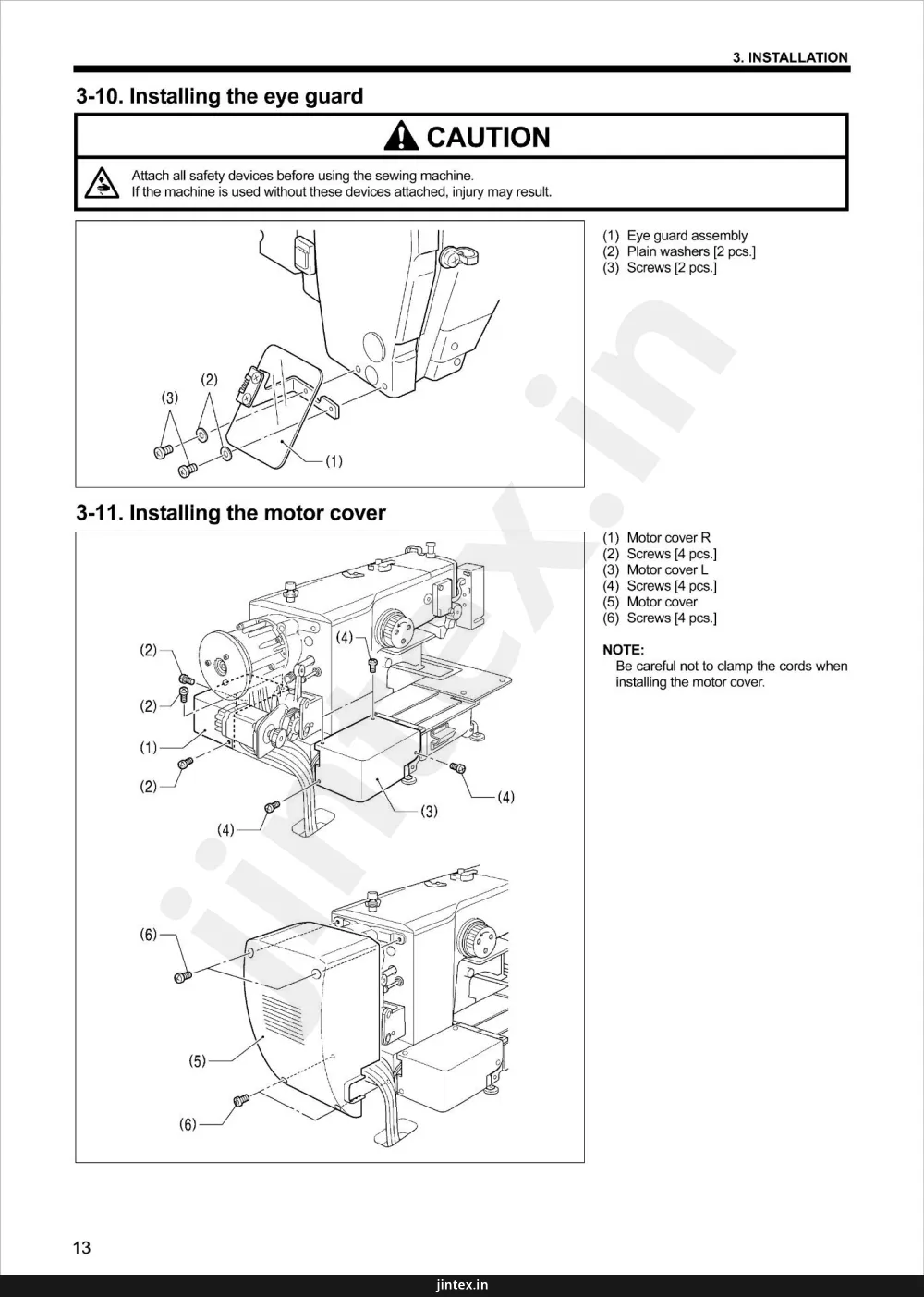

Page 64 — 3. INSTALLATION

Jack JK-T1310 / JK-T2210 parts on page 64
RefPart numberPart nameQty
(1)Eye guard assembly
(2)Plain washers2 pcs.
(3)Screws2 pcs.
(1)Motor cover R
(2)Screws4 pcs.
(3)Motor cover L
(4)Screws4 pcs.
(5)Motor cover
(6)Screws4 pcs.

Page 65 — 3-12. Lubrication

Jack JK-T1310 / JK-T2210 parts on page 65
RefPart numberPart nameQty
(1)work clamp arm
(2)outer cover L
(3)inner cover L
(4)two holes of the shuttle race base assembly
(5)liquid cooling tank

Page 66 — 3-13. Installing the machine head fixing bolt

Jack JK-T1310 / JK-T2210 parts on page 66
RefPart numberPart nameQty
(1)(1)Plain washer
(2)(2)Machine head fixing bolt

Page 67 — 4. PREPARATION BEFORE SEWING 4-1. Installing the needle

Jack JK-T1310 / JK-T2210 parts on page 67
RefPart numberPart nameQty
1(1)set screw
2(2)needle
1(1)tension discs
2(2)machine pulley
3(3)thread take-up

Page 69 — 4-3. Winding the lower thread

Jack JK-T1310 / JK-T2210 parts on page 69
RefPart numberPart nameQty
(1)bobbin winder shaft
(2)bobbin presser arm
(3)tire position key
(4)bobbin winder key
(5)bobbin winder key
(6)knife
(7)screw
(8)bobbin presser
(9)set screw
(10)bobbin winder tension assembly

Page 70 — 4-4. Installing the bobbin case

Jack JK-T1310 / JK-T2210 parts on page 70
RefPart numberPart nameQty
1(1)shuttle race cover
2(2)slot
3(3)thread hole
4(4)thread hole

Page 71 — 4-5. Thread tension

Jack JK-T1310 / JK-T2210 parts on page 71
RefPart numberPart nameQty
#20 or similarUpper thread
#50 or similarUpper thread
#20 or similarLower thread
#50 or similarLower thread
1.4-1.8Upper thread tension (N)
0.8-1.2Upper thread tension (N)
0.2-0.3Lower thread tension (N)
0.1-0.6Pre-tension (N)
0.1-0.3Pre-tension (N)
DP x 17 #19Needle
DP x 5 #16Needle
2,000 rpmNormal sewing speed
2,000 rpmNormal sewing speed

Page 73 — 5. SEWING

Jack JK-T1310 / JK-T2210 parts on page 73
RefPart numberPart nameQty
(1)STOP switch
(1)thread wiper switch
(2)thread wiper

Page 74 — 6. CLEANING

Jack JK-T1310 / JK-T2210 parts on page 74
RefPart numberPart nameQty
(1)setting claw
(2)shuttle race base
(3)shuttle hook
(4)driver

Page 77 — 7-2. Thread take-up spring

Jack JK-T1310 / JK-T2210 parts on page 77
RefPart numberPart nameQty
0.6-1.2Thread take-up spring tension (N)
0.2-0.5Thread take-up spring tension (N)
7-10Thread take-up spring height (mm)
7-10Thread take-up spring height (mm)

Page 79 — 7. STANDARD ADJUSTMENTS

Jack JK-T1310 / JK-T2210 parts on page 79
RefPart numberPart nameQty
(1)(1)set screw
(2)(2)eccentric shaft
(1)(1)shuttle race thread guide
(1)(1)set screw

Page 80 — 7-10. Adjusting the position of the movable knife

Jack JK-T1310 / JK-T2210 parts on page 80
RefPart numberPart nameQty
(1)pulley
(2)thread trimmer solenoid
(3)collar
(4)thread trimmer cam
(5)driving lever
(6)thread take-up
(7)bolt
(8)movable knife
(9)thread trimming rod H

Page 81 — 7. STANDARD ADJUSTMENTS

Jack JK-T1310 / JK-T2210 parts on page 81
RefPart numberPart nameQty
(1)pulley
(3)collar
(4)thread trimmer cam
(5)driving lever
(8)movable knife
(10)nut
(11)set screw
(12)shuttle race thread guide

Page 82 — 7-11. Replacing the movable and fixed knives

Jack JK-T1310 / JK-T2210 parts on page 82
RefPart numberPart nameQty
1bolts
2feed plate
3screws
4flat screws
5needle plate
6movable knife
7fixed knife
8collar
9shoulder screw
10thrust washer
11movable knife spacer
12pin
13movable knife connecting plate

Page 83 — 7. STANDARD ADJUSTMENTS

Jack JK-T1310 / JK-T2210 parts on page 83
RefPart numberPart nameQty
1(1)plunger
2(2)thread wiper
3(3)screws
4(4)solenoid setting plate
5(5)screw
1(1)presser foot
2(2)screw

Page 84 — 7-14. Changing the intermittent stroke

Jack JK-T1310 / JK-T2210 parts on page 84
RefPart numberPart nameQty
1(1)screws
2(2)shoulder screws
3(3)stepping clamp link A

Page 85

Jack JK-T1310 / JK-T2210 parts on page 85
RefPart numberPart nameQty
bDP X 5needle
BDP X 17needle
(1)screw
(2)cover
(3)nut
(4)stepping clamp connecting rod
(5)needle bar bush
(6)set screws
(7)stepping clamp cam
(1)intermittent presser foot
(2)presser bar clamp
(3)presser bar bush
(4)motor cover
(5)nut
(6)bolt
(7)intermittent drive lever

Page 86 — 7-15. Adjusting the work clamp lift amount

Jack JK-T1310 / JK-T2210 parts on page 86
RefPart numberPart nameQty
(1)work clamp switch
(2)work clamp
(4)bolts
(3)work clamp arm lever
(1)regulator
(2)handle
(3)drain cock
(4)air cock

Page 87 — 8. TROUBLESHOOTING

Jack JK-T1310 / JK-T2210 parts on page 87
RefPart numberPart nameQty
P. 35Work clamp arm lever
P. 32Thread wiper
P. 32Thread wiper
P. 32Thread wiper
P. 18Bobbin winder tension assembly
P. 18Bobbin presser
P. 37Sewing start
P. 20Upper thread length
P. 28Shuttle race thread guide

Page 93 — 目录/CONTENTS

Jack JK-T1310 / JK-T2210 parts on page 93
RefPart numberPart nameQty
A机体部分 / Machine body
B上轴、针杆装置 / Upper shaft and needle bar mechanism
C 1送料装置 / Feed mechanism
C 2送料装置 / Feed mechanism
C 3送料装置 / Feed mechanism
C 4送料装置 / Feed mechanism
D 1抬压装置 / Work clamp lifter mechanism
D 2抬压装置 / Work clamp lifter mechanism
D 3抬压装置 / Work clamp lifter mechanism
E下轴装置 / Lower shaft mechanism
F供油润滑装置 / Lubrication
G穿线装置 / Threading mechanism
H卷线装置 / Bobbin winder mechanism
J切线装置 / Thread trimmer mechanism
K扫线装置 / Thread wiper mechanism
L松线装置 / Tension release mechanism
M电控装置 / Electronic control device
P空压装置 / Air pressure mechanism
Q电气部品装置 / Power supply equipment mechanism
S马达装置 / Motor mechanism
T踏板关系 / Foot switch pedal mechanism
Z附件 / Accessories
Ga工模具一览表 / Gauge parts list

Page 94 — A. 机体部分 / Machine body

Jack JK-T1310 / JK-T2210 parts on page 94
RefPart numberPart nameQty
11CYLINDER BED
22SHAFT
33WASHER
44SPRING
55SPRING
66COVER
77SCREW
88COVER
99SCREW
1010COVER
1111SCREW
1212COVER
1313SCREW
1414COVER
1515COVER
1616SCREW
1717SCREW
1818BRACKET
1919NUT
2020SCREW
2323COVER
2424SCREW
2525COVER
2626SCREW
2727WASHER
2828WASHER
2929SCREW
3030SCREW
3131COVER
3232SCREW
3333SPRING
3434BRACKET
3535SCREW
3636COVER
3737SCREW
3838SCREW
3939COVER
4040SCREW
4141COVER
4242SCREW
4343SPRING

Page 95 — A、机体部分/Machine body

Jack JK-T1310 / JK-T2210 parts on page 95
RefPart numberPart nameQty
41703001BUSHING U1
41729001DOWEL PIN1
41722001RUBBER CAP 20-151
41722002RUBBER CAP 13.51
41722003RUBBER CAP 10. 53
41711205MOTOR COVER QR1
S04038SCREW PAN M6 X 104
41711206MOTOR COVER QL1
S04038SCREW PAN M6 X 104
304727FACE PLATE1
41722004RUBBER CAP 15.51
41712003F-PLATE PACKING1
S04038SCREW PAN M6 X 103
301383SHUTTLE RACE COVER1
41712005SHUTTLE RACE COVER HOOK D1
S02031SCREW PAN M3 X 52
41712006NUT PLATE1
4171220200HINGE1
NO1013STEPPING COVER2
S04082SCREW PAN M3 X 61
301384THREAD TAKE-UP COVER1
S04079SCREW PAN M4 X 101
41711207STEPPING COVER Q1
417S30012SHOULDER SCREW 7-31
41728020SPRING WASHER1
41728035WAHER PLAIN1
41711208SCREW M5 Q1
41737001MARK INJURY1
20131063WARNING SIGN1
41722009RUBBER CAP 131
41712009FINGER GUARD1
41728025WASHER PLAIN L3. 52
41712010HEAD REST1
417S30037BOLT SOCKET(S/P WASHER)M6 X 144
S04075SCREW PAN M3 X 52
41722006RUBBER CAP 261
41722007RUBBER CAP 11.52
41722008RUBBER CAP1
41722009RUBBER CAP 131

Page 96 — B. 上轴·针杆装置 / Upper shaft and needle bar mechanism

Jack JK-T1310 / JK-T2210 parts on page 96
RefPart numberPart nameQty
4646
4545
4848
3838
4141
3737
4747
4444
4343
4242
4444
3939
3636
3535
3636
3333
3434
4949
5050
1414
1212
1414
11
1313
1414
1414
88
1111
99
1010
55
88
19-119-1
44
22
2424
2121
19-219-2
2020
19-419-4
19-319-3
1919
19-519-5
19-619-6
2323
2929
2222
3131
3232
2525
2727
2626
1818
1717
1616
1515
1717
1717
33
5252
3030
2828
19-719-7

Page 97 — B. 上轴·针杆装置/Upper shaft and needle bar mechanism

Jack JK-T1310 / JK-T2210 parts on page 97
RefPart numberPart nameQty
SA460600141702001上轴
SA34990014170501100曲柄轴组件
18501636S05124螺栓 M5 X 16
SA417200141724001滚针轴承 K15 X 18 X 14
SA417300141724001滚针轴承 K15 X 18 X 14
SA417400141724001滚针轴承 K15 X 18 X 14
SA417500141724001滚针轴承 K15 X18 X14
SA320600141703002轴承套
SA4179001B10014轴承 6904DDUNR
SA4180001B06005轴承 R-6904DDU
S23651001S10018固定螺钉 M6X0.75-6
SA320600141703002轴承套
SA4177001B10012轴承 6904DDUNR
S23651001S10018固定螺钉 M6 X 0.75-6
SA460810141703004管接头 G
SA4178001B10013轴承 6904DDU
S23651001S10018固定螺钉 M6X0.75-6
S25235001417S30002螺钉 M8
SA460910141704001针杆曲柄 G
S23651001S10018固定螺钉 M6 X 0.75-6
11036700141712133垫圈8
SA618200114170500400针杆连杆件 FK
41726021挑线架销
4172103挑线架
4171210400挑线杆组件
41724003滚针轴承 K8 X 12 X 7.7
41712102挑线曲柄
41705101针杆连杆
41704100针杆接头
SA2958001417S17003螺钉 M5 X 5
12500536S09019螺钉 M5 X 5
0624008 16S04078螺钉 M4 X 8
1454650 01417S14001螺钉 SM3. 57-40 X 6L
12060636S10019螺钉 M6 X 6
14221100141709001滑块
SA352800141709002滑块导向 B
18401636S05118螺栓 M4 X 16
SA462200141702002针杆
144458001417S15002螺钉 SM3. 57-40 X 4.5 L
SA466600141703005针杆轴套 UK
SA322400141703006针棒轴套 D
*P.6741217002机针
S38713 10012411002叶轮
62400816S04078螺钉 M4 X 8
SA610800141225010齿轮 R
12500536S09019螺钉 M5 X 5
SA162600141702003上轮轴
SA462700141703007上轮轴套
SA462800141727001上轮弹簧
SA462900141703008上轮基座
47401242P03027弹簧销 4 X 12
SA462400141725002齿轮
12500536S09019螺钉 M5 X 5
S23651001S10018固定螺钉 M6 X 0.75-6
SA463000141711001上轮
62101006S04079螺钉 M4 X 10
SA515800141728024垫圈 L4
12060636S10019螺钉 M6 X6
18501636S05124螺栓 M5 X 16
SA523000141712011惯性轮 2
62401016403S11043螺钉 M4 X 12
12060536S09041螺钉 M5 X 5

Page 98 — C1 . 送料装置 / Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 98
RefPart numberPart nameQty
33Screw
44Screw
55Screw
66Screw
77Screw
88Screw
99Screw
1010Screw
1111Screw
1212Screw
1313Screw
1414Screw
1515Screw
1616Screw
1717Screw
1818Screw
1919Screw
2020Screw
2121Screw
2222Screw
2323Screw
2424Screw
2525Screw
2626Screw
2727Screw
2828Screw
2929Screw
3030Screw
3131Screw
3232Screw
3333Screw
3434Screw
3535Screw
3636Screw
3737Screw
3838Screw
3939Screw
4040Screw
4141Screw
4242Screw
11Screw
22Screw

Page 99 — C1、送料装置 / Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 99
RefPart numberPart nameQty
400994送布基座组件
42224502X-LM 导轨2
413S14012螺栓 M3 X 1415
4170 1003送布台(X)1
S05192螺栓 M3 X 68
S02032螺钉 M3 X 68
41709004传感器板(X)1
S02032螺钉 M3 X 62
41709005皮带支架1
S05116螺栓 M4 X 82
41735001X-GT 皮带1
41712012皮带支架板(X)1
S05116螺栓 M4 X 82
42224501花键轴组件C1
B06006球轴承 6000VV1
41728001平垫圈 101
H03008轴用挡圈 C101
4173500200X-左轮组件1
S10019螺栓 M6 X 61
B06007球轴承 6806VV2
H01004孔用挡圈 C422
41701013X-轮基座1
S05035螺栓 M5 X 162
W01009平垫圈 M52
4173500200X-右轮组件1
41728001平垫圈 101
S10015球轴承 6900ZZNR2
41702005X-轮支点轴1
S10019螺钉 M6 X 62
41712013Y-传感器板1
S05119螺栓 M4 X 202
42224503Y-LM 导向2
41728002Y-LM 垫片2
S02032螺钉 M3 X 616
S05119螺栓 M4 X 208
W01006平垫圈48
W02008弹簧垫圈 2-48
4 1709032挡块
S05119螺栓 M4 X 20
41711062固定板2
41726020调节销4
S09005螺钉 M3 X 54

Page 100

Jack JK-T1310 / JK-T2210 parts on page 100
RefPart numberPart nameQty
11BOLT
22WASHER
33GEAR
44BEARING
55GEAR
66SCREW
77BEARING
88CIR CLIP
99GEAR
1010SCREW
1111WASHER
1212SHAFT
1313BRACKET
1414BEARING
1515GEAR
1616BOLT
1717SHAFT
1818PLATE
1919BRACKET
2020PLATE
2121BOLT
2222BOLT
2323SHAFT
2424PLATE
2525BRACKET
2626PLATE
2727BOLT
2828BOLT
2929PLATE
3030BOLT
3131PLATE
3232BRACKET
3333BOLT
3434PLATE
3535WASHER
3636BOLT
3737NUT
3838BRACKET
3939BOLT
4040BRACKET
4141PLATE
4242BOLT
4343BOLT
4444COVER
4545SHAFT
4646BRACKET
4747PLATE
4848BOLT
4949BOLT
5050MOTOR
5151MOUNTING PLATE
5252BOLT
5353GEAR
5454BOLT
5555MOTOR
5656BRACKET
5757BOLT
5858BRACKET
5959BOLT
6060BOLT
6161BOLT
6262BOLT
6363WASHER
6464BRACKET
6565BRACKET
6666BOLT
6767BEARING
6868BOLT

Page 101 — C2、送料装置 / Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 101
RefPart numberPart nameQty
S05111螺栓 M6 X 20
41725003X-送布齿轮
S10019螺钉 M6 X 6
B10015球轴承 6900ZZNR
41725004Y-送布齿轮
S10019螺钉 M6 X 6
B10015球轴承 6900ZZNR
H05011卡簧9
4173501100Y-轮组件
S10019螺钉 M6 X 6
41703009Y-轮套
41702006Y-驱动轴
41701005Y-轮基座
810015球轴承 6900ZZNR
4173502100基座齿轮组件
S10019螺钉 M6 X 6
41702007Y-轮支点轴
41735005Y-GT 皮带
4 1712014Y-皮带支架板
41712015Y-皮带支撑板
S05116螺钉 M4 X 8
417S30304螺钉 M6 X 20
S05119螺钉 M4 X 20
41711204盖轨道Q
41712017固定盖(R)
41712018固定盖(L)
403S11043螺钉 M4 X 10
417S30009螺钉 M4 X 6
41711201内盖QR
41711202内盖QL
41711203外盖组件Q
41711002Y-皮带轮盖
417S30025螺栓(带垫圈) M4X 10DB
41712022补助板
41722010补助板缓冲
417S15003螺钉 M4 X 12
417N01002自锁螺母
41712023补助板支架
41712064L型支架
417S30304螺钉 M6 X 20
41712024补助板支架U
4 1712025补助板支架D
417S30035螺栓(带垫圈) M5 X 10
417S30304螺钉 M6 X 20
417122011蛇纹管
41712026蛇纹管支架R
41712027蛇纹管支架F
41712060板螺母
S04036螺钉 M3 X 4
417S30009螺钉 M4 X 6
141733002X向同步电机1
41712029马达安装板
S05048螺钉 M4 X 10
41725005驱动齿轮 16
S09041螺钉 M6 X 5
141733003Y向同步电机1
41712029马达安装板
S05048螺钉 M4 X 10
41725005驱动齿轮 16
S09041螺钉 M6 X 5
417S30304螺钉 M6 X 20

Page 102 — C2 .送料装置 / Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 102
RefPart numberPart nameQty
11BOLT
22GEAR
33WASHER
44BEARING
55GEAR
66SCREW
77BEARING
88CIR-CLIP
99GEAR
1010SCREW
1111BEARING
1212SHAFT
1313SHAFT
1414BEARING
1515GEAR
1616SCREW
1717SHAFT
1818PLATE
1919BOLT
2020PLATE
2121BOLT
2222BOLT
2323SHAFT
2424PLATE
2525PLATE
2626PLATE
2727BOLT
2828BOLT
2929PLATE
3030BOLT
3131PLATE
3232BRACKET
3333BOLT
3434PLATE
3535WASHER
3636BOLT
3737NUT
3838BRACKET
3939BOLT
4040BRACKET
4141PLATE
4242BOLT
4343BOLT
4444BELLOWS
4545SHAFT
4646BRACKET
4747PLATE
4848BOLT
4949BOLT
5050MOTOR
5151MOUNTING PLATE
5252BOLT
5353BRACKET
5454BOLT
5555MOTOR
5656MOUNTING PLATE
5757BOLT
5858BRACKET
5959BOLT
6060BOLT
6161PLATE
6262BOLT
6363WASHER
6565BRACKET
6666BOLT
6767BEARING
6868BOLT

Page 103 — C2、送料装置 / Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 103
RefPart numberPart nameQty
SA630600141712030盖连接板
S23418002417S15006螺钉 M4 X 5
11873500141728012垫圈
SA645010141712100轴承支架座
18501036S05121螺钉 M5 X 10
SA644900141712101轴承支架
41724005调心球轴承 126
18401036S05048螺钉 M4 X 10
417S30037螺钉 M6 X 14

Page 104 — C3 . 送料装置 / Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 104
RefPart numberPart nameQty
3232screw
3131washer
2222screw
1717screw
1515lever
1414screw
2424spring
2121lever
1313screw
3434screw
3636washer
3535lever
2626lever
4040screw
4444bracket
4242bracket
4141bracket
4343plate
3939bracket
3737bracket
4545screw
4949plate
5454plate
11frame
22lever
33lever
44lever
55lever
66screw
77lever
88lever
99shaft
1010screw
1111washer
1212washer
1616shaft
1919screw
2020spring
1818shaft
2323screw
2727lever
2121lever
3030screw
2929screw
3333lever
3535lever
3636washer
3434screw
2525screw
5151screw
5353washer
5252washer
3838screw
5555screw
4848screw
5050screw
4646washer
4747washer

Page 105

Jack JK-T1310 / JK-T2210 parts on page 105
RefPart numberPart nameQty
SA468610141701006<For Solenoid type>
SA468710141711007WORK CLAMP
48100142H03008SLIDER
SA468800141712031RETAINING RING EXTERNAL C10
SA468900141726001SUPPORT SLIDER
48080142H03018SUPPORT SHAFT SLIDER
SA469000141712032RETAINING RING EXTERNAL C4
SA469100141712033WORK CLAMP LIFTER LEVER R
SA469100141712034WORK CLAMP LIFTER LEVER L
SA469200141702012WORK CLAMP LIFTER SHAFT
48080142H03006SET SCREW SOCKET (FT) M6 X 6
11036700141712133RETAINING RING EXTERNAL C8
SA323100141708002WASHER PLAIN SPECIAL 8
12060536S09041SET SCREW COLLAR B
SA469000141712034SET SCREW SOCKET (FT) M6 X 5
SA469300141702021CONNECTING ROD
SA469700 1417S30003SPR NG HOLDER SHAFT A
SA469400141702009SHOULDER SCREW M5
12060636S10019SPRING HOLDER SHAFT B
SA469500141727002SET SCREW SOCKET (FT) M6 X 6
SA469800141712035SPRING LIFT
SA470000 1417S12002CONNECTING LINK
0215002 16N01017NUT 2 M5
SA470100141727003WORK CLAMP SPRING
SA470200 141712036WORK CLAMP LIFTER LEVER R
SA470300141712037WORK CLAMP LIFTER LEVER L
SA469200141702012WORK CLAMP LIFTER LEVER
12060636S10019SET SCREW SOCKET (FT) M6 X 6
48080142H03006RETAINING RING EXTERNAL C8
11036700141712133WASHER PLAIN SPECIAL 8
SA323100 141708002SET SCREW COLLAR B
12060536S09041SET SCREW SOCKET (FT) M6 X 5
SA469000141712038STOPPER
18500836S05120BOLT SOCKET M5 X 8
25050236W01009IVASHER PLAIN M5
28050246W02001WASHER SPRING 2-5
SA48630014170901300WORK CLAMP GUIDE A ASSY
S2384900 1417S15003SCREW M4 X 16
SA48640014170901400WORK CLAMP GUIDE B ASSY
S55482001417S30034BOLT SOCKET(S/P WASHER) M4 X 14
SA471200 14170901500WORK CLAMP SUDER ASSY R
SA47140014170901600WORK CLAMP SLIDER ASSY L
SA4706101141712271IVORK CLAMP RETAINER ASSY
SA470800141712039WORK CLAMP
855485001417S30035BOLT SOCKET (S/P WASHER) M5 X 10
12501031S09009SET SCREW SOCKET (FT)M5 X 10
21500216N01017NUT 2 M5
SA4709001417S20001SHOULDER SCREW
SA4866101401219WORK CLAMP 1310 ASSY
855484002417S30035BOLT SOCKET (S/P WASHER) M5 X 10
17501616L02006BOLT M5 X 16
25050236W01009WASHER PLAIN M5
28050246W02001WASHER SPRING 2-5
SA471500 1400992FEED PLATE 1310
855484002417S30035BOLT SOCKET (S/P WASHER) M5 X 10
5541728004WASHER

Page 106 — C4 . 送料装置 / Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 106
RefPart numberPart nameQty
1FRAME
2SHAFT
3BRACKET
5CYLINDER
6RING
7VALVE
8SPRING
9O-RING
10BRACKET
11LEVER
12LINK
13SCREW
14BRACKET
15BRACKET
16SHAFT
17BRACKET
18BUSHING
19SCREW
20GUIDE
21PIN
22GUIDE
23BOLT
24BRACKET
25BRACKET
26SPRING
27BRACKET
28BOLT
29WASHER
30NUT
31BOLT
32BRACKET
33BOLT
34WASHER
35NUT
36BOLT
37BRACKET
38BRACKET
39BOLT
40BOLT
41WASHER
42WASHER
43BRACKET
44BOLT
45BRACKET
46BRACKET
47BRACKET

Page 107 — C4、送料装置/Feed mechanism

Jack JK-T1310 / JK-T2210 parts on page 107
RefPart numberPart nameQty
41701006压脚臂
41702011气缸轴
12060636S10019螺钉 M6 X 6
40736004Φ4可调节气管接头(螺纹M5)
SA471900141730035气缸组件 R
48050142H03019轴用挡圈 C5
SA472000141709012气缸接头
SA472100141726002气缸接头轴
48060142H05027轴用挡圈 C6
SA472200141712042压脚柄R(气压)
SA472300141712043压脚杆(气压)
SA472400141712044压脚杆(气压)
S55479001413S13008螺栓(带垫圈)M4 X 8
SA469200141702012压脚杆轴
12060636S10019螺钉 M6X6
48080142H03006轴用挡圈 C8
11036700141712133垫圈 8
SA323100141708002紧圈 B
12060536S09041螺钉 M6 X 5
SA48630014170901300压脚导向组件 A
S23849001417S15003螺钉 M4 X 12
SA48640014170901400压脚导向组件 B
S55482001417S30034螺栓(带垫圈)M4 X 14
SA47120014170901500压脚滑块组件 R
SA47140014170901600压脚滑块组件 L
SA4706101141712271压脚滑块组件
SA472500141712045压脚 R
S55485001417S30036螺栓(带垫圈)M5 X 12
12501031S09009螺钉 M5 X 10
21500216N01017六角螺母 M5
SA4709001417S20001定位段螺钉
SA472600141712046压脚 L
S55485001417S30036螺栓(带垫圈)M5 X 12
12501031S09009螺钉 M5 X 10
21500216N01017六角螺母 M5
SA4709001417S20001定位段螺钉
SA4868101401219<用于1310>
S55484002417S30035螺栓(带垫圈) M5 X 10
17501616L01011螺栓 M5X 16
25050236W01009平垫圈 M5
28050246W02001弹簧垫圈 2-5
SA4715001400996送料板 1310
S55484002417S30035螺栓(带垫圈) M5 X 10
SA487010141712441<用于2210>
SA487110141712442压板组件 2210R
S55484002417S30035螺栓(带垫圈) M5 X 10
17501616L02006螺栓 M5 X 16
25050236W01009平垫圈 M5
28050246W02001弹簧垫圈 2-5
S55484002417S30035螺栓(带垫圈) M5 X 10
SA4852001400996送料板 2210

Page 108 — D1 . 拾压装置 / Work clamp lifter mechanism

Jack JK-T1310 / JK-T2210 parts on page 108
RefPart numberPart nameQty
11BEARING
22BRACKET
33SHAFT
44BEARING
55SCREW
66SCREW
77SCREW
88COLLAR
99WASHER
1010NUT
1111LEVER
1212SCREW
1313SHAFT
1414SCREW
1515PIN
1616BUSHING
1717BUSHING
1818BRACKET
1919WASHER
2020SCREW
2121BRACKET
2222BRACKET
2323BUSHING
2424SCREW
2525SCREW
2626BRACKET
2727SHAFT
2828WASHER
2929WASHER
3030SCREW
3131SCREW
3232BRACKET
3333WASHER
3434PIN
3535SHAFT
3636SCREW
3737SCREW
3838BOLT
3939NUT
4040BRACKET
4141NUT
4242NUT
4343SCREW
4444SCREW
4545NUT
4646NUT
4747BRACKET
4848SCREW
4949CYLINDER
5050NUT
5151SPRING
5252WASHER
5353BUSHING
5454CYLINDER
5555SCREW
5656SHAFT
5757BRACKET
5858SCREW
5959WASHER

Page 109 — D1、拾压脚装置/Work clamp lifter mechanism

Jack JK-T1310 / JK-T2210 parts on page 109
RefPart numberPart nameQty
41710001凸轮
41705001连杆
41728003垫圈
B06008轴承 6805VV
S10018固定螺钉 M6 X 0. 75-6
S04035螺钉 M4 X 6
41726003上轮轴
41703010滚轮
41728004垫圈
N01021螺母 M6
41709017压臂 R
L02032螺钉 M6 X 12
41702013压臂 F
S10018螺钉 M6 X 6
S10018固定螺钉 M6 X 0. 75-6
41703011压臂轴套 F
41703012压臂轴套 R
41712053间歇连杆 A
417S30007段螺钉 6
S04036螺钉 M3 X 4
41712054间歇连杆 B
41712055间歇连杆
41726004联杆轴
S10019螺钉 M6 X 6
S09006螺钉 M4 X 4
41709018联接板
41702014联接板轴
41728031垫圈
H03006轴用挡圈 C8
S10019螺钉 M6 X 6
S09006螺钉 M4 X 4
41709019间歇提升杆
41703013提升滑轮
41726005滚轮
41702015提升杆轴
S10019螺钉 M6 X 6
S02039螺钉 M4
41702016提升连杆
417S12003提升连杆接头
4170500300接头组件
N01021螺母 M6
417S16001螺母 M6 X 0. 75
417S30008段螺钉
417S12005段螺钉B M6
L01007螺栓 M6 X 50
N01021螺母 M6
41709020压紧杆接头
S05116螺钉 M4 X 8
123S30002调节螺栓 M14
129S16001调节螺母 M14
41727004弹簧
41702017弹簧导向
41703014弹簧管套
41703015压紧杆轴套
S09041螺钉 M6 X 5
41702018压紧杆
41716001压脚
417S15011螺钉 SM3. 57 X 12
41728032垫圈

Page 110 — D2 . 抬压装置 / Work clamp lifter mechanism

Jack JK-T1310 / JK-T2210 parts on page 110
RefPart numberPart nameQty
11
22
33
44
55
66
77
88
99
1010
1111
1212
1313
1414
1515
1616
1717
1818
1919
2020
2121
2222
2323
2424
2525
2626
2727
2828
2929
3030
3131
3232
3333
3434
3737
3838
3939
4040
4141
4242
4343
4444
4545
4646
4747
4848
4949
5050
5151
5252
5353
5454
5555
5656
5757
5959

Page 111 — D2、拾压装置/Work clamp lifter mechanism (T1310)

Jack JK-T1310 / JK-T2210 parts on page 111
RefPart numberPart nameQty
141724004滑杆轴套
2S05048螺钉 M4 X 10
341712056压脚提升板组件
3-141702008压脚提升轴
3-241712076压脚提升板
4400993底座板 E
5S04080螺钉 M4 X 4
641709021压脚提升杆
741726006
841709022底座滑块
941702019压杆升杆 B
10S10019螺钉 M6 X 6
1141728001平垫圈 10
12H05033挡圈 E8
13S10019螺钉 M6 X 6
1441729002带槽销
1541712058压脚提升杆
16417S20010段螺钉
1741727005弹簧
1841701008马达座
1941712063压脚马达板
20S05121螺钉 M5 X 10
21141733010Z向步进电机3
2241730044马达端线 P
23S05133螺钉 M4 X 12
2441725009驱动齿轮
25S10019螺钉 M6 X 6
2641702020压脚凸轮
27B10015球轴承 6900ZZNR
281830008轴用挡圈 C10
29S04035螺钉 M4 X 6
30W01001平垫圈 M4
3141725010内齿轮
32S10021螺钉 M6 X 10
33S10019螺钉 M6 X 6
344171000200压脚凸轮
37S10019螺钉 M6 X 6
384170301700压脚 H-POS 挡块
39S05115螺钉 M4 X 6
4041702025压脚柄轴
41S10019螺钉 M6 X 6
4241709023间歇驱动杆
4341702022拾压滚轮轴
44B04026轴承 R-696ZZ
454 1728005垫圈
46S09019螺钉 M5 X 5
47400683压脚驱动杆
4841702022拾压滚轮轴
49B04026轴承 R-696ZZ
5041728005垫圈
51S09019螺钉 M5 X 5
5241728001平垫圈 10
5341712061凸轮定位
54S04035螺钉 M4 X 6
5541712062压脚传感器板
56S04035螺钉 M4 X 6
57S10019螺钉 M6 X 6
59S05110螺钉 M6 X 12

Page 112 — D3 . 抬压装置 / Work clamp lifter mechanism

Jack JK-T1310 / JK-T2210 parts on page 112
RefPart numberPart nameQty
1Main body
2Mounting plate
3Shaft
6Screw
7Gear
8Screw
9Shaft
10Bearing
11Washer
12Spring pin
13Pin
14Gear
15Screw
16Screw
17Collar
18Screw
19Shaft
20Screw
21Lever
22Spring pin
23Pin
24Spring pin
25Screw
26Bracket
27Screw
29Screw
33Bush
34Screw
35Screw
40Bearing

Page 113

Jack JK-T1310 / JK-T2210 parts on page 113
RefPart numberPart nameQty
41701008马达座
41712063压脚马达板
S05121螺栓M5×102
S05133螺栓M4×124
41725009驱动齿轮
S10019螺钉M6×62
41702020压脚M6×6
S10015球轴承6900ZZNR2
H03008挡圈102
S04035螺钉M4×61
W01001M4垫片
41725010凸轮齿轮
S10021凹端紧定螺钉M6×10
S10019螺钉M6×6
4170301700压脚原点挡块
S05115螺栓M4×6
41702025压脚柄轴
S10019螺钉M6×6
41709023间歇驱动杆
41702022拾压滚轮轴
B04026轴承R-696ZZ
41728005垫圈
S09019螺钉M5×5
41712062压脚传感器板
S04035螺钉M4×62
S05110螺栓M6×122
41708302紧圈
S10019螺钉M6×62
S10019螺钉M6×6
41728001平垫圈10

Page 114 — E. 下轴装置 / Lower shaft mechanism

Jack JK-T1310 / JK-T2210 parts on page 114
RefPart numberPart nameQty
11SHAFT
22NUT
33BRACKET
44SHAFT
55COLLAR
66SCREW
77COLLAR
88SCREW
99SCREW
1010SHAFT
10-110-1SHAFT
10-210-2SHAFT
1212SLEEVE
1313COLLAR
1414COLLAR
1515COLLAR
1616COLLAR
1717BRACKET
1818SCREW
1919SHAFT
2020COLLAR
2121COLLAR
2222COLLAR
2323HOUSING
2929COLLAR
3030COLLAR
3131COLLAR
3232COLLAR
3333SCREW
3434COLLAR
3535HOUSING
3636BRACKET
3737SCREW
3838COLLAR
3939COLLAR
4040COLLAR
4141COLLAR
4242COLLAR
4343SHAFT
4444SLEEVE
4545COLLAR
4646COLLAR
4747COLLAR

Page 115 — E、下轴装置/Lower shaf t mechan sm

Jack JK-T1310 / JK-T2210 parts on page 115
RefPart numberPart nameQty
417S20062圆柱销(DLC)
417S16001螺母 M6 X 0.75
41725011摆动齿轮
41702027摆动齿轮轴
41708002紧固B
S09041螺钉 M6 X 5
41708006紧固
S10018固定螺钉 M6 X 0. 75-6
S10019螺钉 M6 X 6
4170202800下轴组件
41702028下轴
S09019螺钉 M6 X 5
41703019下轴衬套
S10019螺钉 M6 X 6
41702029旋钮调节轴
41722015O形圈 PW3
41701009大旋基座
41712190旋线导向
417S15007螺钉 M3 X 4
41712601500大旋基固定柄
41727006弹簧
W01002垫圈 M3
S04082螺钉 M3 X 6
41723013油毡
41723012油毡 L=360
S10019螺钉 M6 X6
H05032挡圈 E7
41718001梭托D
S05122螺栓 M5X 12
41718002外旋梭
4171801700梭芯组件
41727015调节弹簧
417S30005螺钉
41727016防空转弹簧
41718004梭芯
41703020紧圈R
S09019螺钉 M5 X 5
41718018中旋梭
12923018油线 4 X 4 L=400
41711027油毡
4171028滚针轴承 K8 X 12 X 11
41711028垫片
41729005切口卡簧

Page 116

Jack JK-T1310 / JK-T2210 parts on page 116
RefPart numberPart nameQty
1BRACKET
2BRACKET
3SCREW
4BRACKET
5SCREW
6BRACKET
7BRACKET
8BRACKET
9BRACKET
10SCREW
11BRACKET
12SCREW
13BRACKET
14SCREW
15TUBE
16TUBE
17BRACKET
18SCREW
19BRACKET
20BRACKET
21BRACKET
22BRACKET
23BRACKET
24BRACKET
25BRACKET
26BRACKET
27BRACKET
28BRACKET
29BRACKET
30BRACKET
31BRACKET
32BRACKET
33SCREW
34BRACKET
35SCREW
36BRACKET
37BRACKET
38BRACKET
39BRACKET
40SCREW
41BRACKET
42SCREW
43BRACKET
45BRACKET
46BRACKET
47BRACKET
50BRACKET
51BRACKET
52BRACKET
53BRACKET
54BRACKET
55BRACKET
56BRACKET
57SCREW
58BRACKET
59BRACKET
60BRACKET
61BRACKET
62BRACKET
63BRACKET
64BRACKET
65SCREW
66BRACKET
67BRACKET
68BRACKET
69SCREW
70BRACKET

Page 117 — F、供油润滑装置 / Lubrication

Jack JK-T1310 / JK-T2210 parts on page 117
RefPart numberPart nameQty
417S30022螺钉
41712065曲柄盖
S04038螺钉M6×10
41712066曲柄供油板
S04035螺钉M4×6
41723027毡油线
41723005油毡
41712067下轴油支撑架
41723006下轴齿轮油毡
S04035螺钉M4×6
41712068供油支架
S04035螺钉M4×6
41723026油线φ2.5
12921002维尼龙油管
41712069油线挂钩
41712070油线支架
41711003油窗盖
41711021挡片
41722030橡胶圈
41711004油窗盖
41711022挡片
41722031橡胶圈
12923018油线4×4
12921002维尼龙油管
12921005油管
12923018油线4×4
12923019油线6×6
41723011油毡
41712071齿轮供油支架
41723031油毡
41712072油线夹B
S04033螺钉M6×8
41712073回油管托
S04035螺钉M4×6
12923019油线6×6
12921005油管
41711014电线夹6.4
41711016电线夹8.4
417S30025螺栓(带垫圈)M4×10DB
417S30025螺栓(带垫圈)M4×10DB
41711014电线夹6.4
417S30025螺栓(带垫圈)M4×10DB
41712074油盖
403S11043X向传感器螺钉组件
41736001管接头L
41722016橡胶套4.2
41723026油线φ2.5
12921002维尼龙油管
41736002油嘴管
41711016电线夹8.4
12921002维尼龙油管
41711015电线夹13.2
41712110油毡压板L
41723024底板油毡L
S04035螺钉M4×6

Page 118 — F . 供油润滑装置 / Lubrication

Jack JK-T1310 / JK-T2210 parts on page 118
RefPart numberPart nameQty
2727
2626
2525
4040
4747
4646
1515
1414
33
1616
55
44
66
22
6262
3939
3838
4040
2929
2828
5454
1919
1111
1212
1818
1313
3535
3434
3636
77
11
4242
4242
5555
4242
4242
5555
4141
6161
4242
2020
5353
2222
5050
5252
4343
3030
3131
2323
2424
88
99
1010
6969
4545
5656
5757
5151
5959
5858
7070
6868
6666
6767
6565
6464
6363
6565

Page 119 — F、供油润滑装置 / Lubrication

Jack JK-T1310 / JK-T2210 parts on page 119
RefPart numberPart nameQty
W02008WASHER SPRING 2-43
41712130WICK SUPPORT R1
41723018FELT BED R1
S02039SCREW FLAT M4X93

Page 120 — G . 穿线装置 / Threading mechanism

Jack JK-T1310 / JK-T2210 parts on page 120
RefPart numberPart nameQty
11BRACKET
22SCREW
33BRACKET
44SCREW
55GUIDE
66SCREW
77THREAD GUIDE
88THREAD GUIDE
99SPRING
1010THREAD GUIDE
1111THREAD GUIDE
1212THREAD GUIDE
1313THREAD GUIDE
1414SCREW
1515THREAD GUIDE
1616PIN
1717THREAD GUIDE
1818THREAD GUIDE
1919NUT
1919NUT
2020THREAD GUIDE
2121THREAD GUIDE
2222THREAD GUIDE
2323THREAD GUIDE
2424THREAD GUIDE
2525THREAD GUIDE
2626SCREW
2727THREAD GUIDE
2828SPRING
2929THREAD GUIDE
3030THREAD GUIDE
3131THREAD GUIDE
3232THREAD GUIDE

Page 121 — G. 穿线装置/Threading mechanism

Jack JK-T1310 / JK-T2210 parts on page 121
RefPart numberPart nameQty
SA325000141712077过线导向 A
62500616S04030螺钉 M5 × 6
SA433300141712078过线导向 B
0625006 16S04030螺钉 M5 × 6
SA639100141712079过线器 C
62500616S04030螺钉 M5 × 6
15304900141702030面线导向杆
SA325400141713001夹线座
*P.6641713002调节弹簧
SA325500141713003夹线杆轴
S31032001138S16013夹线器螺母
15980500141713005夹线压盘
14544600141713006夹线盘
100402004417515012固定螺钉SM3.57
5A4143001S12001螺钉 M6 × 8
S1269900041702031松线销
SA325600 141713007夹线杆轴 A
14544600141713006夹线盘
15922400141712080线钩
41722320橡皮
N01024螺母M4
P.6741726014针套
SA325800141712082针杆轴套线导向 D
15288100141203018线冷却器组件
41222019塞头
12060636S10019螺钉 M6×6
15288300041223043油毡 8 X 15.5
15288400141213008过线钩
62670412409S11017螺钉 SM3.57-40 × 4
100 13600141713009夹线螺母
SA414600141713012弹簧
S1244100141713011止动垫圈
*P. 6641713010夹线簧
4171302000主夹线器组件Q
4171301400副夹线器组件

Page 122 — H . 卷线装置 / Bobbin winder mechanism

Jack JK-T1310 / JK-T2210 parts on page 122
RefPart numberPart nameQty
1BASE
2SHAFT
3SCREW
4BRACKET
5SHAFT
6SPRING
7SPRING
8SPRING
9WASHER
10SPRING
11SHAFT
12LEVER
13SPRING
14SPRING
15SCREW
16SHAFT
17SPRING
18SPRING
19SPRING
20COLLAR
21SHAFT
22BOBBIN
23BELT
24SCREW
25WASHER
26DIAL
27SPRING
28SHAFT
29LEVER
30SCREW
31SHAFT
32WASHER
33SPRING
34GEAR
35WASHER
36SPRING
37SCREW
38BRACKET
39SCREW

Page 123 — H、卷线装置/Bobbin winder mechanism

Jack JK-T1310 / JK-T2210 parts on page 123
RefPart numberPart nameQty
301382顶盖
SA329000141702033卷线手柄
12500556S09019螺钉M5 X 5
SA329100141709026卷线手柄
SA417100141702034弹簧挂钩
15293600141712084板弹簧
15293700141712085垫圈
62350616S04077螺钉 M3.5 X 6
15948600 1W01015垫圈
48050342H05006挡圈 E5
SA329000141702035卷线卡爪轴
SA198400141709027卷线压臂柄
62401216S01081螺钉 M4 X 12
SA329100141712086卷线压杆
S23418002417S15006螺钉 M4 X 5
SA329500141709028卷线卡爪
12400436S09006螺钉 M4 X 4
S1043800141727007弹簧
48050342H05006挡圈 E5
SA479600 141708025垫片
SA329600141702036卷线轴
SA329700 111703021卷线器
12044800141722017橡皮圈
12400436S09006螺钉 M4 X 4
15948600 1W01015垫圈
SA198800141711063卷线座
S1026800141727008拉簧
SA329800 141702037止动轴
SA329900141719001切刀
0625006 16S04030螺钉 M5 X 6
SA19941014171302100卷线器夹线组件Q
14544600241713006夹线盘
10040102212927016夹线弹簧
S31032001138S16013夹线螺母
S1244100141713011止动垫圈
12500536S09019摆在T M5 X 5
62061016S04038螺钉 M6 X 10
SA479710 141704002卷线驱动轮
S23651001S10018固定螺钉 M6 X 0.75-6

Page 124 — J . 切线装置 / Thread trimmer mechanism

Jack JK-T1310 / JK-T2210 parts on page 124
RefPart numberPart nameQty
33BRACKET
44HOUSING
55SPRING
66WASHER
77WASHER
88SHAFT
99BEARING
1010COLLAR
1111COLLAR
1212SPRING
1313BOLT
1414LEVER
1515BOLT
1616BRACKET
1717SHAFT
1818BOLT
1919BOLT
2020SPRING
2121ROD
2222HOLDER
2323NUT
2424BOLT
2525NUT
2626BOLT
2727CAP
2828SHAFT
2929SPRING
3030WASHER
3131BOLT
3232BOLT
3333SPRING
3434NUT
3535BRACKET
3636BRACKET
3737SHAFT
3838COLLAR
3939NUT
4040BOLT
4141NUT
4242SHAFT
4343WASHER
4444BOLT
4545BOLT
4646BRACKET
4747SPRING
4848BOLT
4949NUT
5050WASHER
5151LEVER
5252BOLT
5353BOLT
5454WASHER
5555BRACKET
5656BOLT
5757BASE
5858BRACKET
5959SPRING
6060WASHER
6161WASHER
6262WASHER
6363BRACKET
6464BOLT
6565WASHER
6666PLATE
6767BOLT
6868BOLT
6969BOLT
7070BRACKET
7171WASHER
7272WASHER
7373SPRING

Page 125 — J、切线装置 / Thread trimmer mechanism

Jack JK-T1310 / JK-T2210 parts on page 125
RefPart numberPart nameQty
41710003切线凸轮
S10018螺钉M6×0.75×6 45H
41712087电磁铁安装板
41730001切线电磁铁
L02031螺钉全螺栓 M4×8
W02008弹垫
W01001M4垫片
41702038电磁铁杆
S09006螺钉M4×4
41728033垫圈
417S30306螺栓M5×15
41712088驱动压杆
417S30012段螺钉7-3
4171211100切线驱动杆组件
41703022切线滚轮
41702039切线滚轮轴
417S12009螺钉 M4×5
H05029挡圈E4
41702040切线杆V
4170500300接头组件
N01021螺母M6
417S12005段螺钉B M6
N01012螺母M6
S10018螺钉M6×0.75×6 45H
41703023轴套8×15
41702041驱动杆导向轴
41727009弹簧
41722018减震垫圈
417S12005段螺钉B M6
N01012螺母M6
417S10003螺钉M6×19
N01021螺母M6
41712089切线杠杆V
41712090切线杠杆H
41712091切线杠杆H
4170500300接头组件
N01021螺母M6
417S12005段螺钉B M6
N01012螺母M6
41702042切线杠杆轴
41728023垫片
H03006挡圈8
S10019螺钉M6X6
41712092弹簧挂钩
41727010切线复位弹簧
S05123螺栓M5×12
W02001标准型弹簧垫圈5

Page 126 — J . 切线装置 / Thread trimmer mechanism

Jack JK-T1310 / JK-T2210 parts on page 126
RefPart numberPart nameQty
33BRACKET
44HOUSING
55SPRING
66WASHER
77WASHER
88SHAFT
99COLLAR
1010BEARING
1111BEARING
1212CLIP
1313BOLT
1414LEVER
1515SCREW
1616SHAFT
1717BEARING
1818BOLT
1919SCREW
2020SPRING
2121ROD
2222HOLDER
2323NUT
2424BOLT
2525NUT
2626WASHER
2727CAP
2828SHAFT
2929SPRING
3030WASHER
3131BOLT
3232WASHER
3333SPRING
3434NUT
3535BRACKET
3636BRACKET
3737SHAFT
3838COLLAR
3939NUT
4040BOLT
4141NUT
4242SHAFT
4343WASHER
4444BOLT
4545SCREW
4646HOLDER
4747SPRING
4848SCREW
4949NUT
5050WASHER
5151LEVER
5252BOLT
5353SCREW
5454WASHER
5555BRACKET
5656BOLT
5757BASE
5858BRACKET
5959SPRING
6060WASHER
6161WASHER
6262WASHER
6363BRACKET
6464BOLT
6565WASHER
6666PLATE
6767BOLT
6868BOLT
6969BOLT
7070BRACKET
7171WASHER
7272WASHER
7373SPRING

Page 127 — J, 切线装置 / Thread trimmer mechanism

Jack JK-T1310 / JK-T2210 parts on page 127
RefPart numberPart nameQty
41728028垫圈5
41709029动刀曲柄
417S12007段螺钉 6.35-6
41702043动刀杆轴
S10019螺钉 M6X6
41712093动刀连杆
417S30013段螺钉 6-1.8
4171500100针板A组件
4170903000动刀组件 F
417S30014段螺钉
41728007动刀圆套
41728008动刀圆套
41728009垫片 0.2
41728009垫片 0.3
41728009垫片 0.4
41719002定刀 F
S04036螺钉 M3x4
W01002垫圈 M3
41712094针孔板
417S17001螺钉 SM3.38
S02039螺钉 M4x9
417S15008螺钉 M4x8
41712095大旋盖挂钩 U
w02007弹簧垫圈2-3
W01002垫圈 M3
S04036螺钉 M3x4

Page 128 — K . 扫线装置 / Thread wiper mechanism

Jack JK-T1310 / JK-T2210 parts on page 128
RefPart numberPart nameQty
11
1-41-4
1-21-2
33
1616
2626
2828
2727
2525
55
77
2525
2424
1717
1919
1818
1111
1212
2020
1515
1414
1313
88
99
1010
2323
2222
2121

Page 129 — K, 扫线装置/Thread wiper mechanism

Jack JK-T1310 / JK-T2210 parts on page 129
RefPart numberPart nameQty
SA520800141730002THREAD WIPER SOLENOID ASSY
S4120600141727011THREAD WIPER SPRING
S4120500141728011WASHER PLAIN
S2545600141726007PLUNGER PIN
SA521700141712210T-WIPER SOLENOID SETTING PLATE
SA480600141711210SOLENOID COVER Q
062300616S04082SCREW PAN M3 X 6
SA521800141712096THREAD WIPER SHAFT BRACKET
018400836S05116BOLT SOCKET M4x8
025040236W01001WAS HER PLAN M4
SA19670014170204400THREAD WIPER CRANK ASSY
048040342H05029RETAINING RING E4
S2545400141708007SET SCREW COLLAR
S25279001417S15005SET SCREW (CP)M3. 5-5
SA228700141727012SPRING
41722012RUBBER WASHER
SA521900141712097THREAD WIPER ROD
110735001W01024WASHER
048030342H05002RETAINING RING E3
S1047010141712098WIPER
060400516417S15013SCREW BIND M4 X 5
14628800141708008THREAD WIPER STUD COLLAR
S0367700141728034WASHER
SA521300141730003STOP SWITCH ASSY
S55485001417S30306BOLT SOCKET (S/P WASHER) M5 X 15
41730022SOLENOID VALVE WIRING
41730059WIPER SWITCH PLUG INS B
141730001STOP SWITCH PLUG INS B

Page 130 — L. Tension release mechanism

Jack JK-T1310 / JK-T2210 parts on page 130
RefPart numberPart nameQty
11SPRING
22SCREW
33WASHER
44WASHER
55SCREW
66WASHER
77WASHER
88WASHER
99BRACKET
1010SPRING
1111PIN
1212CIRCLIP
1313WASHER
1414SPRING
1515HOUSING
1616SCREW
1717WASHER
1818SPRING

Page 131 — L, 松线装置/Tension release mechanism

Jack JK-T1310 / JK-T2210 parts on page 131
RefPart numberPart nameQty
41730004松线电磁铁 HV
L02031螺栓 M4 X 8
W02008弹簧垫圈 2-4
W01001平垫圈 M4
L02071螺栓 M4 X 18
N01024六角螺母 M4
W01001平垫圈 M4
41722020电磁铁缓冲垫圈
41712099电磁铁安装板
11211005线夹 1M
41702045松线杆
H05029挡圈 E4
W01009平垫圈 M5
417270 13弹簧
41711211电磁铁盖
417S300 12段螺钉 7-3
417220210形圈 P7
11211005电线夹 M150

Page 132 — M.电控装置/Electronic control device

Jack JK-T1310 / JK-T2210 parts on page 132
RefPart numberPart nameQty
11Electronic control device
22Electronic control device
33Electronic control device
44Electronic control device
55Electronic control device
66Electronic control device
77Electronic control device
88Electronic control device
99Electronic control device
1010Electronic control device
1111Electronic control device
1212Electronic control device
1313Electronic control device
1414Electronic control device
1515Electronic control device
1616Electronic control device

Page 133 — M、电控装置/Electronic control device

Jack JK-T1310 / JK-T2210 parts on page 133
RefPart numberPart nameQty
41730450基板
41330121短柱5
41730451前板1
41330124长柱7
41730449主板1
417304521
41330129螺钉12
41730453后板1
41730448电路板21
4173044800控制箱组件1
41730446触摸屏1
41730454前盖1
810087玻璃1
41730447电路板31
41730455后盖1
810530连接线1

Page 134 — P. 空压装置 / Air pressure mechanism

Jack JK-T1310 / JK-T2210 parts on page 134
RefPart numberPart nameQty
11Plug
22Regulator
33Elbow
44Plug
55Manifold
66Plug
77Solenoid valve
88Plug
99Bracket
1010Screw
1111Bracket
1212Screw
1313Tube
1414Tube
1515Tube
1616Tube
1717Tube
1818Tube
1919Tube
2020Tube

Page 135 — P、空压装置/Air pressure mechanism

Jack JK-T1310 / JK-T2210 parts on page 135
RefPart numberPart nameQty
SA657300142130096手动开关VHK3
SA5282001141845004气源处理元件
S09228000417S30026接头
153274001407S12002汇流板密封螺钉
SA528900141730014连阀座7V0500M3F
SA528300140728003消声器
S3911610041730012电磁阀 M5B075-02-R-B
41730013电磁阀接头
S5398200041730033隔板
18503036417S30024螺栓M4 X 30
SA528600141712106阀安装板
N01024六角螺母M4
OA5401006417S30025螺栓(带垫圈) M4X10DB
52566400041711016电线夹 13.2
SA640600161911006空气管 L
SA640500161911006空气管 R
SA640500261911006空气管 R
SA640600261911006空气管 L

Page 136 — Q . 电气部品装置 / Power supply equipment mechanism

Jack JK-T1310 / JK-T2210 parts on page 136
RefPart numberPart nameQty
11BRACKET
22BRACKET
33CLAMP
44SCREW
55CONNECTOR
66SCREW
77BRACKET
88BRACKET
99SCREW
1010BRACKET
1111CONNECTOR
1212CONNECTOR
1313BRACKET
1414SCREW
1515CLAMP
1616CLAMP
1717SCREW
1818CABLE
1919BRACKET
2020CABLE
2121CABLE

Page 137 — Q、电气部品装置/Power supply equipment mechanism

Jack JK-T1310 / JK-T2210 parts on page 137
RefPart numberPart nameQty
41711015电线夹13.2
41711014电线夹6.4
41711017电线夹16
417S30025螺栓M4X10DB
4173000500传感器组件
S04076螺钉M3X8
41730006机头开关组件
417S30023螺栓M3X16DB
417S30025螺栓M4X10DB
41730030头部检测出复合件
41730007电磁铁接线
41730008开关接线
41730009接地线450
417S30025螺栓M4X10DB
41711025电线夹19
41711026电线夹23
417S30025螺栓M4X10DB
11211005扎带(小)

Page 138 — S . 马达装置 / Motor mechanism

Jack JK-T1310 / JK-T2210 parts on page 138
RefPart numberPart nameQty
11Motor mechanism
22Bearing
33Bearing
44Bearing
55Bracket
66Screw
77Bearing
88Screw
99Bearing
1010Bearing
1111Bracket
1212Screw
1313Bearing
1414Screw
1515Bearing
1616Screw

Page 140 — T. 踏板关系 / Foot switch pedal mechanism

Jack JK-T1310 / JK-T2210 parts on page 140
RefPart numberPart nameQty
11Foot switch pedal mechanism
22Foot switch pedal mechanism
33Foot switch pedal mechanism
44Foot switch pedal mechanism
55Foot switch pedal mechanism
66Foot switch pedal mechanism
77Foot switch pedal mechanism
88Foot switch pedal mechanism

Page 141 — T、踏板关系/Foot switch pedal mechanism

Jack JK-T1310 / JK-T2210 parts on page 141
RefPart numberPart nameQty
SA35191014173001200脚踏复合件 A
SA603800141730045002连脚踏开关组件
S3816800141727018弹簧
S3817000141727018弹簧
S3626000041730046开关 VX
S3817400041712115脚踏板
S3817500141712116脚踏护板
S3817610141712117弹簧板

Page 142

Jack JK-T1310 / JK-T2210 parts on page 142
RefPart numberPart nameQty
10label
11label
16label
15label
23label
24label
25label
26label
27label
28label
22label
19label
18label
17label
20label
21label
78label
93label
83label
84label
92label
14label
12label
89label
9190label
94label
95label
88label
82label
100label
102label
97 98label
101label
101label
30label
29label
103label
105label
31label
13label
1label
3label
7label
8label
106label
4label
5label
9label
106label
128label
129label
118label
108label
129label
119label
108label
112label
120label
121label
122label
113label
117label
116label
114label
115label
111label
110label
109label

Page 143 — Z、附件/Accessories

Jack JK-T1310 / JK-T2210 parts on page 143
RefPart numberPart nameQty
41711212MOTOR COVER Q1
S04038SCREW PAN M6 X 104
41711031OIL PAN1
41711006DUST OILER COVER1
41722005RUBBER CUSHION3
101530010NAIL7
41711066DUST OILER1
20131076ACCESSORY BAG1
41712355SCREW-DRIVER FOR1
41718004BOBBIN LAN3
41532020CASTERS4
41217002NEEDLE5
11631008OILER ASSY1
1011101200OIL TANK ASSY1
10131004SCREW-DRIVER 1.9 X 521
10131003SCREW-DRIVER 3.4 X 701
10131002SCREW-DRIVER 5.5 X 1901
30131005WRENCH 6 X 71
30131006WRENCH 8 X 101
20131051TWEIZERS1
30131007HEXAGONAL WRENCH 1.51
20131046HEXAGONAL WRENCH 21
30131010HEXAGONAL WRENCH 2.51
30131012HEXAGONAL WRENCH 31
30131047HEXAGONAL WRENCH 41
20131056HEXAGONAL WRENCH 51
1383100300COTTON STAND ASSY1
40730010SPIRAL TUBE1
40736001SPIRAL TUBE JOINT1
140744001RUST-PROOF BAG1
4121208400EYE GUARD ASSY1
4121208100HINGE ASSY1
41212082EYE GUARD HINGE1
41211005EYE GUARD1
412S17004SCREW FLAT SM3. 18-40 X 82
412S16012NUT M3. 182
41228047WASHER PLAIN M32
41211005EYE GUARD HOLDER A2
401S11022SCREW PAN SM3.57-40 X 52
S04035SCREW PAN M4 X 62

Page 144 — Z. 附件 / Accessories

Jack JK-T1310 / JK-T2210 parts on page 144
RefPart numberPart nameQty
10label
11needle bar threader
16oil can
15oil dispenser
23spring
24spring
25spring
26spring
27spring
28spring
22tweezers
19screwdriver
18screwdriver
17screwdriver
20wrench
21wrench
78manual
93screw
83bracket
84bracket
92bracket
94screw
95screw
89screw
9190screw
88bracket
14needles
12bobbin
13caster
1cover
3screw
100screw
97screw
98screw
101bracket
102screw
101bracket
103washer
105nut
29stand
30hose
31screw
7cap
8screw
106cap
4base
5cap
9oil bottle
128cover
129screw
119screw
108bracket
129screw
120washer
121screw
122nut
117screw
116screw
114screw
115screw
110screw
109bracket
118screw
112bracket
113screw
111screw
107gas spring

Page 145 — Z、附件/Accessories

Jack JK-T1310 / JK-T2210 parts on page 145
RefPart numberPart nameQty
41722033橡皮校链
41712131垫片
41726019机头支承销
S10019螺钉 M6 X 6
41712132头部铰链座
S05112螺栓 M6 X 60
41728030垫圈 2.3 X 8.5 X 38
N01021螺母 M6
41722005缓冲皮垫
41730010缓冲器
301671缓冲器支架
41703027垫圈
S05117螺栓 M6 X 40
N01021螺母 M6
41702023轴 U
S10019螺钉 M6 X 6
41702024轴 D
41703028轴套 GS
41728018垫圈 S8
H05031挡圈 E6
S05112螺栓 M6 X 60
W01003平垫圈 M6
41728030垫圈 2.3 X 8.5 X 38
W02009弹簧垫圈 2-6
N01021螺母 M6
301672支架盖
417S13008螺栓(带垫圈) M4 X 8

Page 146 — Ga. 工具一览表 / Gauge parts list

Jack JK-T1310 / JK-T2210 parts on page 146
RefPart numberPart nameQty
S42843-001A
S42844-001B
S42845-001C
S42846-001D
S42847-001E
157237-001F
158592-001G
S42848-001J
S40214-001A-CUT
S49448-001B-L
S42849-101XA
SA4811-001H
SA3336-0012.4 C0.4
SA5221-0012.2
SA5222-0013.0 C1.5

Jack JK-T1310 / JK-T2210 — parts catalog

Page 1 — 开头语

开头语 衷心感谢您购买本公司产品!使用缝纫机之前,请认真 阅读此说明书。本说明书介绍了缝纫机日常使用、维护与安 全的有关注意事项。请您仔细加以保管,以便日后查阅。如 产品规格或外观经过改良可能会与说明书略有不同,恕不另 行通知。 PROLOGUE Thanking you for your purchase our products sincerely, please reading the manual book before operation, the book introduce some points how to operate, maintenance, and safe. Please keep it carefully for reading in the further; you will be not informed if the file has been revised. Please set sample as standard. jintex.in

Page 2

jinteх.in jintex.in

Page 3 — 为了您的安全使用

非常感谢您购买我公司工业缝纫机。在使用缝纫机之前,请仔细阅读<为了您的安全使用>和使用说明书。 工业缝纫机的特性之一,因为要在机针和挑线杆等运动零部件附近进行作业,而这些零部件很容易引起受伤的危险,所以请在受过培训的人或熟练人员的安全操作知识的指导下,正确地使用本缝纫机。 为了您的安全使用 [1] 安全使用的标识及其意义 本使用说明书及产品所使用的标记和图案记号是为了您的安全而正确地使用产品,防止您及其他人受到危害和损害。 表示方法及含意如下。 说明 危险 该表示内容如 果忽视此标记而进行了错误的 操作,必将导致死亡或重伤。 注意 如果忽视此标记而进行了错误的 操作,有可能会引起人员受伤及造成设备损坏。 图案和符号 该符号(△)表示“应注意事项”。 三角中的图案内 示必须要注意的实质内容。 (例如,左边的符号表示“当心受伤”。) 该符号(Ⓢ)表示“禁止”。 该符号(●)表示“必须”。 圆圈中的图案内 示必须做的事情的实质内容。 (例如,左边的符号表示“必须接地”。) i

Page 4

[2] 安全注意事项 危险 在关闭电源开关并将电源插头从插座上拔下后,至少等待 5 分钟,再打开控制箱盖。触摸带有高电压的区域将会造成人员伤亡。 注意 使用环境 请不要在有电源线干扰及静电干扰等强电气干扰源的环境下使用。 强电气干扰源可能会影响缝纫机的正确操作。 电源电压的波动应该在额定电压的±10% 以内的环境下使用。 电压大幅度的波动会影响缝纫机的正确操作。 电源容量应大于设备的消耗电量。 电源容量不足会影响缝纫机的正确操作。 压缩空气的供气量应大于设备所要求的总耗气量。压缩空气的供气量不足可能会导致缝纫机的操作不正常。 环境温度应在 5℃ ~35℃ 的范围内使用。 低温或高温会影响缝纫机的正确操作。 相对湿度应在 45% ~85% 的范围内,并且设备内不会形成结露的环境下使用。干燥或多湿的环境和结露会影响缝纫机的正确操作。 万一发生雷暴雨时,关闭电源开关,并将电源插头从插座上拔下。 雷电可能会影响缝纫机的正确操作。 安装 请让受过培训的技术人员来安装缝纫机。 请委托购买商店或电气专业人员进行电气配线。 缝纫机重约 88Kg,安装工作必须由两人以上来完成。 在安装完成前,请不要连接电源,如果误踩脚开关,缝纫机动作会导致受伤。 缝纫机头倒下或竖起时,请用双手进行操作。 另外在缝纫机头倒下的状态下,请不要用力压缝纫机。如缝纫机失去平衡,滑落到地上是造成受伤或缝纫机损坏的原因。 所有电缆应固定在离活动部件至少 25mm 以外处。 另外,不要过度弯曲电缆或用卡钉固定得过紧,会引起火灾或触电的危险。 请在机头及马达上安装安全罩壳。 如果使用带小脚轮的工作台,则应该固定小脚轮,使其不能移动。 使用润滑油和黄油时,务必戴好保护眼镜和保护手套等,以防润滑油滴入眼中或沾在皮肤上,这是引起发炎的原因。 另外,润滑油或黄油不能饮用,否则会引起呕吐和腹泻。 将油放在小孩拿不到的地方。 必须接地。接驳地线不牢固,是造成触电或误动的原因。 ii jintex.in

Page 5

注意 缝 纫 本缝纫机仅限于接受过安全操作培训的人员使用。 本缝纫机不能用于除缝纫外的任何其他用途。 使用本缝纫机时必须戴上保护眼镜。 如果不戴保护眼镜,断针时就会有危险,机针的 折断部分可能会弹入眼睛并造成伤害。 发生下列情况时,请切断电源。当误踩脚开关时, 缝纫机动作会导致受伤。 ·机针穿线时 ·更换机针或梭芯时 ·缝纫机不用,或人离开缝纫机时。 如果使用带小脚轮的工作台,则应该固定小脚轮, 使其不能移动。 清洁 在开始清洁作业前,请切断电源。如果误踩了脚 开关,缝纫机动作会导致人员受伤。 维护和检查 只有经过训练的技术人员才能进行缝纫机的维修、保养和检查。 与电气有关的维修、保养和检查请委托购买商店 或电气专业人员进行。 发生下列情况时,请关闭电源。并拔下电源线插 座。否则误踩下脚开关时,缝纫机动作会导致受 伤。 ·检查、调整和维修 ·更换梭梭等消耗零部件 在检查、调整和修理任何使用气动装置的部件前, 请断开气源,并等压力表指针下降到“0”为止。 为了安全起见,在使用本缝纫机之前,请安装保护 装置。如果未安装这些安全装置就使用缝纫机,会 造成人身伤害及缝纫机损坏。 缝纫过程中不要触摸任何活动部件或将物件事在 运动部件上,因为这会导致受伤或缝纫机损坏。 如果缝纫机操作中发生误动作,或者如果听到异常 的声音或闻到异常的气味,应立即切断电源。 然后请与购买商店或受过培训的技术人员联系。 如果缝纫机出现故障时,请与购买商店或受过培训的技术人员联系。 缝纫机头倒下或竖起时,请用双手进行操作。 另外在缝纫机头倒下的状态下,请不要用力压缝 纫机。如缝纫机头失去平衡,滑落到地上是造成受 伤或缝纫机损坏的原因。 在必须接上电源开关进行调整时,务必十分小心 遵守所有的安全注意事项。 请使用兄弟工业公司指定的更换零部件。 取下的安全保护装置,再次安装时,请务必安装在 原位上,并检查能否正确地操作。 未经授权而对缝纫机进行改装而引起的缝纫机损 坏不在保修范围内。 jintex.in iii

Page 6

[3] 警告标签 缝纫机上有下列警告标签。 当使用缝纫机时,请遵守标签上的说明。如果标签脱落或模糊不清,请和购买商店联系。 1 ▲ 危险 ▲ 危险 ▲ 注意 高电压部分に触れて、大けがを する恐れがあります。 電源を切り、5分待ってからカバー をはずすこと。 触摸高压部分,会导致受伤。 在切断电源5分钟后, 再开启盖罩。 触摸运动部分,易造成受伤。 所以在装 上安全保护装置后,再进行缝纫操作。 在切断电源后,进行穿线,更换梭芯, 机针和做清扫,调整工作。 ▲ DANGER ▲ GEFAHR ▲ PELIGRO Hazardous voltage will cause injury. Turn off main switch and wait 5minutes before opening this cover. Verletzungsgefahr! Bitte schalten sie den Hauptschalter aus und warten sie 5 minuten, bevor sie diese abdeckung öffnen. Un voltaje non adapte provoque des blessures. Eteindre l'interrupteur et heridas. Apagar el interruptor principal y esperar 5 minutos antes de abrir esta cubierta. ▲ CAUTION Moving parts may cause injury. Operate with safe- ty devices. Turn off main switch before threading, changing bobbin and needle,cleaning etc. 3 缝纫机头倒下或竖起时,请小心别夹住您的手指。 4 PE 必须保证接地。如果接地不可靠,很有可能受到严重 电击,操作也可能出现问题。 5 表示转动方向 安全保护装置 护眼板,护指器, 挑线杆防护罩,马达盖, 松线电磁铁盖,内盖,外盖, 固定盖,缓冲器支架盖等 马达盖 2 内盖 L 外盖 固定盖 L 挑线杆防护罩 护眼板 马达盖 R 4 内盖 R 外盖 固定盖 R 3 马达盖 L 1 缓冲器支架盖 iv jintex.in

Page 7

目录 1. 各部件名称 2. 规格 3. 安装方法 3-1. 台板加工图 3-2. 控制箱的安装方法 3-3. 油盘的安装方法 3-4. 缝纫机头部的安装方法 3-5. 缝纫机头部的倒下 3-6. 踏脚用复合件的安装方法(电磁规 格) 3-7. 2连脚踏开关的安装方法(空压规 格) 3-8. 线架的安装方法 3-9. 空压用复合件的安装方法(空压规 格) 3-10. 护眼板的安装方法 3-11. 马达盖的安装方法 3-12. 加油 3-13. 机头部固定螺栓的安装法 4、缝纫前的准备 4-1. 机针的安装方法 4-2. 面线的穿法 4-3. 底线的绕线方法 4-4. 梭芯套的装取方法 4-5. 缝纫张力 4-5-1. 底线的张力 4-5-2. 面线的张力 5. 缝纫 5-1. 缝纫的方法 5-2. 暂停开关的使用方法 5-3. 扫线用开关的使用方法 6. 保养 6-1. 旋梭的清洁 1 2 3 3 4 4 5 9 10 10 11 12 13 14 15 16 16 16 18 19 20 20 20 21 21 22 22 23 23 6-2. 控制箱进气口的清洁 6-3. 更换润滑油 6-4. 护眼板的清洁 6-5. 机针的检查 6-6. 加油 7. 标准调整 7-1. 头部开关的确认 7-2. 挑线簧 7-3. 机壳线导向R 7-4. 机针高度的调整 7-5. 机针上升量的调整 7-6. 梭托导针部的调整 7-7. 针隙的调整 7-8. 旋梭导线器的调整 7-9. 旋梭供油量 7-10. 动刀的位置调整 7-11. 动刀和定刀的更换方法 7-12. 扫线器的调整 7-13. 间歇压脚的安装位置 7-14. 间歇压脚行程的变换 7-15. 压脚上升量的调整 7-16. 空气压力的调整(空压规格) 8. 故障检修 24 24 24 24 24 25 25 26 26 27 27 27 28 28 28 29 31 32 32 33 35 35 36 jintex.in

Page 8 — 1. 各部件名称

1. 各部件名称 1. 各部件名称 (9) (10) (8) (14) (13) (12) 2 连脚踏开关 (6) (7) (5) (15) (16) (11) (3) (4) (2) (1) (1) 电源开关 (2) 控制箱 (3) USB接口 (4) 操作盘 (5) 脚踏开关 (电磁规格) (6) 压脚开关 (空压规格) (7) 启动开关 (空压规格) (8) 暂停开关 (9) 扫线用开关 (10) 皮带轮 (11) 线架 (12) 电磁阀 (空压规格) 安全保护装置 (13) 护指器 (14) 护眼板 (15) 挑线杆防护罩 (16) 马达罩 1 jintex.in

Page 9

2. 规格 T1310 T2210 A S 电磁式拾压脚 A 空压式拾压脚 使用 的 缝 纫 机 平缝花样缝纫机(带大旋梭) 线 迹 形 式 单针平缝 最高缝纫速度 2,700rpm 缝纫尺寸(X×Y) T1310:最大130×100 mm, T2210:最大220×100 mm 送布驱动方式 间歇送布(脉冲马达驱动) 针距 0.05~12.7mm 针数 内存500,000针(※) 最大针数 20,000针(1个程序) 存储可能缝纫的数据 内存:512(※) 拾压脚驱动方式 电磁规格:脉冲马达驱动,空压规格:空压式 压脚上升量 电磁规格:最大25mm,空压规格:最大30mm 2段压脚 电磁规格:左右一体式压脚,空压规格:左右分离式压脚 间歇压脚上升量 22mm 间歇压脚行程 2~4.5mm、4.5~10mm或0(出厂时3mm) 使用的旋梭 半回转2倍旋梭(标准旋梭另买) 接线装置 标准装备 切线装置 标准装备 数据存储方式 内存(快擦写存储器) 用户程序数 9 循环程序数 9 马达 AC伺服马达750W 头部:约88kg,操作盘:约0.6kg 重量 控制箱:14.2~16.2kg(根据电压不同而不同) 电源 单相100V/220V、3相200V/220V/380V/400V 400VA 空气压力 0.5 Mpa 1.8 1/min ※根据各个程序的针数的不同,能够存储的缝纫数据和针数也不同的。 2 jintex.in

Page 10

3. 安装方法 3. 安装方法 请让受过培训的技术人员来安装缝纫机。 请委托购买商店或电气专业人员进行电气配线。 缝纫机重约 88Kg,安装工作必须由两人以上来完成。 在安装完成前,请不要连接电源,如果误踩脚开关,缝纫机动作会导致受伤。 缝纫机头倒下或竖起时,请用双手进行操作。 另外在缝纫机头倒下的状态下,请不要用力压缝纫机。如缝纫机失去平衡,滑落到地上是造成受伤或缝纫机损坏的原因。 ▲注意 所有电缆应固定在离活动部件至少 25mm 以外处,另外不要过度弯曲电缆或用卡钉固定得过紧,会引起火灾或触电的危险。 必须接地。接驳地线不牢固,是造成触电或误动作的原因。 请在机头及马达上安装安全罩壳。 3-1. 台板加工图 台板的厚度应达 40mm,能够承受缝纫机的重量,并经的起缝纫机的震动。 如果机脚的内侧尺寸 A 小于 740mm,请将控制箱的安装位置(B=261mm)移向左侧进行加工。 请确认控制箱应离开机脚 10mm 以上。如果控制箱过于靠近机脚,则可能会引起缝纫机的误动作。 1200 (800) A(740) 390.8 ±0.2 386 B(261) 52 42 4-φ9 线架孔 4-R20 $25 深度4 31 53 130 控制箱安装孔 42.5 82 255 4-φ8 30 10 85.7 32.5 306 387 266 118 $50 R10 4-R10 20 30 45 气流调节 器用孔 200 60 90 23 4-φ8 246 126 123 117 2-φ2 深度2 262 483 45° 45° 21 14 操作盘电线用孔 3-φ5.5 $65 620 25 40 3 jintex.in

Page 11 — 3. 安装方法

3. 安装方法 3-2. 控制箱的安装方法 拧下固定螺钉 (1) [8 个], 拆下控制 箱的盖子 (2)。 (3) 控制箱 (4) 螺栓 [4 个] (5) 垫圈 [4 片] (6) 螺母 [8 个] 3-3. 油盘的安装方法 当使用电磁规格时, 在安装油盘前, 请 先装上用于踏脚用复合件的螺栓 (A)。 (1) 油盘 (2) 钉 [7 个] (3) 防震橡皮 [4 个] (4) 注油罐 4

Page 12 — 3-4. 缝纫机头部的安装方法

3. 安装方法 3-4. 缝纫机头部的安装方法 脉冲马达 约20mm (1) (3) (1) 机头支撑销 [2个] (2) 螺钉 [2个] (3) 机头链橡胶组 [2个] 将机头轻轻地放在油盘,防震橡皮上。 注意: 请注意不要让电线夹在机头和油 盘之间。 在拿机头时,请不要握住脉冲马 达。否则可能会引起脉冲马达的 故障。 (4) 机头链套 [2个] (5) 螺栓 [4个] (6) 垫圈 [4片] (7) 螺母 [4个] (8) 机头支撑杆 (9) 螺栓带垫圈 [4个] 5 jintex.in

Page 13 — 3. 安装方法

3. 安装方法 (10) 针板辅助板 (11) 螺栓带垫圈 [10个] 为了使针板辅助板(10)和针板在同一 高度平面,旋松螺栓带垫圈(12)进行 调整。 注意: 请将针板辅助板水平安装。 压臂 从缝纫机正面将压臂移动到最右侧(图 中箭头方向)之后,慢慢地将缝纫机头 部倒下。 注意: 缝纫机头部的操作请2个人以上,使 用双手慢慢地将缝纫机头都倒下。 jintex.in 6

Page 14

3. 安装方法 (13) 缓冲器支架 [2片] (14) 垫片 (15) 螺栓 (16) 螺母 (17) 缓冲器 (18) 轴套 [2片] (19) 缓冲器轴 D (20) 垫圈 [2片] (21) 制动轮E [2个] (22) 螺栓 [2个] (23) 垫圈(大)[2片] (24) 垫圈(大)[2片] (25) 弹簧垫圈 [2片] (26) 螺母 [2个] (27) 缓冲器轴 U (28) 螺钉 注意: 如果是电磁规格时,印有*的请使 用螺栓(22)、垫圈(23)、垫圈(24)、 弹簧垫圈(25)、螺母(26),将脚踏 用复合件一起拴住。 (29) 缓冲器支架盖 (30) 螺栓带垫圈 [6个] 7 jintex.in

Page 15 — 3. 安装方法

3. 安装方法 M3 X 20 图 1 油盘 • 慢慢地将机头返回到原位。 • 松开螺钉(31),在如图所示的位置上安装头部品关(32),使用螺钉(31)和附属螺钉M3X20(33)将头部品关(32)固定。 • 如图1所示,确认接通头部品关(32)。 8 jintex.in

Page 16 — 3-5. 缝纫机头部的倒下

3. 安装方法 3-5. 缝纫机头部的倒下 (1) 注意 (2) 1. 从缝纫机正面将压臂 (1) 移动到最右侧 (图中箭头方向)。 2. 使用双手慢慢地将缝纫机头部向工作台的左侧倒下。 注意: 倒下缝纫机头部时, 请一定将压臂移动到最右侧之后再倒下缝纫机头。如果压臂留在左侧倒下缝纫机头部时, 外盖 L (2) 有可能会破损。 9 jintex.in

Page 17 — 3. 安装方法

3. 安装方法 3-6. 踏脚用复合件的安装方法 (电磁规格) (1) 踏脚用复合件 (2) 螺栓 [3个] (3) 垫圈 [3片] (4) 弹簧垫圈 [3片] (5) 螺母 [3个] A B (1) (2) (3) (4) (5) 注意: ·安装孔A的螺栓,请在装油盘前安装。(参考「3-3. 油 盘的安装方法」) ·安装孔B是为了安装缓冲器支架用的螺栓,垫圈,弹 簧垫圈和螺母母用的。(参考「3-4. 缝纫机头部的安装 方法」) ※ 脚踏开关和连杆请使用市售商品。 ※ 当脚踏复合件的位置要更改时,请使用附录的螺栓, 垫圈,弹簧垫圈和螺母。 <脚踏开关的操作法> 踩下脚踏开关到第1挡 为止时缝纫机将启动。 第1挡 第2挡 3-7. 2 连脚踏开关的安装方法 (空压规格) (1) 脚踏开关 将脚踏开关(1)的插头插入主基板的插座 P6(FOOT)处。 <脚踏开关的操作法> 当踩下脚踏开关(左侧)时二压脚会放下,当踩下启动开 关时(右侧)时缝纫机将启动。 压脚开关 (2挡) 启动开关 10 jintex.in

Page 18 — 3-8. 线架的安装方法

3-8. 线架的安装方法 3. 安装方法 (1) 线架 注意: 按装上垫圈 (2), 请拧紧螺母 (3) 使线架完全不能移动。 (1) (1) (2) (3) 11 jintex.in

Page 19 — 3-9. 空压用复合件的安装方法 (空压规格)

3. 安装方法 3-9. 空压用复合件的安装方法 (空压规格) 安装在工作台的下面。 (1) 电磁阀组 (2) 垫圈 [2片] (3) 螺钉 [2个] (4) 皮管 安装好空压用复合件后,请进行空气压 力的调整。(参考「10-16. 空气压力的 调整」) 注意: 安装空压用复合件时,请不要碰到控 制箱和工作台脚。 将各空气管的同样号码连接在一起。 气缸 R (1A) (1B) 气缸 L (2A) (2B) (1B) (1A) (2B) (2A) 手动按钮 按下按钮 上升按钮 <速度控制的调整> 使用阀门的按钮可以调整压脚的上升和下降的速度。 请使用调节按钮,让左右的压脚以同样的速度进行动作。 旋紧上升按钮,压脚的上升速度会变慢。反之,如旋松上升按钮,压脚的上升速度会变快。 旋紧下降按钮,压脚的下降速度会变慢。反之,如旋松下降按钮,压脚的下降速度会变快。 在切断电源的状态下,如使用手动按钮钮能使压脚运动。 12 jintex.in

Page 20 — 3. 安装方法

3-10. 护眼板的安装方法 3. 安装方法 ▲ 注意 为了安全起见,在使用本缝纫机之前,请安装保护装置。 如果未安装这些安全装置就使用缝纫机,会造成人身伤害及缝纫机损坏。 (1) 护眼板组件 (2) 垫圈 [2片] (3) 螺钉 [2个] 3-11. 马达盖的安装方法 (1) 马达盖 R (2) 螺钉 [4个] (3) 马达盖 L (4) 螺钉 [4个] (5) 马达盖 (6) 螺钉 [4个] 注意: 在安装马达盖(1)时,请注意不要 夹住电线等。 13 jintex.in

Page 21

3. 安装方法 3-12. 加油 ▲ 注意 在加油未完成前,请勿插上电源。 如果误踩脚踏开关,缝纫机动作会导致受伤。 使用润滑油和黄油时,务必戴好保护眼镜和保护手套等,以防润滑油滴入眼中或沾在皮肤上,这是引起发炎的原因。 另外,润滑油或黄油不能饮用,否则会引起呕吐和腹泻。 将油放在小孩拿不到的地方。 必须经常润滑缝纫机,第一次使用缝纫机或长时间未使用缝纫机时,要补充机油。 请使用本公司指定的缝纫机润滑油。 1. 向机壳侧面的油箱注油。 2. 从缝纫机正面将压臂 (1) 移动到最右侧,将外盖 L (2) 滑动到内盖 L (3) 的中间,使底板的油孔能看见,从该油孔向 底板侧面的油箱注油。 注意: 当油面下降到油面指示窗的1/3左 右时,请务必加注机油。如果油面下降到油面指示窗的1/3以下,则可能会成为 机器烧伤等故障的原因。 3. 给大旋梭本体组件的2个孔 (4) 注人机油,使毛毡上含有微量的机油。 注意: 如果大旋梭本体组件的毛毡上沒有机油,则可能会成为缝纫故障的原因。 4. 如果使用冷却液槽 (5) 时,请在槽中注入硅油(100mm²/s)。 14 jintex.in

Page 22 — 3-13. 机头部固定螺栓的安装法

3-13. 机头部固定螺栓的安装法 在搬运缝纫机时,请使用机头部固定螺栓将头部和工作台固定。 (1) 垫圈 (2) 机头部固定螺栓 注意: 缝纫机运转时,请将机头部固定螺 栓拆除。 3. 安装方法 15 jintex.in

Page 23 — 4. 缝纫前的准备

4. 缝纫前的准备 4. 缝纫前的准备 4-1. 机针的安装方法 ▲ 注意 安装机针时,请切断电源。 当误踩下脚开关时,缝纫机动作会导致人员受伤。 1. 松开螺钉(1)。 2. 正面朝看机针(2)的长槽,笔直插到底并用力拧紧 止动螺钉(1)。 4-2. 面线的穿法 请按照下图所示正确地穿面线。 ※ 如果在穿线模式下进行穿线,交线盘(1)将变成打开状态,机线就更加便于穿过。(参考下一页) [棉、短纤维线时] 4943Q (3) 8 9 6 11 12 40mm 2 3 7 5 (1) [化纤线时] (2) · 请回转缝纫机手轮(2),将挑线杆(3)调到最高点后,进行穿线。 (容易穿线,且可防止缝纫时的脱线。) · 在线穿过机针后,从机针孔残留的线的长度为40mm左右。 如残留的线过长有可能 会打结。 16 jintex.in

Page 24 — 4. 缝纫前的准备

4. 缝纫前的准备 <穿线模式> 在穿线模式下,即使踩下脚踏开关,缝纫机也不会起动,所以非常安全。 打开电源。 1 2 按回零键 按穿线键,同时符改 ·降下压脚。 3 进行穿线。 4 穿线模式结束 按穿线键,同时符改 ·压脚返回到进入穿线模式前的状态。 17 jintex.in

Page 25 — 4-3. 底线的绕线方法

4. 缝纫机前的准备 4-3. 底线的绕线方法 ▲ 注意 在卷线过程中, 不要触摸任何运动部件或将物件靠在运动部件上, 因为这会导致人员受伤或缝纫机损坏。 (2) (1) 1. 将梭芯置于梭芯卷线轴(1)上。 2. 按照图示那样穿线, 将线在梭芯内绕几圈, 然后推梭 芯压臂柄(2)。 3. 打开电源。 4. 按回零键(3) 进行原点检测。 5. 确认机针不会碰到压脚, 按绕线键(4), 使绕线键 (4) 切换成绕线键(5), 并处于“ON”状态, 将脚 踏开关踩到第2档位置, 开始绕线。 (3) (4) (5) (2)连脚踏开关时, 踩下2连脚踏开关的启动开关) 6. 当绕线量达到规定的数量(梭芯外径的80%~90%) 时, 应停止绕线, 按绕线键(4) 使绕线键 在途中踩下脚踏开关的启动开关, 或按下绕线键 (5)切换成绕线键(4), 并处于 “OFF”状态, 则停止绕线)。 7. 拆下梭芯, 将线钩在切刀(6)上, 朝箭头方向拉梭 线切断。 (6) 调节梭芯绕线量 拧松螺钉(7), 调节梭芯压杆(8)。 (7) (8) 如果梭芯上的线不均匀 拧松止动螺钉(9), 上下移动卷线用夹线器(10)进行调 节。 ※在A的情况下, 将绕线用夹线器(10)向下移动; 在B的情况下, 将卷线用夹线器(10) 向上移动。 (9) A B (10) 18 jintex.in

Page 26 — 4. 缝纫前的准备

4. 缝纫前的准备 4-4. 梭芯套的装取方法 ▲ 注意 在安装梭芯套时,请切断电源。 当误踩下脚开关时,缝纫机动作会导致人员受伤。 (1) (3) (2) (4) 30mm 1. 向下大旋梭盖(1)将其打开。 2. 握住梭芯以便向右卷绕底线,将梭芯插入梭芯套。 3. 将底线穿过线槽(2),然后从导线器(3)中拉出。 4. 当拉出底线时,检查梭芯是否按顺时针方向转动。 5. 将线穿过套柄上的线孔(4),使线端伸出约30mm。 6. 将插销装在梭芯套上,再将梭芯套插入旋梭。 19 jintex.in

Page 27

4. 缝纫前的准备 4-5. 缝纫张力 [ 参考线张力 ] 规 格 厚布料(-01) 中厚布料(-02) 面线 相当20号 相当50号 底线 相当20号 相当50号 面线的张力(N) 1.4~1.8 0.8~1.2 底线的张力(N) 0.2~0.3 预张力(N) 0.1~0.6 0.1~0.3 机针 DP×17 #19 DP×5 #16 常用回转数 2,000 rpm 2,000 rpm 4-5-1. 底线的张力 转动调节螺钉(1)来调节底线的张力,将张力调节到当 用手握住线端时梭芯靠它的自重不会滑落的程度,应 尽可能减弱张力。 (1) 减弱加强 4-5-2. 面线的张力 1. 转动夹线螺母(1),根据缝纫制品进行夹线的调节(主 夹线)。 2. 用夹线螺母(2)(副夹线器)进行调节,使面线残留量 在40mm左右的范围内。 (2) 减弱加强 (1) 减弱加强 20 jintex.in

Page 28 — 5. 缝纫 5-1. 缝纫的方法

5. 缝纫 发生下列情况时,请切断电源。 当误踩脚开关时,缝纫机动作会导致受伤。 · 机针穿线时 · 更换机针或梭芯时 · 缝纫机不使用,或人离开缝纫机时。 缝纫过程中不要触摸任何活动部件或将物件靠在运动部件上,因为这会导致受伤或缝纫机损坏。 5-1. 缝纫的方法 1. 打开电源。 2. 按←或→键翻页,按数字键选择要缝纫的程序号。 (1) 47 59 61 112 130 第1档 第2档 (4) (2) (3) 3. 按回零键(1)进行原点检测。 4. 将布料放在压脚(3)的下面 5. 将脚踩开关踩到第1档。 (2连脚踏开关时,先踩下脚踏(4)。) · 压脚(3)下降。 6. 将脚踩开关踩到第2档位置。 (2连脚踏开关时,踩下启动开关(2)。) · 缝纫机起动。 7. 缝纫—结束就剪线,然后压脚(3)上升。 请使用能确保缝制布料不偏移的压脚。 如使用标准的压脚和送料板而缝制布料偏移时,请使用压脚和送料板不能滑动的措施。 21 jintex.in

Page 29 — 5. 缝纫

5. 缝纫 5-2. 暂停开关的使用方法 在缝制中或是试送布中, 如果按了暂停开关(1), 缝纫机立即会停止。 <接着缝制的方法> 在缝纫中, 当出现断线或是底线用完等情况时, 按下暂停开关(1)后, 还是可以在出现断线的位置处继续接着缝制 工作的。 将脚踩开关踩到第2档位置。 (2 连脚踏开关时, 踩下自动开关。) 第2档 缝纫机起动, 缝纫开始。 5-3. 扫线用开关的使用方法 使用扫线用开关(1)、可以扫线杆(2)的开和关(ON, OFF)。 (1) (2) 22 jintex.in

Page 30 — 6. 保养

6. 保养 ▲ 注意 在开始清洁作业前,请切断电源。 如果踩踏了脚开关,缝纫机动作会导致人员受伤。 使用润滑油和黄油时,务必戴好保护眼镜和保护手套等,以防润滑油落入眼中或沾在皮肤上,这是引起发 炎的原因。 另外,润滑油或黄油不能饮用,否则会引起呕吐和腹泻。 将油放在小孩拿不到的地方。 6-1. 旋梭的清洁 1. 将大旋梭盖向下 拉开,取出梭芯盒。 (1) (2) (3) 2. 将大旋梭固定柄 (1) 朝箭头方向打开,取出 (2) 和中旋梭 (3)。 大旋梭 3. 将梭托 (4) 四周、旋梭线导向上部及旋梭边缘的棉 尘和线屑等擦干净。 (4) 23 jintex.in

Page 31 — 6. 保养

6. 保养 6-2. 控制箱进气口的清洁 请每月一次左右用吸尘器清洁控制箱 (1) 的进气口 (2) 处的滤网。 (1) (2) 6-3. 更换润滑油 1. 如果注油器瓶 (1) 内积满了油, 则请拆下瓶将油倒掉。 (1) 2. 油倒掉后, 再将注油器瓶 (1) 拧入到原來位置。 6-4. 护眼板的清洁 护眼板污秽时, 请用软布将其擦拭干净。 注意: 请勿使用有机溶液如汽油或稀释剂清洁护眼板。 6-5. 机针的检查 缝纫开始前先确认针头有否断裂, 机针有否弯曲。 6-6. 加油 参照“3-11. 加油”所述, 添加机油。 jintex.in 24

Page 32 — 7. 标准调整

7. 标准调整 ● 注意 只有经过训练的技术人员才能进行缝纫机的维修、保养和检查。 与电气有关的维修、保养和检查请委托购买商店或电气专业人员进行。 发生下列情况时,请关闭电源。并拔下电源线插座。否则误踩脚开关时,缝纫机动作会导致受伤。 检查、调整和维修 更换旋梭等消耗零部件 缝纫机头倒下或竖起时,请用双手进行操作。 缝纫机头倒下的状态下,请不要用力压缝纫机。如缝纫机头失去平衡,滑落到地上是造成受伤或缝纫机损坏的原因。 在必须接上电源开关进行调整时,务必十分小心遵守所有的安全注意事项。 取下的安全保护装置,再次安装时,请务必安装在原位上,并检查能否正确地操作。 7-1. 头部开关的确认 如图所示,确认按通头部开关。 25 Jintex.in

Page 33 — 7-2. 挑线簧

7. 标准调整 7-2. 挑线簧 规 格 厚布料(-01) 中厚布料(-02) 挑线簧高度(mm) 7~10 0.2~0.5 挑线簧强度(N) 0.6~1.2 <挑线簧的高度> 拧松固定螺钉(1),转动调节器全体进行调节。 低 高 (1) <挑线簧的强度> 用螺丝刀转动夹线杆(2)进行调节。 注意: 如果对挑线簧不能正确地进行调整,那么每次切线后 的残留量可能会长短不一。 7-3. 机壳线导向R 机壳线导向R(1)的位置,当螺钉(2)被固定在钢印的为止 时为标准位置。 ※ 当旋松螺钉(2),移动机壳线导向R(1)进行位置的调节。 当缝纫厚料时,向左移动机壳线导向R(1)。(挑线量 增加。) ※ 当缝纫薄料时,向右移动机壳线导向R(1)。(挑线量 减少。) 增加 减少 (2) 钢印 26 jintex.in

Page 34 — 7. 标准调整

7. 标准调整 7-4. 针杆高度的调整 a (DP X 5) (1) A DP X 17 (2) 转动手轮使针杆降至最低点时,将针棒下方的第二根基线 A 与针棒金属(1)下端对齐,即下缘没(2)并松开螺钉(3), 上下移动针杆以进行调整。 ※ 使用 DP X 5 的机针时,应与最上方的基线 a 对齐。 7-5. 针杆上升量的调整 机针中心 (1) 尖端 (3) b (DP X 5) B DP X 17 (2) 转动手轮使针杆从最低点开始上升,当针棒最下方的基线 B 与针棒金属(1)下端对齐时,将旋梭尖端与机针中心对齐, 并拧松固定螺钉(2),转动梭托(3)进行调整。 ※ 使用 DP X 5 的机针时,应与从上方开始的第二根基线 b 对齐。 7-6. 梭托导针部的调整 机针中心 尖端 (1) (3) (2) 转动手轮使旋梭尖端与机针中心对齐时,梭托导针部(1)好象要与机针接触似的,松开固定螺钉(2),转动偏心轴(3) 进行调整。 注意: 如果护针器的过度导入会使机针的负担加重,还会引起夹线不良。此外,如果护针器不导入,则中旋梭的梭尖 端会和机针相接触,会产生跳针的原因。 27 jintex.in

Page 35 — 7. 标准调整

7. 标准调整 7-7. 针隙的调整 0.01~0.08mm 转动手轮使旋梭尖端与机针中心对齐时,使机针和旋梭尖端之间的间距为0.01~0.08mm,并松开固定螺钉(1),转动 偏心轴(3)进行调整。 7-8. 旋梭导线器的调整 (1) 左右位置是将旋梭导线器(1)的针槽作为机针中心的分配位置.前后位置是将旋梭导线器(1)按箭头方向压上并安装。 注意: 如果旋梭导线器的位置不佳,则会导致切线、缝线受污或者缠绕。 旋梭导线器的位置在出厂时已作调整。请尽量不作改动。 7-9. 旋梭供油量 增加 减少 (1) 螺钉(1)的头部和底板的端面呈一致状态时为适量的位 置。供油量的调节,可从该位置起向右旋转 3 周的范围 内进行调节。 ·螺钉(1)向右旋转时供油量减少。 ·螺钉(1)向左旋转时供油量增加。 一致 28 jintex.in

Page 36 — 7-10. 动刀的位置调整

7-10. 动刀的位置调整 5232Q 5234Q (1) (2) <从侧面看的切线凸轮图> (5) (3) (4) (6) 反转位置 1. 取下顶盖,将机头放倒。 2. 用手转动手轮(1)使针杆在最低位置后,将切线电磁铁(2)完全推到底。 3. 在切线滚轮(3)嵌入切线凸轮(4)的槽中的状态下,用手回转手轮(1),使切线驱动杆(5)在反转位置(挑线杆(6)) 处于最低位置附近)。 9.5-9.9mm (8) 5235Q (9) (7) 4. 松开插孔螺栓(7)。 5. 将针板右侧的缘线到动刀(8)的缘线距离保持在9.5~9.9 mm,前后移动切线杆H(9)来进行调整。 6. 拧紧插孔螺栓(7)后,再次确认上述的位置。 29 jintex.in

Page 37 — 7. 标准调整

7. 标准调整 (1) (11) (5) (3) (10) (4) 0-1mm (8) (12) 7. 用手转动手轮(1)使针杆置于最低位置。 8. 松开螺母(10),将切线滚轮(3) 嵌入切线凸轮(4) 的槽中并旋到其内侧为止后紧紧螺钉(11),再从此开始将其 按逆时针方向回转约1/4转。 9. 旋紧螺母(10),确认切线滚轮(3) 不能接触到切线凸轮(4)的内侧。还有,用手将切线驱动杆(5) 推向切线凸轮侧, 切线滚轮(3) 嵌入到切线凸轮(4) 的槽中后,当松开手后确认切线驱动杆(5)应能顺利复位。 10. 动刀(8)的外周和旋线导向(12)的棱线,在留有一定间隙状态下确认其间隙范围在0~1mm之间。 jintex.in 30

Page 38 — 7-11. 动刀和定刀的更换方法

7-11. 动刀和定刀的更换方法 7. 标准调整 1. 松开螺栓(1) [2个], 拆下送料板(2)。 2. 打开大旋梭盖, 取下螺钉(3)[2个]和螺钉(4)[2个], 拆下针板(5)。 3. 拆下动刀(6)和定刀(7)。 (10) (8) (9) (6) (11) (5) 0.5mm 1.0mm (7) (5) (12) (13) 4. 在如图所示位置安装新的定刀(7)。 5. 在动刀轴套(8)的外周部和垫圈(9) 处涂上润滑脂, 和轴向垫圈(10) 及动刀之间的垫圈(11) 再加上新的动刀(6) 一起安装。 6. 确认动刀(6)和定刀(7)在切线时的锋利度。为了能很好的切线使用附属的动刀垫片(t=0.2, 0.3, 0.4) 进行调整。 ※ 当切刀的压力很低, 不能完全切断时, 请使用薄的动刀垫片。 ※ 当切刀的压力很高, 动刀(1)的回转很重时, 请使用厚的动刀垫片。 7. 在动刀的销(12) 处涂上润滑脂旋入动刀连杆(13)的孔中, 然后安装针板(5)。 8. 确认针孔中心和机针对齐。 31 jintex.in

Page 39 — 7. 标准调整

7. 标准调整 7-12. 扫线器的调整 (4) (1) (3) 15mm 1. 扫线器的电磁铁插棒(1) 被拉到最大时, 扫线杆(2) 从机针中心向前伸出 15mm 处将螺钉(3) [2个] 松开, 电磁铁 安装板(4) 整体上下移动来进行调整。 2. 操作扫线杆(2) 使其在通过机针的下面时, 扫线杆(2) 和机针的尖端之间的间隙约为 2mm 左右, 扫线杆(2)的尖端 到机针中心约为 3mm 左右, 并调整螺钉(5) 调整扫线杆(2) 的位置。 注意:请确认扫线杆(2) 不可碰到护指器。 7-13. 间歇压脚的安装位置 (2) (1) 约 3mm 约 2mm 缝纫机在停止位置处间歇压脚(1) 呈上升状态时, 从间歇 压脚(1) 的底部到针板表面的距离为 22mm 时将螺钉(2) 装 上拧紧。 22mm 32 jintex.in

Page 40 — 7-14. 间歇压脚行程的变换

7. 标准调整 7-14. 间歇压脚行程的变换 根据间歇压脚连杆的位置调整, 及间歇连杆 A 的安装位置的更改, 可以在 2~10mm 之间更改间歇压脚的行程。 <间歇连杆 A 的安装位置的更改> (1) (3) (2) A (3) B C 1. 拆下下面板。 2. 取出螺钉 (1) [2个] 和段螺钉 (2) [2个], 拆下间歇连杆 A (3)。 3. 间歇连杆 A (3) 的安装位置可更改成在上述的 A~C 中的任何位置中。 在各个安装位置处, 如下表所示, 当间歇压脚的位置进行调整时, 间歇压脚的行程在下表所示的范围内可进行 调整。 安装位置 间歇压脚行程的范围 A 2~4.5mm B 4.5~10mm C 0mm (间歇压脚不能上下移动) 33 Jinttex.in

Page 41 — 7. 标准调整

7. 标准调整 <间歇压脚连杆的位置调整> (2) (4) (3) (DP X 5) b B DP X 17 (5) (7) (6) 钢印 (4) (6) (1) (3) 1. 松开手柄螺钉(1),打开间歇盖(2)。 2. 旋松螺母(3),调整间歇压脚连杆(4)的位置。 ·间歇压脚连杆(4)向上ไป 的位置时,间歇压脚行程变大。 ·间歇压脚连杆(4)向下ไป 的位置时,间歇压脚行程变小。 下面是针杆和间歇压脚操作时相互之间的同步。 3. 回转手轮让针杆从最下点向上升,使针杆的最下面的基线和针杆轴套(5)的下端面对齐。(如果是使用 DP X 5 的 机针时,请与从上往下数第二条的基线b对齐。) 4. 拆下上盖,旋松螺钉(6)[2个]。 5. 使间歇压脚凸轮(7)和间歇压脚连杆(4)的钢印一致后,旋紧螺钉(6)。 间歇压脚的行程更改之后,请进行以下的确认。 (2) (3) (1) 针板 (4) (6) (7) (5) 1. 在间歇压脚(1)呈下降状态,回转手轮使间歇压脚(1)降到最下点。 2. 确认间歇压脚(1)是否没碰到针板,还有压杆抱箍(2)是否也没碰到压杆轴套(3)。 <如果有碰到时> 拆下马达盖(4)。 请旋松螺母(5),使用回转螺栓(6)使其推动间歇驱动杆(7)来调整,直到上述2处不被碰到为止。 jintex.in 34

Page 42 — 7. 标准调整

7. 标准调整 7 - 15. 压脚上升量的调整 <电磁规格> 可以使用操作盘在 15mm ~ 25mm 之间进行设定。 <气压规格> 压脚的最大上升量为从针板向上 30mm。 (1) (2) (3) (4) 最大 30mm 1. 送入气压, 踩下脚踏开关(1), 压脚(2)向上升起。 2. 旋松压脚脚臂(3)的螺栓(4) [2个], 上下移动来调整压脚脚臂(3)。 7 - 16. 空气压力的调整(空压规格) 将调节器(1)的旋轮(2)向上拔起后再旋转, 使空气压力 调整到 0. 3Mpa。 调整完了后, 将旋轮(2)往下按锁住。 如果调节器(1)内的瓶中有水时, 按箭头方向回转排水 旋栓(3), 将水放掉。 注意: 请慢慢打开气压栓(4)。 (2) (4) (1) (3) 35 jintex.in

Page 43 — 8. 故障检修

8. 故障检修 8. 故障检修 · 请您在要求维修或服务前,先检查以下各项。 · 如果以下方法仍然不能解决问题,关闭电源开关,向受过训练的技术人员或经销商咨询。 注意 在作业之前,请先关闭电源开关, 并将电源插头从插座上拔下,如果误踩脚踏开关,缝纫机动作会导致受伤。 现象 原因 措施 参照 压脚不能上升 压脚操作很重 在压脚的运动部分涂敷适当的润滑脂 压脚操作很重 拍压脚气缸的空气接管的弯曲, 破损(空压规格) 修正弯曲了的接管或更换新的 压脚不能下降 在压脚的运动部分涂敷适当的润滑脂 拍压脚气缸的空气接管的弯曲, 破损(空压规格) 修正弯曲了的接管或更换新的 压脚上升量不正确 操作盘上的压脚设定值不正确(电磁规格) 更改压脚设定值 压脚不能上升到最高点 压脚臂杆的位置不对 (空压规格) 调整压脚臂杆的位置 P. 35 汽缸接头的位置不对 (空压规格) 调整汽缸接头的位置 扫线器操作不好 调整扫线器的位置 P. 32 扫线器和机针有干忧 调整扫线器的操作量 P. 32 扫线器位置不对 调整扫线器的操作量 P. 32 底线被卷在一边 卷线夹线器组的高度不对 调整卷线夹线器组的高度 P. 18 底线被卷的量不恰当 梭芯压杆的位置不对 调整梭芯压杆的位置 P. 18 脱线 在缝纫开始时有脱线 请参考「跳针」一览 P. 37 机针处线的残余量不稳定, 偏差很大 调整副夹线器 P. 20 旋梭导线器的位置不对 调整旋梭导线器的位置 P. 28 36 jintex.in

Page 44

8. 故障检修 现 象 原 因 措 施 参照 面线断线 面线张力太强 调整面线张力 P. 20 机针的安装方法不正确 正确的方向按装机针 P. 16 和机针相比线太粗 选择符合机针的线 P. 20 挑线簧的强度和高度不正确 调整挑线簧的强度和高度 P. 26 旋梭、针孔板和机针等有缺陷和毛刺 分别将这些零部件磨光或更换 因发热断线(化纤线) 使用冷却液槽 P. 16 穿线不正确 在道上正确穿线 P. 16 底线断线 底线张力太强 调整底线张力 P. 20 针孔板、和梭芯盒的角部有缺陷 分别将这些零部件磨光或更换 跳针 机针和旋梭尖端的间隙过大 调整机针的间隙 P. 28 机针和旋梭的相遇不正确 调整针杆的上升量 P. 27 梭托如果必要在以上的过度导入机 针 调整梭托导针部 P. 27 机针弯曲 更换机针 机针的安装方法不正确 正确的方向按装机针 P. 16 断针 机针和旋梭尖端的间隙过大 调整机针的间隙 P. 28 调整针杆的上升量 P. 27 机针弯曲 更换机针 进针时机针被拉偏 选择符合缝纫条件的机针 降低回转数 P. 20 机针太细 选择符合缝纫条件的机针 P. 20 咬线 挑线簧的强度和高设不正确 调整挑线簧的强度和高度 P. 26 机针和旋梭的相遇不正确 调整针杆的上升量 P. 27 旋梭导线器没能分线 调整旋梭导线器的位置 P. 28 37 jintex.in

Page 45

8. 故障检修 现象 原因 措施 参照 面线未切断 动刀的刀锋不利 更换新的动刀 P. 31 定刀的刀锋不利 磨快定刀或是 更换新的动刀 P. 31 动刀勾不住面线 调整旋梭导线器的位置 P. 28 调整针杆的上升量 P. 27 最后-针因跳针,动刀勾不住面线 请参考「跳针」一览 P. 37 动刀的位置不正确 调整动刀的位置 P. 29 副夹线器的张力太弱 回转夹线螺母进行调整 P. 20 布料的背面缝纫针迹不 良 旋梭导线器不能完全分线 调整旋梭导线器的位置 P. 28 面线不够紧密 调整面线张力 P. 20 机针处线的余量不穩定,偏差很大 调整副夹线器 P. 20 线不够紧密 面线张力太弱 调整面线张力 P. 20 底线张力太弱 调整底线张力 P. 20 挑线簧的强度和高度不正确 调整挑线簧的强度和高度 P. 26 机壳导向R的位置不正确 调整机壳导向R的位置 P. 26 机针处线的余量不稳 定,偏差很大 挑线簧的强度和高度不正确 调整挑线簧的强度和高度 P. 26 副夹线器的张力太弱 回转线调整螺母进行调整 P. 20 定刀的刀锋不利 磨快定刀或是 更换新的动刀 P. 31 接通电源,即使踩下脚踏 开关缝纫机也不启动 确认头部开关的电源线是否脱开着 头部开关不起作用 调整头部开关的位置 P. 8 如果头部开关有故障的话 更换开关 jintex.in 38

Page 46

jinttex.in jintex.in

Page 47

Thank you very much for buying our company sewing machine. Before using your new machine, please read the safety instructions below and the explanations given in the instruction manual. With industrial sewing machines, it is normal to carry out work while positioned directly in front of moving parts such as the needle and thread take-up lever, and consequently there is always a danger of injury that can be caused by these parts. Follow the instructions from training personnel and instructors regarding safe and correct operation before operating the machine so that you will know how to use it correctly. SAFETY INSTRUCTIONS [1] Safety indications and their meanings This instruction manual and the indications and symbols that are used on the machine itself are provided in order to ensure safe operation of this machine and to prevent accidents and injury to yourself or other people. The meanings of these indications and symbols are given below. Indications DANGER The instructions which follow this term indicate situations where failure to follow the instructions may result in death or serious injury. CAUTION The instructions which follow this term indicate situations where failure to follow the instructions could cause injury when using the machine or physical damage to equipment and surroundings. Symbols This symbol (A) indicates something that you should be careful of. The picture inside the triangle indicates the nature of the caution that must be taken. (For example, the symbol at left means "beware of injury".) This symbol (O) indicates something that you must not do. This symbol ( ) indicates something that you must do. The picture inside the circle indicates the nature of the thing that must be done. (For example, the symbol at left means "you must make the ground connection".) jintex.in i

Page 48

[2] Notes on safety DANGER Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the wall outlet before opening the cover of the control box. Touching areas where high voltages are present can result in severe injury. CAUTION Environmental requirements Use the sewing machine in an area which is free from sources of strong electrical noise such as electrical line noise or static electrical noise. Sources of strong electrical noise may cause problems with correct operation. Any fluctuations in the power supply voltage should be within ±10% of the rated voltage for the machine. Voltage fluctuations which are greater than this may cause problems with correct operation. The power supply capacity should be greater than the requirements for the sewing machine's power consumption. Insufficient power supply capacity may cause problems with correct operation. The pneumatic delivery capability should be greater than the requirements for the sewing machine's total air consumption. Insufficient pneumatic delivery capability may cause problems with correct operation. Installation Machine installation should only be carried out by a qualified technician. Contact your Brother dealer or a qualified electrician for any electrical work that may need to be done. The sewing machine weighs approximately 88 kg. The installation should be carried out by two or more people. Do not connect the power cord until installation is complete. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Hold the machine head with both hands when tilting it back or returning it to its original position. Furthermore, do not apply excessive force when tilting back the machine head. The sewing machine may become unbalanced and fall down, and serious injury or damage to the sewing machine may result. Be sure to connect the ground. If the ground connection is not secure, you run a high risk of receiving a serious electric shock, and problems with correct operation may also occur. The ambient temperature should be within the range of 5°C to 35°C during use. Temperatures which are lower or higher than this may cause problems with correct operation. The relative humidity should be within the range of 45% to 85% during use, and no dew formation should occur in any devices. Excessively dry or humid environments and dew formation may cause problems with correct operation. In the event of an electrical storm, turn off the power and disconnect the power cord from the wall outlet. Lightning may cause problems with correct operation. All cords should be secured at least 25 mm away from any moving parts. Furthermore, do not excessively bend the cords or secure them too firmly with staples, otherwise there is the danger that fire or electric shocks could occur. Install the safety covers to the machine head and motor. If using a work table which has casters, the casters should be secured in such a way so that they cannot move. Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result. Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting. Keep the oil out of the reach of children. ii jintex.in

Page 49

CAUTION Sewing This sewing machine should only be used by operators who have received the necessary training in safe use beforehand. The sewing machine should not be used for any applications other than sewing. Be sure to wear protective goggles when using the machine. If goggles are not worn, there is the danger that if a needle breaks, parts of the broken needle may enter your eyes and injury may result. Turn off the power switch at the following times. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. When threading the needle When replacing the bobbin and needle When not using the machine and when leaving the machine unattended If using a work table which has casters, the casters should be secured in such a way so that they cannot move. Attach all safety devices before using the sewing machine. If the machine is used without these devices attached, injury may result. Do not touch any of the moving parts or press any objects against the machine while sewing, as this may result in personal injury or damage to the machine. If an error occurs in machine operation, or if abnormal noises or smells are noticed, immediately turn off the power switch. Then contact your nearest Brother dealer or a qualified technician. If the machine develops a problem, contact your nearest Brother dealer or a qualified technician. Cleaning Turn off the power switch before carrying out cleaning. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into your eyes or onto your skin. If the oil gets into your eyes or onto your skin, inflammation can result. Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting. Keep the oil out of the reach of children. Maintenance and inspection Maintenance and inspection of the sewing machine should only be carried out by a qualified technician. Ask your Brother dealer or a qualified electrician to carry out any maintenance and inspection of the electrical system. Turn off the power switch and disconnect the power cord before carrying out the following operations. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Inspection, adjustment and maintenance Replacing consumable parts such as the rotary hook Disconnect the air hoses from the supply and wait for the pressure gauge to drop to "0" before carrying out inspection, adjustment and repair of any parts which use the pneumatic equipment. Hold the machine head with both hands when tilting it back or returning it to its original position. Furthermore, do not apply excessive force when tilting back the machine head. The sewing machine may become unbalanced and fall down, and serious injury or damage to the sewing machine may result. If the power switch needs to be left on when carrying out some adjustment, be extremely careful to observe all safety precautions. Use only the proper replacement parts as specified by Brother. If any safety devices have been removed, be absolutely sure to re-install them to their original positions and check that they operate correctly before using the machine. Any problems in machine operation which result from unauthorized modifications to the machine will not be covered by the warranty. jintex.in iii

Page 50

[3] Warning labels The following warning labels appear on the sewing machine. Please follow the instructions on the labels at all times when using the machine. If the labels have been removed or are difficult to read, please contact your nearest Brother dealer. 1 ▲ 危険 高電圧部分にふれて、大けがを することがある。電源を切り、5分たって からカバーをはずすこと。 A DANGER Hazardous voltage will cause injury. Turn off main switch and wait 5minutes before opening this cover. ▲ GEFAHR Verletzungsgefahr! Bitte schalten Sie den hauptschalter aus und warten Sie 5 minuten, bevor sie diese abdeckung öffnen. ▲ 危険 触れる高電圧部分、会导致受伤。 在切断电源5分钟后, 再开启盖罩。 A PELIGRO Un voltaje no adaptado puede provocar las heridas.Apagar el interruptor principal y esperar 5 minutos antes de abrir esta cubierta. 2 ▲ 注意 触れる運動部分、易造成受伤。 所以在装 上安全保护装置后,再进行缝纫操作。 在切断电源后,进行穿线,更换梭芯, 机针和做扫,调整工作。 A CAUTION Moving parts may cause injury. Operate with safe- ty devices. Turn off main switch before threading, changing bobbin and needle,cleaning etc. 3 ▲ Be careful not to get your hand caught when tilting back the machine head and returning it to its original position. 4 PE Be sure to connect the ground. If the ground connection is not secure, you run a high risk of receiving a serious electric shock, and problems with correct operation may also occur. 5 Direction of operation Safety devices Devices such as eye guard, finger guard, thread take-up cover, motor cover, tension release solenoid cover, inner cover, outer cover, fixed cover and gas spring support cover Motor cover Tension release solenoid cover Inner cover L Outer cover Fixed cover L Thread take-up cover Motor cover I. Eye guard Inner cover R Outer cover Fixed cover R Motor cover R Gas spring support cover Finger guard iv jintex.in

Page 51 — CONTENTS

CONTENTS 1. NAMES OF MAJOR PARTS 2. SPECIFICATIONS 3. INSTALLATION 3-1. Table processing diagram 3-2. Installing the control box 3-3. Installing the oil pan 3-4. Installing the machine head 3-5. Tilting the sewing machine head 3-6. Installing the treadle unit (solenoid specifications) 3-7. Installing the two-pedal foot switch (pneumatic specifications) 3-8. Installing the cotton stand 3-9. Installing the pneumatic unit(pneumatic specifications) 3-10. Installing the eye guard 3-11. Installing the motor cover 3-12. Lubrication 3-13. Installing the machine head fixing bolt 4. PREPARATION BEFOR SEWING 4-1. Installing the needle 4-2. Threading the upper thread 4-3. Winding the lower thread 4-4. Installing the bobbin case 4-5. Thread tension 4-5-1. Lower thread tension 4-5-2. Upper thread tension 5. SEWING 5-1. Sewing 5-2. Using the STOP switch 5-3. Using the thread wiper switch 6. CLEANING 6-1. Cleaning the rotary hook 6-2. Cleaning the control box air inlet ports 6-3. Draining the oil 6-4. Cleaning the eye guard 6-5. Checking the needle 6-6. Lubrication 7. STANDARD ADJUSTMENTS 7-1. Checking the machine head switch 7-2. Thread take-up spring 7-3. Arm thread guide R 7-4. Adjusting the needle bar height 7-5. Adjusting the needle bar lift amount 7-6. Adjusting the driver needle guard 7-7. Adjusting the needle clearance 7-8. Adjusting the shuttle race thread guide 7-9. Rotary hook lubrication amount 7-10. Adjusting the position of the movable knife 7-11. Replaceing the movable and fixed knives 7-12. Adjusting the thread wiper 7-13. Presser foot installation position 7-14. Chaning the intermittent stroke 7-15. Adjusting the work clamp lift amoun 7-16. Adjusting the air pressure(pneumatic specification) 8. TROUBLESHOOTING jintex.in

Page 52 — 1. NAMES OF MAJOR PARTS

1. NAMES OF MAJOR PARTS 1. NAMES OF MAJOR PARTS (9) (10) (15) (8) (13) (11) (3) (4) (2) (1) (12) Two-pedal foot switch (6) (5) (7) (1) Power switch (2) Control box (3) USBslot (4) Operation panel (5) Foot switch (solenoid specifications) (6) Work clamp switch (pneumatic specifications) (7) Start switch (pneumatic specifications) (8) STOP switch (9) Thread wiper switch (10) Pulley (11) Cotton stand (12) Solenoid valve (pneumatic specifications) Safety devices: (13) Finger guard (14) Eye guard (15) Thread take-up cover (16) Motor cover 1 jintex.in

Page 53 — 2. SPECIFICATIONS

2. SPECIFICATIONS T1310 T2210 A S Solenoid-type work clamp lifter A Pneumatic-type work clamp lifter Sewing machine Lock stitch, pattern tacking sewing machine (with large shuttle hook) Stitch formation Single needle lock stitch Max. sewing speed 2,700 rpm Sewing area (XxY) T1310: Max. 130 x 100 mm, T2210: Max. 220 x 100 mm Feed mechanism Intermittent feed, pulse motor drive Stitch length 0.05-12.7 mm No. of stitches 500,000-stitch internal memory (*) Maximum no. of stitches 20,000 stitches (per program) No. of sewing data items that can be stored Internal memory: 512 (*) Work clamp lift method Solenoid specifications: Pulse motor drive method Pneumatic specifications: Pneumatic method Work clamp height Solenoid specifications: Max. 25 mm, pneumatic specifications: Max. 30 mm 2-step work clamp Solenoid specifications: Integrated-type work clamp Pneumatic specifications: Separate-type work clamp Intermittent presser foot lift amount 22 mm Intermittent stroke 2-4.5 mm, 4.5-10 mm or 0 (Default setting 3 mm) Rotary hook Double-capacity shuttle hook (standard shuttle hook sold separately) Wiper device Standard equipment Thread trimmer Standard equipment Data storage method Internal memory (Flash memory) User programs 50 Cycle programs 999 Motor 750 W AC servo motor Weights Machine head approx. 88 kg, operation panel approx. 0.6 kg Control box 14.2-16.2 kg (Differs depending on destination) Power supply Single-phase 100 V/220 V, Three-phase 200 V/220 V/380 V/400 V 400 VA Air pressure 0.5 MPa 1.8 l/min. * The number of data items and stitches that can be stored will vary depending on the number of stitches in each program. 2 jintex.in

Page 54 — 3-1. Table processing diagram

3. INSTALLATION 3. INSTALLATION CAUTION Machine installation should only be carried out by a qualified technician. Contact your Brother dealer or a qualified electrician for any electrical work that may need to be done. The sewing machine head weighs approximately 88kg. The installation should be carried out by two or more people. Do not connect the power cord until installation is complete. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Hold the machine head with both hands when tilting it back or returning it to its original position. Furthermore, do not apply excessive force when tilting back the machine head. The sewing machine may become unbalanced and fall down, and serious injury or damage to the sewing machine may result. All cords should be secured at least 25 mm away from any moving parts. Furthermore, do not excessively bend the cords or secure them too firmly staples, otherwise there is the danger that fire or electric shocks could occur. Be sure to connect the ground. If the ground connection is not secure, you run a high risk of receiving a serious electric shock, and problems with correct operation may also occur. Install the safety covers to the machine head and motor. 3-1. Table processing diagram • The thickness of the table should be at least 40 mm, and it should be strong enough to bear the weight and vibration of the sewing machine. • If the distance A between the insides of the legs is less than 740 mm, move the control box installation position to the left (B = 261mm). • Check that the control box is at least 10 mm away from the leg. If the control box and the leg are too close together, it may result in incorrect sewing machine operation. (155) (365) 1200 (800) A(740) 386 B(261) 390.8 ±0.2 10 85.7 42.5 4-R20 Control box mounting hole 4-025 depth4 40±0.2 $50 4-R10 126 316±0.2 33.5 60 45° 483 240 175 123 4-037.5 depth 5.5 21 45° 262 387 266 118 Treadle unit mounting hole 3-05.5 $85 Operation panel cord hole 200 620 255 82 42 52 8 40 3 jintex.in

Page 55 — 3. INSTALLATION

3. INSTALLATION 3-2. Installing the control box Remove the eight screws (1), and then remove the control box cover (2). (3) Control box (4) Bolts [4 pcs.] (5) Plain washers [4 pcs.] (6) Nuts [8 pcs.] 3-3. Installing the oil pan For solenoid specifications, install the treadle unit mounting bolt (A) before installing the oil pan. (1) Oil pan (2) Nails [7 pcs.] (3) Rubber cushions [4 pcs.] (4) Waste oil tank 4 jintex.in

Page 56 — 3-4. Installing the machine head

3. INSTALLATION 3-4. Installing the machine head Pulse motor Approx. 20 mm (1) (3) (1) (2) (3) (1) Pins [2 pcs.] (2) Set screws [2 pcs.] (3) Hinge rubber assemblies [2 pcs.] Place the machine head gently on top of the oil pan and the rubber cushions. NOTE: Be careful not to get the cords clamped between the machine head and the oil pan. When holding the machine head, do not hold it by the pulse motor. This may cause problems with operation of the pulse motor. (4) Hinge holders [2 pcs.] (5) Bolts [4 pcs.] (6) Plain washers [4 pcs.] (7) Nuts [4 pcs.] (8) Head rest (9) Bolts with washer [4 pcs.] 5 jintex.in

Page 57 — 3. INSTALLATION

3. INSTALLATION (10) Auxiliary plate (11) Bolts with washer [10 pcs.] Loosen the bolts with washer (12) and adjust so that the auxiliary plate (10) and the needle plate are at the same height. NOTE: Install the auxiliary plate so that it is horizontal. Needle plate (10) (12) (11) (11) Work clamp arm Move the work clamp arm all the way to the right when looking from the front of the sewing machine (the direction of the arrow in the illustration), and then gently tilt back the machine head. NOTE: Two or more people should tilt back the machine head, and it should be tilted gently while being held with both hands. 6 jintex.in

Page 58 — 3. INSTALLATION

3. INSTALLATION (13) Gas spring holders [2 pcs.] (14) Spacer (15) Bolt (16) Nut (17) Gas spring (18) Shaft collars [2 pcs.] (19) Gas spring shaft D (20) Plain washers [2 pcs.] (21) Retaining rings E [2 pcs.] (22) Bolts [2 pcs.] (23) Plain washers (medium) [2 pcs.] (24) Plain washers (large) [2 pcs.] (25) Spring washers [2 pcs.] (26) Nuts [2 pcs.] (27) Gas spring shaft U (28) Set screw NOTE: For solenoid specifications, the bolts (22), plain washers (23), plain washers (24), spring washers (25) and nuts (26) in the places marked with * are also used to install the treadle unit. (29) Gas spring support cover (30) Bolts with washer [6 pcs.] 7 jintex.in

Page 59 — 3. INSTALLATION

3. INSTALLATION (31) (32) Figure 1 Oil pan M3 X 20 • Gently return the machine head to its original position. • Loosen the screw (31). Move the machine head switch (32) to the position shown in the illustration, and then secure the machine head switch (32) with the screw (31) and the accessory M3x20 screw (33). • Check that the machine head switch (32) is turned on as shown in figure 1. 8 jintex.in

Page 60 — 3-5. Tilting the sewing machine head

3. INSTALLATION 3-5. Tilting the sewing machine head (1) CAUTION (2) 1. Move the presser arm assembly (1) as far as it will go in the direction of the arrow in the illustration (to the right when looking from the front of the sewing machine). 2. Stand at the left side of the table, and gently tilt the machine head towards you. NOTE: Always be sure to move the work clamp arm all the way to the right before tilting back the machine head. If you try to tilt back the machine head while the work clamp arm is still on the left side, it may damage the outer cover L (2). 9 jintex.in

Page 61 — 3. INSTALLATION

3. INSTALLATION 3-6. Installing the treadle unit (solenoid specifications) (1) Treadle unit (2) Bolts [3 pcs.] (3) Plain washers [3 pcs.] (4) Spring washers [3 pcs.] (5) Nuts [3 pcs.] NOTE: • Install the bolt for mounting hole A before installing the oil pan. (Refer to "3-3. Installing the oil pan.") • Mounting hole B is used to install the gas spring supports with the bolt, plain washer, spring washer and nut. (Refer to "3-4. Installing the machine head".) • Use a commercially-available foot switch and connecting rod. If changing the mounting position for the treadle unit, use the accessory bolts, plain washers, spring washers and nuts. <Foot switch operating method> When the foot switch is depressed to the 1st step, the work clamp is lowered, and when it is depressed to the 2nd step, the sewing machine starts sewing. 1st step 2nd step 3-7. Installing the two-pedal foot switch (pneumatic specifications) (1) Foot switch Insert the connector for the foot switch (1) into P6 (FOOT) on the main P.C. board. <Foot switch operating method> When the work clamp switch (left) is depressed, both work clamps are lowered, and when the start switch (right) is depressed, the sewing machine starts sewing. Work clamp switch (2-step) Start switch 10 jintex.in

Page 62 — 3-8. Installing the cotton stand

3-8. Installing the cotton stand 3. INSTALLATION (1) Cotton stand NOTE: Fit the washer (2), and then securely tighten the nut (3) so that the cotton stand does not move. 11 jintex.in

Page 63 — 3-9. Installing the pneumatic unit (pneumatic specifications)

3. INSTALLATION 3-9. Installing the pneumatic unit (pneumatic specifications) Install underneath the work table. (1) Solenoid valve assembly (2) Washers [2 pcs.] (3) Wood screws [2 pcs.] (4) Rubber hose After installing the pneumatic unit, adjust the air pressure. (Refer to "10-16. Adjusting the air pressure".) NOTE: Make sure that the pneumatic unit does not touch the control box or the work table leg. Connect each air tube to the position with the corresponding number. Cylinder R (1A) (1B) Cylinder L (2A) (2B) Upper knob Lower knob Manual button <Adjusting the speed controller> You can use the valve knobs to adjust the lifting and lowering speeds. The valve knobs should be adjusted so that the left and right sides of the work clamp operate at the same speed. When the upper knob is tightened, the lifting speed becomes slower. When it is loosened, the lifting speed becomes faster. When the lower knob is tightened, the lowering speed becomes slower. When it is loosened, the lowering speed becomes faster. You can operate the work clamp while the power is turned off by pressing the manual button. 12 jintex.in

Page 64 — 3. INSTALLATION

3. INSTALLATION 3-10. Installing the eye guard CAUTION Attach all safety devices before using the sewing machine. If the machine is used without these devices attached, injury may result. (1) Eye guard assembly (2) Plain washers [2 pcs.] (3) Screws [2 pcs.] 3-11. Installing the motor cover (1) Motor cover R (2) Screws [4 pcs.] (3) Motor cover L (4) Screws [4 pcs.] (5) Motor cover (6) Screws [4 pcs.] NOTE: Be careful not to clamp the cords when installing the motor cover. 13 jintex.in

Page 65 — 3-12. Lubrication

3. INSTALLATION 3-12. Lubrication CAUTION Do not connect the power cord until lubrication is complete. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result. Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting. Keep the oil out of the reach of children. The sewing machine should always be lubricated and the oil supply replenished before it is used for the first time, and also after long periods of non-use. Use only the lubricating oil specified by our company. 1. Fill the arm-side oil tank with oil. 2. Move the work clamp arm (1) as far as it will go to the right when looking from the front of the sewing machine, and then slide the outer cover L (2) into the inner cover L (3) so that the lubrication hole in the bed is visible. Pour oil into the bed side oil tank through this hole. NOTE: Be sure to fill the machine with oil when the oil level is down to about one-third full in the oil sight glass. If the oil drops below the one-third level, there is the danger that the machine may seize during operation. 3. Pour oil in through the two holes (4) of the shuttle race base assembly so that the felt is lightly moistened. NOTE: If there is no more oil on the felt of the shuttle race base assembly, problems with sewing may result. 4. If using the liquid cooling tank (5), fill it with silicon oil (100 mm²/s). 14 jintex.in

Page 66 — 3-13. Installing the machine head fixing bolt

3. INSTALLATION 3-13. Installing the machine head fixing bolt When transporting the sewing machine, secure the machine head to the table with the machine head fixing bolt. (1) Plain washer (2) Machine head fixing bolt NOTE: When operating the sewing machine, remove the machine head fixing bolt. 15 jintex.in

Page 67 — 4. PREPARATION BEFORE SEWING 4-1. Installing the needle

4. PREPARATION BEFORE SEWING 4-1. Installing the needle CAUTION Turn off the power switch before installing the needle. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. 1. Loosen the set screw (1). 2. Insert the needle (2) in a straight line as far as it will go, making sure that the long groove on the needle is at the front, and then securely tighten the set screw (1). 4-2. Threading the upper thread Thread the upper thread correctly as shown in the illustration below. * When using threading mode for threading, the tension discs (1) will open so that the thread can be threaded more easily. (Refer to following page.) [If using cotton thread or spun thread] (3) 8 7 9 6 10 11 12 40mm (1) (2) [If using synthetic thread] Turn the machine pulley (2) and raise the thread take-up (3) to its highest position before threading the upper thread. (This will make threading easier and it will prevent the thread from coming out at the sewing start.) When threading the thread through the needle, allow a distance of approximately 40 mm between the needle hole and the end of the thread. If the trailing length of the thread is too long, it may cause the thread to become tangled. 16 jintex.in

Page 68 — 4. PREPARATION BEFORE SEWING

4. PREPARATION BEFORE SEWING <Threading mode> Threading mode is safe because the sewing machine will not start even when the foot switch is depressed. 1 Turn on the power switch. 2 Press the home position key Press the threading key, and the key The work clamp will drop. 3 Threading the thread. 4 Ending threading mode Press the threading key, and the key change The work clamp will return to where it was before threading mode was started. 17 jintex.in

Page 69 — 4-3. Winding the lower thread

4. PREPARATION BEFORE SEWING 4-3. Winding the lower thread CAUTION Do not touch any of the moving parts or press any objects against the machine while winding the lower thread. Injury or damage to the sewing machine may result. (2) (1) (3) (4) (5) (6) 1. Place the bobbin onto the bobbin winder shaft (1). 2. Thread the thread as shown in the illustration; wind the thread around the bobbin several times, and then press the bobbin presser arm (2). 3. Turn on the power switch. 4. Press the tire position key (3), the sewing machine move to the left position. 5. Check that the needle does not touch the clamp, and then press the bobbin winder key (4), the bobbin winder key (4) change to the bobbin winder key (5), and it keep in the state "ON", depress the foot switch to the 2nd step, and it will start wind. (If using a two-pedal foot switch, depressing the start switch two-pedal foot switch.) 6. Once winding of set amount of lower thread (80%-90% of the bobbin capacity) is completed, the bobbin presser arm (2) will return automatically. 7. Remove the bobbin, hook the thread onto the knife (6), and then pull the bobbin in the direction of the arrow to cut the thread. Adjusting the bobbin winding amount Loosen the screw (7) and move the bobbin presser (8) to adjust. If the thread winds onto the bobbin unevenly Loosen the set screw (9) and move the bobbin winder tension assembly (10)up and down to adjust. For case A, move the bobbin winder tension assembly (10)down, and for case B, move it upward. For case A For case B jintex.in 18

Page 70 — 4-4. Installing the bobbin case

4. PREPARATION BEFORE SEWING 4-4. Installing the bobbin case CAUTION Turn off the power switch before installing the bobbin case. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. (3) (2) (4) 30mm (1) 1. Pull the shuttle race cover (1) downward to open it. 2. While holding the bobbin so that the thread winds to the right, insert the bobbin into the bobbin case. 3. Pass the thread through the slot (2) and pull it out from the thread hole (3). 4. Check that the bobbin turns in the direction of the arrow when the thread is pulled. 5. Pass the thread through the thread hole (4), and then pull out approximately 30 mm of thread. 6. Hold the latch on the bobbin case and insert the bobbin case into the rotary hook. 19 Jinte.in

Page 71 — 4-5. Thread tension

4. PREPARATION BEFORE SEWING 4-5. Thread tension [Thread tension reference] Specifications Heavy-weight materials (-01) Medium-weight materials (-02) Upper thread #20 or similar #50 or similar Lower thread #20 or similar #50 or similar Upper thread tension (N) 1.4-1.8 0.8-1.2 Lower thread tension (N) 0.2-0.3 Pre-tension (N) 0.1-0.6 0.1-0.3 Needle DP x 17 #19 DP x 5 #16 Normal sewing speed 2,000 rpm 2,000 rpm 4-5-1. Lower thread tension Adjust the thread tension to the weakest possible tension by turning the thread tension nut (1) until the bobbin case will not drop by its own weight while the thread end coming out of the bobbin case is held. Stronger Weaker (1) 4-5-2. Upper thread tension 1. Turn the tension nut (1) (main tension) to adjust the tension as appropriate for the material being sewn. 2. Use the tension nut (2) (sub tension) to adjust the upper thread trailing length to about 40 mm. (2) Stronger Weaker (1) 20 jintex.in

Page 72 — 5. SEWING

5. SEWING 5. SEWING CAUTION Turn off the power switch at the following times. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. • When threading the needle • When replacing the bobbin and needle • When not using the machine and when leaving the machine unattended Do not touch any of the moving parts or press any objects against the machine while sewing, as this may result in personal injury or damage to the machine. 5-1. Sewing (1) 1. Turn on the power switch. 2. Press the ← or → key to turn on the page, and press the data key to select the sewing program. 1st step 2nd step 3. Press the time position key(1), the sewing machine will move to the loading position. (4) (2) (3) 4. Place the article to be sewn underneath the work clamp (3). 5. Depress the foot switch to the 1st step. (If using a two-pedal foot switch, depress the work clamp switch (4).) • The work clamp (3) will drop. 6. Depress the foot switch to the 2nd step. (If using a two-pedal foot switch, depress the start switch (2).) • The sewing machine will start sewing. 7. When sewing is complete, the thread will be trimmed and the work clamp (3) will rise. Use a work clamp that hold the article being sewn firmly, without allowing it to slip. If using the standard work clamp and feed plate and the article being sewn is slipping, take measures to stop the work clamp and feed plate from being slippery. 21 jintex.in

Page 73 — 5. SEWING

5. SEWING 5-2. Using the STOP switch If you press the STOP switch (1) while sewing or test feeding is in progress, the sewing machine will stop immediately. (1) <Continuing sewing from a stopping point> If you have pressed the STOP switch (1) at times such as if the thread breaks while sewing or the lower thread runs out, you can resume sewing from the point where the thread ran out. 2nd step Depress the foot switch to the 2nd step. (If using a two-pedal foot switch, depress the start switch.) • The sewing machine will start operating and sewing will start. 5-3. Using the thread wiper switch The thread wiper switch (1) can be used to turn the thread wiper (2) on and off. (2) 22 jintex.in

Page 74 — 6. CLEANING

6. CLEANING CAUTION Turn off the power switch before carrying out cleaning. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result. Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting. Keep the oil out of the reach of children. 6-1. Cleaning the rotary hook 1. Pull the shuttle race cover downward to open it, and then remove the bobbin case. (1) (3) (2) 2. Open the setting claw (1) in the direction indicated by the arrow, and then remove the shuttle race base (2) and the shuttle hook (3). (4) 3. Clean all the dust and thread ends from around the driver (4), the top of the rotary hook thread guide and the shuttle race. 23 jintex.in

Page 75 — 6. CLEANING

6. CLEANING 6-2. Cleaning the control box air inlet ports Use a vacuum cleaner to clean the filter in the air inlet ports (2) of the control box (1) at least once a month. (1) (2) 6-3. Draining the oil (1) 1. Remove and empty the waste oil tank (1) whenever it is full. 2. After emptying the waste oil tank (1), screw it back into its original position. 6-4. Cleaning the eye guard Wipe the eye guard clean with a soft cloth. NOTE: Do not use solvents such as kerosene or thinner to clean the eye guard. 6-5. Checking the needle Always check that the tip of the needle is not broken and also that the needle is not bent before starting sewing. 6-6. Lubrication Lubricate the sewing machine while referring to "3-11. Lubrication". jintex.in 24

Page 76 — 7. STANDARD ADJUSTMENTS

7. STANDARD ADJUSTMENTS CAUTION Maintenance and inspection of the sewing machine should only be carried out by a qualified technician. Ask your Brother dealer or a qualified electrician to carry out any maintenance and inspection of the electrical system. Turn off the power switch and disconnect the power cord before carrying out the following operations. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Inspection, adjustment and maintenance Replacing consumable parts such as the rotary hook 7-1. Checking the machine head switch Hold the machine head with both hands when tilting it back or returning it to its original position. In addition, do not apply excessive force when tilting head. The sewing machine may become unbalanced and fall down, and serious injury or damage to the sewing machine may result. If the power switch needs to be left on when carrying out some adjustments, be extremely careful to observe all safety precautions. If any safety devices have been removed, be absolutely sure to re-install them to their original positions and check that they operate correctly before using the machine. Check that the machine head switch is turned on as shown in the illustration. 25 jintex.in

Page 77 — 7-2. Thread take-up spring

7. STANDARD ADJUSTMENTS 7-2. Thread take-up spring Specifications Heavy-weight materials (-01) Medium-weight materials (-02) Thread take-up spring height (mm) 7-10 Thread take-up spring tension (N) 0.6-1.2 0.2-0.5 <Thread take-up spring height> Loosen the set screw (1) and turn the adjuster to adjust. <Thread take-up spring tension> Turn the tension stud (2) with a screwdriver to adjust the tension. NOTE: If the thread tension spring is not adjusted correctly, the upper thread trailing length will be uneven after thread trimming. 7-3. Arm thread guide R The standard position of arm thread guide R (1) is when the screw (2) is aligned with the index mark. Loosen the screw (2) and move arm thread guide R (1) to adjust. When sewing heavy material, move arm thread guide R (1) to the left. (The thread take-up amount will become greater.) When sewing light material, move arm thread guide R (1) to the right. (The thread take-up amount will become less.) 26 jintex.in

Page 78

7. STANDARD ADJUSTMENTS 7-4. Adjusting the needle bar height (1) A DP X 17 (DP X 5) (2) (3) Turn the machine pulley to move the needle bar to the lowest position. Then remove the rubber plug (2), loosen the screw (3) and then move the needle bar up or down to adjust so that the second reference line from the bottom of the needle bar (reference line A) is aligned with the lower edge of the needle bar bush (1). If using a DP X 5 needle, use the highest reference line (reference line a). 7-5. Adjusting the needle bar lift amount Needle center (1) (3) Rotary hook tip b (DP X 5) B DP X 17 (2) Turn the machine pulley to raise the needle bar from the lowest position until the lowest reference line on the needle bar (reference line B) is aligned with the lower edge of the needle bar bush (1), and then loosen the bolt (2) and move the driver (3) so that the tip of the rotary hook is aligned with the center of the needle. If using a DP X 5 needle, use the second reference line from the top of the needle bar (reference line b). 7-6. Adjusting the driver needle guard Needle center Rotary hook tip (1) (3) (2) Turn the machine pulley to align the tip of the rotary hook with the center of the needle, and then loosen the set screw (2) and turn the eccentric shaft (3) to adjust so that the driver needle guard (1) is touching the needle. NOTE: If it crosses the needle more than necessary, it will place a load on the needle, or it may cause poor thread tension. Furthermore, if it does not cross the needle at all, the tip of the rotary hook will interfere with the needle and skipped stitches may occur. 27 jintex.in

Page 79 — 7. STANDARD ADJUSTMENTS

7. STANDARD ADJUSTMENTS 7-7. Adjusting the needle clearance 0.01 - 0.08mm (1) (2) Turn the machine pulley to align the tip of the rotary hook with the center of the needle, and then loosen the set screw (1) and turn the eccentric shaft (2) to adjust so that the clearance between the needle and the rotary hook is 0.01 - 0.08 mm. 7-8. Adjusting the shuttle race thread guide (1) Install the shuttle race thread guide (1) by pushing it in the direction of the arrow so that the needle groove is aligned with the center of the needle plate hole. NOTE: If the shuttle race thread guide is in the wrong position, thread breakages, soiled thread or tangling of the thread may occur. The position of the shuttle race thread guide is adjusted at the time of shipment from the factory. It should not be changed if possible. 7-9. Rotary hook lubrication amount More oil Less oil (1) Aligned The optimum position is when the head of the set screw (1) is aligned with the edge of the bed. The rotary hook lubrication amount can be adjusted within three turns to the right from that position. • If the set screw (1) is turned clockwise, the lubrication amount becomes smaller. • If the set screw (1) is turned counterclockwise, the lubrication amount becomes greater. 28

Page 80 — 7-10. Adjusting the position of the movable knife

7. STANDARD ADJUSTMENTS 7-10. Adjusting the position of the movable knife <View from side of thread trimmer cam> (1) (2) (3) (4) (5) Reverse position (6) 9.5-9.9mm (8) (9) (7) 4. Loosen the bolt (7). 5. Move the thread trimming rod H (9) forward or back to adjust so that the distance from the ridge line on the right side of the needle plate to the movable knife (8) is 9.5 – 9.9 mm. 6. After tightening the bolt (7), check the above position once more. 29 jintex.in

Page 81 — 7. STANDARD ADJUSTMENTS

7. STANDARD ADJUSTMENTS (1) (11) (5) (10) (3) (4) 0-1 mm (8) (12) 7. Turn the pulley (1) by hand to move the needle bar to its lowest position. 8. Loosen the nut (10), tighten the set screw (11) until the collar (3) is touching the inside of the groove in the thread trimmer cam (4), and then turn it back in the counterclockwise direction by approximately 1/4 of a turn. 9. Tighten the nut (10), and then check that the collar (3) is not touching the inside of the groove in the thread trimmer cam (4). In addition, push the driving lever (5) by hand toward the thread trimmer cam until the collar (3) touches the groove of the thread trimmer cam (4), and then check that the driving lever (5) returns smoothly to its original position when it is released. 10. Check that there is a gap of about 0 - 1 mm between the outside of the hole in the movable knife (8) and the ridge line on the shuttle race thread guide (12) when there is still play between the parts. jintex.in 30

Page 82 — 7-11. Replacing the movable and fixed knives

7. STANDARD ADJUSTMENTS 7-11. Replacing the movable and fixed knives (2) (1) (5) (3) (4) (7) (6) 1. Loosen the two bolts (1) and then remove the feed plate (2). 2. Open the shuttle race cover, remove the two screws (3) and the two flat screws (4), and then remove the needle plate (5). 3. Remove the movable knife (6) and the fixed knife (7). (10) (8) (9) (6) 0.5mm 1.0mm (11) (7) (5) (12) (13) 4. Install the new fixed knife (7) in the position shown in the illustration. 5. Apply grease to the outside of the collar (8) and to the shoulder screw (9), and then install the new movable knife (6) together with the thrust washer (10) and the movable knife spacer (11). 6. Check that the movable knife (6) and fixed knife (7) cut the thread cleanly. Replace the movable knife spacer with accessory spacers (t=0.2, 0.3, 0.4) so that the knives trim the thread accurately. * If the knife pressure is too weak and the thread is not completely cut, use a thinner movable knife spacer. * If the knife pressure is too strong and the movable knife (1) turns stiffly, use a thicker movable knife spacer. 7. Apply grease to the pin (12), place it into the movable knife connecting plate (13), and install it to the needle plate (5). 8. Check that the needle is aligned with the center of the needle hole. 31 jintex.in

Page 83 — 7. STANDARD ADJUSTMENTS

7. STANDARD ADJUSTMENTS 7-12. Adjusting the thread wiper (4) (1) (3) 15mm (2) (2) Approx. 2mm Approx. 3mm 1. Loosen the two screws (3) and shift the entire solenoid setting plate (4) up or down to adjust so that the thread wiper (2) is 15 mm in front of the needle center when the plunger (1) of the thread wiper solenoid is driven to the full stroke. 2. Loosen the screw (5) and adjust the position of the thread wiper (2) so that the distance from the thread wiper to the tip of the needle is approximately 2 mm and the tip of the thread wiper (2) is approximately 3 mm from the center of the needle when the thread wiper (2) passes below the needle during operation. Note: Check that the thread wiper (2) does not touch the finger guard. 7-13. Presser foot installation position (1) (2) 22mm Install the presser foot (1) with the screw (2) so that the distance from the bottom of the presser foot to the top of the needle plate is 22 mm when the sewing machine is stopped and the presser foot (1) is raised. jintex.in 32

Page 84 — 7-14. Changing the intermittent stroke

7. STANDARD ADJUSTMENTS 7-14. Changing the intermittent stroke The intermittent stroke can be adjusted to within 2 - 10 mm by adjusting the position of the stepping clamp connecting rod and changing the installation position of stepping clamp link A. <Changing the installation position of stepping clamp link A> (1) (3) (2) A (3) B C (2) (1) 1. Remove the face plate. 2. Remove the two screws (1) and the two shoulder screws (2), and then remove stepping clamp link A (3). 3. Change the installation position for stepping clamp link A (3) to either A, B or C above. If the position of the stepping clamp connecting rod is adjusted as described in the following at any one of the installation positions, the adjustment range for the intermittent stroke will as given in the following table. Installation position Intermittent stroke range A 2-4.5mm B 4.5-10mm C 0 mm (Presser foot does not move up and down) 33 jintex.in

Page 85

7. STANDARD ADJUSTMENTS <Stepping clamp connecting rod position adjustment> (2) (4) (3) (1) b (DP X 5) (5) B DP X 17 (6) Index mark (7) (4) (6) 1. Loosen the screw (1), and then open the cover (2). 2. Loosen the nut (3), and then adjust the position of the stepping clamp connecting rod (4). • When the stepping clamp connecting rod (4) is raised, the intermittent stroke will increase. • When the stepping clamp connecting rod (4) is lowered, the intermittent stroke will decrease. Next, adjust the needle bar and presser foot timing. 3. Turn the machine pulley to raise the needle bar from the lowest position until the lowest reference line on the needle bar (reference line B) is aligned with the lower edge of the needle bar bush (5). (If using a DP x 5 needle, align with the second reference line from the top (reference line b).) 4. Open the top cover and loosen the two set screws (6). 5. Align the index marks on the stepping clamp cam (7) and the stepping clamp connecting rod (4), and then tighten the set screws (6). Check the following after changing the intermittent stroke. (2) (3) (1) Needle plate (4) (6) (7) (5) 1. With the intermittent presser foot (1) lowered, turn the pulley to move the intermittent presser foot (1) to its lowest position. 2. Check that the presser foot (1) does not touch the needle plate and that the presser bar clamp (2) does not touch the presser bar bush (3). <If they are touching> Remove the motor cover (4). Loosen the nut (5), and turn the bolt (6) until it is pressing against the intermittent drive lever (7), and then adjust until the two points mentioned above are not touching. jintex.in 34

Page 86 — 7-15. Adjusting the work clamp lift amount

7. STANDARD ADJUSTMENTS 7-15. Adjusting the work clamp lift amount <Solenoid specifications> The operation panel settings can be used to adjust the height to within 15 – 25 mm. (Refer to "5-7. Setting the work clamp lift amount.") <Pneumatic specifications> The maximum lift amount for the work clamp is 30 mm above the top of the needle plate. (1) (2) (3) (4) (3) Max. 30mm 1. Turn on the air, and depress the work clamp switch (1) to raise the work clamp (2). 2. Loosen the two bolts (4) of the work clamp arm lever (3), and move the work clamp arm lever (3) up or down to adjust. 7-16. Adjusting the air pressure (pneumatic specifications) Lift up the handle (2) of the regulator (1) and then turn it to adjust the air pressure to 0.5 MPa. After adjustment is complete, push the handle (2) downward to lock it. If water has collected in the bottle of the regulator (1), turn the drain cock (3) in the direction indicated by an arrow to drain the water. NOTE: Open the air cock (4) slowly. 35 jintex.in

Page 87 — 8. TROUBLESHOOTING

8. TROUBLESHOOTING 8. TROUBLESHOOTING • Please check the following points before calling for repairs or service. • If the following remedies do not fix the problem, turn off the power switch and consult a qualified technician or the place of purchase. CAUTION Turn off the power switch and disconnect the power cord before carrying out troubleshooting. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Problem Cause Remedy Reference Work clamp does not lift. Air tube of presser lifter cylinder is bent or damaged (Pneumatic specifications). Apply a suitable amount of grease to the sliding parts of the work clamp. Work clamp does not drop. Air tube of presser lifter cylinder is bent or damaged (Pneumatic specifications). Apply a suitable amount of grease to the sliding parts of the work clamp. Work clamp lift amount is incorrect. Work clamp lift amount setting at operation panel is incorrect (Solenoid specifications). Change the work clamp lift amount setting. Work clamp does not lift to the maximum height. Work clamp arm stopper position is incorrect (Solenoid specifications). Adjust the position of the work clamp arm lever. P. 35 Cylinder joint position is incorrect. (Pneumatic specifications) Adjust the position of the cylinder joint. Thread wiper does not operate correctly. The thread wiper is obstructing the needle. Adjust the height of the thread wiper. P. 32 Adjust the stroke of the thread wiper. P. 32 Thread wiper position is incorrect. Lower thread winds to one side. Bobbin winder tension assembly height is incorrect. Adjust the height of the bobbin winder tension assembly. P. 18 Lower thread winding amount is incorrect. Bobbin presser position is incorrect. Adjust the position of the bobbin presser. P. 18 Thread slips out of the needle. Stitches being skipped at the sewing start. Refer to "Skipped stitches occur". P. 37 Upper thread length is irregular. Adjust the sub-tension. P. 20 Position of shuttle race thread guide is incorrect. Adjust the position of the shuttle race thread guide. P. 28 36 jintex.in

Page 88

8. TROUBLESHOOTING Problem Cause Remedy Reference Upper thread breaks. Upper thread tension is too strong. Adjust the upper thread tension. P. 20 Needle is incorrectly installed. Install the needle correctly. P. 16 Thread is too thick for the needle. Select a thread that matches the needle. P. 20 Thread take-up spring tension and height are incorrect. Adjust the tension and height of the thread take-up spring. P. 26 Damage or burring of the rotary hook, needle hole plate or needle. Repair or replace the problem part. P. 16 Thread breaking from heat (Synthetic thread) Use a cooling tank. P. 16 Thread is threaded incorrectly. Thread the thread correctly. P. 16 Lower thread breaks. Lower thread tension is too strong. Adjust the lower thread tension. P. 20 Damage to corners of needle hole plate or bobbin case. Repair or replace the problem part. Skipped stitches occur. Clearance between needle and rotary hook tip is too great. Adjust the needle clearance. P. 28 Needle and rotary hook timing is incorrect. Adjust the needle bar lift amount. P. 27 The driver is covering the needle more than necessary. Adjust the driver needle guard. P. 27 Needle is bent. Replace the needle. P. 16 Needle is incorrectly installed. Install the needle correctly. P. 16 Needle is broken. Clearance between needle and rotary hook tip is too great. Adjust the needle clearance. P. 28 Adjust the needle bar lift amount. P. 27 Needle is bent. Replace the needle. P. 20 Needle deflection Select a needle that is suitable for the sewing conditions. Reduce the sewing speed. P. 20 Needle is too thin. Select a needle that is suitable for the sewing conditions. P. 20 Thread jamming. Thread take-up spring tension and height are incorrect. Adjust the tension and height of the thread take-up spring. P. 26 Needle and rotary hook timing is incorrect. Adjust the needle bar lift amount. P. 27 Shuttle race thread guide is not separating the threads. Adjust the position of the shuttle race thread guide. P. 28 37 jintex.in

Page 89

8. TROUBLESHOOTING Problem Cause Remedy Reference Upper thread is not trimmed. Movable knife is not cutting cleanly. Replace with a new one. P. 31 Fixed knife is not cutting cleanly. Sharpen the fixed knife or replace it with a new one. P. 31 Movable knife is not picking up the upper thread. Adjust the position of the shuttle race thread guide. P. 28 Movable knife is not picking up the upper thread because the last stitch is being skipped. Refer to "Skipped stitches occur". P. 37 Movable knife position is incorrect. Adjust the position of the movable knife. P. 29 Sub-tension is too weak. Turn the sub-tension nut to adjust the tension. P. 20 Poor stitch finish on underside of material. Shuttle race thread guide is not separating the threads enough. Adjust the position of the shuttle race thread guide. P. 28 Incorrect tightening of the upper thread Adjust the upper thread tension. P. 20 Upper thread length is irregular. Adjust the sub-tension. P. 20 Incorrect tightening of the thread Upper thread tension is too weak. Adjust the upper thread tension. P. 20 Lower thread tension is too weak. Adjust the lower thread tension. P. 20 Thread take-up spring tension and height are incorrect. Adjust the tension and height of the thread take-up spring. P. 26 Position of arm thread guide R is incorrect. Adjust the position of arm thread guide R. P. 26 Upper thread length is irregular. Thread take-up spring tension and height are incorrect. Adjust the tension and height of the thread take-up spring. P. 26 Sub-tension is too weak. Turn the sub-tension nut to adjust the tension. P. 20 Fixed knife is not cutting cleanly. Sharpen the fixed knife or replace it with a new one. P. 31 Sewing machine does not operate when the power is turned on and the foot switch is depressed. Machine head switch does not work. Check if the machine head switch cord is disconnected. P. 8 If the machine head switch is malfunctioning, replace it with a new one. 38 jintex.in

Page 90

jinttex.in jintex.in

Page 91

零件样本 PARTS BOOK jintex.in

Page 92

jinte.in jinte.in

Page 93 — 目录/CONTENTS

目录/CONTENTS A. 机体部分 / Machine body B. 上轴、针杆装置 / Upper shaft and needle bar mechanism C 1. 送料装置 / Feed mechanism C 2. 送料装置 / Feed mechanism C 3. 送料装置 / Feed mechanism C 4. 送料装置 / Feed mechanism D 1. 抬压装置 / Work clamp lifter mechanism D 2. 抬压装置 / Work clamp lifter mechanism D 3. 抬压装置 / Work clamp lifter mechanism E. 下轴装置 / Lower shaft mechanism F. 供油润滑装置 / Lubrication G. 穿线装置 / Threading mechanism H. 卷线装置 / Bobbin winder mechanism J. 切线装置 / Thread trimmer mechanism K. 扫线装置 / Thread wiper mechanism L. 松线装置 / Tension release mechanism M. 电控装置 / Electronic control device P. 空压装置 / Air pressure mechanism Q. 电气部品装置 / Power supply equipment mechanism S. 马达装置 / Motor mechanism T. 踏板关系 / Foot switch pedal mechanism Z. 附件 / Accessories Ga. 工模具一览表 / Gauge parts list 1 3 5 7 11 13 15 17 19 21 23 27 29 31 35 37 39 41 43 45 47 51 53 Jinttex.in

Page 94 — A. 机体部分 / Machine body

A. 机体部分 / Machine body 1 jintex.in

Page 95 — A、机体部分/Machine body

A、机体部分/Machine body 序号 No. 件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41703001 SA4594001 轴套 U BUSHING U 1 T1310 2 41729001 117608001 开口销 DOWEL PIN 1 T1310 3 41722001 SA4596001 橡皮塞 20-15 RUBBER CAP 20-15 1 4 41722002 117934001 橡皮塞 13.5 RUBBER CAP 13.5 1 5 41722003 104821001 橡皮塞 10.5 RUBBER CAP 10. 5 3 6 41711205 SA4591001 马达盖 QR MOTOR COVER QR 1 7 S04038 62061016 螺钉 M6 X 10 SCREW PAN M6 X 10 4 8 41711206 SA4598001 马达盖 QL MOTOR COVER QL 1 9 S04038 62061016 螺钉 M6 X 10 SCREW PAN M6 X 10 4 10 304727 SA4600001 面板 FACE PLATE 1 11 41722004 104449001 橡皮塞 15.5 RUBBER CAP 15.5 1 12 41712003 SA4601001 面板垫片 F-PLATE PACKING 1 13 S04038 62061016 螺钉 M6 X 10 SCREW PAN M6 X 10 3 14 301383 SA4603101 大旋梭盖 SHUTTLE RACE COVER 1 15 41712005 SA6272001 大旋梭挂钩 D SHUTTLE RACE COVER HOOK D 1 16 S02031 004300513 螺钉 M3 X 5 SCREW PAN M3 X 5 2 17 41712006 SA3264001 板螺母 NUT PLATE 1 18 4171220200 SA6207001 铰链 HINGE 1 19 NO1013 21300103 螺母 M5 STEPPING COVER 2 20 S04082 62300506 螺钉 M3 X 6 SCREW PAN M3 X 6 1 23 301384 SA3200101 挑线杆防护罩 THREAD TAKE-UP COVER 1 24 S04079 06240 1006 螺钉 M4 X 10 SCREW PAN M4 X 10 1 25 41711207 SA4604001 间歇盖板 Q STEPPING COVER Q 1 26 417S30012 SA3306001 段螺钉 7-3 SHOULDER SCREW 7-3 1 27 41728020 120265002 弹簧垫圈 SPRING WASHER 1 28 41728035 S07350002 垫圈 WAHER PLAIN 1 29 41711208 S36475000 螺钉 M5Q SCREW M5 Q 1 30 41737001 S36924001 警告标记 MARK INJURY 1 31 20131063 SA2040001 警告牌 WARNING SIGN 1 33 41722009 S20164001 橡皮塞 13 RUBBER CAP 13 1 34 41712009 S0244500 1 护指器 FINGER GUARD 1 35 41728025 25350332 平垫圈 L3.5 WASHER PLAIN L3. 5 2 36 41712010 SA4605001 机头撑杆 HEAD REST 1 37 417S30037 S42446001 螺钉 M6 X 14 BOLT SOCKET(S/P WASHER)M6 X 14 4 38 S04075 62300506 螺钉 M3 X 5 SCREW PAN M3 X 5 2 39 41722006 SA6194001 橡皮塞 26 RUBBER CAP 26 1 40 41722007 S44010001 橡皮塞 11.5 RUBBER CAP 11.5 2 41 41722008 SA6441001 橡皮盖 RUBBER CAP 1 42 41722009 S2016400 1 橡皮塞 13 RUBBER CAP 13 1 2

Page 96 — B. 上轴·针杆装置 / Upper shaft and needle bar mechanism

B. 上轴·针杆装置 / Upper shaft and needle bar mechanism 46 45 48 38 41 37 47 44 43 42 44 39 36 35 36 33 34 49 50 14 12 14 13 14 14 8 11 9 10 5 8 19-1 4 2 24 21 19-2 20 19-4 19-3 19 19-5 19-6 23 29 22 31 32 25 27 26 18 17 16 15 17 17 3 52 30 28 3 jintex.in

Page 97 — B. 上轴·针杆装置/Upper shaft and needle bar mechanism

B. 上轴·针杆装置/Upper shaft and needle bar mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 4 1 41702001 SA4606001 上轴 UPPER SHUFT 1 2 4170501100 SA3499001 曲柄轴组件 CRANK ROD ASSY 1 3 S05124 18501636 螺栓 M5 X 16 BOLT SOCKET M5 X 16 2 4 41724001 SA4172001 滚针轴承 K15 X 18 X 14 NEEDLE BEARTNG:BLUE 1 4 41724001 SA4173001 滚针轴承 K15 X 18 X 14 NEEDLE BEARING:BLACK 1 4 41724001 SA4174001 滚针轴承 K15 X 18 X 14 NEEDLE BEARING:GRAY 1 4 41724001 SA4175001 滚针轴承 K15 X18 X14 NEEDLE BEARING:YELLOW 1 5 41703002 SA3206001 轴承套 BALL BEARING BUSH 1 6 B10014 SA4179001 轴承 6904DDUNR BALL BEARING 6904DDUNR 1 7 B06005 SA4180001 轴承 R-6904DDU BALL BEARING 6904DDU 1 8 S10018 S23651001 固定螺钉 M6X0.75-6 SET SCREW SOCKET (FT) M6 X 6 2 9 41703002 SA3206001 轴承套 BALL BEARING BUSH 1 10 B10012 SA4177001 轴承 6904DDUNR BALL BEARING 6904DDUNR 1 11 S10018 S23651001 固定螺钉 M6 X 0.75-6 SET SCREW SOCKET (FT) M6 X 6 4 12 41703004 SA4608101 管接头 G JOINT G 1 13 B10013 SA4178001 轴承 6904DDU BALL BEARING 6904DDU 1 14 S10018 S23651001 固定螺钉 M6X0.75-6 SET SCREW SOCKET (FT) M6 X 6 4 15 417S30002 S25235001 螺钉 M8 SCREW, M8 1 16 41704001 SA4609101 针杆曲柄 G THREAD TAKE-UP CRANK G 1 17 S10018 S23651001 固定螺钉 M6 X 0.75-6 SET SCREW SOCKET (FT) M6 X 6 4 18 41712133 110367001 垫圈8 WASHER, PLAIN SPECIAL 8 1 19 14170500400 SA6182001 针杆连杆件 FK THREAD TAKE-UP LEVER FK SET 1 19-1 41726021 挑线架销 TAKE-UP RACK PIN 1 19-2 4172103 挑线架 THREAD RACK 1 19-3 4171210400 挑线杆组件 TAKE-UP ROD ASSEMBLY 1 19-4 41724003 滚针轴承 K8 X 12 X 7.7 NEEDLE ROLLER BEARING K8X 12 X 7.7 2 19-5 41712102 挑线曲柄 PICK CRANK 1 19-6 41705101 针杆连杆 NEEDLE BAR LINKAGE 1 19-7 41704100 针杆接头 NEEDLE BAR CONNECTOR 1 20 417S17003 SA2958001 螺钉 M5 X 5 SCREW FLAT M5 X 6 1 21 S09019 12500536 螺钉 M5 X 5 SET SCREW SOCKET (FT) M5 X 5 1 22 S04078 0624008 16 螺钉 M4 X 8 SCREW PAN M4 X 8 6 23 417S14001 1454650 01 螺钉 SM3. 57-40 X 6L SCREW SM3. 57-40 X 6L 1 24 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 25 41709001 142211001 滑块 SLIDE BLOCK 3 26 41709002 SA3528001 滑块导向 B SLIDE BLOCK GUIDE 1 27 S05118 18401636 螺栓 M4 X 16 BOLT SOCKET M4 X 16 2 28 41702002 SA4622001 针杆 NEEDLE BAR 1 29 417S15002 144458001 螺钉 SM3. 57-40 X 4.5 L SET SCREW, SM3. 57-40 X 4.5 1 30 41703005 SA4666001 针杆轴套 UK NEEDLE BAR BUSH UK 1 31 41703006 SA3224001 针棒轴套 D NEEDLE, RAR RUSH D 1 32 41217002 *P.67 机针 NEEDLE 1 33 12411002 S38713 100 叶轮 FAN 1 34 S04078 62400816 螺钉 M4 X 8 SCREW PAN M4 X 8 3 35 41225010 SA6108001 齿轮 R PULLEY GEAR R 1 36 S09019 12500536 螺钉 M5 X 5 SET SCREW SOCKET (FT) M5 X 5 2 37 41702003 SA1626001 上轮轴 PULLEY SHUFT 1 38 41703007 SA4627001 上轮轴套 PULLEY BUSH 1 39 41727001 SA4628001 上轮弹簧 PULLEY SPRING 1 40 41703008 SA4629001 上轮基座 PULLEY BASE 1 41 P03027 47401242 弹簧销 4 X 12 PTN SPRNG ROLL AW4 1 42 41725002 SA4624001 齿轮 PULLEY GEARL 1 43 S09019 12500536 螺钉 M5 X 5 SET SCREW SOCKET (FT) M5 X 5 1 44 S10018 S23651001 固定螺钉 M6 X 0.75-6 SET SCREW SOCKET (FT) M6 X 6 2 45 41711001 SA4630001 上轮 PULLEY 1 46 S04079 62101006 螺钉 M4 X 10 SCREW PAN M4 X 10 3 47 41728024 SA5158001 垫圈 L4 WASHER PLAIN L4 3 48 S10019 12060636 螺钉 M6 X6 SET SCREW SOCKET (FT)M6 X 6 1 49 S05124 18501636 螺栓 M5 X 16 BOLT SOCKET M5 X 16 4 50 41712011 SA5230001 惯性轮 2 FRIES WHEEL 2 2 51 403S11043 62401016 螺钉 M4 X 12 SCREW PAN M4 X 12 3 52 S09041 12060536 螺钉 M5 X 5 SET SCREW SOCKET (FT) M5 X 5 1 jintex.in 4

Page 98 — C1 . 送料装置 / Feed mechanism

C1 . 送料装置 / Feed mechanism 5 jintex.in

Page 99 — C1、送料装置 / Feed mechanism

C1、送料装置 / Feed mechanism 序号 No. 公司件号 Part.No. 参考件号 Ref.No. 零部件名称 零部 件名称 Nuffi OF PARTS 数量 Amt. 备注 1 400994 SA5229101 送布基座组件 FEED BRACKET ASSY 1 41701002 2 42224502 X-LM 导轨 X-LM GUIDE 2 3 413S14012 018301436 螺栓 M3 X 14 BOLT SOCKET M3 X 14 15 4 4170 1003 SA4635101 送布台(X) FEED BRACKET X 1 5 S05192 18300636 螺栓 M3 X 6 BOLT SOCKET M3 X 6 8 6 S02032 61300616 螺钉 M3 X 6 SCREW FLAT M3 X 6 8 7 41709004 SA4636101 传感器板(X) X-SENSOR PLATE 1 8 S02032 61300616 螺钉 M3 X 6 SCREW FLAT M3 X 6 2 9 41709005 SA4641001 皮带支架 X-BELT HOLDER 1 10 S05116 18400836 螺栓 M4 X 8 BOLT SOCKET M4 X 8 2 11 41735001 SA4649001 X-GT 皮带 X-GT BELT 1 12 41712012 SA4640001 皮带支架板(X) X-BELT HOLDER PLATE 1 13 S05116 18400836 螺栓 M4 X 8 BOLT SOCKET M4 X 8 2 14 42224501 SA4639001 花键轴组件C C-BALL SPLINE ASSY 1 15 B06006 76000600 球轴承 6000VV BALL BEARING RADIAL 6000VV 1 16 41728001 S20356001 平垫圈 10 WASHER PLAIN 10 1 17 H03008 48100142 轴用挡圈 C10 RETAINING RING EXTERNAL C10 1 18 4173500200 SA4638001 X-左轮组件 X-LEFT PULLEY 1 19 S10019 12060636 螺栓 M6 X 6 SET SCREW SOCKET (PT) M6 X 6 1 20 B06007 76806606 球轴承 6806VV BALL BEARING 6806VV 2 21 H01004 48420242 孔用挡圈 C42 RETAINING RING EXTERNAL C42 2 22 41701013 SA4642001 X-轮基座 X-PULLEY BRACKET 1 23 S05035 18501636 螺栓 M5 X 16 BOLT SOCKET M5 X 16 2 24 W01009 25050236 平垫圈 M5 WASHER PLAIN M5 2 25 4173500200 SA4643001 X-右轮组件 X-RIGHT PULLEY ASSY 1 26 41728001 S20356001 平垫圈 10 WASHER PLAIN 10 1 27 S10015 SA4647001 球轴承 6900ZZNR BALL BEARING 6900ZZNR 2 28 41702005 SA4648001 X-轮支点轴 X-PULLEY FULCRUM SHAFT 1 29 S10019 0J2060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 2 30 41712013 SA4650001 Y-传感器板 Y-SENSOR PLATE 1 31 S05119 18402036 螺栓 M4 X 20 BOLT SOCKET M4 X 20 2 32 42224503 Y-LM 导向 Y-LM GUIDE 2 33 41728002 SA4652101 Y-LM 垫片 Y-LM SPACER 2 34 S02032 61300616 螺钉 M3 X 6 SCREW FLAT M3 X 6 16 35 S05119 18402036 螺栓 M4 X 20 BOLT SOCKET M4X 20 8 36 W01006 25040236 平垫圈4 WASHER PLAIN M4 8 37 W02008 28040246 弹簧垫圈 2-4 WASHER SPRING 2-4 8 38 4 1709032 挡块 CUMP H-POSITION 2 T1310 39 S05119 18402036 螺栓 M4 X 20 BOLT SOCKET M4 X 20 2 T1310 40 41711062 固定板 HOLDER PLATE 2 41 41726020 SA5220001 调节销 ADJUST PIN 4 42 S09005 12030536 螺钉 M3 X 5 SCREW FLAT M3 X 5 4 6 jintex.in

Page 100

C2 . 送料装置 / Feed mechanism 7 jintex.in

Page 101 — C2、送料装置 / Feed mechanism

C2、送料装置 / Feed mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 S05111 18062036 螺栓 M6 X 20 BOLT SOCKET M6 X 20 4 2 41725003 SA4653001 X-送布齿轮 Y-FEED GEAR 1 3 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 2 4 B10015 SA4647001 球轴承 6900ZZNR BALL BEARING 6900ZZNR 2 5 41725004 SA4654001 Y-送布齿轮 Y-FEED GEAR 1 6 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 2 7 B10015 SA4647001 球轴承 6900ZZNR BALL BEARING 6900ZZNR 2 8 H05011 48080342 卡簧9 RETAINING RING 9 1 9 4173501100 SA4655101 Y-轮组件 Y-PULLEY ASSY 1 10 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 4 11 41703009 SA4658001 Y-轮套 Y-PULLEY COLLAR 1 12 41702006 SA4659001 Y-驱动轴 Y-PULLEY DRIVING SHAFT 1 13 41701005 SA4661001 Y-轮基座 Y-PULLEY BRACKET 1 14 810015 SA4647001 球轴承 6900ZZNR BALL BEARING 6900ZZNR 2 15 4173502100 SA4655101 基座齿轮组件 Y-PULLEY ASSY 1 16 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 2 17 41702007 SA4662001 Y-轮支点轴 Y-PULLEY FULCRUM SHAFT 1 18 41735005 SA4663001 Y-GT 皮带 Y-GT BELT 1 19 4 1712014 SA4664001 Y-皮带支架板 BELT SUPPORT PLATEY 1 20 41712015 SA4665001 Y-皮带支撑板 BELT WORK CLAMP PLATE 1 21 S05116 18400836 螺钉 M4 X 8 BOLT SOCKET M4 X 8 4 22 417S30304 SA2972001 螺钉 M6 X 20 BOLT SOCKET(S/P WASHER) M6 X 20 2 23 S05119 18402036 螺钉 M4 X 20 BOLT SOCKET M4 X 20 4 24 41711204 SA4667101 盖轨道Q COVER RAIL Q 2 25 41712017 SA4671001 固定盖(R) FIXATION R 1 26 41712018 SA4672001 固定盖(L) FIXATIONL 1 27 403S11043 螺钉 M4 X 10 SCREW FAN M4 X 10 12 28 417S30009 62400416 螺钉 M4 X 6 SCREW FAN M4 X 6 4 29 41711201 SA4860101 内盖QR INSIDE COVER QR 1 30 41711202 SA486 1101 内盖QL INSIDE COVER QL 1 31 41711203 SA4670101 外盖组件Q OUTSIDE COVER Q ASSY 2 32 41711002 SA4673001 Y-皮带轮盖 BELT COVER Y 1 33 417S30025 OA5401006 螺栓(带垫圈) M4X 10DB SCREW PAJ (S/P WASHER) M4 X 10 2 34 41712022 SA4675201 补助板 AUXI LIARY PLATE 1 35 41722010 SA4677101 补助板缓冲 AUXI LIARY PLATE CUSHION 10 36 417S15003 S23849001 螺钉 M4 X 12 SCREW M4 X 12 10 37 417N01002 21400216 自锁螺母 LOCKNUT 4 38 41712023 SA4676001 补助板支架 AUXILIARY PLATE BRACKET 2 38 41712064 SA4676001 L型支架 L TYPE BRACKET 2 39 417S30304 SA42446001 螺钉 M6 X 20 BOLT SOCKET(S/P IVASHER) M6 X 20 6 40 41712024 SA46434001 补助板支架U SUPPORT PLATE GUIDE U 2 41 4 1712025 SA4635001 补助板支架D SUPPORT PLATE GUIDOE D 2 42 417S30035 S55484002 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P IVASHER) M5 X 10 4 43 417S30304 SA42446001 螺钉 M6 X 20 BOLT SOCKET(S/P IVASHER) M6 X 20 4 44 417122011 SA4679101 蛇纹管 BELLOW 1 45 41712026 SA4680101 蛇纹管支架R BELLOW PRESSER R 1 46 41712027 SA4681001 蛇纹管支架F BELLOW PRES5ER F 1 47 41712060 SA4682001 板螺母 BELLOW NUT 2 48 S04036 0623004 16 螺钉 M3 X 4 SCREW FAN M3 X 4 4 49 417S30009 螺钉 M4 X 6 SCREW FAN M4 X 6 4 50 141733002 SA4820201 X向同步电机1 MOTOR BRACKET PLATE 1 51 41712029 SA4684001 马达安装板 MOTOR BRACKET PLATE 1 52 S05048 18401036 螺钉 M4 X 10 BOLT SOCKET M4 X 10 4 53 41725005 SA3707001 驱动齿轮 16 GEAR 16 1 54 S09041 12060536 螺钉 M6 X 5 SET SCREIV SOCKET (FT) M6 X 5 2 55 141733003 SA482310 1 Y向同步电机1 PULSE MOTOR Y 1 56 41712029 SA4684001 马达安装板 MOTOR BRACKET PLATE 1 57 S05048 18401036 螺钉 M4 X 10 BOLT SOCKET M4 X 10 4 58 41725005 SA3707001 驱动齿轮 16 GEAR 16 1 59 S09041 12060536 螺钉 M6 X 5 SET SCREIV SOCKET (FT) M6 X 5 2 60 417S30304 SA42446001 螺钉 M6 X 20 BOLT SOCKET(S/P IVASHER) M6 X 20 6 jintex.in 8

Page 102 — C2 .送料装置 / Feed mechanism

C2 . 送料装置 / Feed mechanism 9 jintex.in

Page 103 — C2、送料装置 / Feed mechanism

C2、送料装置 / Feed mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 零 部件名称 NAME OF PARTS 数量 Amt. 备注 61 41712030 SA6306001 盖连接板 COVER CONNECT PLATE 1 62 417S15006 S23418002 螺钉 M4 X 5 SCREW M4 X 5 2 63 41728012 118735001 垫圈 WASHER 4 65 41712100 SA6450101 轴承支架座 BEARING HOLDER BASE 2 66 S05121 18501036 螺钉 M5 X 10 BOLT SOCKET M5 X 10 4 67 41712101 SA6449001 轴承支架 BEARING HOLDER 2 67 41724005 调心球轴承 126 BALL BEARING 126 2 68 S05048 18401036 螺钉 M4 X 10 BOLT SOCKET M4 X 10 4 70 417S30037 螺钉 M6 X 14 BOLT SOCKET M6 X 14 10 10

Page 104 — C3 . 送料装置 / Feed mechanism

C3 . 送料装置 / Feed mechanism < 电磁式 / For Solenoid type > 32 31 22 17 15 14 24 21 13 34 36 35 26 40 44 42 41 43 39 37 45 39 40 43 49 54 1 2 3 4 5 6 7 8 9 10 11 12 14 16 19 20 18 23 27 21 30 29 33 35 36 34 25 51 53 52 38 55 11 jintex.in

Page 105

C3、送料装置/Feed mechanism (T1310) 序号 No. 公司件号 Part.No. 参考件号 Ref. No. 零件名称 NAME OF PARTS 数量 Amt. 备注 1 41701006 SA4686101 <电磁式> <For Solenoid type> 1 2 41711007 SA4687101 压脚臂 WORK CLAMP 1 3 H03008 48100142 滑块 SLIDER 1 4 41712031 SA4688001 轴用挡圈 C10 RETAINING RING EXTERNAL C10 1 5 41726001 SA4689001 滑块支架 SUPPORT SLIDER 1 6 H03018 48080142 滑块支架轴 SUPPORT SHAFT SLIDER 1 7 41712032 SA4690001 轴用挡圈 C4 RETAINING RING EXTERNAL C4 2 8 41712033 SA4691001 压脚柄 R WORK CLAMP LIFTER LEVER R 1 9 41712034 SA4691001 压脚柄 L WORK CLAMP LIFTER LEVER L 1 10 41702012 SA4692001 压脚脚杆轴 WORK CLAMP LIFTER SHAFT 1 11 H03006 48080142 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 12 41712133 110367001 轴用挡圈 C8 RETAINING RING EXTERNAL C8 1 13 41708002 SA3231001 垫圈 8 WASHER PLAIN SPECIAL 8 1 14 S09041 12060536 紧固 B SET SCREW COLLAR B 1 15 41712034 SA4690001 螺钉 M6 X 5 SET SCREW SOCKET (FT) M6 X 5 2 16 41702021 SA4693001 连杆 CONNECTING ROD 2 17 417S30003 SA469700 1 弹簧挂钩轴 A SPR NG HOLDER SHAFT A 1 18 41702009 SA4694001 段螺钉 M5 SHOULDER SCREW M5 2 19 S10019 12060636 弹簧挂钩轴 B SPRING HOLDER SHAFT B 1 20 41727002 SA4695001 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 2 21 41712035 SA4698001 弹簧 SPRING LIFT 1 22 417S12002 SA470000 1 连接板 CONNECTING LINK 2 23 N01017 0215002 16 六角螺母 M5 NUT 2 M5 2 24 41727003 SA4701001 弹簧 WORK CLAMP SPRING 2 25 41712036 SA470200 1 压脚脚杆 R WORK CLAMP LIFTER LEVER R 1 26 41712037 SA4703001 压脚脚杆 L WORK CLAMP LIFTER LEVER L 1 27 41702012 SA4692001 压脚脚杆轴 WORK CLAMP LIFTER LEVER 1 28 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 29 H03006 48080142 轴用挡圈 C8 RETAINING RING EXTERNAL C8 1 30 41712133 110367001 垫圈 8 WASHER PLAIN SPECIAL 8 1 31 41708002 SA323100 1 紧固 B SET SCREW COLLAR B 1 32 S09041 12060536 螺钉 M6 X 5 SET SCREW SOCKET (FT) M6 X 5 2 33 41712038 SA4690001 定位块 STOPPER 4 34 S05120 18500836 螺栓 M5 X 8 BOLT SOCKET M5 X 8 4 35 W01009 25050236 平垫圈 M5 IVASHER PLAIN M5 4 36 W02001 28050246 弹簧垫圈 2-5 WASHER SPRING 2-5 4 37 4170901300 SA4863001 压脚导向组件 A WORK CLAMP GUIDE A ASSY 1 38 417S15003 S2384900 1 螺钉 M4 X 16 SCREW M4 X 16 2 39 4170901400 SA4864001 压脚导向组件 B WORK CLAMP GUIDE B ASSY 2 40 417S30034 S55482001 螺栓(带垫圈) M4 X 14 BOLT SOCKET(S/P WASHER) M4 X 14 4 41 4170901500 SA471200 1 压脚滑块组件 R WORK CLAMP SUDER ASSY R 1 42 4170901600 SA4714001 压脚滑块组件 L WORK CLAMP SLIDER ASSY L 1 43 141712271 SA4706101 压脚挡板组件 IVORK CLAMP RETAINER ASSY 4 44 41712039 SA4708001 压脚 WORK CLAMP 1 45 417S30035 855485001 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P WASHER) M5 X 10 2 46 S09009 12501031 螺钉 M5 X 10 SET SCREW SOCKET (FT)M5 X 10 2 47 N01017 21500216 六角螺母 M5 NUT 2 M5 2 48 417S20001 SA4709001 定位螺钉 SHOULDER SCREW 2 49 401219 SA4866101 压板组件 1310 WORK CLAMP 1310 ASSY 1 41712040 50 417S30035 855484002 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P WASHER) M5 X 10 2 51 L02006 17501616 螺栓 M5 X 16 BOLT M5 X 16 4 52 W01009 25050236 平垫圈 M5 WASHER PLAIN M5 4 53 W02001 28050246 弹簧垫圈 2-5 WASHER SPRING 2-5 4 54 400992 SA471500 1 送料板 1310 FEED PLATE 1310 1 41712041 55 417S30035 855484002 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P WASHER) M5 X 10 2 55 41728004 垫圈 WASHER 2 12

Page 106 — C4 . 送料装置 / Feed mechanism

C4 . 送料装置 / Feed mechanism < 空压式 / For Penumatic type > 19 18 13 11 9 9 8 7 9 19 12 23 15 12 33 25 34 35 32 28 22 26 20 26 22 21 27 31 < 用于 1310 / For 1310 > 38 39 37 < 用于 2210 / For 2210 > 46 39 45 43 40 42 41 44 40 42 41 44 47 13 Jinttex.in

Page 107 — C4、送料装置/Feed mechanism

C4、送料装置/Feed mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41701006 SA4686101 压脚臂 WORK CLAMP 1 2 41702011 SA4717001 气缸轴 CYLINDER SHAFT 1 3 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 2 4 40736004 Φ4可调节气管接头(螺纹M5) AIR CYLINDER ASSY 2 5 41730035 SA4719001 气缸组件 R AIR CYLINDER ASSY 2 6 H03019 48050142 轴用挡圈 C5 RETAINING RING EXTE AL C5 2 7 41709012 SA4720001 气缸接头 CYLINDER JOINT 2 8 41726002 SA4721001 气缸接头轴 CYL NDER JOINT SHAFT 2 9 H05027 48060142 轴用挡圈 C6 RETAINING RING EXTE AL C6 4 10 41712042 SA4722001 压脚柄R(气压) WORK CLAMP LIFTER LEVER R AIR 1 11 41712043 SA4723001 压脚杆(气压) WORK CLAMP LIFTER SHAFT A R 2 12 41712044 SA4724001 压脚杆(气压) WORK CLAMP LIFTER SHAFT A R 2 13 413S13008 S55479001 螺栓(带垫圈)M4 X 8 BOLT SOCKET (S/P WASHER) M4 X 8 2 14 41702012 SA4692001 压脚杆轴 WORK CLAMP LIFTER SHAFT 1 15 S10019 12060636 螺钉 M6X6 SET SCREW SOCKET (FT) M6 X 6 1 16 H03006 48080142 轴用挡圈 C8 RETA NING RING EXTERNAL C8 1 17 41712133 110367001 垫圈 8 WASHER PLAIN SPECIAL 8 1 18 41708002 SA3231001 紧圈 B SET SCREW COLLAR B 1 19 S09041 12060536 螺钉 M6 X 5 SET SCREW SOCKET (FT)M6 X 5 2 20 4170901300 SA4863001 压脚导向组件 A WORK CLAMP GU ioe A ASSY 1 21 417S15003 S23849001 螺钉 M4 X 12 SCREW M4 X 12 2 22 4170901400 SA4864001 压脚导向组件 B WORK CLMP GU ioe B ASSY 2 23 417S30034 S55482001 螺栓(带垫圈)M4 X 14 BOLT SOCKET(S/P WASHER) M4X 14 4 24 4170901500 SA4712001 压脚滑块组件 R WORK CLAMP SLIDER ASSY R 1 25 4170901600 SA4714001 压脚滑块组件 L WORK CLAMP SLIDER ASSY L 1 26 141712271 SA4706101 压脚滑块组件 WORK CLAMP SLIDER ASSY 4 27 41712045 SA4725001 压脚 R WORK CLAMP R 1 28 417S30036 S55485001 螺栓(带垫圈)M5 X 12 BOLT SOCKET (S/P WASHER) M5 X 12 1 29 S09009 12501031 螺钉 M5 X 10 SET SCREW SOCKET (FT) M5 X 10 2 30 N01017 21500216 六角螺母 M5 NUT 2 M5 2 31 417S20001 SA4709001 定位段螺钉 SHOULDER SCREW 1 32 41712046 SA4726001 压脚 L WORK CLAMP L 1 33 417S30036 S55485001 螺栓(带垫圈)M5 X 12 BOLT SOCKET (S/P WASHER) M5 X 12 1 34 S09009 12501031 螺钉 M5 X 10 SET SCREW SOCKET (FT)M5 X 10 2 35 N01017 21500216 六角螺母 M5 NUT 2 M5 2 36 417S20001 SA4709001 定位段螺钉 SHOULDER SCREW 2 37 401219 SA4868101 <用于1310> <For 1310> 1 41712040 39 417S30035 S55484002 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P WASHER) M5 X 10 4 40 L01011 17501616 螺栓 M5X 16 BOLT M5X 16 4 41 W01009 25050236 平垫圈 M5 WASHER PLAIN M5 4 42 W02001 28050246 弹簧垫圈 2-5 WASHER SPRING 2-5 4 43 400996 SA4715001 送料板 1310 FEED PLATE 1310 1 44 417S30035 S55484002 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P WASHER) M5 X 10 2 45 41712441 SA4870101 <用于2210> <For 2210> 1 46 41712442 SA4871101 压板组件 2210R WORK CLAMP 2210R ASSY 1 39 417S30035 S55484002 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P WASHER) M5 X 10 4 40 L02006 17501616 螺栓 M5 X 16 BOLT M5 X 16 4 41 W01009 25050236 平垫圈 M5 WASHER PLAIN M5 4 42 W02001 28050246 弹簧垫圈 2-5 WASHER SPRING 2-5 4 44 417S30035 S55484002 螺栓(带垫圈) M5 X 10 BOLT SOCKET (S/P WASHER) M5X 10 2 47 400996 SA4852001 送料板 2210 FEED PLATE 2210 1 jintex.in 14

Page 108 — D1 . 拾压装置 / Work clamp lifter mechanism

D1 . 拾压装置 / Work clamp lifter mechanism 12 11 9 8 2 10 7 6 3 15 13 14 16 17 59 46 45 38 39 42 41 40 44 19 18 20 19 20 21 50 52 51 37 35 36 34 33 32 40 41 43 19 20 22 19 20 23 48 47 53 54 30 29 28 27 26 24 25 55 58 57 56 15 jintex.in

Page 109 — D1、拾压脚装置/Work clamp lifter mechanism

D1、拾压脚装置/Work clamp lifter mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41710001 SA4759001 凸轮 STEPPING CLAM CAM 1 2 41705001 SA4760001 连杆 STEPPINGCLAMP CON. ROD 1 3 41728003 SA4763001 垫圈 WASHER STEPPING CLAMP CAM 1 4 B06008 62303000 轴承 6805VV BALL BEARING 6805VV 1 5 S10018 S23651001 固定螺钉 M6 X 0. 75-6 SET SCREW SOCKET (FT) M6 X 6 2 6 S04035 62400616 螺钉 M4 X 6 SCREW PAN M4 X 6 2 7 41726003 SA4761001 上轮轴 ROLLER SHAFT STEPPING CLAMP 1 8 41703010 SA4762001 滚轮 ROLLER STEPPING CLAMP 1 9 41728004 SA4302001 垫圈 WASHER 2 10 N01021 21060106 螺母 M6 NUT 1 M6 1 11 41709017 SA4764001 压臂 R STEPPING CLAMP ARM R 1 12 L02032 17061216 螺钉 M6 X 12 BOLT M6 X 12 1 13 41702013 SA4765001 压臂 F STEPP NG CLAMP ARM F 1 14 S10018 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 15 S10018 S23651001 固定螺钉 M6 X 0. 75-6 SET SCREW SOCKET (FT) M6 X 6 1 16 41703011 SA4766001 压臂轴套 F BUSH STEPPING CLAMP F 1 17 41703012 SA4767001 压臂轴套 R BUSH STEPPING CLMW R 1 18 41712053 SA4768001 间歇连杆 A STEPP NG CLAMP LINK A 1 19 417S30007 SA4769001 段螺钉 6 SHOULDER SCREW 6 4 20 S04036 62300416 螺钉 M3 X 4 SCREIV PAN M3 X 4 4 21 41712054 SA4770001 间歇连杆 B STEPPING CLAMP LINK B 1 22 41712055 SA4772001 间歇连杆 STEPPING CLAMP LINK 1 23 41726004 SA4773001 联杆轴 SHAFT STEPPING CLAMP LINK 1 24 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 25 S09006 12400436 螺钉 M4 X 4 SET SCREW SOCKET (FT) M4 X 4 1 26 41709018 SA4770001 联接板 STEPPING CLAMP LIFTER LINK 1 27 41702014 SA4771001 联接板轴 SHAFT STEPPING CLAMP LIFTER LINK 1 28 41728031 SA2161001 垫圈 WASHER 1 29 H03006 48080142 轴用挡圈 C8 RETA NING RING EXTERNAL C8 1 30 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 31 S09006 12400436 螺钉 M4 X 4 SET SCREW SOCKET (FT) M4 X 4 1 32 41709019 SA4779001 间歇提升杆 STEPPING CLAMP LIFTER 1 33 41703013 SA4781001 提升滑轮 ROLLER STEPPING CLAMP LIFTER 1 34 41726005 141362001 滚轮 ROLLER 1 35 41702015 SA4780001 提升杆轴 SHAFT STEPPING CLAMP LIFTER 1 36 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 37 S02039 S25310101 螺钉 M4 SCREW FLAT M4 1 38 41702016 SA4775001 提升连杆 STEPPING CLAMP LIFTER ROD 1 39 417S12003 SA4853001 提升连杆接头 JOINT STEPP NG CLAMP LIFTER 1 40 4170500300 SA2663001 接头组件 BALL JOINT ASSY 2 41 N01021 21060306 螺母 M6 NUT M6 1 42 417S16001 SA3227001 螺母 M6 X 0. 75 NUT (FT) M6 1 43 417S30008 SA4776001 段螺钉 SHOULDER SCREW 1 44 417S12005 S32462001 段螺钉B M6 SHOULDER SCREW B M6 1 45 L01007 17065002 螺栓 M6 X 50 BOLT M6 X 50 1 46 N01021 21060106 螺母 M6 NUT 1 M6 1 47 41709020 SA4778001 压紧杆接头 PRESSER BAR CLAMP 1 48 S05116 18400836 螺钉 M4 X 8 BOLT SOCKET M4 X 8 1 49 123S30002 SA1174001 调节螺栓 M14 PESSER ADJUSTING SCREW M14 1 50 129S16001 SA 1175001 调节螺母 M14 ADJUST SCREW NUT 1 51 41727004 SA5300001 弹簧 PRESSER BAR SPRING 1 52 41702017 S10112001 弹簧导向 PRESSER BAR SPRING GUIOE 1 53 41703014 SA5301001 弹簧管套 COLLAR PRESSER BAR SPRING 1 54 41703015 SA2195001 压紧杆轴套 PRESSER BAR BUSH 1 55 S09041 12060536 螺钉 M6 X 5 SET SCREW SOCKET (FT)M6 X 5 1 56 41702018 111466101 压紧杆 PRESSER BAR 1 57 41716001 *P. 67 压脚 WORK CLAMP 1 58 417S15011 S13399001 螺钉 SM3. 57 X 12 SCREW SM3. 57 X 12 1 59 41728032 151439102 垫圈 WASHER 1 jintex.in 16

Page 110 — D2 . 抬压装置 / Work clamp lifter mechanism

D2 . 抬压装置 / Work clamp lifter mechanism < 电磁式 / For Solenoid type > 10 6 13 1 17 16 2 9 11 12 7 8 3-1 3-2 15 32 31 33 4 3 5 14 25 24 25 42 34 37 19 23 47 52 46 51 59 40 21 22 45 44 43 28 27 29 30 18 20 26 28 39 53 54 55 56 38 17 jintex.in

Page 111 — D2、拾压装置/Work clamp lifter mechanism (T1310)

D2、拾压装置/Work clamp lifter mechanism (T1310) 序号 No. 公司件号 Part. No. 参考件号 Ref.No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41724004 SA4729001 <电磁式> 滑杆轴套 <For Solenoid type> 1 2 S05048 18401036 螺钉 M4 X 10 SLIDE BUSH BOLT SOCKET M4 X 10 1 3 41712056 SA4731001 压脚提升板组件 WORK CLAMP PATE ASSY 1 3-1 41702008 压脚提升轴 PRESSER LIFT SHAFT 1 3-2 41712076 压脚提升板 PRESSER FOOT LIFT PLATE 1 4 400993 SA4734001 底座板 E SEAT E 1 41712057 5 S04080 62400416 螺钉 M4 X 4 SCREW PAN M4 X 4 1 6 41709021 SA4736001 压脚提升杆 WORK CLAMP LIFTER LEVER 1 7 41726006 152744001 销 PIN 1 8 41709022 102630001 底座滑块 NEEDLE BAR GUIDE SLIDE BLOCK 1 9 41702019 SA4737001 压杆升杆 B WORK CLAMP LEVER SHAFT B 1 10 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT)M6 X 6 1 11 41728001 S20356001 平垫圈 10 WASHER PLAIN 10 1 12 H05033 48080342 挡圈 E8 RETAIN NG RING E8 1 13 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT)M6 X 6 2 14 41729002 118208001 带槽销 DOWEL PIN 1 15 41712058 SA4738001 压脚提升杆 WORK CLAMP LIFTER PATE ASSY 1 16 417S20010 SA343800 1 段螺钉 SHOULDER SCREW 1 17 41727005 SA4739001 弹簧 PRESSER BAR SPRING 1 18 41701008 SA4741101 马达座 MOTOR BRACKET 1 19 41712063 SA474200 1 压脚马达板 WORK CLAMP MOTOR PLATE 1 20 S05121 18501036 螺钉 M5 X 10 BOLT SOCKET M5 X 10 2 21 141733010 SA4826201 Z向步进电机3 PULSE MOTOR ASSY Z 1 22 41730044 SA4828001 马达端线 P MOTOR HARNESS P 1 23 S05133 18401036 螺钉 M4 X 12 BOLT SOCKET M4 X 12 4 24 41725009 SA4743001 驱动齿轮 WORK CLAMP DRIV NG GEAR 1 25 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT)M6 X 6 2 26 41702020 SA4744001 压脚凸轮 WORK CLAMP CAM 1 27 B10015 SA4647001 球轴承 6900ZZNR BALL BEARING 6900ZZ 2 28 1830008 48100142 轴用挡圈 C10 RETAIN NG RING EXTERNAL C10 2 29 S04035 62400616 螺钉 M4 X 6 SCREW PAN M4 X 6 1 30 W01001 25040236 平垫圈 M4 WASHER PLAIN M4 1 31 41725010 SA4745001 内齿轮 WORK CLAMP CAM GEAR 1 32 S10021 16061031 螺钉 M6 X 10 SET SCREW SOCKET (CN) M6 X 10 1 33 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT)M6 X 6 1 34 4171000200 SA4746001 压脚凸轮 WORK CLAMP CAM 1 37 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT)M6 X 6 1 38 4170301700 SA4747001 压脚 H-POS 挡块 WORK CLAMP H-POS TION DOG 1 39 S05115 18400636 螺钉 M4 X 6 BOLT SOCKET M4X 6 1 40 41702025 SA4748001 压脚柄轴 WORK CLAMP LEVER SHAFT 1 41 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT)M6 X 6 1 42 41709023 SA6210001 间歇驱动杆 STEPPING W-CLAMP DRIVING LEVER 1 43 41702022 SA3441001 拾压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT 1 44 B04026 70696800 轴承 R-696ZZ BALL BEARING RAD AL 696ZZ 1 45 4 1728005 109763001 垫圈 WASHER 1 46 S09019 12500536 螺钉 M5 X 5 SET SCREW SOCKET (FT)M5 X 5 1 47 400683 SA4750001 压脚驱动杆 WORK CLAMP DRIVING SHAFT 1 41709024 48 41702022 SA3441001 拾压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT 1 49 B04026 70696800 轴承 R-696ZZ BALL BEARING RAD AL 696ZZ 1 50 41728005 109763001 垫圈 WASHER 1 51 S09019 12500536 螺钉 M5 X 5 SET SCREW SOCKET (FT)M5 X 5 1 52 41728001 S20356001 平垫圈 10 WASHER PLAIN 10 1 53 41712061 SA4752001 凸轮定位 WORK CLAMP CAM STOPPER 1 54 S04035 62400616 螺钉 M4 X 6 SCREW PAN M4 X 6 2 55 41712062 SA4753001 压脚传感器板 WORK CLAMP SENSOR PLATE 1 56 S04035 62400616 螺钉 M4 X 6 SCREW PAN M4 X 6 1 57 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT)M6 X 6 2 59 S05110 18061236 螺钉 M6 X 12 BOLT SOCKET M6 X 12 2 jintex.in 18

Page 112 — D3 . 抬压装置 / Work clamp lifter mechanism

D3 . 抬压装置 / Work clamp lifter mechanism < 空压式 / For Penumatic type > 19 jintex.in

Page 113

D3、拾压装置/Work clamp lifter mechanism 序号 No. 公司件号 Part. No. 参考件号 No. 零件名称 <空压式> NAME OF PARTS <For Penumatic type> 数量 Amt. 备注 Amt. 1 41701008 A54741101 马达座 MOTOR BRACKET 1 2 41712063 SA4742001 压脚马达板 WORK CLAMP MOTOR PLATE 1 3 S05121 018501036 螺栓M5×10 BOLT SOCKET M5X10 2 6 S05133 018401036 螺栓M4×12 BOLT SOCKET M4X10 4 7 41725009 SA4743001 驱动齿轮 WORK CLAMP DRIVING GEAR 1 8 S10019 012060636 螺钉M6×6 SET SCREW SOCKET M6X6 2 9 41702020 SA4744001 压脚M6×6 WORK CLAMP FULLCRUM SHAFT 1 10 S10015 SA1647001 球轴承6900ZZNR BALL BEARING 6900ZZNR 2 11 H03008 48100142 挡圈10 RETAINING RING EXTERNAL C10 2 12 S04035 62400616 螺钉M4×6 SCREW PAN M4X6 1 13 W01001 025040236 M4垫片 WASHER PLAIN M4 1 14 41725010 SA4745001 凸轮齿轮 WORK CLAMP CAM GEAR 1 15 S10021 016061031 凹端紧定螺钉M6×10 SET SCREW SOCKET M6X10 1 16 S10019 012060636 螺钉M6×6 SET SCREW SOCKET M6X6 1 17 4170301700 SA4747001 压脚原点挡块 WORK CLAMP H-POSITION DOG 1 18 S05115 018400636 螺栓M4×6 BOLT SOCKET M4X6 1 19 41702025 SA4748001 压脚柄轴 WORK CLAMP LEVER SHAFT 1 20 S10019 012060636 螺钉M6×6 SET SCREW SOCKET M6X6 1 21 41709023 SA6210001 间歇驱动杆 STEPPING W-CLAMP DRIVING LEVER 1 22 41702022 SA3441001 拾压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT 1 23 B04026 070696800 轴承R-696ZZ BALL BEARING RADIAL 696ZZ 1 24 41728005 109763003 垫圈 WASHER 1 25 S09019 012500536 螺钉M5×5 SET SCREW SOCKET M5X5 1 26 41712062 SA4753001 压脚传感器板 WORK CLAMP SENSOR PLATE 1 27 S04035 062400616 螺钉M4×6 SCREW PAN M4X6 2 29 S05110 018061236 螺栓M6×12 BOLT SOCKET M6X12 2 33 41708302 SA4757001 紧圈 SET SCREW COLLAR 1 34 S10019 012060636 螺钉M6×6 SET SCREW SOCKET M6X6 2 35 S10019 012060636 螺钉M6×6 SET SCREW SOCKET M6X6 1 40 41728001 平垫圈10 WASHER PLAIN 10 1 20 jintex.in

Page 114 — E. 下轴装置 / Lower shaft mechanism

E. 下轴装置 / Lower shaft mechanism 21 jintex.in

Page 115 — E、下轴装置/Lower shaf t mechan sm

E、下轴装置/Lower shaf t mechan sm 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零件名称 NAME OF PARTS 数量 Amt. 备注 1 417S20062 SA3226001 圆柱销(DLC) CYLINDRICAL PIN (DLC) SHOULDER SCREW 1 2 417S16001 SA3227001 螺母 M6 X 0.75 NUT M6 1 3 41725011 SA3228101 摆动齿轮 ROCK GEAR 1 4 41702027 SA4782001 摆动齿轮轴 ROCK GEAR SHAFT 1 5 41708002 SA3231001 紧固B SET SCREW COLLAR 8 1 6 S09041 12060536 螺钉 M6 X 5 SET SCREW SOCKET (FT) M6 X 5 2 7 41708006 SA3233001 紧固 SET SCREW COLLAR 1 8 S10018 S23651001 固定螺钉 M6 X 0. 75-6 SET SCREW SOCKET (FT) M6 X 6 2 9 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 2 10 4170202800 下轴组件 LOWER SHAFT ASSY 1 10-1 41702028 下轴 LOWER SHAFT 1 10-2 S09019 12500536 螺钉 M6 X 5 SET SCREW SOCKET (FT) M5 X 5 1 12 41703019 SA6216001 下轴衬套 LOWER SHAFT BUSH 1 13 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (FT) M6 X 6 1 14 41702029 SA3238101 旋钮调节轴 ADJUSTING STUD 2 15 41722015 81003670 O形圈 PW3 O RING PW3 2 16 41701009 SA6220001 大旋基座 SHUTTLE RACE BASE ASSY G 1 17 41712190 S02429201 旋线导向 SHUTTLE RACE THREAD GUIDE 1 18 417S15007 SA4 199001 螺钉 M3 X 4 SCREW M3 X 4 2 19 41712601500 SA3241001 大旋基固定柄 S-RACE BASE SETTING CLAW 2 20 41727006 152684101 弹簧 COMPRESSION SPRING 2 21 W01002 26030236 垫圈 M3 WASHER PLAIN M3 2 22 S04082 0623006 16 螺钉 M3 X 6 SCREW PAN M3 X 6 2 23 41723013 153050000 油毡 S-RACE BASE FELT 2 29 41723012 S59886001 油毡 L=360 FELT L=360 1 30 S10019 12060636 螺钉 M6 X6 SET SCREW SOCKET (FT) M6 X 6 1 31 H05032 48070342 挡圈 E7 RETAINING RING E7 1 32 41718001 SA3281101 梭托D DRWER D 1 33 S05122 18501232 螺栓 M5X 12 80LT SOCKET M5 X 12 1 34 41718002 *P. 66 外旋梭 SHUTTLE RACE BASE 1 35 4171801700 *P. 66 梭芯组件 BOBBIN CASE ASSY 1 36 41727015 *P. 66 调节弹簧 TENSION SPRING 1 37 417S30005 *P. 66 螺钉 SCREW 1 38 41727016 *P. 66 防空转弹簧 ANTI-SPIN SPRING 1 39 41718004 *P. 66 梭芯 BOBBIN 1 40 41703020 SA3283101 紧圈R SET SCREW COLLAR R 1 41 S09019 12500536 螺钉 M5 X 5 SET SCREW SOCKET (FT) M5 X 5 1 42 41718018 *P. 66 中旋梭 SHUTTLE HOOK 1 43 12923018 S32557001 油线 4 X 4 L=400 WICK 4X4 L=400 1 44 41711027 SA3278001 油毡 BUSH 1 45 4171028 滚针轴承 K8 X 12 X 11 NEEDLE BEARING 2 46 41711028 SA3276001 垫片 SPACER COLLER 2 47 41729005 切口卡簧 RETAINING RING 2 22

Page 116

F. 供油润滑装置 / Lubrication 23 jintex.in

Page 117 — F、供油润滑装置 / Lubrication

F、供油润滑装置 / Lubrication 序号 No. 公司件号 Part. No. 参考件号 No. 零件名称 NAME OF PARTS 数量 Amt. 备注 1 417S30022 SA3244001 螺钉 SET SCREW 1 2 41712065 SA4785001 曲柄盖 CRANK COVER 1 3 S04038 062061016 螺钉M6×10 SCREW PAN M6X10 3 4 41712066 SA4787001 曲柄供油板 CRANK WICK PLATE 1 5 S04035 062400616 螺钉M4×6 SCREW PAN M4X6 2 6 41723027 SA5294001 毡油线 FLAT WICK 0.27 7 41723005 SA4786101 油毡 FELT 1 8 41712067 SA3503201 下轴油支撑架 LOWER SHAFT WICK SUPPORT 1 9 41723006 SA3504201 下轴齿轮油毡 LOWER SHAFT GEAR FELT 1 10 S04035 018400636 螺钉M4×6 BOLT SOCKET M4X6 2 11 41712068 SA4788001 供油支架 WICK SUPPORT 1 12 S04035 062400616 螺钉M4×6 SCREW PAN M4X6 1 14 41723026 SA5292001 油线φ2.5 FLAT WICK 1 16 12921002 SA6576001 维尼龙油管 OIL TUBE 1 17 41712069 SA6087001 油线挂钩 WICK SUPPORT 1 18 41712070 104567101 油线支架 WICK SUPPORT 1 19 41711003 S49992000 油窗盖 OIL GAUGE WINDOW 1 19 41711021 挡片 1 19 41722030 橡胶圈 1 20 41711004 152948001 油窗盖 OIL GAUGE WINDOW 1 20 41711022 挡片 1 20 41722031 橡胶圈 1 23 12923018 SA5292101 油线4×4 WICK 4X4 0.68 24 12921002 S53175000 维尼龙油管 OIL TUBE 0.45 25 12921005 SA5072001 油管 OIL TUBE 0.3 25 12923018 油线4×4 WICK 4X4 0.4 26 12923019 SA5849000 油线6×6 WICK 6X6 0.3 27 41723011 S09043000 油毡 FELT 4 30 41712071 SA3246001 齿轮供油支架 GEAR WICK SUPPORT 1 31 41723031 SA3280001 油毡 GEAR FELT 1 32 41712072 SA47879101 油线夹B LOWER SHAFT WICK SUPPORT B 1 33 S04033 062060816 螺钉M6×8 SCREW PAN M6X8 1 34 41712073 145547001 回油管托 TUBE HOLDER 1 35 S04035 062400616 螺钉M4×6 SCREW PAN M4X6 1 36 12923019 S49957000 油线6×6 WICK 6X6 1 37 12921005 SA4791101 油管 OIL TUBE 0.82 38 41711014 电线夹6.4 CORD HOLDER 6.4 1 39 41711016 525567000 电线夹8.4 CORD HOLDER 8.4 1 40 417S30025 OA5401006 螺栓(带垫圈)M4×10DB SCREW PAN(S/P WASHER) M4X10 1 40 417S30025 OA5401006 螺栓(带垫圈)M4×10DB SCREW PAN(S/P WASHER) M4X10 6 41 41711014 525664000 电线夹6.4 CORD HOLDER6.4 1 42 417S30025 OA5401006 螺栓(带垫圈)M4×10DB SCREW PAN(S/P WASHER) M4X10 5 43 41712074 SA5259001 油盖 OIL COVER 1 45 403S11043 062401016 X向传感器螺钉组件 SCREW PAN M4X10 5 46 41736001 S38265000 管接头L TERMINAL L 1 47 41722016 142274101 橡胶套4.2 RUBBER CAP 4.2 1 52 41723026 S00400000 油线φ2.5 WICK 2.5X200 0.2 53 12921002 12921002 维尼龙油管 OIL TUBE 0.11 54 41736002 41736002 油嘴管 OIL FEEDING PIPE 1 55 41711016 525567000 电线夹8.4 CORD HOLDER 8.4 2 60 12921002 SA6577001 维尼龙油管 OIL TUBE 0.3 61 41711015 552907000 电线夹13.2 CORD HOLDER 13.2 6 63 41712110 SA6581001 油毡压板L WICK SUPPORT L 1 64 41723024 SA6583001 底板油毡L FELT BED L 1 65 S04035 062400616 螺钉M4×6 SCREW PAN M4X6 3 jintex.in 24

Page 118 — F . 供油润滑装置 / Lubrication

F . 供油润滑装置 / Lubrication 27 26 25 40 47 46 15 14 3 16 5 4 6 2 62 39 38 40 29 28 54 19 11 12 18 13 35 34 36 7 1 42 42 55 42 42 55 41 61 42 20 53 22 50 52 43 30 31 23 24 8 9 10 69 45 56 57 51 59 58 70 68 66 67 65 64 63 65 25 jintex.in

Page 119 — F、供油润滑装置 / Lubrication

F、供油润滑装置 / Lubrication 序号 No. 公司件号 Part. No. 参考件号 No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 66 W02008 028040246 弹垫2-4 WASHER SPRING 2-4 3 67 41712130 SA6582001 油毡压板R WICK SUPPORT R 1 68 41723018 SA6584001 底板油毡R FELT BED R 1 69 S02039 S25310101 螺钉M4×9 SCREW FLAT M4X9 3 26

Page 120 — G . 穿线装置 / Threading mechanism

G . 穿线装置 / Threading mechanism 27 jintex.in 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19 20 21 22 23 24 25 26 27 28 29 30 31 32

Page 121 — G. 穿线装置/Threading mechanism

G. 穿线装置/Threading mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41712077 SA3250001 过线导向 A ARM THREAD GUIDE A 1 2 S04030 62500616 螺钉 M5 × 6 SCREW PAN M5 X 6 1 3 41712078 SA4333001 过线导向 B ARM THREAD GUIDE B 1 4 S04030 0625006 16 螺钉 M5 × 6 SCREW PAN M5 X 6 1 5 41712079 SA6391001 过线器 C ARM THREAD GUIDE C 1 6 S04030 62500616 螺钉 M5 × 6 SCREW PAN M5 X 6 1 7 41702030 153049001 面线导向杆 UPPER THREAD GUIDE STUD 1 8 41713001 SA3254001 夹线座 TENSION BRACKET 1 9 41713002 *P.66 调节弹簧 THREAD TAKE-UP SPRING 1 10 41713003 SA3255001 夹线杆轴 TENSION STUP 1 11 138S16013 S31032001 夹线器螺母 TENSION NUT 1 12 41713005 159805001 夹线压盘 TENSION DISC PRESSER 1 13 41713006 145446001 夹线盘 DISC TENSION 1 14 417515012 100402004 固定螺钉SM3.57 SET SCREW SM3.75 1 15 S12001 5A4143001 螺钉 M6 × 8 SET SCREW (FT) M6 X 8 1 16 41702031 S12699000 松线销 TENSION RELEASE PIN 1 17 41713007 SA325600 1 夹线杆轴 A TENSION STUD A 1 18 41713006 145446001 夹线盘 DISC TENSION 2 19 41712080 159224001 线钩 THREAD GUIDE ARM 1 19 41722320 橡皮 RUBBER 1 19 N01024 螺母M4 NUT M4 1 20 41726014 P.67 针套 NEEOLE SLEEVE 1 21 41712082 SA3258001 针杆轴套线导向 D N-BAR BUSH THREAD GUIDE D 1 22 41203018 152881001 线冷却器组件 NEEDLE COOLER ASSY 1 22 41222019 塞头 RUBBER 1 23 S10019 12060636 螺钉 M6×6 SET SCREW SOCKET (FT) M6 X 6 1 24 41223043 152883000 油毡 8 X 15.5 FELT 8 X 15.5 1 25 41213008 152884001 过线钩 NEEDLE COOLER THREAD GUIDE 1 26 409S11017 62670412 螺钉 SM3.57-40 × 4 SCREW PAN SM3.57-40 X 4 1 27 41713009 100 136001 夹线螺母 TENSION NUT 1 28 41713012 SA4146001 弹簧 SUB TENSION SPRING 1 29 41713011 S12441001 止动垫圈 WASHER 1 30 41713010 *P. 66 夹线簧 TENSION SPRING 1 31 4171302000 主夹线器组件Q MAIN TENSION ASSY Q 1 32 4171301400 副夹线器组件 DEPUTY TENSION ASSY 1 28

Page 122 — H . 卷线装置 / Bobbin winder mechanism

H . 卷线装置 / Bobbin winder mechanism 29 jintex.in

Page 123 — H、卷线装置/Bobbin winder mechanism

H、卷线装置/Bobbin winder mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 41 701010 1 301382 SA4795001 顶盖 TOP COVER 1 41702033 SA3290001 卷线手柄 SHAFT BW-LEVER 1 S09019 12500556 螺钉M5 X 5 SET SCREW SOCKET (FT) M5 X 5 1 41709026 SA3291001 卷线手柄 BOBBIN WINDER LEVER 1 41702034 SA4171001 弹簧挂钩 SPRING HOOK 1 41712084 152936001 板弹簧 PLATE SPRING 1 41712085 152937001 垫圈 WASHER 1 S04077 62350616 螺钉 M3.5 X 6 SCREW PAN M3.5 X 6 1 W01015 15948600 1 垫圈 WASHER 1 H05006 48050342 挡圈 E5 RETAINING RING E5 1 41702035 SA3290001 卷线卡爪轴 STUD B-WINDER 1 41709027 SA1984001 卷线压臂柄 BOBBINPRESSER ARM 1 S01081 62401216 螺钉 M4 X 12 SCREW PAN 4 X 12 1 41712086 SA3291001 卷线压杆 BOBBIN PRESSER 1 417S15006 S23418002 螺钉 M4 X 5 SCREW M4 X 5 1 41709028 SA3295001 卷线卡爪 CLAW B-WINDER 2 S09006 12400436 螺钉 M4 X 4 SET SCREW SOCKET (FT)M4 X 4 1 41727007 S10438001 弹簧 SPRING TWIST 1 H05006 48050342 挡圈 E5 RETA NING RING E5 1 41708025 SA479600 1 垫片 SPRCR COLLER 1 41702036 SA3296001 卷线轴 BOBBIN WINDER SHAFT 1 11703021 SA329700 1 卷线器 WHEEL B-WINDER 1 41722017 120448001 橡皮圈 BOBBIN WINDER RUBBER BAND 1 S09006 12400436 螺钉 M4 X 4 SET SCREW SOCKET (FT) M4 X 4 2 W01015 15948600 1 垫圈 WASHER 1 41711063 SA1988001 卷线座 BOBBIN SUPPORT 1 41727008 S10268001 拉簧 SPRING 1 41702037 SA329800 1 止动轴 STPPER SHAFT B-WINDE 1 41719001 SA3299001 切刀 KNIFT 1 S04030 0625006 16 螺钉 M5 X 6 SCREW PAN M5 X 6 1 4171302100 SA1994101 卷线器夹线组件Q BOBBIN WINDER TENS ON ASSY Q 1 41713006 145446002 夹线盘 DISC TENSION 2 12927016 100401022 夹线弹簧 TENSION SPR NG 1 138S16013 S31032001 夹线螺母 TENSION NUT 1 41713011 S12441001 止动垫圈 WASHER 1 S09019 12500536 4 摆在T M5 X 5 SET SCREW SOCKET (FT) M5 X 5 1 S04038 62061016 螺钉 M6 X 10 SCREW PAN M6 X 10 6 41704002 SA479710 1 卷线驱动轮 DR VING WHEEL B-WINDER 1 S10018 S23651001 固定螺钉 M6 X 0.75-6 SET SCREW SOCKET (FT) M6 X 6 2 30

Page 124 — J . 切线装置 / Thread trimmer mechanism

J . 切线装置 / Thread trimmer mechanism 33 jintex.in

Page 125 — J、切线装置 / Thread trimmer mechanism

J、切线装置 / Thread trimmer mechanism 序号 No. 公司件号 Part. No. 参考件号 No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41710003 SA3301101 切线凸轮 THREAD TRIMMER CAM 1 2 S10018 S23651001 螺钉M6×0.75×6 45H SET SCREW SOCKET (FT) M6 X 6 3 3 41712087 SA4798001 电磁铁安装板 SETTING PLATE SOLENOID 1 4 41730001 SA5135001 切线电磁铁 THREAD TRIMMER SOLENOID 1 5 L02031 17400802 螺钉全螺栓 M4×8 BOLT M4X8 2 6 W02008 28040246 弹垫 WASHER SPRING 2-4 4 7 W01001 25040236 M4垫片 WASHER PLAIN M4 2 8 41702038 SA3307001 电磁铁杆 SOLENOID LEVER 1 9 S09006 12400436 螺钉M4×4 SET SCREW SOCKET (FT) M4 X 4 1 11 41728033 S02445001 垫圈 WASHEWR 1 13 417S30306 S55484002 螺栓M5×15 BOLT SCREW SOCKET M5 X 10 2 14 41712088 SA4799001 驱动压杆 PUSHING LEVER D-LEVER 1 15 417S30012 SA3306001 段螺钉7-3 SHOULDER SCREW 7-3 1 16 4171211100 SA3309101 切线驱动杆组件 TR-DRIVING LEVER 1 17 41703022 SA3310001 切线滚轮 COLLAR TR-TRIMMER 1 18 41702039 SA3311001 切线滚轮轴 COLLAR SHAFT 1 19 417S12009 SA9003001 螺钉 M4×5 SET SCREW M4 X 5 1 20 H05029 48040342 挡圈E4 RETAINING RING E4 1 21 41702040 SA3315001 切线杆V THREAD TRIMMER RODV 1 22 4170500300 S32465001 接头组件 BALL JOINT ASSY 2 23 N01021 21060106 螺母M6 NUT 1 M6 2 24 417S12005 S32462001 段螺钉B M6 SHOULDER SCREW B M6 1 25 N01012 21060306 螺母M6 NUT 3 M6 1 26 S10018 S23651001 螺钉M6×0.75×6 45H SET SCREW SOCKET (FT) M6 X 6 1 27 41703023 231071001 轴套8×15 BUSH 8X15 1 28 41702041 SA3312001 驱动杆导向轴 GUIDE SHAFT 1 29 41727009 SA3313101 弹簧 SPRING COMPRESSION 1 30 41722018 154596000 减震垫圈 CUSHION 1 31 417S12005 S32462001 段螺钉B M6 SHOULDER SCREW B M6 1 32 N01012 21060306 螺母M6 NUT 3 M6 1 33 417S10003 S25475101 螺钉M6×19 SET SCREW M6 X 19 1 34 N01021 21060106 螺母M6 NUT 1 M6 1 35 41712089 SA4546001 切线杠杆V THREAD TRIMMER LEVER V 1 36 41712090 SA3317001 切线杠杆H THREAD TRIMMER LEVER H 1 37 41712091 SA4801001 切线杠杆H THREAD TRIMMER ROD H 1 38 4170500300 S32465001 接头组件 BALL JOINT ASSY 2 39 N01021 21060106 螺母M6 NUT 1 M6 1 40 417S12005 S32462001 段螺钉B M6 SHOULDER SCREW B M6 1 41 N01012 21060306 螺母M6 NUT 3 M6 1 42 41702042 SA3319101 切线杠杆轴 SHAFT TR-TRIMMER LEVER 1 43 41728023 SA4545001 垫片 SPACER 2 44 H03006 48080142 挡圈8 RETAINING RING EXTERNAL C8 1 45 S10019 12060636 螺钉M6X6 SET SCREW SOCKET (FT) M6 X 6 2 46 41712092 SA3320101 弹簧挂钩 SPRING HOOK 1 47 41727010 SA3321001 切线复位弹簧 SPRING EXTENSION 1 48 S05123 18501236 螺栓M5×12 BOLT SOCKET M5 X 12 1 49 W02001 28050246 标准型弹簧垫圈5 WASHER SPRING 2-5 1 32 jintex.in

Page 126 — J . 切线装置 / Thread trimmer mechanism

J . 切线装置 / Thread trimmer mechanism 33 jintex.in

Page 127 — J, 切线装置 / Thread trimmer mechanism

J, 切线装置 / Thread trimmer mechanism 序号 No. 公司件号 Part. No. 参考件号 No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 50 41728028 146354002 垫圈5 WASHER PLAIN 5 1 51 41709029 41709029 动刀曲柄 MOVING KNIFE LEVER 1 52 417S12007 SA3325001 段螺钉 6.35-6 SHOULDER SCREW 6.35-6 1 53 41702043 SA4802001 动刀杆轴 SHAFT MOVABLE KNIFE LEVER 1 54 S10019 12060636 螺钉 M6X6 SET SCREW SOCKET M6X6 1 55 41712093 SA3327101 动刀连杆 M-KNIFE CONNECTING PLATE 1 56 417S30013 SA4354001 段螺钉 6-1.8 SHOULDER SCREW 6-1.8 1 57 4171500100 SA5157001 针板A组件 NEEDLE PLATE A 1 58 4170903000 SA3330001 动刀组件 F MOVABLE KNIFE ASSY F 1 59 417S30014 SA4518001 段螺钉 MOVABLE KNIFE SHOULDER SCRE 1 60 41728007 SA4519001 动刀圆套 THRUST WASHER 1 61 41728008 S00705001 动刀圆套 MOVABLE KNIFE COLLAR 1 62 41728009 SA6297001 垫片 0.2 M-KNIFE SPACER T0.2 1 62 41728009 SA3334001 垫片 0.3 M-KNIFE SPACER T0.3 1 62 41728009 SA6398001 垫片 0.4 M-KNIFE SPACER T0.4 1 63 41719002 SA3335001 定刀 F FIXED KNIFE F 1 64 S04036 062300416 螺钉 M3x4 SCREW PAN M3 x 4 2 65 W01002 26030236 垫圈 M3 WASHER PLAIN M3 2 66 41712094 *P.66 针孔板 NEEDLE HOLE PLATE 1 67 417S17001 100360003 螺钉 SM3.38 SCREW 2 68 S02039 S25310101 螺钉 M4x9 BOLT SOCKET M4 x 9 2 69 417S15008 SA3538001 螺钉 M4x8 BOLT SOCKET M4 x 8 2 70 41712095 SA6273001 大旋盖挂钩 U SHUTTLE BASE COVER HOOK U 1 71 w02007 028030246 弹簧垫圈2-3 WASHER SPRING 2-3 2 72 W01002 026030236 垫圈 M3 WASHER PLAIN M3 2 73 S04036 062300416 螺钉 M3x4 SCREW PAN M3 X 4 2 34

Page 128 — K . 扫线装置 / Thread wiper mechanism

K . 扫线装置 / Thread wiper mechanism 1 1-4 1-2 3 16 26 28 27 25 5 7 1-4 25 24 17 19 18 11 12 20 15 14 13 8 9 10 23 22 21 35 jintex.in

Page 129 — K, 扫线装置/Thread wiper mechanism

K, 扫线装置/Thread wiper mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 Amt. 1 41730002 SA5208001 扫线电磁铁组件 THREAD WIPER SOLENOID ASSY 1 1-2 41727011 S41206001 挡线弹簧 THREAD WIPER SPRING 1 1-4 41728011 S41205001 平垫圈 WASHER PLAIN 1 1-4 41726007 S25456001 柱塞销 PLUNGER PIN 3 5 41712210 SA5217001 扫线电磁铁安装板 T-WIPER SOLENOID SETTING PLATE 1 6 41711210 SA4806001 电磁铁盖Q SOLENOID COVER Q 1 7 S04082 062300616 螺钉 M3 X 6 SCREW PAN M3 X 6 6 8 41712096 SA5218001 扫线轴托架 THREAD WIPER SHAFT BRACKET 1 9 S05116 018400836 螺栓 M4X8 BOLT SOCKET M4x8 1 10 W01001 025040236 平垫圈 M4 WAS HER PLAN M4 1 11 4170204400 SA1967001 扫线曲柄组件 THREAD WIPER CRANK ASSY 1 12 H05029 048040342 挡圈 E4 RETAINING RING E4 1 13 41708007 S25454001 螺纹紧圈 SET SCREW COLLAR 1 14 417S15005 S25279001 螺钉M3.5-5 SET SCREW (CP)M3. 5-5 1 15 41727012 SA2287001 扭簧 SPRING 1 16 41722012 扫线电磁铁橡胶垫圈 RUBBER WASHER 1 17 41712097 SA5219001 扫线杆 THREAD WIPER ROD 1 18 W01024 110735001 垫圈 WASHER 1 19 H05002 048030342 挡圈 E3 RETAINING RING E3 1 20 41712098 S10470101 扫线钢丝 WIPER 1 21 417S15013 060400516 螺钉 M4 X 5 SCREW BIND M4 X 5 1 22 41708008 146288001 扫线轴挡圈 THREAD WIPER STUD COLLAR 1 23 41728034 S03677001 垫圈 WASHER 1 24 41730003 SA5213001 停止开关组件 STOP SWITCH ASSY 1 25 417S30306 S55485001 螺栓(带垫圈) M5X15 BOLT SOCKET (S/P WASHER) M5 X 15 2 26 41730022 电磁阀接线 SOLENOID VALVE WIRING 1 27 41730059 扫线开关插件A WIPER SWITCH PLUG INS B 1 28 141730001 急停开关接插件B STOP SWITCH PLUG INS B 1 jintex.in 36

Page 130 — L. Tension release mechanism

L. 松线装置 / Tension release mechanism 37 jintex.in

Page 131 — L, 松线装置/Tension release mechanism

L, 松线装置/Tension release mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 零 部件 名称 NAME OF PARTS 数量 Amt. 备注 1 41730004 SA485500 1 松线电磁铁 HV TENSION RELEASE SOLENOID HV 1 2 L02031 17400802 螺栓 M4 X 8 BOLT M4 X 8 2 3 W02008 28040246 弹簧垫圈 2-4 WASHER SPRINC 2-4 2 4 W01001 25040236 平垫圈 M4 WASHER PLAIN M4 2 5 L02071 17401415 螺栓 M4 X 18 BOLT M4 X 18 1 1-6 N01024 21400306 六角螺母 M4 NUT 3 M4 1 1-7 W01001 25040236 平垫圈 M4 WASHER PLANT M4 1 1-8 41722020 154599000 电磁铁缓冲垫圈 SOLENOID CUSHION 1 9 41712099 SA6389001 电磁铁安装板 SETTING PLATE SOLENOID 1 1-10 11211005 S04159000 线夹 1M BAND 1M 1 11 41702045 SA3347001 松线杆 TENSION RELEASE BAR 1 12 H05029 48040342 挡圈 E4 RETAINING RING E4 1 13 W01009 25050236 平垫圈 M5 WASHER PLAIN M5 1 14 417270 13 SA3348001 弹簧 SPRING COMPRESSION 1 15 41711211 SA3349001 电磁铁盖 SOLENOID COVER 1 16 417S300 12 SA3306001 段螺钉 7-3 SHOULDE SCREW 7-3 2 17 41722021 81007070 0形圈 P7 O RING P7 2 1-18 11211005 218859001 电线夹 M150 BINOER M150 1 38

Page 132 — M.电控装置/Electronic control device

M.电控装置/Electronic control device 10 8 7 6 5 4 3 2 1 12 13 14 15 16 11 39 jintex.in

Page 133 — M、电控装置/Electronic control device

M、电控装置/Electronic control device 序号 No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 件号 Part. No. 41730450 41330121 41730451 41330124 41730449 41730452 41330129 41730453 41730448 4173044800 41730446 41730454 810087 41730447 41730455 810530 参考件号 Ref. No. 零部件名称 NAME OF PARTS 基板 BASE PLATE 短柱 SHORT COLUMNS 前板 FRONT PLATE 长柱 LONG COLUMNS 主板 PCB 1 盖 COVER 螺钉 SCREW 后板 BACK PLATE 电路板2 PCB 2 控制箱组件 CONTROL PANEL 触摸屏 TOUCH-SCREEN 前盖 FRONT COVER 玻璃 SUPPORT STRIP 电路板3 PCB 3 后盖 BACK COVER 连接线 CONNECTERS 数量 Amt. 1 5 1 7 1 1 12 1 1 1 1 1 1 1 1 1 备注 40

Page 134 — P. 空压装置 / Air pressure mechanism

P. 空压装置 / Air pressure mechanism 41

Page 135 — P、空压装置/Air pressure mechanism

P、空压装置/Air pressure mechanism 序号 No. 公司件号 part.No. 参考件号 Ref. No. 零部件名称 零部 NAME OF PARTS 数量 Amt. 备注 <For Pneumatic type> 1 42130096 SA6573001 手动开关VHK3 VALVE VHK3 1 2 141845004 SA5282001 气源处理元件 AIR VALVE 1 3 417S30026 S09228000 接头 JOINT 1 4 407S12002 153274001 汇流板密封螺钉 SCREW 2 5 41730014 SA5289001 连阀座7V0500M3F MANIFOLD2 1 6 40728003 SA5283001 消声器 SILENCER 2 7 41730012 S39116100 电磁阀 M5B075-02-R-B VALVE M5B075-02-R-B 2 8 41730013 电磁阀接头 VALVE CONNECTOR 4 9 41730033 S53982000 隔板 BLANK NG PLATE ASSY 3 10 417S30024 18503036 螺栓M4 X 30 BOLT SOCKET M4 X 30 2 11 41712106 SA5286001 阀安装板 SETTING PLATE VALVE 1 12 N01024 六角螺母M4 NUT M4 2 13 417S30025 OA5401006 螺栓(带垫圈) M4X10DB SCREW PAN M4X10 1 14 41711016 525664000 电线夹 13.2 CORD HOLDER 13.2 1 17 61911006 SA6406001 空气管 L AIR TUBE L 2 18 61911006 SA6405001 空气管 R AIR TUBE R 2 19 61911006 SA6405002 空气管 R AIR TUBE R 2 20 61911006 SA6406002 空气管 L AIR TUBE L 2 42

Page 136 — Q . 电气部品装置 / Power supply equipment mechanism

Q . 电气部品装置 / Power supply equipment mechanism 43 jintex.in

Page 137 — Q、电气部品装置/Power supply equipment mechanism

Q、电气部品装置/Power supply equipment mechanism 序号 No. 公司件号 part.No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41711015 525567000 电线夹13.2 CORD HOLDER 13.2 3 2 41711014 149547000 电线夹6.4 CORD HOLDER 6.4 1 3 41711017 525567000 电线夹16 CORD HOLDER 16 3 4 417S30025 OA5401006 螺栓M4X10DB SCREW PAN M4X10DB 7 5 4173000500 SA4830001 传感器组件 H-POSITION SENSOR ASSY 1 6 S04076 62300816 螺钉M3X8 SCREW PAN M3X8 3 7 41730006 SA3481001 机头开关组件 SWITCH ASSY MACHINE HEAD 1 8 417S30023 OA5301605 螺栓M3X16DB SCREW PAN(S/PWASHER) M4X16DB 2 9 417S30025 OA5401006 螺栓M4X10DB SCREW PAN(S/PWASHER) M4X10DB 2 10 41730030 SA4824001 头部检测出复合件 HEAD DETECTOR UNIT ASSY 1 11 41730007 SA5210001 电磁铁接线 THREAD WIPER SOLENOID HARNESS 1 12 41730008 SA521400 1 开关接线 STOP SWITCH HARNESS 1 13 41730009 SA5261001 接地线450 GROUND WIRE 450 1 14 417S30025 OA5401006 螺栓M4X10DB SCREW PAN(S/P WASHER) M4 X 10D8 1 15 41711025 554482000 电线夹19 CORD HOLDER 19 1 16 41711026 554482000 电线夹23 CORD HOLDER 23 1 17 417S30025 OA5401006 螺栓M4X10DB SCREW PAN(S/P WASHER)M4X 10 2 21 11211005 S04159000 扎带(小) BAND 8 44

Page 138 — S . 马达装置 / Motor mechanism

S . 马达装置 / Motor mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 45 jintex.in

Page 140 — T. 踏板关系 / Foot switch pedal mechanism

T. 踏板关系 / Foot switch pedal mechanism <电磁式 / For solenoid type > <空压式 / For Pneumatic type > 1 2 6 7 4 3 5 8 5 47 jintex.in

Page 141 — T、踏板关系/Foot switch pedal mechanism

T、踏板关系/Foot switch pedal mechanism 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 <电磁式> 1 4173001200 SA3519101 脚踏复合件 A <气压式> 2 4173004500 SA6038001 2连脚踏开关组件 3 41727018 S38168001 弹簧 4 41727018 S38170001 弹簧 5 41730046 S36260000 开关 VX 6 41712115 S38174000 脚踏板 7 41712116 S38175001 脚踏护板 8 41712117 S38176101 弹簧板 NAME OF PARTS <For Solenoid type> TREADLE UINT. A ASSY <For Pneumatic type> 2-PEDAL FOOT SWITCH SW ASSY SPRING COMPRESSION 10×30 FOOT PEDAL SPRING PIN BUTTON MICRO SWITCH VX FOOT PEDAL PROTECTION PLATE PEDAL SPRING PLATE 数量 Amt. 1 1 1 2 3 2 2 备注 48

Page 142

Z. 附件 / Accessories 10 11 16 15 23 24 25 26 27 28 22 19 18 17 20 21 78 93 83 84 92 14 12 89 9190 94 95 88 82 100 102 97 98 101 101 30 29 103 105 31 13 1 3 7 8 106 4 5 9 106 128 129 118 108 129 119 108 112 120 121 122 113 117 116 114 115 111 110 109 49 jintex.in

Page 143 — Z、附件/Accessories

Z、附件/Accessories 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 1 41711212 SA4842001 马达盖Q MOTOR COVER Q 1 3 S04038 62061016 螺钉 M6 X 10 SCREW PAN M6 X 10 4 4 41711031 SA4844001 油盘 OIL PAN 1 5 41711006 154467001 废油回收盖 DUST OILER COVER 1 7 41722005 SA3540001 缓冲橡皮垫 RUBBER CUSHION 3 8 101530010 109714000 钉 NAIL 7 9 41711066 114486002 废油回收盖 DUST OILER 1 10 20131076 122991001 15×9袋 ACCESSORY BAG 1 11 41712355 针板专用螺丝刀 SCREW-DRIVER FOR 1 12 41718004 S44633001 梭芯 LAN BOBBIN LAN 3 13 41532020 脚轮 CASTERS 4 14 41217002 *P.67 机针 NEEDLE 5 15 11631008 114483002 油壶组件 OILER ASSY 1 16 1011101200 S55663001 油壶组件(大) OIL TANK ASSY 1 17 10131004 142443001 螺丝刀(小) SCREW-DRIVER 1.9 X 52 1 18 10131003 118837001 螺丝刀(中) SCREW-DRIVER 3.4 X 70 1 19 10131002 101572102 螺丝刀(大) SCREW-DRIVER 5.5 X 190 1 20 30131005 107779001 扳手 6 X 7 WRENCH 6 X 7 1 21 30131006 100877001 双头扳手 8 X 10 WRENCH 8 X 10 1 22 20131051 镊子 TWEIZERS 1 23 30131007 S07783001 内六角扳手1.5 HEXAGONAL WRENCH 1.5 1 24 20131046 142002001 内六角扳手2 HEXAGONAL WRENCH 2 1 25 30131010 154125001 内六角扳手2.5 HEXAGONAL WRENCH 2.5 1 26 30131012 142721001 内六角扳手3 HEXAGONAL WRENCH 3 1 27 30131047 118064001 内六角扳手4 HEXAGONAL WRENCH 4 1 28 20131056 150335001 内六角扳手5 HEXAGONAL WRENCH 5 1 29 1383100300 S40574209 线架组件 COTTON STAND ASSY 1 30 40730010 螺旋气管 SPIRAL TUBE 1 31 40736001 螺纹套管接头 SPIRAL TUBE JOINT 1 78 140744001 144226001 防锈袋 RUST-PROOF BAG 1 82 4121208400 S44485001 护眼板组件 EYE GUARD ASSY 1 83 4121208100 S44483001 铰链组件 HINGE ASSY 1 84 41212082 S44484001 护眼板铰链 EYE GUARD HINGE 1 88 41211005 S44485001 护眼板 EYE GUARD 1 89 412S17004 61660806 螺钉 SM3. 18-40 X 8 SCREW FLAT SM3. 18-40 X 8 2 90 412S16012 21660102 螺母 M3. 18 NUT M3. 18 2 91 41228047 26030232 平垫圈 M3 WASHER PLAIN M3 2 92 41211005 S44486101 护眼板架 A EYE GUARD HOLDER A 2 93 401S11022 62670512 螺钉 SM3. 57-40 X 5 SCREW PAN SM3.57-40 X 5 2 94 S04035 62400616 螺钉 M4 X 6 SCREW PAN M4 X 6 2 jintex.in 50

Page 144 — Z. 附件 / Accessories

Z. 附件 / Accessories 10 11 16 15 23 24 25 26 27 28 22 19 18 17 20 21 78 93 83 84 82 92 94 95 89 9190 88 14 12 13 100 97 98 101 102 101 103 105 29 30 31 1 3 7 8 106 4 5 106 9 128 129 119 108 129 120 121 122 117 116 114 115 110 109 106 118 112 113 111 107 51 jintex.in

Page 145 — Z、附件/Accessories

Z、附件/Accessories 序号 No. 公司件号 Part. No. 参考件号 Ref. No. 零部件名称 NAME OF PARTS 数量 Amt. 备注 Amt. 97 41722033 SA3395001 橡皮校链 RUBBER CUSHION 2 98 41712131 SA3392001 垫片 SPACER 2 99 41726019 SA3384001 机头支承销 PIN 2 100 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (CP) M6 X 6 2 101 41712132 SA3385001 头部铰链座 HINGE HOLDER 2 102 S05112 18066036 螺栓 M6 X 60 BOLT SOCKET M6 X 50 4 103 41728030 213650001 垫圈 2.3 X 8.5 X 38 WASHER 2.3 X 8.5 X 38 4 105 N01021 21060106 螺母 M6 NUT M6 4 106 41722005 SA3540001 缓冲皮垫 RUBBER CUSHION 4 107 41730010 SA4845001 缓冲器 SHOCK ABSORBER GAS 1 108 301671 41712113 缓冲器支架 HOLDER ABSORBER 2 109 41703027 SA5251001 垫圈 SPACER 1 110 S05117 18064031 螺栓 M6 X 40 BOLT SOCKET M6 X 40 1 111 N01021 21060106 螺母 M6 NUT 1 M6 1 112 41702023 SA4847001 轴 U SHAFT U 1 113 S10019 12060636 螺钉 M6 X 6 SET SCREW SOCKET (CP) M6 X 6 1 114 41702024 S17974001 轴 D SHAFT D 1 115 41703028 S17975100 轴套 GS SHAFT COLLAR GAS 2 116 41728018 25080132 垫圈 S8 WASHER PLAIN S8 2 117 H05031 48060342 挡圈 E6 RETAINING RING E6 2 118 S05112 SA3387001 螺栓 M6 X 60 BOLT SOCKET M6 X 60 2 119 W01003 25060236 平垫圈 M6 WASHER PLAIN M6 2 120 41728030 213650001 垫圈 2.3 X 8.5 X 38 WASHER 2.3 X 8.5 X 38 2 121 W02009 28060246 弹簧垫圈 2-6 WASHER SPRING 2-6 2 122 N01021 21060106 螺母 M6 NUT 1 M6 2 128 301672 41712114 支架盖 HOLDER ABSORBER COVER 1 129 417S13008 S55479001 螺栓(带垫圈) M4 X 8 BOLT SOCKET(S/P WASHER)M4 X 8 6 52

Page 146 — Ga. 工具一览表 / Gauge parts list

Ga. 工具一览表 / Gauge parts list 压脚 / Presser foot A / S42843-001 * B / S42844-001 C / S42845-001 D / S42846-001 E / S42847-001 F / 157237-001 G / 158592-001 J / S42848-001 A-CUT / S40214-001 B-L / S49448-001 XA / S42849-101 H / SA4811-001 * 针孔板 / Needle hole plate 2.4 C0.4 / SA3336-001 * 2.2 / SA5221-001 * 3.0 C1.5 / SA5222-001 * 印有*记号的为标准零部件 The * symbol is for Standard parts. 53 Jinte.in
